2015 Case 750M For Sale in Fort Worth, Tx

Name: 2015 Case 750M
Brand: Case
SKU: 88558397
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

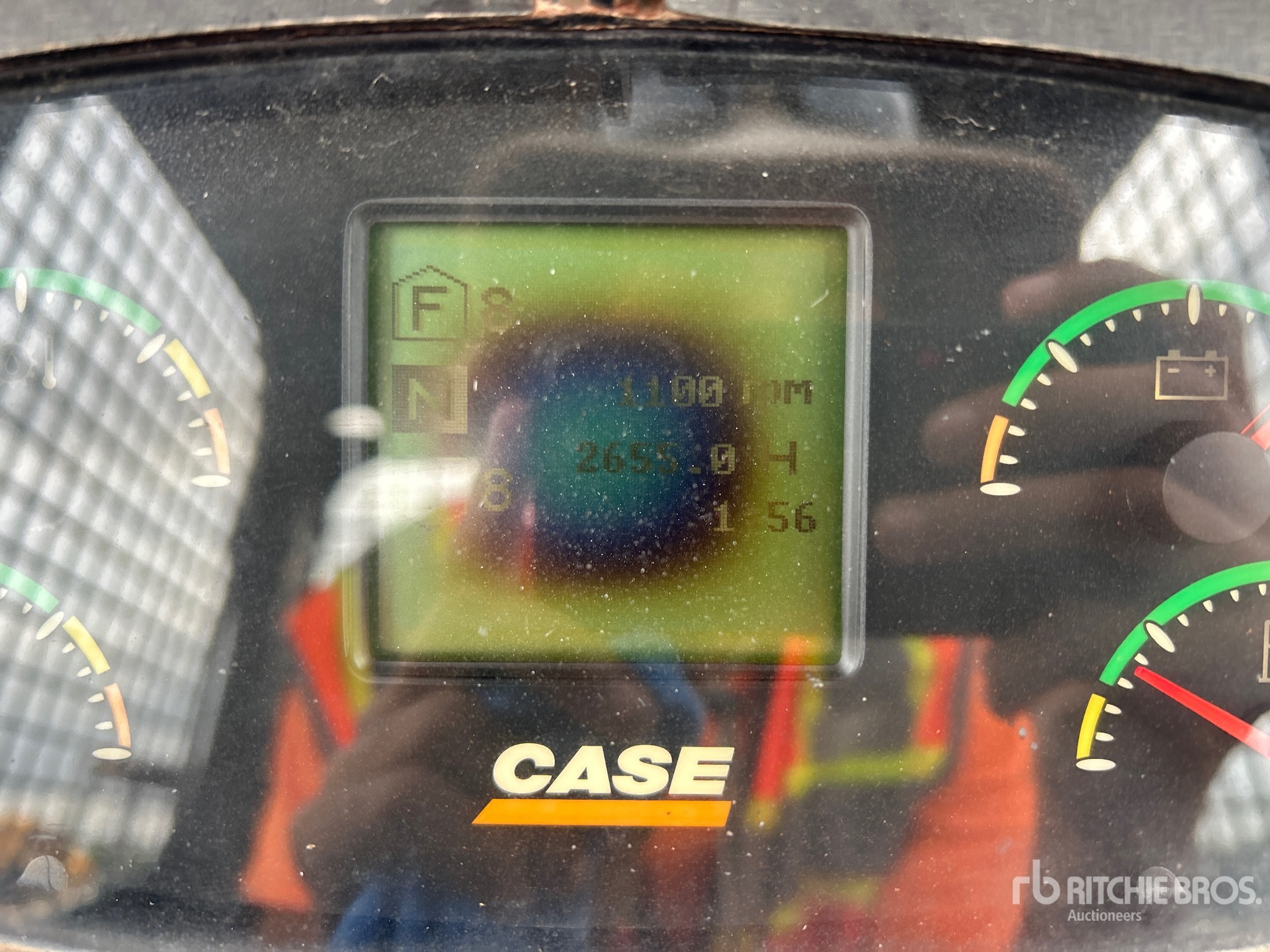

Hours:	2655

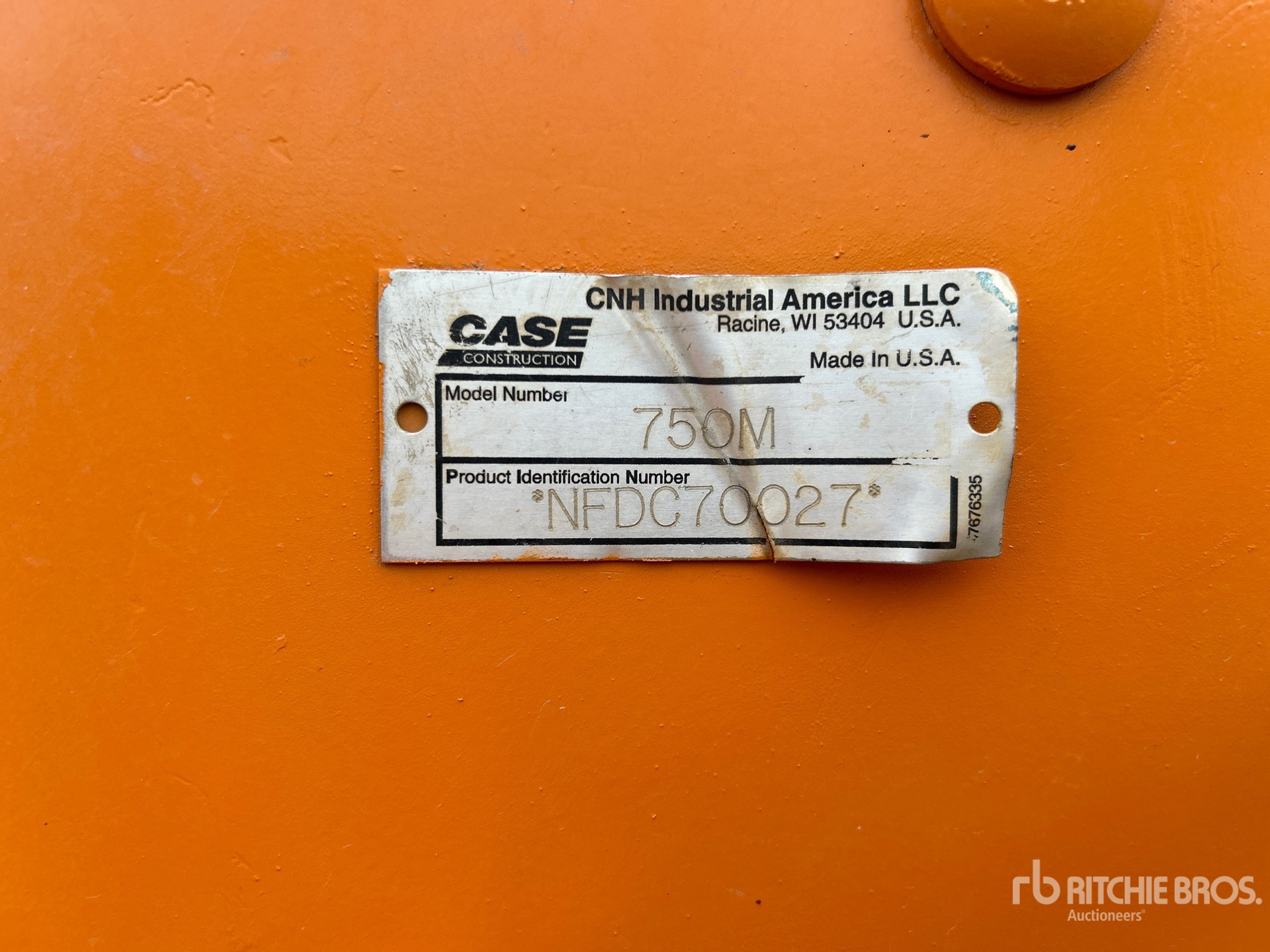

Serial Number:	NFDC70027
Machine Location:	FORT WORTH, TX

Description:

Located in Lane 1 Spot 4, Open Operator Station, Sweeps, 104 in Wide PAT Blade, 18 in Single Grouser Track Shoes, 2 Cylinder Multi-Shank Ripper

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 750M is a crawler dozer designed for grading, earthmoving, and site preparation in construction and land development applications. It is part of Case Construction Equipment's M Series dozer line and is commonly used for pushing material, rough grading, backfilling, and finish work. The 750M features a tracked undercarriage for traction and stability on uneven terrain, along with a blade system suited to dozing and leveling tasks. Typical configurations may include a six-way blade, hydrostatic drive, and operator controls designed for precise machine handling. The model is used in utility, roadbuilding, and general earthmoving operations.

Blades
Blade Capacity	2 cu yd (2 cu m)
Blade Type	PAT
Blade Width	10 ft (3 m)
Capacities
Engine oil with filter	2 gal (8 l)
Dimensions
Blade depth below ground	23 in (58 cm)
Blade lift above ground	34 in (86 cm)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Drive System
Final drive	2 helical gear
Max drawbar pull	41,005 lbs (18,600 kg)
Parking brakes	Heavy-duty spring-applied
Electrical System
Alternator	120 amp
Batteries	2 volts
Battery	12-volt low-maintenance
Engine
Displacement	208 cu in (3,400 cu cm)
Emission Tier Level	Tier3
Engine Model	FPT F5HFL413J
Fuel	2 Diesel
Fuel tank	50 gal (189 l)
Gross Power	96 hp (72 kw)
Net Power	92 hp (69 kw)
Number of Cylinders	4
Power Measured @	2,200 rpm
Pump operating angles - Fore and aft	45 degrees
Pump operating angles -Side-to-side	35 degrees
Transmission Type	Hydrostatic
Hydraulic System
Lift cylinder - Rod diameter	2 in (5 cm)
Lift cylinder - Stroke	16 in (40 cm)
Lift cylinder(s)	2
Lift cylinder-Bore diameter	4 in (9 cm)
Pump Flow Capacity	2,476 gpm (9,373 lpm)
Pump type	Variable Displacement Piston
Operating Specifications
Long track	20,040 lbs (9,090 kg)
Low ground pressure	20,666 lbs (9,374 kg)
Operating Weight	20,666 lbs (9,374 kg)
Winch	1,982 lbs (899 kg)
Performance
Pump Flow	20 gpm (77 lpm)
Transmission
Max Speed - Forward	5 mph (8 kph)
Max Speed - Reverse	5 mph (8 kph)
Undercarriage
Number of bottom rollers per side	6
Number of Shoes per Side	39
Number of Upper Rollers	1
Width of Shoes	28 in (71 cm)
Weights
Cab	560 lbs (254 kg)
counterweight	827 lbs (375 kg)
Ripper weight	1,400 lbs (635 kg)
