Equipment ↠ Caterpillar ↠ Scrapers ↠ 631G ↠ 2004 Caterpillar 631G

2004 Caterpillar 631G For Sale in Fort Worth, TX

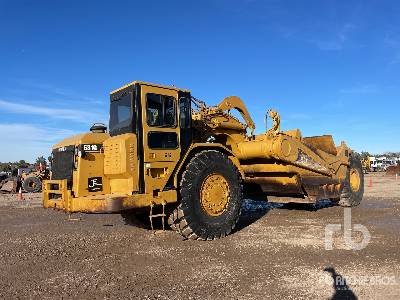

Name: 2004 Caterpillar 631G
Brand: Caterpillar
Price: 1 USD
Availability: InStock

Auction Pricing

Click here to bid and see more info →

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	24853
Serial Number:	CAT0631GCCLR00401
Machine Location:	FORT WORTH, TX

Description:

Enclosed Cab, Air Conditioner, Air Ride Seat, Cushion Hitch, 37.25-35 Tires LOCATED-IN-FORT-WORTH-TX

From the manufacturer:

Bowl
Heaped Capacity	31
Max Depth of Cut	17
Rated Payload	75,000
Struck Capacity	21
Width of Cut	12
Dimensions
Axle to Vertical Hitch Pin	22
Height - Overall Shipping	168
Height - Scraper Blade Maximum	22
Height - Top of Cab	12
Length - Overall Machine	573
Overall Height	14
Overall Length	48
Overall Width	13
Tractor Ground Clearance	2
Wheelbase	29
Width - Inside of Bowl	134
Width - Outside Rear Tires	143
Width - Tractor	137
Engine
Tractor Engine	3408E
Hydraulic System
Apron Cylinder Bore	8
Apron Cylinder Stroke	29
Bowl Cylinder Bore	7
Bowl Cylinder Stroke	34
Compensator Settings - Cushion Hitch Circuit	2,320
Cushion Hitch Circuit	9
Ejector Cylinder Bore	8
Ejector Cylinder Stroke	74
Relief Valve - Implement Circuit	2,030
Relief Valve - Steering Circuit	1,987
Scraper Circuit	91
Secondary Steering Circuit	77
Steering Circuit	103
Operating Specifications
Alternator Supplied Amperage	75
Cooling System Fluid Capacity	32
Differential Fluid Capacity	36
Engine Oil Fluid Capacity	12
Fuel Capacity	215
Hydraulic System Fluid Capacity	50
Operating Voltage	24 V
Tire Size	37.50-R35
Transmission Fluid Capacity	33
Wheel Coolant Fluid Capacity - each	20
Scraper Bowl
Apron Closure Force	38,250
Apron Opening	79
Capacity - Struck	21
Capacity Heaped	34
Cutting Edge Thickness	2
Depth of Spread - Maximum	19
Ground Clearance - Maximum	22
Hyd. Penetration Force - 621G	57,375
Rated Load	75,000
Scraper Capacity - Heaped	31
Service Refill Capacities - Scraper
Wheel Coolant - Each	20
Service Refill Capacities - Tractor
Cooling System	32
Crankcase	12
Differential	36
Final Drive - Each	7
Hydraulic Reservoir	50
Transmission	33
Wheel Coolant - Each	20
Windshield Washer	6
Standards
Brakes	Meets ISO 3450: 1996 standard
Steering System
Ground-Driven Secondary Steering System	51
Hydraulic Output	96
Steering Angle - Left	85
Steering Angle - Right	90
Width - 180 degrees Turn	40
Tractor Engine
Caterpillar Net Power	490
Displacement	1,099
EEC 80/1269	490
Flywheel Power - Tractor/Scraper	373 kW (500)
Gross Power	515
Gross Power - Gears 3-8	515
ISO 9249	490
Make	Caterpillar
Model	3408E
Net Power - Gears 1-2	450
Net Power - Gears 3-8	490
Net Power - Tractor/Scraper	336 kW (450)
SAE J1349	490
Transmission
1 Forward	3
2 Forward	5
3 Forward	7
4 Forward	10
5 Forward	13
6 Forward	18
7 Forward	25
8 Forward	33
Max Speed Forward	33
Max Speed Reverse	6
Number of Forward Gears	8
Number of Reverse Gears	1
Reverse	6
Top Speed - Loaded	33
Transmission Type	8-speed automatic Powershift with Electronic Control
Weights
Front Axel - loaded	94,054
Front Axle - empty	68,648
Operating Weight	102,460
Rear Axle - empty	33,812
Rear Axle - loaded	83,406
Total Operating - empty	102,460
Total Operating - Loaded	177,460
Weights - Standard, Tandem
Front Axle	68,648
Front Axle Weight - Loaded	94,054
Rear Axle	33,812
Rear Axle - Weight - Loaded	83,406
Scraper Shipping	54,004
Total Operating - Empty	102,460
Total Operating - Loaded	177,460
Total Shipping	100,006
Tractor Shipping	46,002
