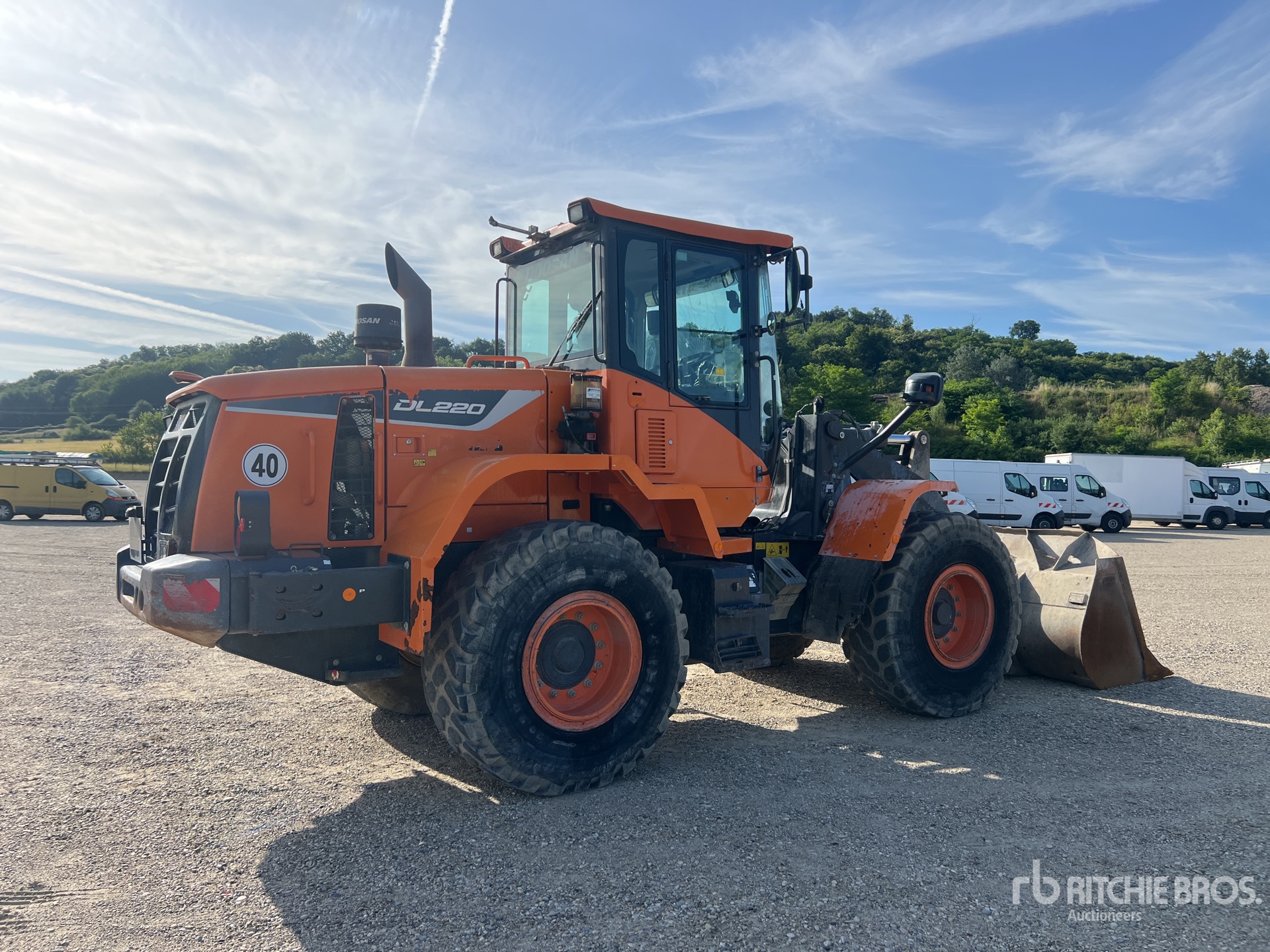

2020 Doosan DL220-5 For Sale in St Aubin Sur Gaillon, Fra

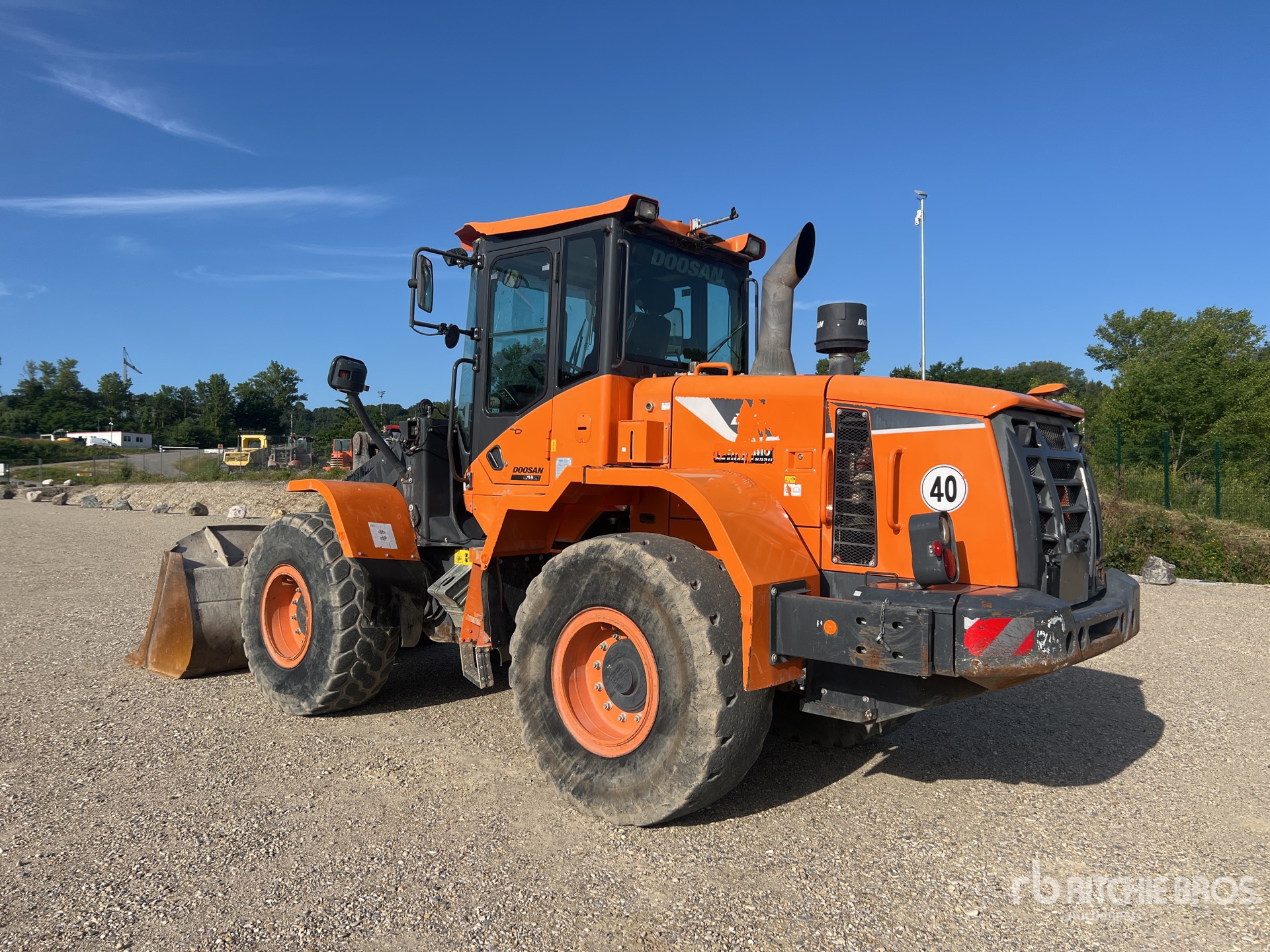

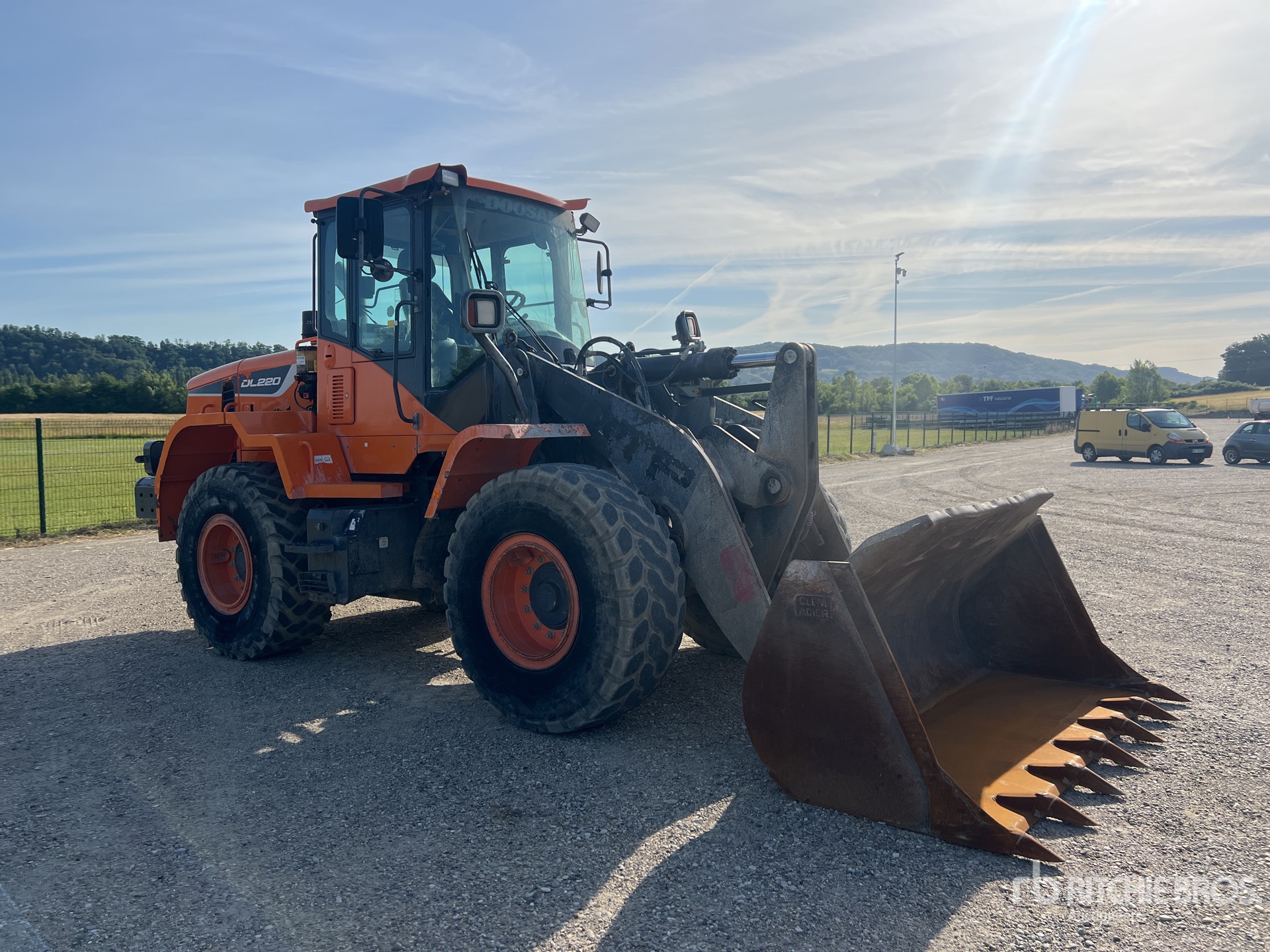

Name: 2020 Doosan DL220-5
Brand: Doosan
SKU: 88578482
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-23

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

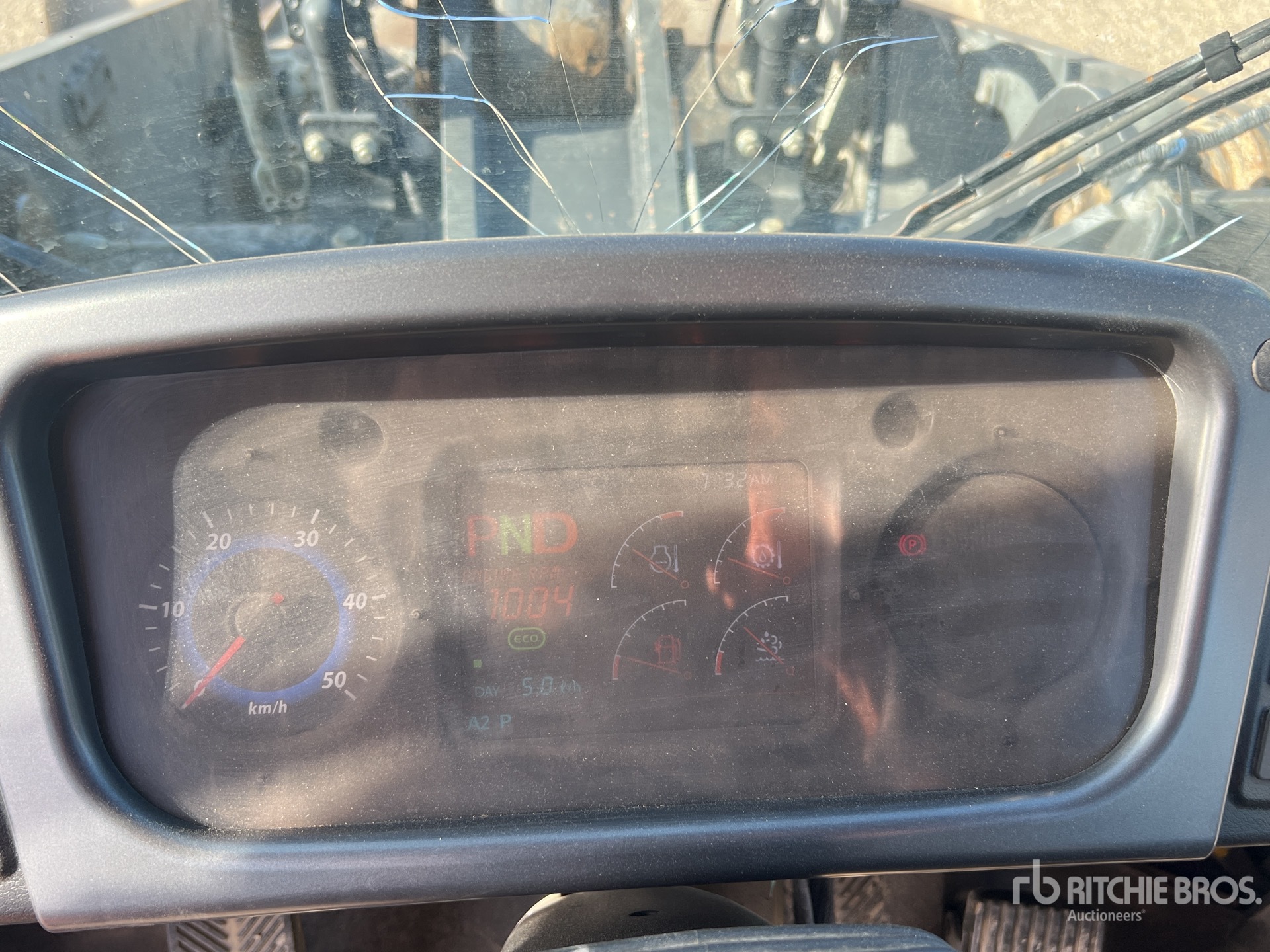

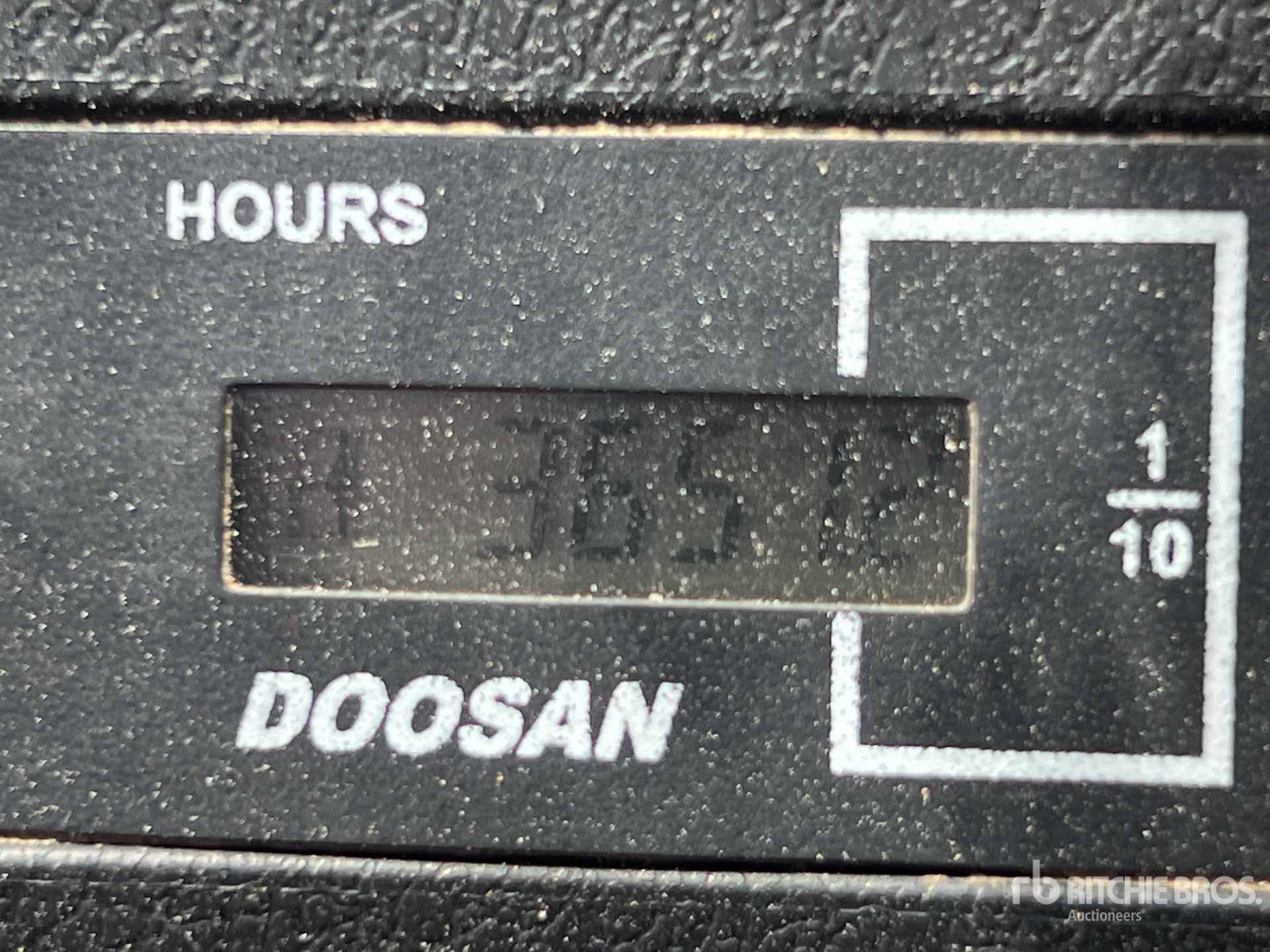

Hours:	3651

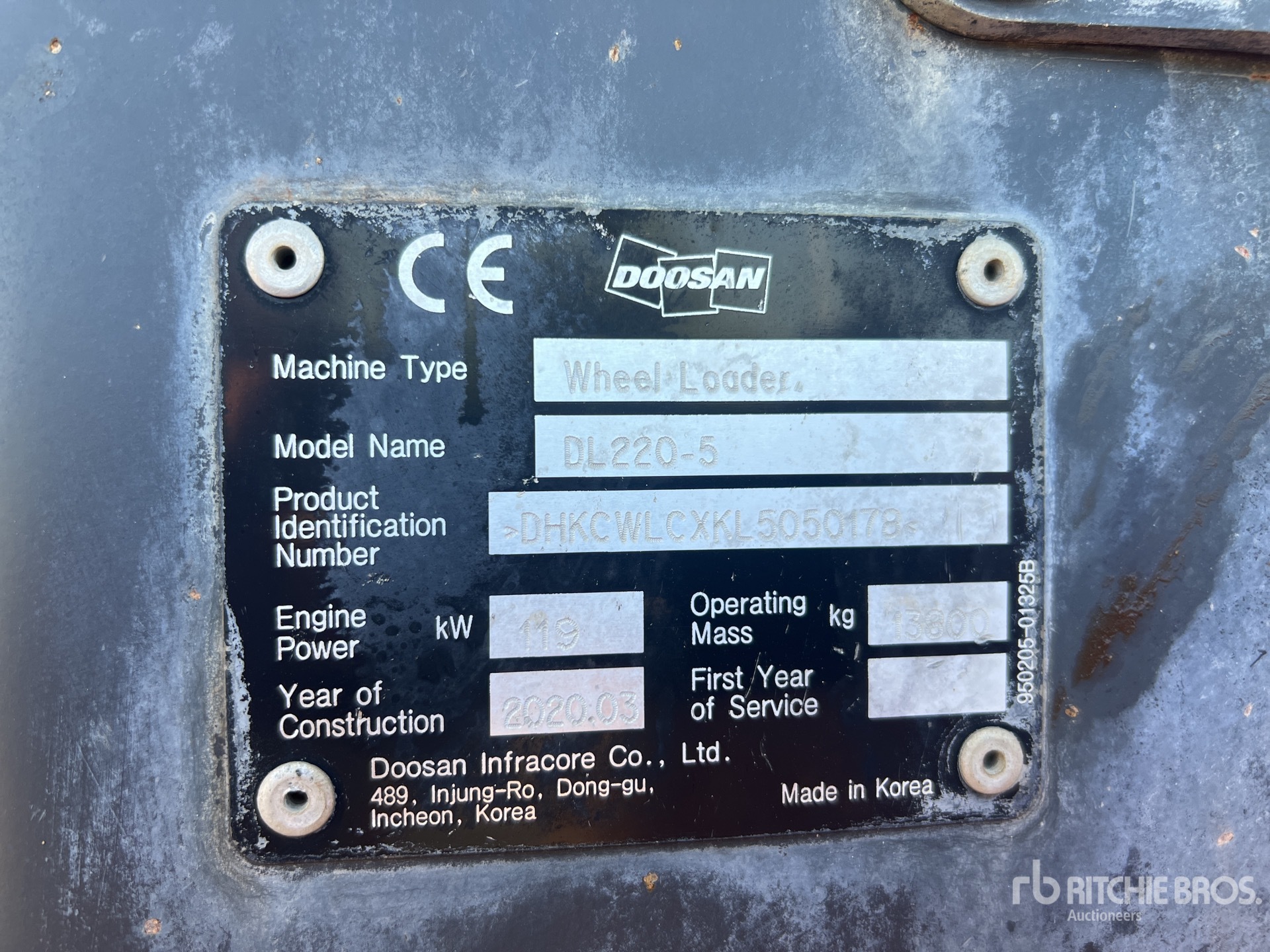

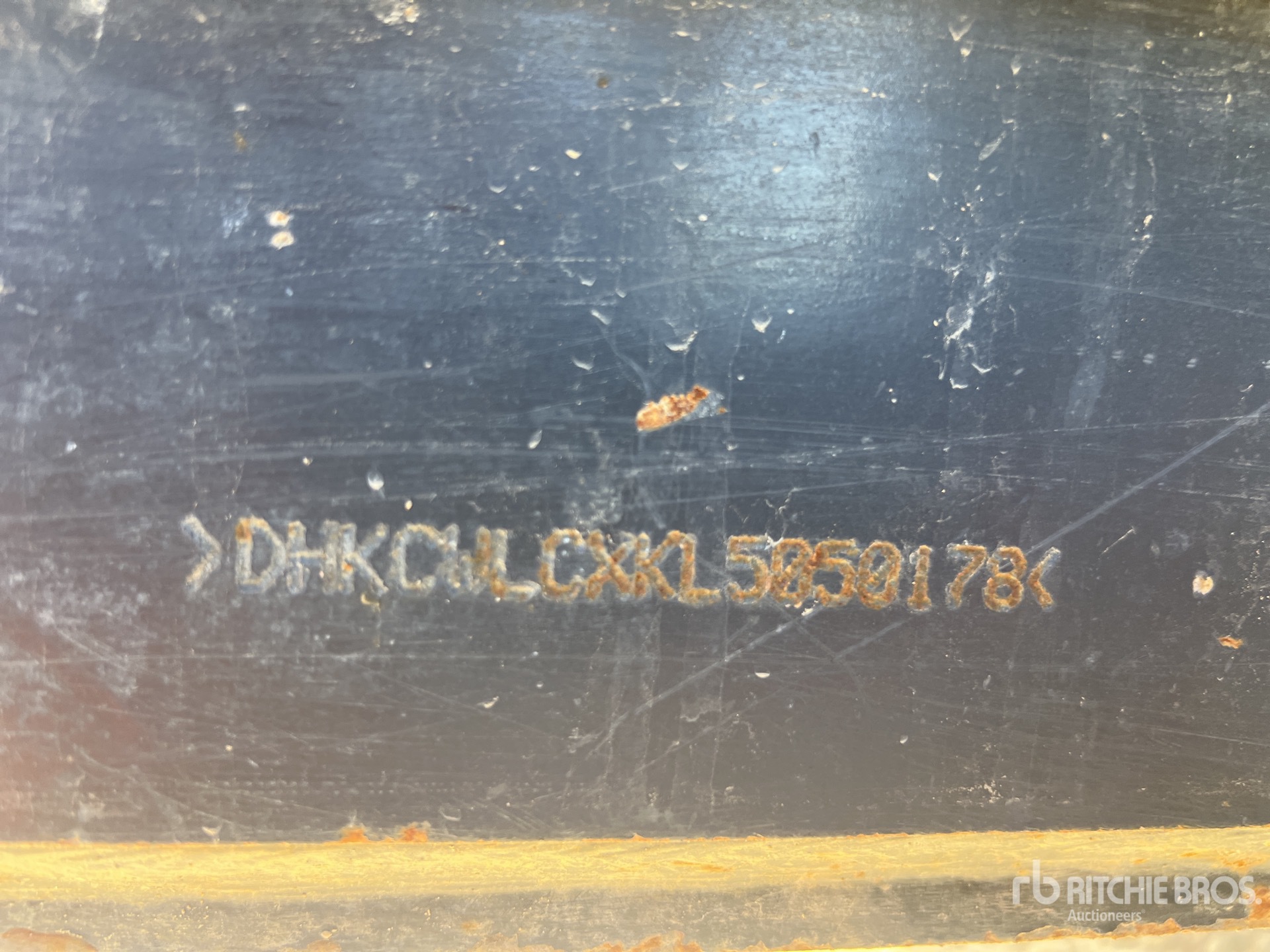

Serial Number:	DHKCWLCXKL5050178
Machine Location:	ST AUBIN SUR GAILLON, FRA

Description:

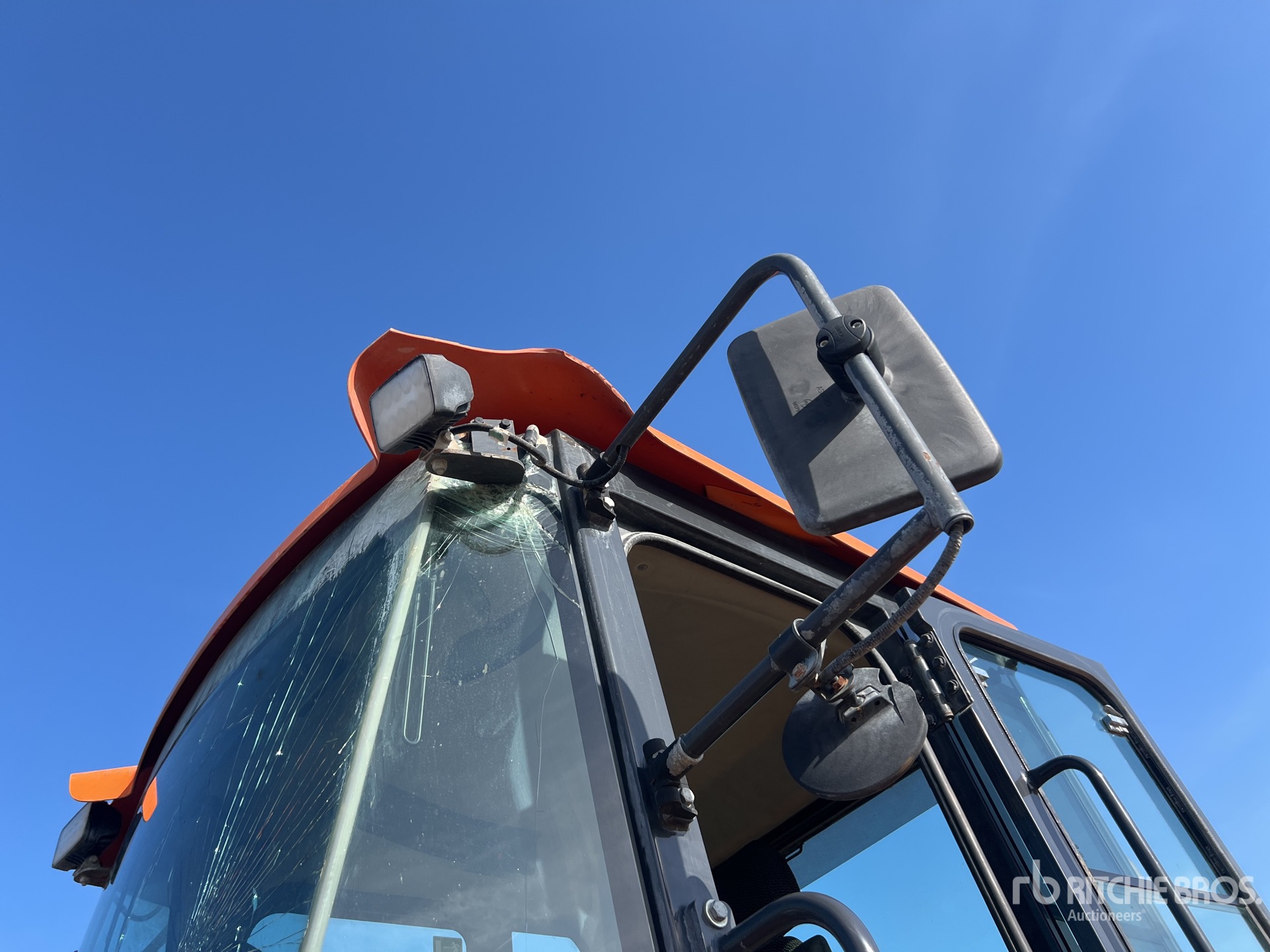

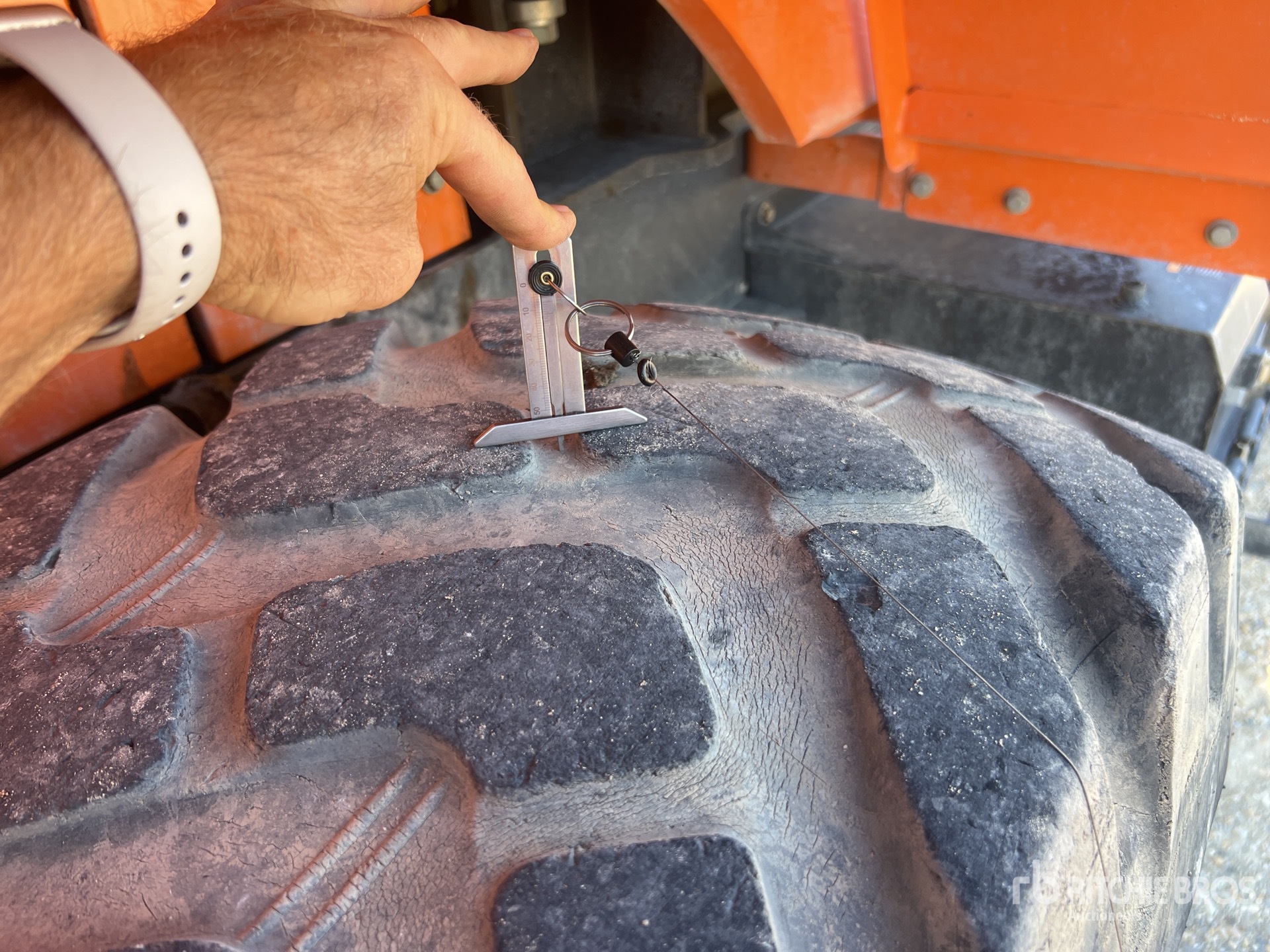

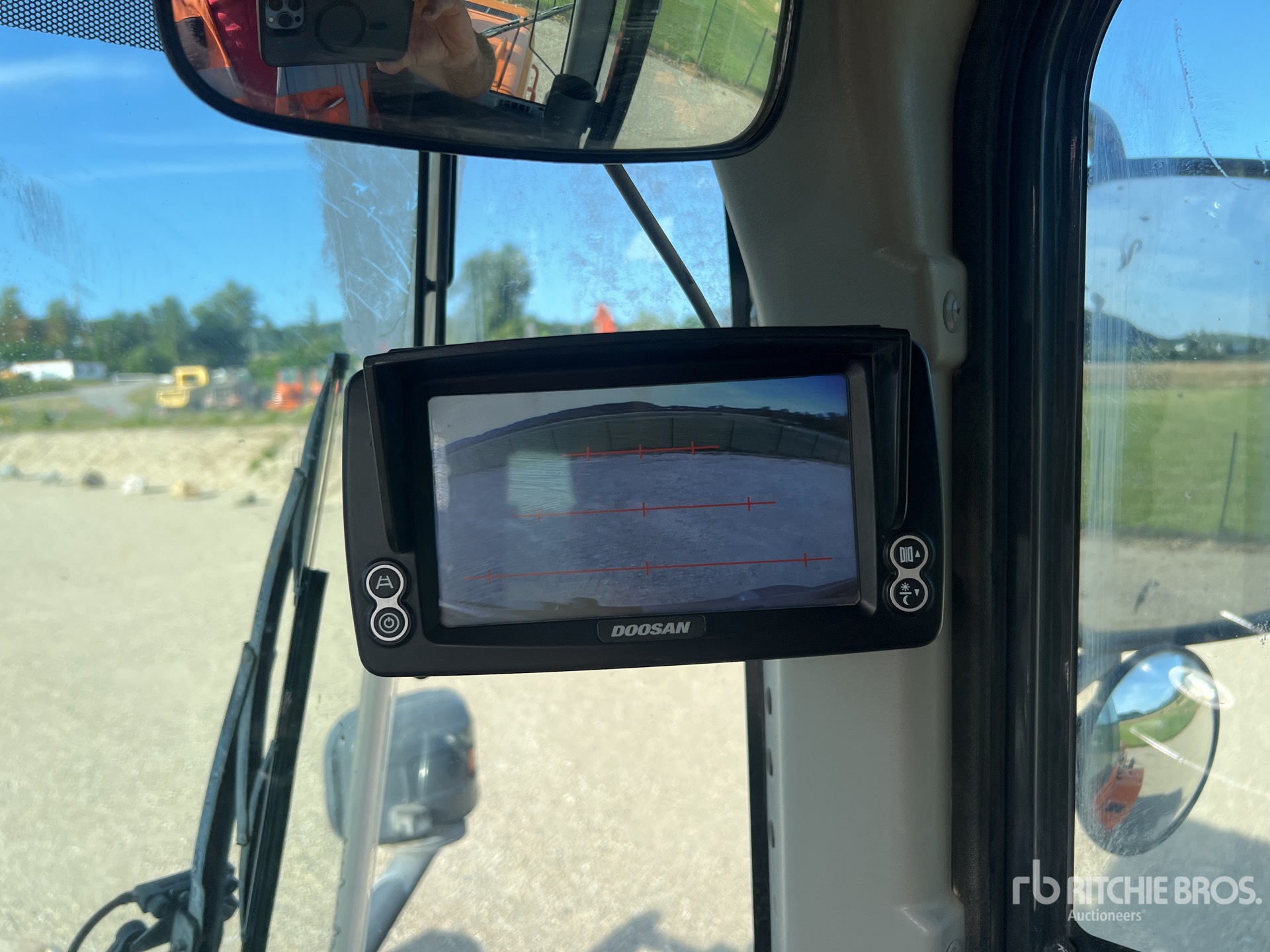

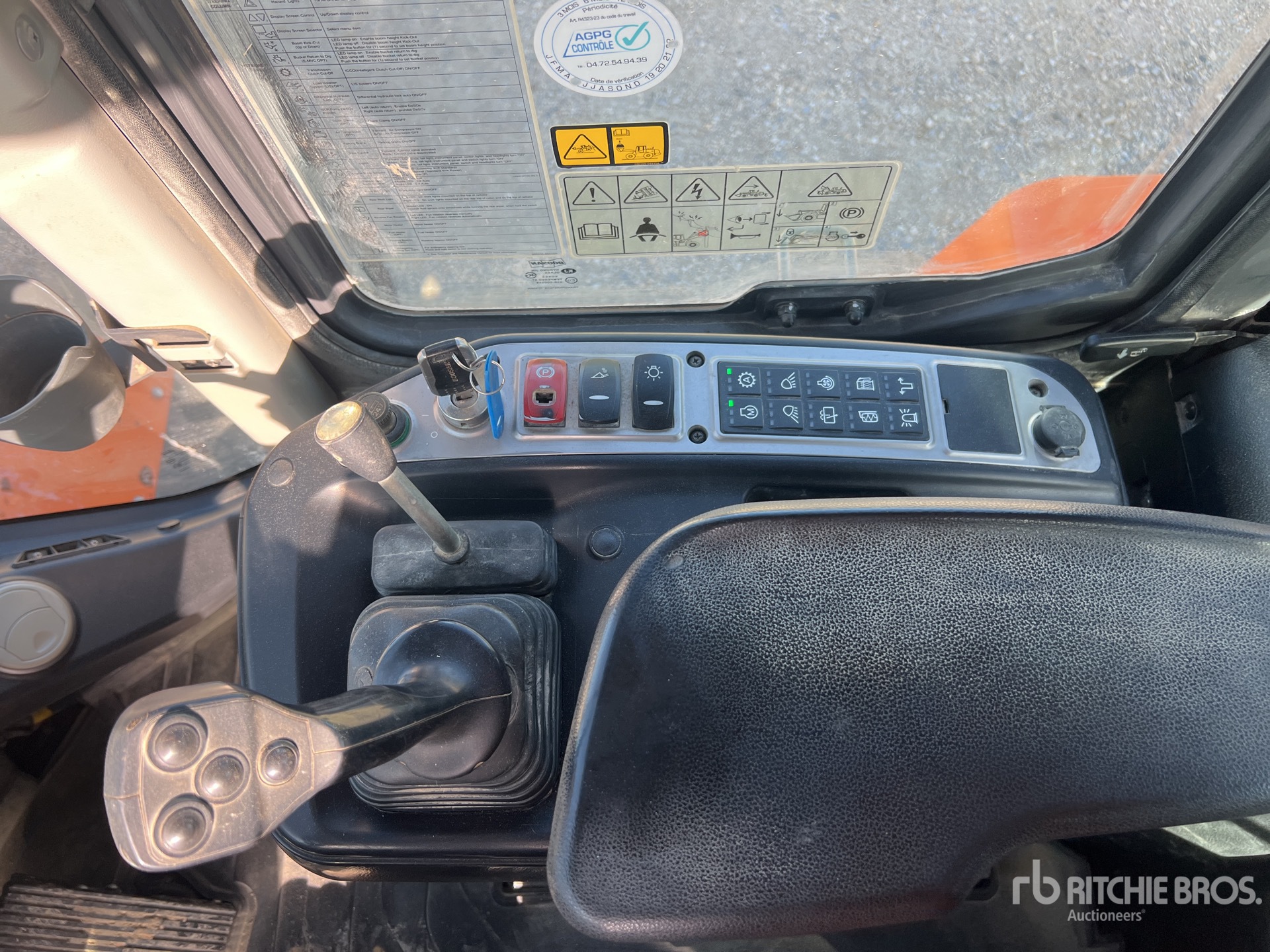

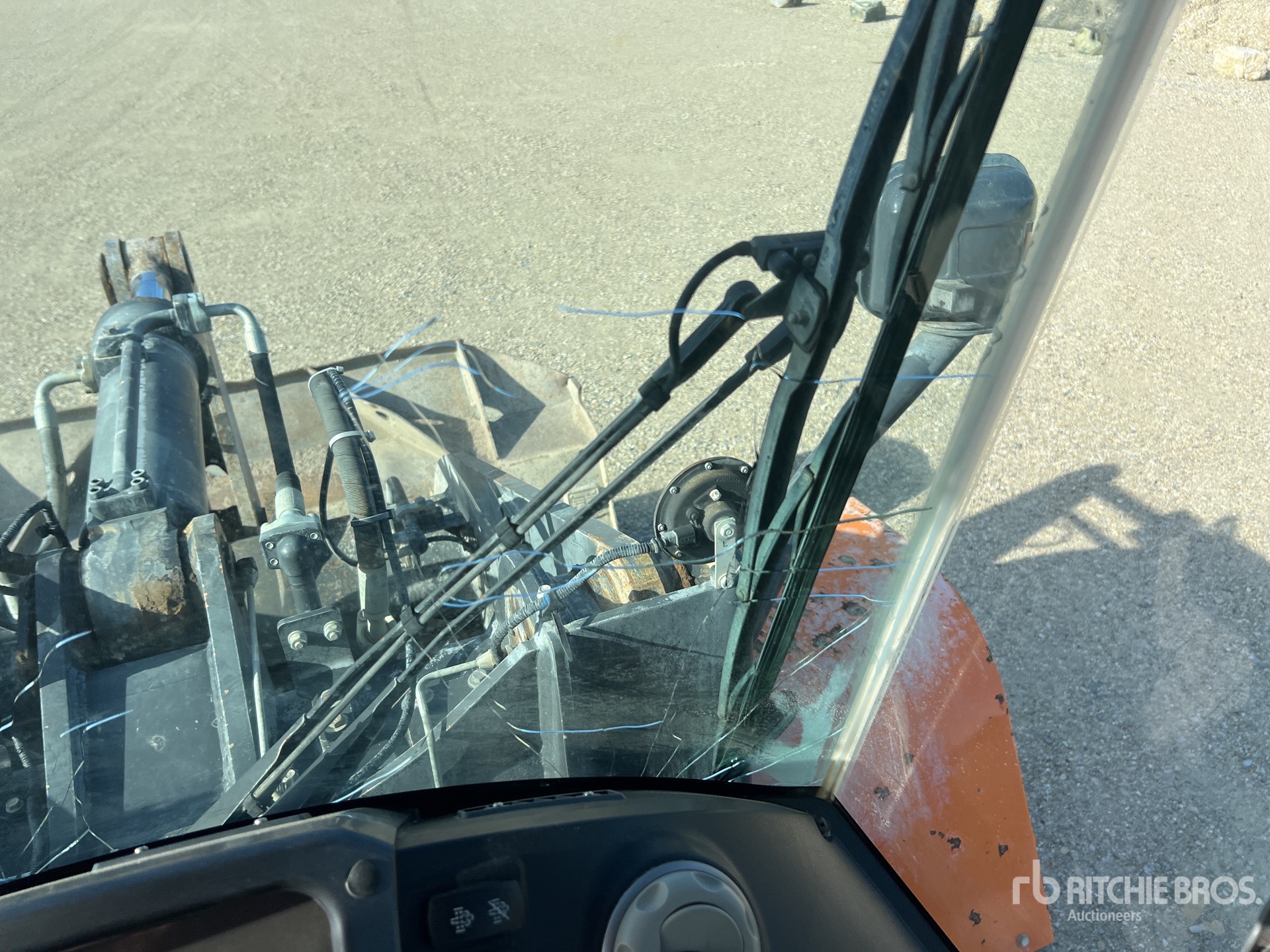

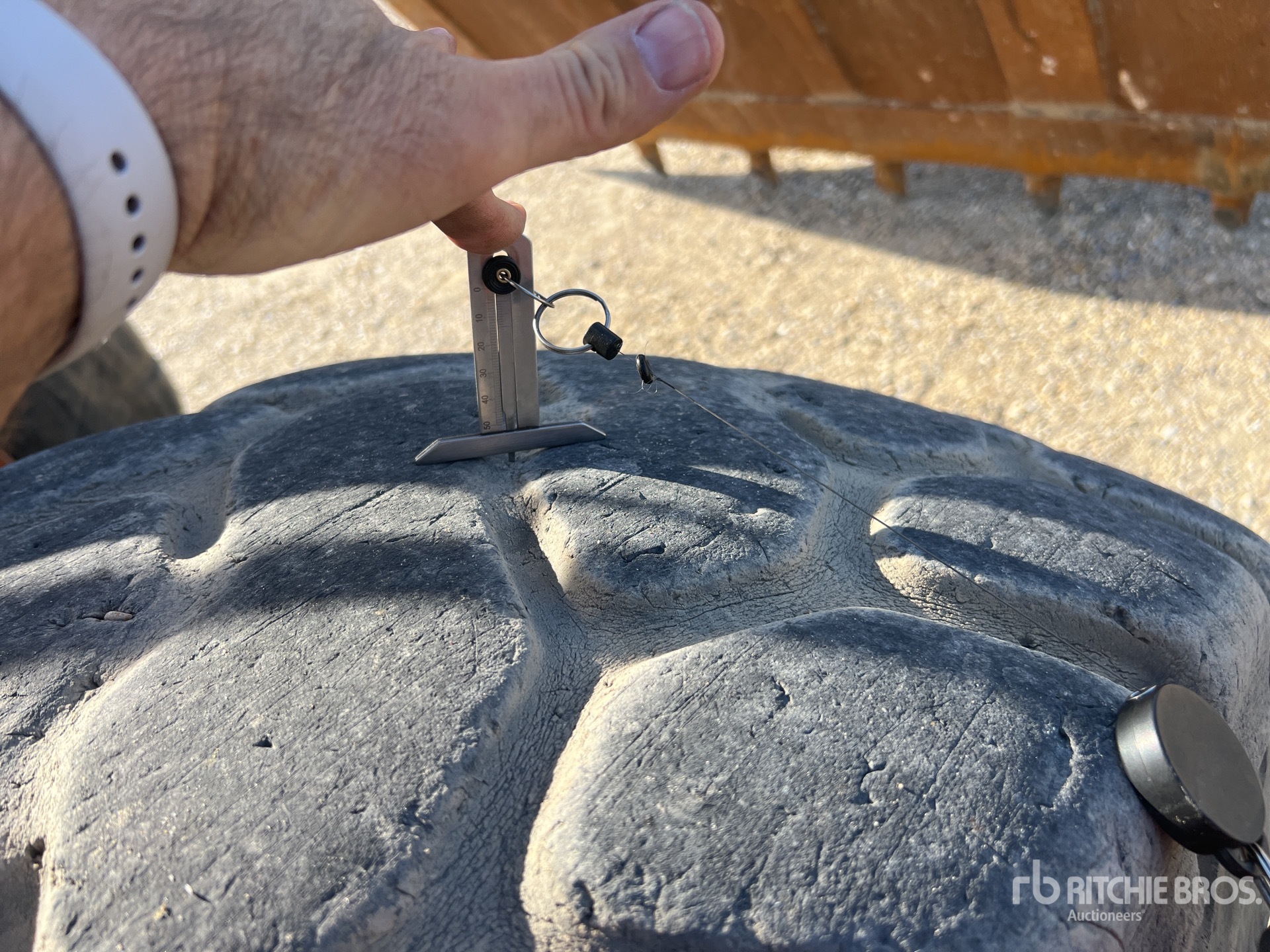

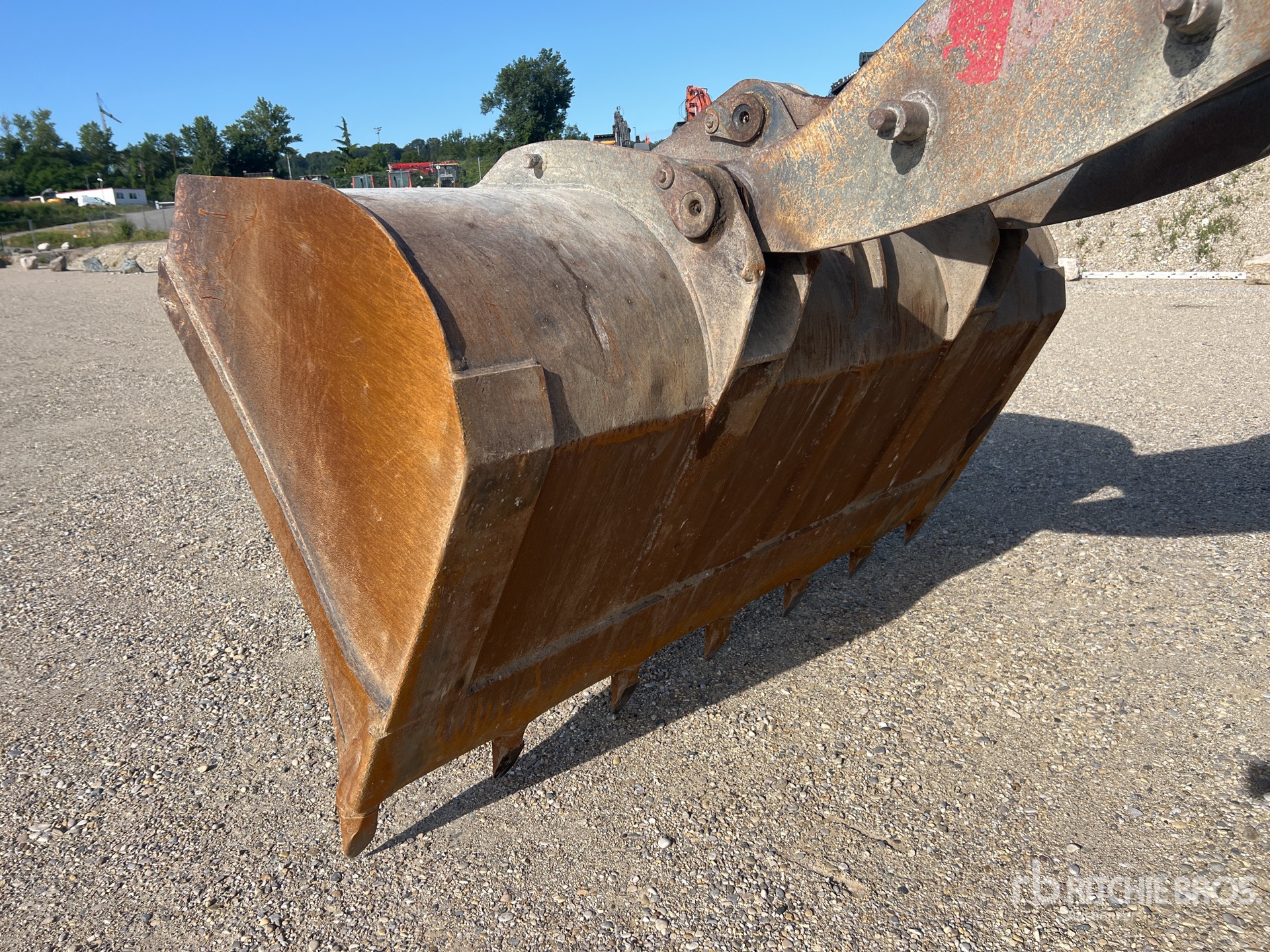

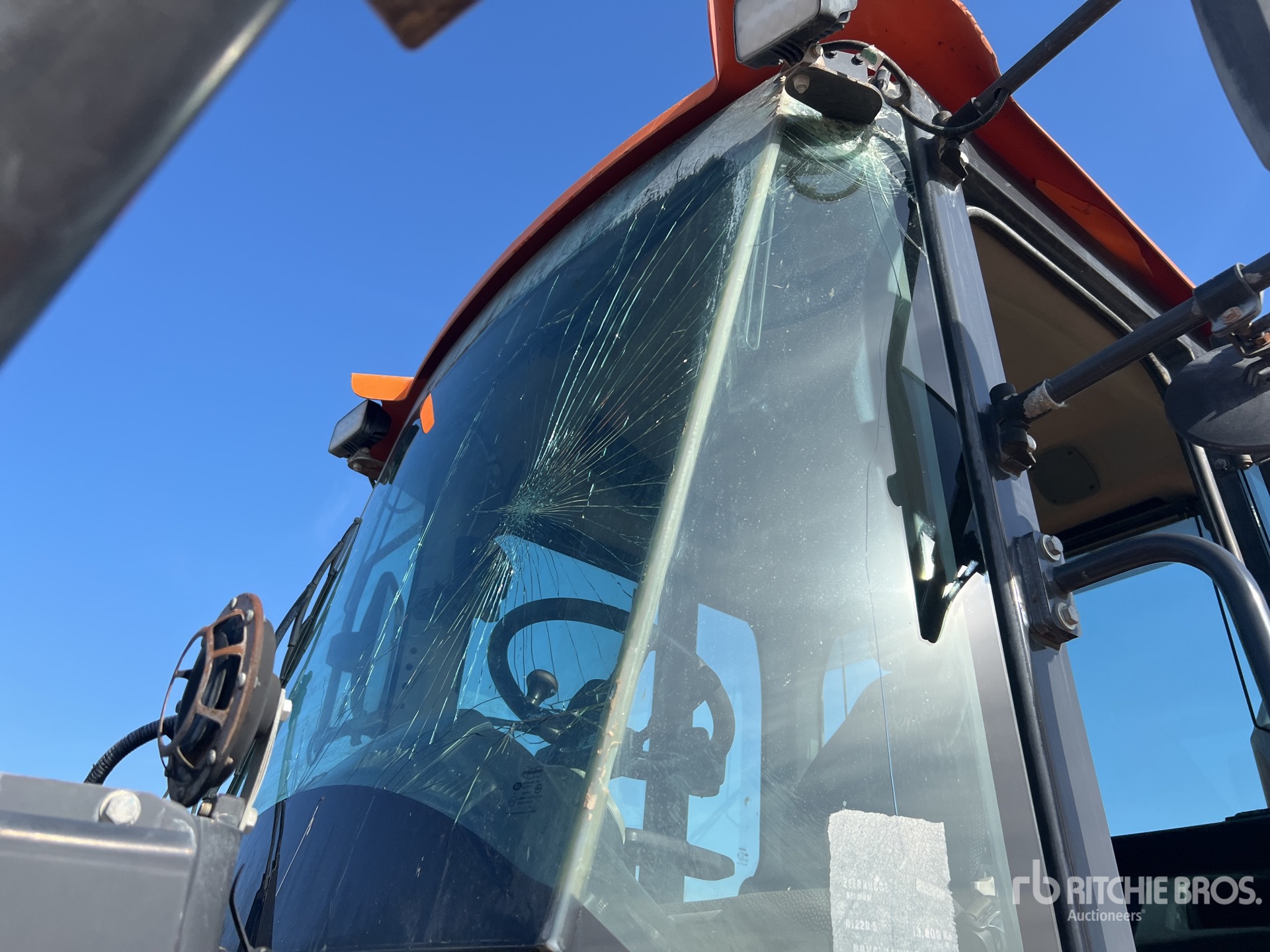

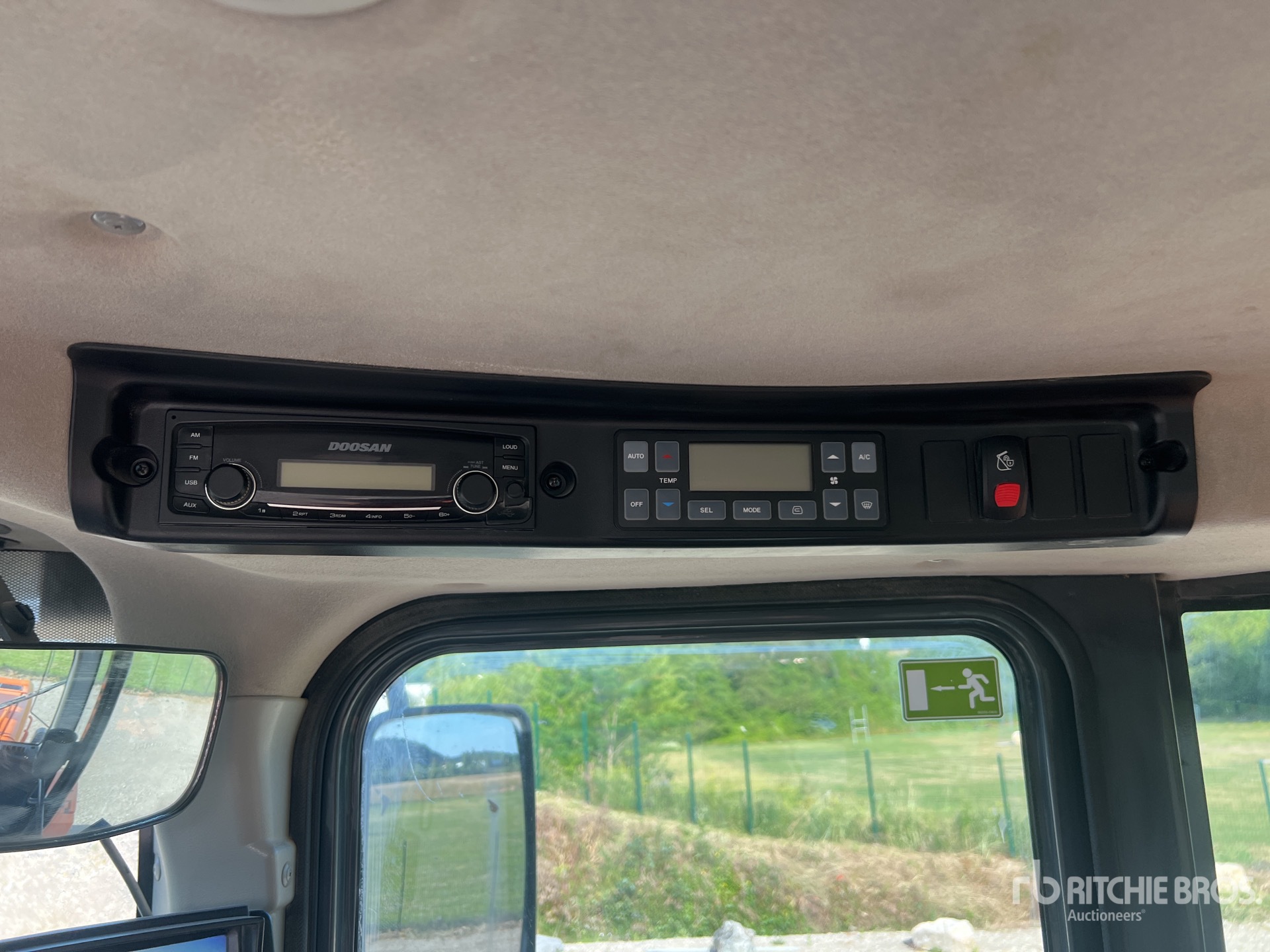

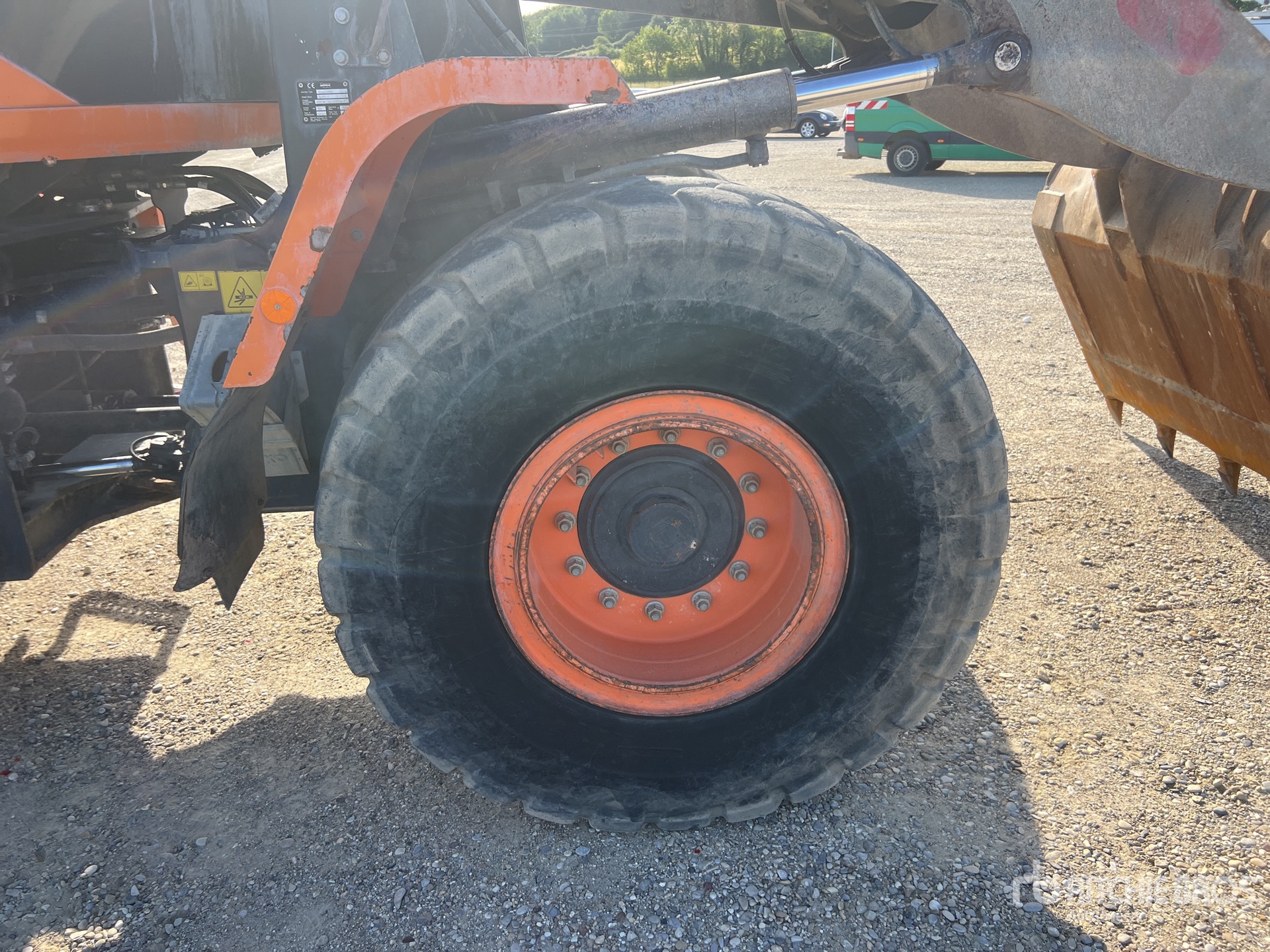

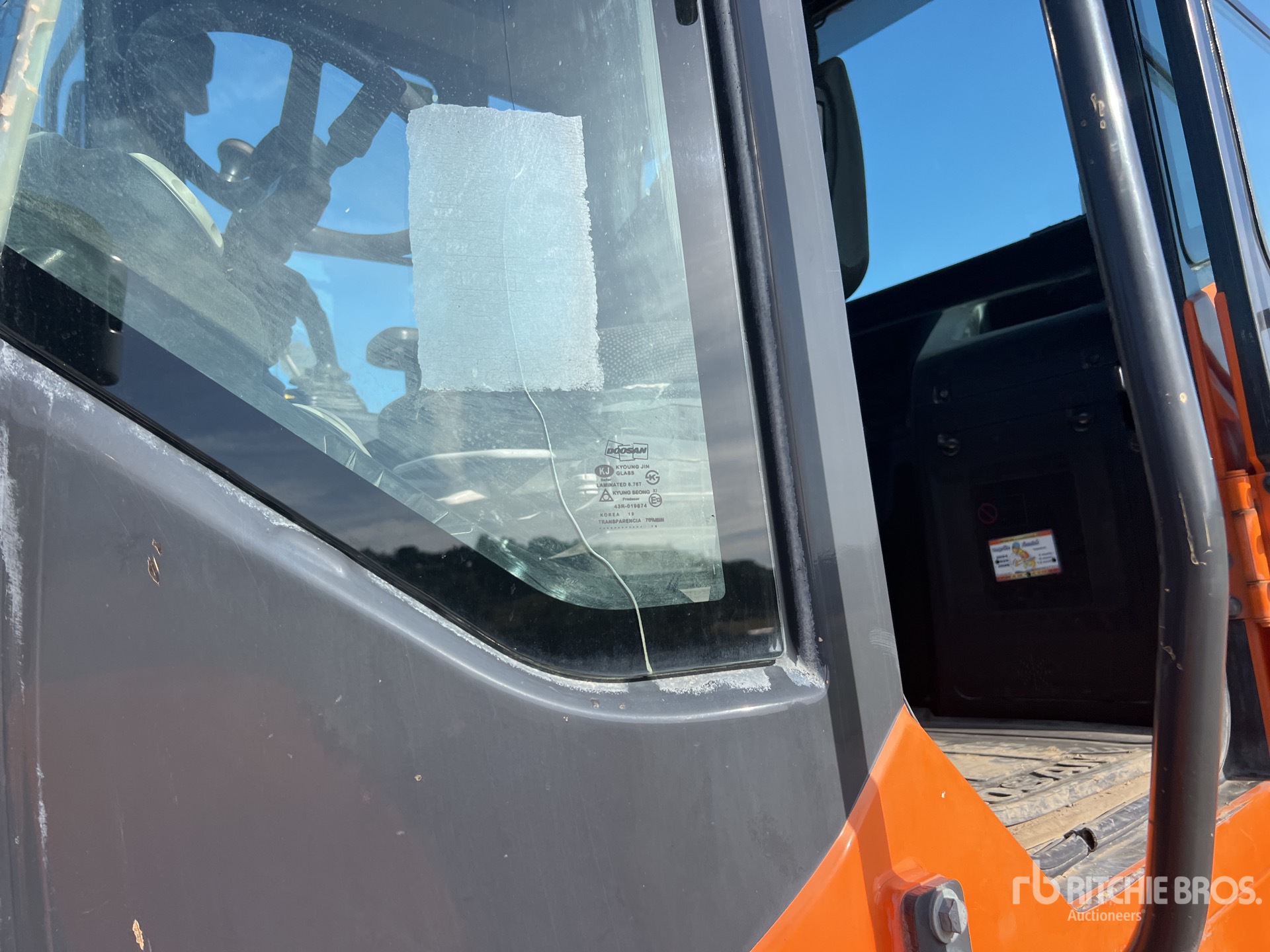

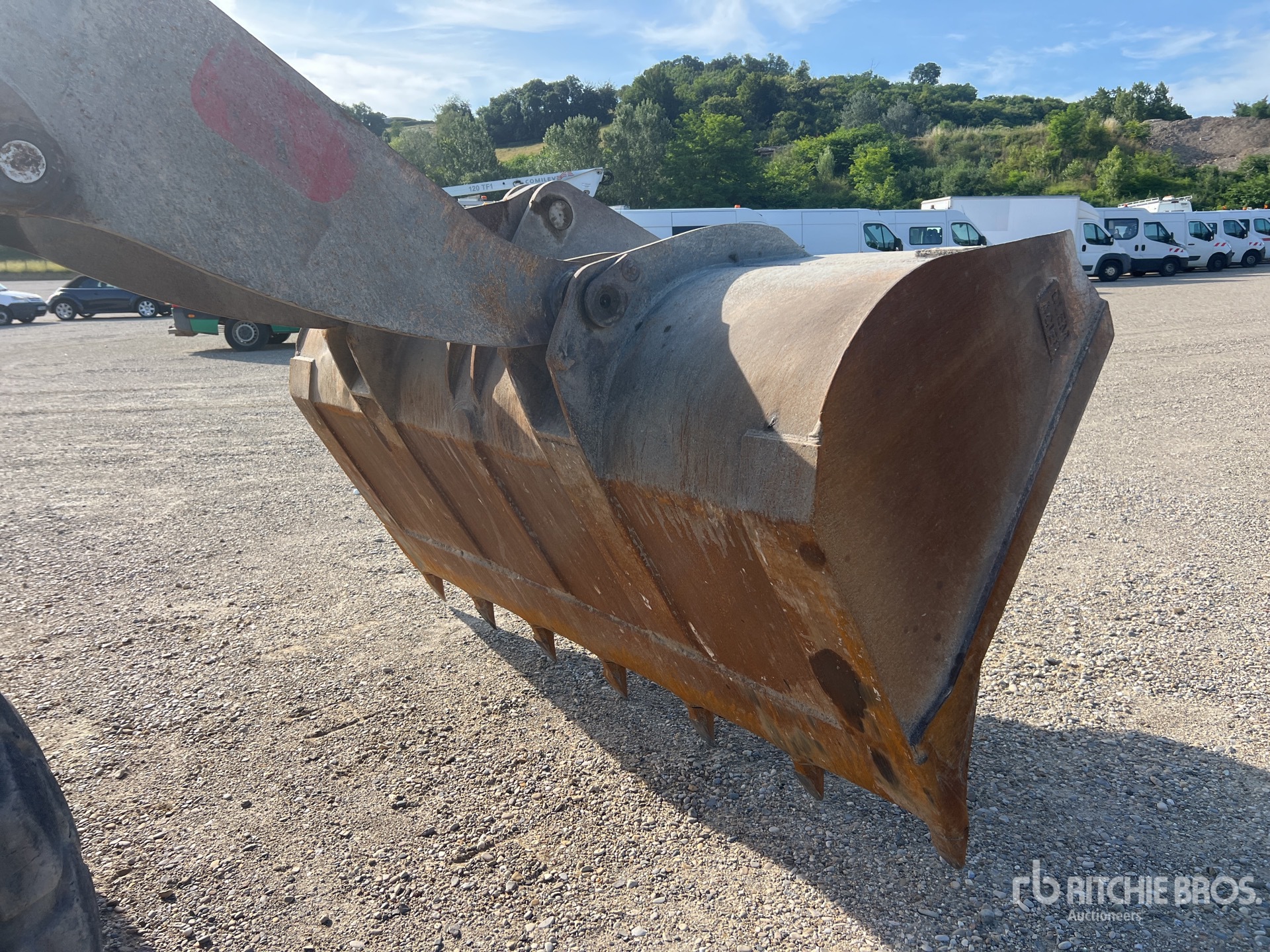

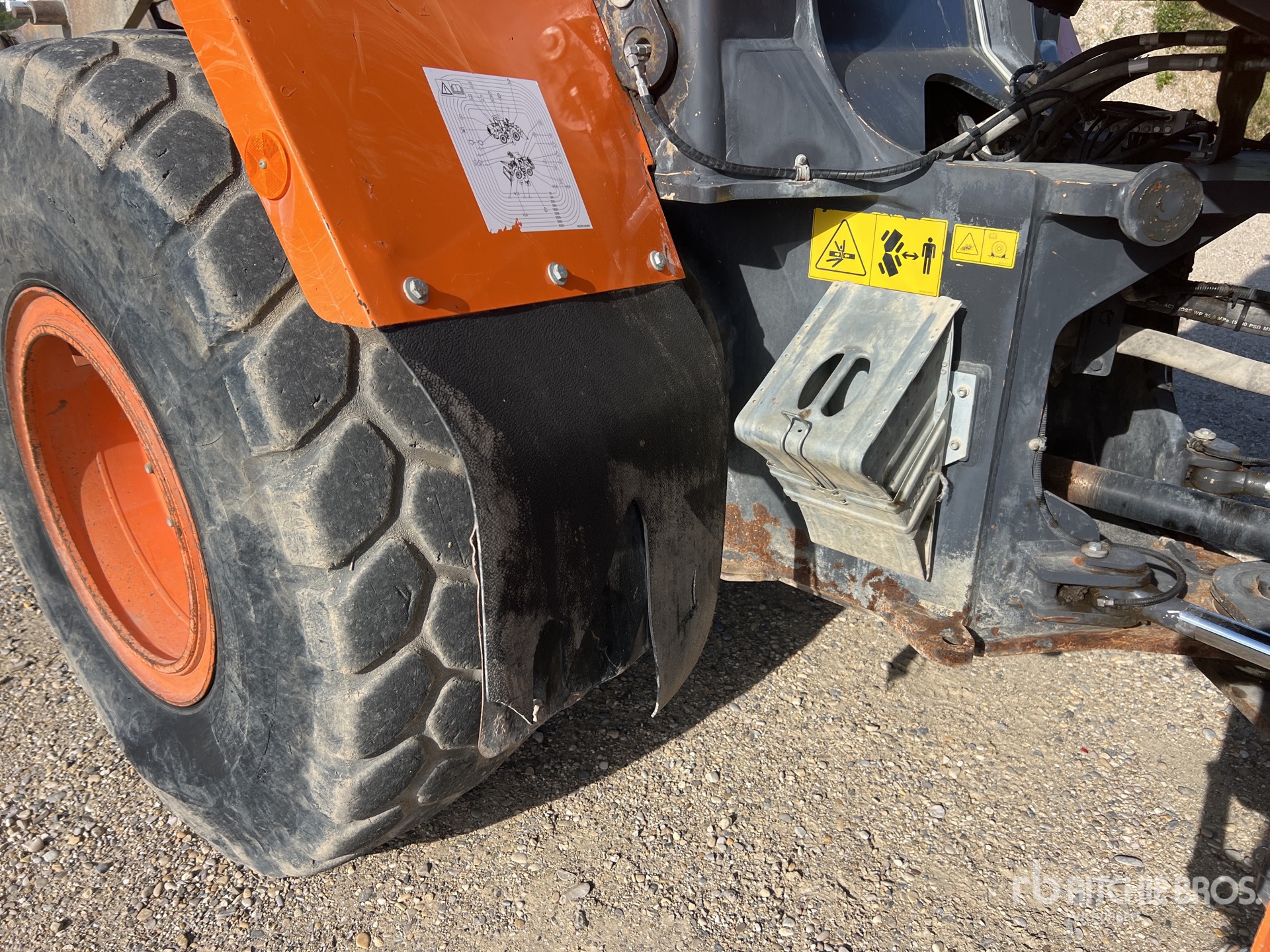

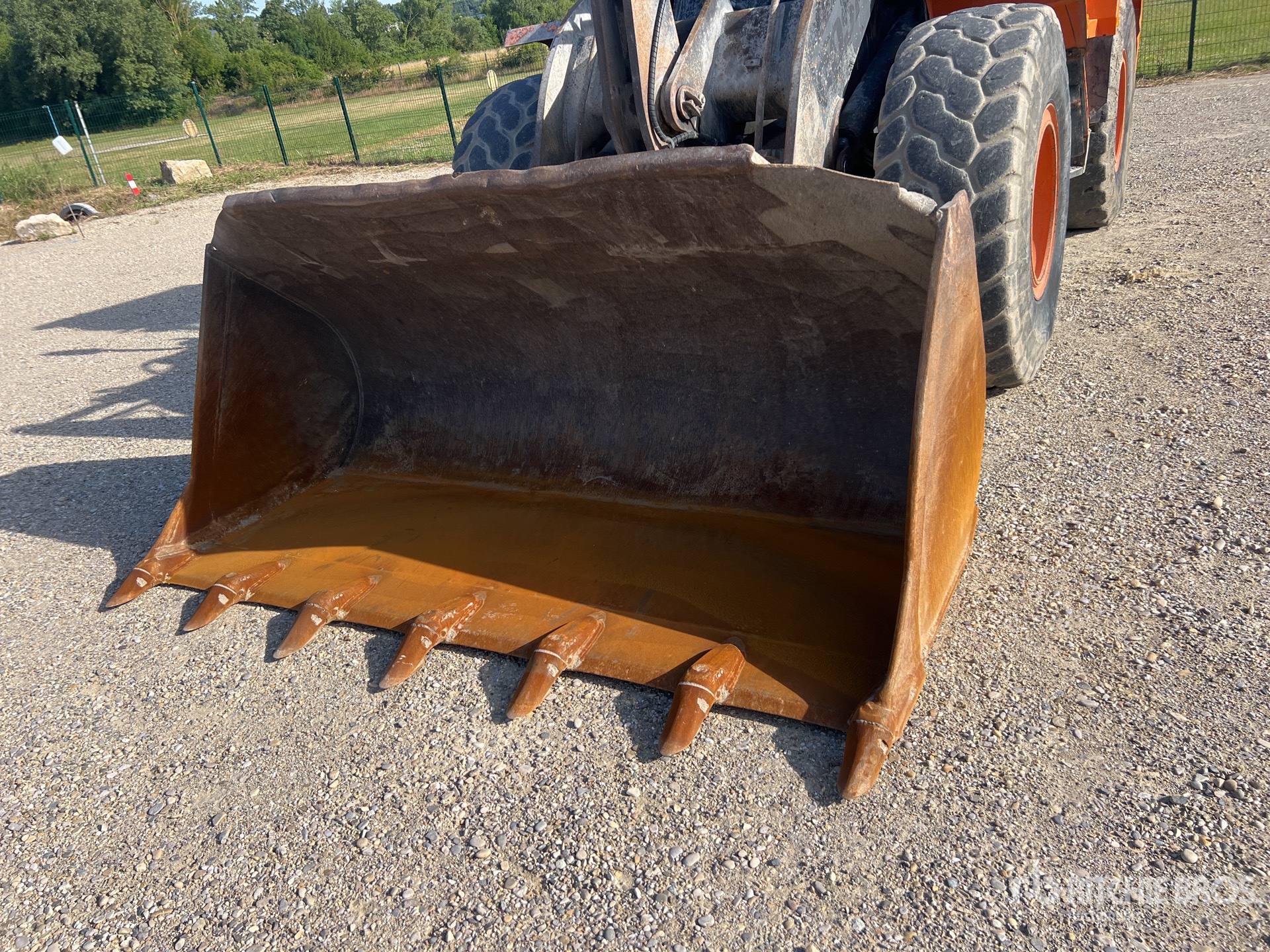

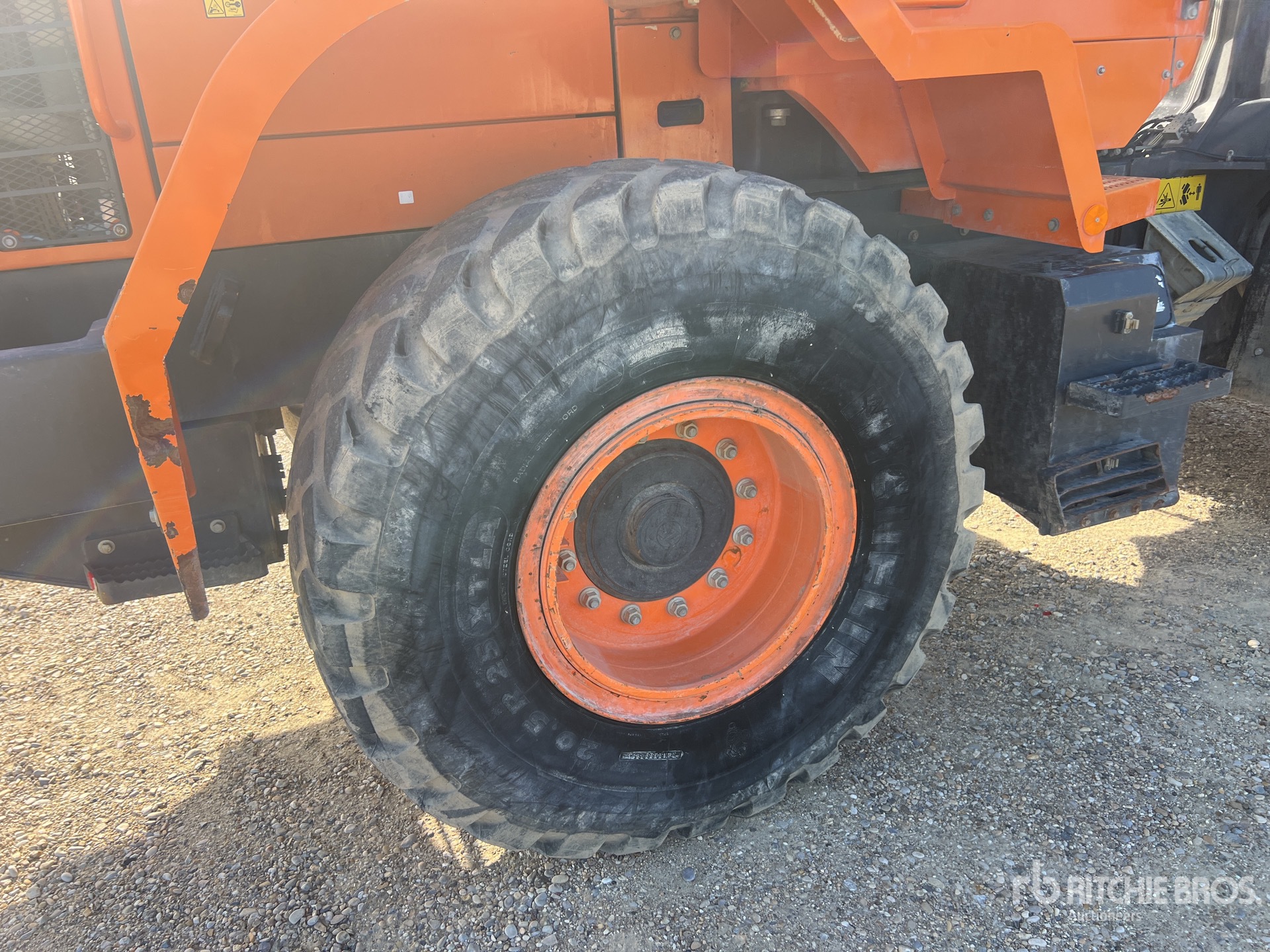

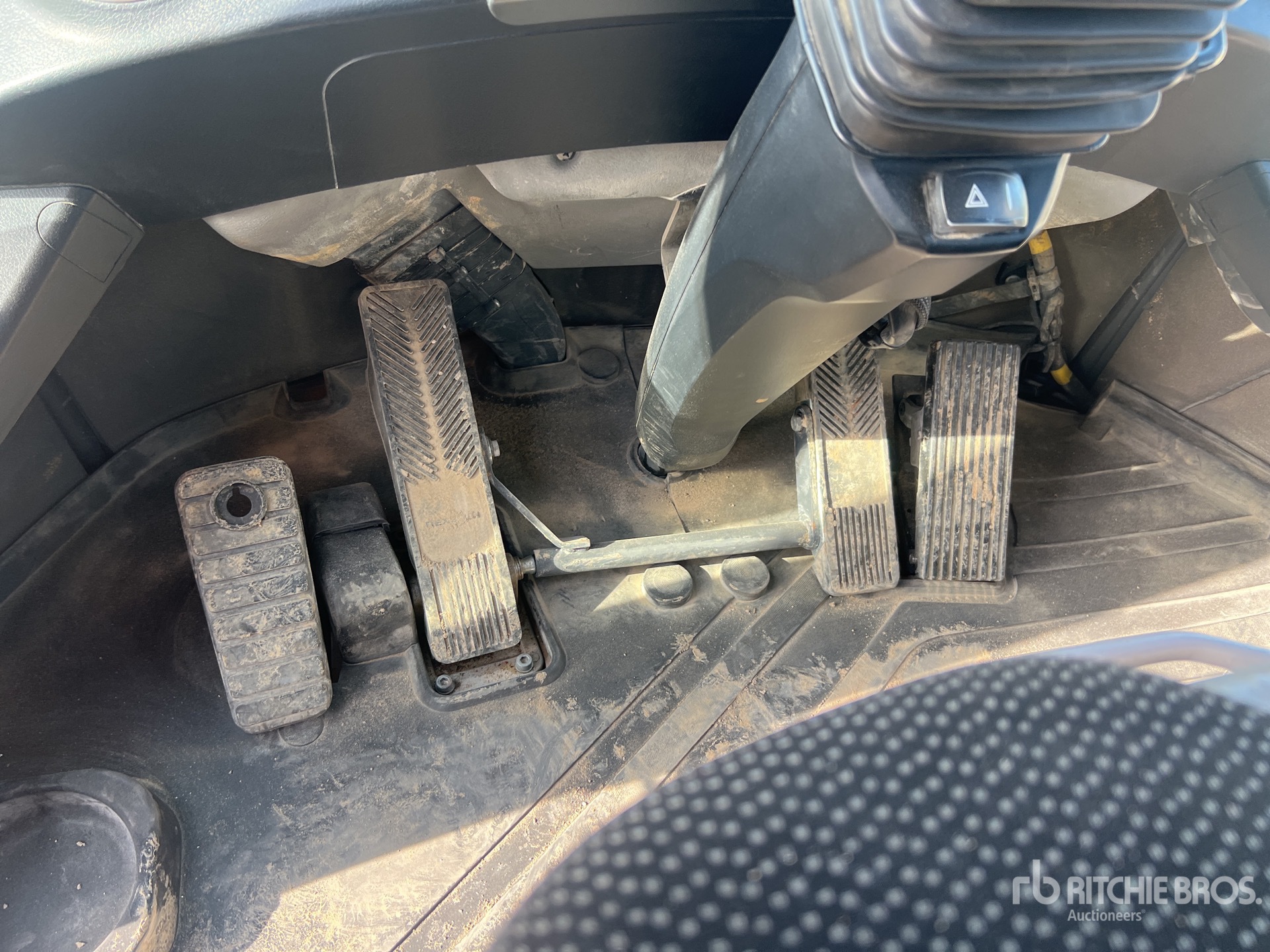

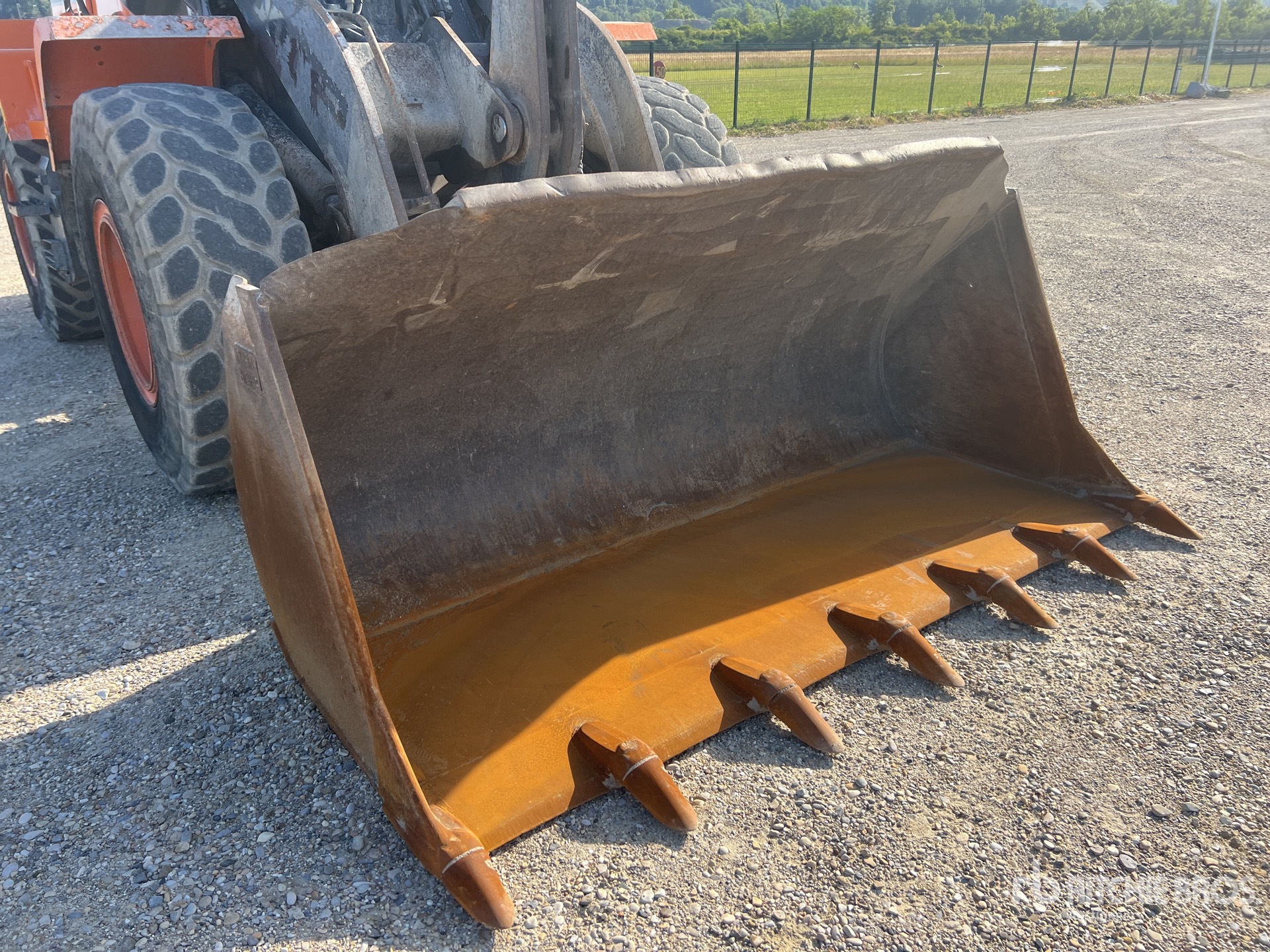

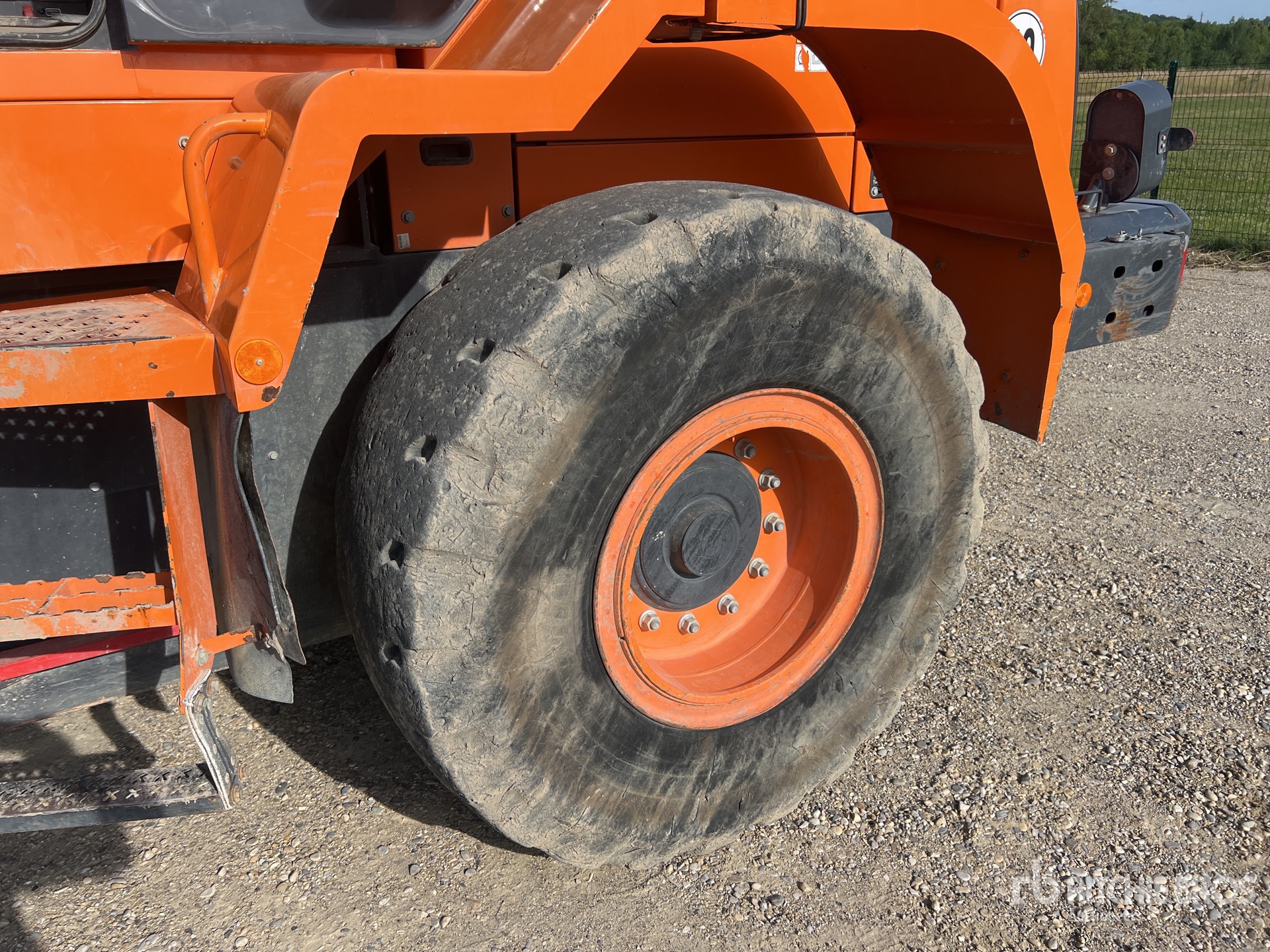

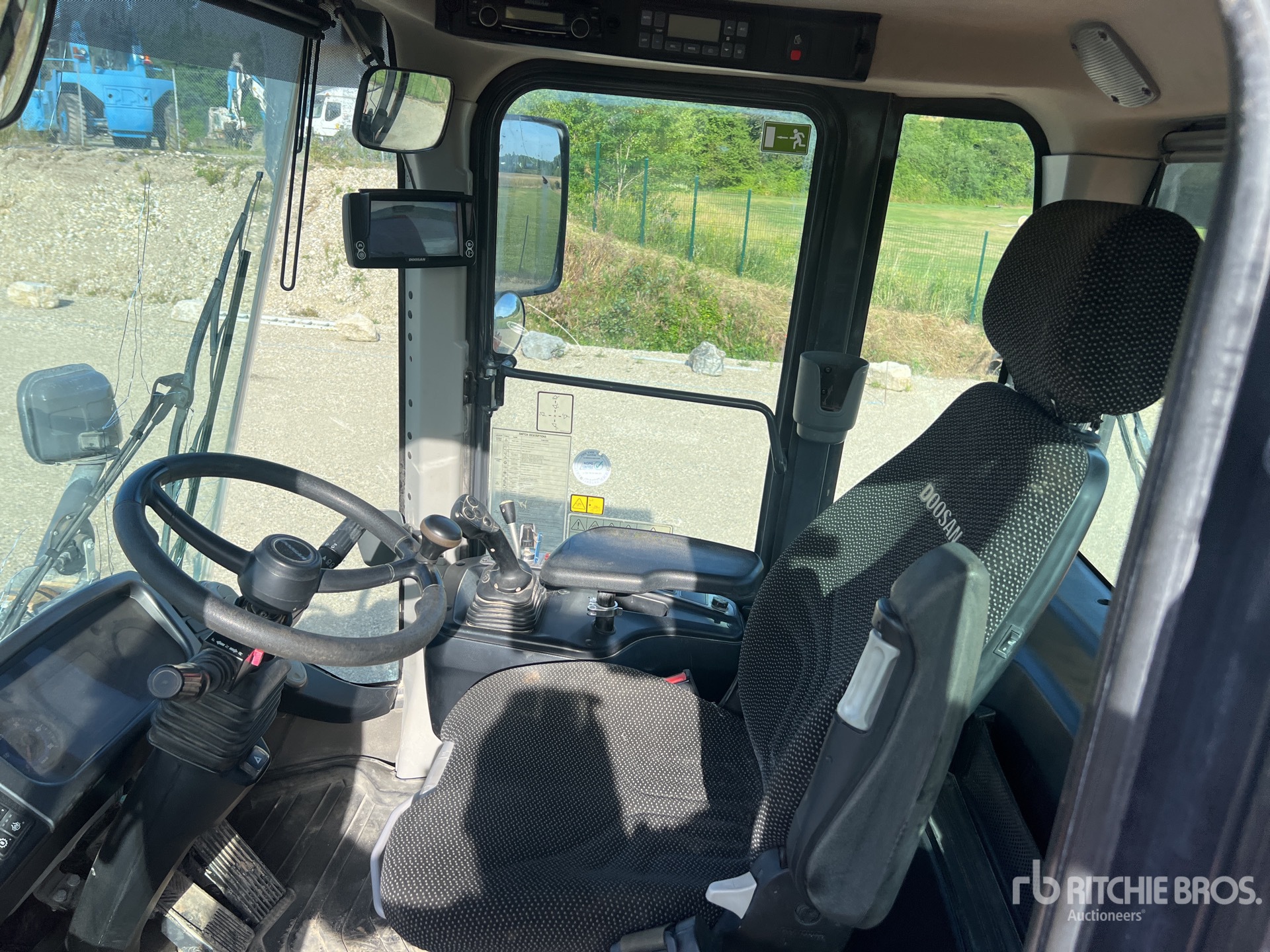

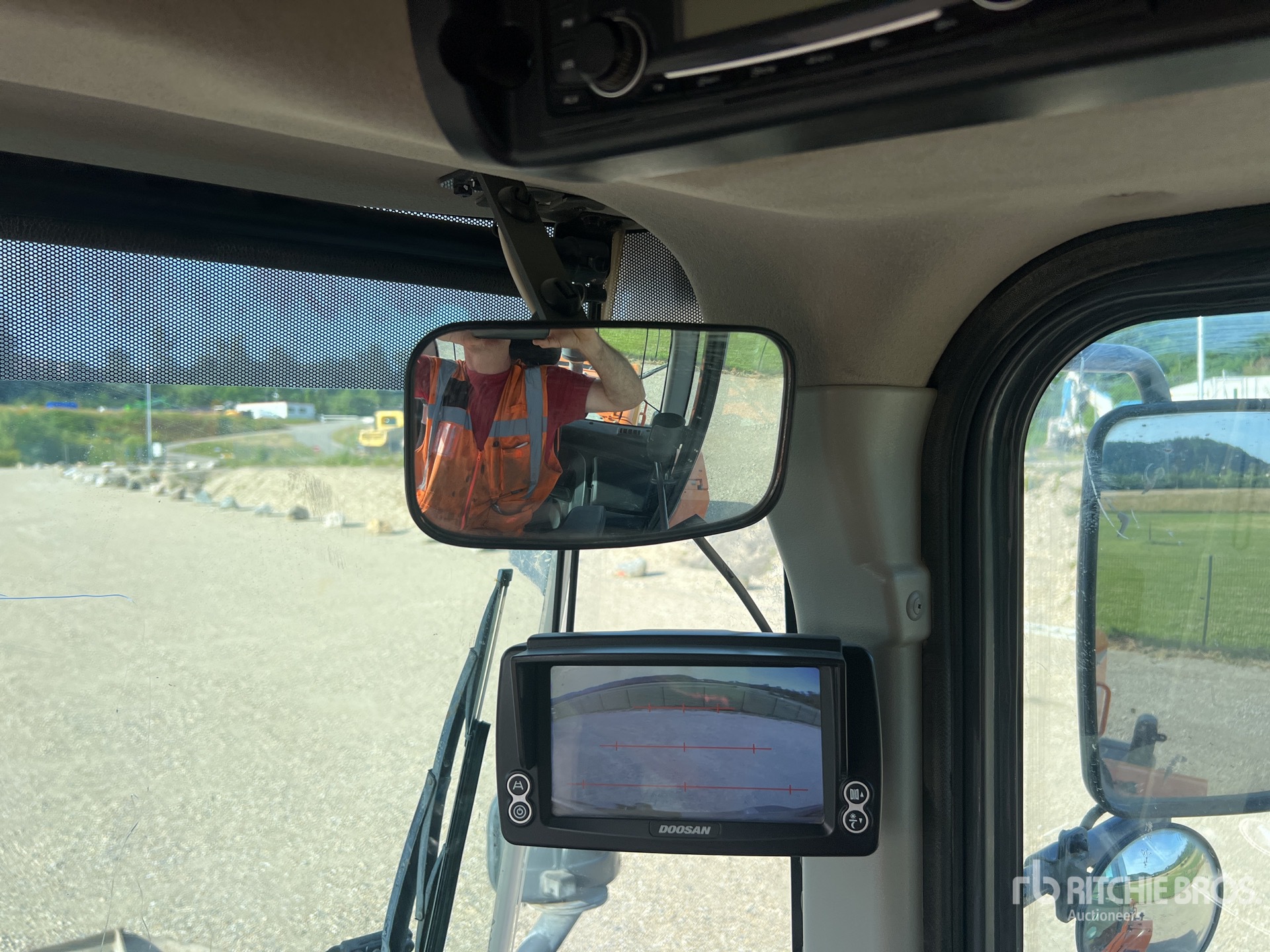

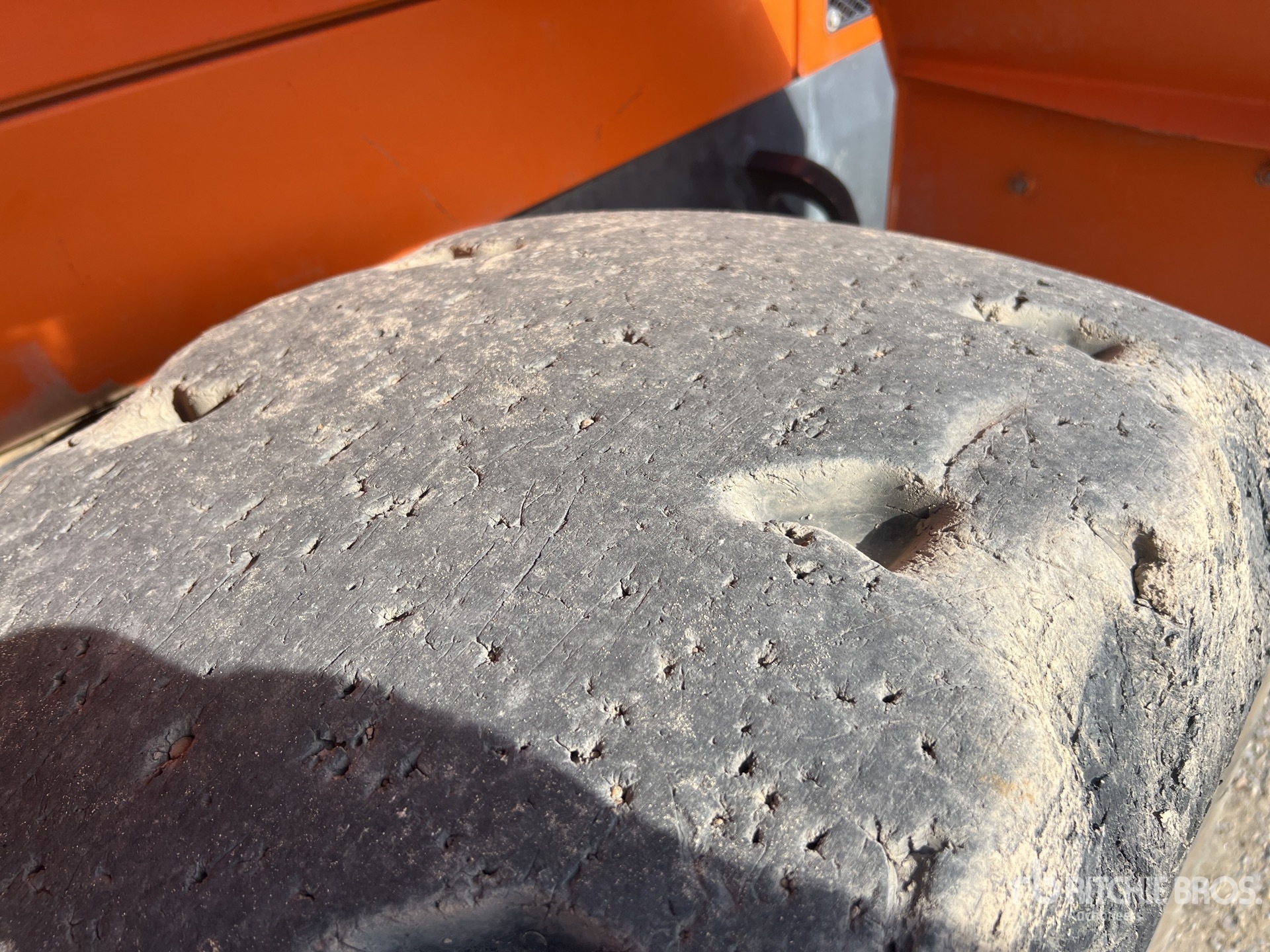

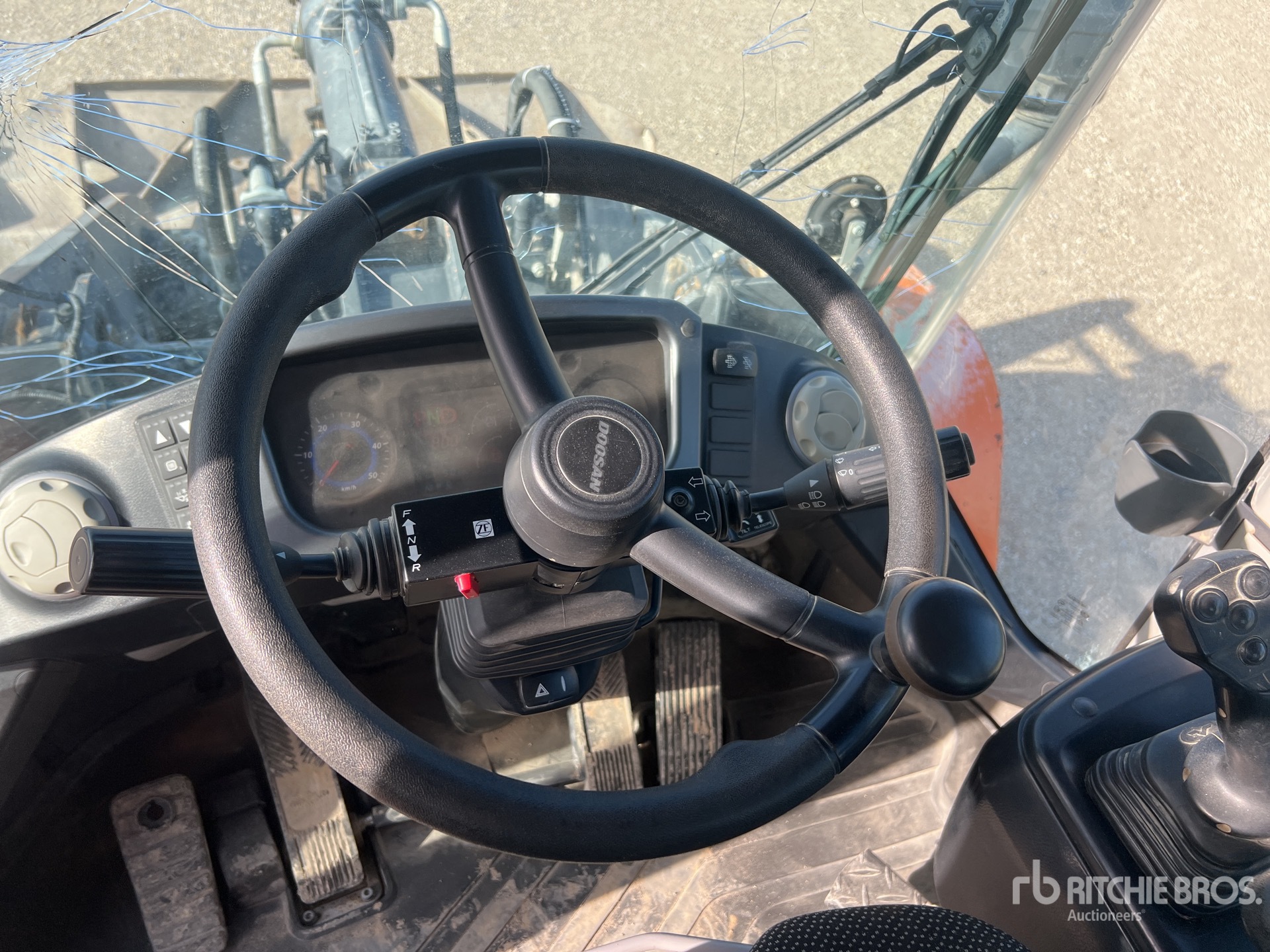

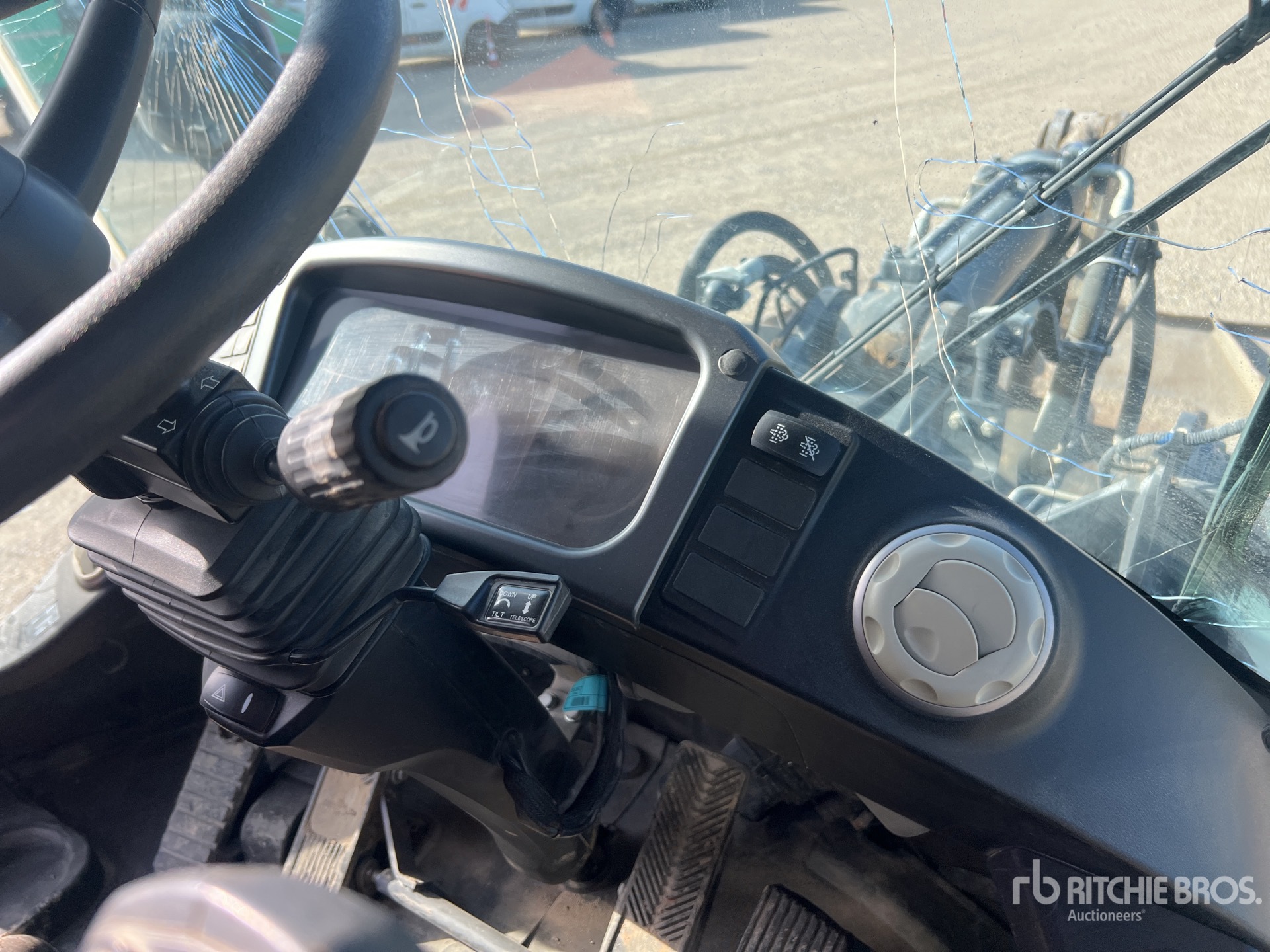

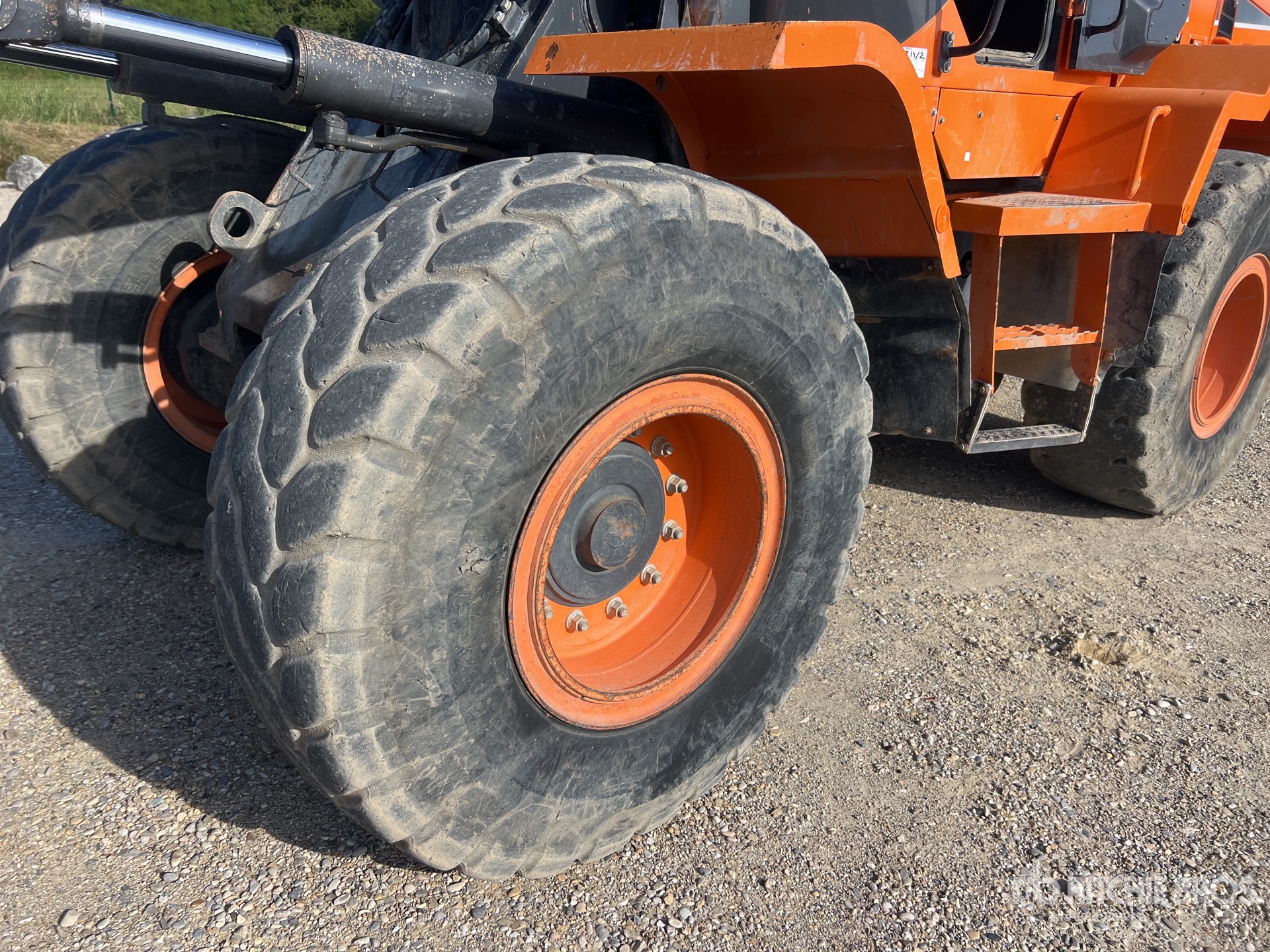

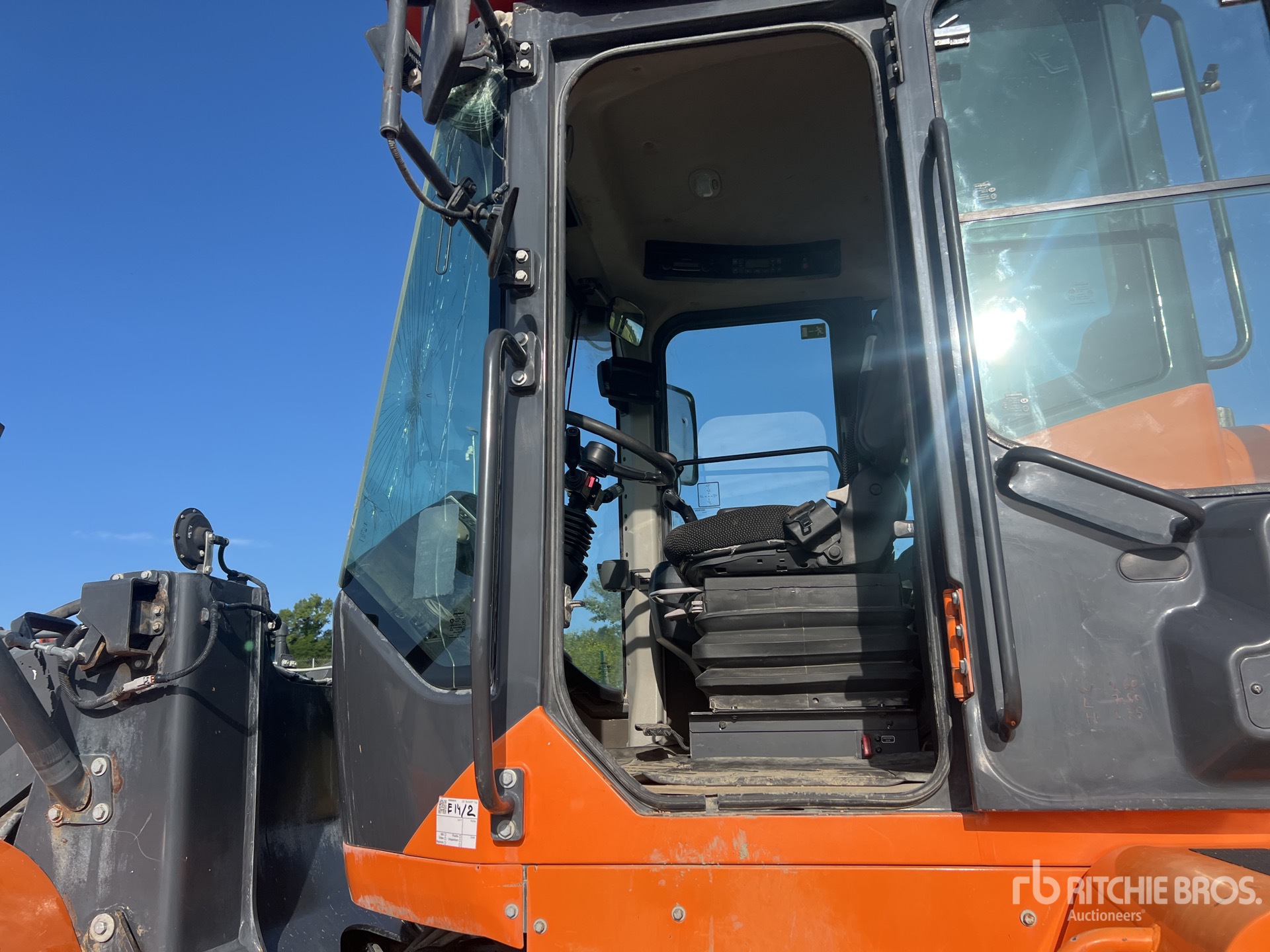

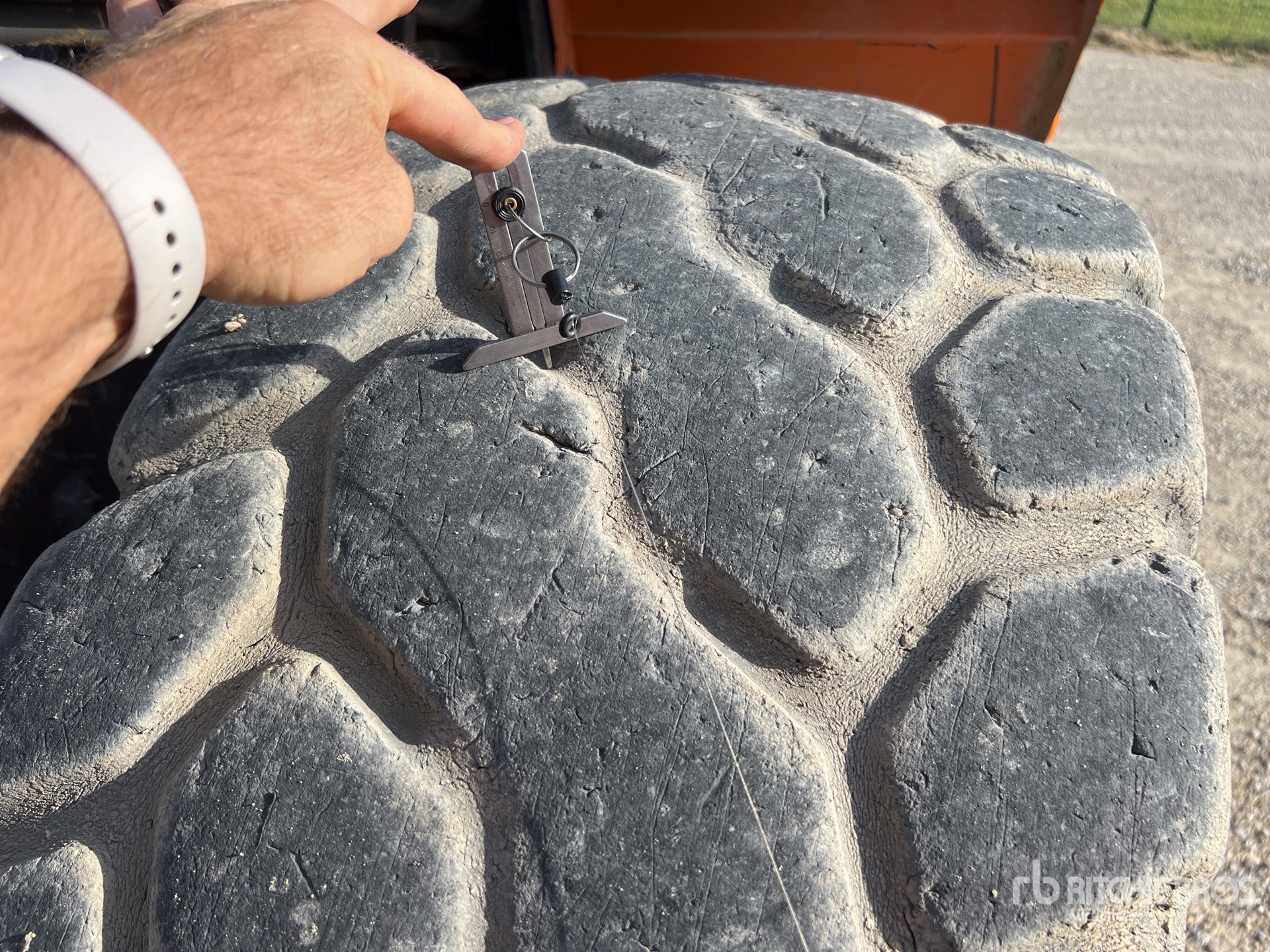

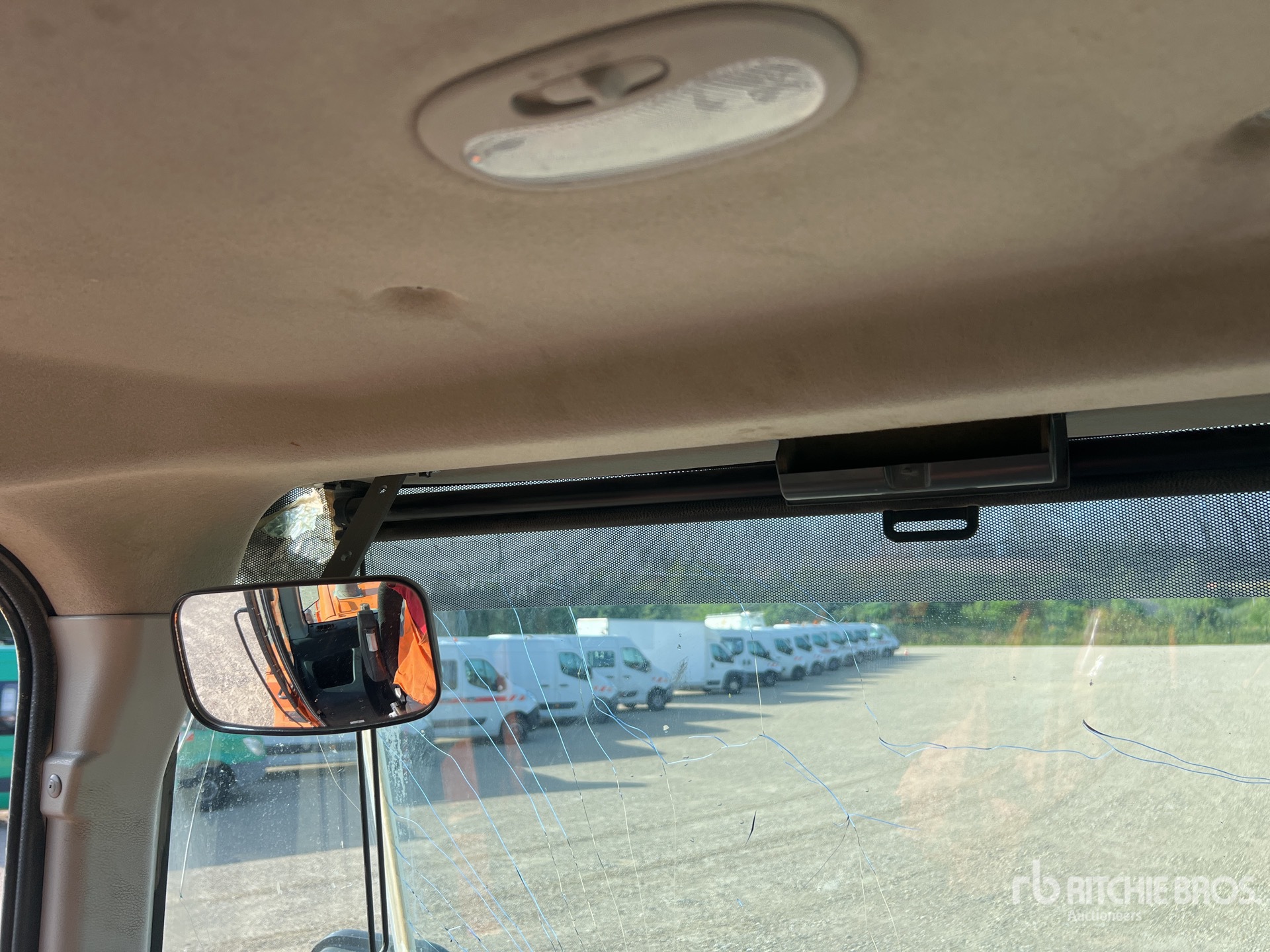

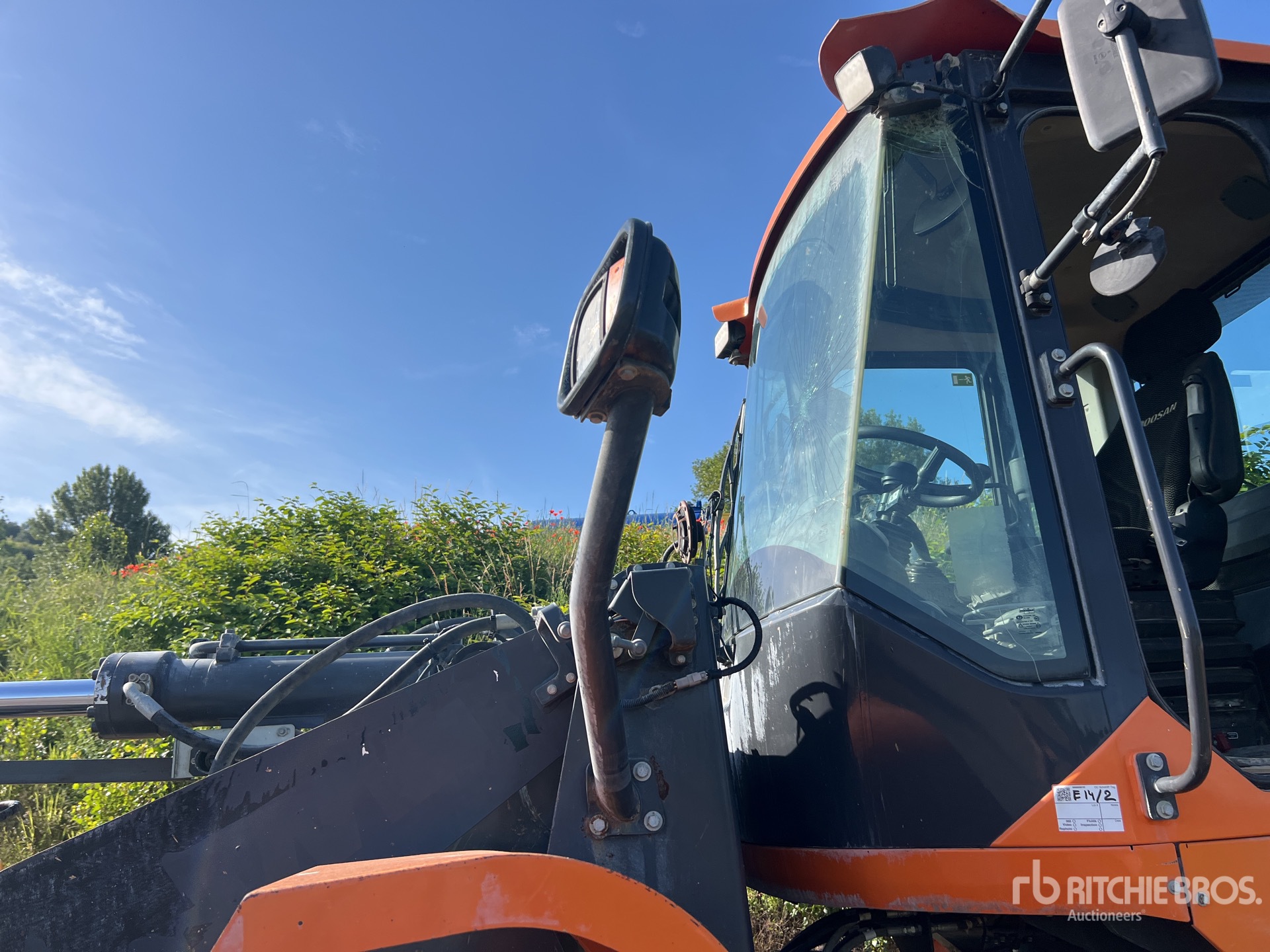

Enclosed Cab, Air Conditioner, Rear View Camera, Air Ride Seat, Autoshift, Requires AdBlue, 2550 mm Bucket, Auto Lube, 20.5R25 Tires

From the manufacturer:

Supplied by HeavyEquipmentData.com →

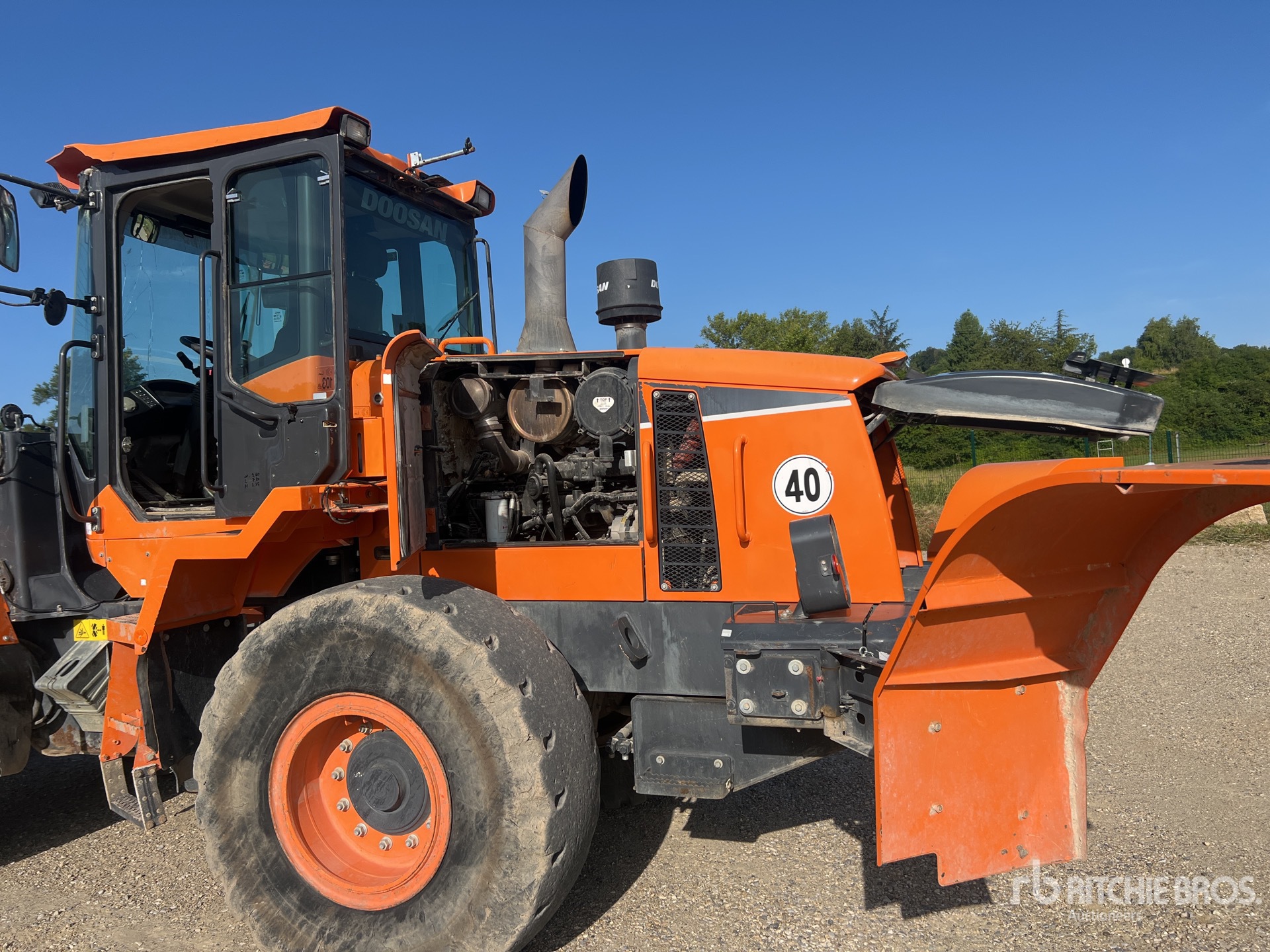

The Doosan DL220-5 is a wheel loader designed for material handling, loading, and general earthmoving applications. It is equipped with a diesel engine and articulated frame for maneuverability in construction, aggregate, and industrial work sites. The DL220-5 typically features a front-mounted loader bucket, hydraulic lift and tilt functions, and an operator cab configured for visibility and control. As part of Doosan's DL series, the model is used for stockpiling, truck loading, site cleanup, and bulk material movement. Its size class places it in the mid-range wheel loader segment for versatile jobsite performance.

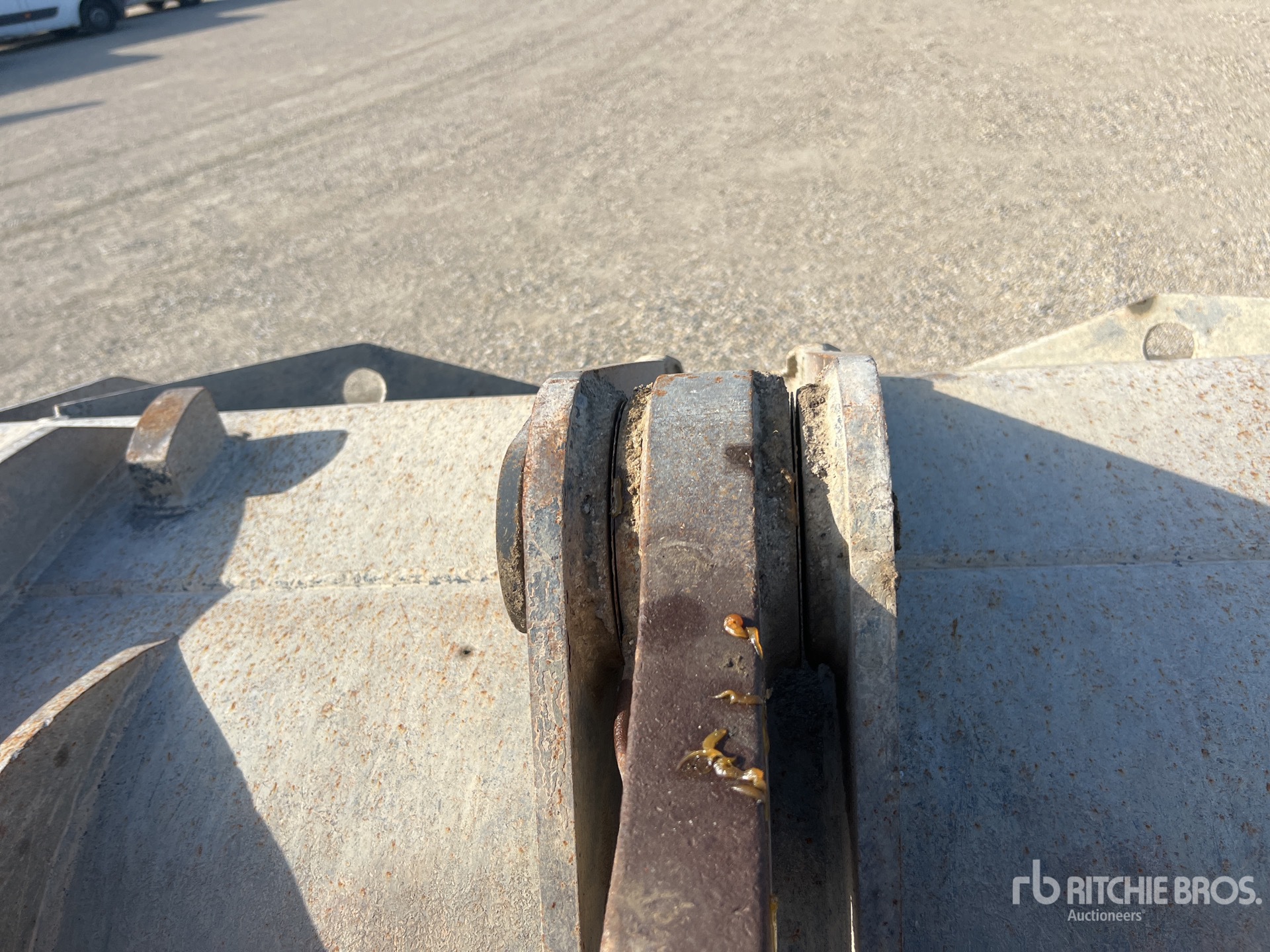

Bucket
Breakout Force	2,315,307 lbs (1,050,207 kg)
Bucket Capacity - heaped	3 cu yd (2 cu m)
Bucket Width	8 ft (3 m)
Dump Clearance at Max Raise	9 ft (3 m)
Dimensions
Ground Clearance	2 ft (0 m)
Hinge Pin - Max Height	13 ft (4 m)
Tread width	76 in (193 cm)
Wheelbase	10 ft (3 m)
Width Over Tires	8 ft (2 m)

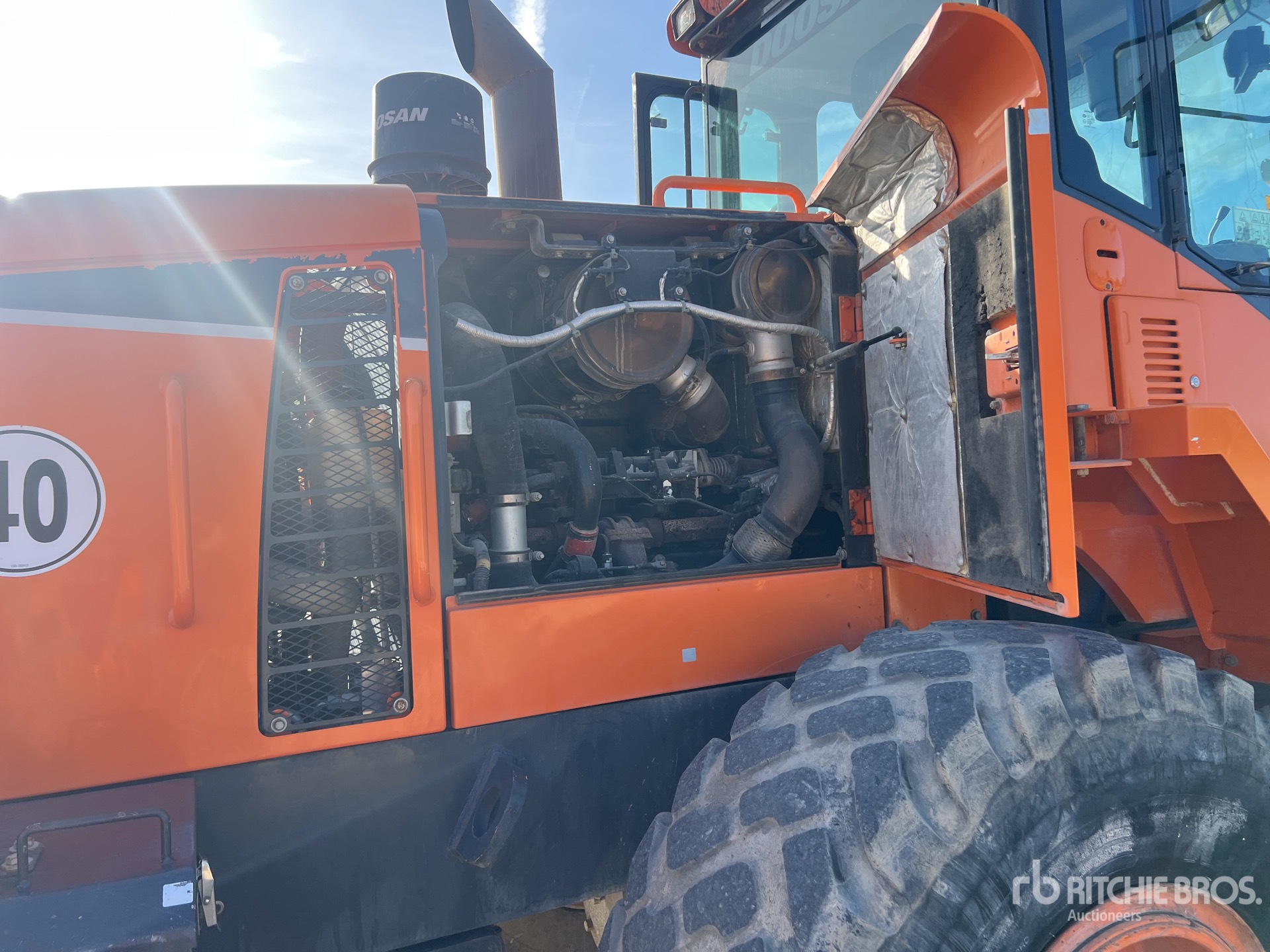

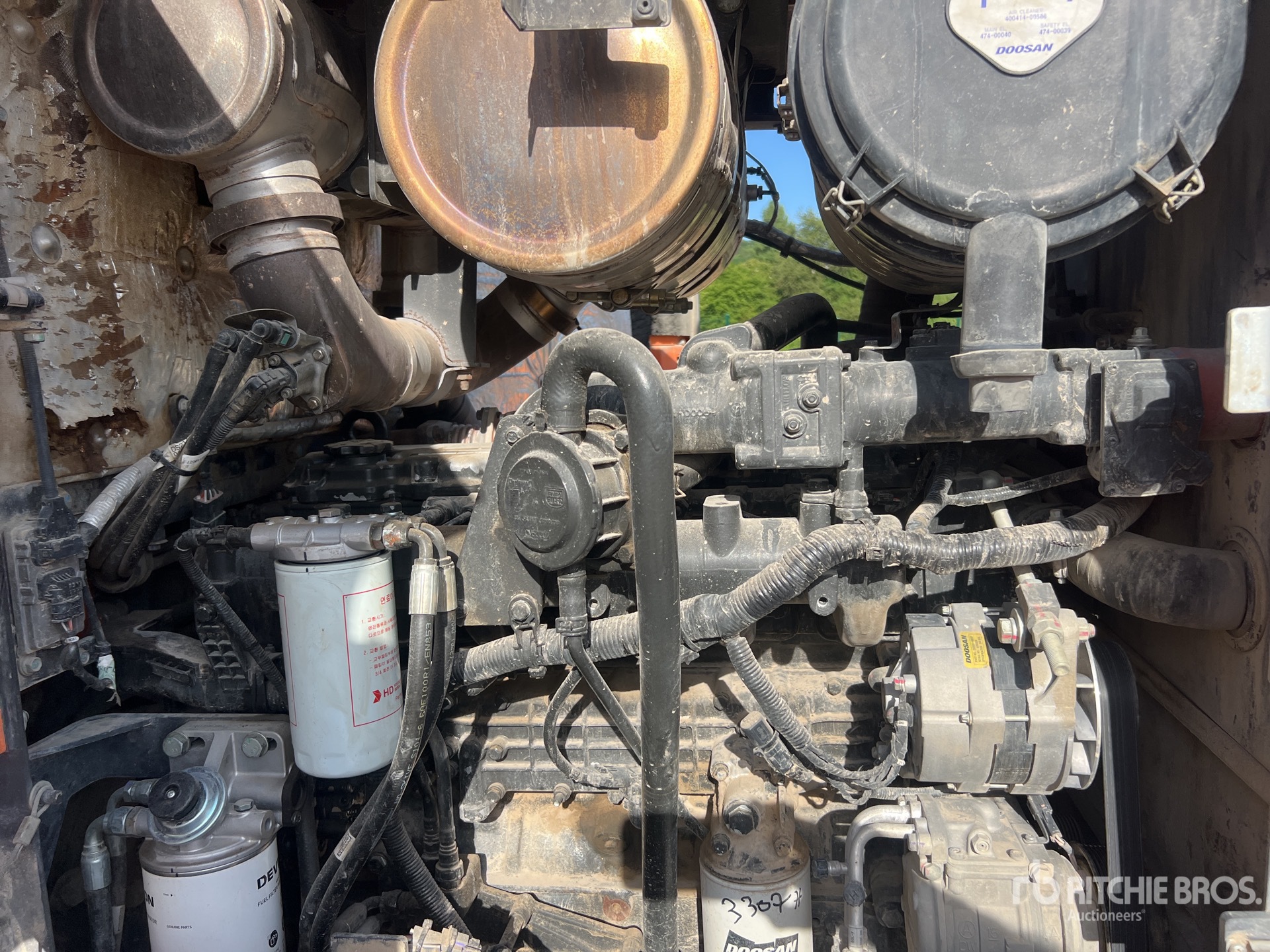

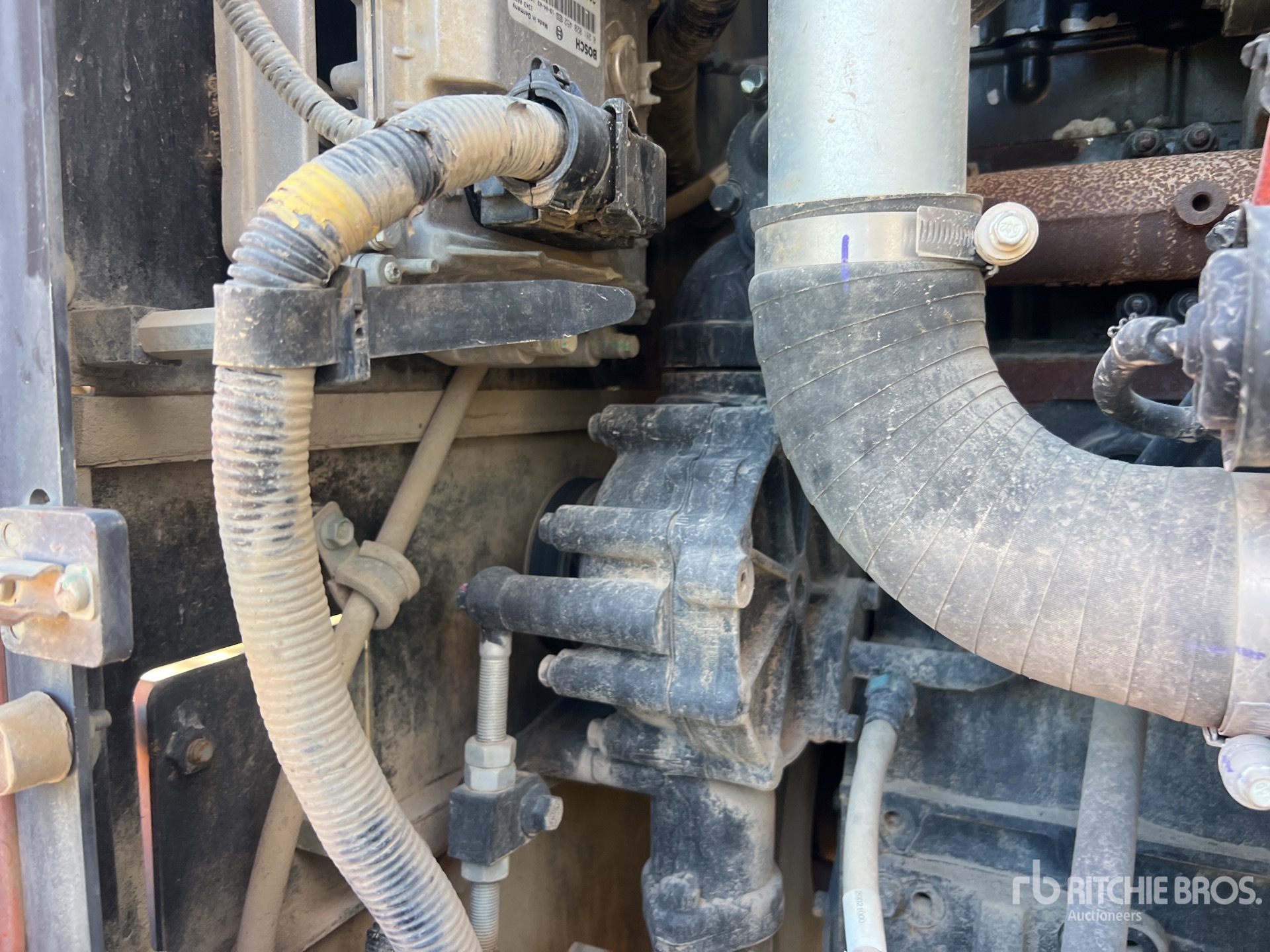

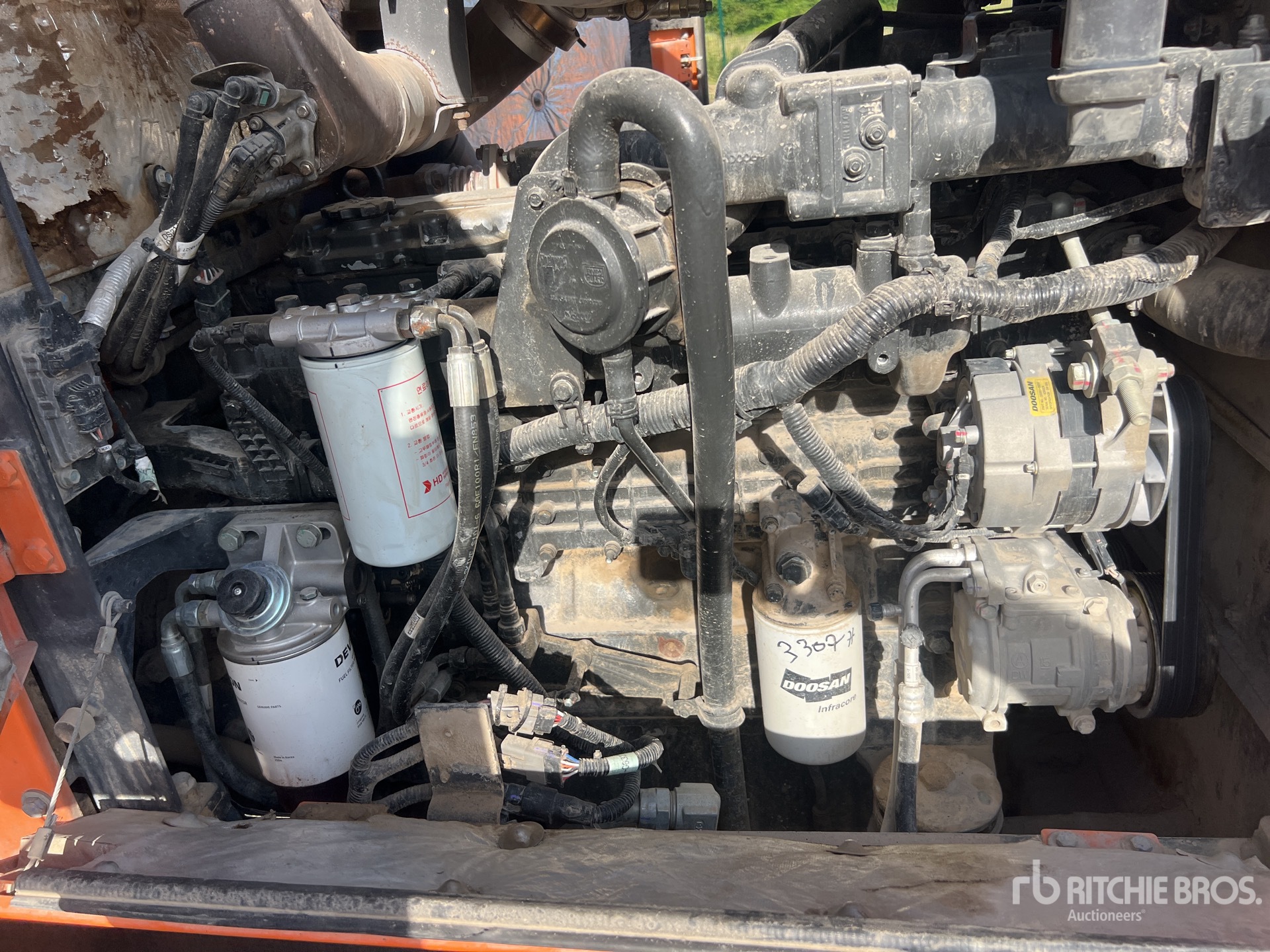

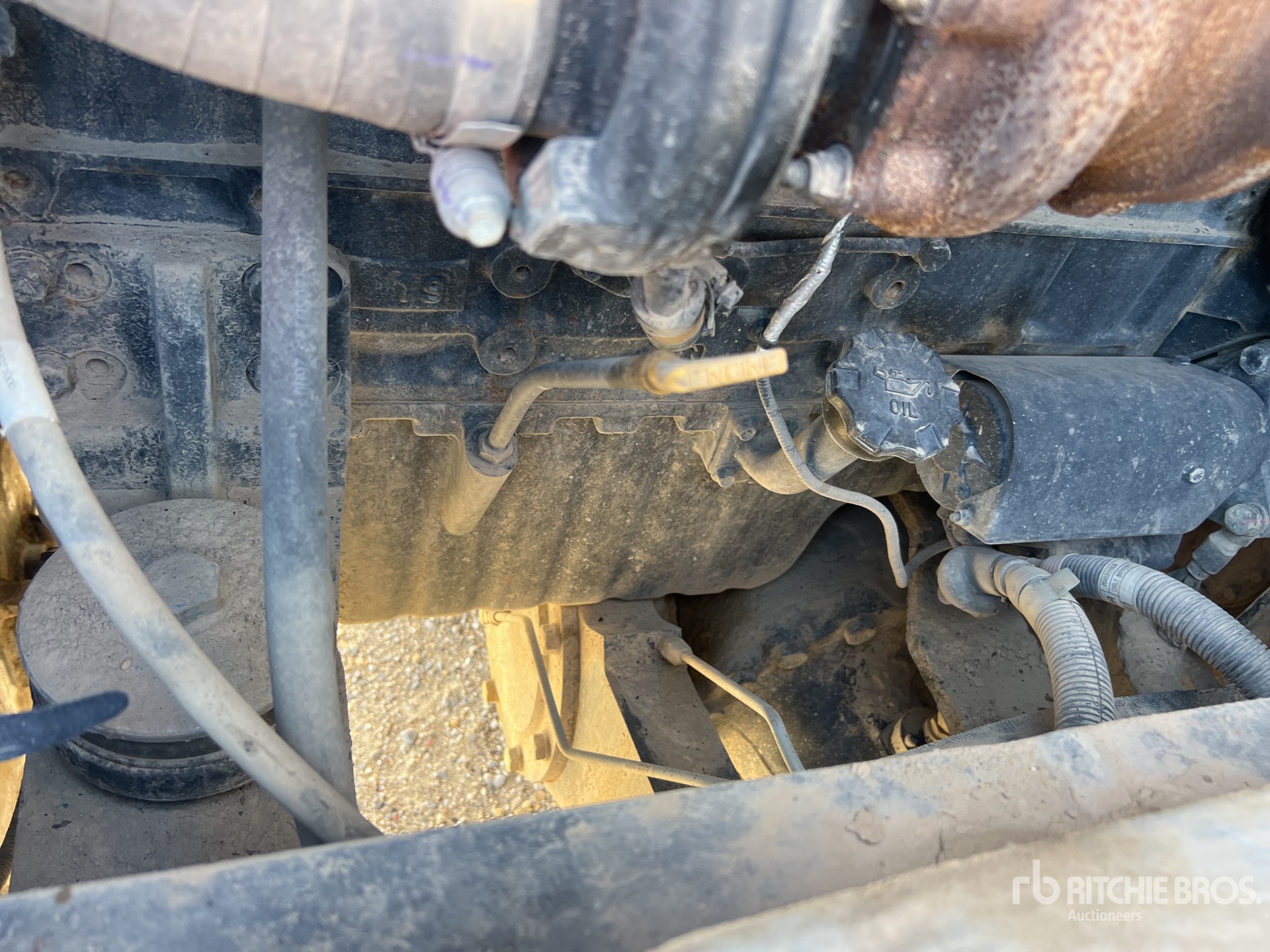

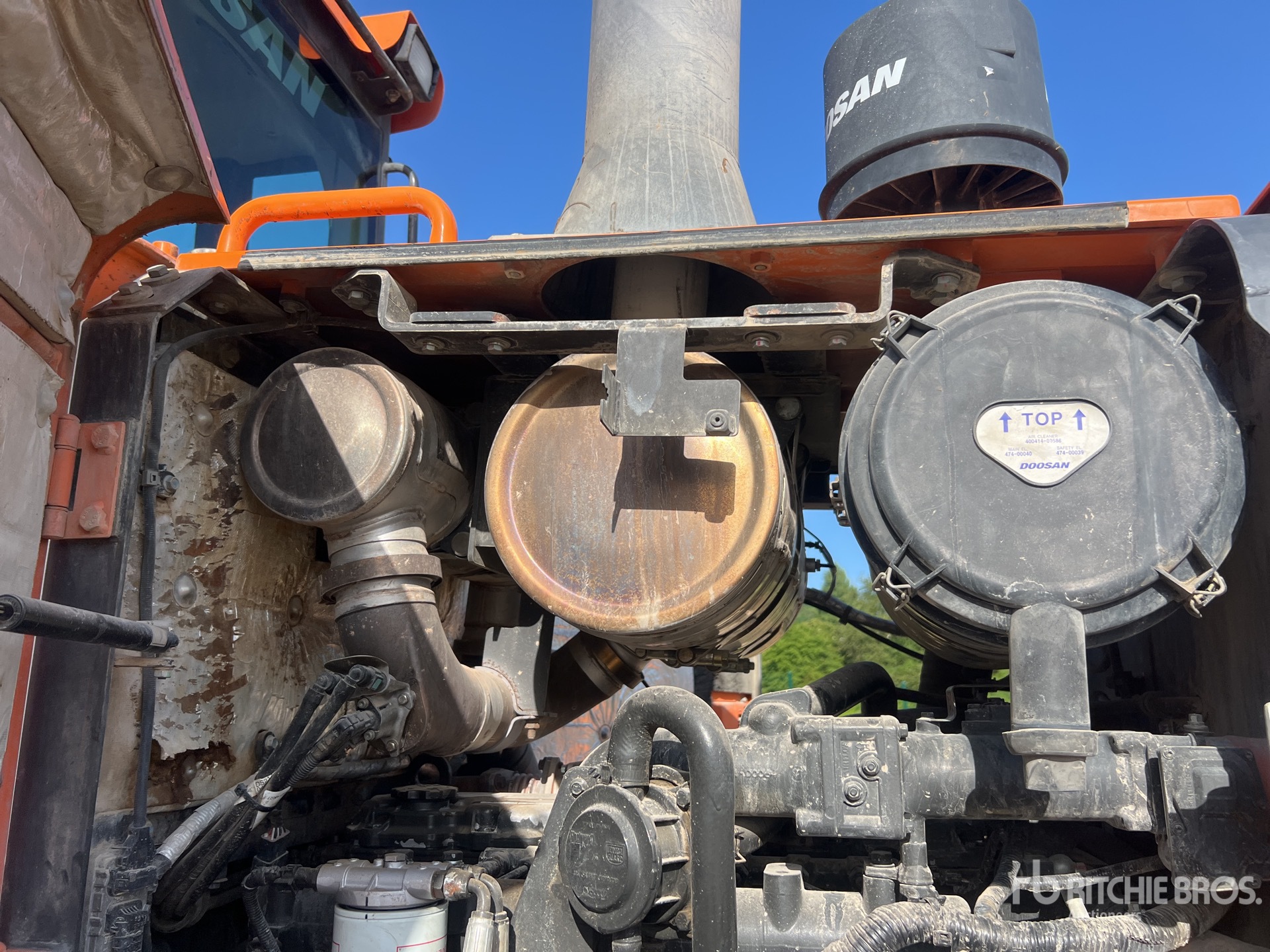

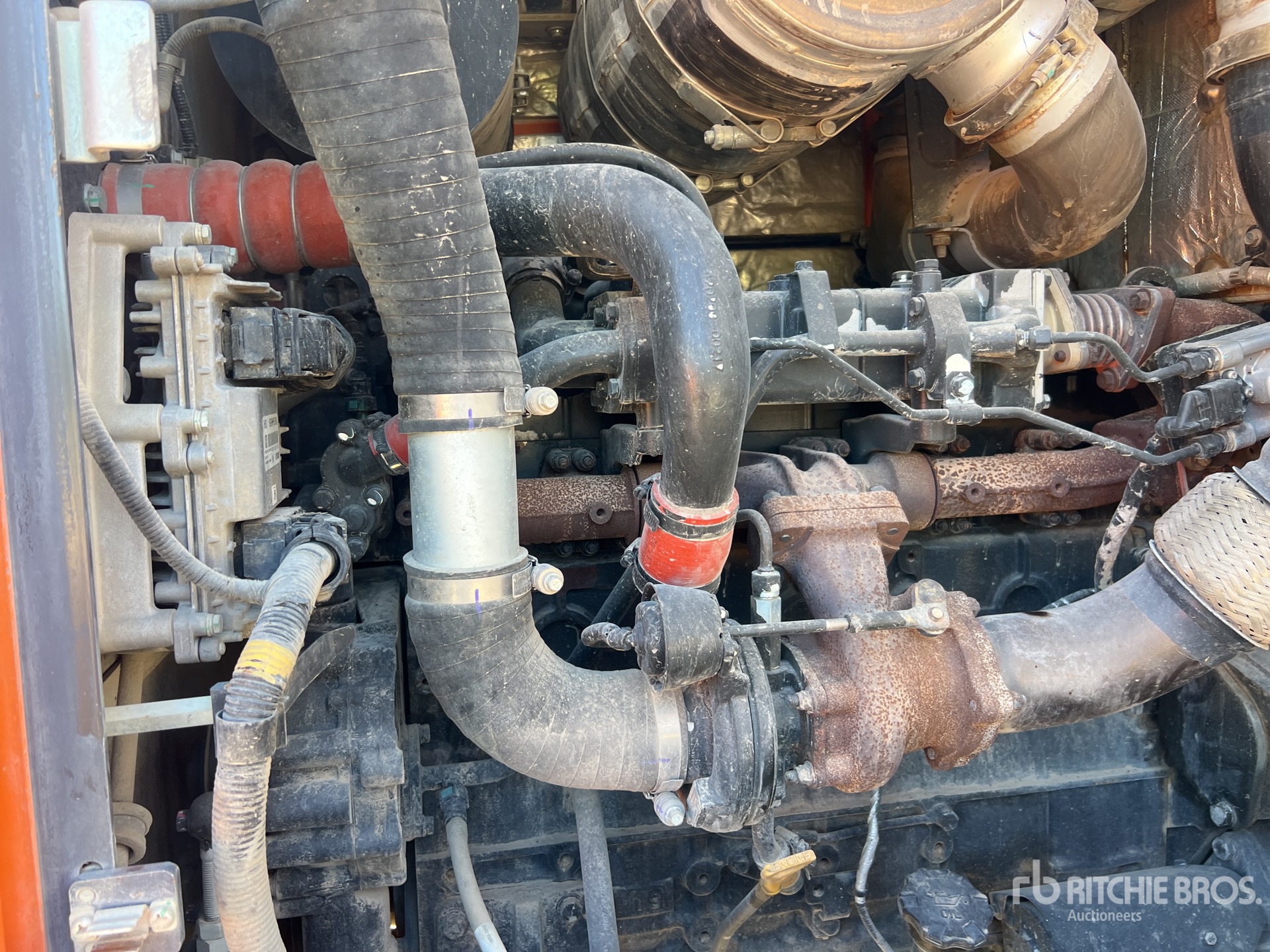

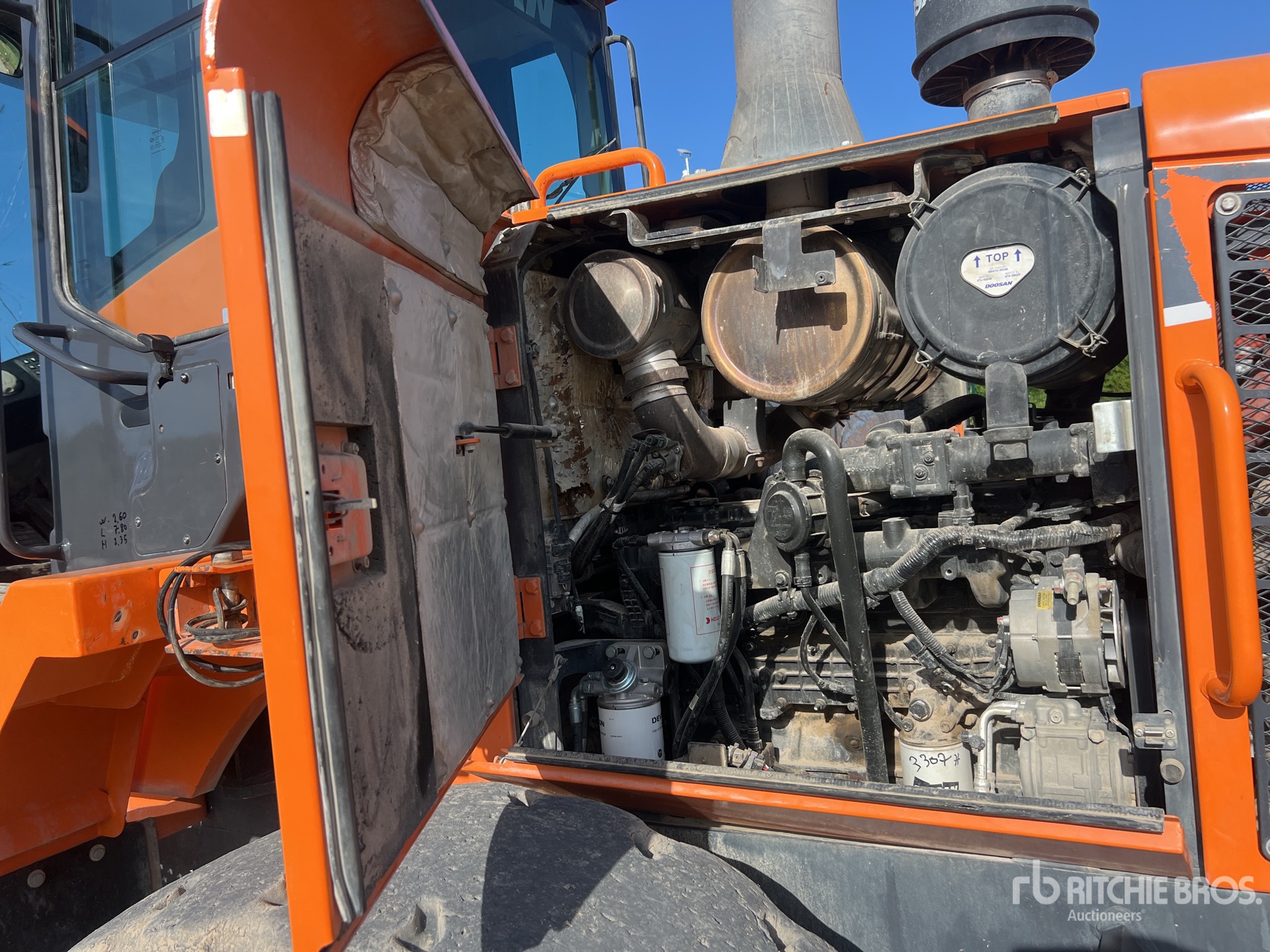

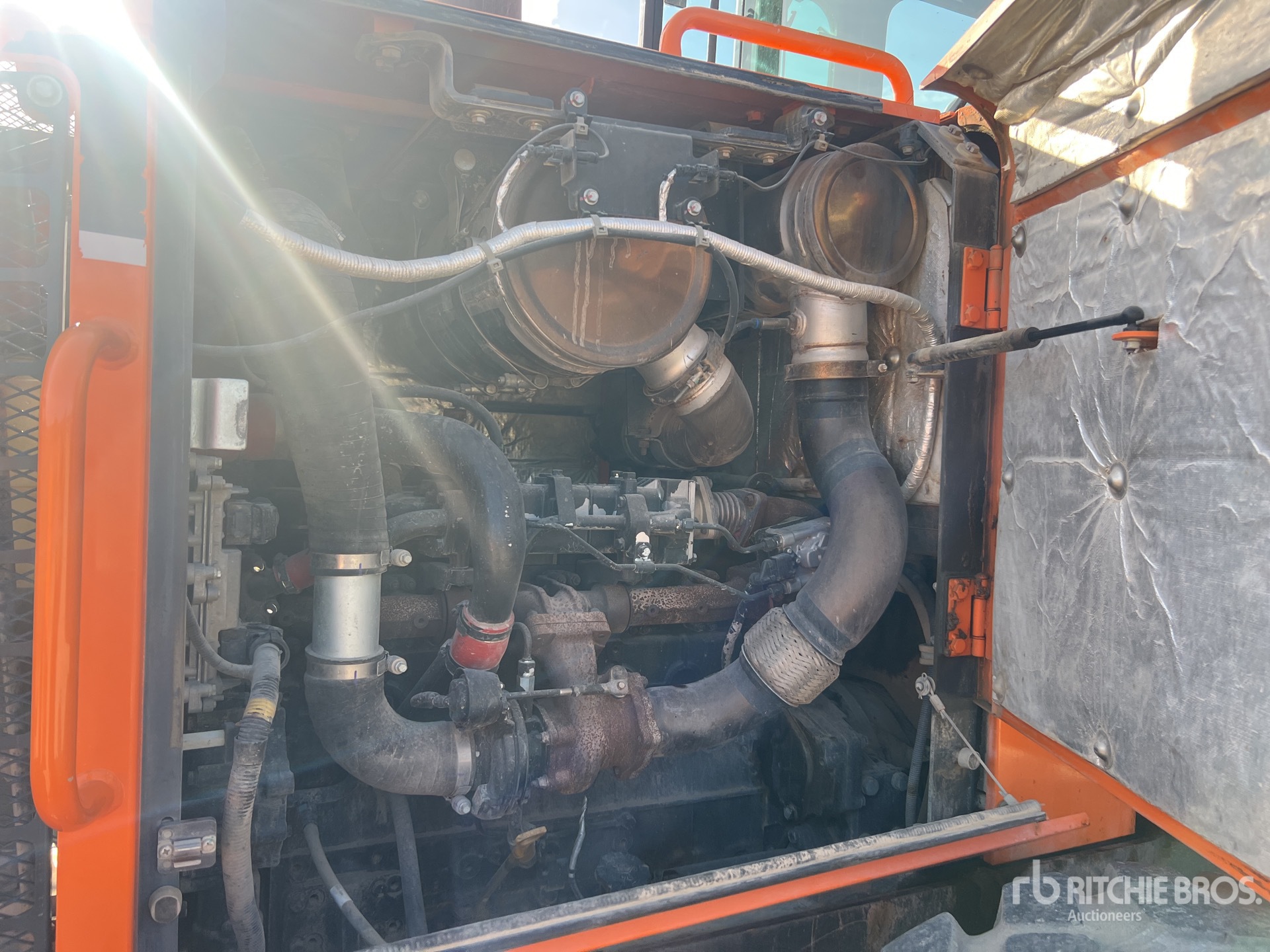

Engine
Alternator	80 amps
Bore	4 in (10 cm)
Displacement	360 cu in (5,901 cu cm)
Engine Make	Doosan
Engine Model	DL06
Gross Power	160 hp (119 kw)
Make	Doosan
Max. torque ISO14396	542 lbs ft (735 nm)
Net Power	160 hp (119 kw)
Number of Cylinders	6
Power Measured @	2,100 rpm
Stroke	5 in (13 cm)
Torque Measured @	1,400 rpm
General Specifications
Bucket Capacity (Since 2017)	3.0 (2.3)
Bucket Capacity (2019)	3.0 (2.3)
Bucket Capacity (2020)	3.0 (2.3)
Bucket Capacity (2021)	3.0 (2.3)
Bucket Capacity cu. yd. (cu m) (Since 2016)	3.0 (2.3)
Engine Power (Since 2017)	160 (119)
Engine Power (2019)	160 (119)
Engine Power (2020)	160 (119)
Engine Power (2021)	160 (119)
Engine Power hp (kw) (Since 2016)	160 (119)
Engine type (Since 2016)	Doosan
Engine type (2017)	Doosan
Engine type (2019)	Doosan
Engine type (2020)	Doosan
Engine type (2021)	Doosan
Max Dump Height (Since 2017)	9.3 (2.85)
Max Dump Height (Since 2019)	9.3 (2.83)
Max Dump Height (Since 2020)	9.3 (2.8)
Max Dump Height (2021)	9.3 (2.8)
Max Dump Height ft.( m) (Since 2016)	9.3 (2.85)
Operating Weight (Since 2017)	27,381 (12,419)
Operating Weight (2019)	27,381 (12,419)
Operating Weight (2020)	27,381 (12,419)
Operating Weight (2021)	27,381 (12,419)
Operating Weight lbs. (kg) (Since 2016)	27,381 (12,419)
Operating Specifications
Cooling System Fluid Capacity	11 gal (40 l)
DEF tank capacity	8 gal (32 l)
Engine Oil Fluid Capacity	7 gal (27 l)
Front Axle/Diff Fluid Capacity	6 gal (22 l)
Fuel Capacity	59 gal (222 l)
Hydraulic System Fluid Capacity	32 gal (120 l)
Operating Voltage	24 volts
Operating Weight	27,382 lbs (12,420 kg)
Rated Bucket Capacity	3 cu yd (2 cu m)
Rear Axle/Diff Fluid Capacity	6 gal (22 l)
Static Tipping Weight	21,231 lbs (9,630 kg)
Tire Size	20.5-R25 (L3)
Transmission Fluid Capacity	8 gal (30 l)
Transmission
Max Speed - Forward	24 mph (39 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Weights
Operational Weight	27,381 lbs (12,420 kg)
