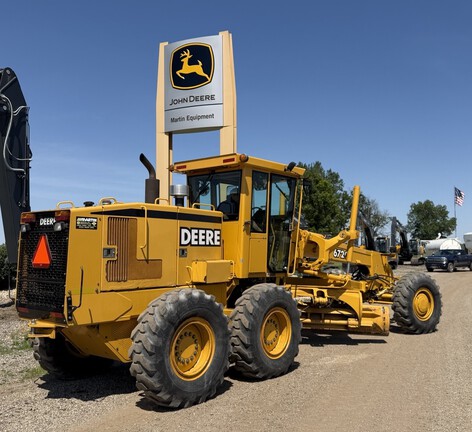

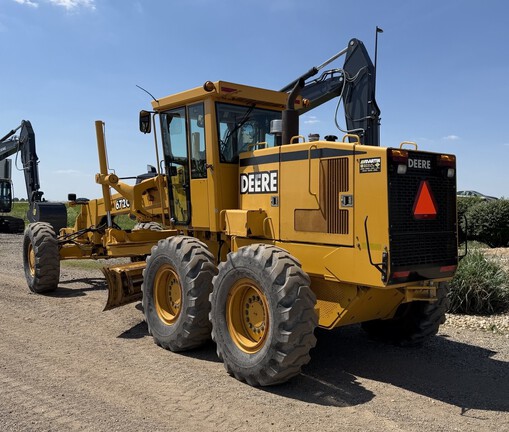

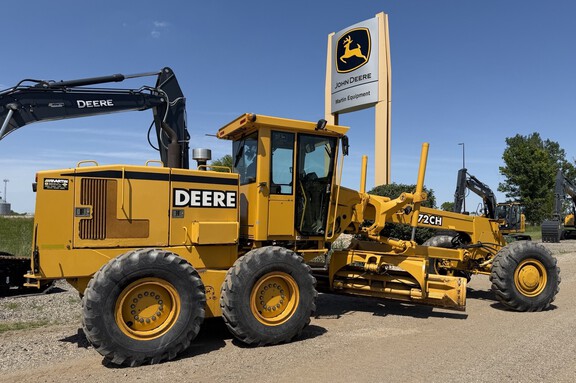

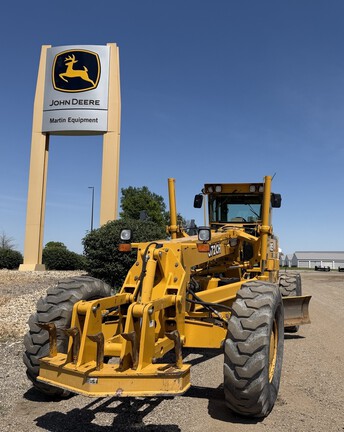

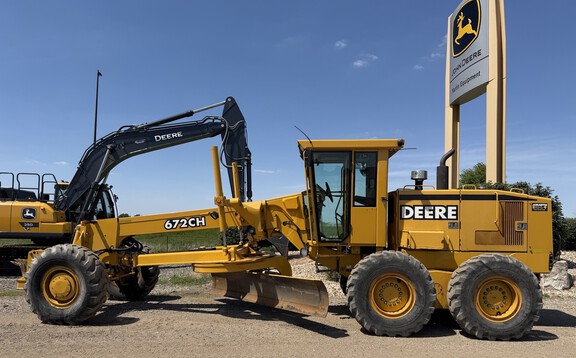

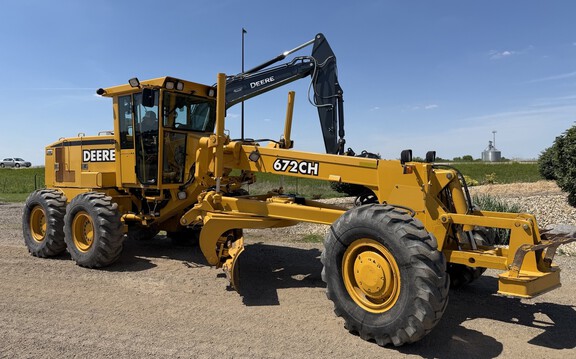

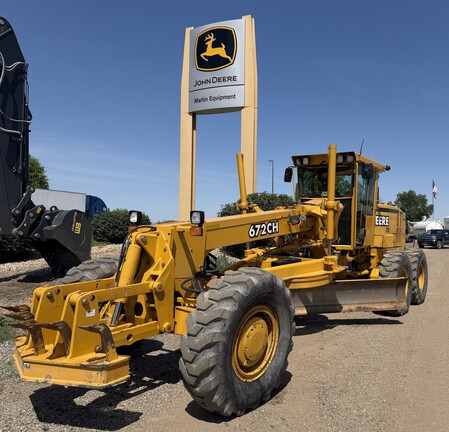

1999 John Deere 672CH For Sale in Goodfield, IL

Name: 1999 John Deere 672CH
Brand: John Deere
SKU: 88583451
Price: 75000 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $75,000.00 USD

Apply for Financing

Martin Equipment

Martin Equipment Dealer Info

Martin Equipment Website

Click here to email Martin Equipment.

Contact: Dennis Scheu

Click for Phone Number

Machine Info:

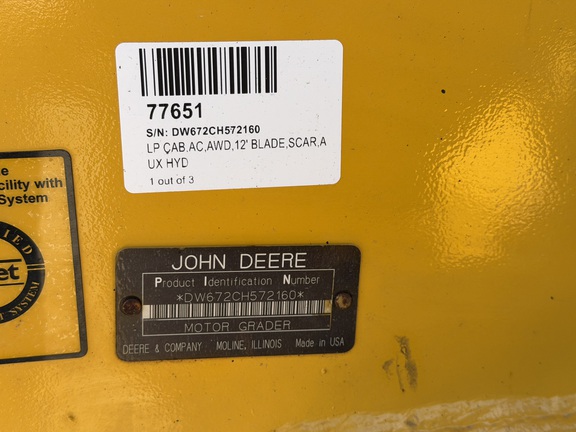

Serial Number:	DW672CH572160
Stock Number:	77651
Machine Location:	GOODFIELD, IL

Description:

Cab w/ AC; 3.66 m (12 ft.) Blade; 14.00 Tires; All Wheel Drive; Options: Aux Hydraulics

Machine Details:

General Specifications

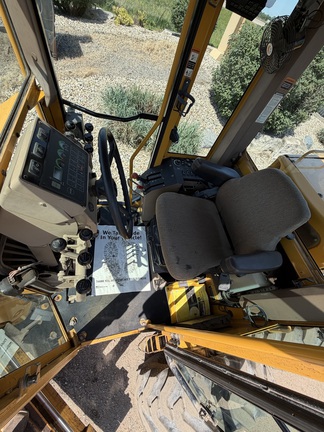

Operators Station	Cab w/ AC
Blades	3.66 m (12 ft.) Blade
Tires	14.00 Tires
Powertrain	All Wheel Drive
Options	Aux Hydraulics

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Circle
Blade Tip Angle - Front	49 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	60 in (152 cm)
Max Lift Above Ground	18 in (44 cm)
Max Reach Outside Tires - Left	85 in (216 cm)
Max Reach Outside Tires - Right	83 in (211 cm)
Rotation	360 degrees
Shift Left	31 in (79 cm)
Shift Right	29 in (73 cm)
Dimensions
Blade Base	9 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height to Top of Isomount Cab	10 ft (3 m)
Overall Length	28 ft (9 m)
Tandem Axle Wheelbase	5 ft (2 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (2 m)
Engine
Aspiration	Turbocharged with Aftercooler
Displacement	414 cu in (6,784 cu cm)
Engine Model	6068H
Max Power	198 hp (148 kw)
Net Power Gear 1-2	145 hp (108 kw)
Net Power Gear 4-6	178 hp (133 kw)
Net Power Gear 5-6	198 hp (148 kw)
Net Power Gears 7-8	198 hp (148 kw)
Net Torque Gears 1-2	554 lbs ft (751 nm)
Net Torque Gears 3-4	611 lbs ft (828 nm)
Net Torque Gears 5-6	625 lbs ft (847 nm)
Net Torque Gears 7-8	625 lbs ft (847 nm)
Number of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,000 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	20 degrees
Hydraulic System
Pump Flow	46 gpm (173 lpm)
Pump Type	Closed center variable displacement
Relief Valve Pressure	2,550 psi
Moldboard
Blade Pull at Max Weight	39,310 lbs (17,831 kg)
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (68 cm)
Side Shift Right	27 in (68 cm)
Operating Specifications
Alternator Supplied Amperage	55 amps
Circle Gearbox Fluid Capacity	4 gal (15 l)
Cooling System Fluid Capacity	11 gal (42 l)
Fuel Capacity	106 gal (401 l)
Hydraulic System Fluid Capacity	16 gal (59 l)
Max Operation Weight - Front Axle	11,180 lbs (5,071 kg)
Max Operation Weight - Rear Axle	25,870 lbs (11,734 kg)
Max Operation Weight - Total	37,050 lbs (16,806 kg)
Oil System Fluid Capacity	6 gal (24 l)
Operating Voltage	24 volts
Rear Diff/Final Drive Fluid Capacity	10 gal (36 l)
Std Operation Weight - Front Axle	10,060 lbs (4,563 kg)
Std Operation Weight - Rear Axle	22,260 lbs (10,097 kg)
Std Operation Weight - Total	32,320 lbs (14,660 kg)
Tandem Case Fluid Capacity (each)	20 gal (76 l)
Tire Size	13.00-24
Transmission Fluid Capacity	10 gal (38 l)
Steering System
Articulation Angle	25 degrees
Turning Radius	23 ft (7 m)
Transmission
Max Speed - Forward	25 mph (40 kph)
Max Speed - Reverse	25 mph (40 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	8
Transmission Type	Power Shift
