Equipment ↠ Link-Belt ↠ Excavators ↠ 2018 Link-Belt 290X2

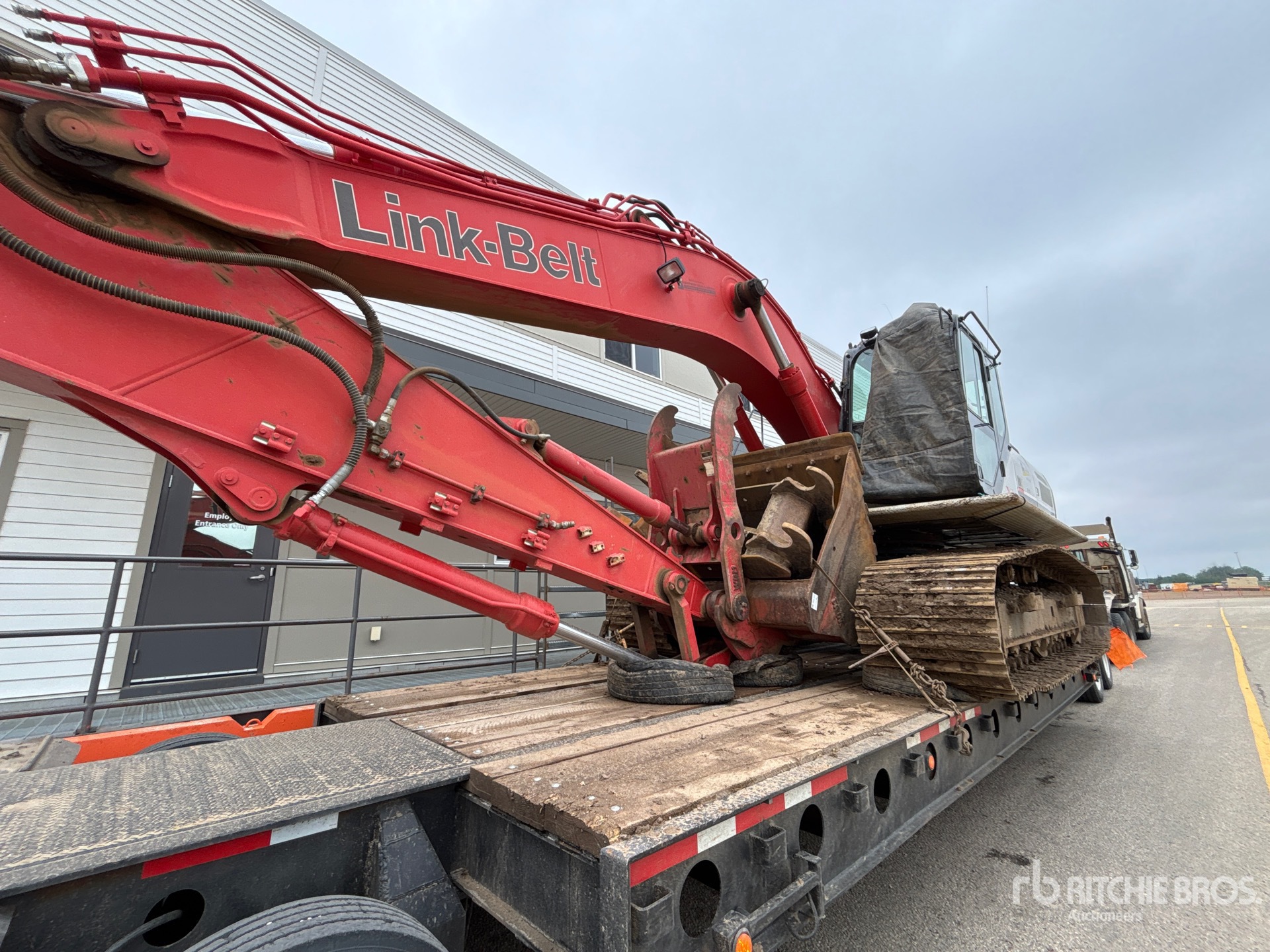

2018 Link-Belt 290X2 For Sale in Edmonton, Ab

Name: 2018 Link-Belt 290X2
Brand: Link-Belt
SKU: 88554361
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-24 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Serial Number:	LBX29005NHHEX1455
Machine Location:	EDMONTON, AB

Description:

Closing Time: 2026-06-24 11:22:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Link-Belt 290 X2 is a hydraulic excavator in the Link-Belt X2 series, designed for general earthmoving, utility work, site preparation, and material handling. It is typically used in construction, excavation, and infrastructure applications where digging depth, reach, and controlled hydraulic performance are required. The 290 X2 features a crawler undercarriage, a rotating upper structure, and a boom-and-stick excavator configuration for trenching, loading, and grading tasks. As part of the Link-Belt excavator lineup, it is built for operator productivity, service access, and compatibility with common attachments used on job sites.

Boom/Stick Excavator Option 1
Max Cutting Height	33 ft (10 m)
Max Digging Depth	23 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	35 ft (11 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	34 ft (10 m)
Boom/Stick Excavator Option 2
Max Cutting Height	33 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	33 ft (10 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	34 ft (10 m)
Boom/Stick Excavator Option 3
Max Cutting Height	34 ft (10 m)
Max Digging Depth	25 ft (8 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	22 ft (7 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	34 ft (10 m)
Bucket
Maximum Bucket Capacity	3 cu yd (2 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	2 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Length of Track on Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	10 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
Engine
Aspiration	Turbocharged with Intercooler
Displacement	476 cu in (7,800 cu cm)
Engine Model	AH-6HK1XYSS
Max Torque	627 lbs ft (850 nm)
Net Power	207 hp (154 kw)
Power Measured @	1,800 rpm
Torque Measured @	1,500 rpm
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	8 gal (29 l)
Engine Oil Capacity	10 gal (38 l)
Fuel Capacity	119 gal (450 l)
Hydraulic Pump Flow Capacity	128 gpm (486 lpm)
Hydraulic System Fluid Capacity	79 gal (300 l)
Hydraulic System Relief Valve Pressure	4,970 psi
Operating Voltage	24 volts
Operating Weight	65,700 lbs (29,801 kg)
Swing Drive Fluid Capacity	2 gal (6 l)
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Ground Pressure	6 psi
Max Travel Speed	4 mph (6 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	50
Number of Track Rollers per Side	9
Shoe Size	32 in (80 cm)
Track Gauge	9 ft (3 m)
