This machine has been sold or is not currently for sale.

Skyjack SJIII 3219


Machine Info:

Serial Number:22102512
Machine Location:BIRMINGHAM, AL

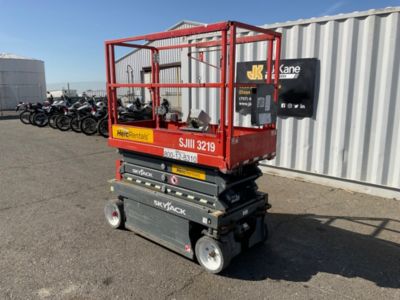

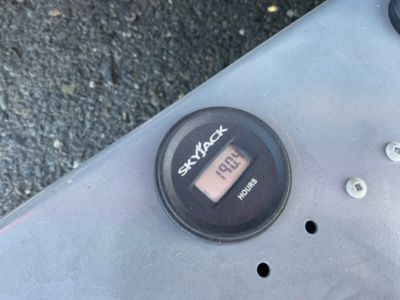

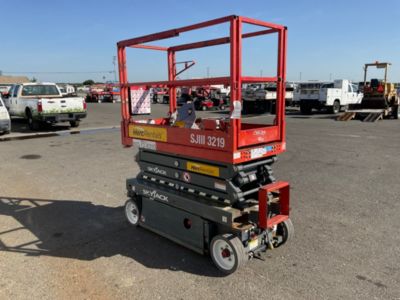

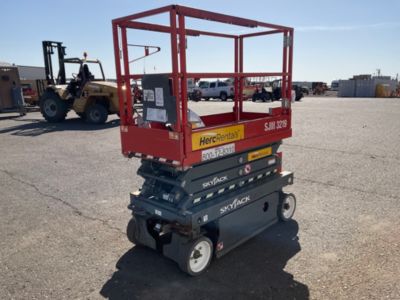

2016 SkyJack SJIII-3219 Self-Propelled Scissor Lift, s/n 22102512, battery powered, Max Deck Height: 19ft, Load Capacity: 550 lbs, System Voltage: 24V, Deck Extension: 35in (Runs, Moves & Operates) (Reads 190 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Dixon, CA. For specific technical information about this item; please contact JJ Kane Staff at 707-678-8060 ([email protected]). For load out and pick information; please reference the hauler sheet sent out after purchase. Load out will be by Monday-Friday. 8am-4pm; Buyer/Hauler must present copy of Paid Invoice/Release Form, and Bill of Lading when applicable upon arrival. This item is used and may contain defects that are not immediately detectable. Text description and photos given are meant to be used as a guide only. The conditions are provided by the consignor; you are responsible for inspecting items before bidding. All information provided is believed to be correct but no warranty as suc

From the manufacturer:

Capacity550 lbs (249 kg)
Distributed Capacity (Extension Deck)250 lbs (113 kg)
Distributed Capacity (Main Platform)300 lbs (136 kg)
Local Floor Load (With Rated Load)110 psi (759 kPa)
Maximum Drive HeightFull Height
Overall Floor Load (With Rated Load)201 psf (10 kPa)
Extension Deck (Roll Out)3’ (0.91 m)
Ground Clearance (raised)0.7” (1.78 cm)
Ground Clearance (Stowed)2.375” (6.03 cm)
Lowered Platform Height39” (0.99 m)
Overall Length70” (1.78 m)
Overall Width32” (0.81 m)
Platform Length (Inside Dimension)64” (1.63 m)
Platform Width (Inside Dimension)26” (0.66 m)
Raised Platform Height19’ (5.79 m)
Stowed Height (Rails Down)OPT 64.5” (1.64 m)
Stowed Height (Rails Up)78.5” (1.99 m)
Weight2,580 lbs (1,170 kg)
Wheelbase55” (1.40 m)
Work Height25’ (7.62 m)
Drive Speed (Raised)0.7 mph (1.1 km/h)
Drive Speed (Stowed)2 mph (3.2 km/h)
Lift Time (With Rated Load)25 sec
Lower Time (With Rated Load)29 sec
Turning Radius (Inside)0
Turning Radius (Outside)66” (1.68 m)
Maximum # of Persons2
Wind Rating28 mph (12.5 m/s)
Tire Size12 x 4 x 8
Tire TypeSolid, N/M
