Equipment ↠ Toyota ↠ Forklifts ↠ 8FGCU30 ↠ Toyota 8FGCU30

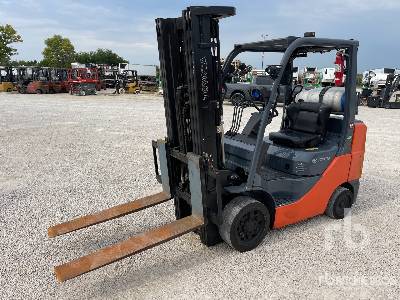

Toyota 8FGCU30

Name: Toyota 8FGCU30
Brand: Toyota
Price: 1 USD
Availability: OutOfStock

MACHINE SOLD

Click here to bid and see more info →

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	6120
Serial Number:	71018
Machine Location:	COLUMBUS, OH

Description:

3 Stage Mast, 187 in Max Lift Height, 86 in Lowered Mast Height, 47 in Forks, 2018 US EPA Label, Toyota 4YECS 4 Cylinder 38 kW 2.23 L LPG Engine LOCATED-IN-CHICAGO-IL, Closing Time: 2023-09-28 11:05:20 AM

From the manufacturer:

Brakes
Parking brake	Foot
Service brake	Hydraulic
Dimensions
Fork Spread Max	3 ft (1 m)
Fork Spread Min-outer edge to edge	10 in (23 cm)
Free lift	5 in (13 cm)
Gradeability	25%
Height to Top of Overhead Guard	7 ft (2 m)
Length to Fork Face	8 ft (2 m)
Max Fork Height	11 ft (3 m)
Overall Width	4 ft (1 m)
Turning Radius	7 ft (2 m)
Wheelbase	5 ft (1 m)
Engine
Displacement	136 cu in (0 m)
Engine Make	TOYOTA
Engine Model	4Y-ECS
Number of Cylinders	4
Power	51 hp (38 kw)
Power Measured @	2,570 rpm
Torque	118 lbs/ft
Torque Measured @	2,100 rpm
MAST
Lift Speed	102 ft/min
Load Capacity	5,953 lbs (2,700 kg)
Load Center	24 in (61 cm)
Mast Tip Forward	6 °
Mast Tip Rear	5 °
Operating Specifications
Fuel Capacity	12 gal (42 l)
Hydraulic System Fluid Capacity	20 gal (76 l)
Hydraulic System Relief Valve Pressure	2,275 psi
Max Speed	11 mph (16 kph)
Number of Front Wheels	2
Number of Rear Wheels	2
Operating Weight	9,260 lbs (4,200 kg)
Tire Type	Cushion
Performance
Drawbar Pull Max -Full Load	40,786 lbs (18,500 kg)
Drawbar Pull Max -No Load	17,196 lbs (7,800 kg)
