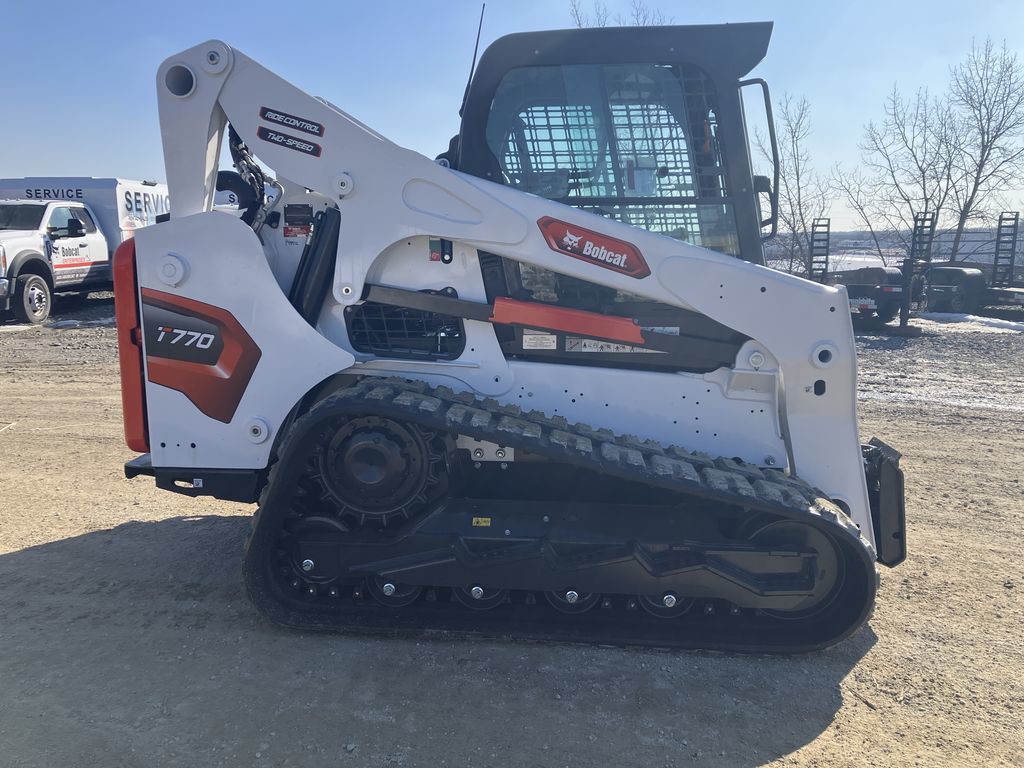

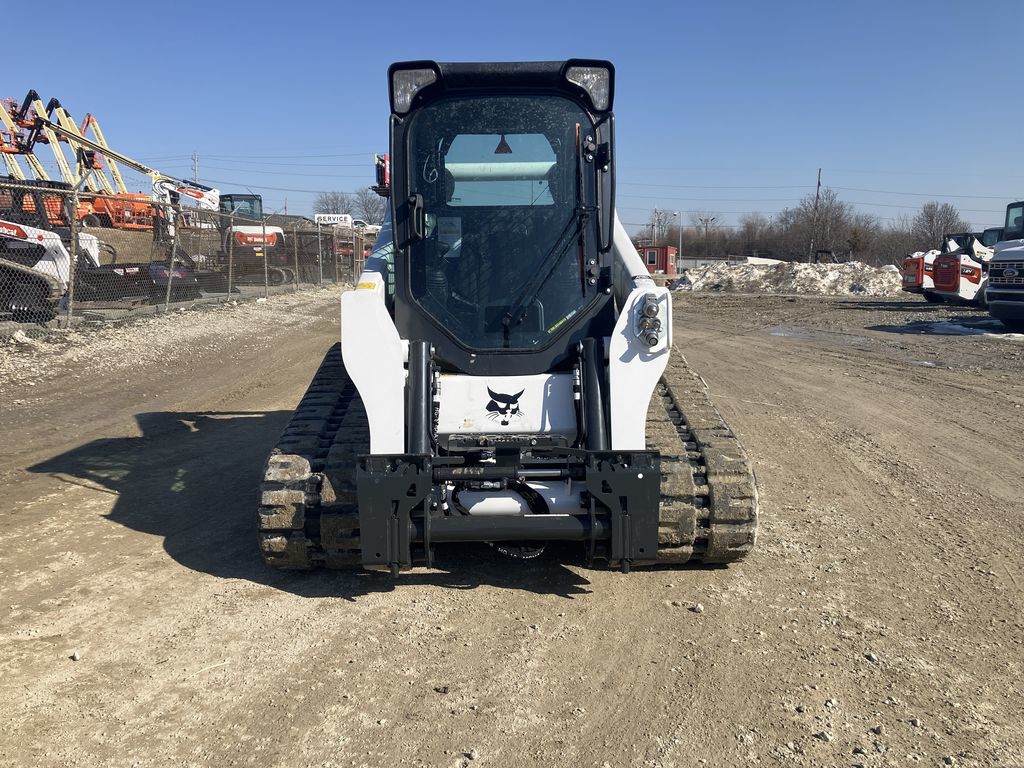

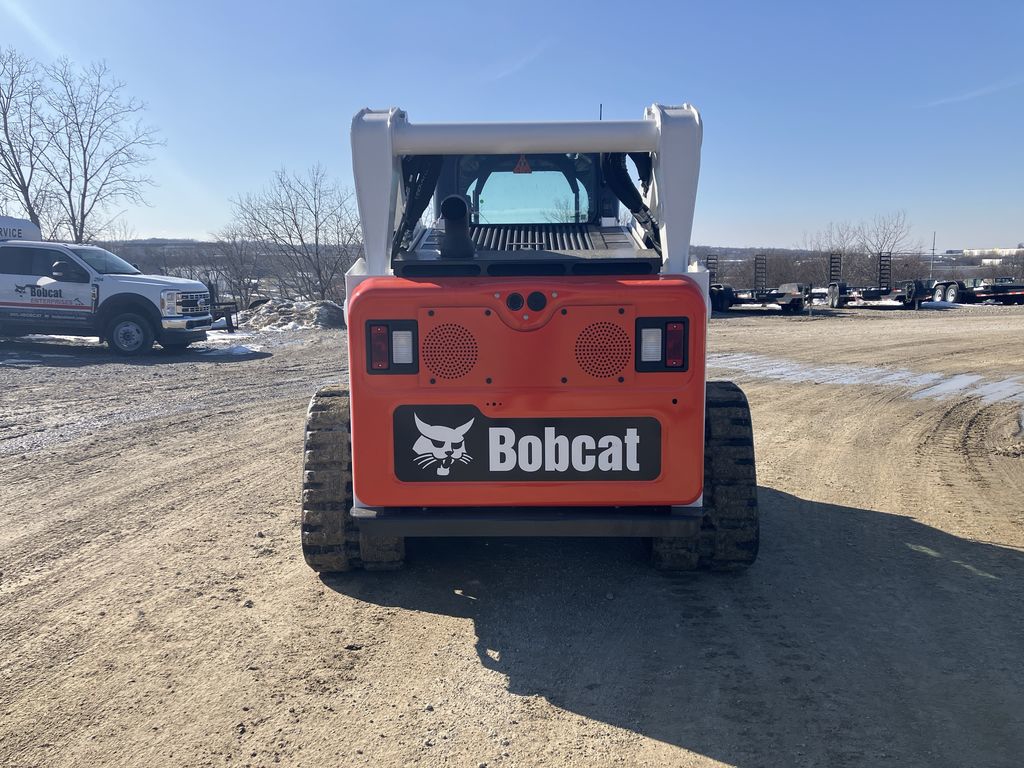

2026 Bobcat COMPACT TRACK LOADERS T770 For Sale in Hamilton, OH


/ Save to Watch List

For Sale: Call for Price





Machine Info:

Serial Number:18542113
Machine Location:HAMILTON, OH
More Information:https://showroom.auction123.com/bobcat_enterprises/inventory/24138/18542113.html

Description:

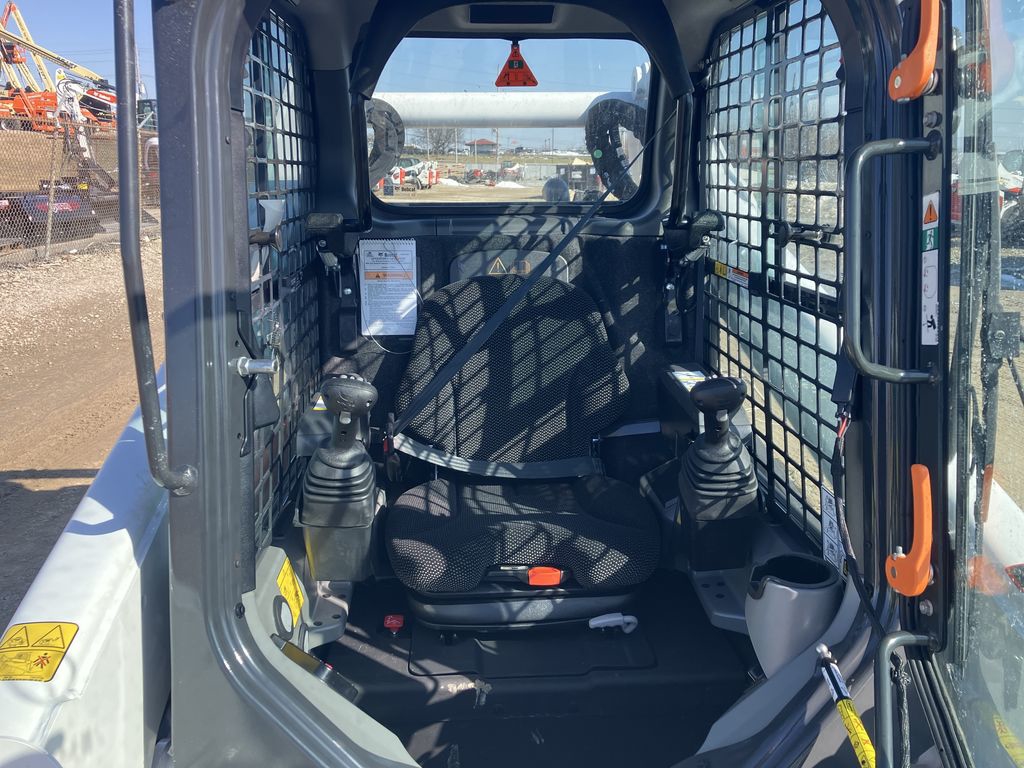

BobcatT770 T492 hp engine3475 lb rated operating capacity10,515 lb operating weight6.6 mph travel speed23 gpm standard flow36.6 gpm high flow3500 psi auxiliary system pressure113.3 in length without attachment78 in overall width81.3 in overall height132 in height to hinge pin34.9 in reach at maximum heightThis machine is equipped with:Deluxe PackageEnclosed HVAC Cab, Adjustable Heated Cloth Air Ride Seat, Power Bob-Tach, Keyless Ignition, Deluxe Display, Standard Lights, 7-Pin Attachment Control, Single Direction Bucket Positioning, Two-Speed Travel, Telematics - Machine IQ, 2yr Standard Telematics Subscription, Radio with Bluetooth, Ride Control, and Reversing FanHigh Flow HydraulicsProvides 36.6 GPM and 3550 PSI for attachment operationRoller Suspension CarriageSolid Mounted Undercarriage and 4 Rollers with Leaf Spring style suspension. Compatible with 12.6" tracks (Loader width 73.4") or 17.7" tracks (Loader width is 78.0")Selectable Joystick Controls (SJC)Auto I


From the manufacturer:

Supplied by HeavyEquipmentData.com →


Bobcat T770 Compact Track Loader is a midsize tracked loader designed for construction, landscaping, agriculture, and material handling. It features a vertical lift path, high operating capacity, and strong breakout force for loading, grading, digging, and attachment work. The T770 is commonly equipped with a turbocharged diesel engine, hydraulic auxiliary flow for powered attachments, and a sealed undercarriage for traction on soft or uneven ground. Bobcat's compact track loader platform supports a wide range of buckets, forks, grapples, augers, and snow equipment. The T770 is used where flotation, stability, and maneuverability are required in confined jobsite conditions.
Dimensions
Height - Top of Cab 7 ft (2 m)
Length - with Bucket 12 ft (4 m)
Length - without Bucket 10 ft (3 m)
Reach at Max Lift and Dump 3 ft (1 m)
Turning Radius from Center - machine rear 88 in (224 cm)
Width Over Tracks 7 ft (2 m)
Engine
Aspiration Turbocharged
Emission Tier Level Tier 4
Fuel Diesel
Gross Power 92 hp (69 kw)
Net Power 92 hp (69 kw)
General Specifications
ENGINE POWER HP (KW) (Since 2016) 92 (68.6)
Engine Power HP (KW) (Since 2021) 92 (68.6)
MODEL (Since 2016) T770
Narrow Track Operating Width IN. (CM)Roller or Torsion Suspension (Since 2022) NA
OPERATING LOAD LBS. (KG) (Since 2016) 3,475 (1,576)
OPERATING WIDTH IN. (CM) (Since 2016) 78" (198.1)
OPERATING WIDTH IN. (CM) (Since 2017) 78 (198.1)
Operating Width IN. (CM) (Since 2021) 78 (198.1)
Operating Width IN. (CM) (Since 2022) NA
RATED OPERATING CAPACITY LBS. (KG) (50%) (Since 2020) 3,475 (1,576)
Rated Operating Capacity LBS. (KG) 50% (Since 2021) 3,475 (1,576)
Rated Operating Capacity LBS. (KG) 50% (Since 2022) 3,475 (1.576)
Wide Track Operating Width IN. (CM)Roller or Torsion Suspension (Since 2022) 78 (198.1)
Wide Track Operating Width IN. (CM) (Since 2022) 78 (198.1)
Hydraulic System
Pump Flow 23 gpm (87 lpm)
Relief Valve Pressure 3,500 psi
Loader
Bucket Width 80 in (203 cm)
Operating Load 3,475 lbs (1,576 kg)
Operating Width 80 in (203 cm)
Tipping Angle 9,929 degrees
Operating Specifications
Fuel Capacity 27 gal (103 l)
Max Speed - high range 11 mph (17 kph)
Max Speed - low range 7 mph (11 kph)
Operating Weight 10,327 lbs (4,684 kg)
Undercarriage
Ground Pressure 4 psi
Length of Track on Ground 5 ft (2 m)
Width of Track 18 in (45 cm)
