| Capacities |
|
Fuel Tank (Since 2026)
|
14 gal (54 l)
|
| Dimensions |
|
Clearance At Max Lift And Dump |
7 ft (2 m)
|
|
Ground Clearance |
8 in (21 cm)
|
|
Height to Hinge Pin (Since 2026)
|
110 in (278 cm)
|
|
Height To Top Of Cab |
6 ft (2 m)
|
|
Length W/O Bucket |
8 ft (3 m)
|
|
Length With Bucket |
10 ft (3 m)
|
|
Length with Standard Bucket (Since 2026)
|
125 in (317 cm)
|
|
Length without Attachment (Since 2026)
|
98 in (250 cm)
|
|
Overall Height (Since 2026)
|
78 in (198 cm)
|
|
Overall Width (Since 2026)
|
59 in (149 cm)
|
|
Reach @ Maximum Height (Since 2026)
|
21 in (53 cm)
|
|
Reach At Max Lift And Dump |
21 in (53 cm)
|
|
Standard Bucket (Since 2026)
|
62 in (157 cm)
|
|
Standard Tires (Since 2026)
|
10X16.5 |
|
Turning Radius (Since 2026)
|
76 in (194 cm)
|
|
Wheelbase |
3 ft (1 m)
|
|
Wheelbase (Since 2026)
|
35 in (90 cm)
|
|
Width (with bucket) (Since 2026)
|
62 in (157 cm)
|
|
Width Over Tires |
5 ft (1 m)
|
| Engine |
|
Aspiration |
Turbocharged |
|
Cooling System |
Liquid |
|
Emission Tier Level |
Tier 4 |
|
Fuel Type |
Turbo Diesel |
|
Gross Power |
49 hp (37 kw)
|
|
Horsepower (Since 2026)
|
49 hp (37 kw)
|
|
Hydraulic Horsepower - Standard Flow (Since 2026)
|
32 hp (24 kw)
|
| Features |
|
ACS (Switchable Controls) (Since 2026)
|
Not Applicable |
|
Adjustable Seat (Since 2026)
|
Standard |
|
Air Conditioning (Since 2026)
|
Optional |
|
Auxiliary Hydraulics (Since 2026)
|
Standard |
|
Backup Alarm (Since 2026)
|
Standard |
|
BICS System (Interlock) (Since 2026)
|
Standard |
|
Bob-Tach Attachment System (Since 2026)
|
Standard |
|
Cab Enclosure (Since 2026)
|
Optional |
|
Cab Heater (Since 2026)
|
Optional |
|
Deluxe Instrumentation (Since 2026)
|
Optional |
|
Engine Shutdown (Since 2026)
|
Standard |
|
High Flow Option (Since 2026)
|
Not Applicable |
|
Horn (Since 2026)
|
Standard |
|
Hydraulic Bucket Positioning (Since 2026)
|
Optional |
|
Joystick Control (Since 2026)
|
Optional |
|
Lift-Arm Support (Since 2026)
|
Standard |
|
Operating Lights (Since 2026)
|
Standard |
|
Parking Brake (Since 2026)
|
Standard |
|
Power Bob-Tach (Since 2026)
|
Optional |
|
Radio (Since 2026)
|
Optional |
|
Rear Hydraulics (Since 2026)
|
Optional |
|
Rear Window (Since 2026)
|
Standard |
|
Ride Control (Since 2026)
|
Optional |
|
Seat Belt (Since 2026)
|
Standard |
|
Sound Option (Since 2026)
|
Optional |
|
Spark Arrestor Muffler (Since 2026)
|
Standard |
|
Suspension Seat (Since 2026)
|
Optional |
|
Top Window (Since 2026)
|
Standard |
|
Turbocharged Engine (Since 2026)
|
Standard |
|

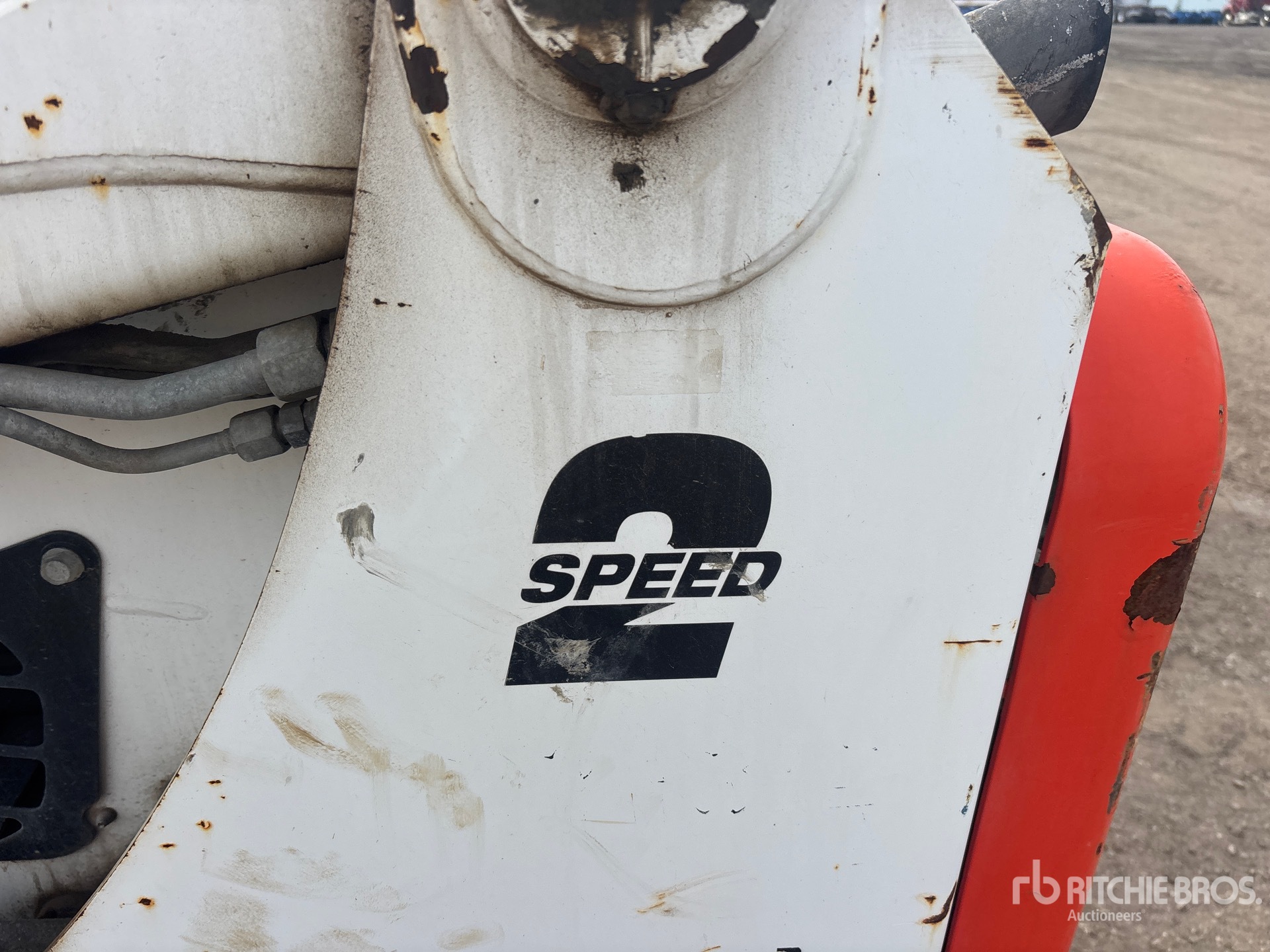

Two Speed Travel (Since 2026)
|
Optional |
| General Specifications |
|
ENGINE POWER (Since 2016)
|
49 hp (37 kw)
|
|
ENGINE POWER (2017)
|
49 hp (37 kw)
|
|
ENGINE POWER (2019)
|
49 hp (37 kw)
|
|
ENGINE POWER (2020)
|
49 hp (37 kw)
|
|
Engine Power (Since 2021)
|
49 hp (37 kw)
|
|
Engine Power (2022)
|
49 hp (37 kw)
|
|
Engine Power (2023)
|
49 hp (37 kw)
|
|
Engine Power (2024)
|
49 hp (37 kw)
|
|
Engine Power (2025)
|
49 hp (37 kw)
|
|
Engine Power (2026)
|
49 hp (37 kw)
|
|
MODEL (Since 2016)
|
S450 |
|
MODEL (2017)
|
S450 |
|
MODEL (2019)
|
S450 |
|
MODEL (2020)
|
S450 |
|
OPERATING LOAD (Since 2016)
|
1,300 lbs (590 kg)
|
|
OPERATING LOAD (2017)
|
1,300 lbs (590 kg)
|
|
OPERATING LOAD (2019)
|
1,300 lbs (590 kg)
|
|
OPERATING WIDTH (Since 2016)
|
59 in (149 cm)
|
|
OPERATING WIDTH (2017)
|
59 in (149 cm)
|
|
OPERATING WIDTH (2019)
|
59 in (149 cm)
|
|
OPERATING WIDTH (2020)
|
59 in (149 cm)
|
|
Operating Width (Since 2021)
|
59 in (149 cm)
|
|
Operating Width (2022)
|
59 in (149 cm)
|
|
Operating Width (2023)
|
59 in (149 cm)
|
|
Operating Width (2024)
|
59 in (149 cm)
|
|
Operating Width (2025)
|
59 in (149 cm)
|
|
Operating Width (Since 2026)
|
62 in (157 cm)
|
|
RATED OPERATING CAPACITY (50%) (Since 2020)
|
1,300 lbs (590 kg)
|
|
Rated Operating Capacity LBS. (KG) 50% (Since 2021)
|
1,300 (590) |
|
Rated Operating Capacity LBS. (KG) 50% (Since 2022)
|
1,370 (621) |
|
Rated Operating Capacity LBS. (KG) 50% (2023)
|
1,370 (621) |
|
Rated Operating Capacity LBS. (KG) 50% (2024)
|
1,370 (621) |
|
Rated Operating Capacity LBS. (KG) 50% (2025)
|
1,370 (621) |
|
Rated Operating Capacity LBS. (KG) 50% (2026)
|
1,370 (621) |
| Hydraulic |
|
Main Pump Flow Standard |
17 gpm (63 lpm)
|
|
Relief Valve Pressure |
3,300 psi |
| Hydraulic System |
|
Aux System Pressure (Since 2026)
|
3,300 psi |
|
Auxiliary Std Flow (Since 2026)
|
17 gpm (63 lpm)
|
|
System Relief @ Quick Couplers (Since 2026)
|
3,250 psi |
| Instrumentation |
|
Engine Air Filter (Since 2026)
|
Replaceable dry paper cartridge with separate safety element |
|
Engine Coolant Temperature (Since 2026)
|
Yes |
|
Engine Oil Pressure (Since 2026)
|
Yes |
|
Fuel Gauge (Since 2026)
|
Yes |
|

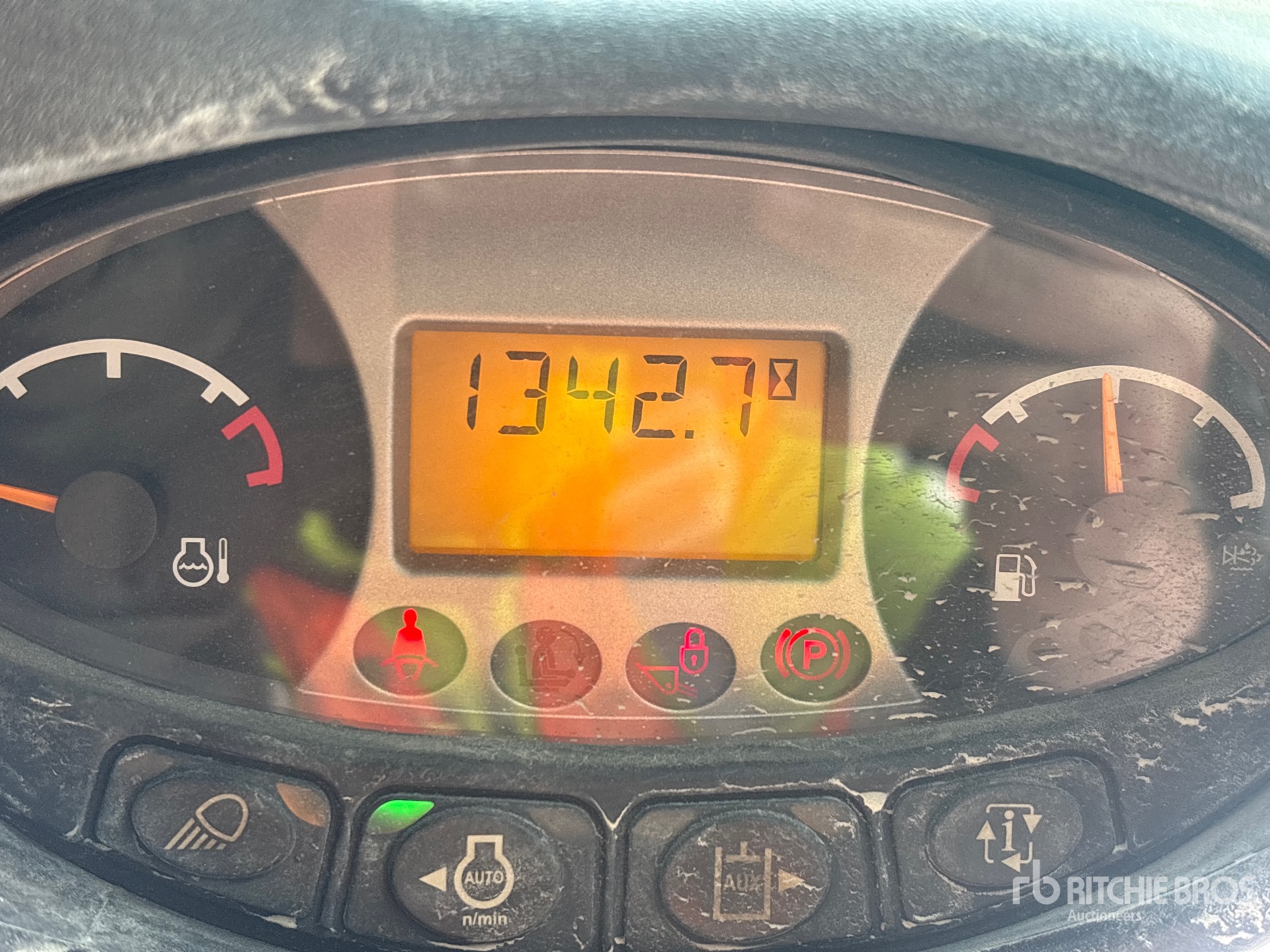

Hourmeter (Since 2026)
|
Yes |
| Loader |
|
Bucket Width |
62 in (158 cm)
|
|
Height To Hinge Pin |
9 ft (3 m)
|
|
Loader Series |
M2-Series |
|
Operating Load Rating |
1,300 lbs (590 kg)
|
|
Tipping Angle |
2,599 degrees |
| Operational |
|
Fuel Capacity |
14 gal (55 l)
|
|
Lift Arm Path |
Radius |
|
Max Speed |
7 mph (11 kph)
|
|
Operational Weight |
5,027 lbs (2,280 kg)
|
| Performance |
|
Operating Weight (Since 2026)
|
5,370 lbs (2,436 kg)
|
|
Rated Operating Capacity (Since 2026)
|
1,370 lbs (621 kg)
|
|
Tipping Load (Since 2026)
|
2,740 lbs (1,243 kg)
|
|
Travel Speed (2-speed option) (Since 2026)
|
9 mph (15 kph)
|
|
Travel Speed - High (1-Speed) (Since 2026)
|
8 mph (12 kph)
|
|
Travel Speed - High (2-Speed) (Since 2026)
|
9 mph (15 kph)
|
|
Travel Speed - Low (2-Speed) (Since 2026)
|
7 mph (10 kph)
|
