| Capacities |
|
Fuel Tank (Since 2026)
|
7 gal (25 l)
|
| Dimensions |
|
Clearance At Max Lift And Dump |
6 ft (2 m)
|
|
Ground Clearance |
6 in (14 cm)
|
|
Height to Hinge Pin (Since 2026)
|
95 in (240 cm)
|
|
Height To Top Of Cab |
6 ft (2 m)
|
|
Length W/O Bucket |
6 ft (2 m)
|
|
Length With Bucket |
8 ft (2 m)
|
|
Length with Standard Bucket (Since 2026)
|
97 in (247 cm)
|
|
Length without Attachment (Since 2026)
|
76 in (192 cm)
|
|
Overall Height (Since 2026)
|
71 in (181 cm)
|
|
Overall Width (Since 2026)
|
36 in (90 cm)
|
|
Reach @ Maximum Height (Since 2026)
|
16 in (40 cm)
|
|
Reach At Max Lift And Dump |
16 in (40 cm)
|
|
Standard Bucket (Since 2026)
|
36 in (91 cm)
|
|
Standard Tires (Since 2026)
|
23-5.7 X 12 |
|
Turning Radius (Since 2026)
|
57 in (145 cm)
|
|
Turning Radius From Center - Inc Bucket |
61 in (156 cm)
|
|
Wheelbase |
2 ft (1 m)
|
|
Wheelbase (Since 2026)
|
28 in (72 cm)
|
|
Width (with bucket) (Since 2026)
|
36 in (91 cm)
|
|
Width Over Tires |
3 ft (1 m)
|
| Engine |
|
Aspiration |
Natural |
|
Cooling System |
Liquid |
|
Displacement |
61 cu in (1,001 cu cm)
|
|
Emission Tier Level |
Tier 4 |
|
Engine Model |
D1005-E |
|
Fuel Type |
Diesel |
|
Gross Power |
24 hp (18 kw)
|
|
Horsepower (Since 2026)
|
24 hp (18 kw)
|
|
Hydraulic Horsepower - Standard Flow (Since 2026)
|
10 hp (8 kw)
|
|
Number Of Cylinders |
3 |
| Features |
|
Adjustable Seat (Since 2026)
|
Standard |
|
Air Conditioning (Since 2026)
|
Not Applicable |
|
Auxiliary Hydraulics (Since 2026)
|
Standard |
|
Backup Alarm (Since 2026)
|
Standard |
|
BICS System (Interlock) (Since 2026)
|
Standard |
|
Bob-Tach Attachment System (Since 2026)
|
Standard |
|
Cab Enclosure (Since 2026)
|
Optional |
|
Cab Heater (Since 2026)
|
Optional |
|
Deluxe Instrumentation (Since 2026)
|
Not Applicable |
|
Engine Shutdown (Since 2026)
|
Not Applicable |
|
High Flow Option (Since 2026)
|
Not Applicable |
|
Horn (Since 2026)
|
Standard |
|
Joystick Control (Since 2026)
|
Not Applicable |
|
Lift-Arm Support (Since 2026)
|
Standard |
|
Operating Lights (Since 2026)
|
Standard |
|
Parking Brake (Since 2026)
|
Standard |
|
Power Bob-Tach (Since 2026)
|
Not Applicable |
|
Radio (Since 2026)
|
Not Applicable |
|
Rear Hydraulics (Since 2026)
|
Not Applicable |
|
Rear Window (Since 2026)
|
Standard |
|
Ride Control (Since 2026)
|
Not Applicable |
|
Seat Belt (Since 2026)
|
Standard |
|
Sound Option (Since 2026)
|
Optional |
|
Spark Arrestor Muffler (Since 2026)
|
Standard |
|
Suspension Seat (Since 2026)
|
Standard |
|
Top Window (Since 2026)
|
Optional |
|
Turbocharged Engine (Since 2026)
|
Not Applicable |
|
Two Speed Travel (Since 2026)
|
Not Applicable |
| General Specifications |
|
ENGINE POWER (Since 2016)
|
24 hp (18 kw)
|
|
ENGINE POWER (2017)
|
24 hp (18 kw)
|
|
ENGINE POWER (2019)
|
24 hp (18 kw)
|
|
ENGINE POWER (2020)
|
24 hp (18 kw)
|
|
Engine Power (Since 2021)
|
24 hp (18 kw)
|
|
Engine Power (2022)
|
24 hp (18 kw)
|
|
Engine Power (2023)
|
24 hp (18 kw)
|
|
Engine Power (2024)
|
24 hp (18 kw)
|
|
Engine Power (2025)
|
24 hp (18 kw)
|
|
Engine Power (2026)
|
24 hp (18 kw)
|
|
MODEL (Since 2016)
|
S70 |
|
MODEL (2017)
|
S70 |
|
MODEL (2019)
|
S70 |
|
MODEL (2020)
|
S70 |
|
OPERATING LOAD (Since 2016)
|
700 lbs (318 kg)
|
|
OPERATING LOAD (2017)
|
700 lbs (318 kg)
|
|
OPERATING LOAD (2019)
|
700 lbs (318 kg)
|
|
OPERATING WIDTH (Since 2016)
|
36 in (90 cm)
|
|
OPERATING WIDTH (2017)
|
36 in (90 cm)
|
|
OPERATING WIDTH (2019)
|
36 in (90 cm)
|
|
OPERATING WIDTH (2020)
|
36 in (90 cm)
|
|
Operating Width (Since 2021)
|
36 in (90 cm)
|
|
Operating Width (2022)
|
36 in (90 cm)
|
|
Operating Width (2023)
|
36 in (90 cm)
|
|
Operating Width (2024)
|
36 in (90 cm)
|
|
Operating Width (2025)
|
36 in (90 cm)
|
|
Operating Width (2026)
|
36 in (90 cm)
|
|
RATED OPERATING CAPACITY (50%) (Since 2020)
|
700 lbs (318 kg)
|
|
Rated Operating Capacity LBS. (KG) 50% (Since 2021)
|
700 (318) |
|
Rated Operating Capacity LBS. (KG) 50% (Since 2022)
|
760 (345) |
|
Rated Operating Capacity LBS. (KG) 50% (2023)
|
760 (345) |
|
Rated Operating Capacity LBS. (KG) 50% (2024)
|
760 (345) |
|
Rated Operating Capacity LBS. (KG) 50% (Since 2025)
|
760 (344) |
|
Rated Operating Capacity LBS. (KG) 50% (2026)
|
760 (344) |
| Hydraulic |
|
Main Pump Flow Standard |
10 gpm (37 lpm)
|
|
Relief Valve Pressure |
3,000 psi |
| Hydraulic System |
|
Aux System Pressure (Since 2026)
|
2,000 psi |
|
Auxiliary Std Flow (Since 2026)
|
9 gpm (34 lpm)
|
|
System Relief @ Quick Couplers (Since 2026)
|
3,000 psi |
| Instrumentation |
|
Engine Air Filter (Since 2026)
|
Replaceable dry paper cartridge with separate safety element |
|
Engine Coolant Temperature (Since 2026)
|
Yes |
|
Engine Oil Pressure (Since 2026)
|
Yes |
|
Fuel Gauge (Since 2026)
|
Yes |
|

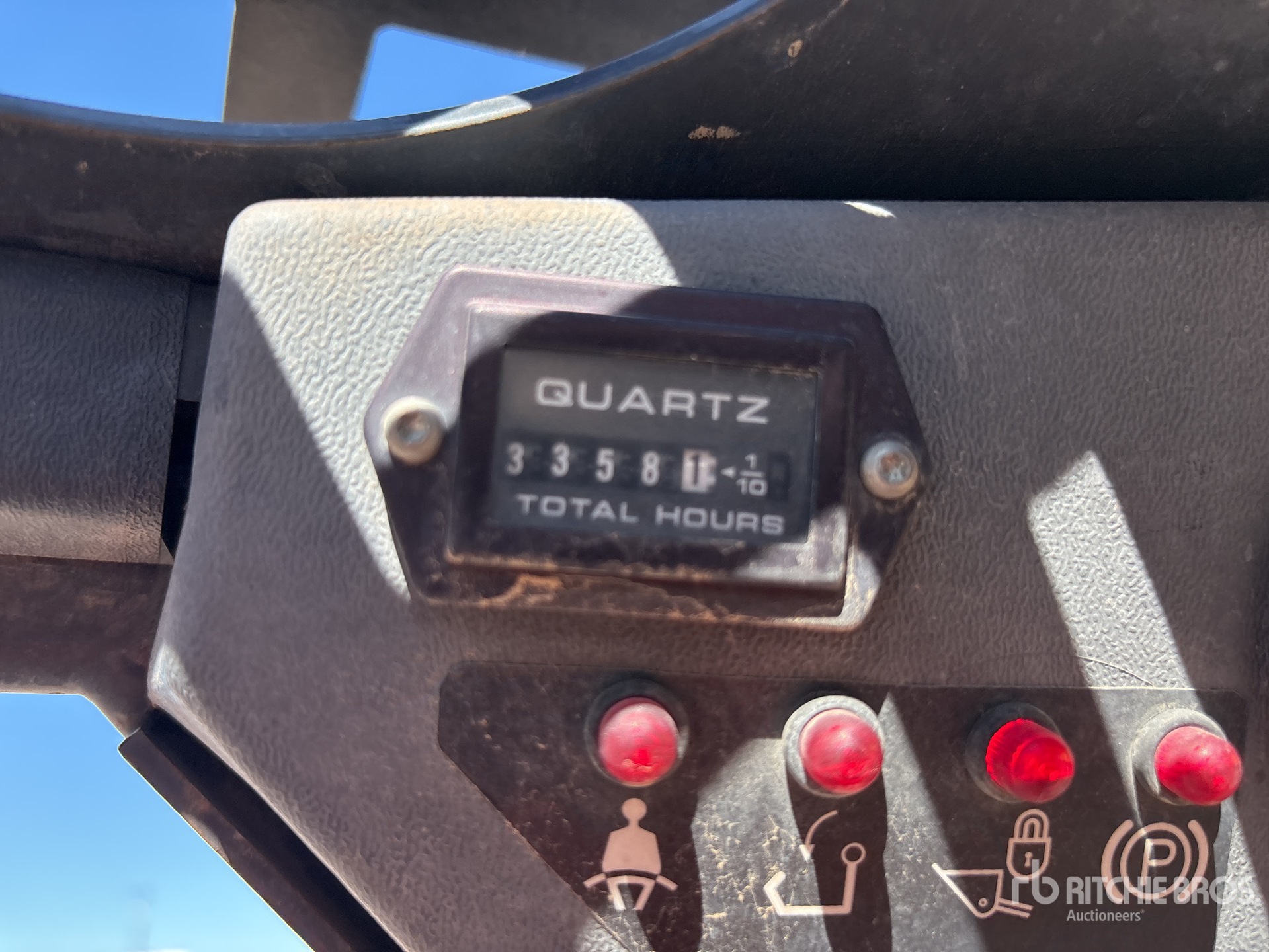

Hourmeter (Since 2026)
|
Yes |
| Loader |
|
Bucket Width |
36 in (91 cm)
|
|
Height To Hinge Pin |
8 ft (2 m)
|
|
Loader Series |
K-Series |
|
Operating Load Rating |
700 lbs (318 kg)
|
|
Tipping Angle |
1,512 degrees |
| Operational |
|
Fuel Capacity |
7 gal (25 l)
|
|
Lift Arm Path |
Radius |
|
Max Speed |
6 mph (10 kph)
|
|
Operational Weight |
2,796 lbs (1,268 kg)
|
|
Tire Size |
5.7-12 |
| Performance |
|
Operating Weight (Since 2026)
|
2,892 lbs (1,312 kg)
|
|
Rated Operating Capacity (Since 2026)
|
760 lbs (345 kg)
|
|
Tipping Load (Since 2026)
|
1,520 lbs (689 kg)
|
|
Travel Speed - High (1-Speed) (Since 2026)
|
6 mph (10 kph)
|
