| Capacities |
|
Fuel Tank (Since 2026)
|
14 gal (51 l)
|
| Controls |
|

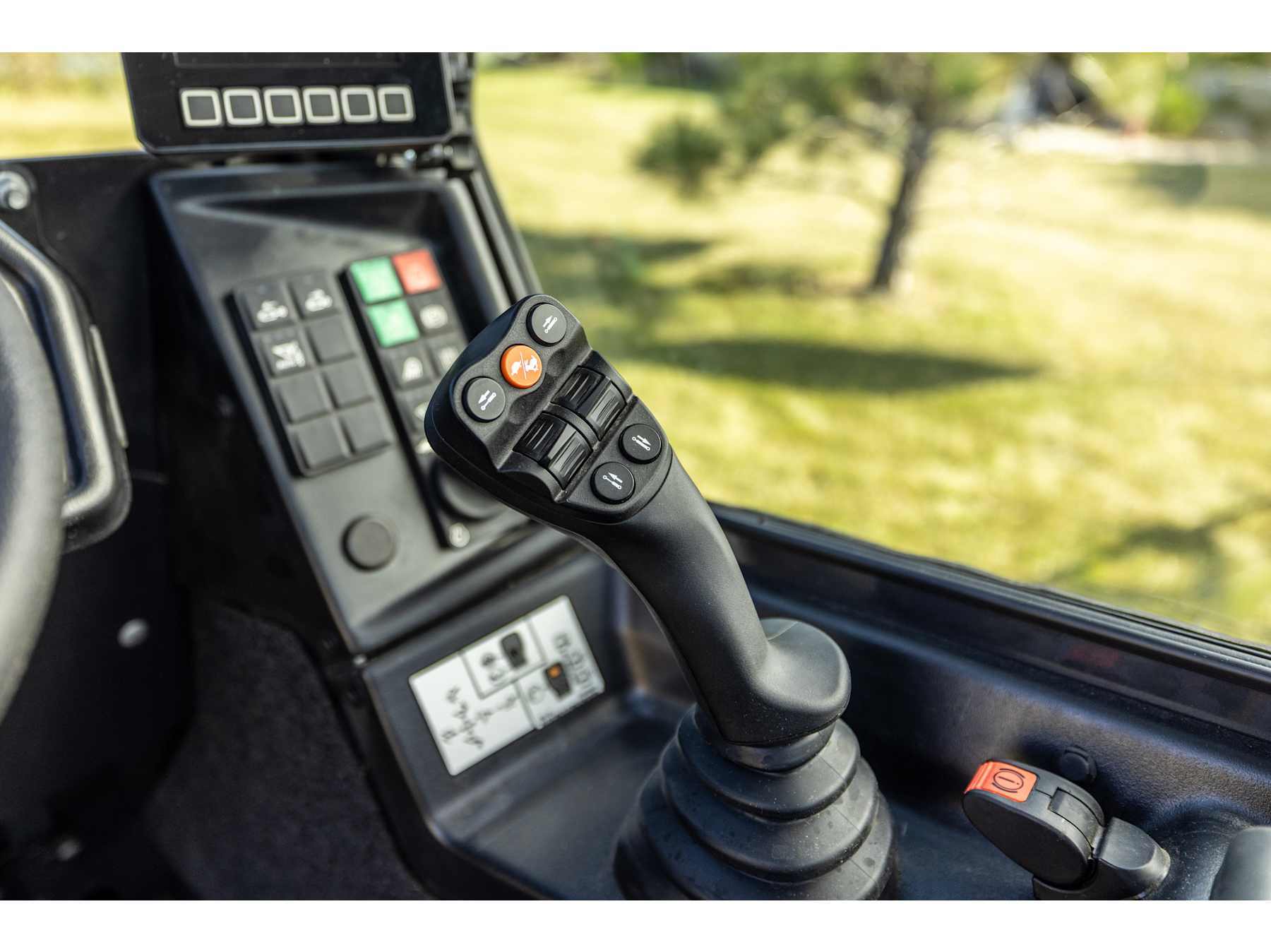

Auxiliary Hydraulics Type (Since 2026)
|
Finger Tip Control |
| Dimensions |
|
Articulation Angle (Since 2026)
|
43 deg |
|
Dump Angle @ Maximum Height (Since 2026)
|
40 deg |
|
Ground Clearance (Since 2026)
|
7 in (17 cm)
|
|
Height to Bucket Hinge Pin - Extended (Since 2026)
|
115 in (292 cm)
|
|
Height to Bucket Hinge Pin - Retracted (Since 2026)
|
88 in (224 cm)
|
|
Height with Operator Cab (Since 2026)
|
82 in (209 cm)
|
|
Inside Turning Radius (Since 2026)
|
93 in (236 cm)
|
|
Length (Since 2026)
|
149 in (377 cm)
|
|
Length with Standard Bucket (Since 2026)
|
149 in (377 cm)
|
|
Length without Attachment (Since 2026)
|
111 in (282 cm)
|
|
Outside Turning Radius (Since 2026)
|
111 in (282 cm)
|
|
Reach @ Maximum Height (Since 2026)
|
39 in (98 cm)
|
|
Rollback Angle (Since 2026)
|
32 deg |
|

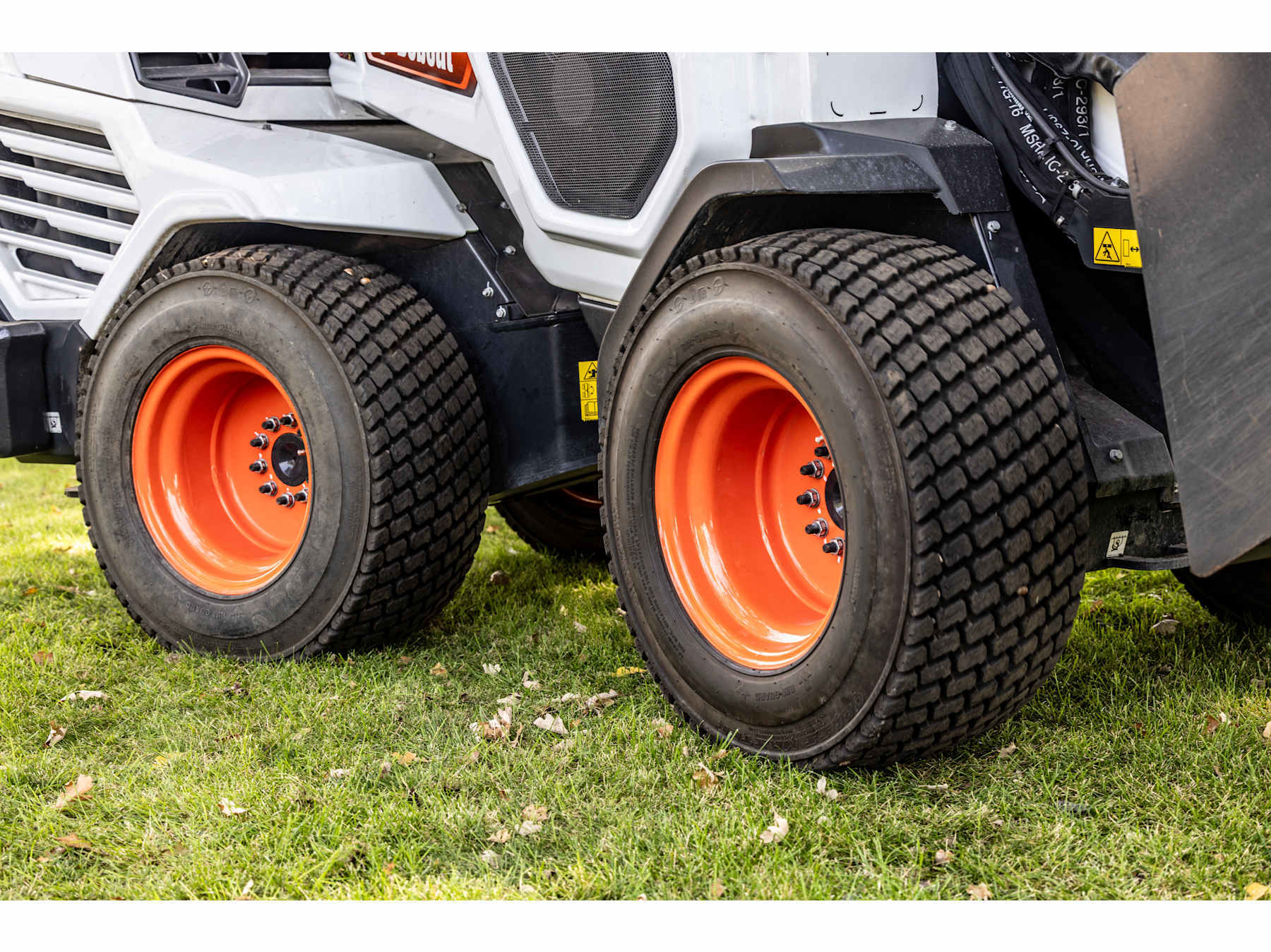

Tire Size (Since 2026)
|
26X12-12 10 PLY |
|
Wheel Tread (Since 2026)
|
40 in (102 cm)
|
|
Wheelbase (Since 2026)
|
57 in (145 cm)
|
|
Width (over tires) (Since 2026)
|
52 in (133 cm)
|
|
Width (with bucket) (Since 2026)
|
54 in (137 cm)
|
| Drive System |
|
Main Drive (Since 2026)
|
Hydrostatic pump driving 4 independent wheel motors |
| Engine |
|
Fuel Reserve (Since 2026)
|
1.1 gph |
|
Horsepower (Since 2026)
|
57 hp (43 kw)
|
|
Turbocharged Engine (Since 2026)
|
Standard |
| Features |
|
Adjustable Seat (Since 2026)
|
Standard |
|
Air Conditioning (Since 2026)
|
Optional |
|
Auto Idle (Since 2026)
|
Optional |
|
Auxiliary Hydraulics (Since 2026)
|
Standard |
|
Backup Alarm (Since 2026)
|
Standard |
|
BICS System (Interlock) (Since 2026)
|
Standard |
|
Bob-Tach Attachment System (Since 2026)
|
Standard |
|
Cab Enclosure (Since 2026)
|
Optional |
|
Cab Heater (Since 2026)
|
Optional |
|
Cup Holder (Since 2026)
|
Standard |
|

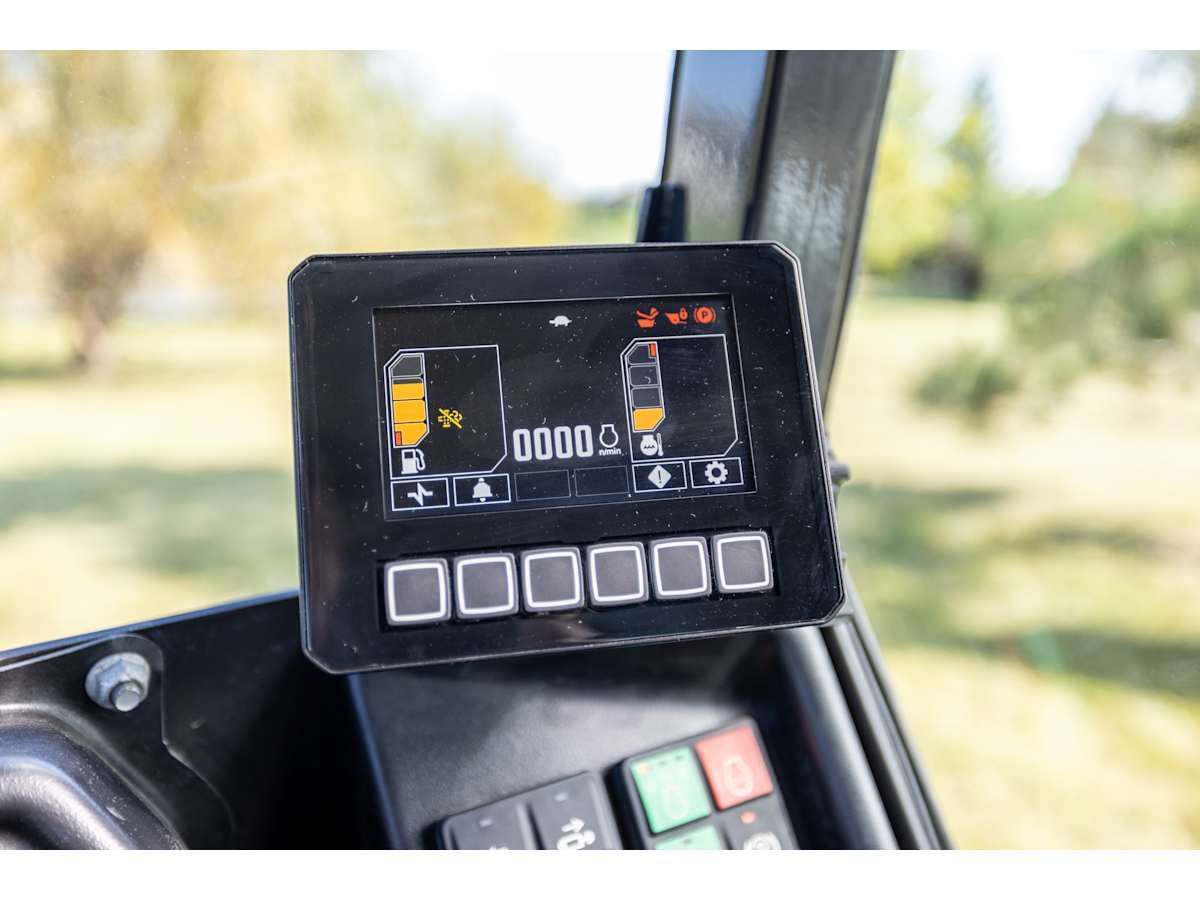

Deluxe Instrumentation (Since 2026)
|
Not Applicable |
|
Front and Rear Work Lights (Since 2026)
|
Standard |
|
Grab Handles (Since 2026)
|
undefined |
|
Heavy-Duty Float Tires (Since 2026)
|
Optional |
|
High Flow Option (Since 2026)
|
Optional |
|
Horn (Since 2026)
|
Standard |
|
Lift-Arm Support (Since 2026)
|
Standard |
|
Operating Lights (Since 2026)
|
Standard |
|
Power Bob-Tach (Since 2026)
|
Optional |
|

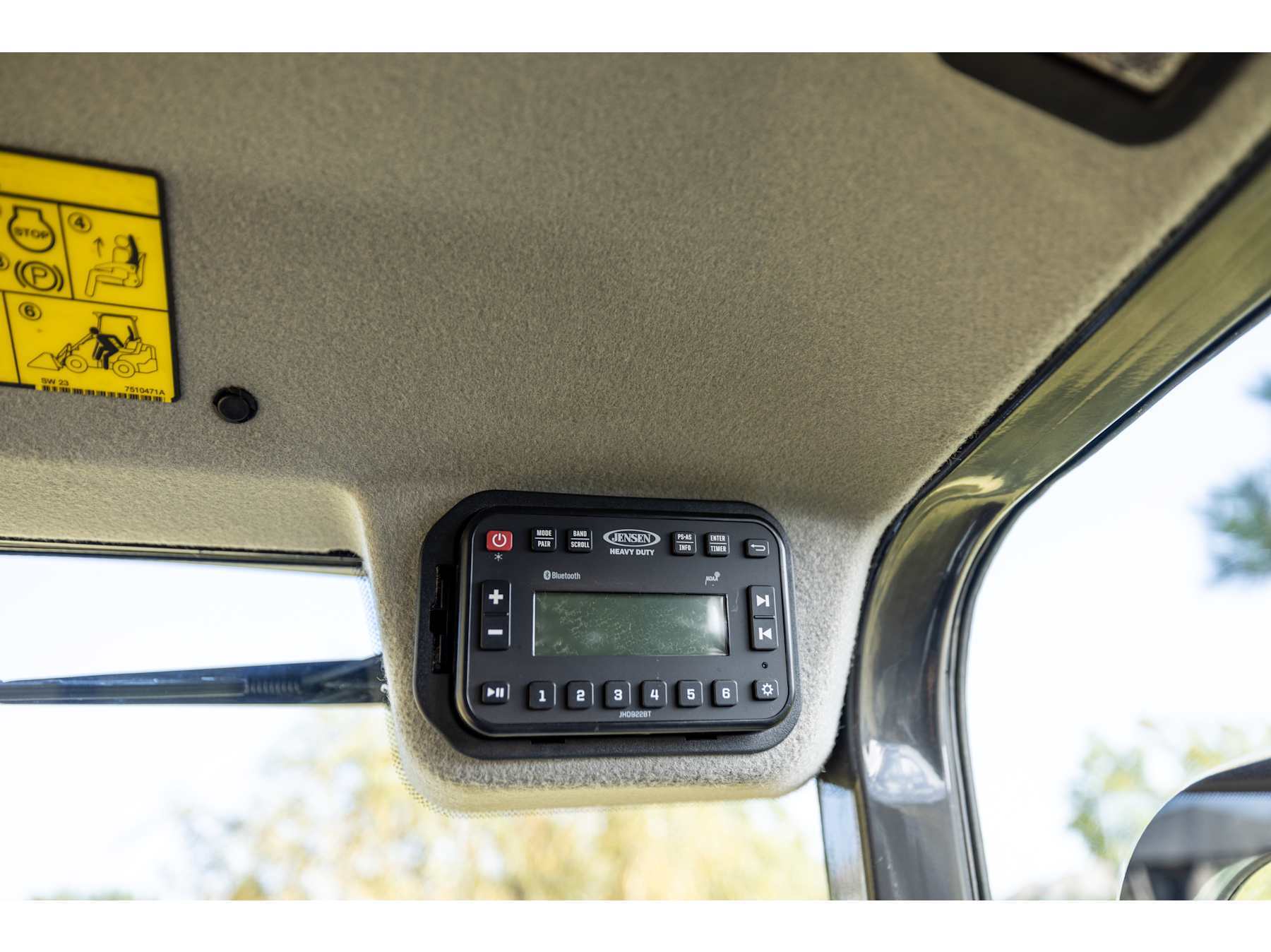

Radio (Since 2026)
|
Optional |
|

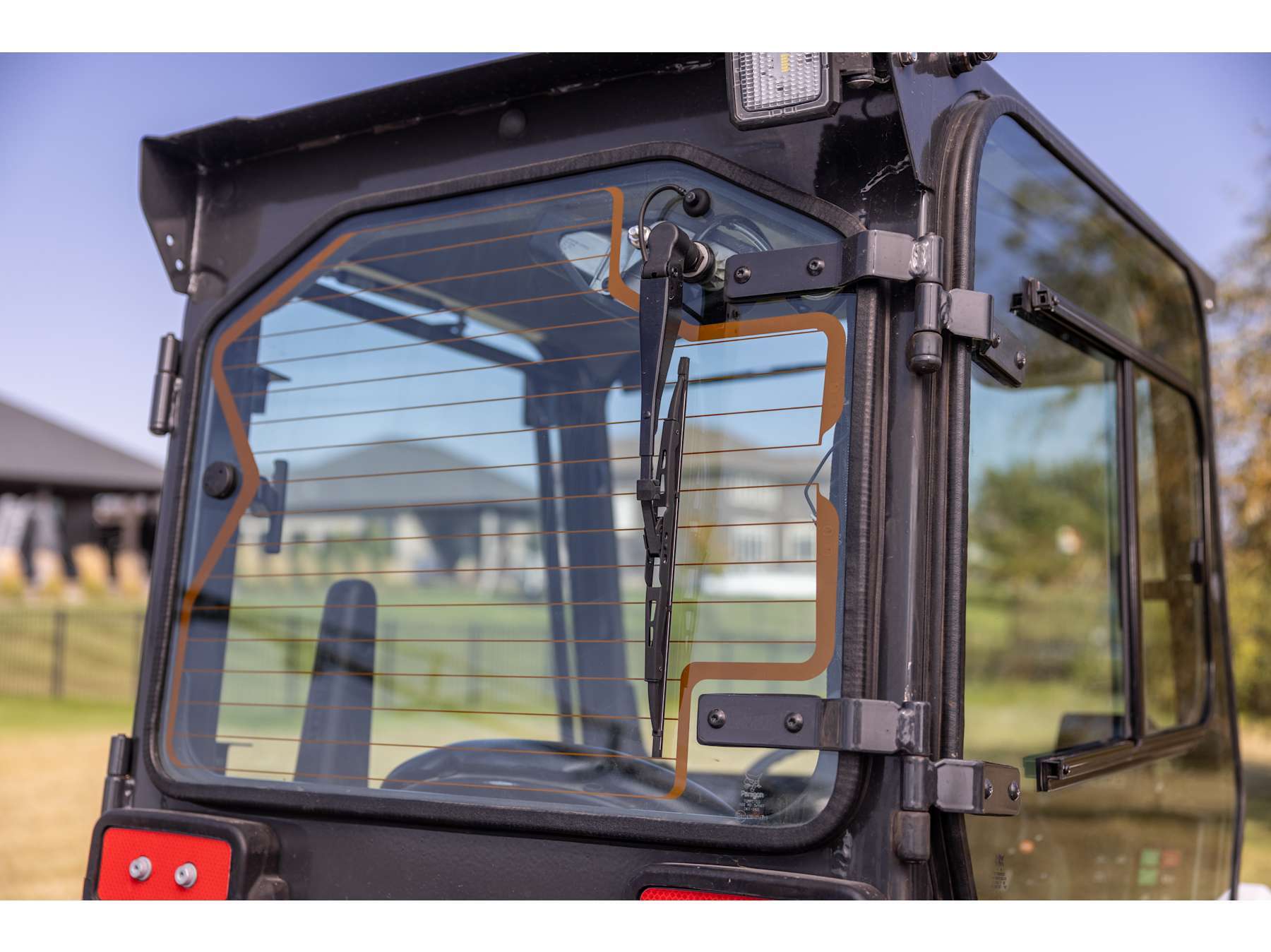

Rear Window (Since 2026)
|
Optional |
|
Ride Control (Since 2026)
|
Optional |
|
ROPS/FOPS Approved (Since 2026)
|
Standard |
|
Rotating Flashing Beacon (Since 2026)
|
Optional |
|
Seat Belt (Since 2026)
|
Standard |
|
Spark Arrestor Muffler (Since 2026)
|
Standard |
|
Suspension Seat (Since 2026)
|
Standard |
|
Tires-Ply Rating (Since 2026)
|
10 |
|
Traction Control (Since 2026)
|
Optional |
|
Turn Signals (Since 2026)
|
Optional |
|
Two Speed Travel (Since 2026)
|
Standard |
| Hydraulic System |
|
Auxiliary High Flow (Since 2026)
|
25 gpm (96 lpm)
|
|
Auxiliary Std Flow (Since 2026)
|
18 gpm (68 lpm)
|
|
System Relief @ Quick Couplers (Since 2026)
|
3,045 psi |
| Performance |
|
Lift Breakout Force (ISO) (Since 2026)
|
4,000 lbs ft (5,423 nm)
|
|
Operating Weight (Since 2026)
|
6,012 lbs (2,727 kg)
|
|
Rated Operating Capacity (ISO) (Articulated) (Since 2026)
|
1,695 lbs (769 kg)
|
|
Rated Operating Capacity (ISO) (Straight) (Since 2026)
|
2,072 lbs (940 kg)
|
|

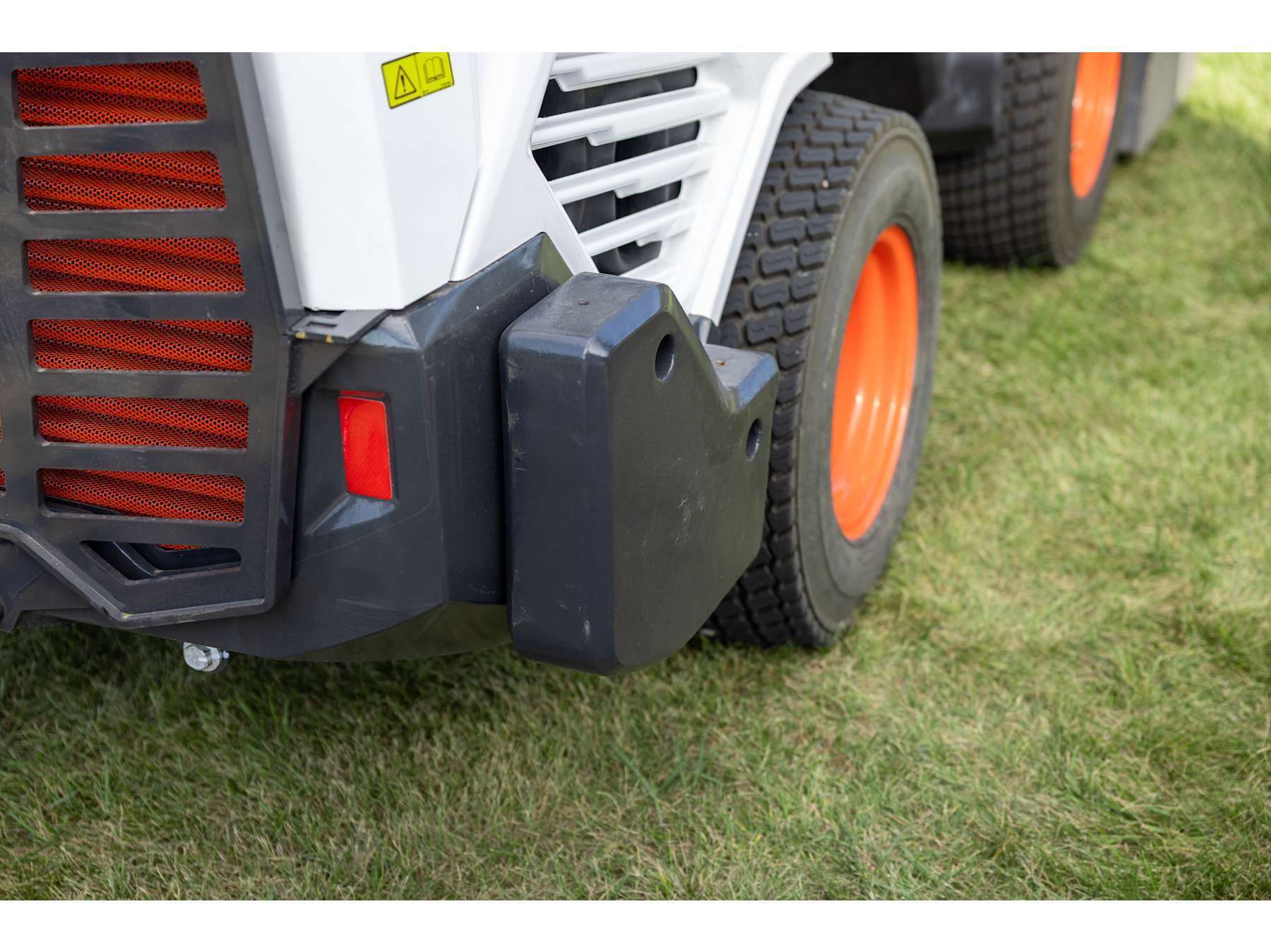

ROC with Counterweight Option - Articulated (Since 2026)
|
2,017 lbs (915 kg)
|
|
ROC with Counterweight Option - Straight (Since 2026)
|
2,472 lbs (1,121 kg)
|
|
Travel Speed (Since 2026)
|
16 mph (26 kph)
|
|
Travel Speed - High (Since 2026)
|
20 mph (33 kph)
|
