| Capacities |
|
Fuel Tank (Since 2026)
|
21 gal (79 l)
|
| Dimensions |
|
Articulation Angle (Since 2026)
|
40 deg |
|
Dump Angle @ Maximum Height (Since 2026)
|
45 deg |
|
Ground Clearance (Since 2026)
|
13 in (34 cm)
|
|
Height to Hinge Pin - Fully Raised (Since 2026)
|
129 in (327 cm)
|
|
Height with Operator Cab (Since 2026)
|
99 in (252 cm)
|
|
Length with Standard Bucket (Since 2026)
|
220 in (559 cm)
|
|
Length without Attachment (Since 2026)
|
194 in (493 cm)
|
|
Oscillation Angle (Since 2026)
|
8 deg |
|
Outside Turning Radius (Since 2026)
|
170 in (432 cm)
|
|
Outside Turning Radius w/forks (Since 2026)
|
181 in (459 cm)
|
|
Rollback Angle (Since 2026)
|
49 deg |
|
Tire Size (Since 2026)
|
405/70 R20 |
|
Wheel Tread (Since 2026)
|
55 in (140 cm)
|
|
Wheelbase (Since 2026)
|
83 in (210 cm)
|
|
Width (over tires) (Since 2026)
|
71 in (181 cm)
|
|
Width (with bucket) (Since 2026)
|
75 in (190 cm)
|
| Drive System |
|
Drive Type (Since 2026)
|
Four-Speed hydrostatic with Advanced Attachment Control |

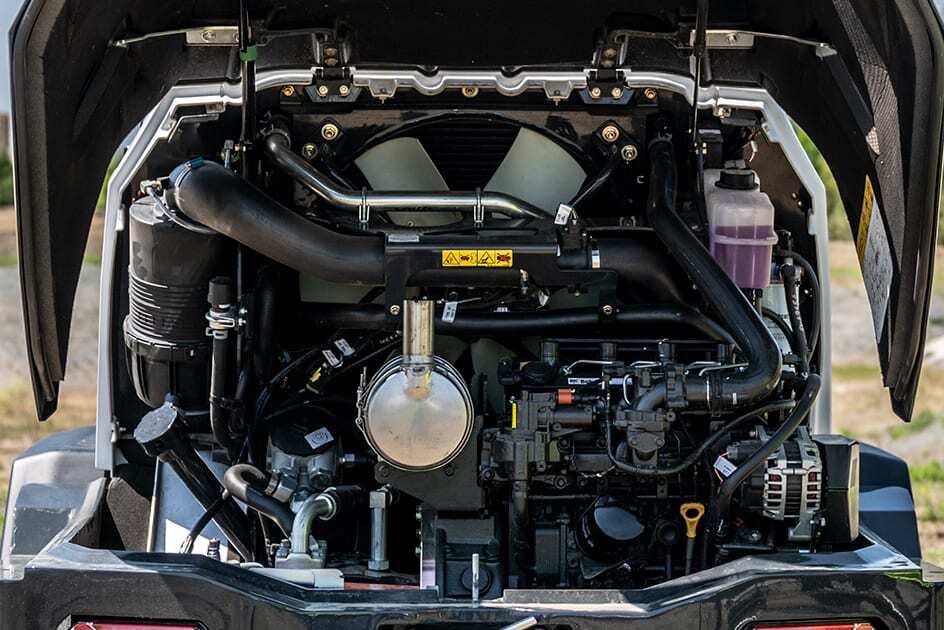

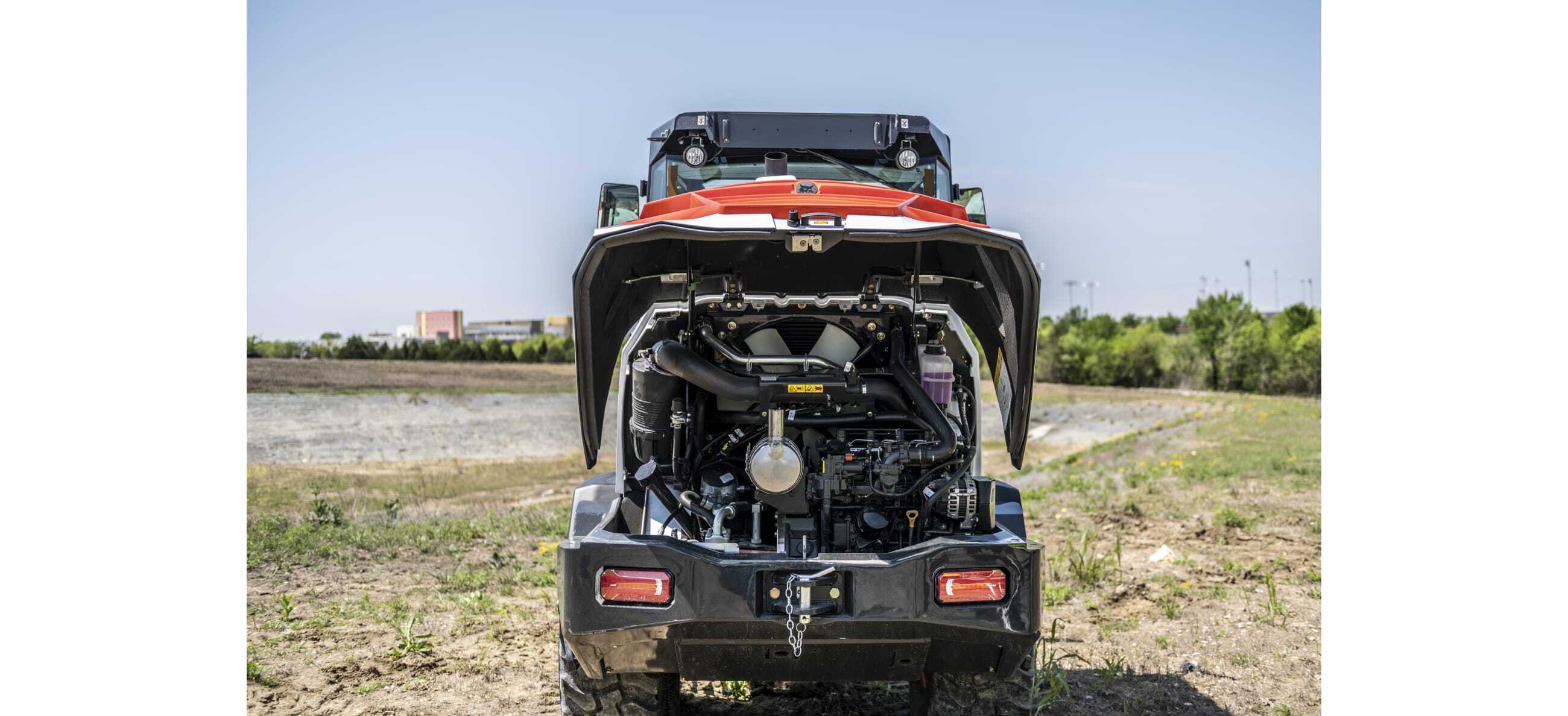

| Engine |
|
Engine Model (Since 2026)
|
DM02-LEL16 |
|
Horsepower (Since 2026)
|
74 hp (55 kw)
|
| Features |
|
4 way Flasher (Since 2026)
|
Standard |
|
Advanced Attachment Control (Since 2026)
|
Standard |
|
Air Ride Suspension Seat (Since 2026)
|
Not Applicable |
|
Auxiliary Hydraulics (Since 2026)
|
Standard |
|
Backup Alarm (Since 2026)
|
Standard |
|
Built-In Tie Down & Crane/Lift Locations (Since 2026)
|
Standard |
|
Cup Holder (Since 2026)
|
Standard |
|
Enclosed Operator Cab with HVAC (Since 2026)
|
Standard |
|
Engine Derate (Since 2026)
|
Standard |
|
Front and Rear Work Lights (Since 2026)
|
Standard |
|
Glow Plug Engine Pre-heat (Since 2026)
|
Standard |
|
Grab Handles (Since 2026)
|
undefined |
|
High Flow (Since 2026)
|
Standard |
|
Horn (Since 2026)
|
Standard |
|
Hour Meter (Since 2026)
|
Standard |
|
Hydrostatic Transmission (Since 2026)
|
Standard |
|
Joystick Control (Since 2026)
|
Standard |
|
Keyed Ignition (Since 2026)
|
Not Applicable |
|
Keyless Ignition (Since 2026)
|
Standard |
|
Lift Arm Lockout With Manual Bypass (Since 2026)
|
Standard |
|
Lift-Arm Support (Since 2026)
|
Standard |
|
Mechanical Suspension Seat (Since 2026)
|
Not Applicable |
|
OICS System (Interlock) (Since 2026)
|
Standard |
|
Operator Canopy (Since 2026)
|
Standard |
|
Power Bob-Tach (Since 2026)
|
Standard |
|
Radio (Since 2026)
|
Standard |
|
Rear View Camera (Since 2026)
|
Standard |
|
Ride Control (Since 2026)
|
Standard |
|
Road Lights (Since 2026)
|
Standard |
|
Rotating Flashing Beacon (Since 2026)
|
Optional |
|
Seat Belt (Since 2026)
|
Standard |
|
Side Mirrors Right and Left (Since 2026)
|
Standard |
|
Spark Arrestor Muffler (Since 2026)
|
Standard |
|
Speedometer (Since 2026)
|
Standard |
|
Suspension Seat (Since 2026)
|
Standard |
|
Tilt and Telescoping Steering Wheel (Since 2026)
|
Standard |
|
Travel Foot Pedal (Since 2026)
|
Standard |
|
Turbocharged Engine (Since 2026)
|
Standard |
|
Turn Signals (Since 2026)
|
Standard |
|
Two Speed Travel (Since 2026)
|
Standard |
|
Wheel Fenders (Since 2026)
|
Standard |
|
Z-Bar Linkage (Since 2026)
|
Standard |
| Hydraulic System |
|
Auxiliary High Flow (Since 2026)
|
27 gpm (103 lpm)
|
|
Auxiliary Std Flow (Since 2026)
|
20 gpm (75 lpm)
|
|
Hydraulic Pump Pressure (Since 2026)
|
3,408 psi |
| Performance |
|
Bucket Capacities (Since 2026)
|
0.81 - 2.0 yd3 |
|
Operating Weight (Since 2026)
|
11,993 lbs (5,440 kg)
|
|
Rated Operating Capacity with Bucket (Articulated) (Since 2026)
|
3,335 lbs (1,513 kg)
|
|
Rated Operating Capacity with Bucket (Straight) (Since 2026)
|
3,981 lbs (1,806 kg)
|
|
Rated Operating Capacity with Forks (Articulated) (Since 2026)
|
4,127 lbs (1,872 kg)
|
|
Rated Operating Capacity with Forks (Straight) (Since 2026)
|
4,860 lbs (2,204 kg)
|
|
Tipping Capacity with Bucket (Articulated) (Since 2026)
|
6,670 lbs (3,025 kg)
|
|
Tipping Capacity with Bucket (Straight) (Since 2026)
|
7,962 lbs (3,612 kg)
|
|
Tipping Capacity with Forks (Articulated) (Since 2026)
|
5,159 lbs (2,340 kg)
|
|
Tipping Capacity with Forks (Straight) (Since 2026)
|
6,076 lbs (2,756 kg)
|
|
Travel Speed - High (Since 2026)
|
25 mph (40 kph)
|
|
Travel Speed - Low (Since 2026)
|
7 mph (11 kph)
|
