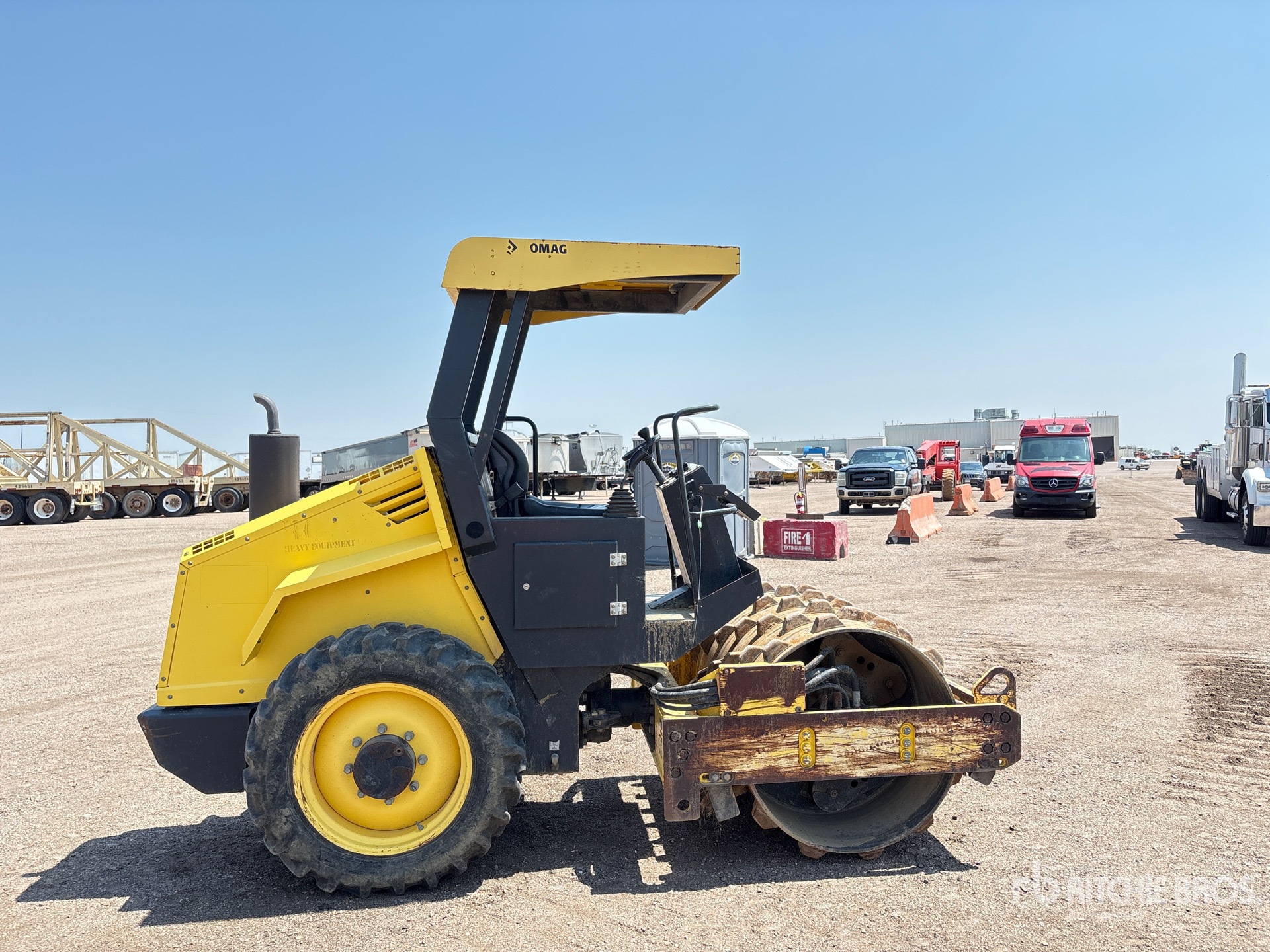

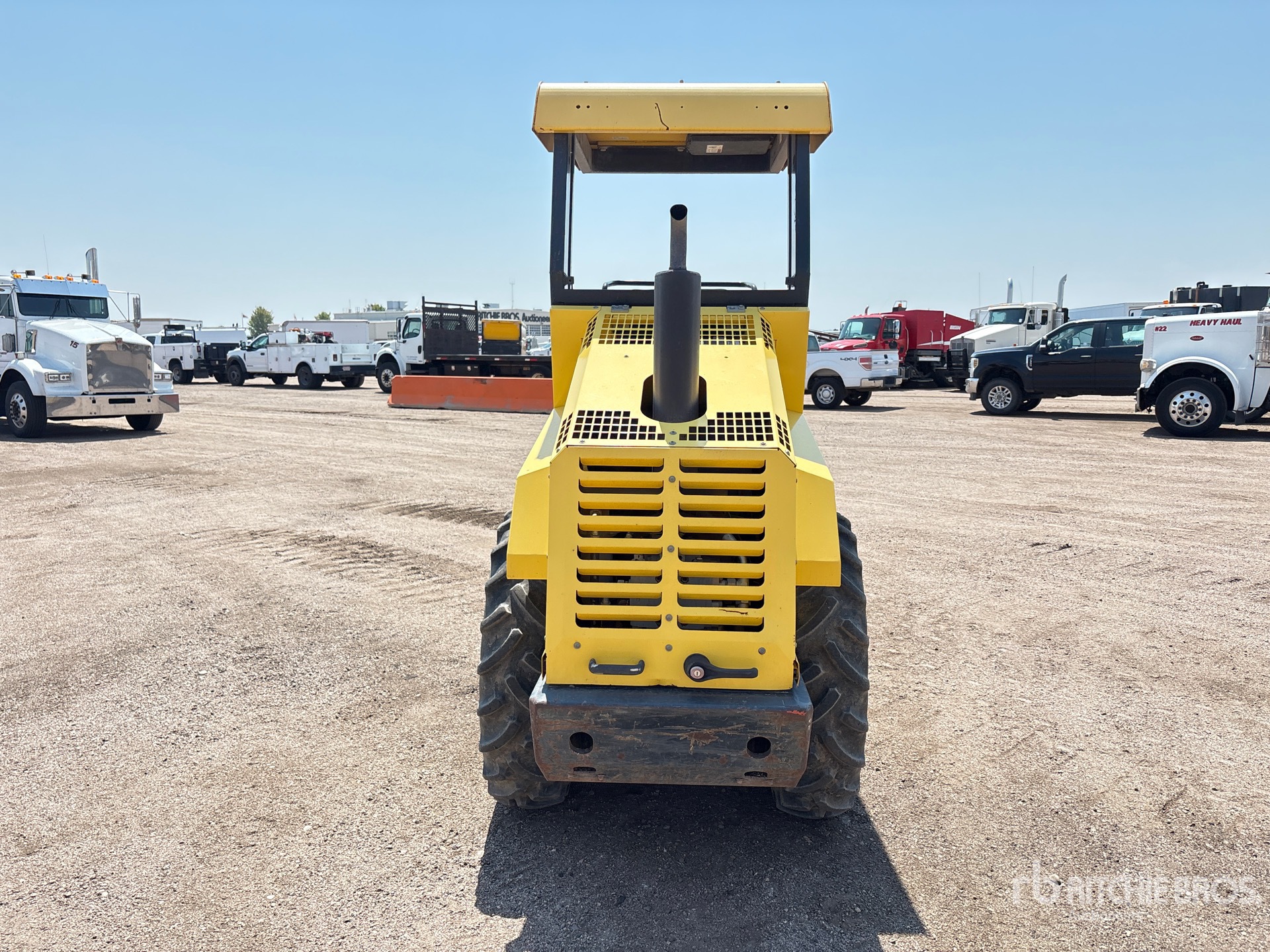

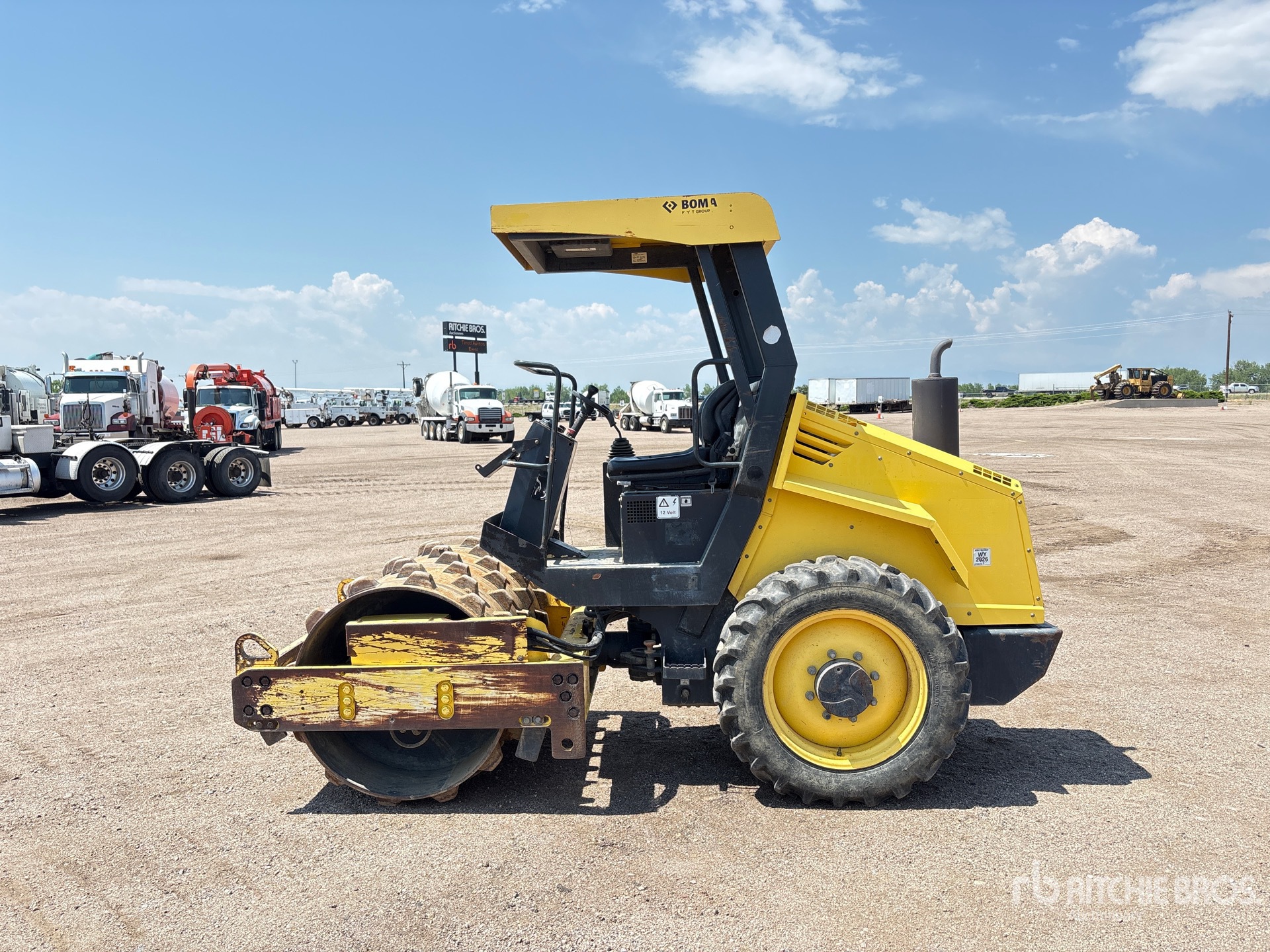

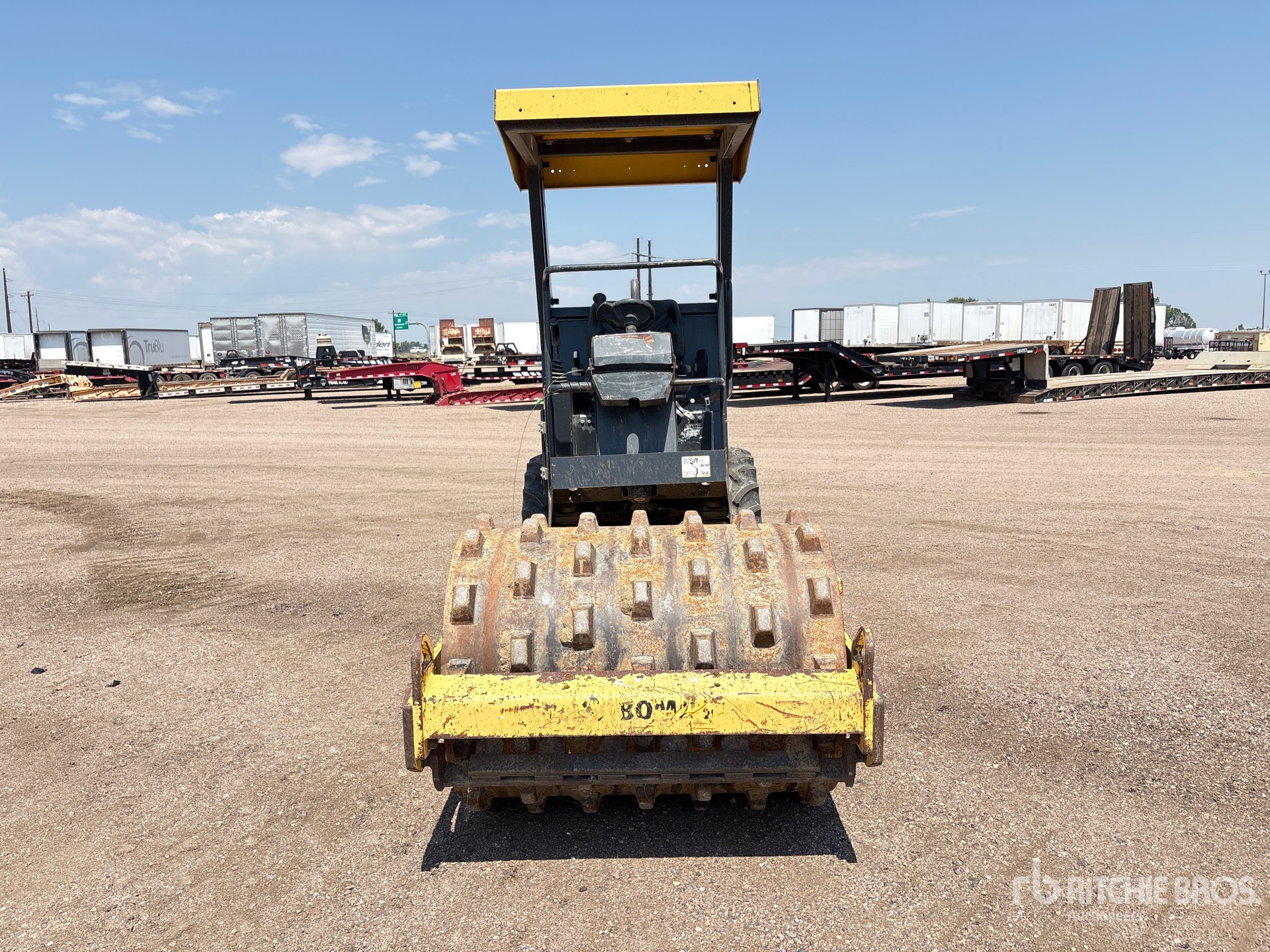

2017 Bomag BW124PDH-40

Name: 2017 Bomag BW124PDH-40
Brand: Bomag
SKU: 88900489
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-08-26 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

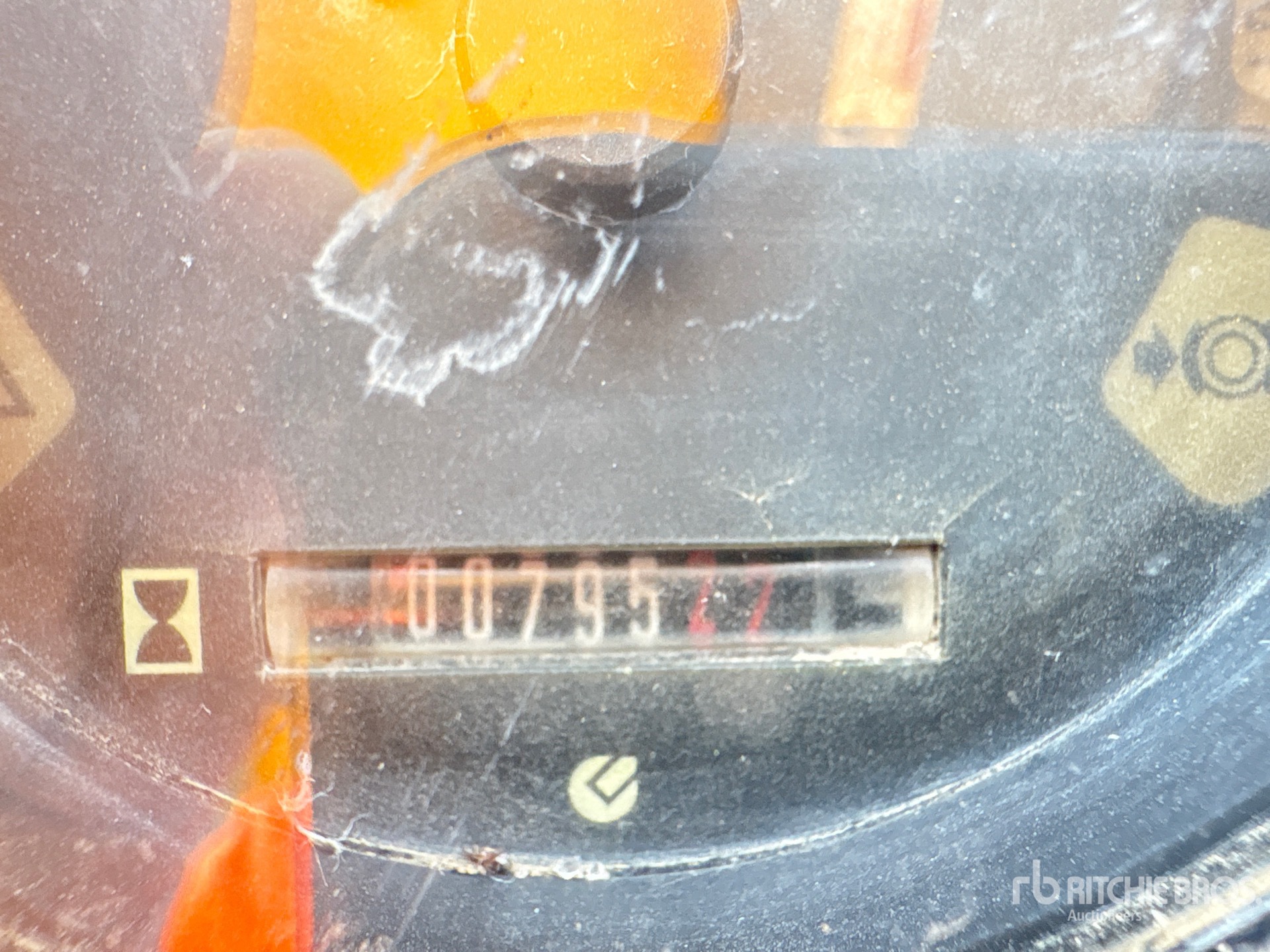

Hours:	795

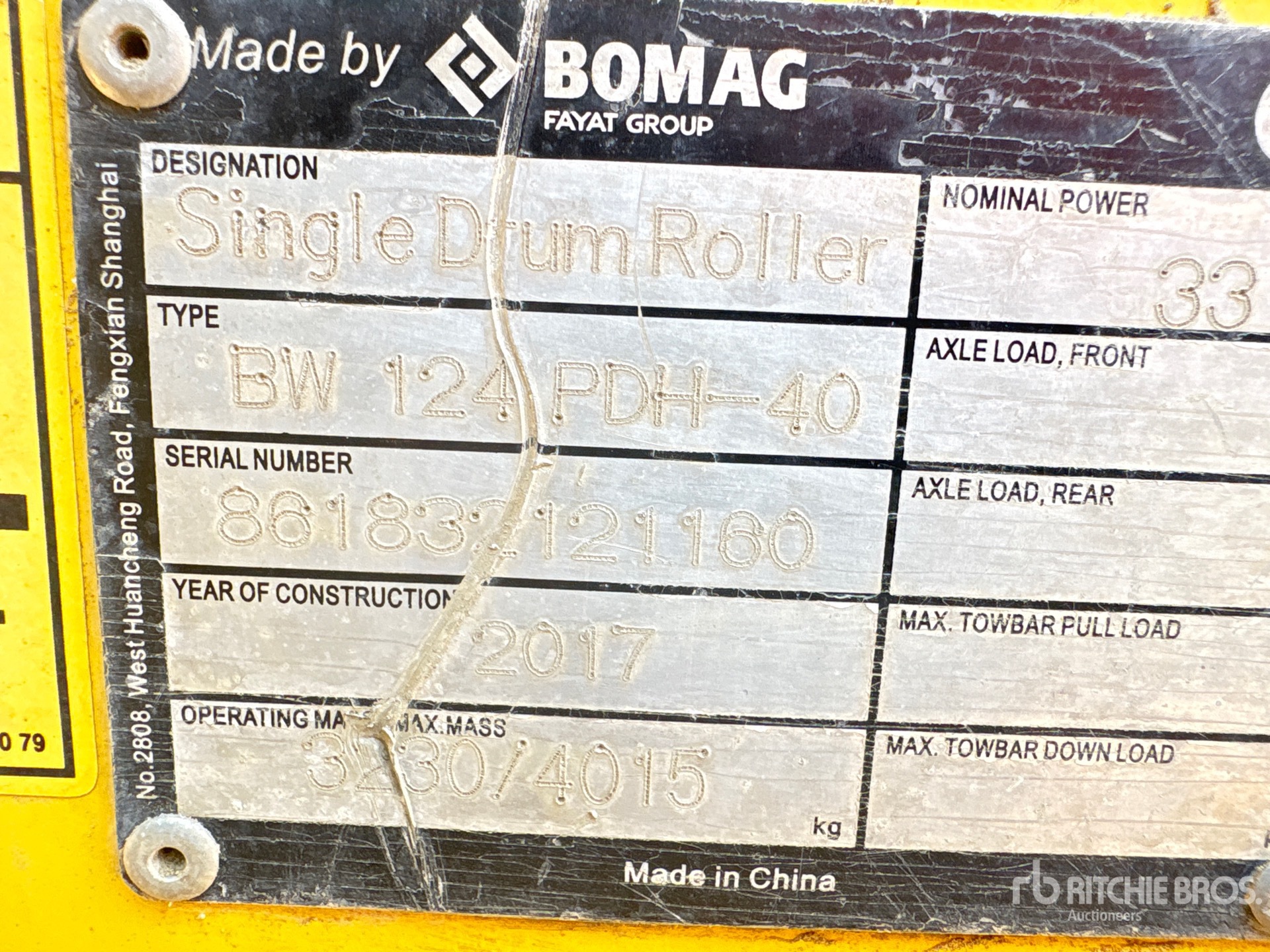

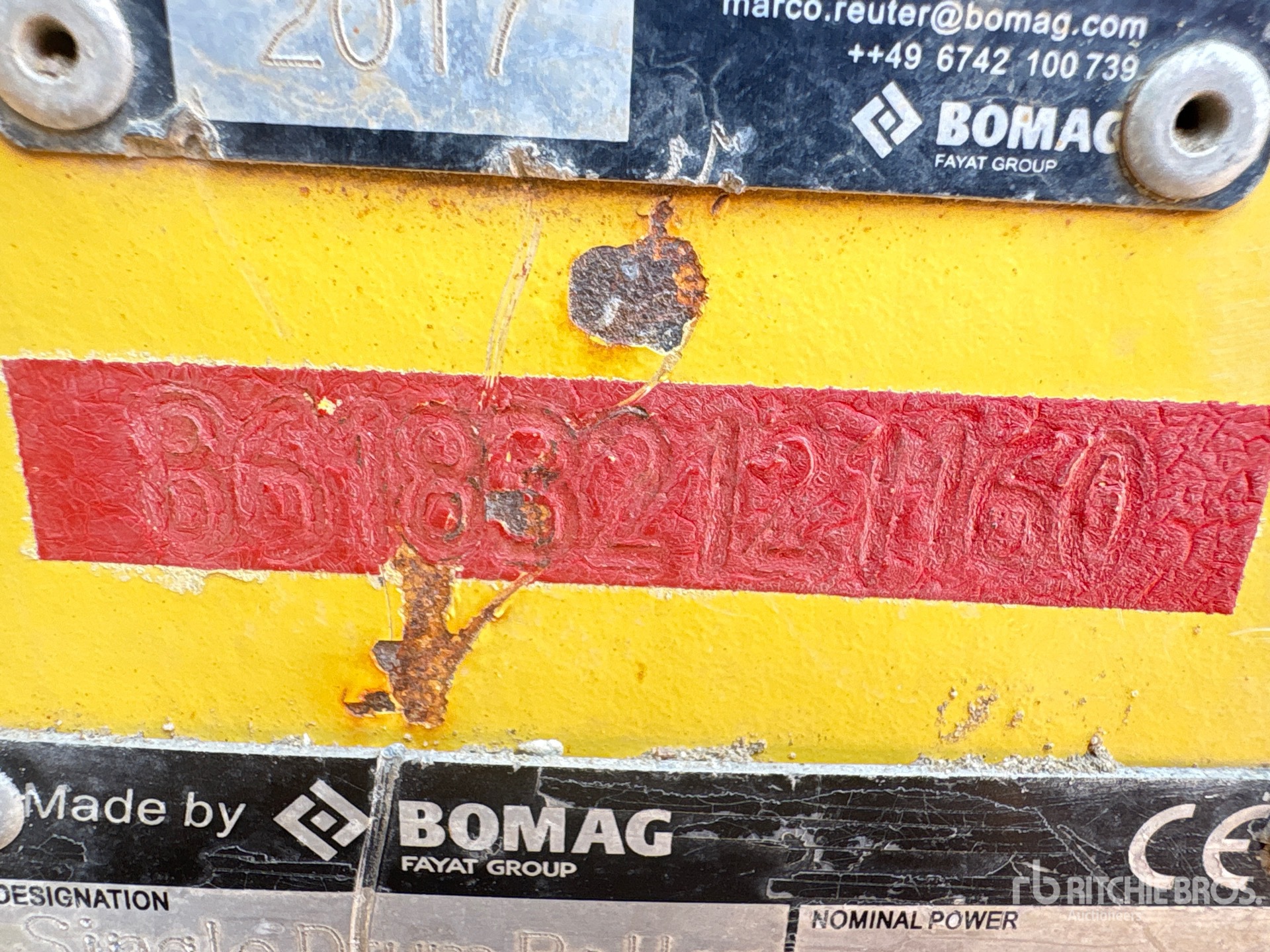

Serial Number:	861832121160
Machine Location:	DENVER, CO

Description:

Located in Lane 5 Spot 35.5, Open Operator Station, 2017 US EPA Label, Deutz 3 Cylinder 45.6 kW Diesel Engine, 47.7 in Drum The closing times of lots 321 thru 322 are tied together. If a bid is received, then a time extension will be applied to all lots. Once the time closes, the high bidder on each piece will be the winner, Closing Time: 2026-08-26 09:20:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Blades
Blade Width	5 ft (2 m)
Brakes
Parking brake	Hydromec
Service brake	Hydrostatic
Dimensions
Ground Clearance	13 in (32 cm)
Height - Top of Cab	8 ft (3 m)
Operating Width	4 ft (1 m)
Overall Length	132 in (335 cm)
Overall Length w/ Blade	13 ft (4 m)
Overall Length w/o Blade	11 ft (3 m)
Overall Width	4 ft (1 m)
Turning Radius - Inside	88 in (224 cm)
Width Over Tires	4 ft (1 m)

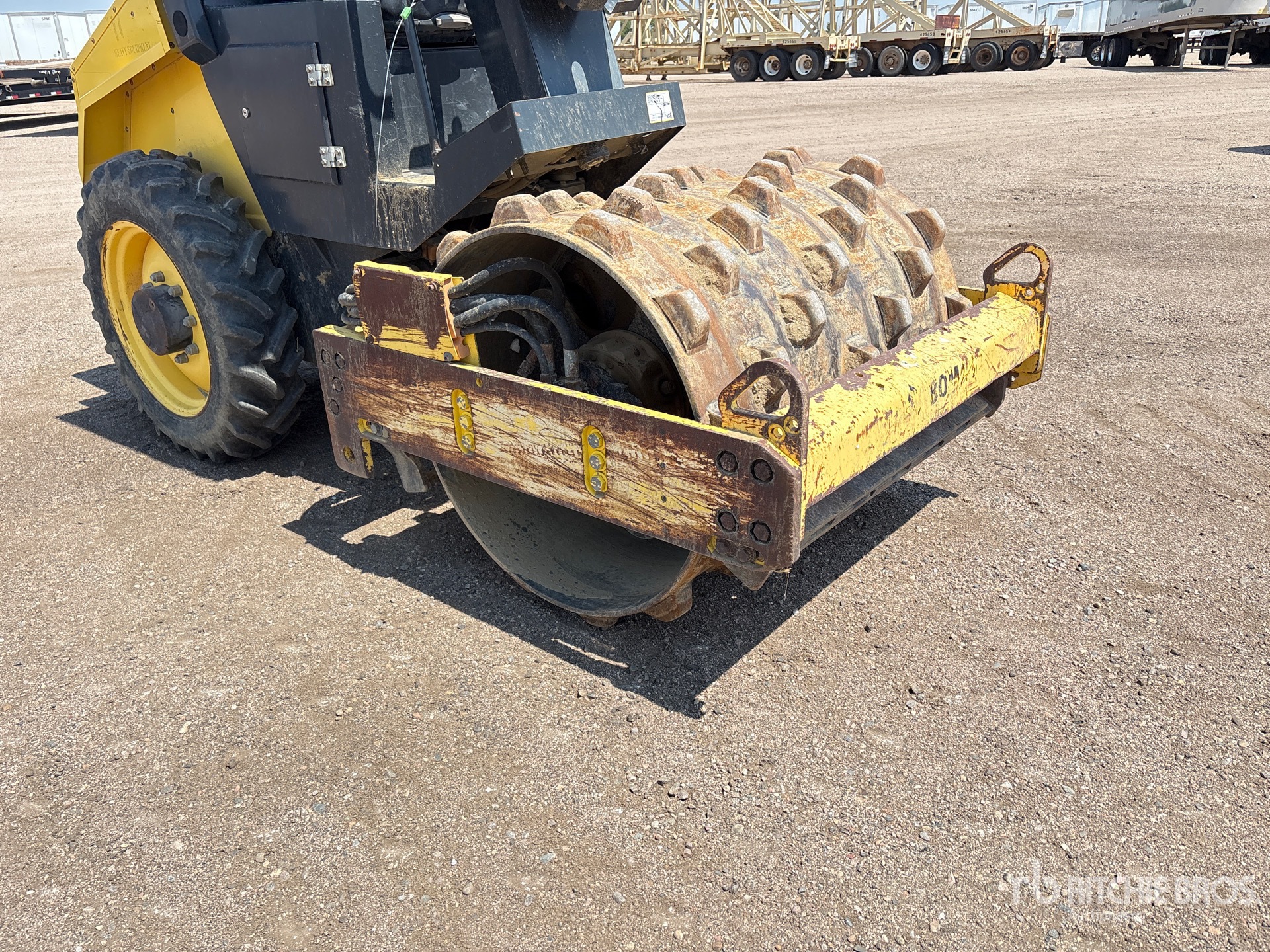

Drum
Nominal Amplitude - High	0 in (0 cm)
Number of Pads	70
Pad Height	2 in (6 cm)
Pad Surface Area	13 cu in (206 cu cm)
Static Linear Load	75 lbs in
Vibration Frequency 1	41 vpm
Vibration Frequency 2	40 vpm
Engine
Cooling method	Air - oil
Emissions level	3a/4i
Engine Make	Deutz
Engine Model	D2011 L03i
Fuel	Diesel
Make	Deutz
Number of Cylinders	3
Power Measured @	2,500 rpm
General Specifications
DRUM WIDTH IN. (CM) (Since 2016)	47.2 (120.0)
DRUM WIDTH IN. (CM) (2017)	47.2 (120.0)
ENGINE TYPE (Since 2016)	Deutz
ENGINE TYPE (2017)	Deutz
FREQUENCY HZ (Since 2016)	41
FREQUENCY HZ (2017)	41
INSIDE TURN RADIUS IN. (CM) (Since 2016)	88.2 (224.0)
INSIDE TURN RADIUS IN. (CM) (2017)	88.2 (224.0)
MODEL (Since 2016)	BW124PDH-40
MODEL (2017)	BW124PDH-40
WIDTH IN. (CM) (Since 2016)	51.6 (131.0)
WIDTH IN. (CM) (2017)	51.6 (131.0)
Operating Specifications
Fuel Capacity	16 gal (60 l)
Max Speed	6 mph (9 kph)
Operating Voltage	12 volts
Operating Width	52 in (131 cm)
Steering System
Steering Method	Hydrostatic
System	Oscillatory Articulation
Weights
Grossweight	8,598 lbs (3,900 kg)
Loaded Weight	3,638 lbs (1,650 kg)
