1998 Case 580 SUPER M For Sale in Birmingham, AL

Name: 1998 Case 580 SUPER M
Brand: Case
SKU: 89125418
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-09-23

JJ Kane Auctions

JJ Kane Auctions Dealer Info

JJ Kane Auctions Website

Click here to email JJ Kane Auctions.

Click for Phone Number

Machine Info:

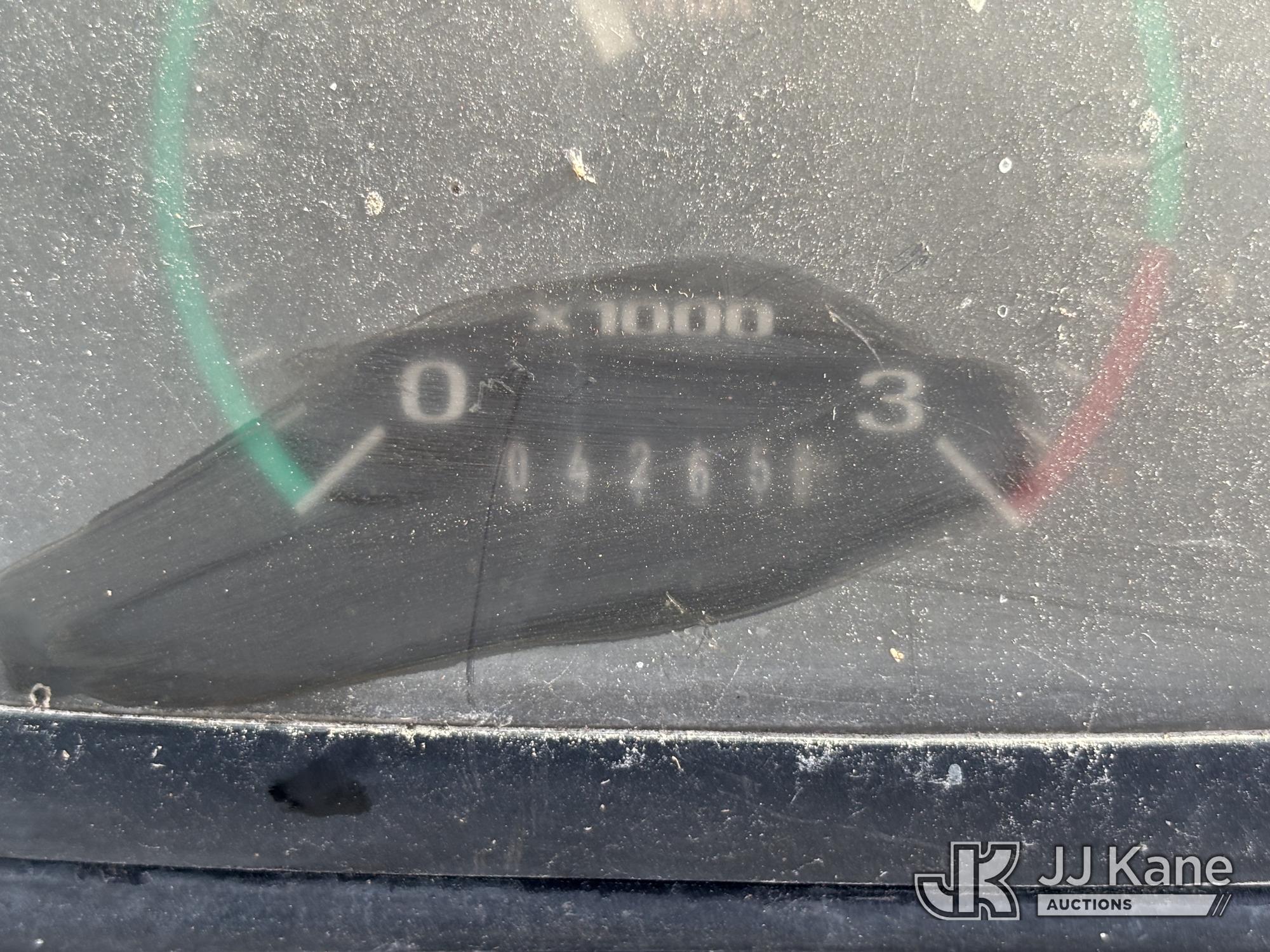

Hours:	4265
Serial Number:	JJG0278939
Machine Location:	BIRMINGHAM, AL

Description:

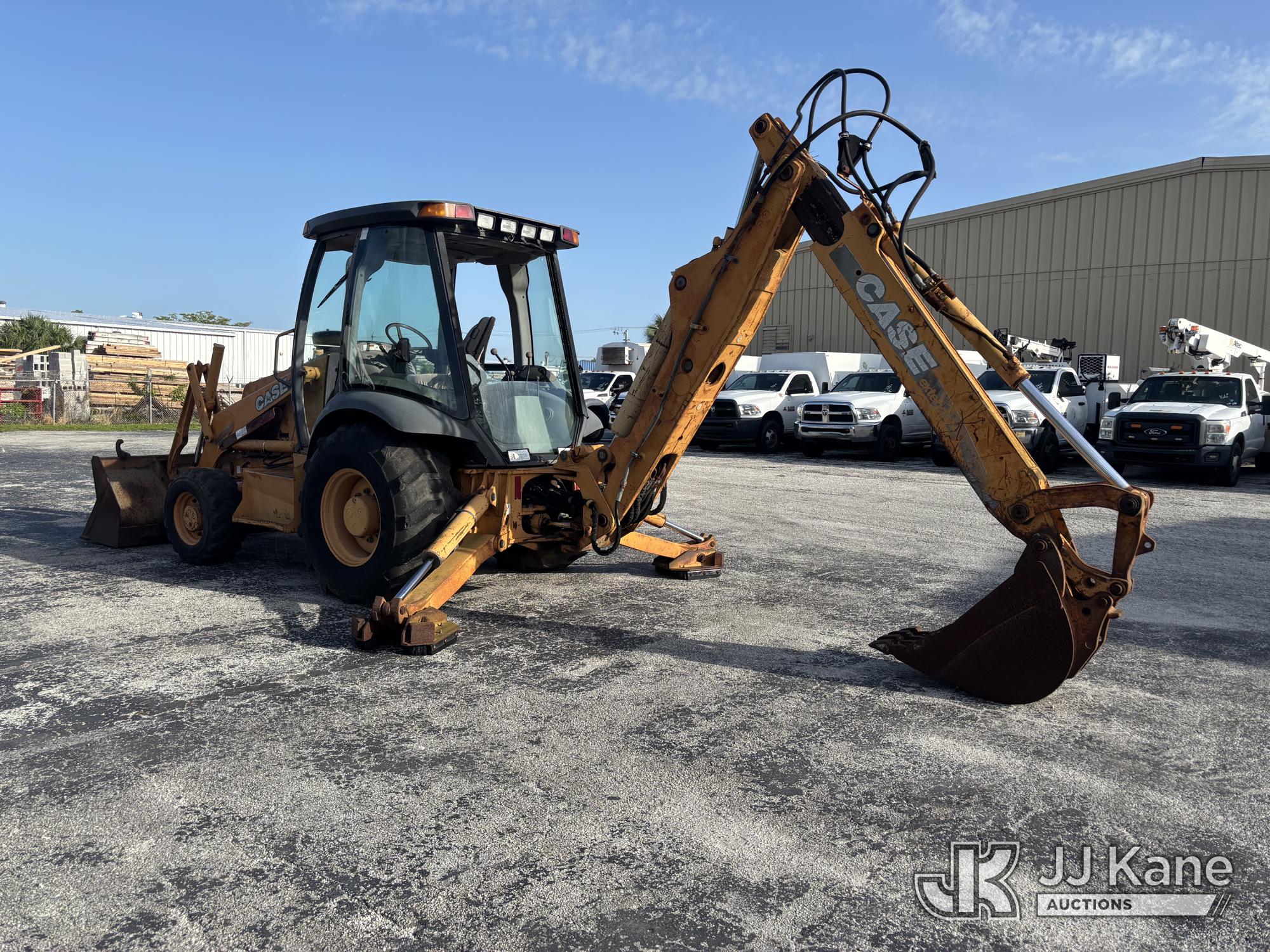

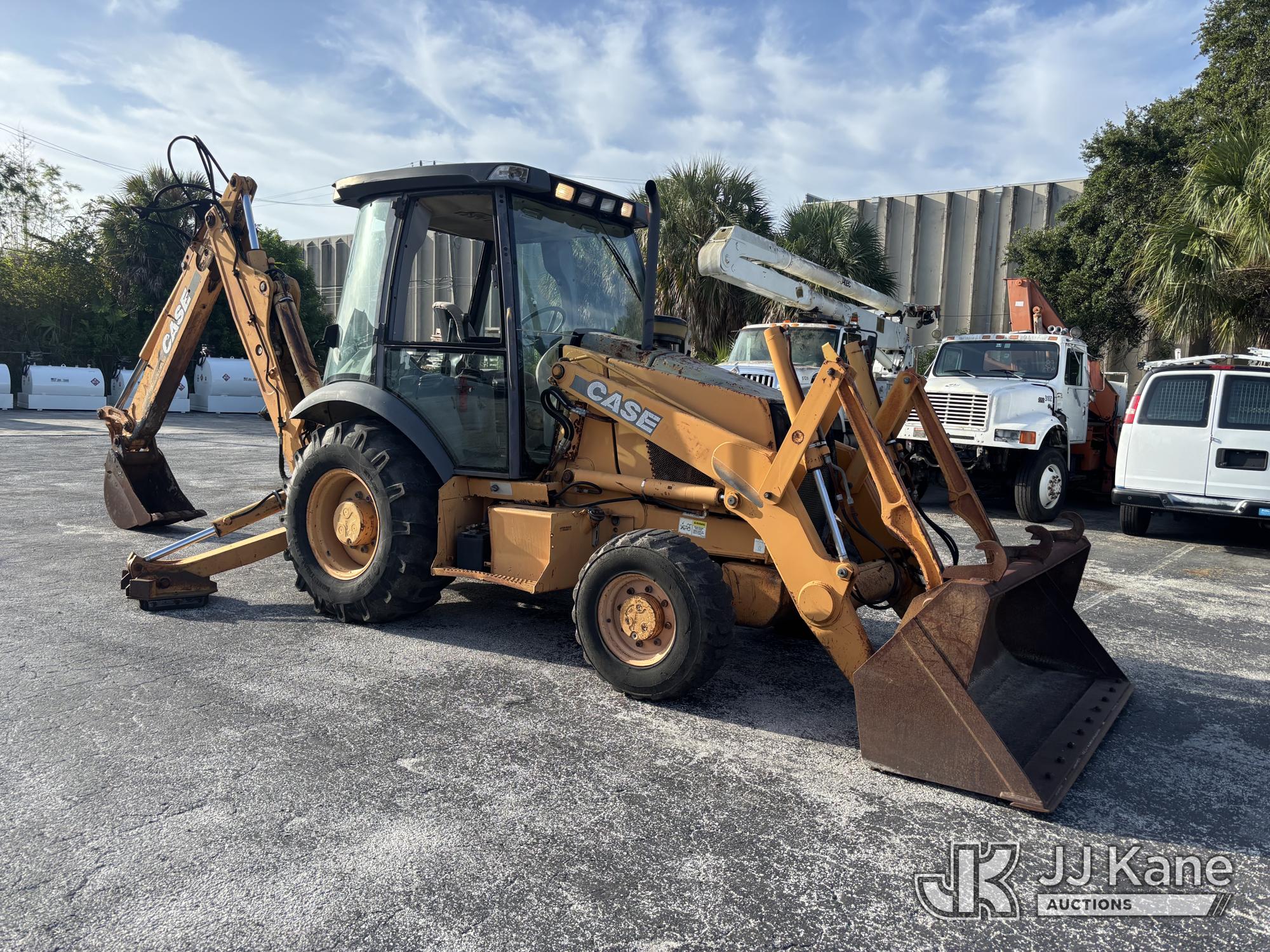

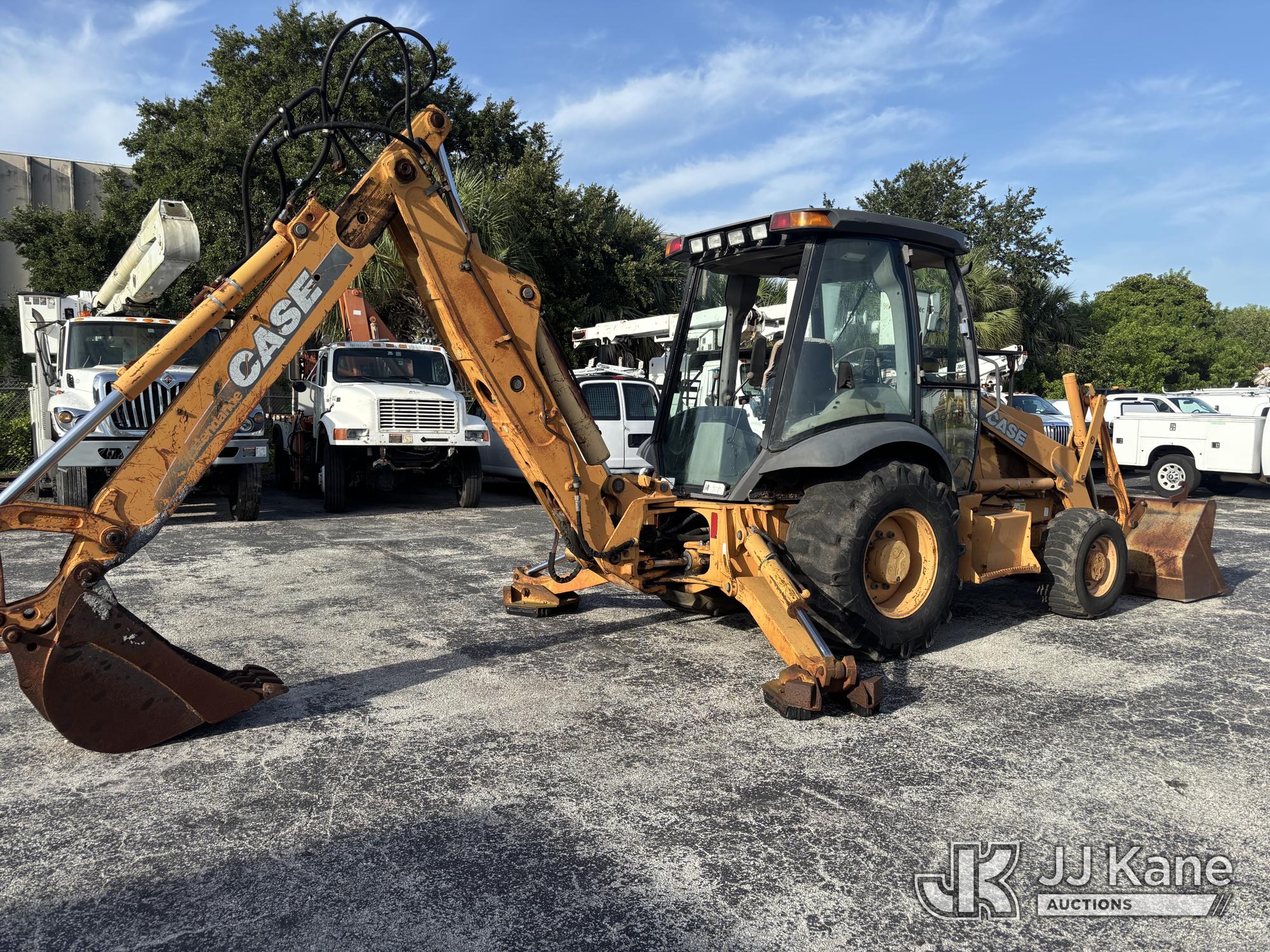

1998 Case 580 Super M Tractor Loader Extendahoe, s/n JJG0278939, 3.9L Diesel, Shuttle, with 81in. GP Bucket, 16in. Digging Bucket & EROPS w/A/C, (Runs, Moves, & Operates) (Hydraulic System Defect - Front Bucket Cylinder Leak/Drift, Exterior Defects - Missing Left Door & Right Window, Exterior Defects - See Pictures, Dash Warning Indicators On) (Reads 4,265 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in West Palm Beach, FL. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 2570 Old Okeechobee Rd West Palm Beach, FL 33409 and hours of operations are 8a-4p. For pre-sale questions, please contact Matt Johnson @ (205) 847-9106. or [email protected] (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 580 Super M is a backhoe loader designed for digging, loading, trenching, and general construction work. It is part of Case Construction Equipment's 580 series and is commonly used in utility, landscaping, municipal, and site preparation applications. The machine combines a front loader bucket with a rear backhoe attachment, allowing it to perform multiple tasks on one chassis. Typical features include a diesel engine, four-wheel drive on many configurations, and a hydraulic system for operating the loader and backhoe functions. The 580 Super M is known for versatility, maneuverability, and use in confined jobsite conditions.

Backhoe
Bucket Dig Force - Ext	12,821 lbs (5,815 kg)
Bucket Dig Force - Std	12,821 lbs (5,815 kg)
Dig Depth - Ext	18 ft (6 m)
Dig Depth - Std	14 ft (4 m)
Load At Max Lift - Ext	1,350 lbs (612 kg)
Load At Max Lift - Std	2,750 lbs (1,247 kg)
Load Height - Ext	13 ft (4 m)
Load Height - Std	11 ft (3 m)
Reach At Load Height - Ext	12 ft (4 m)
Reach At Load Height - Std	9 ft (3 m)
Reach From Swivel - Ext	22 ft (7 m)
Reach From Swivel - Std	18 ft (6 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height To Top Of Suspended Cab	9 ft (3 m)
Transport Height	14 ft (4 m)
Transport Length	23 ft (7 m)
Transport Width	7 ft (2 m)
Wheelbase	7 ft (2 m)
Engine
Aspiration	turbocharged
Displacement	272 cu in (4,457 cu cm)
Engine Make	2,239
Engine Model	Family III 445T/M2, Tier II certified
Gross Power	95 hp (71 kw)
Net Max Torque	289 lbs ft (392 nm)
Net Power	90 hp (67 kw)
Net Torque Rise	29 %
Number Of Cylinders	4
Power Measured @	2,200 rpm
Torque Measured @	1,500 rpm
General Specifications
4th Gear Fwd (Since 2004)	25 mph (40 kph)
Breakout Force (Since 2004)	9,164 lb/f
Digging Depth (Since 2004)	14 ft (4 m)
Lift Capacity (Since 2004)	6,182 lbs (2,804 kg)
Loading Height (Since 2004)	11 ft (3 m)
Operating Weight (Since 2004)	14,250 lbs (6,463 kg)
SAE Net (Since 2004)	90 hp (67 kw)
Hydraulic
Pump Flow Capacity	29 gpm (108 lpm)
Pump Type	gear-type, transmission driven
Relief Valve Pressure	3,050 psi
Loader
Bucket Breakout Force	9,164 lbs (4,156 kg)
Bucket Capacity	1 cu yd
Bucket Width	82 in (208 cm)
Clearance At Max Dump Height	9 ft (3 m)
Dig Depth	6 in (15 cm)
Lift Capacity At Full Height	6,182 lbs (2,804 kg)
Reach At Max Dump Height	3 ft (1 m)
Operational
Alternator Supplied Amperage	90 amps
Cooling System Fluid Capacity	5 gal (18 l)
Front Axle Fluid Capacity	2 gal (6 l)
Fuel Capacity	31 gal (119 l)
Hydraulic System Fluid Capacity	32 gal (119 l)
Max Weight	17,545 lbs (7,957 kg)
Oil System Fluid Capacity	4 gal (14 l)
Operating Voltage	12 V
Operating Weight 2wd	14,285 lbs (6,478 kg)
Rear Axle Fluid Capacity	4 gal (14 l)
Rear Tires Size 2wd/4wd	17.5Lx24/19.5x24
Tire Size Front - 2wd / 4wd	11Lx16.1/12x16.5
Transmission Fluid Capacity	6 gal (21 l)
Turning Radius	11 ft (3 m)
Transmission
Max Speed - Forward	26 mph (41 kph)
Max Speed Reverse	31 mph (50 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	4
Transmission Type	4-speed synchromesh with hydraulically actuated clutches
