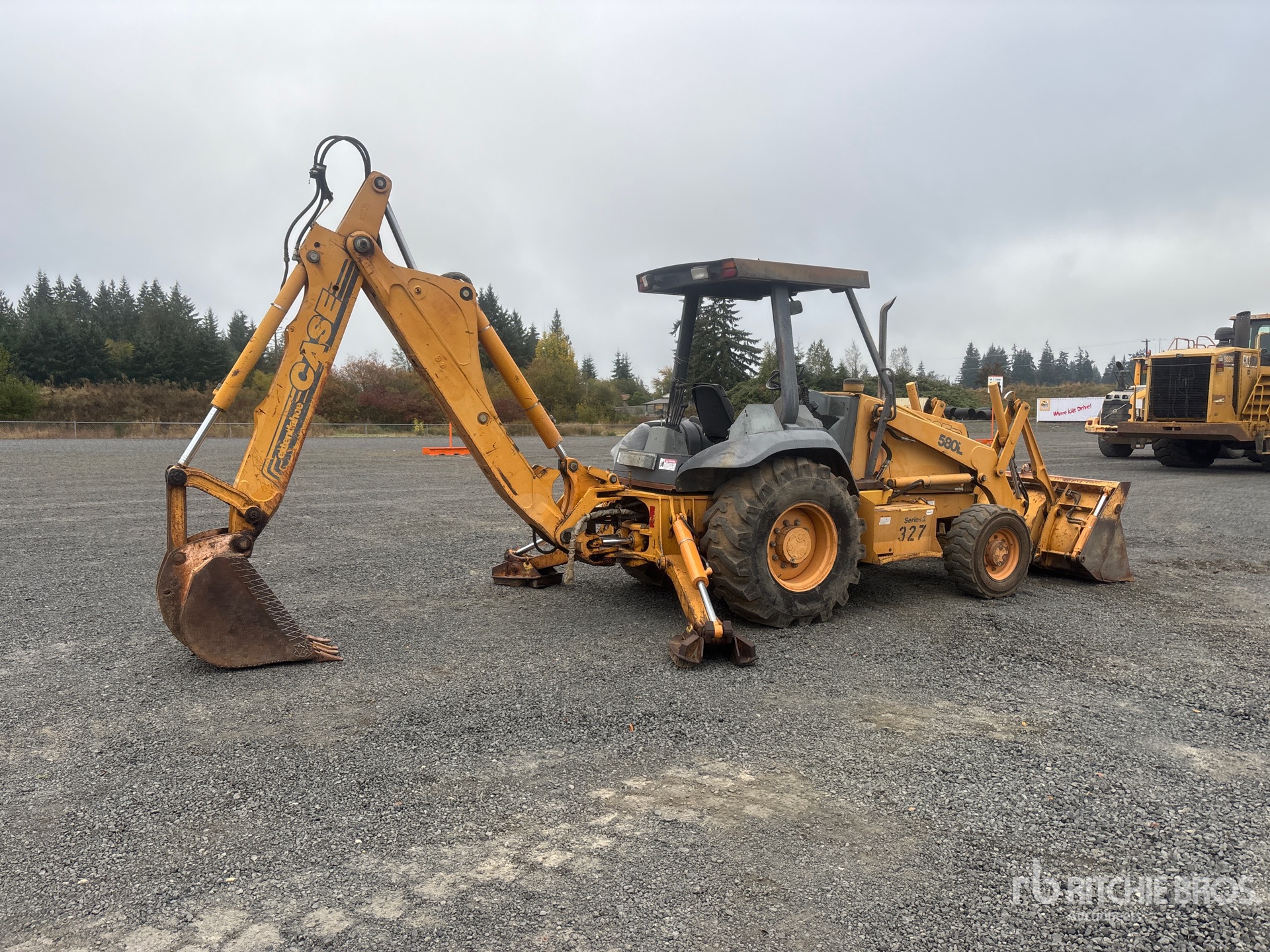

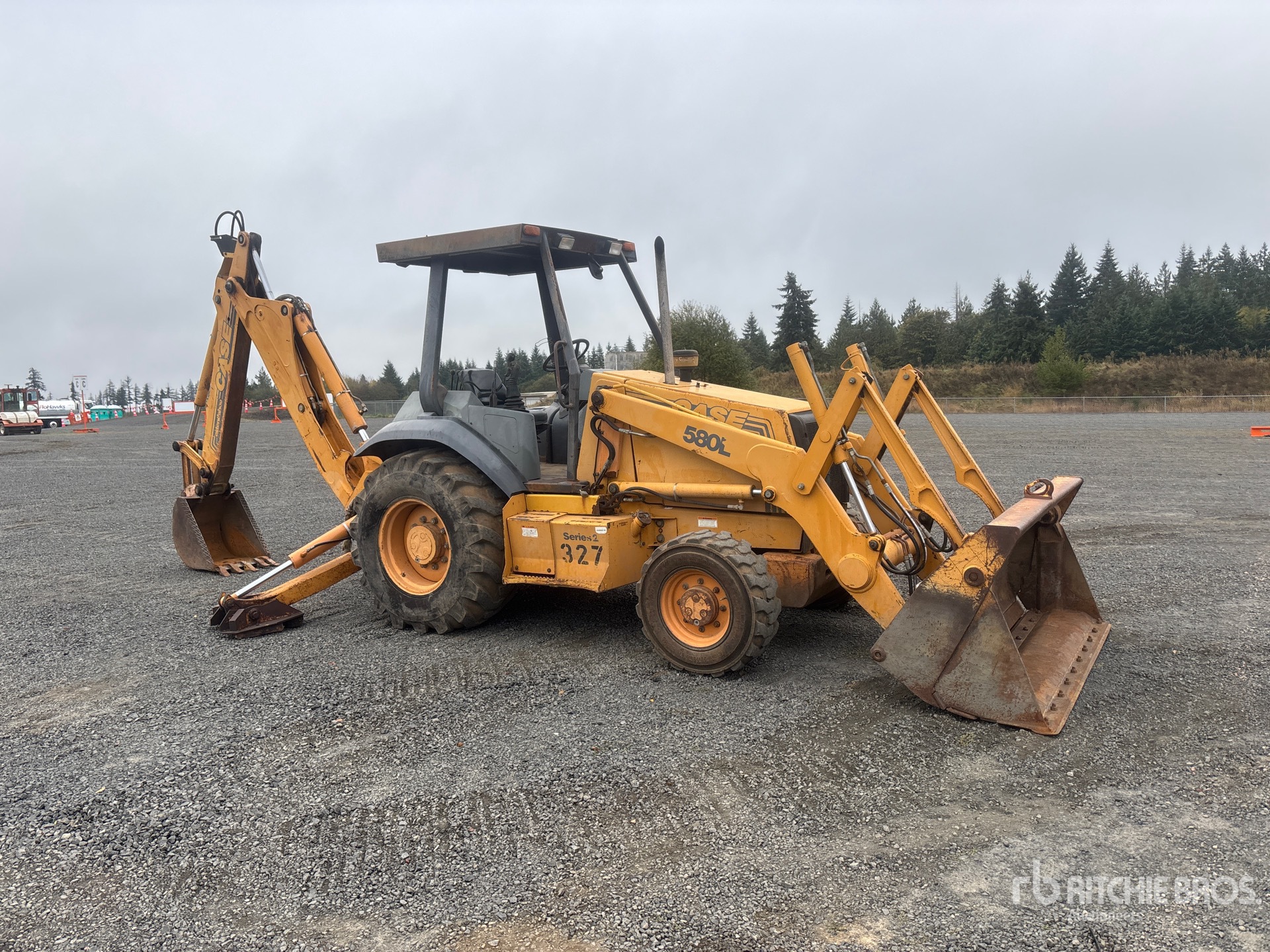

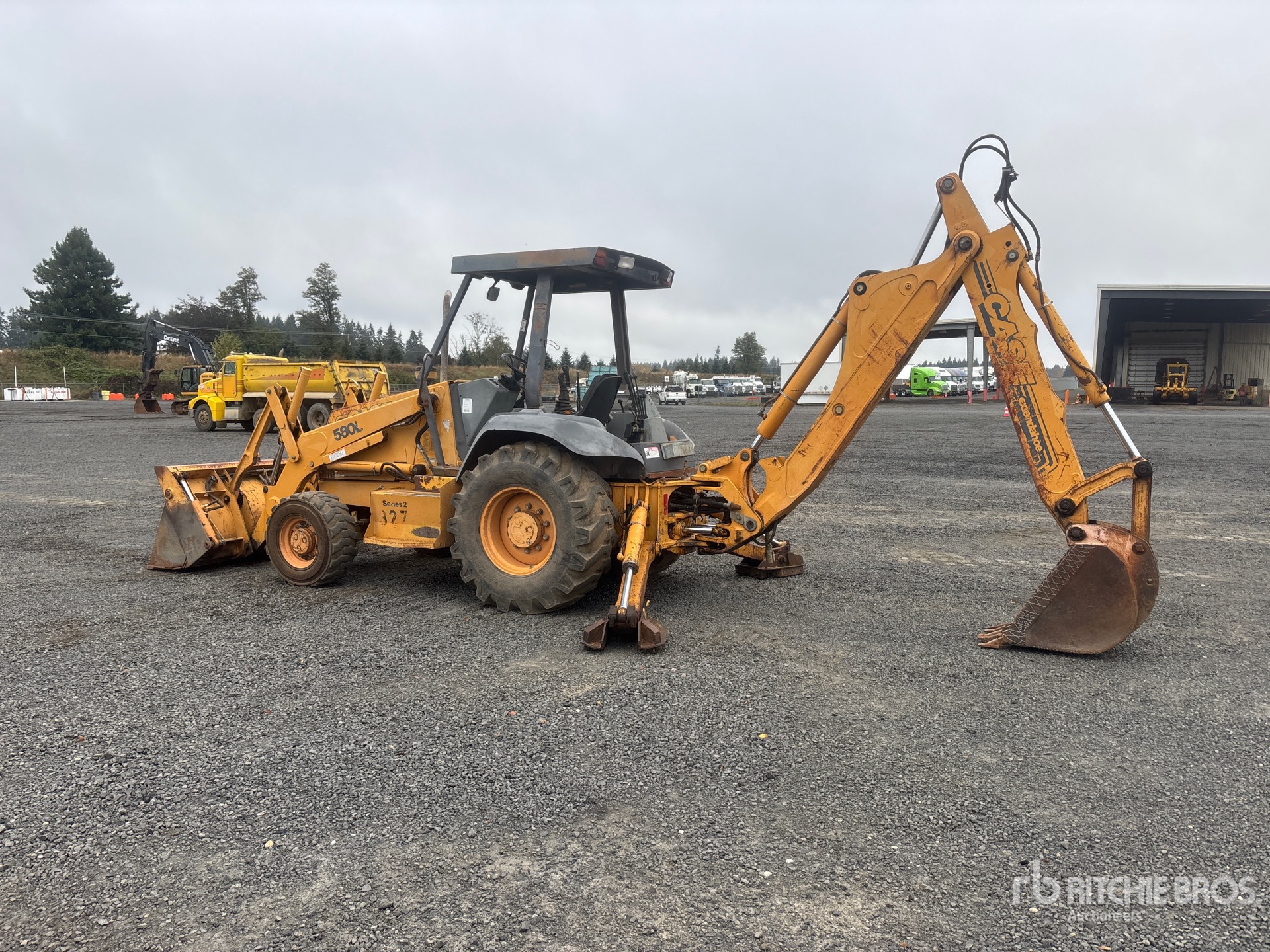

2003 Case 580L For Sale in Chehalis, Wa

Name: 2003 Case 580L
Brand: Case
SKU: 89362059
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-29 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

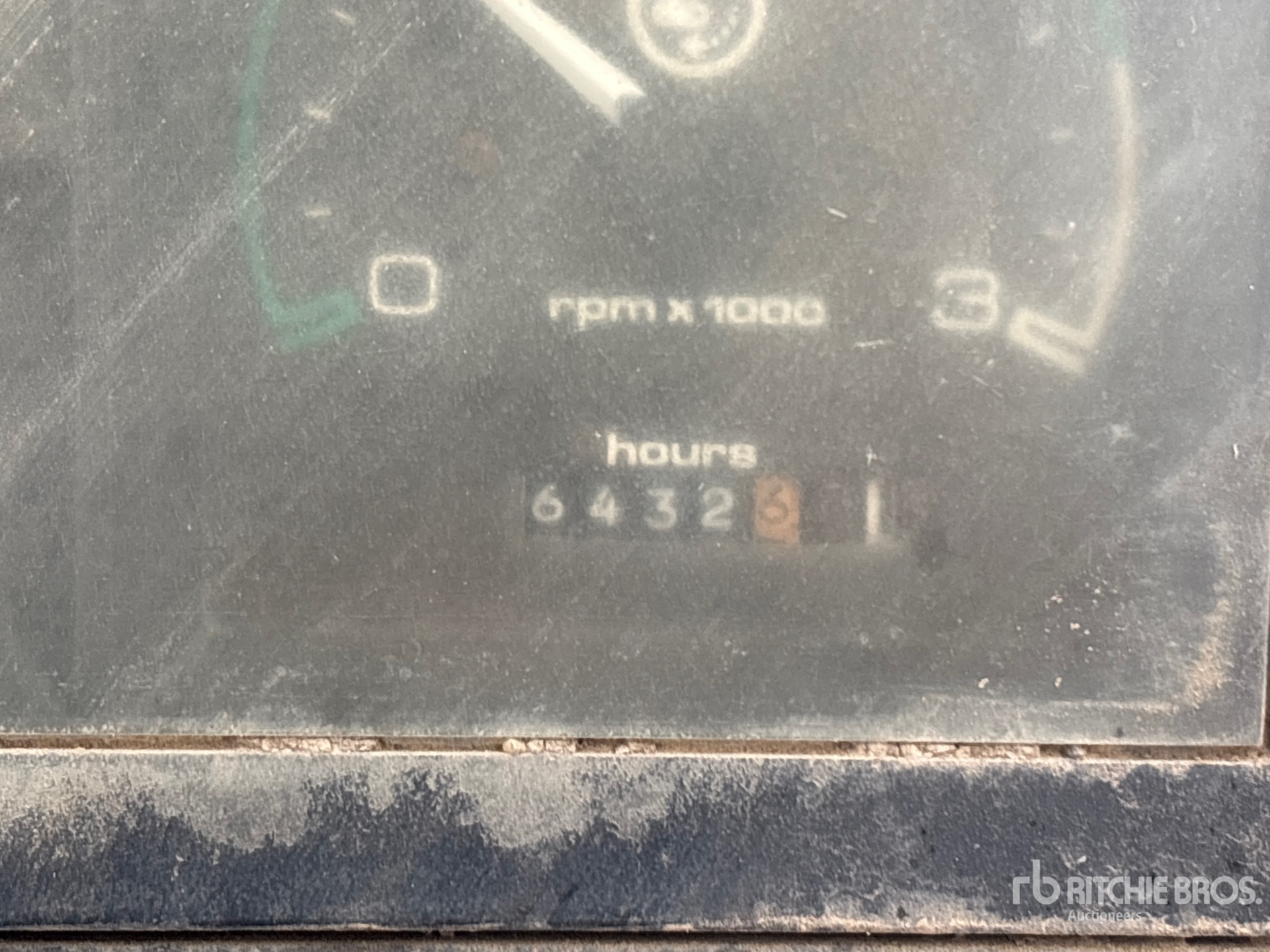

Hours:	6432

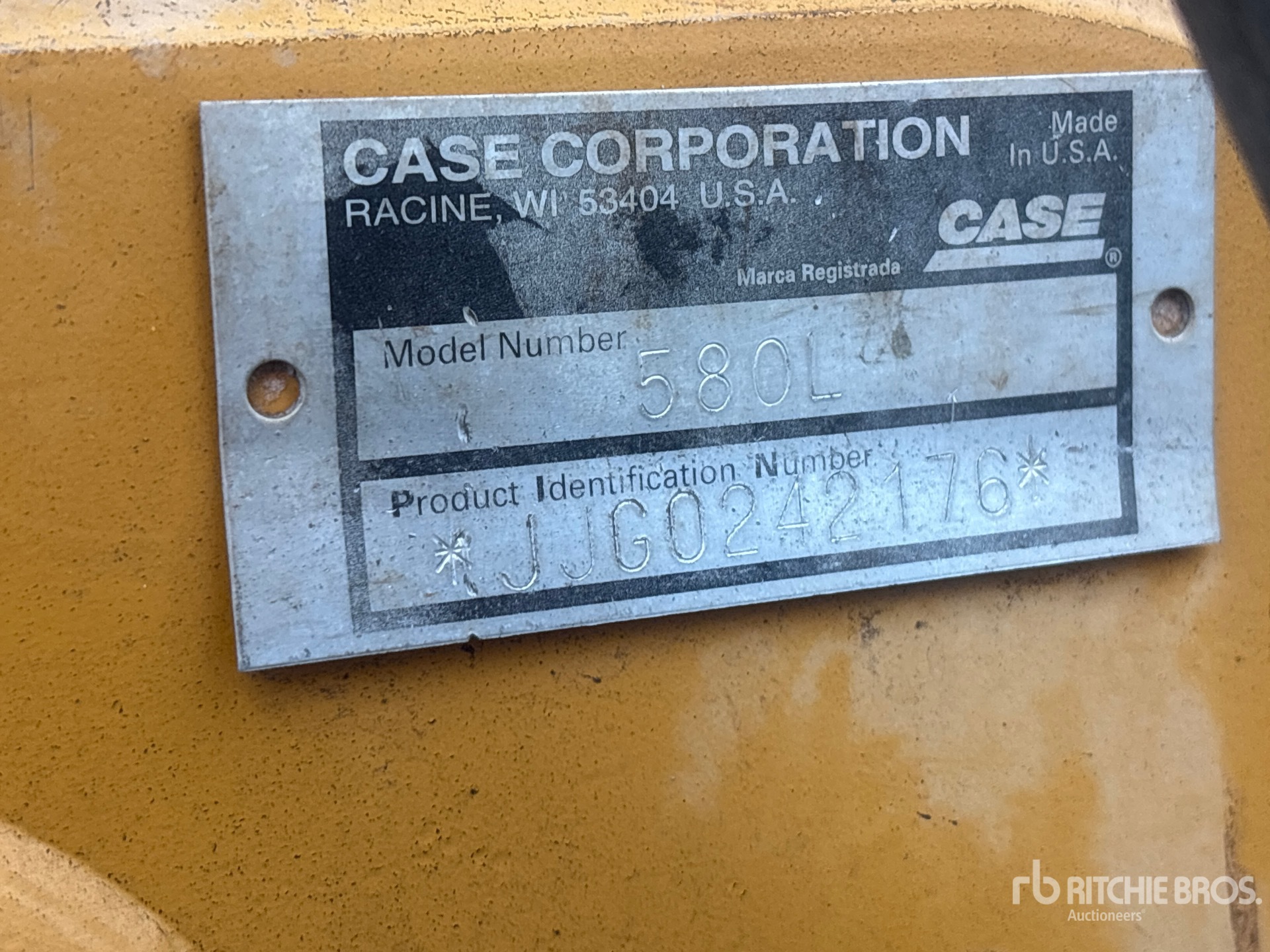

Serial Number:	JJG0242176
Machine Location:	CHEHALIS, WA

Description:

Located in Lane 8 Spot 13, Open Operator Station, 1998 US EPA Label, 81 in Multi-Purpose Loader Bucket, Extendable Stick, 24 in Backhoe Digging Bucket, Rear Auxiliary Hydraulics Closing Time: 2026-10-29 09:17:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 580L is a backhoe loader designed for general construction, utility, and site preparation work. It combines a front loader bucket with a rear backhoe attachment for digging, trenching, loading, and material handling. The 580L is part of Case's 580 series and is commonly used on small to medium job sites where a single machine must perform multiple tasks. Typical applications include excavation, landscaping, road maintenance, and utility installation. The model is recognized for its compact size, maneuverability, and versatility in mixed-duty operations. It remains a reference model in the used equipment market for backhoe loader buyers.

Backhoe
Bucket Dig Force - Ext	10,976 lbs (4,979 kg)
Bucket Dig Force - Std	10,976 lbs (4,979 kg)
Dig Depth - Ext	18 ft (6 m)
Dig Depth - Std	14 ft (4 m)
Load At Max Lift - Ext	1,401 lbs (635 kg)
Load At Max Lift - Std	1,951 lbs (885 kg)
Load Height - Ext	13 ft (4 m)
Load Height - Std	11 ft (3 m)
Reach At Load Height - Ext	11 ft (3 m)
Reach At Load Height - Std	9 ft (3 m)
Reach From Swivel - Ext	21 ft (6 m)
Reach From Swivel - Std	17 ft (5 m)
Dimensions
Front Wheel Tread Width	67 in (171 cm)
Ground Clearance	1 ft (0 m)
Height To Top Of Suspended Cab	8 ft (2 m)
Rear Wheel Tread Width - Min	61 in (155 cm)
Transport Height	19 ft (6 m)
Transport Length	23 ft (7 m)
Transport Width	7 ft (2 m)
Wheelbase	7 ft (2 m)
Engine
Aspiration	Turbocharged
Bore	4 in (10 cm)
Displacement	239 cu in (3,917 cu cm)
Engine Make	Case
Engine Model	4-390
Gross Power	75 hp (56 kw)
Net Max Torque	193 lbs ft (262 nm)
Net Power	71 hp (53 kw)
Number Of Cylinders	4
Power Measured @	2,200 rpm
Stroke	5 in (12 cm)
Torque Measured @	1,400 rpm
Hydraulic
Pump Flow Capacity	29 gpm (108 lpm)
Pump Type	Front mounted, positive displacement, gear-type tandem
Relief Valve Pressure	3,000 psi
Loader
Bucket Breakout Force	7,956 lbs (3,609 kg)
Bucket Capacity	1 cu yd
Bucket Width	82 in (208 cm)
Clearance At Max Dump Height	9 ft (3 m)
Dig Depth	8 in (20 cm)
Lift Capacity At Full Height	5,293 lbs (2,401 kg)
Reach At Max Dump Height	2 ft (1 m)
Operational
Alternator Supplied Amperage	65 amps
Cooling System Fluid Capacity	4 gal (17 l)
Front Axle Fluid Capacity	2 gal (6 l)
Fuel Capacity	31 gal (119 l)
Hydraulic System Fluid Capacity	33 gal (125 l)
Operating Voltage	12 V
Operating Weight 4wd	12,817 lbs (5,814 kg)
Rear Axle Fluid Capacity	4 gal (15 l)
Rear Tires Size 2wd/4wd	17.5L x 24, 10PR / 19.5L x 24, 10PR
Tire Size Front - 2wd / 4wd	11L x 16, 10PR / 12 x 16.5, 8PR
Transmission Fluid Capacity	5 gal (19 l)
Transmission
Max Speed - Forward	26 mph (41 kph)
Max Speed Reverse	31 mph (50 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	4
Transmission Type	Fully synchronized 4-speed forward reverse shuttle
