2002 Case 580M For Sale in North East, Md

Name: 2002 Case 580M
Brand: Case
SKU: 89401115
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-28 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

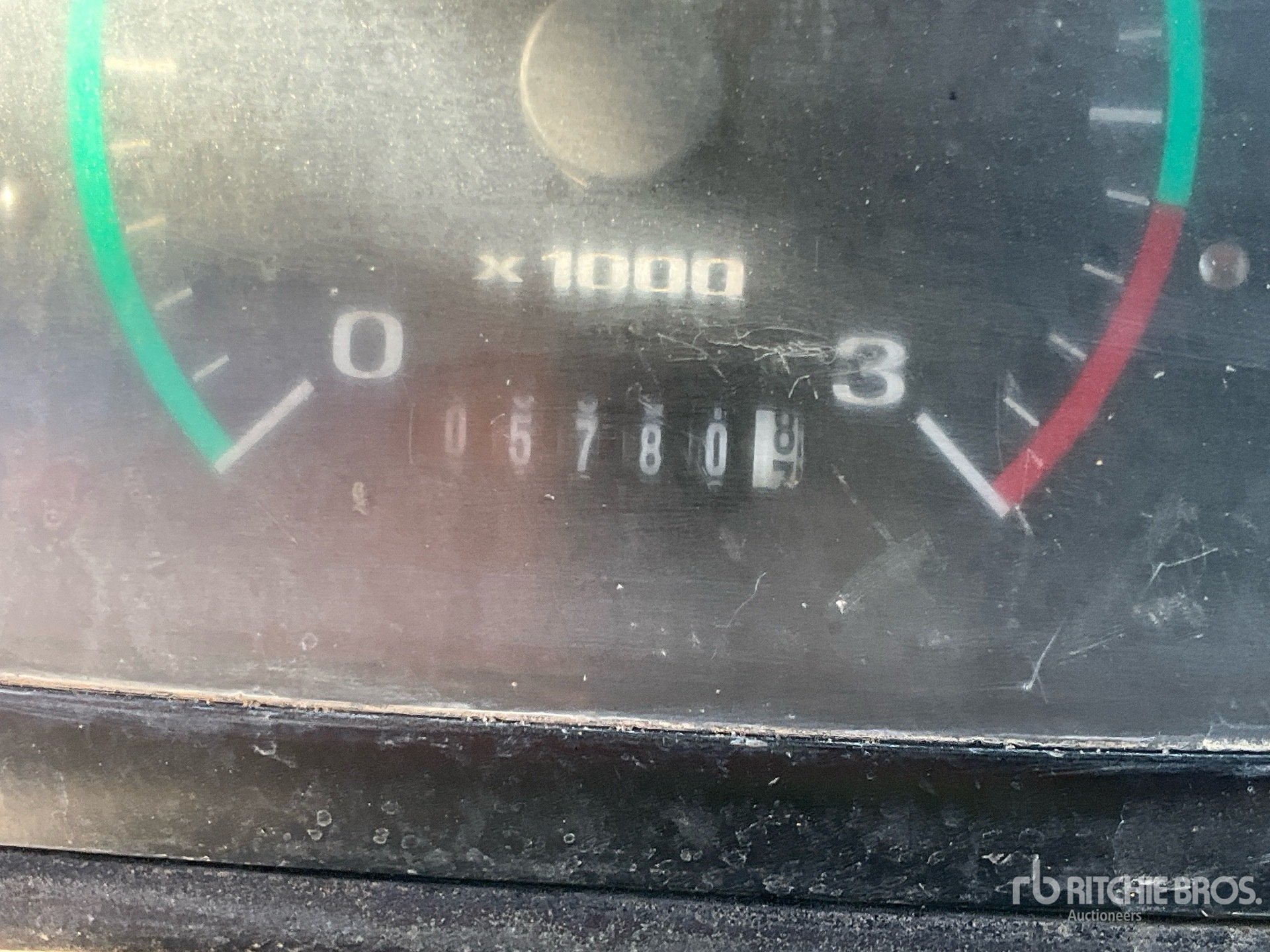

Hours:	5780

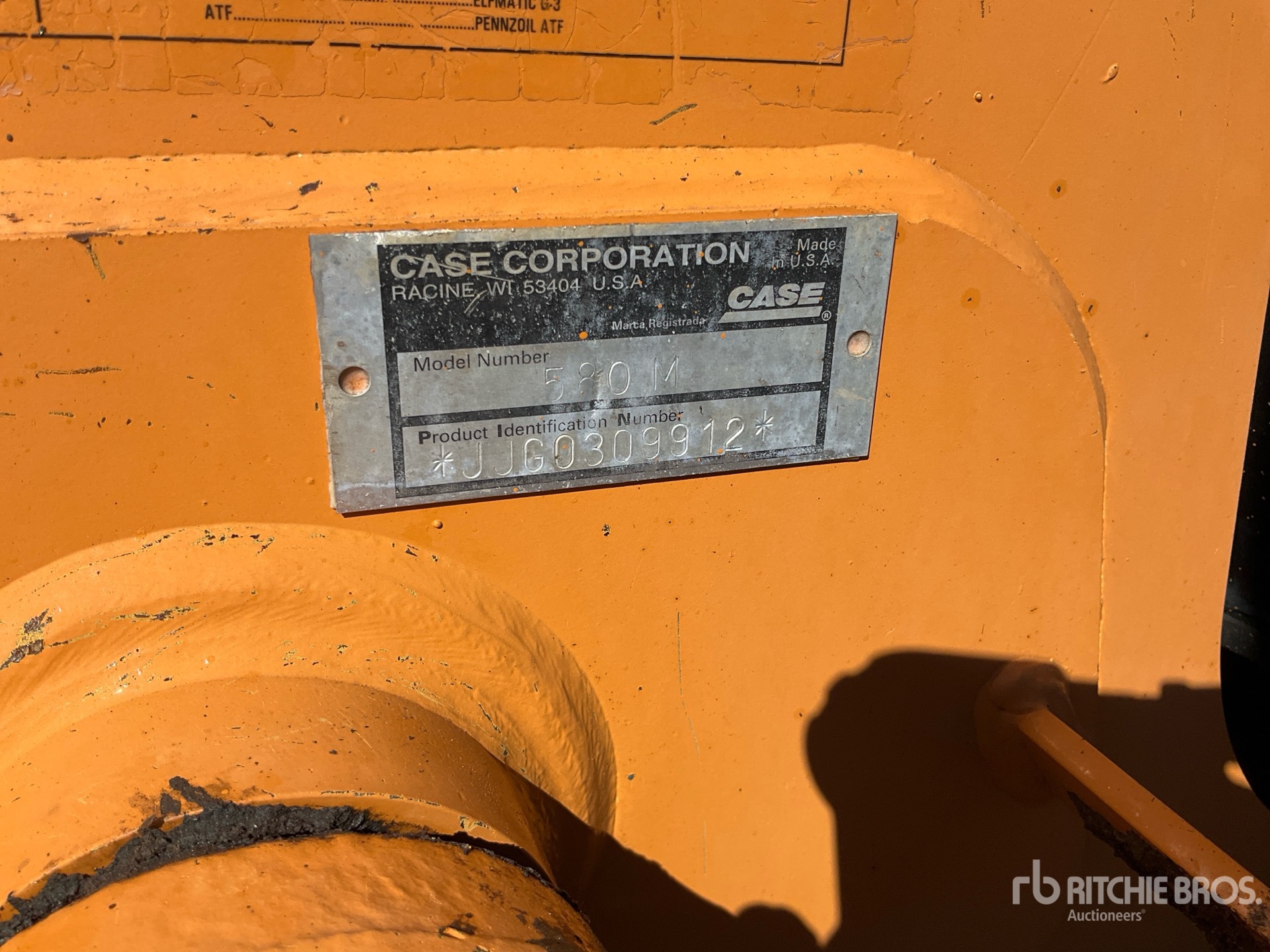

Serial Number:	JJG0309912
Machine Location:	NORTH EAST, MD

Description:

Open Operator Station, 63 in Loader Bucket, 17 in Backhoe Digging Bucket Closing Time: 2026-10-28 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 580M is a backhoe loader designed for digging, loading, trenching, and material handling on construction, utility, and landscaping jobs. It combines a front loader bucket with a rear backhoe attachment, providing versatility in a compact machine. The 580M is part of Case's 580 series and is commonly used for site preparation, excavation, roadwork, and general earthmoving tasks. Typical features include a diesel engine, four-wheel drive options, hydraulic controls, and an enclosed operator station. The model is known for its balance of maneuverability, lifting capability, and jobsite utility in medium-duty applications.

Backhoe
Bucket Dig Force - Ext	11,212 lbs (5,086 kg)
Bucket Dig Force - Ext	11,212 lbs (5,086 kg)
Bucket Dig Force - Std	11,212 lbs (5,086 kg)
Bucket Dig Force - Std	11,212 lbs (5,086 kg)
Dig Depth - Ext	18 ft (6 m)
Dig Depth - Ext	18 ft (6 m)
Dig Depth - Std	14 ft (4 m)
Dig Depth - Std	14 ft (4 m)
Load At Max Lift - Ext	810 lbs (367 kg)
Load At Max Lift - Ext	810 lbs (367 kg)
Load At Max Lift - Std	1,950 lbs (885 kg)
Load At Max Lift - Std	1,950 lbs (885 kg)
Load Height - Ext	13 ft (4 m)
Load Height - Ext	13 ft (4 m)
Load Height - Std	11 ft (3 m)
Load Height - Std	11 ft (3 m)
Reach At Load Height - Ext	12 ft (4 m)
Reach At Load Height - Ext	12 ft (4 m)
Reach At Load Height - Std	9 ft (3 m)
Reach At Load Height - Std	9 ft (3 m)
Reach From Swivel - Ext	22 ft (7 m)
Reach From Swivel - Ext	22 ft (7 m)
Reach From Swivel - Std	18 ft (5 m)
Reach From Swivel - Std	18 ft (5 m)
Dimensions
Ground Clearance	1 ft (0 m)
Ground Clearance	1 ft (0 m)
Height To Top Of Suspended Cab	9 ft (3 m)
Height To Top Of Suspended Cab	9 ft (3 m)
Transport Height	14 ft (4 m)
Transport Height	11 ft (3 m)
Transport Length	23 ft (7 m)
Transport Length	23 ft (7 m)
Transport Width	7 ft (2 m)
Transport Width	7 ft (2 m)
Wheelbase	7 ft (2 m)
Wheelbase	7 ft (2 m)
Engine
Aspiration	turbocharged
Aspiration	Natural
Displacement	272 cu in (4,457 cu cm)
Displacement	272 cu in (4,457 cu cm)
Engine Make	2,239
Engine Make	2,239
Engine Model	Family III 445T/M2, Tier II certified
Engine Model	Family III 445/M2, Tier II certified
Gross Power	85 hp (63 kw)
Gross Power	80 hp (60 kw)
Net Max Torque	246 lbs ft (334 nm)
Net Max Torque	231 lbs ft (313 nm)
Net Power	80 hp (60 kw)
Net Power	76 hp (57 kw)
Net Torque Rise	33 %
Net Torque Rise	23 %
Number Of Cylinders	4
Number Of Cylinders	4
Power Measured @	2,200 rpm
Power Measured @	2,200 rpm
Torque Measured @	1,400 rpm
Torque Measured @	1,400 rpm
General Specifications
4th Gear Fwd (Since 2004)	25 mph (40 kph)
Breakout Force (Since 2004)	9,164 lb/f
Digging Depth (Since 2004)	14 ft (4 m)
Lift Capacity (Since 2004)	6,182 lbs (2,804 kg)
Loading Height (Since 2004)	11 ft (3 m)
Operating Weight (Since 2004)	13,359 lbs (6,060 kg)
SAE Net (Since 2004)	73 hp (54 kw)
Hydraulic
Pump Flow Capacity	29 gpm (108 lpm)
Pump Flow Capacity	29 gpm (108 lpm)
Pump Type	gear-type, transmission driven
Pump Type	gear-type, transmission driven
Relief Valve Pressure	3,050 psi
Relief Valve Pressure	3,050 psi
Loader
Bucket Breakout Force	9,164 lbs (4,157 kg)
Bucket Breakout Force	9,164 lbs (4,157 kg)
Bucket Capacity	1 cu yd
Bucket Capacity	1 cu yd
Bucket Width	82 in (208 cm)
Bucket Width	82 in (208 cm)
Clearance At Max Dump Height	9 ft (3 m)
Clearance At Max Dump Height	9 ft (3 m)
Dig Depth	8 in (20 cm)
Dig Depth	8 in (20 cm)
Lift Capacity At Full Height	6,182 lbs (2,804 kg)
Lift Capacity At Full Height	6,182 lbs (2,804 kg)
Reach At Max Dump Height	2 ft (1 m)
Reach At Max Dump Height	28 ft (9 m)
Operational
Alternator Supplied Amperage	90 amps
Alternator Supplied Amperage	90 amps
Cooling System Fluid Capacity	5 gal (17 l)
Cooling System Fluid Capacity	5 gal (17 l)
Front Axle Fluid Capacity	2 gal (6 l)
Front Axle Fluid Capacity	2 gal (6 l)
Fuel Capacity	31 gal (119 l)
Fuel Capacity	31 gal (119 l)
Hydraulic System Fluid Capacity	28 gal (106 l)
Hydraulic System Fluid Capacity	28 gal (106 l)
Max Weight	16,510 lbs (7,489 kg)
Max Weight	16,510 lbs (7,489 kg)
Oil System Fluid Capacity	4 gal (14 l)
Oil System Fluid Capacity	4 gal (14 l)
Operating Voltage	12 V
Operating Voltage	12 V
Operating Weight 2wd	13,359 lbs (6,060 kg)
Operating Weight 2wd	13,359 lbs (6,060 kg)
Rear Axle Fluid Capacity	4 gal (14 l)
Rear Axle Fluid Capacity	4 gal (14 l)
Rear Tires Size 2wd/4wd	17.5Lx24/19.5Lx24
Rear Tires Size 2wd/4wd	17.5Lx24/19.5Lx24
Tire Size Front - 2wd / 4wd	11Lx16.1/12x16.5
Tire Size Front - 2wd / 4wd	11Lx16.1/12x16.5
Transmission Fluid Capacity	6 gal (21 l)
Transmission Fluid Capacity	6 gal (21 l)
Turning Radius	21 ft (6 m)
Turning Radius	11 ft (3 m)
Transmission
Max Speed - Forward	25 mph (39 kph)
Max Speed - Forward	25 mph (39 kph)
Max Speed Reverse	30 mph (48 kph)
Max Speed Reverse	30 mph (48 kph)
Number Of Forward Gears	4
Number Of Forward Gears	4
Number Of Reverse Gears	4
Number Of Reverse Gears	4
Transmission Type	4-speed synchromesh with hydraulically actuated clutches
Transmission Type	4-speed synchromesh with hydraulically actuated clutches
