2008 Case 580M SERIES 3 4X4 For Sale in Birmingham, AL
Auction Pricing
Auction Info: Starting on 2026-10-14
Machine Info:

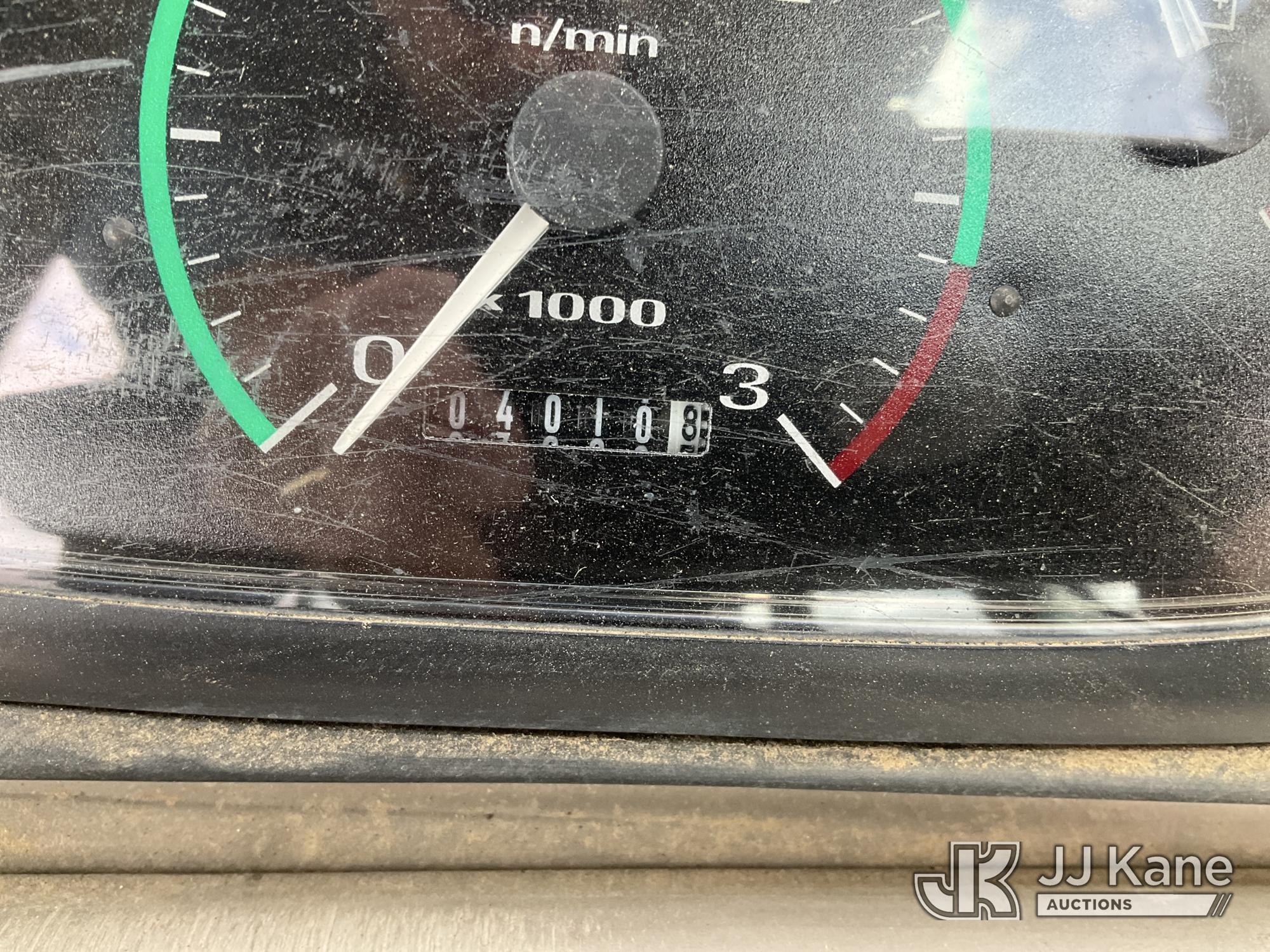

| Hours: | 4010 |

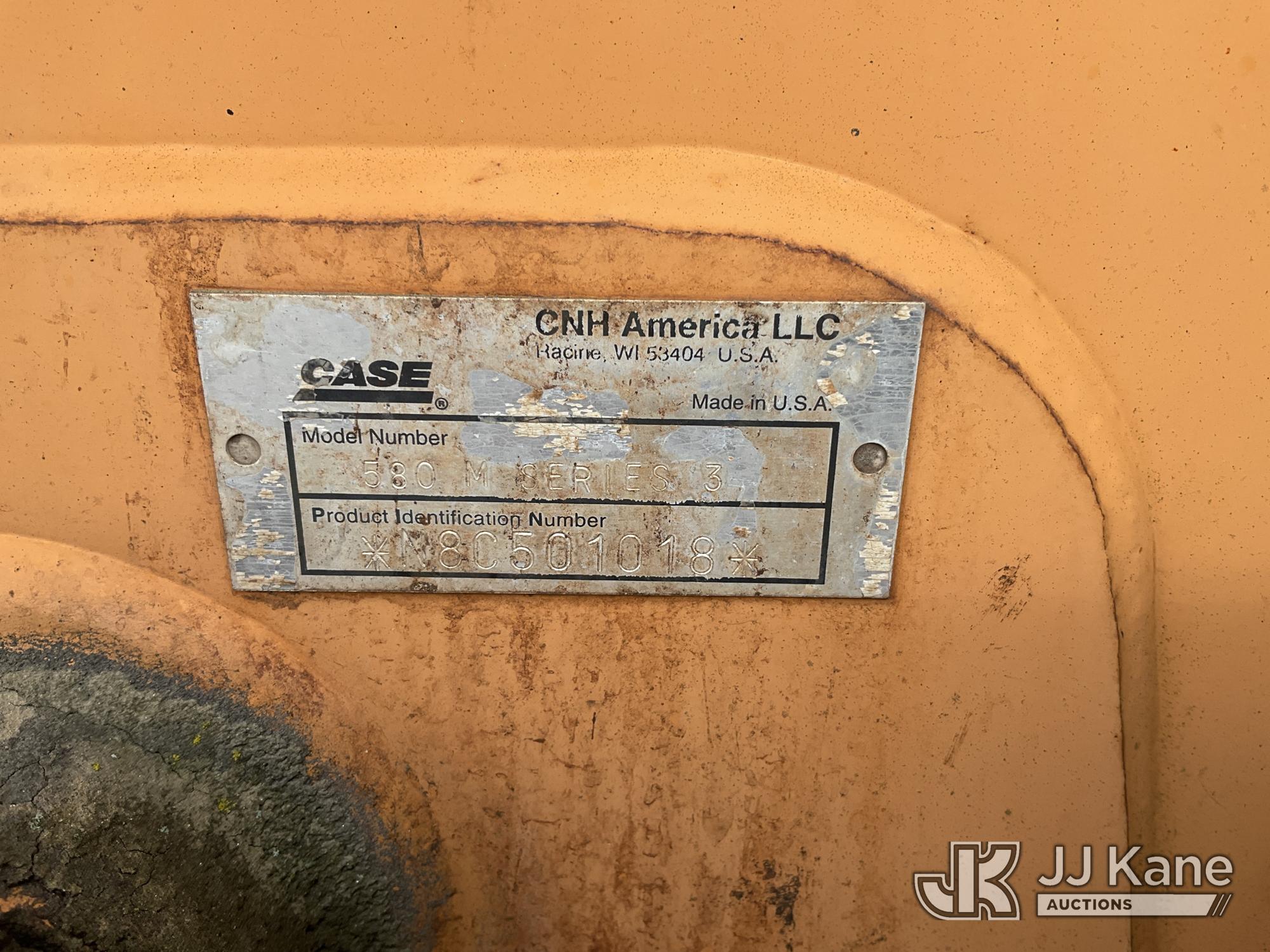

| Serial Number: | N8C501018 |
| Machine Location: | BIRMINGHAM, AL |
Description:

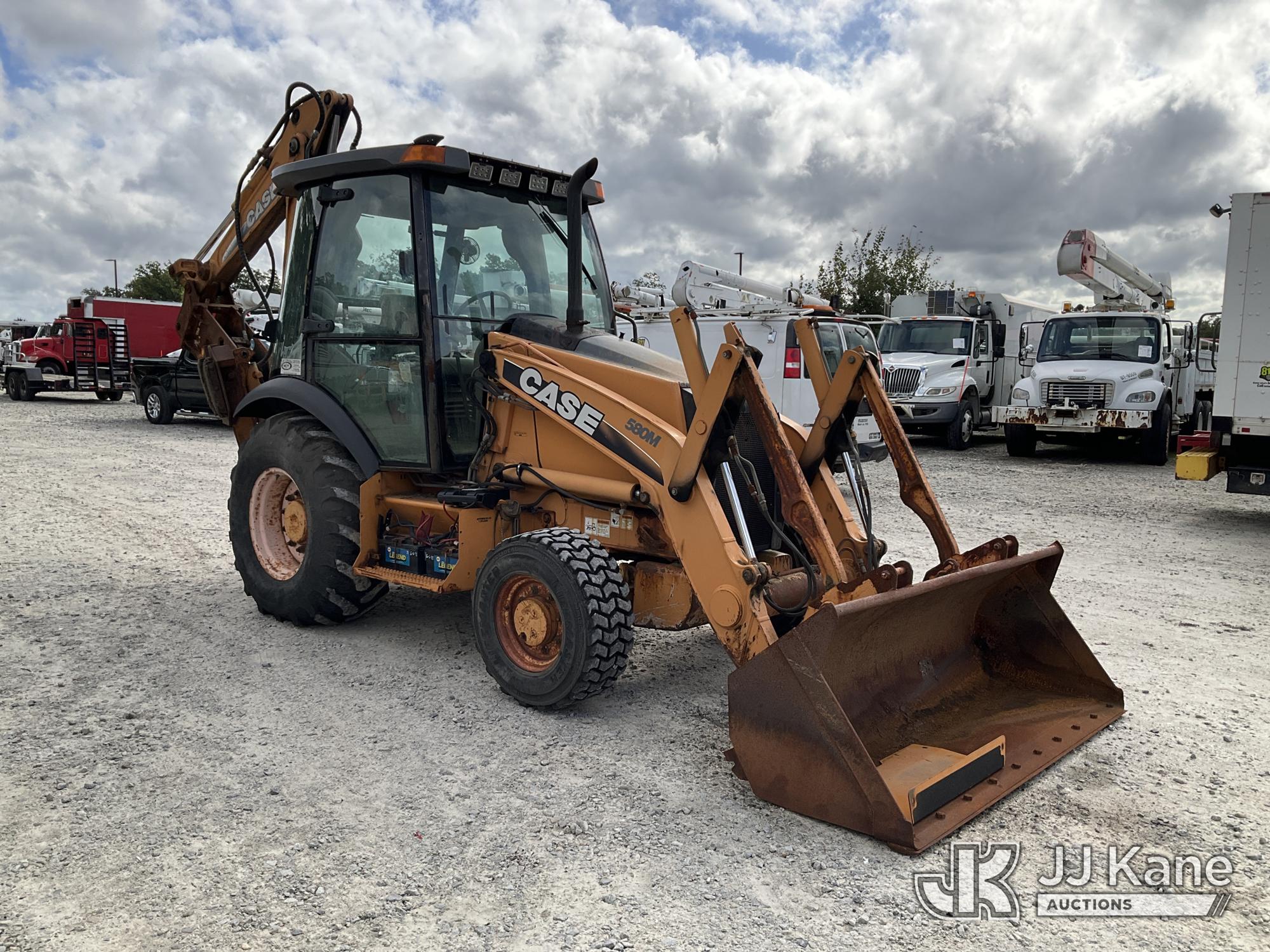

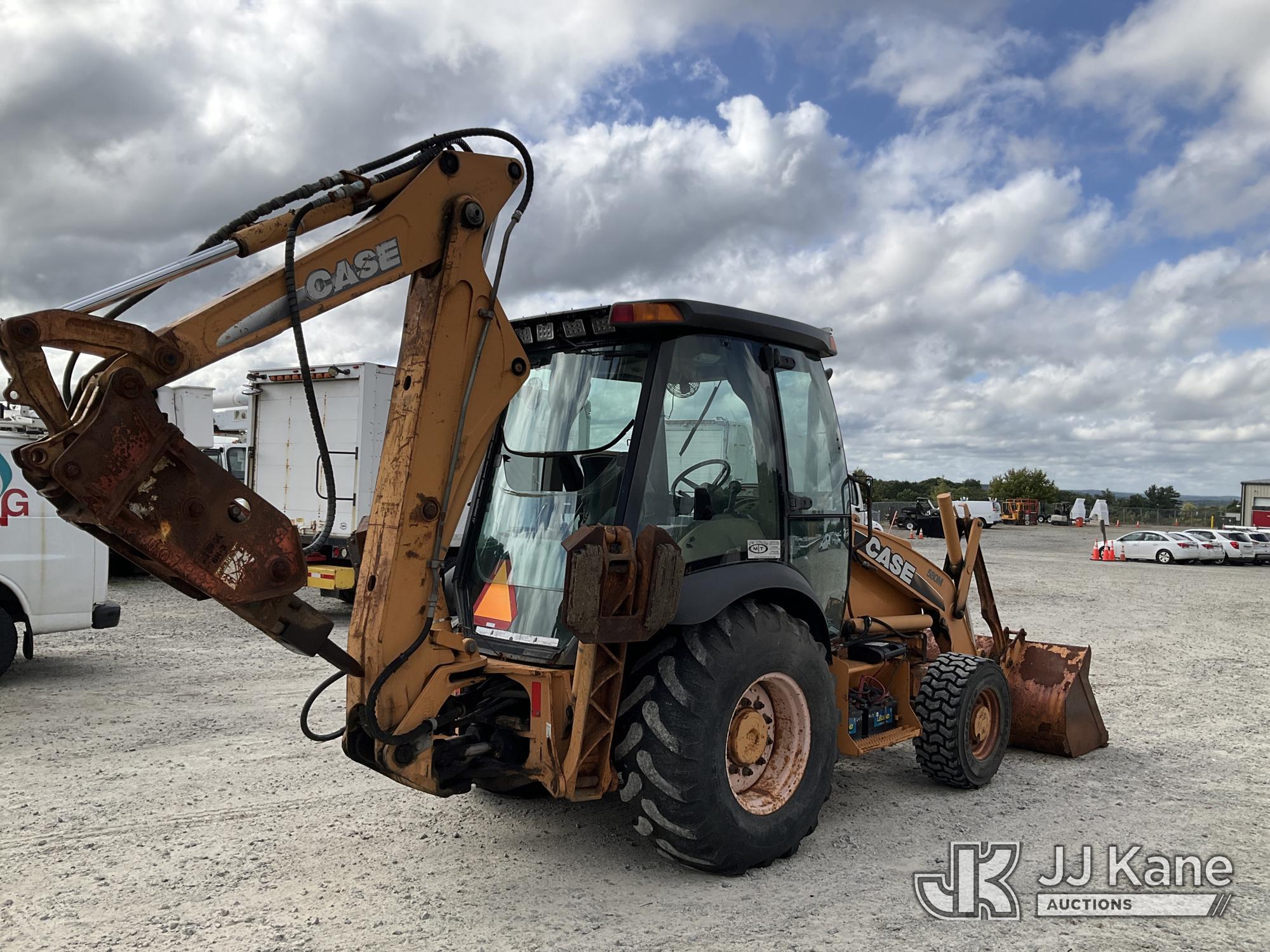

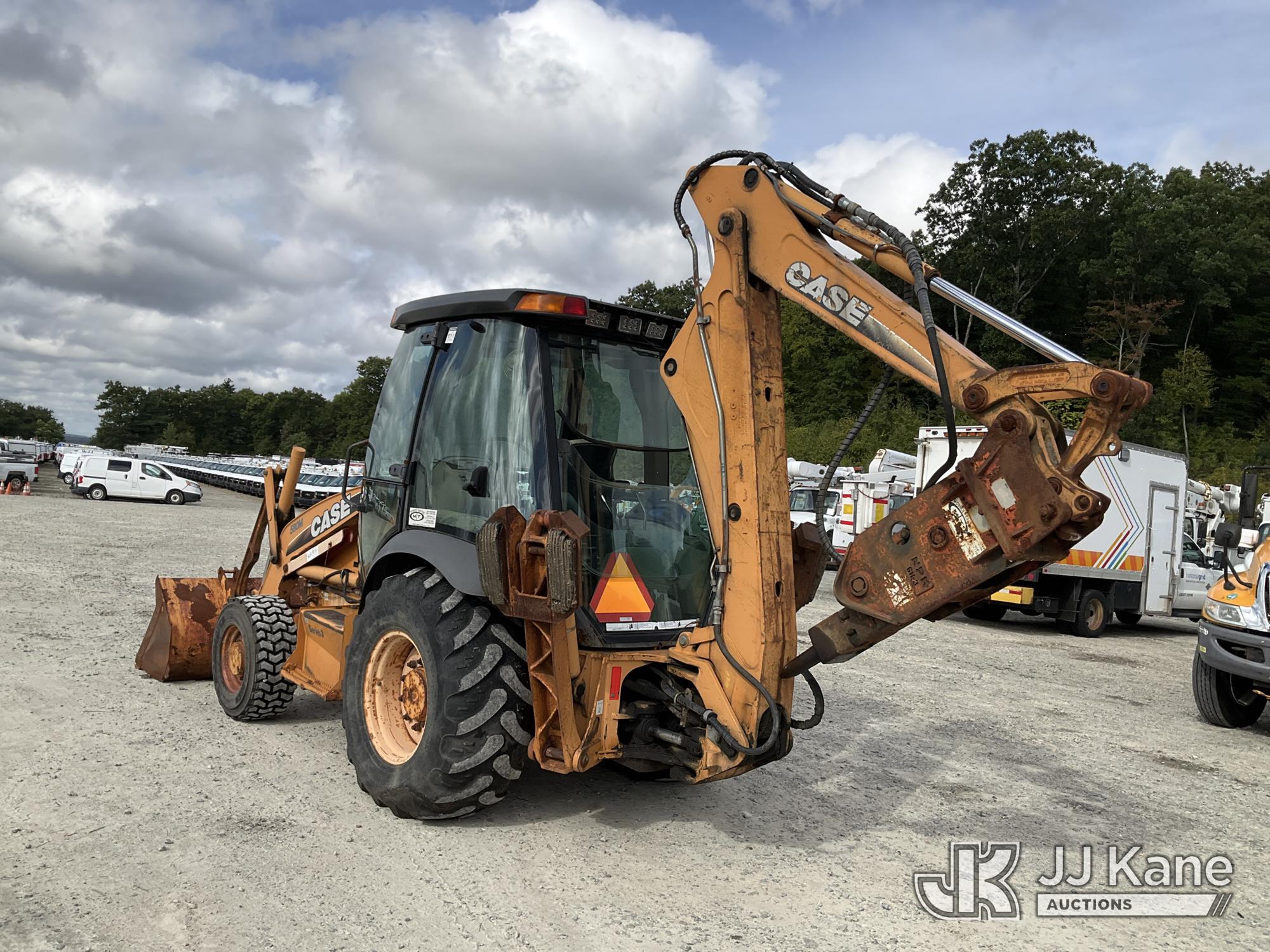

2008 Case 580M Series 3 4x4 Tractor Loader Backhoe, s/n N8C501018, CNH Diesel, Shuttle, with NPK G-3 Hyd Hammer Attachment, GP Loader Bucket, Aux Hyd Outlet & EROPS, (Non-Titled) (Runs, Moves & Operates) (Corrosion, Engine Won’t Stay Running Without A Battery Pack) (Reads 4,010 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Shrewsbury, MA. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 11 Fortune Blvd Shrewsbury, MA 01545 and hours of operations are 8a-4p. For pre-sale questions, please contact Office Staff @ (508) 864-4126. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)
From the manufacturer:
Supplied by HeavyEquipmentData.com →
The Case 580M III is a backhoe loader designed for construction, utility, and general earthmoving work. It combines a front loader bucket with a rear backhoe attachment for digging, trenching, loading, and material handling. The 580M III is part of Case's 580 series and is commonly used on job sites that require a versatile machine with compact maneuverability and multi-purpose capability. Typical applications include excavation, site preparation, landscaping, and utility installation. As a backhoe loader, it is valued for its ability to perform both loading and digging tasks with one machine, reducing equipment changes on smaller and medium-sized projects.
| Backhoe |
|
Bucket Dig Force - Ext |
11,212 lbs (5,086 kg)
|
|
Bucket Dig Force - Std |
11,212 lbs (5,086 kg)
|
|
Dig Depth - Ext |
18 ft (6 m)
|
|
Dig Depth - Std |
14 ft (4 m)
|
|
Load At Max Lift - Ext |
810 lbs (367 kg)
|
|
Load At Max Lift - Std |
1,950 lbs (885 kg)
|
|
Load Height - Ext |
13 ft (4 m)
|
|
Load Height - Std |
11 ft (3 m)
|
|
Reach At Load Height - Ext |
12 ft (4 m)
|
|
Reach At Load Height - Std |
9 ft (3 m)
|
|
Reach From Swivel - Ext |
22 ft (7 m)
|
|
Reach From Swivel - Std |
18 ft (5 m)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height To Top Of Suspended Cab |
9 ft (3 m)
|
|
Transport Height |
11 ft (3 m)
|
|
Transport Length |
23 ft (7 m)
|
|
Transport Width |
7 ft (2 m)
|
|
Wheelbase |
7 ft (2 m)
|
| Engine |
|
Aspiration |
turbocharged |
|
Displacement |
272 cu in (4,457 cu cm)
|
|
Engine Make |
2,239 |
|
Engine Model |
Family III 445T/M3, Tier III certified |
|
Gross Power |
85 hp (63 kw)
|
|
Net Max Torque |
271 lbs ft (367 nm)
|
|
Net Power |
79 hp (59 kw)
|
|
Net Torque Rise |
36 % |
|
Number Of Cylinders |
4 |
|
Power Measured @ |
2,200 rpm |
|
Torque Measured @ |
1,400 rpm |
| Hydraulic |
|
Pump Flow Capacity |
29 gpm (108 lpm)
|
|
Pump Type |
gear-type, transmission driven |
|
Relief Valve Pressure |
3,050 psi |
| Loader |
|
Bucket Breakout Force |
9,164 lbs (4,157 kg)
|
|
Bucket Capacity |
1 cu yd |
|
Bucket Width |
82 in (208 cm)
|
|
Clearance At Max Dump Height |
9 ft (3 m)
|
|
Dig Depth |
8 in (20 cm)
|
|
Lift Capacity At Full Height |
6,182 lbs (2,804 kg)
|
|
Reach At Max Dump Height |
2 ft (1 m)
|
| Operational |
|
Alternator Supplied Amperage |
90 amps |
|
Cooling System Fluid Capacity |
5 gal (17 l)
|
|
Front Axle Fluid Capacity |
2 gal (6 l)
|
|
Fuel Capacity |
31 gal (119 l)
|
|
Hydraulic System Fluid Capacity |
28 gal (104 l)
|
|
Max Weight |
16,510 lbs (7,489 kg)
|
|
Oil System Fluid Capacity |
4 gal (14 l)
|
|
Operating Voltage |
12 V |
|
Operating Weight 2wd |
13,360 lbs (6,060 kg)
|
|
Rear Axle Fluid Capacity |
4 gal (14 l)
|
|
Rear Tires Size 2wd/4wd |
17.5Lx24/19.5Lx24 |
|
Tire Size Front - 2wd / 4wd |
11Lx16.1/12x16.5 |
|
Transmission Fluid Capacity |
5 gal (20 l)
|
|
Turning Radius |
11 ft (3 m)
|
| Transmission |
|
Max Speed - Forward |
24 mph (39 kph)
|
|
Max Speed Reverse |
29 mph (47 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
4 |
|
Transmission Type |
4-speed synchromesh with hydraulically actuated clutches |
