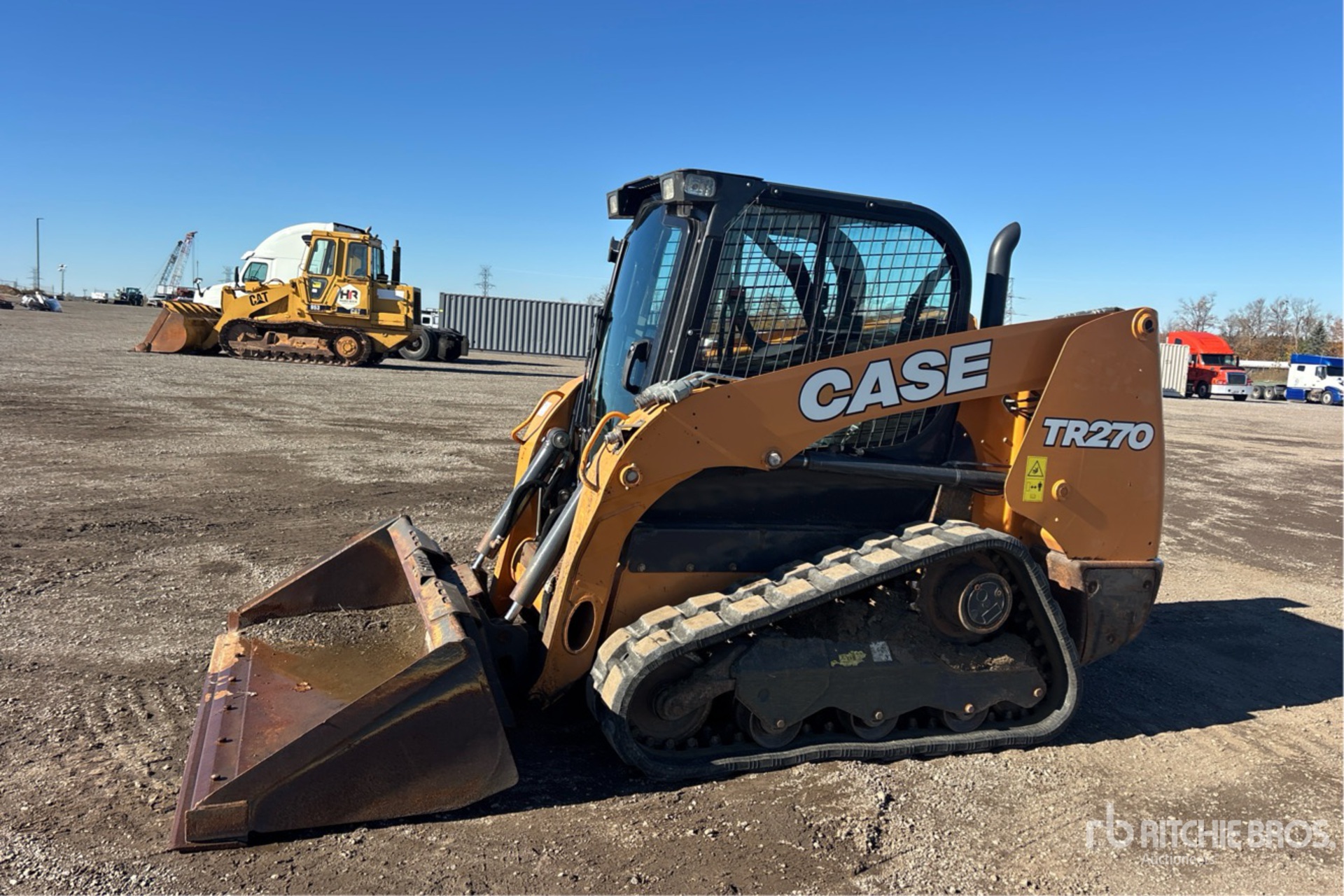

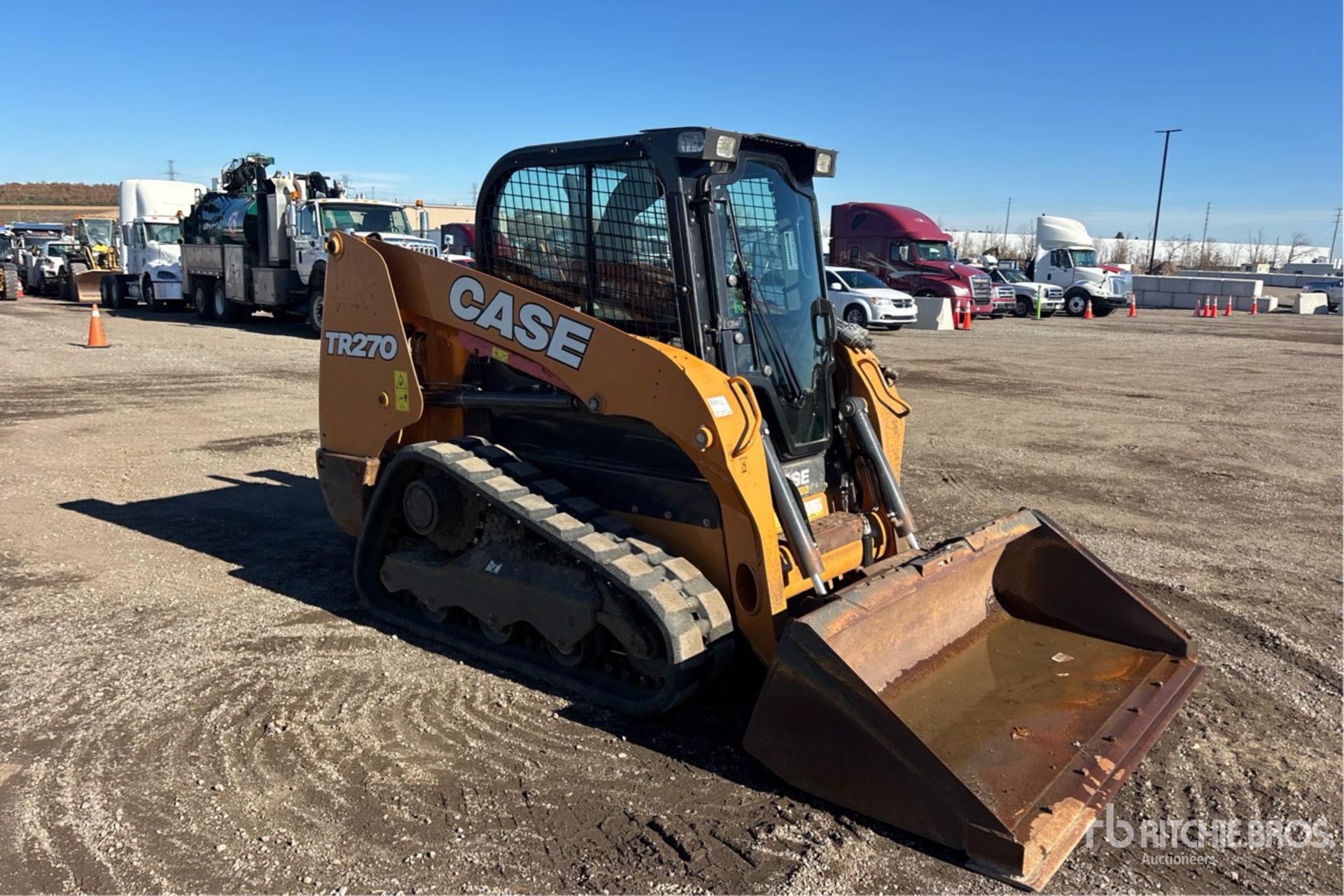

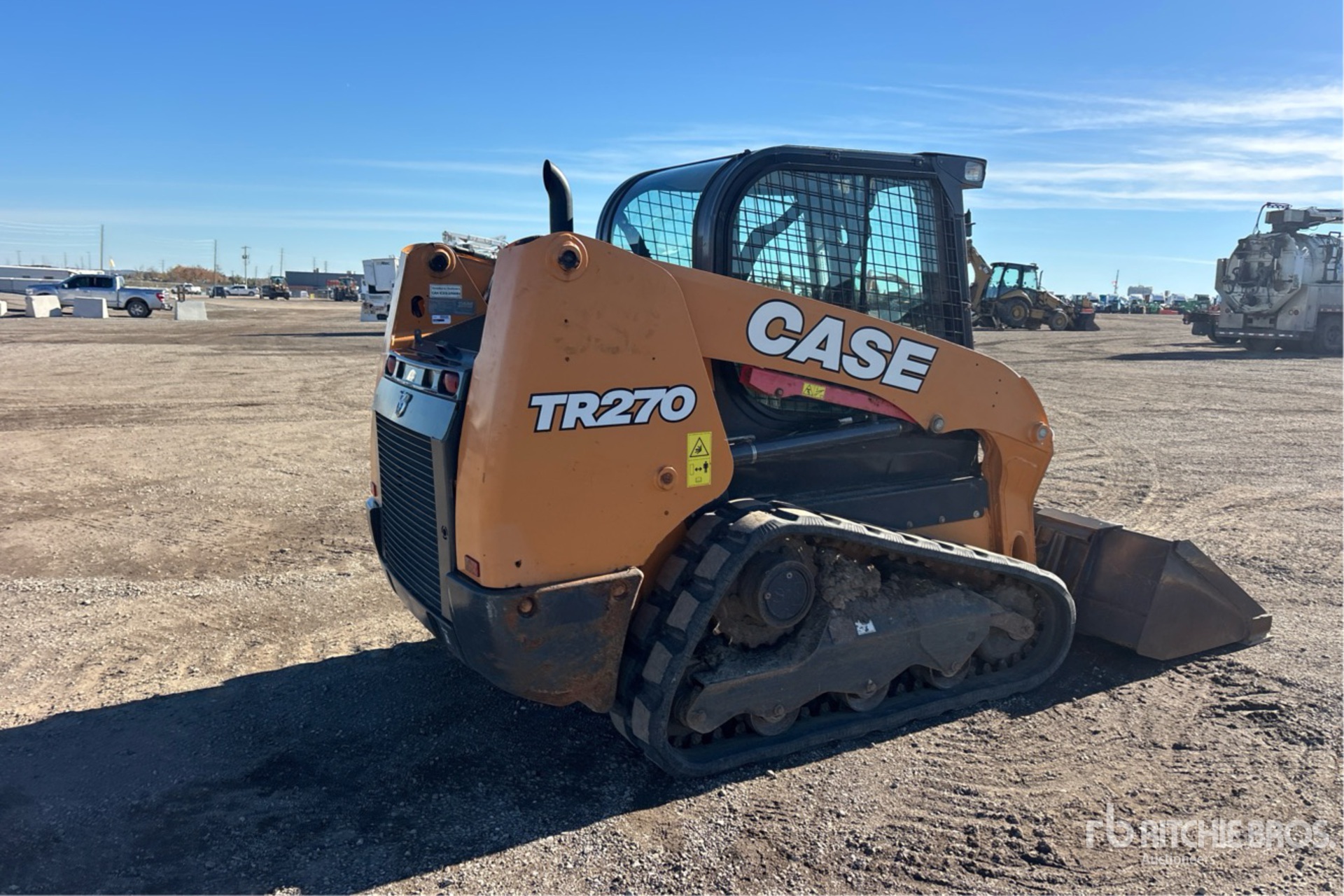

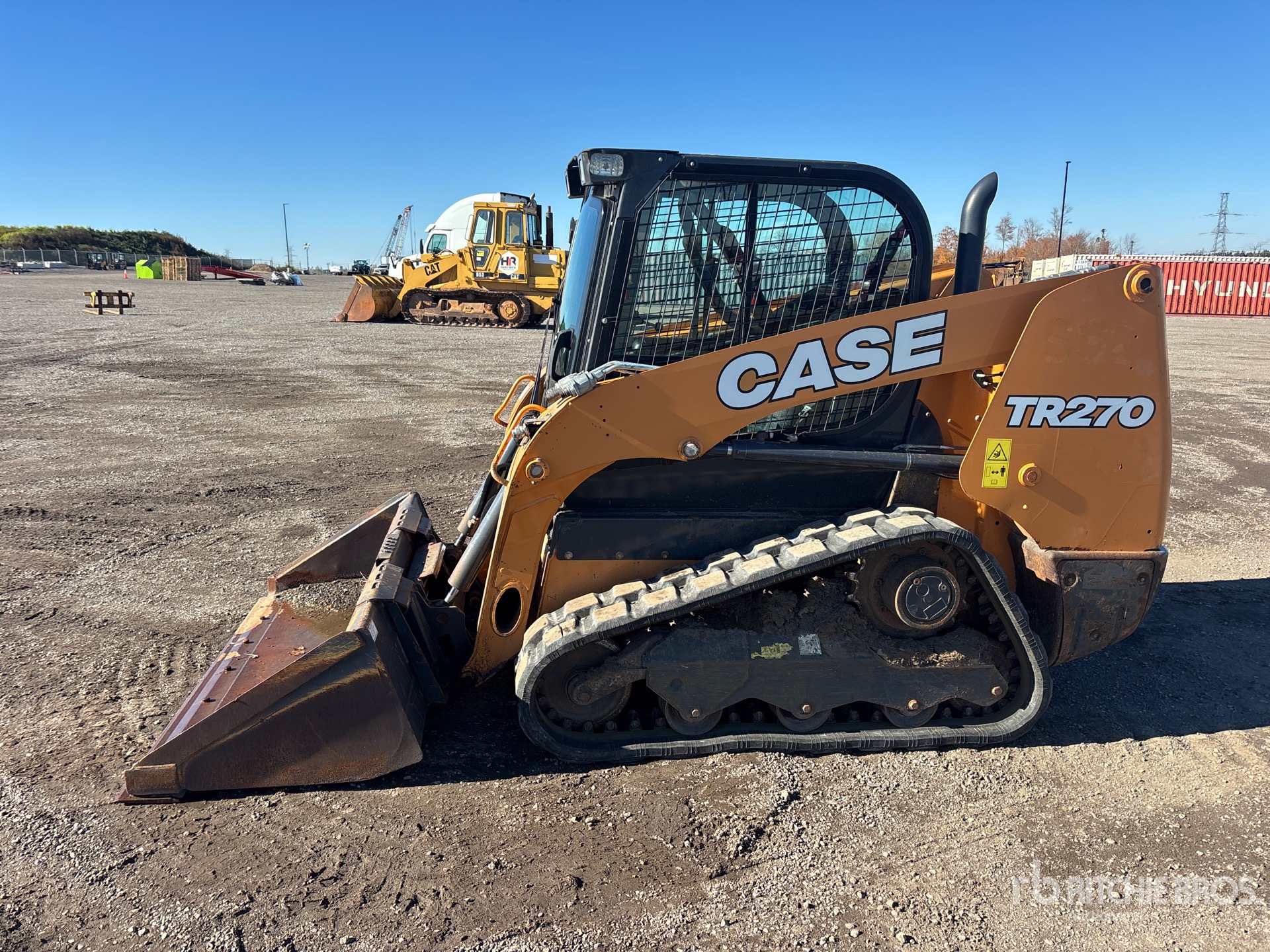

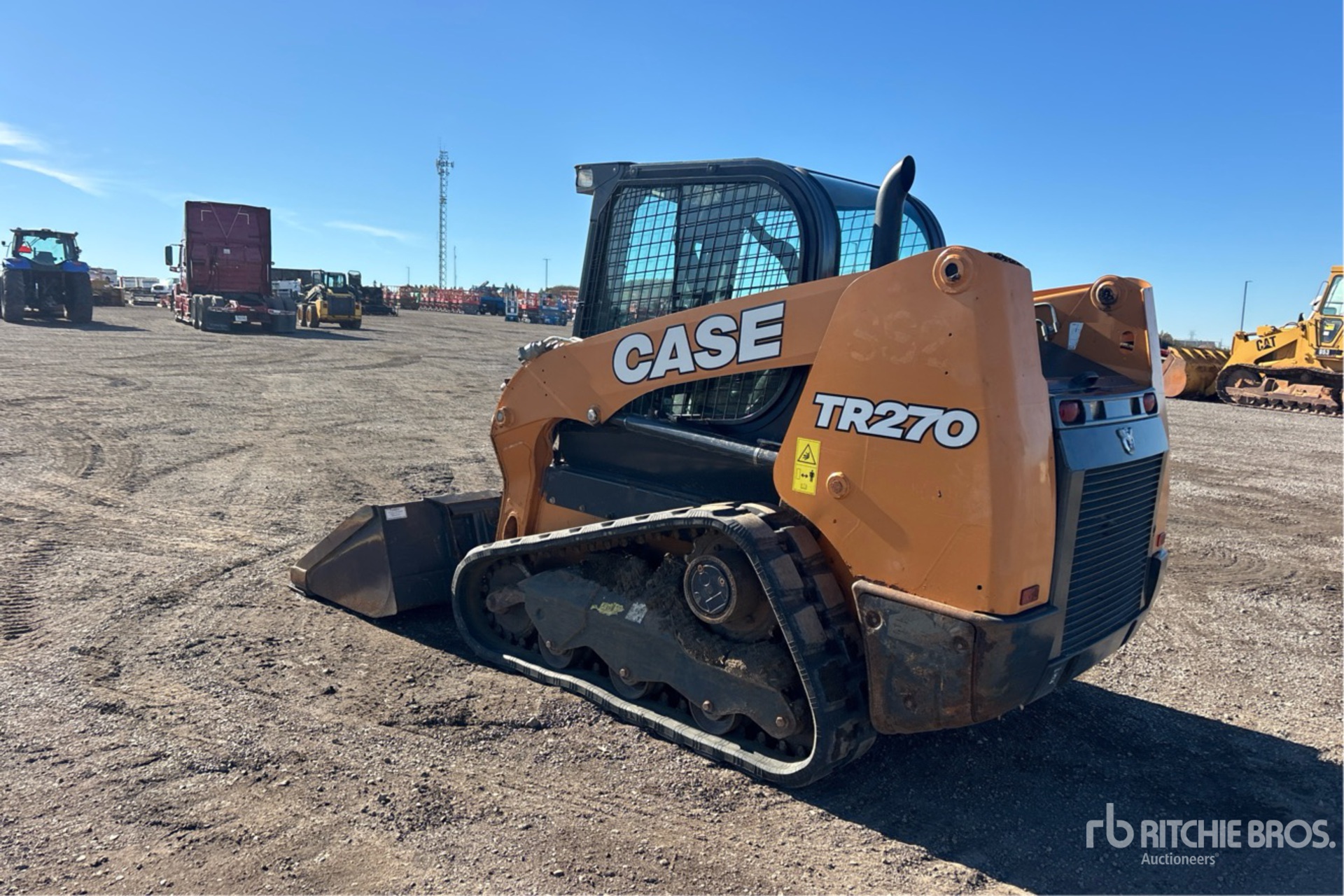

2018 Case TR270

Name: 2018 Case TR270
Brand: Case
SKU: 89471114
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-10-27 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

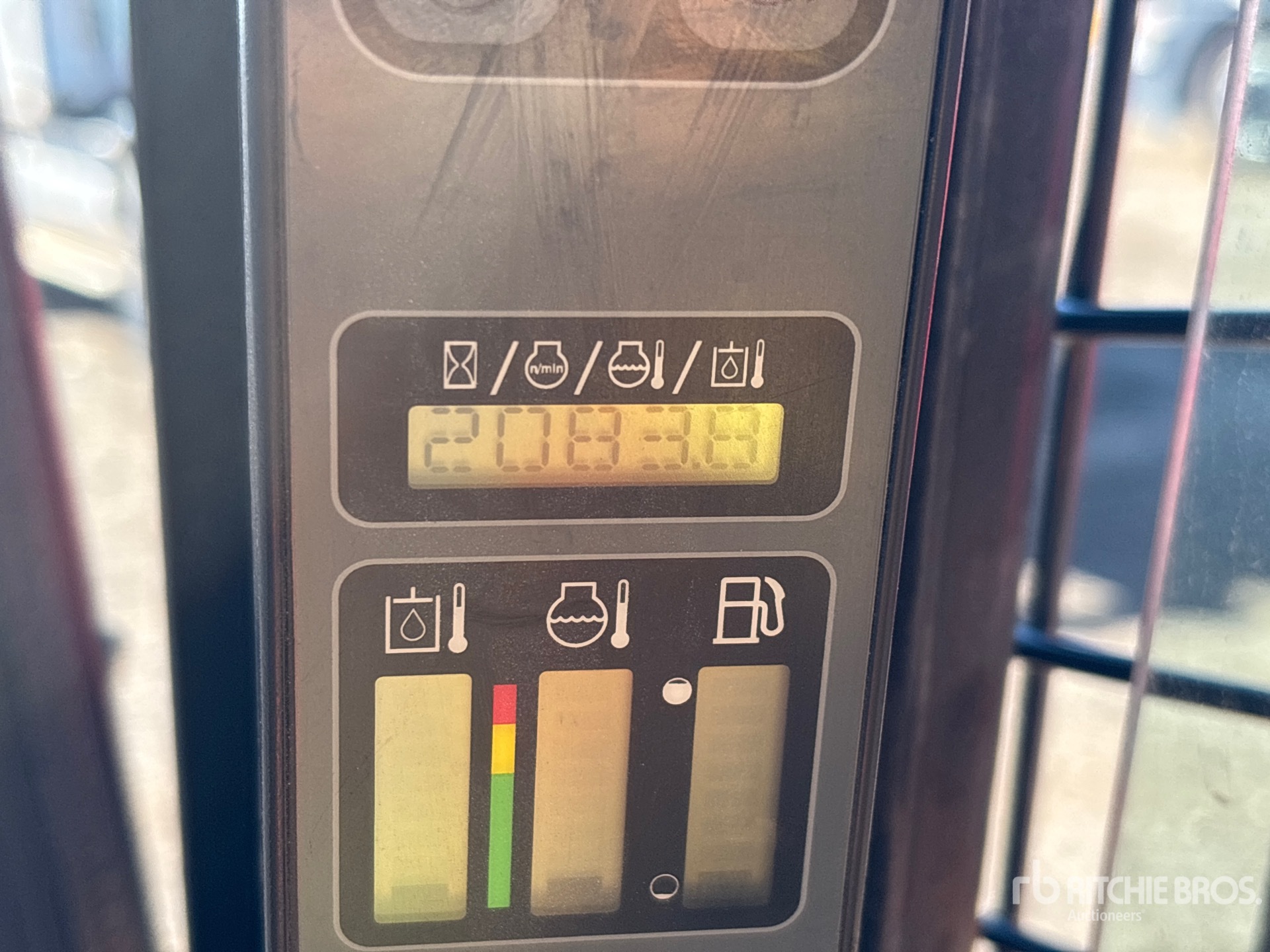

Hours:	2083

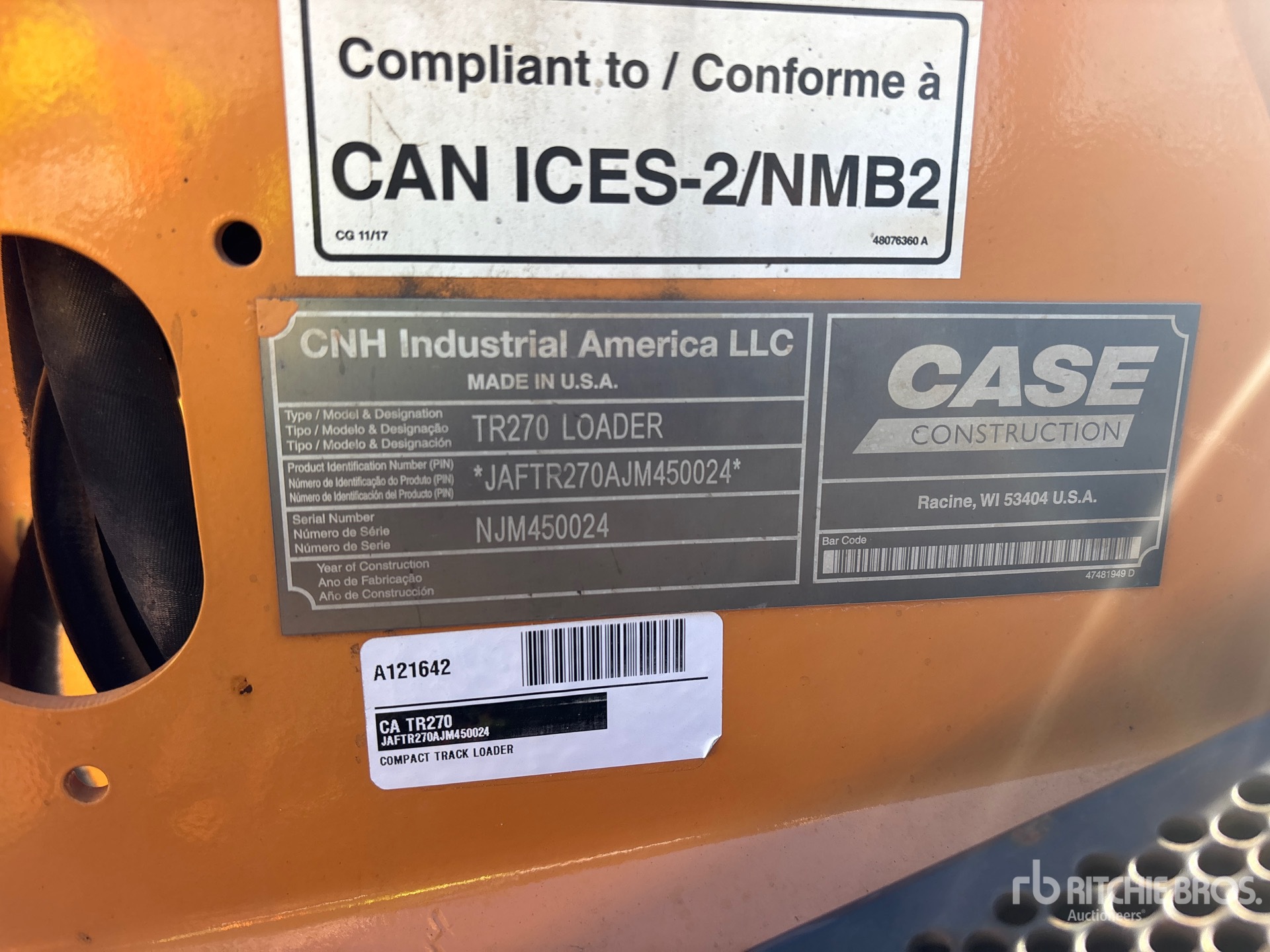

Serial Number:	JAFTR270AJM450024
Machine Location:	TORONTO, ON

Description:

Located in Lane 6 Spot 16, Enclosed Cab, Air Conditioner, Joystick Steering, Control Pattern Changer, 13 in Track Belts, Electric Kit, Hydraulic Coupler, 72 in Bucket, "NOTICE-TO-US-BIDDERS: this asset is likely exempt from US import tariffs as it was manufactured in the US. Bidders are responsible for confirming with their customs broker." Closing Time: 2026-10-27 09:18:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case TR270 is a compact track loader designed for construction, landscaping, agriculture, and material handling applications. It features a radial-lift boom configuration, which is suited for digging, grading, loading, and ground-level work. The TR270 is commonly equipped with a diesel engine, hydrostatic drive system, and rubber tracks for traction on soft or uneven terrain. Operator controls, auxiliary hydraulics, and attachment compatibility support use with buckets, forks, augers, and other work tools. The machine is part of Case's compact equipment lineup and is used where maneuverability, flotation, and versatility are required in confined or challenging jobsite conditions.

Bucket
Breakout Force	7,261 lbs (3,294 kg)
Bucket Width	6 ft (2 m)
Capacities
Engine Oil With Filter	3 gal (9 l)
Fuel Tank	20 gal (74 l)
Dimensions
Dump Height With Foundry/ Excavating Bucket	98 in (249 cm)
Ground Clearance	8 in (20 cm)
Height	7 ft (2 m)
Height To Bucket Hinge Pin	123 in (312 cm)
Height To Top Of Cab	7 ft (2 m)
Height To Top Of Rops	79 in (200 cm)
Length	11 ft (3 m)
Length - With Bucket	130 in (329 cm)
Overall Length With Foundry/ Excavating Bucket	130 in (329 cm)
Track Width	12,598 in (32,000 cm)
Weight	8,270 lbs (3,751 kg)
Width	6 ft (2 m)
Width Over Tracks	6 ft (2 m)
Engine
Aspiration	Turbo
Displacement	208 cu in (3,400 cu cm)
Emission Tier Level	Tier 4
Emissions Compliance	Tier 4 Final Certified (CEGR, DOC, PM Catalyst)
Engine Model	FPT F5HFL463 A*F001
Gross Power	74 hp (55 kw)
Max Speed	8 mph (13 kph)
Net Power	68 hp (51 kw)
Number Of Cylinders	4
Peak Torque	232 lbs ft (314 nm)
Rated Engine Speed	2,500 rpm
General Specifications
ENGINE POWER (Since 2017)	74 hp (55 kw)
ENGINE POWER (2019)	74 hp (55 kw)
ENGINE POWER (2020)	74 hp (55 kw)
MODEL (Since 2017)	TR270
MODEL (2019)	TR270
MODEL (2020)	TR270
OPERATING LOAD (Since 2017)	2,700 lbs (1,225 kg)
OPERATING LOAD (Since 2019)	1,890 lbs (857 kg)
OPERATING WIDTH (Since 2017)	66 in (167 cm)
OPERATING WIDTH (2019)	66 in (167 cm)
OPERATING WIDTH (2020)	66 in (167 cm)
RATED OPERATING CAPACITY LBS. (35%) (Since 2020)	1,890 (860)
Hydraulic
Main Relief Pressure	3,050 psi
Pump Flow	24 gpm (92 lpm)
Pump Type	Gear
Loader
Breakout Force	7,270 lbs (3,298 kg)
Bucket Rollback At Max Height	99 degrees
Dump Clearance At Full Height Discharge	99 in (250 cm)
Dump Reach	26 in (65 cm)
High Flow Pump Output	32 gpm (123 lpm)
Linkage Geometry	Radial
Loader	Joystick
Operating Load	2,700 lbs (1,225 kg)
Operating Load Rating	1,890 lbs (857 kg)
Rollback - Ground Level	31 degrees
Standard Hydraulic Pump Output	24 gpm (92 lpm)
Straight Tipping Load	5,399 lbs (2,449 kg)
Tipping Angle	5,400 degrees
Tipping Load (Iso 14397)	5,400 lbs (2,449 kg)
Operational
Lift Configuration	Radial
Operating Weight	8,270 lbs (3,751 kg)
Weights
Operating Weight	8,267 lbs (3,750 kg)
