Equipment ↠ Case ↠ Compact Track Loaders ↠ 2019 Case TR310

2019 Case TR310 For Sale in Miami, FL

Name: 2019 Case TR310
Brand: Case
SKU: 88449006
Price: 23600 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $23,600.00 USD

Apply for Financing

Case Power & Equipment

Case Power & Equipment Dealer Info

Case Power & Equipment Website

Click here to email Case Power & Equipment.

Click for Phone Number

Machine Info:

Hours:	2554

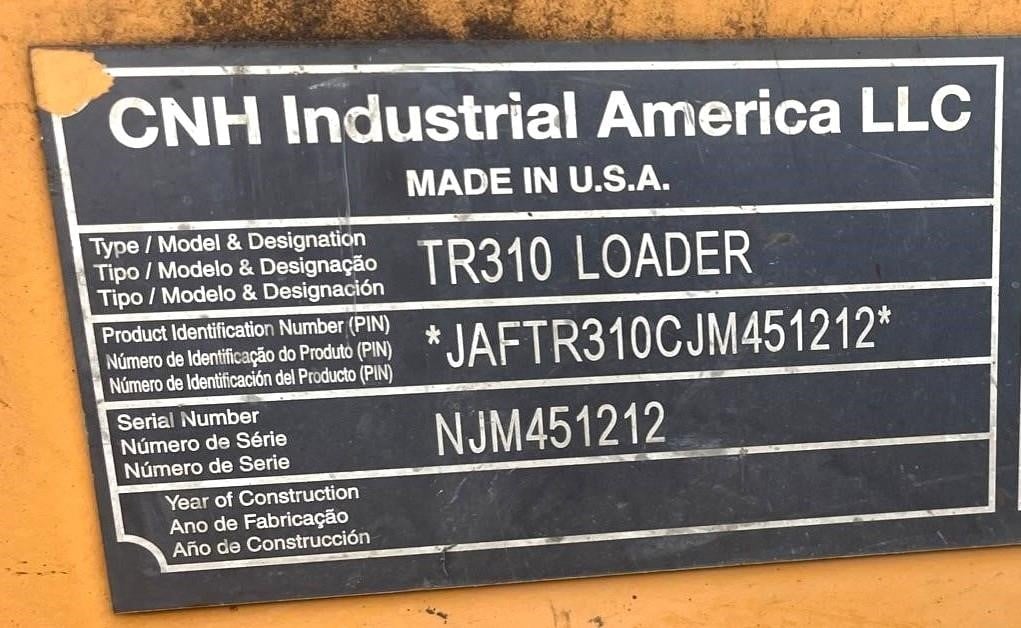

Stock Number:	JAFTR310CJM451212
Machine Location:	MIAMI, FL
More Information:	https://casepowered.com/inventory/skid+steers+-+track/2019-case-tr310-fort+myers-fl-6a197ff03b8f811d4b072f12/

Description:

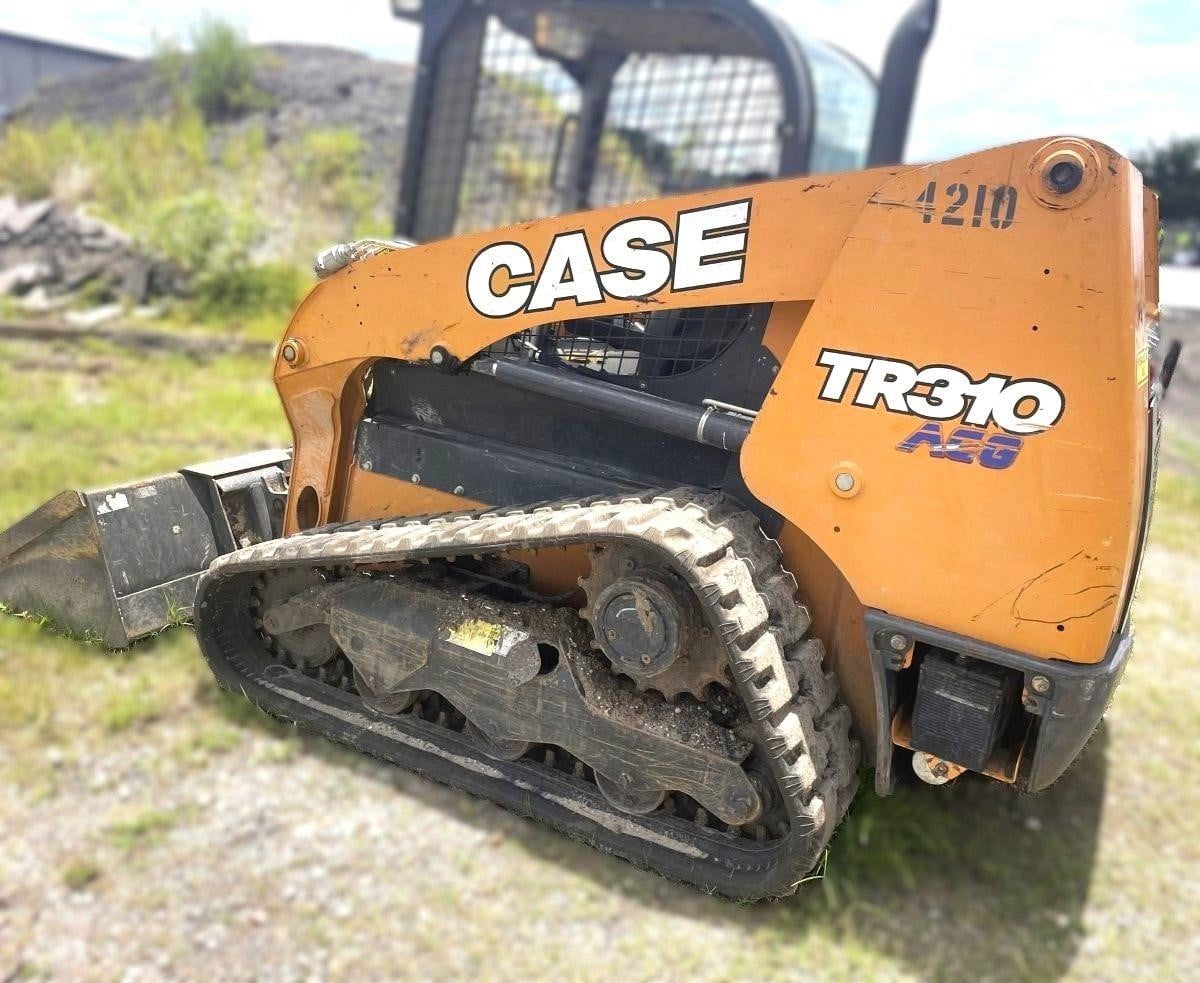

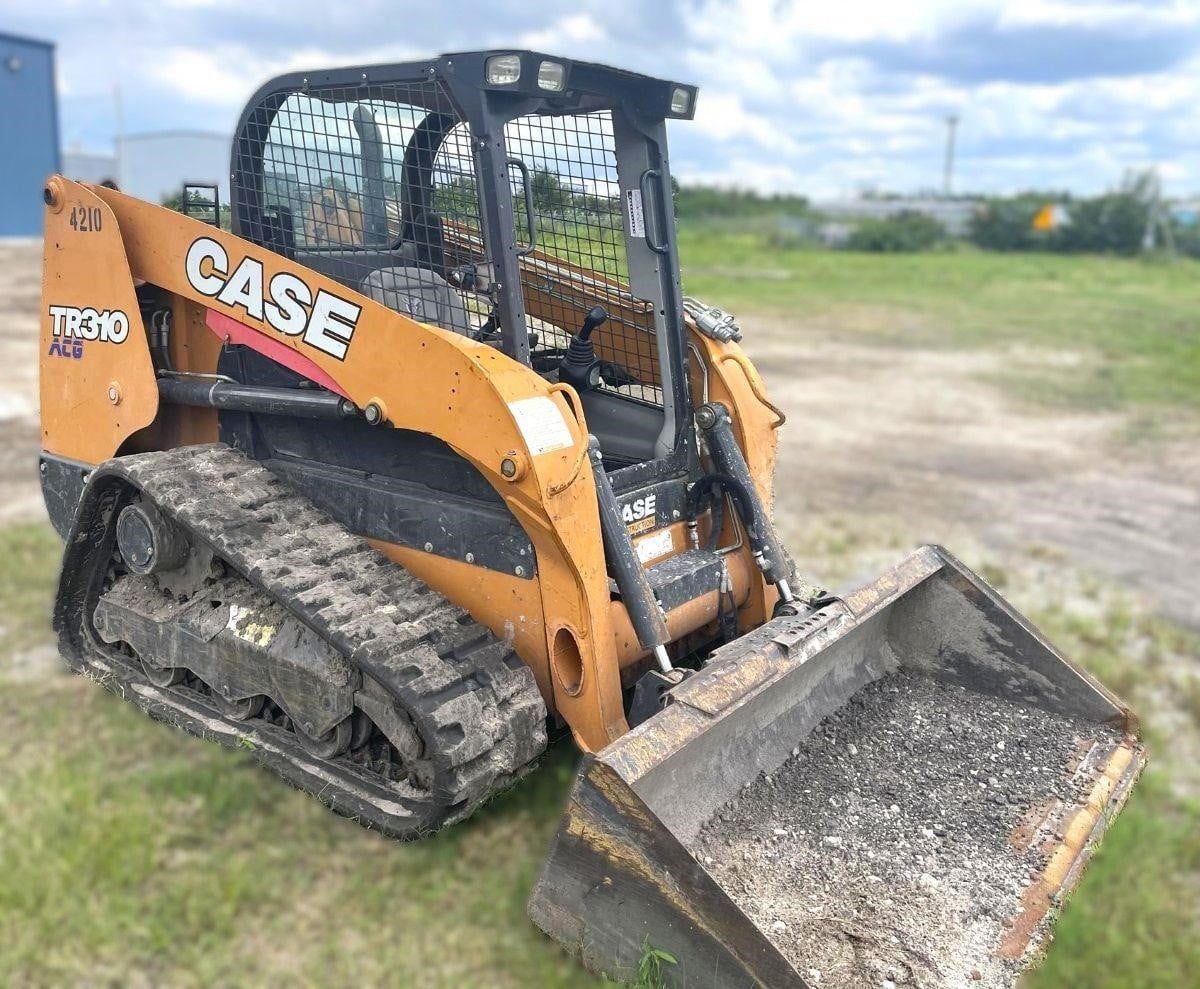

2019 CASE, TR310 Skid Steers - Track, Open Cab, Rubber Tracks

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case TR310 is a compact track loader designed for grading, loading, material handling, and site preparation in construction, landscaping, and utility work. It is part of Case Construction Equipment's TR series and uses rubber tracks to provide flotation and traction on soft, uneven, or muddy ground. The TR310 is commonly equipped with a vertical-lift boom for improved lift height and reach when loading trucks or placing materials. Typical applications include earthmoving, backfilling, snow removal, and attachment work. Its compact size supports maneuverability in confined job sites while maintaining the stability and performance expected from a tracked loader.

Bucket
Bucket Width	6 ft (2 m)
Capacities
Engine oil with filter	2 gal (9 l)
Fuel Tank	20 gal (74 l)
Dimensions
Dump Height with Foundry/ Excavating Bucket	98 in (249 cm)
Ground Clearance	8 in (20 cm)
Height - Top of Cab	79 in (200 cm)
Height - Top of ROPS/FOPS	79 in (200 cm)
Height to Hinge Pin	123 in (312 cm)
Length - with Bucket	11 ft (3 m)
Overall Length with Foundry/ Excavating Bucket	130 in (329 cm)
Track Width	15,748 in (40,000 cm)
Width Over Tracks	6 ft (2 m)
Engine
Alternator	120 amps
Aspiration	Turbo
Battery	12-volt low-maintenance
Bore	4 in (10 cm)
Displacement	207 cu in (3,392 cu cm)
Emission Tier Level	Tier 4
Emissions compliance	Tier 4 Final Certified (CEGR DOC PM Catalyst)
Engine Model	FPT F5H FL463 A F001
Fuel	2 Diesel
Gross Power	74 hp (55 kw)
Net Power	68 hp (51 kw)
Number of Cylinders	4
Peak Torque	232 lbs ft (315 nm)
Power Measured @	2,500 rpm
Radiator Core type	All aluminum
Starter	4 hp (3 kw)
Stroke	4 in (11 cm)
General Specifications
ENGINE POWER HP (KW) (Since 2017)	74 (55)
ENGINE POWER HP (KW) (2019)	74 (55)
ENGINE POWER HP (KW) (2020)	74 (55)
MODEL (Since 2017)	TR310
MODEL (2019)	TR310
MODEL (2020)	TR310
OPERATING LOAD LBS. (KG) (Since 2017)	3,100 (1,406)
OPERATING LOAD LBS. (KG) (Since 2019)	2,170 (984)
OPERATING WIDTH IN. (CM) (Since 2017)	74.3 (1.89)
OPERATING WIDTH IN. (CM) (2019)	74.3 (1.89)
OPERATING WIDTH IN. (CM) (2020)	74.3 (1.89)
RATED OPERATING CAPACITY LBS. (35%) (Since 2020)	2,170 (984)
Hydraulic System
Main relief pressure	3,046 psi
Pump Flow	24 gpm (92 lpm)
Pump Type	Gear
Loader
Breakout Force	8,680 lbs (3,937 kg)
Bucket Rollback at Max Height	99 degrees
Dump Clearance at Full Height Discharge	99 in (250 cm)
Dump Reach	26 in (65 cm)
High flow pump output	32 gpm (123 lpm)
Linkage Geometry	Radial
Loader	Joystick
Operating Load	3,100 lbs (1,406 kg)
Operating Width	74 in (189 cm)
Rollback - Ground Level	31 degrees
Standard hydraulic pump output	24 gpm (92 lpm)
Straight Tipping Load	6,195 lbs (2,810 kg)
Tipping Angle	6,200 degrees
Operating Specifications
Lift Configuration	Radial
Operating Weight	8,880 lbs (4,028 kg)
Weights
Operating weight	8,878 lbs (4,027 kg)
