2012 Case TV380 For Sale in Watson, Sk

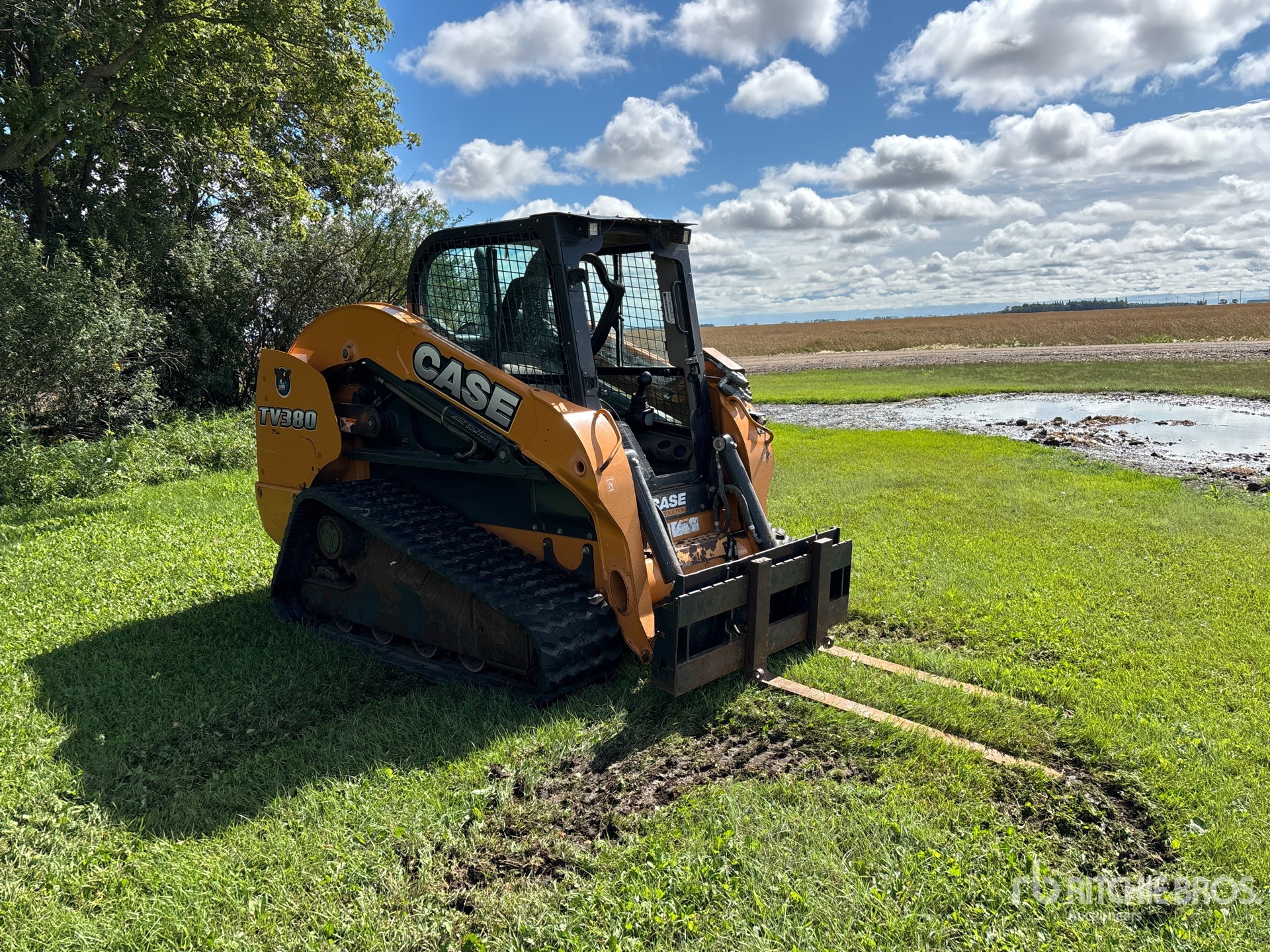

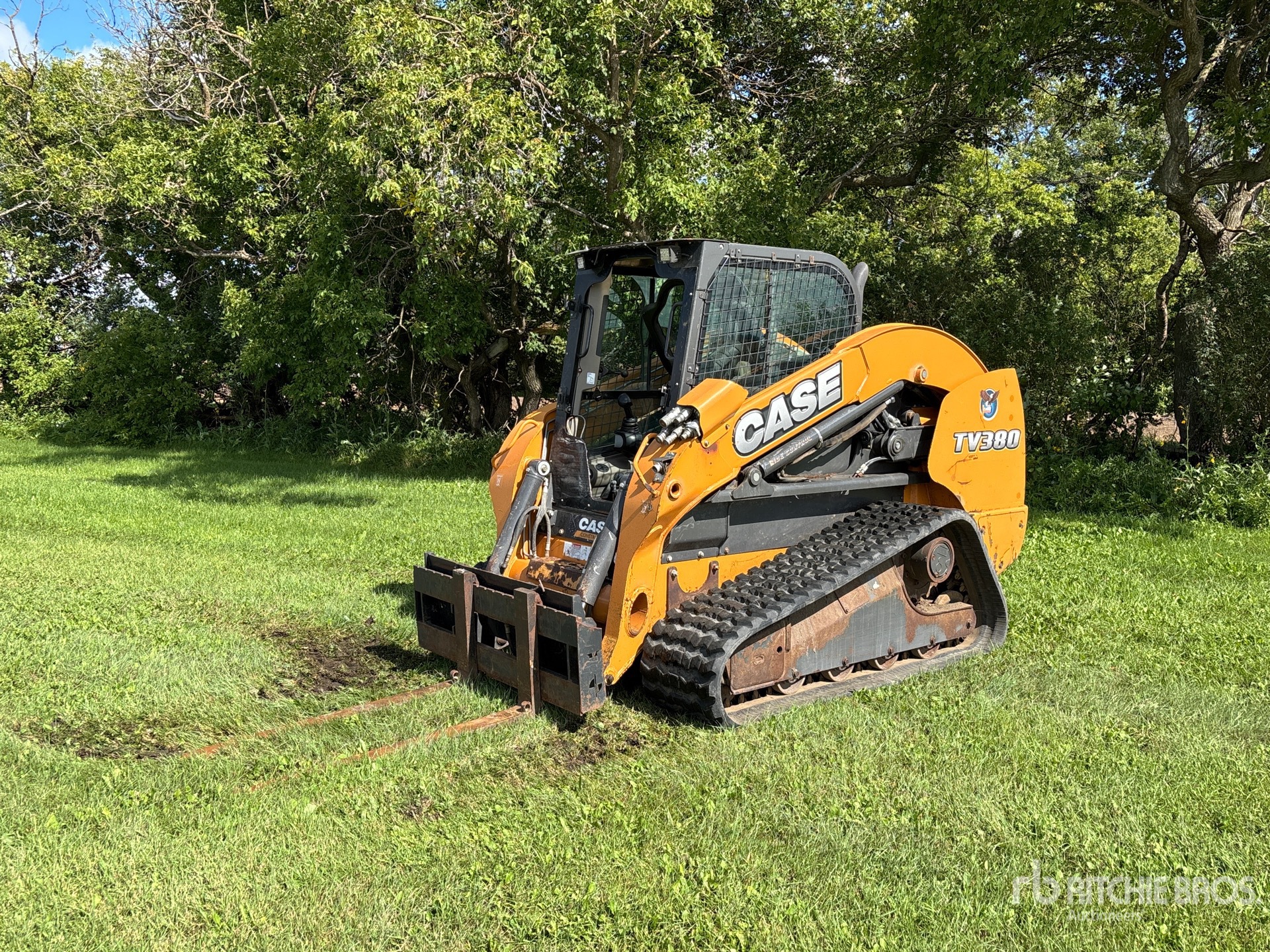

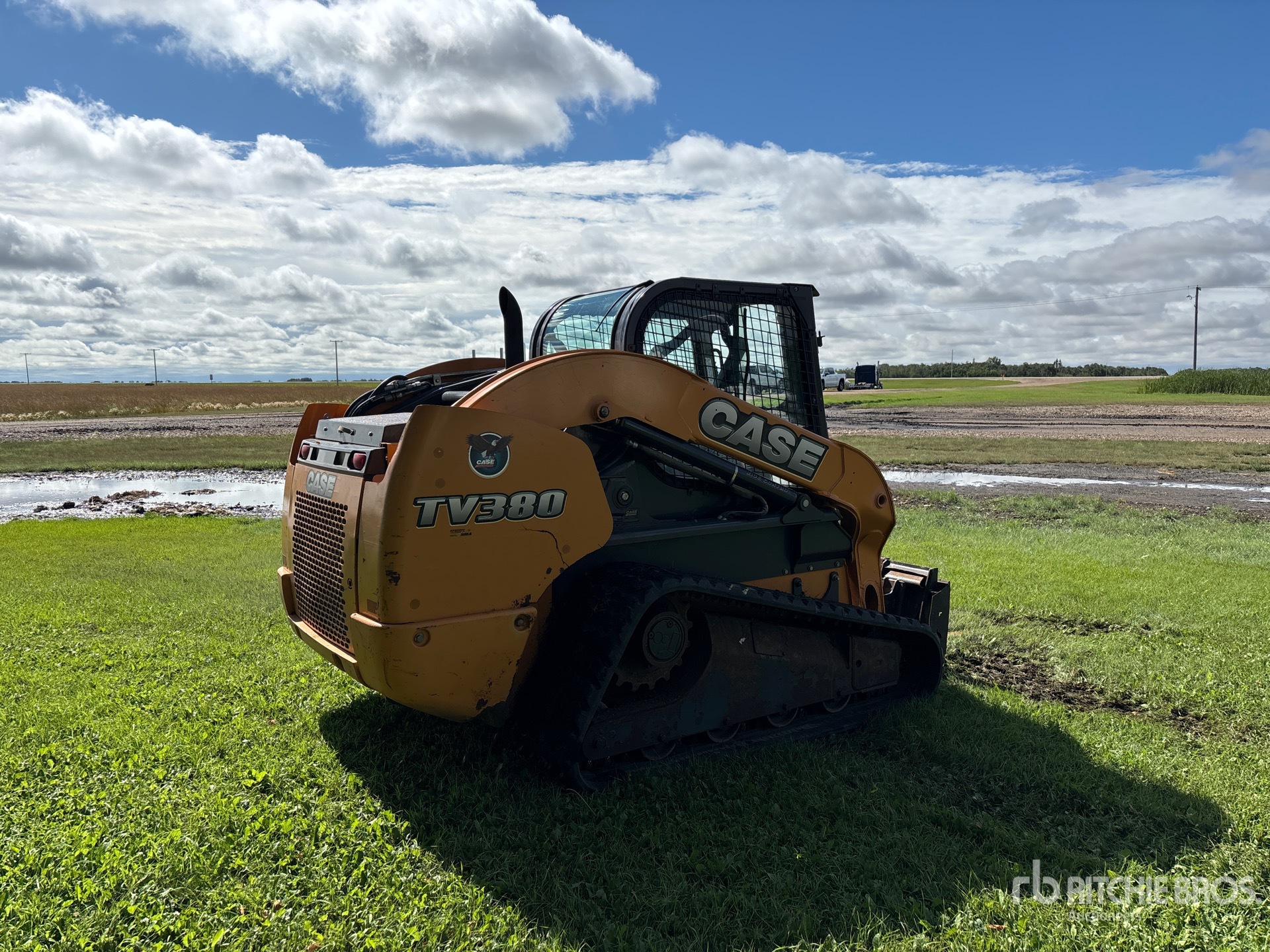

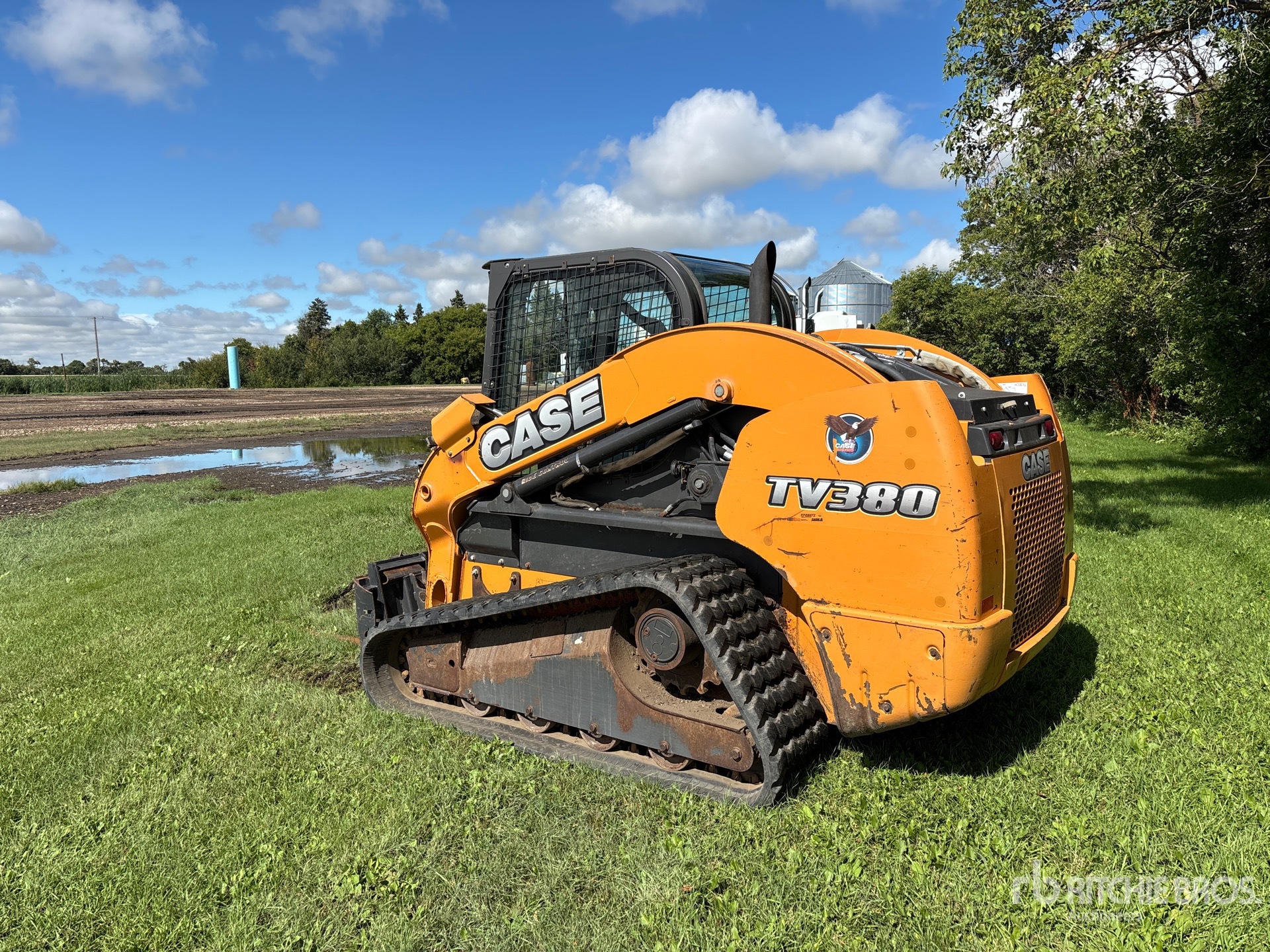

Name: 2012 Case TV380
Brand: Case
SKU: 89142019
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-11-13 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

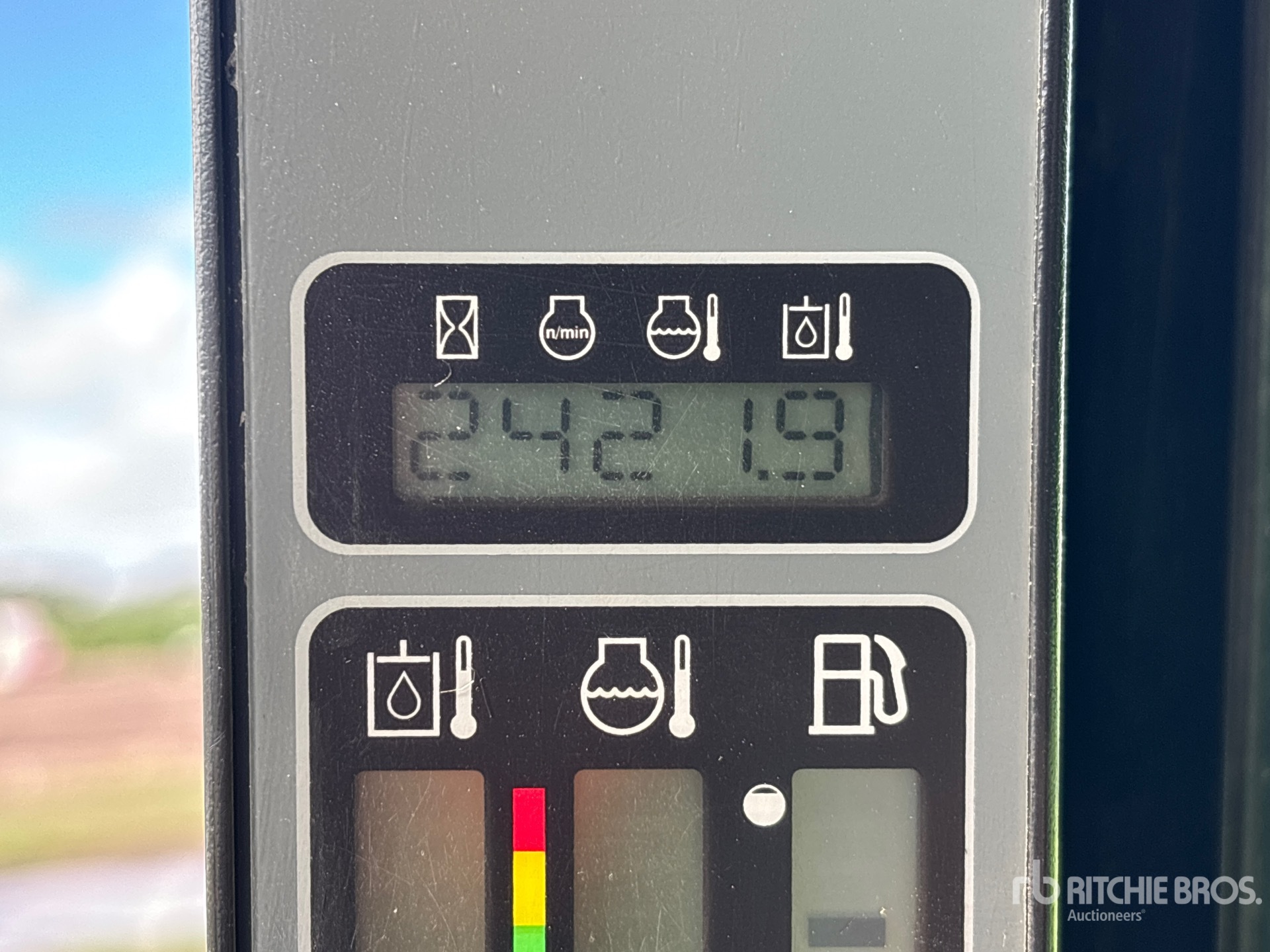

Hours:	2421

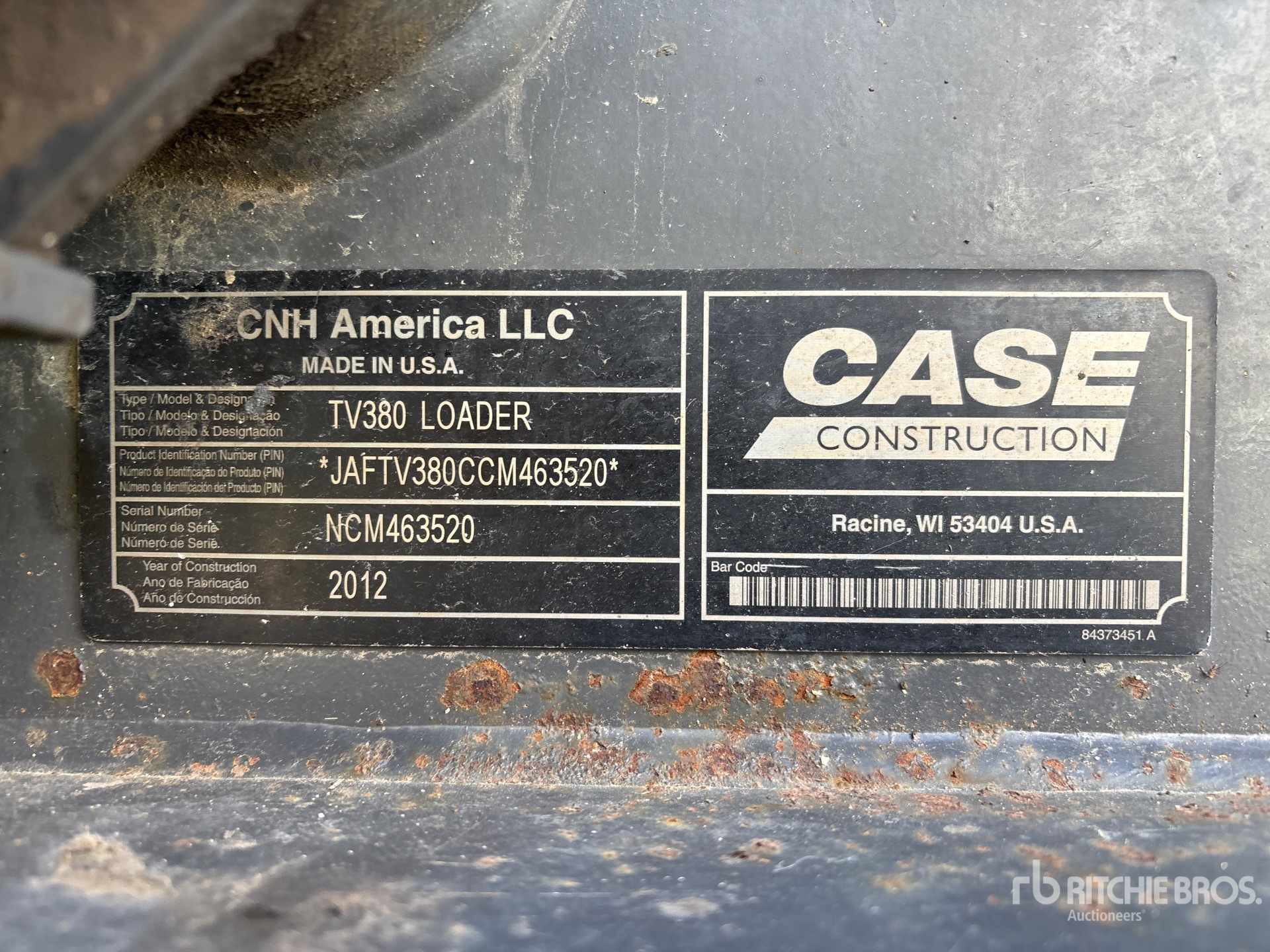

Serial Number:	JAFTV380CCM463520
Machine Location:	WATSON, SK

Description:

Enclosed Cab, Air Conditioner, Ride Control, Joystick Steering, Control Pattern Changer, 17 in Track Belts, Hydraulic Coupler, 48 in Forks

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case TV380 is a compact track loader designed for material handling, grading, site preparation, and general construction work. It features a vertical-lift boom for improved reach and lift height, making it suitable for loading trucks and placing materials. The tracked undercarriage provides flotation and traction on soft, uneven, or muddy ground. The TV380 is commonly used with buckets, forks, grapples, augers, and other hydraulic attachments. Its compact size supports operation in confined job sites while maintaining lifting performance. The model is part of Case Construction Equipment's compact track loader lineup for landscaping, agriculture, and light-to-medium duty construction applications.

Bucket
Breakout Force	8,768 lbs (3,976 kg)
Bucket Width	7 ft (2 m)
Capacities
Diesel Exhaust Fluid (Def) Tank	3 gal (11 l)
Engine Oil With Filter	2 gal (9 l)
Fuel Tank	26 gal (97 l)
Dimensions
Dump Height With Foundry/ Excavating Bucket	105 in (267 cm)
Ground Clearance	9 in (24 cm)
Height	7 ft (2 m)
Height To Bucket Hinge Pin	132 in (334 cm)
Height To Top Of Cab	80 in (204 cm)
Height To Top Of Rops	80 in (204 cm)
Length	12 ft (4 m)
Length With Bucket	12 ft (4 m)
Overall Length With Foundry/ Excavating Bucket	142 in (360 cm)
Track Gauge	0 ft
Track Width	76 in (193 cm)
Weight	10,200 lbs (4,627 kg)
Width	6 ft (2 m)
Width Over Tracks	6 ft (2 m)
Engine
Alternator	160 amps
Aspiration	Turbo
Battery	12-volt low-maintenance
Bore	4 in (10 cm)
Displacement	207 cu in (3,392 cu cm)
Emissions Compliance	Tier 4 Final Certified (CEGR, DOC, SCR)
Engine Model	FPT F5B FL413 E B002
Gross Power	90 hp (67 kw)
Net Power	84 hp (63 kw)
Number Of Cylinders	4
Peak Torque	282 lbs ft (382 nm)
Power Measured @	2,500 rpm
Radiator Core Type	Aluminum bar and plate
Starter	4 hp (3 kw)
Stroke	4 in (11 cm)
General Specifications
ENGINE POWER (Since 2017)	90 hp (67 kw)
ENGINE POWER (2019)	90 hp (67 kw)
ENGINE POWER (2020)	90 hp (67 kw)
MODEL (Since 2017)	TV380
MODEL (2019)	TV380
MODEL (2020)	TV380
OPERATING LOAD (Since 2017)	3,800 lbs (1,723 kg)
OPERATING LOAD (Since 2019)	2,660 lbs (1,206 kg)
OPERATING WIDTH (Since 2017)	76 in (193 cm)
OPERATING WIDTH (2019)	76 in (193 cm)
OPERATING WIDTH (2020)	76 in (193 cm)
RATED OPERATING CAPACITY LBS. (35%) (Since 2020)	2,660 (1,209)
Hydraulic
Main Relief Pressure	31 psi
Pump Flow	24 gpm (92 lpm)
Pump Type	Gear
Loader
Breakout Force	8,776 lbs (3,980 kg)
Bucket Rollback At Max Height	86 degrees
Dump Clearance At Full Height Discharge	105 in (267 cm)
Dump Reach	32 in (80 cm)
High Flow Pump Output	38 gpm (142 lpm)
Linkage Geometry	Vertical
Operating Load	3,800 lbs (1,723 kg)
Operating Load Rating	2,660 lbs (1,206 kg)
Rollback - Ground Level	34 degrees
Standard Hydraulic Pump Output	24 gpm (92 lpm)
Straight Tipping Load	7,599 lbs (3,446 kg)
Tipping Angle	7,600 degrees
Operational
Lift Configuration	Vertical
Operating Weight	10,000 lbs (4,535 kg)
