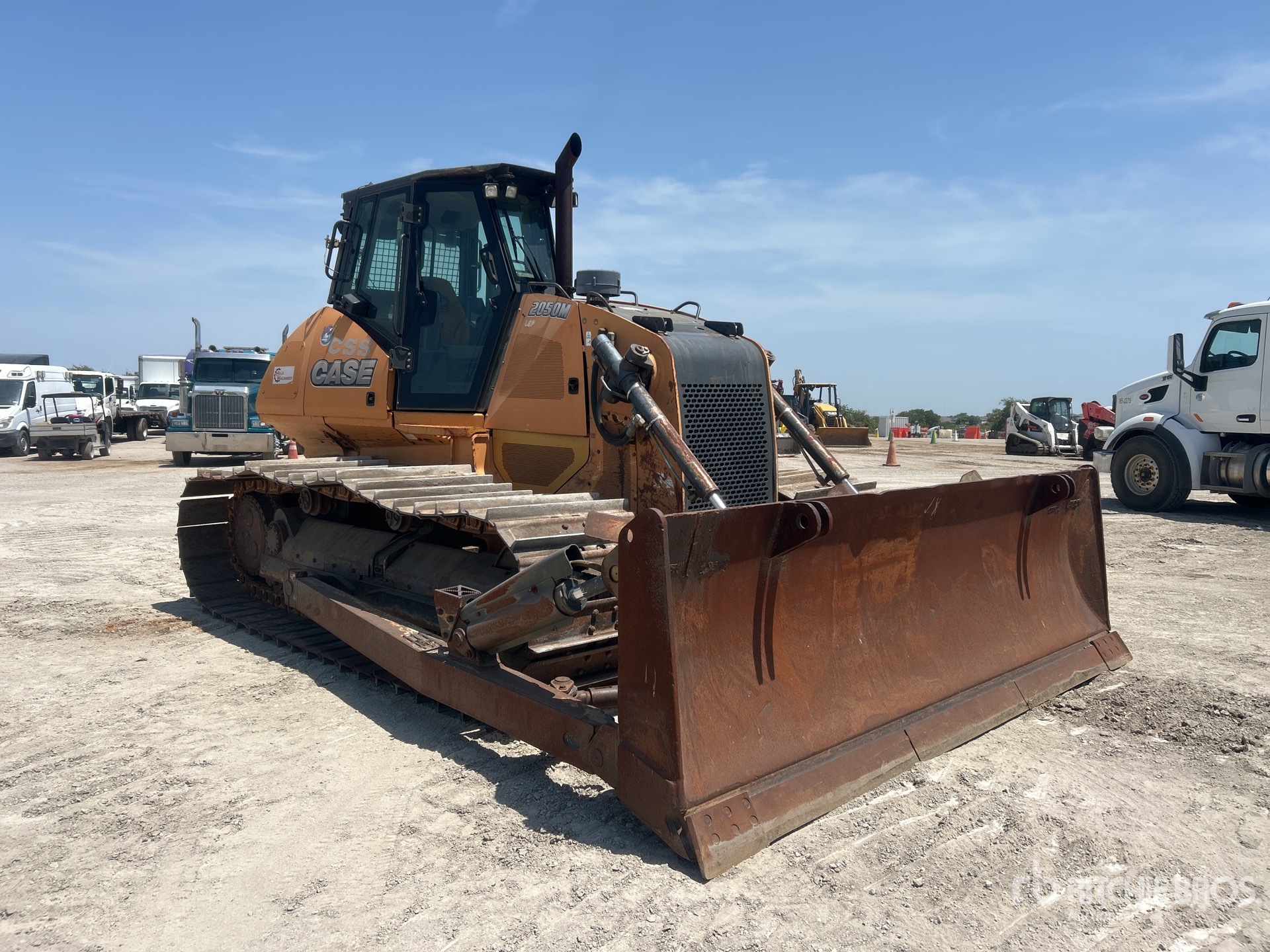

2014 Case 2050M For Sale in Fort Worth, Tx

Name: 2014 Case 2050M
Brand: Case
SKU: 88942180
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-08-19 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

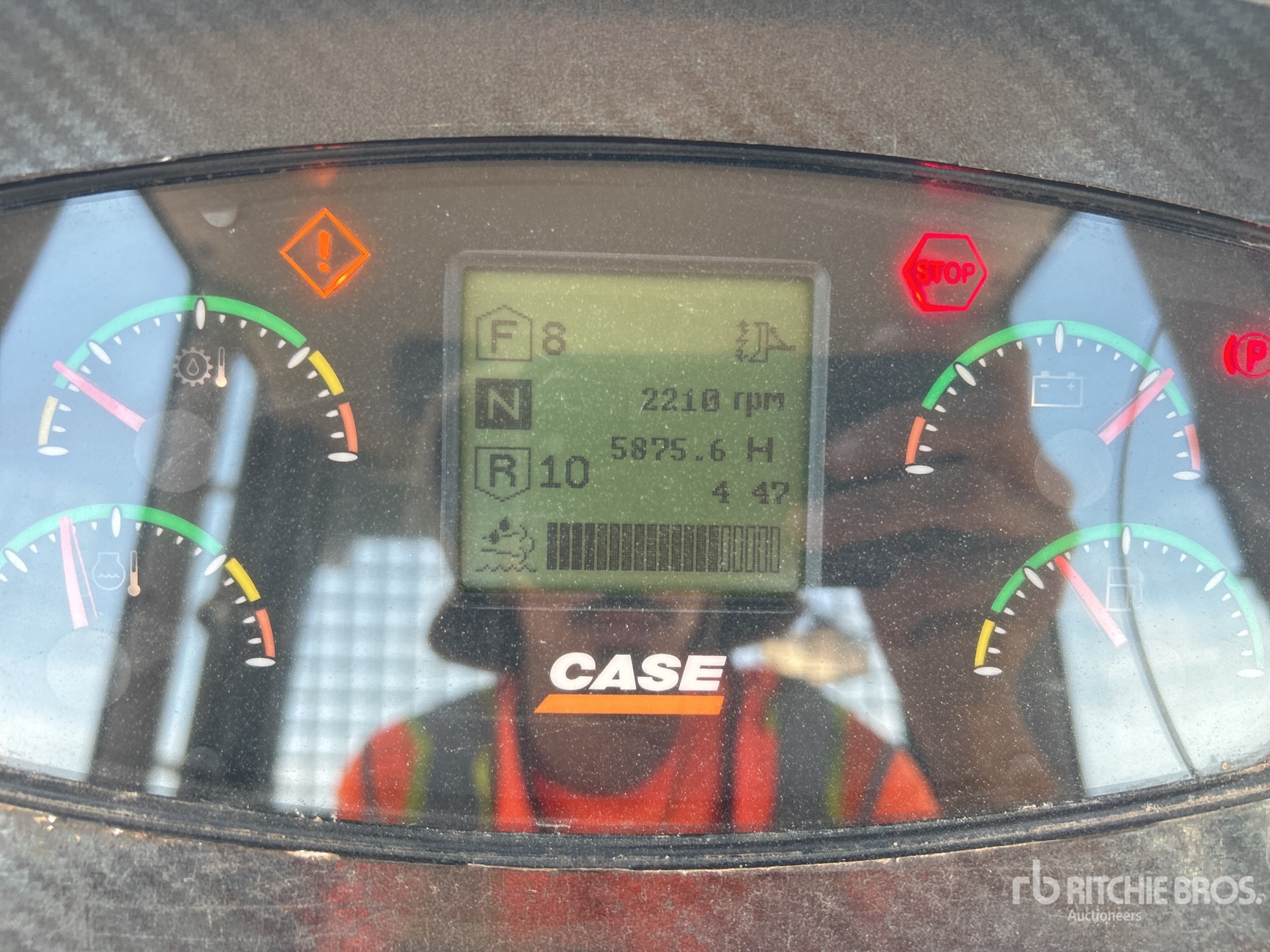

Hours:	5875

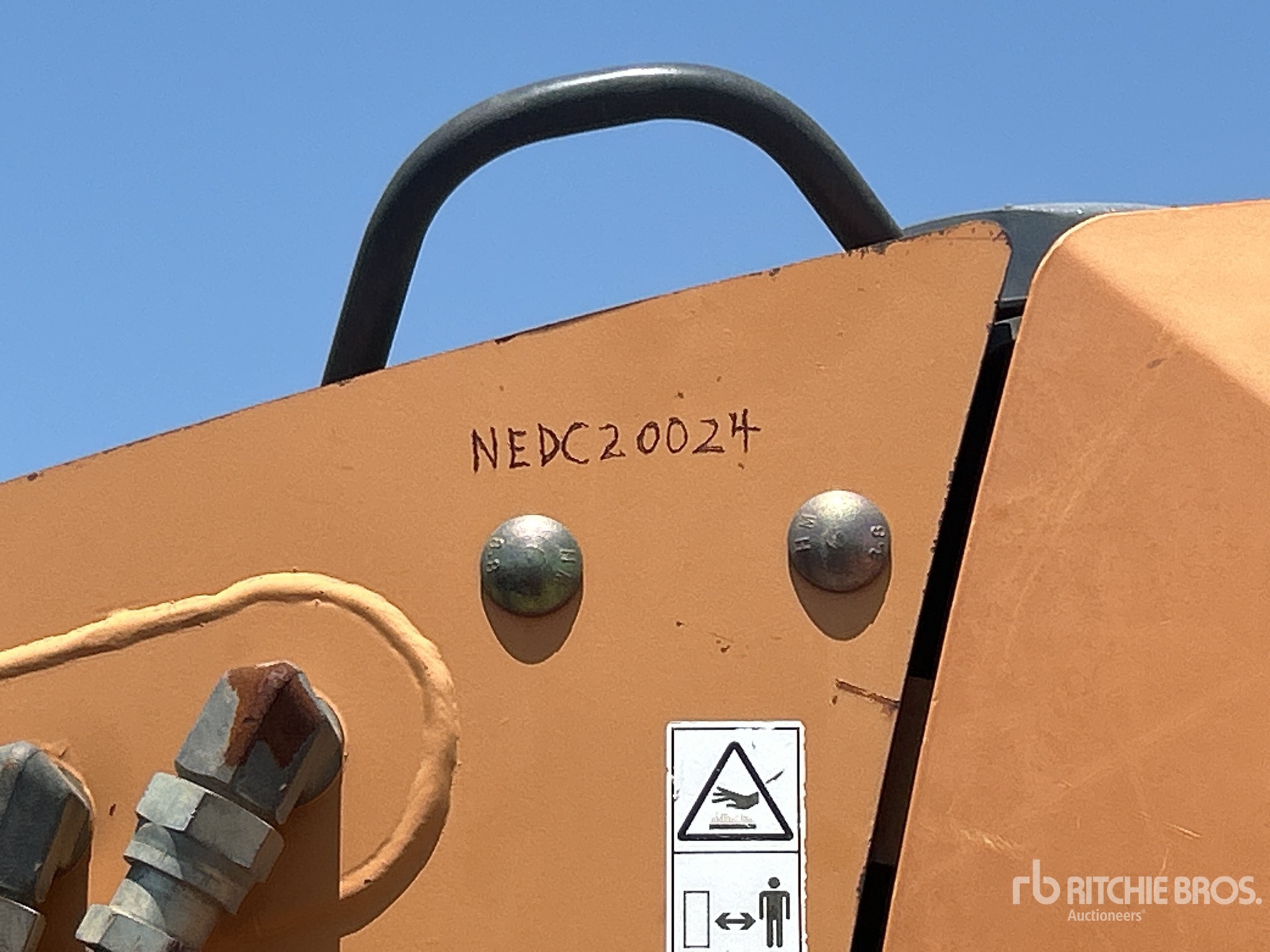

Serial Number:	NED20024
Machine Location:	FORT WORTH, TX

Description:

Located in Lane 1 Spot 26, Enclosed Cab, Air Conditioner, Pre-Wired for Grade Control, 153 in Wide Straight Blade w/ Single Tilt, 36 in Single Grouser Track Shoes Closing Time: 2026-08-19 10:54:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 2050M is a crawler dozer designed for grading, pushing, and site preparation in construction, earthmoving, and land clearing applications. It is part of Case Construction Equipment's M Series dozer line and is commonly configured with a six-way blade for precise material control. The 2050M is built for traction and stability on rough terrain, with an undercarriage suited to demanding dozing work. Typical uses include road building, utility work, and general earthmoving. As a crawler dozer, it combines low-ground-pressure operation with strong pushing capability, making it suitable for soft, uneven, or confined jobsite conditions.

Blades
Blade Capacity	7 cu yd (5 cu m)
Blade Height	56 in (142 cm)
Blade Type	PAT
Blade Width	13 ft (4 m)
Capacities
Engine oil with filter	4 gal (17 l)
Dimensions
Blade depth below ground	22 in (55 cm)
Blade lift above ground	49 in (124 cm)
Cast reach	17 in (44 cm)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	122 in (310 cm)
Height - Top of ROPS/FOPS	124 in (315 cm)
Length of Track on Ground	0 ft (0 m)
Width Over Tracks	8 ft (3 m)
Drive System
Final drive	2 helical gear
Max drawbar pull	80,931 lbs (36,710 kg)
Parking brakes	Heavy-duty spring-applied
Electrical System
Alternator	120 amp
Batteries	2 volts
Battery	12-volt low-maintenance
Engine
Air intake	Cross-Flow
Cooling system	Liquid
Diesel exhaust fluid (DEF) tank capacity	14 gal (52 l)
Displacement	409 cu in (6,701 cu cm)
Emission Tier Level	Interim Tier 4
Engine Model	FPT F4HFE613J
Fan	27.6 in(700mm)Diameter
Fuel	2 Diesel
Fuel injection	Common rail
Fuel tank	107 gal (405 l)
Gross Power	232 hp (173 kw)
Net Power	214 hp (160 kw)
Number of Cylinders	6
Power Measured @	2,000 rpm
Pump operating angles - Fore and aft	45 degrees
Pump operating angles -Side-to-side	35 degrees
Transmission Type	Hydrostatic
Hydraulic System
Lift cylinder - Rod diameter	3 in (6 cm)
Lift cylinder - Stroke	19 in (49 cm)
Lift cylinder(s)	2
Lift cylinder-Bore diameter	5 in (11 cm)
Pump type	Variable Displacement Piston
Operating Specifications
Long track	45,413 lbs (20,599 kg)
Low ground pressure	48,773 lbs (22,123 kg)
Operating Weight	48,773 lbs (22,123 kg)
Sweeps	139 lbs (63 kg)
Winch	5,512 lbs (2,500 kg)
Performance
Pump Flow	35 gpm (132 lpm)
Transmission
Max Speed - Forward	6 mph (9 kph)
Max Speed - Reverse	6 mph (9 kph)
Undercarriage
Ground Pressure	7 psi
Number of bottom rollers per side	8
Number of Shoes per Side	45
Number of Upper Rollers	2
Track Gauge	0 ft (0 m)
