2014 Case 2050M For Sale in Chehalis, Wa

Name: 2014 Case 2050M
Brand: Case
SKU: 89408723
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-29

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

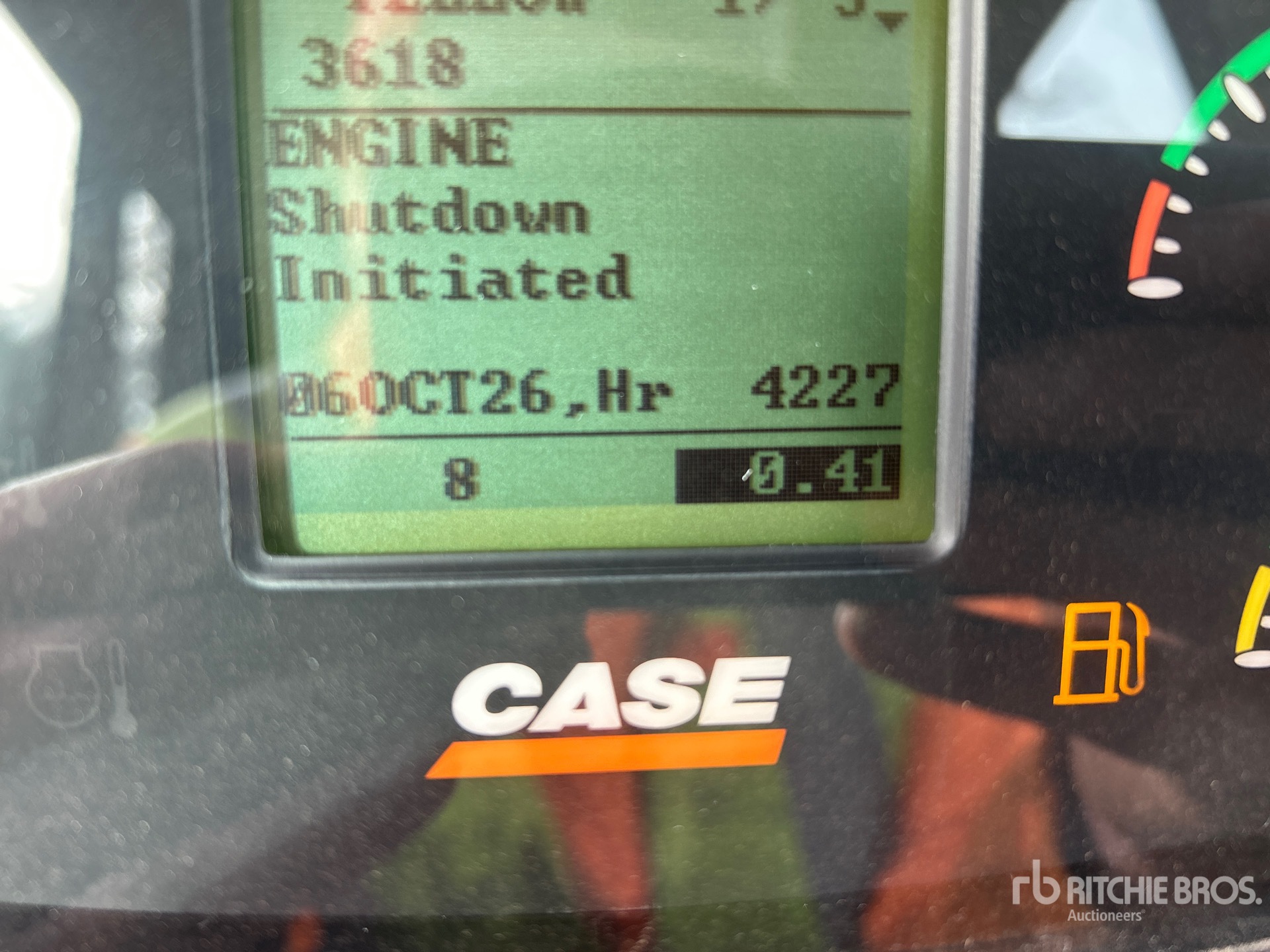

Hours:	4226

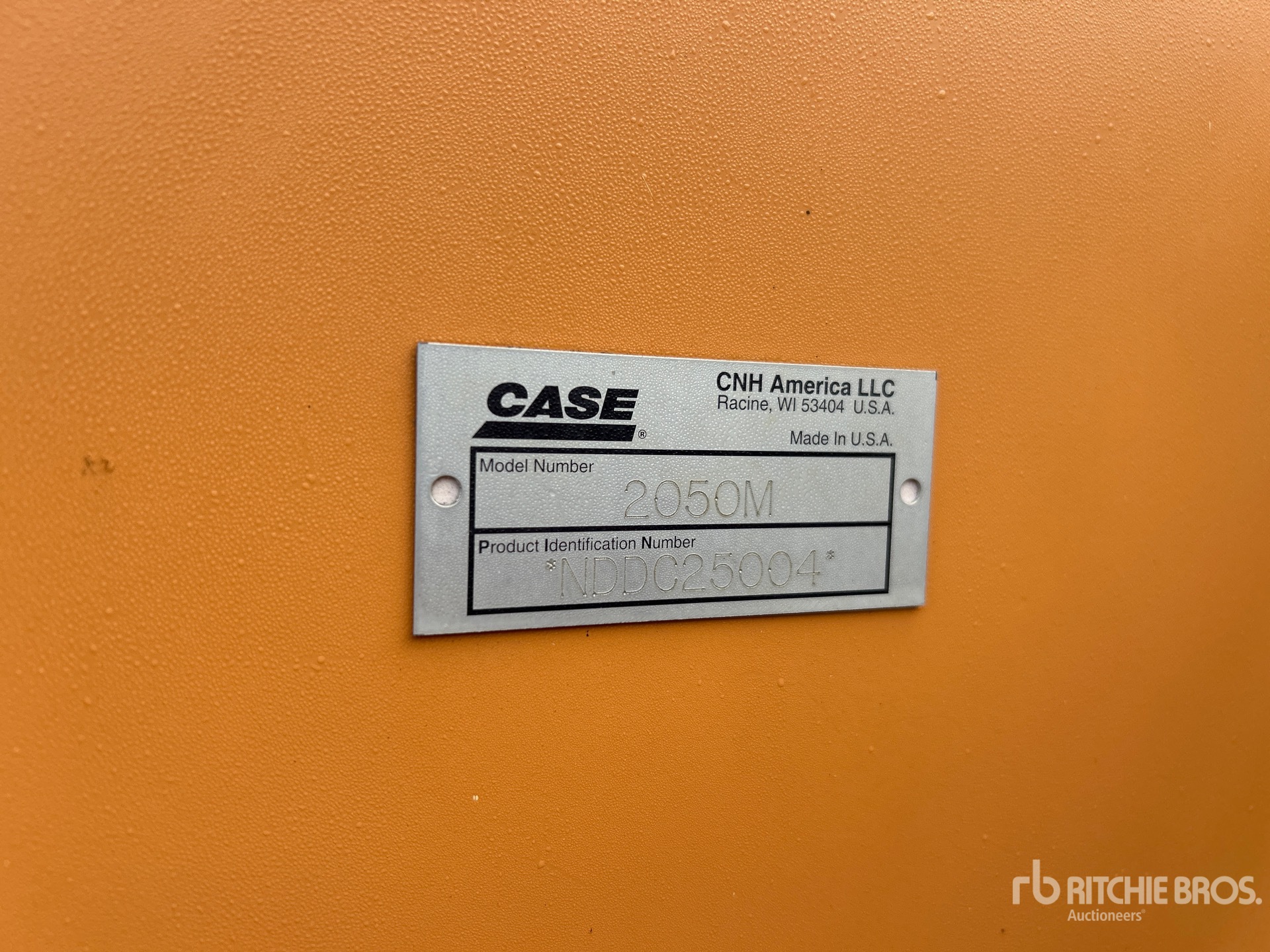

Serial Number:	NDDC25004
Machine Location:	CHEHALIS, WA

Description:

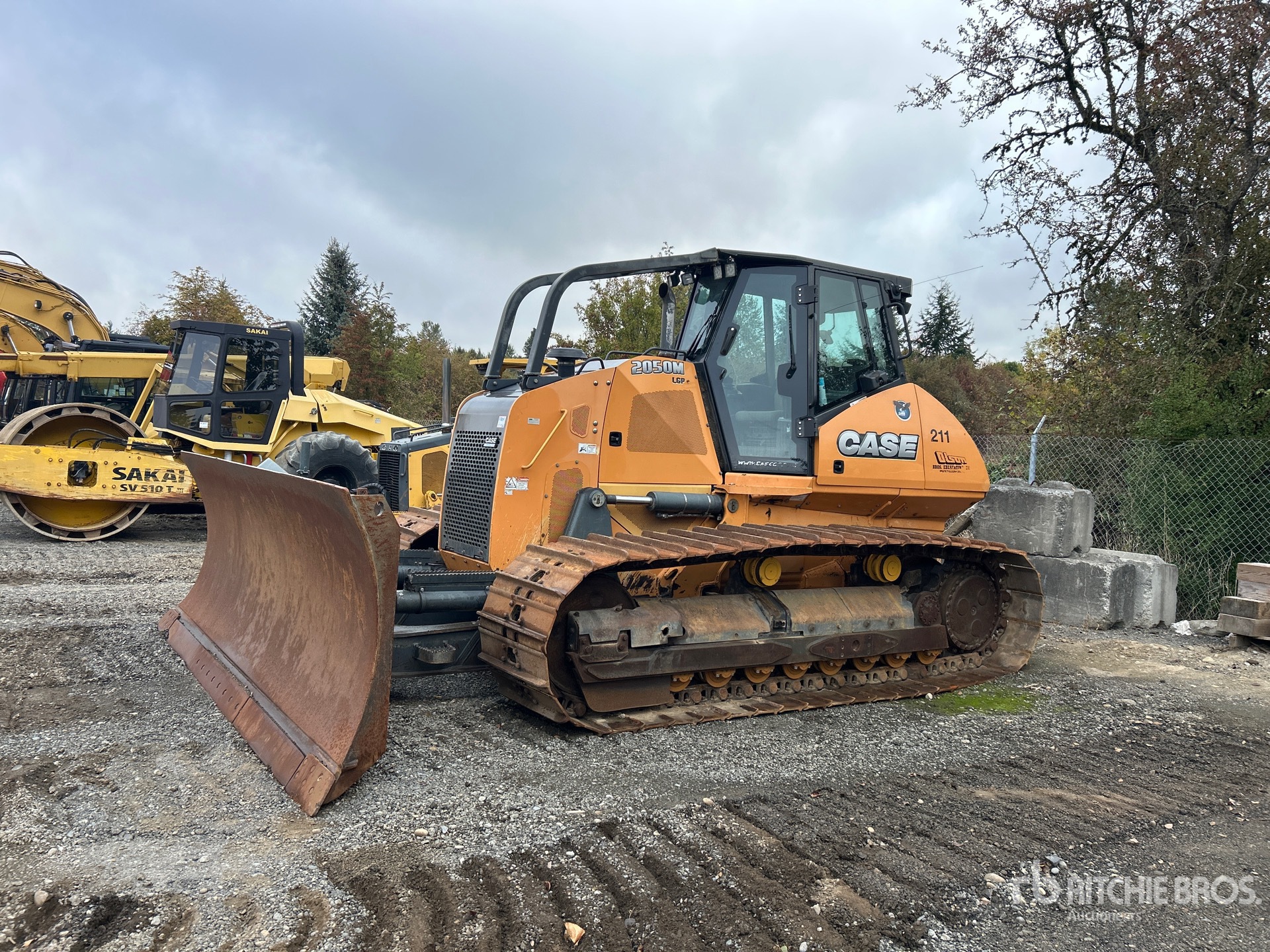

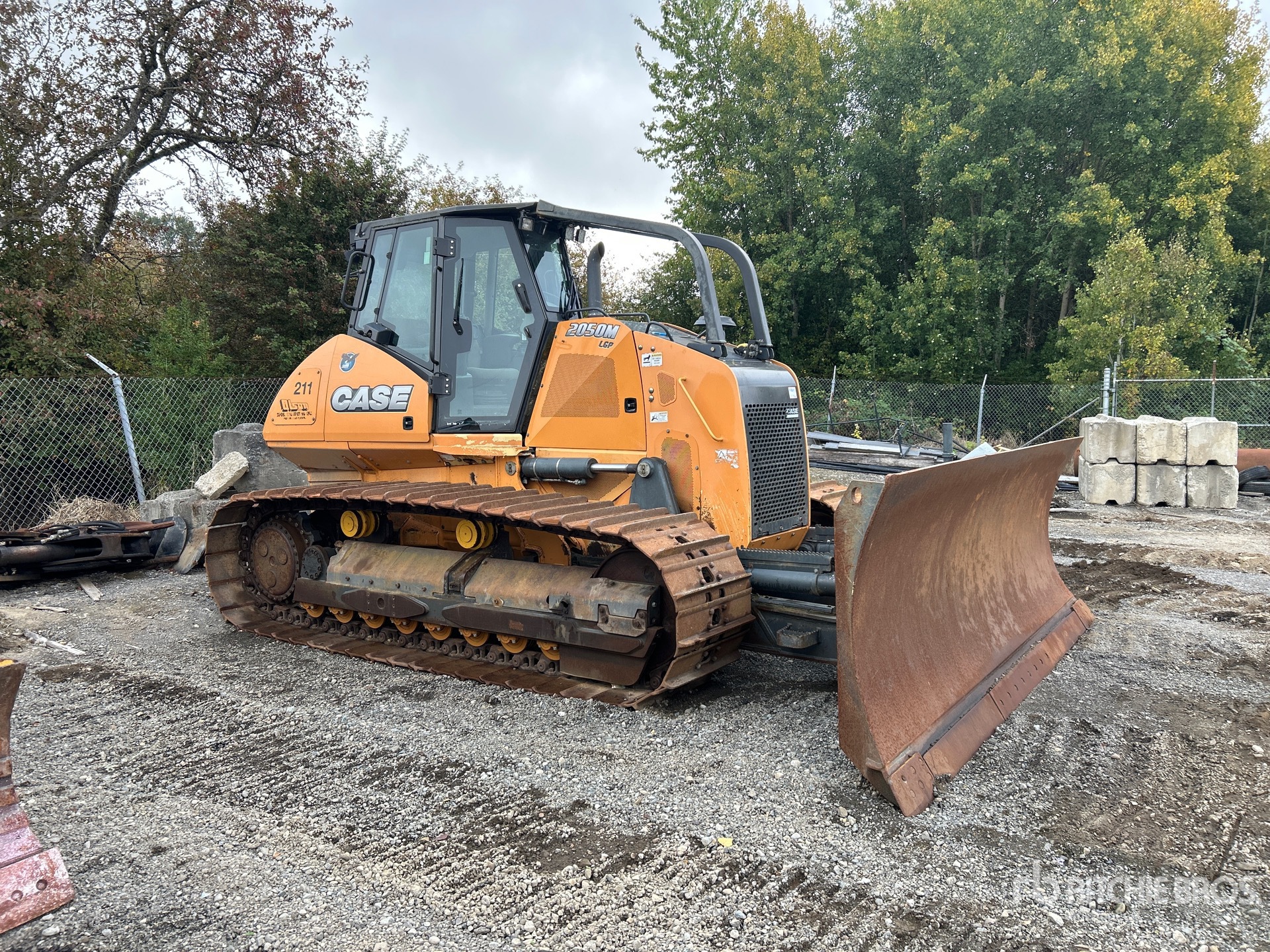

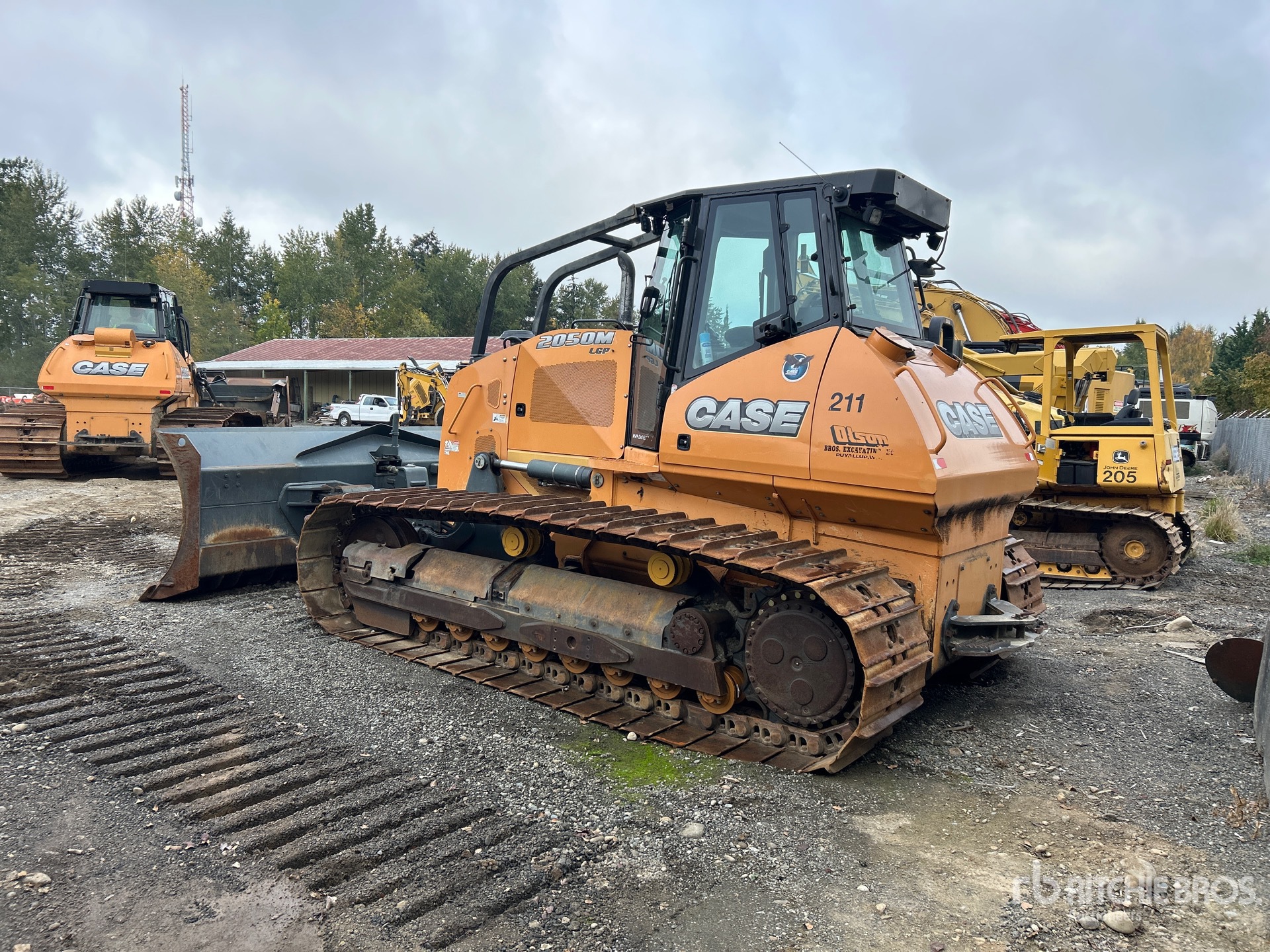

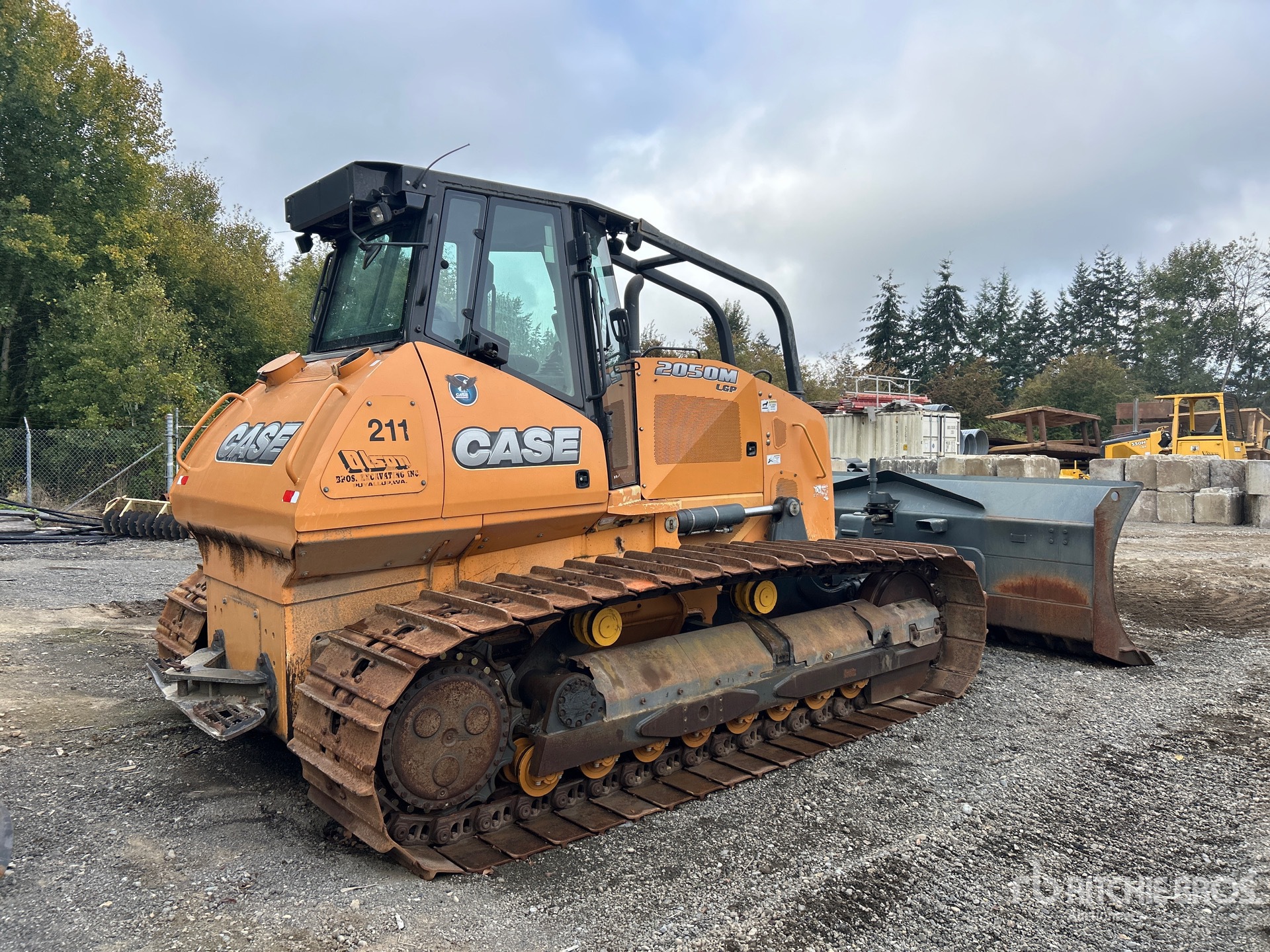

Enclosed Cab, Air Conditioner, Pre-Wired for Grade Control, 2013 US EPA Label, 159 in Wide PAT Blade, 30 in Single Grouser Track Shoes

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 2050M is a crawler dozer designed for grading, pushing, and site preparation in construction, earthmoving, and land clearing applications. It is part of Case Construction Equipment's M Series dozer lineup and is commonly used on utility, roadbuilding, and general contractor jobsites. The 2050M features a tracked undercarriage for traction and stability on soft or uneven ground, along with a blade system for material movement and finish grading. Typical configurations may include a hydrostatic drive, operator cab, and grade control compatibility. The model is used in applications requiring controlled dozing performance, maneuverability, and consistent productivity.

Blade
Blade Capacity	7 cu yd
Blade Height	56 in (142 cm)
Blade Type	PAT
Blade Width	13 ft (4 m)
Capacities
Engine Oil With Filter	4 gal (17 l)
Dimensions
Blade Depth Below Ground	22 in (55 cm)
Blade Lift Above Ground	49 in (124 cm)
Cast Reach	17 in (44 cm)
Ground Clearance	1 ft (0 m)
Height To Top Of Cab	122 in (310 cm)
Height To Top Of Exhaust	11 in (29 cm)
Height To Top Of Rops	124 in (315 cm)
Length Of Track On Ground	0 ft (0 m)
Width Over Tracks	8 ft (3 m)
Drive Train
Final Drive	2 helical gear
Max Drawbar Pull	80,931 lbs (36,710 kg)
Parking Brakes	Heavy-duty, spring-applied,
Electrical System
Alternator	120 amp
Batteries	2
Battery	12-volt low-maintenance
Engine
Air Intake	Cross-Flow
Cooling System	Liquid
Diesel Exhaust Fluid (Def) Tank Capacity	14 gal (52 l)
Displacement	409 cu in (6,701 cu cm)
Emission Tier Level	Interim Tier 4
Engine Model	FPT F4HFE613J
Fan	27.6 in,(700mm)Diameter
Fuel	2 Diesel
Fuel Injection	Common rail
Fuel Tank	107 gal (405 l)
Gross Power	232 hp (173 kw)
Net Power	214 hp (160 kw)
Number Of Cylinders	6
Power Measured @	2,000 rpm
Pump Operating Angles - Fore And Aft	45 degrees
Pump Operating Angles -Side-To-Side	35 degrees
Transmission Type	Hydrostatic
Hydraulic
Lift Cylinder - Rod Diameter	3 in (6 cm)
Lift Cylinder - Stroke	19 in (49 cm)
Lift Cylinder(S)	2
Lift Cylinder-Bore Diameter	5 in (11 cm)
Hydraulic System
Pump Type	Variable Displacement Piston
Operational
Draw Bar Pull	66 kg
Long Track	45,413 lbs (20,599 kg)
Low Ground Pressure	48,773 lbs (22,123 kg)
Operating Weight	48,773 lbs (22,123 kg)
Sweeps	139 lbs (63 kg)
Wide Track	46,890 lbs (21,269 kg)
Winch	5,512 lbs (2,500 kg)
Performance
Pump Flow	35 gpm (132 lpm)
Transmission
Max Speed - Forward	6 mph (9 kph)
Max Speed - Reverse	6 mph (9 kph)
Undercarriage
Ground Pressure	7 psi
Number Of Bottom Rollers Per Side	8
Number Of Shoes Per Side	45
Number Of Upper Rollers	2
Track Gauge	0 ft
