1996 Case 9030B For Sale in Adair, IL

Name: 1996 Case 9030B
Brand: Case
SKU: 88862911
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-08-29 Click here to place a bid Minimum Bid: $1

Kyle Kelso Auctioneer

Kyle Kelso Auctioneer Dealer Info

Click here to email Kyle Kelso Auctioneer.

Contact: Main

Click for Phone Number

Machine Info:

Machine Location:	ADAIR, IL
More Information:	https://www.proxibid.com:443/heavy-construction-equipment/excavators/1996-case-9030b-excavator/lotInformation/102160397?utm_source=ceg&utm_medium=referral&utm_campaign=atgxl_ceg&utm_content=75142

Description:

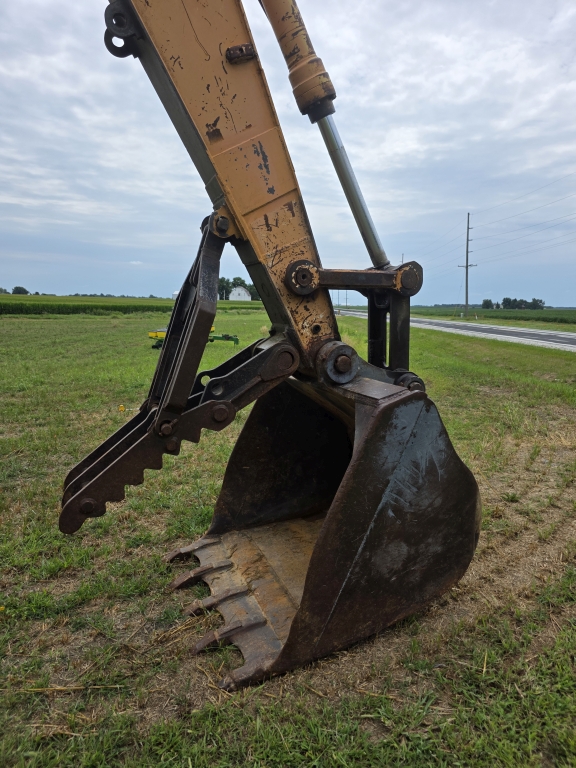

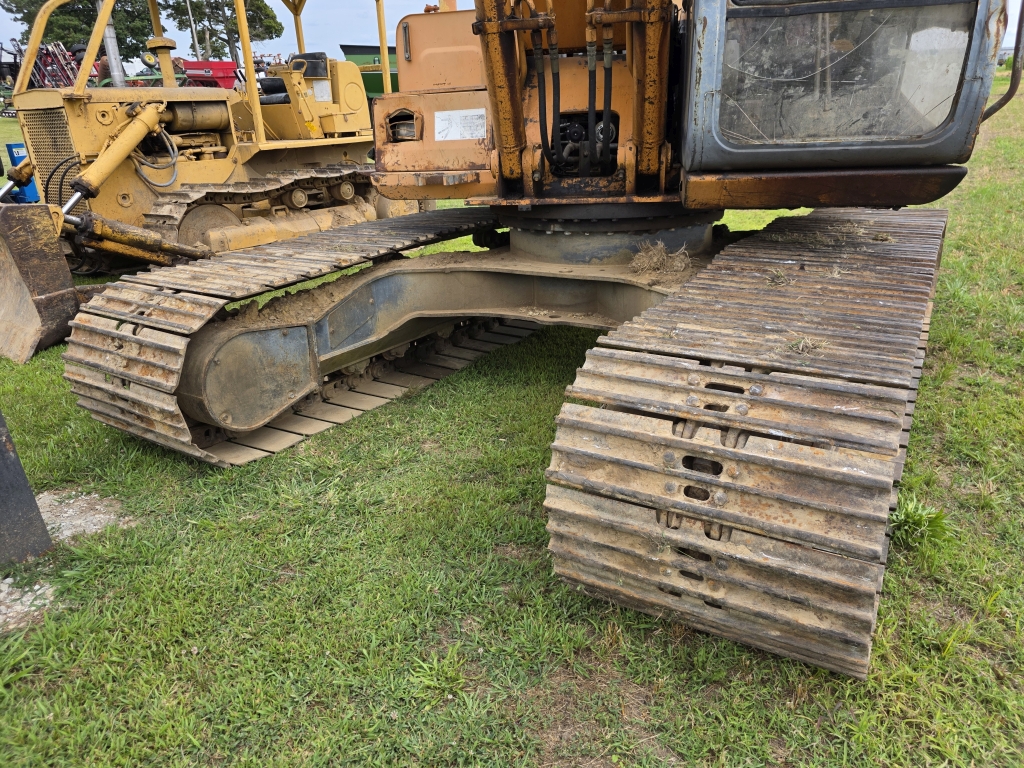

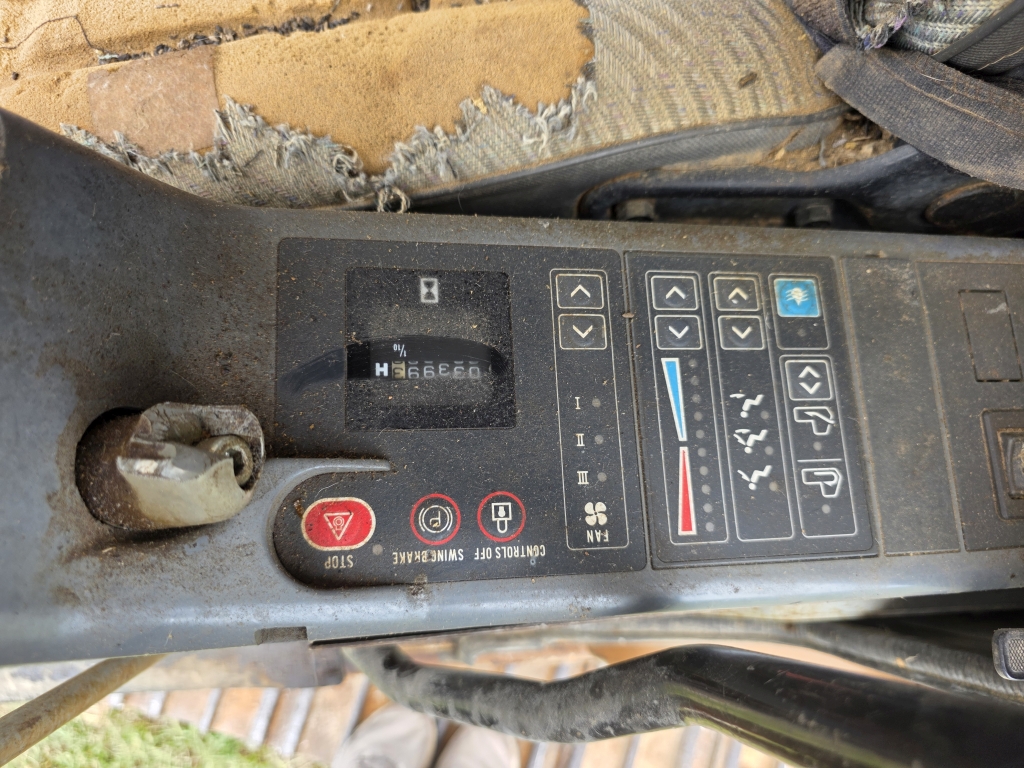

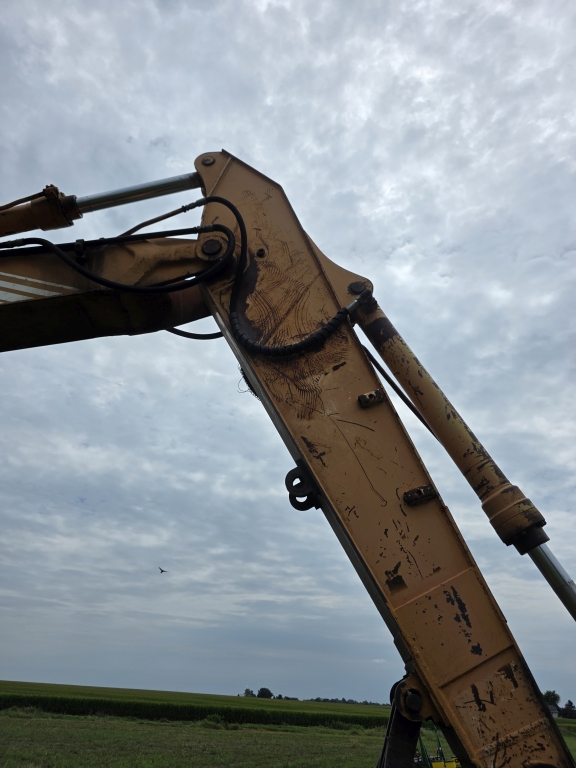

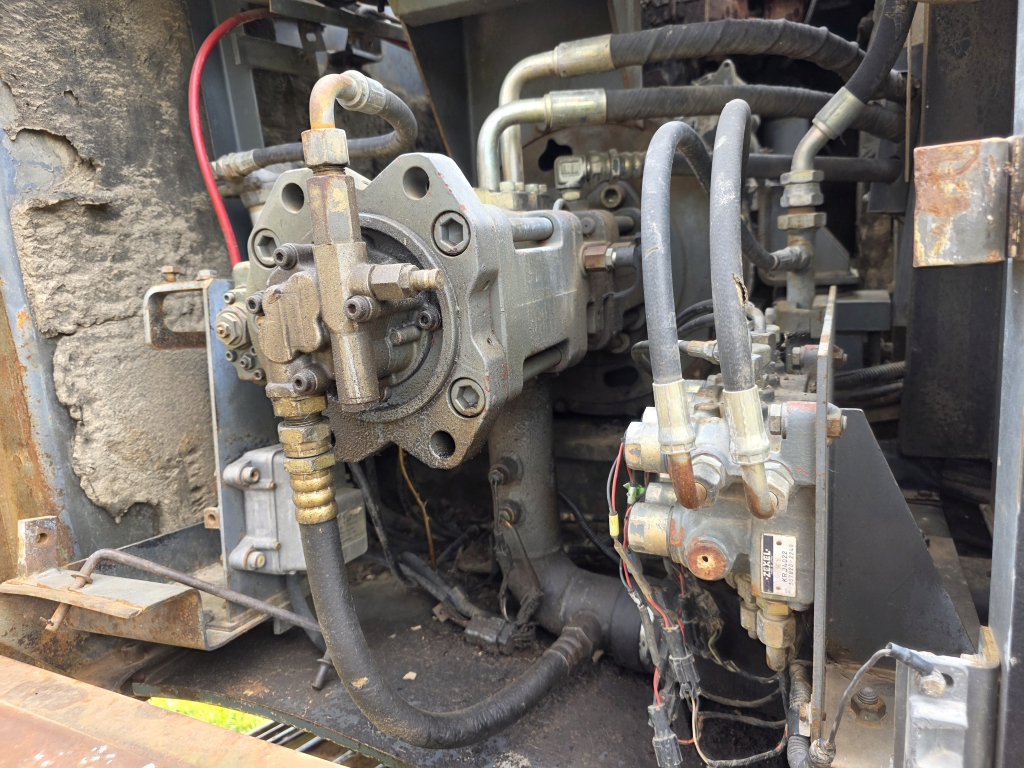

New batteries, 3,399 hours showing, unsure accuracy on hours, 31-inch tracks, serial number DAC0301499, fixed thumb, 54-inch bucket, will have some hydraulic leaks on cylinders, very usable machine, 17-138, Seller: Jimmie Keefauver, 309-621-348nine.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

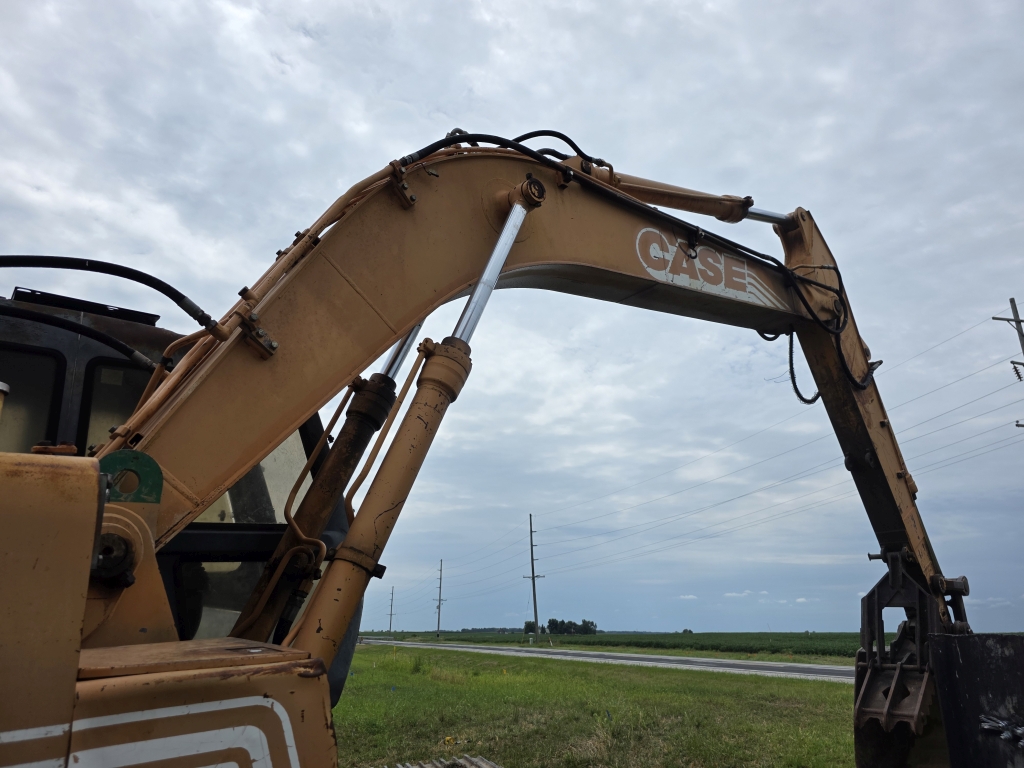

Boom/Stick 1
Boom/Stick 1	Boom 18'8" (5700mm)/ Stick 9'10" (3000mm)
Max Cutting Height	31 ft (9 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	32 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height Of Unit	10 ft (3 m)
Shipping Length Of Unit	31 ft (9 m)
Boom/Stick 2
Boom/Stick 2	Boom 18'8" (5700mm)/ Stick 7'10" (2390mm)
Max Cutting Height	30 ft (9 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	18 ft (5 m)
Max Reach Along Ground	30 ft (9 m)
Max Vertical Wall Digging Depth	18 ft (5 m)
Shipping Height Of Unit	10 ft (3 m)
Shipping Length Of Unit	31 ft (10 m)
Buckets
Maximum Bucket Capacity	1 cu yd
Minimum Bucket Capacity	1 cu yd
Reference Bucket Capacity	1 cu yd
Dimensions
Ground Clearance	2 ft (0 m)
Height To Top Of Cab	10 ft (3 m)
Length Of Track On Ground	12 ft (4 m)
Removal Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	9 ft (3 m)
Width To Outside Of Tracks	11 ft (3 m)

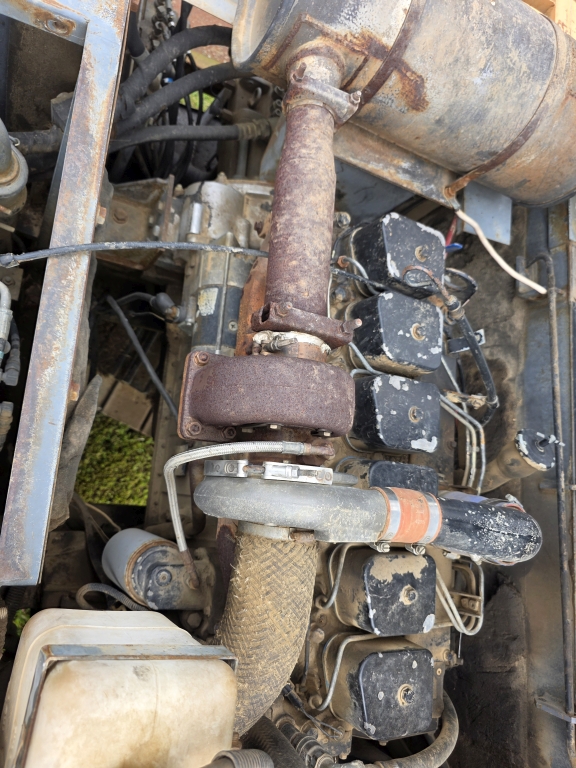

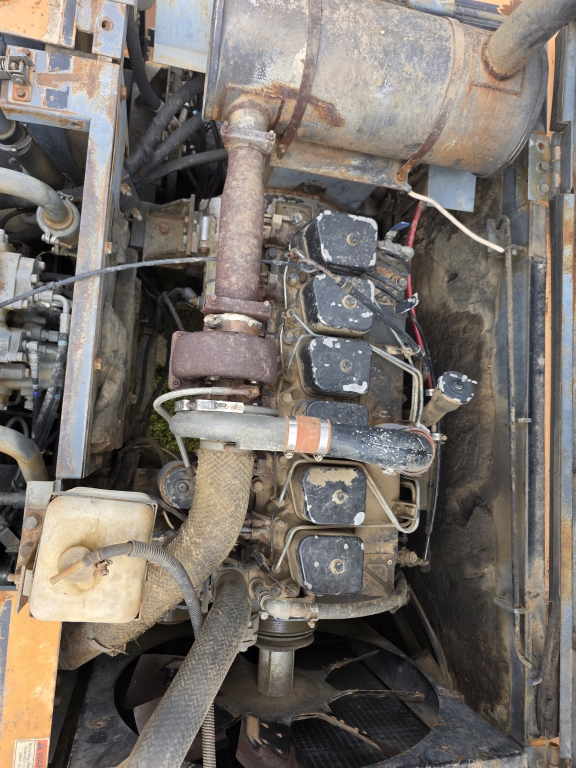

Engine
Aspiration	turbocharged
Displacement	359 cu in (5,883 cu cm)
Engine Make	2,239
Engine Model	6T-590
Max Torque	425 lbs ft (576 nm)
Net Power	131 hp (98 kw)
Number Of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,500 rpm
Operational
Alternator Supplied Amperage	45 amps
Cooling System Fluid Capacity	7 gal (26 l)
Engine Oil Capacity	4 gal (16 l)
Fuel Capacity	82 gal (310 l)
Hydraulic Pump Flow Capacity	51 gpm (194 lpm)
Hydraulic System Fluid Capacity	53 gal (200 l)
Hydraulic System Relief Valve Pressure	4,554 psi
Operating Voltage	24 V
Operating Weight	44,540 lbs (20,203 kg)
Swing Drive Fluid Capacity	1 gal (5 l)
Swing Mechanism
Swing Speed	12 rpm

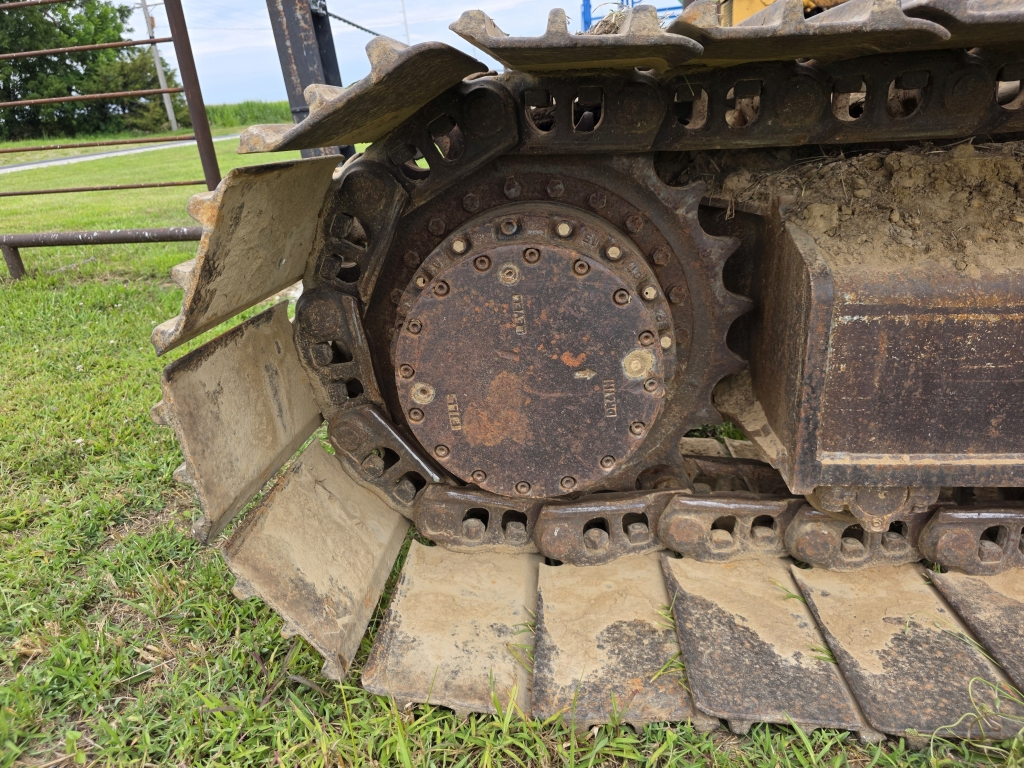

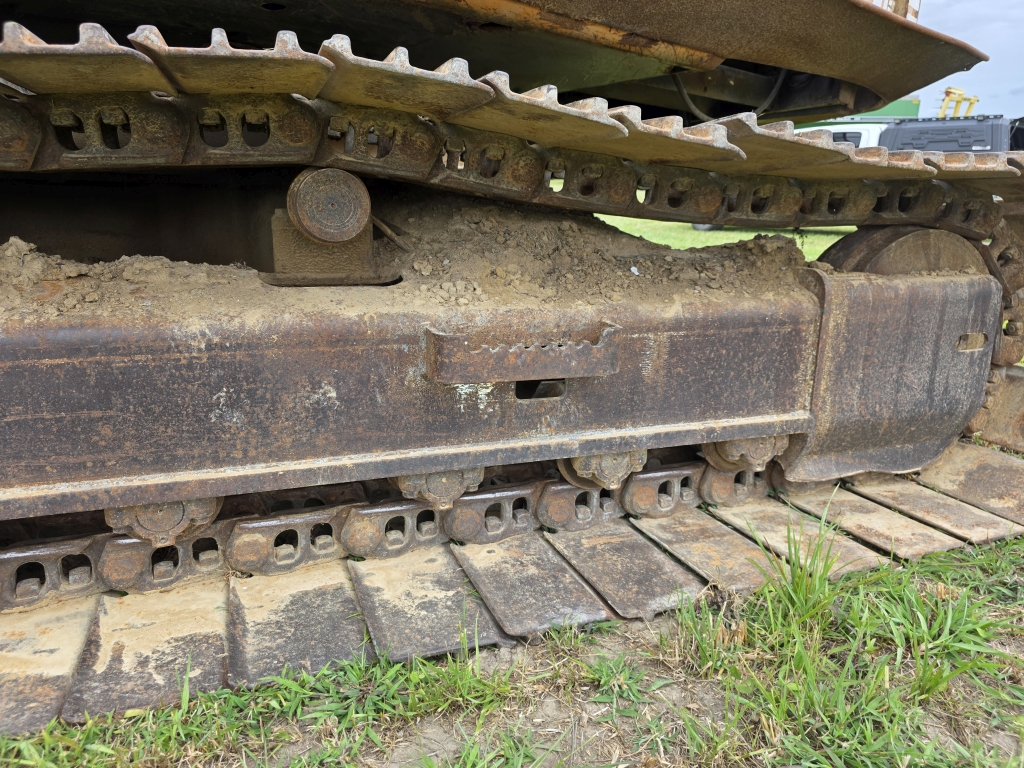

Undercarriage
Drawbar Pull	41,140 lbs (18,661 kg)
Ground Pressure	5 psi
Max Travel Speed	3 mph (5 kph)
Number Of Carrier Rollers Per Side	2
Number Of Shoes Per Side	49
Number Of Track Rollers Per Side	8
Shoe Size	32 in (81 cm)
