2018 Case CX160D For Sale in North East, Md

Name: 2018 Case CX160D
Brand: Case
SKU: 88978476
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-15 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	5193

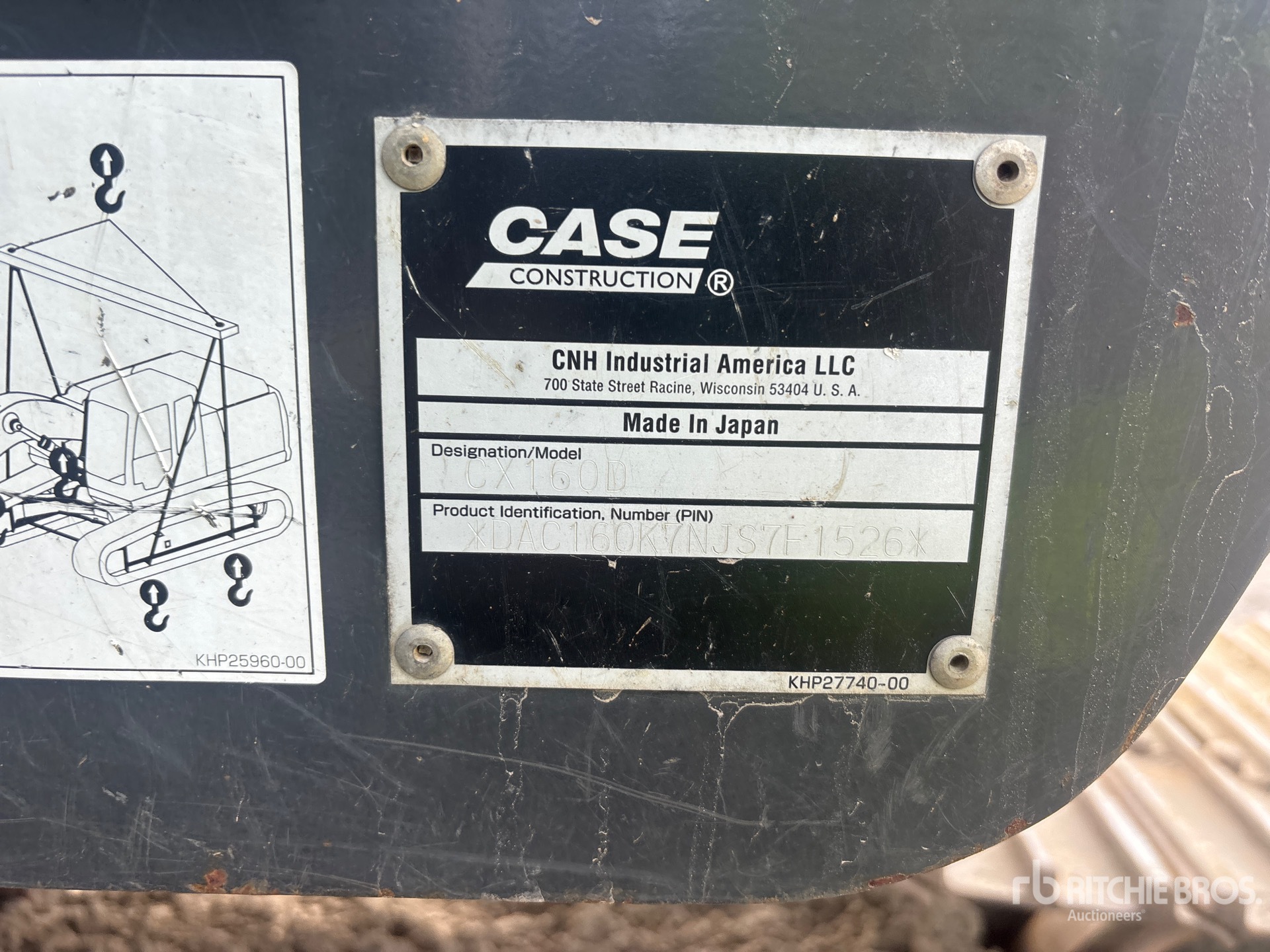

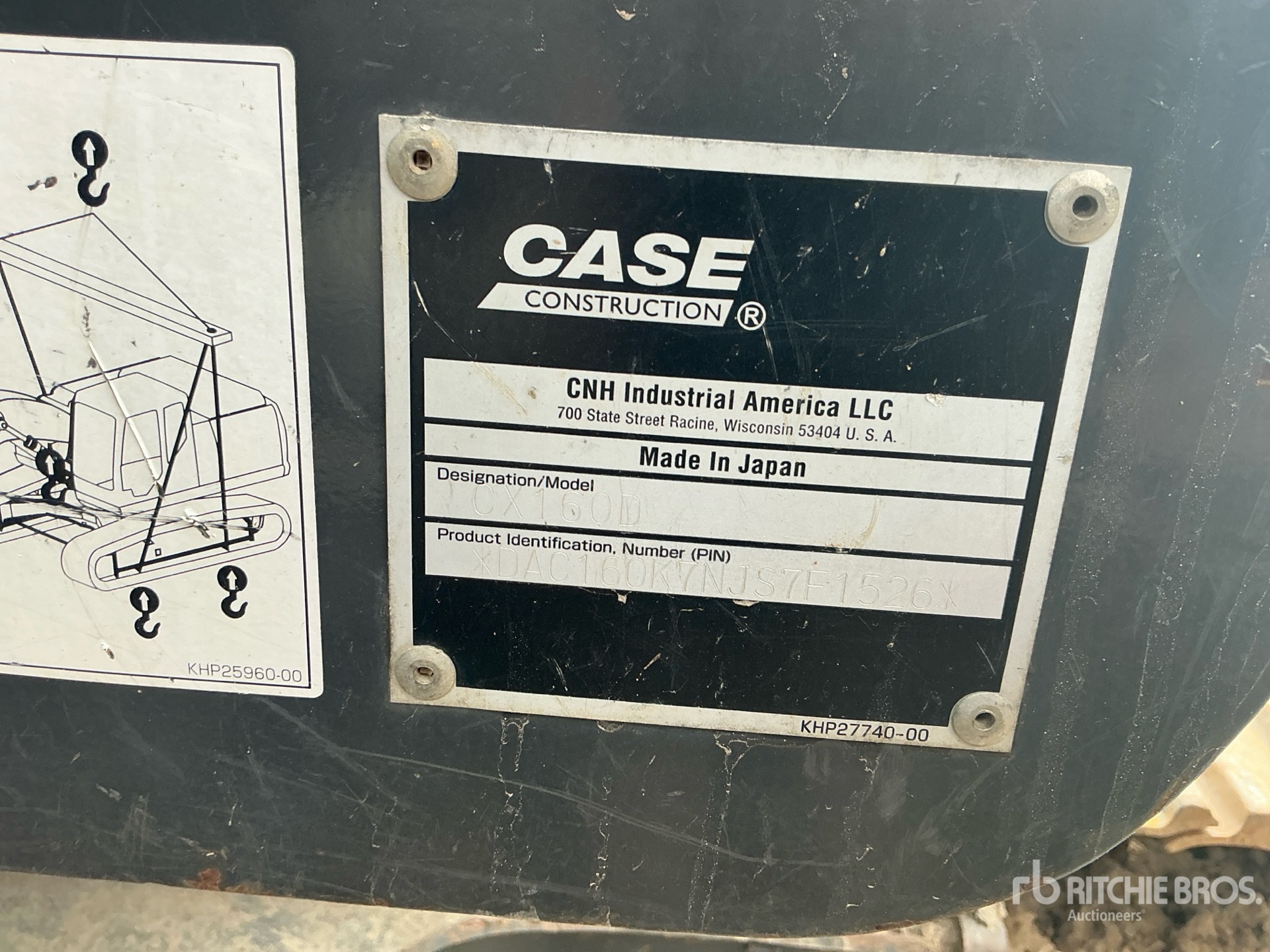

Serial Number:	NJS7F1526
Machine Location:	NORTH EAST, MD

Description:

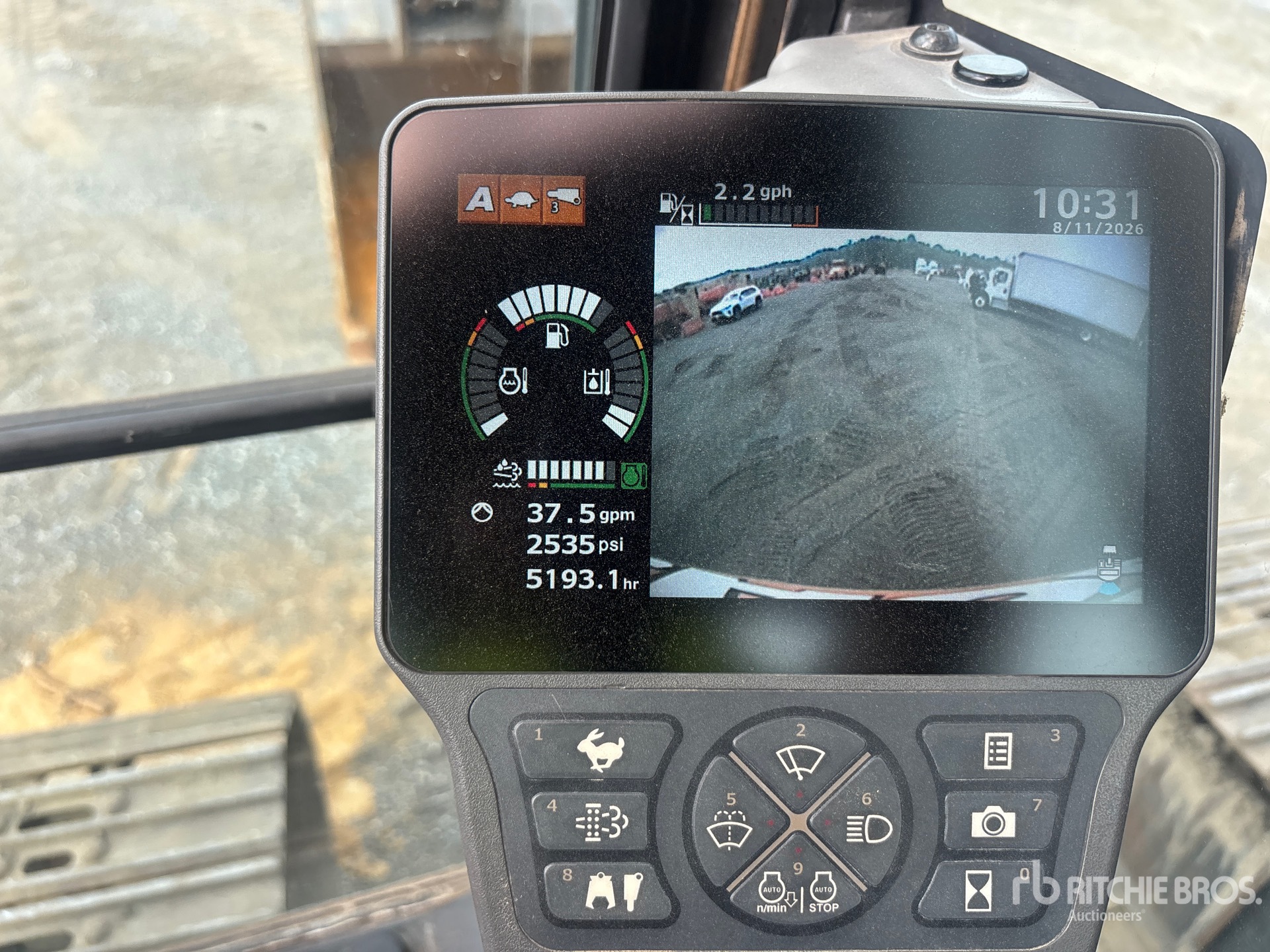

Air Conditioner, Straight Travel Pedal, Control Pattern Changer, Rear View Camera, 2018 US EPA Label, 8 ft 7 in Stick, 24 in Triple Grouser Track Shoes, Hydraulic Quick Coupler, 40 in Digging Bucket, Thumb Bracket, Equipment-from-Core-Equipment-Group Closing Time: 2026-09-15 07:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case CX160D is a hydraulic excavator in Case Construction Equipment's CX-D series. It is a mid-size machine used for general excavation, site preparation, trenching, utility work, grading, and material handling. The CX160D is typically configured with a diesel engine, hydraulic system, boom and arm options, and a standard excavator undercarriage for tracked mobility and stability. Common attachments may include buckets, hydraulic thumbs, and breakers. The model is designed for construction, civil works, and utility applications where digging depth, reach, and controlled hydraulic performance are required. Availability of specifications may vary by market and configuration.

Boom/Stick Excavator Option 1
Dig radius at ground line	349 in (887 cm)
Dump height	260 in (661 cm)
Max Digging Depth	19 ft (6 m)
Max Digging Reach on Ground	26 ft (8 m)
Max Reach Along Ground	30 ft (9 m)
Max Vertical Wall Digging Depth	17 ft (5 m)
Max.Dumping Height	21 ft (6 m)
Minimum swing radius	118 in (299 cm)
Mximum dig radius	370 in (940 cm)
Boom/Stick Excavator Option 2
Dig radius at ground line	363 in (922 cm)
Dump height	263 in (669 cm)
Max Digging Depth	21 ft (6 m)
Max Vertical Wall Digging Depth	17 ft (5 m)
Maximum dig radius	369 in (938 cm)
Maximum reach height	366 in (929 cm)
Minimum swing radius	120 in (305 cm)
Boom/Stick Excavator Option 3
Overall height	10 ft (3 m)
Brakes
Brakes Type	Dual stage relief or counter balance design
Service brake	Mechanical disc
Travel control	SAHR disc - each motor
Capacities
Cooling system	4 gal (16 l)
Engine oil w/ filter change	5 gal (17 l)
Final Drive	2 gal (6 l)
Fuel Tank	79 gal (300 l)
Hydraulic system	44 gal (165 l)
Hydraulic Tank	24 gal (90 l)
Swing drive	1 gal (5 l)
Dimensions
Boom length	0 ft (0 m)
Cab height	117 in (297 cm)
Center to center - idler to sprocket	11 ft (3 m)
Ground Clearance	1 ft (0 m)
Ground pressure	6 psi
Overall height	10 ft (3 m)
Tail Swing Radius	8 ft (3 m)
Track length	157 in (399 cm)
Track shoe width	2 ft (1 m)
Engine
Air filter type	Dry type element with warning restriction indicator
Bore	4 in (10 cm)
Displacement	183 cu in (3,000 cu cm)
Emission Tier Level	Tier 4
Engine Make	Isuzu
Engine Model	Isuzu 4 JJ 1X
Fuel Filter	Replaceable full flow spin-on cartridge
Fuel injection	Direct injection - electronic
Fuel Type	Requires ultra-low sulfur fuel B5 biodiesel tolerant
Horsepower per SAE J1349 Net	112 hp (84 kw)
Max Torque	258 lbs ft (349 nm)
Net Power	112 hp (84 kw)
Oil Filter	Replaceable full flow spin-on cartridge
Power Measured @	2,200 rpm
Stroke	4 in (10 cm)
Hydraulic System
Main pump - Maximum flow	38 gal (142 l)
System relief pressure	4,970 psi
Operating Specifications
Arm Breakout Force	14,837 lbs (6,730 kg)
Arm size	8 ft (3 m)
Operating Weight	38,361 lbs (17,400 kg)
Performance
Lift over end 10' radius	17,201 lbs (7,802 kg)
Lift over end Max. reach	3,849 lbs (1,746 kg)
Lift over side 10' radius	16,250 lbs (7,371 kg)
Lift over side Max. reach	14,573 lbs (6,610 kg)
Swing Mechanism
Swing Speed	12 rpm
Transmission
Max Speed	3 mph (5 kph)
Undercarriage
Track Shoe Width	24 in (60 cm)
