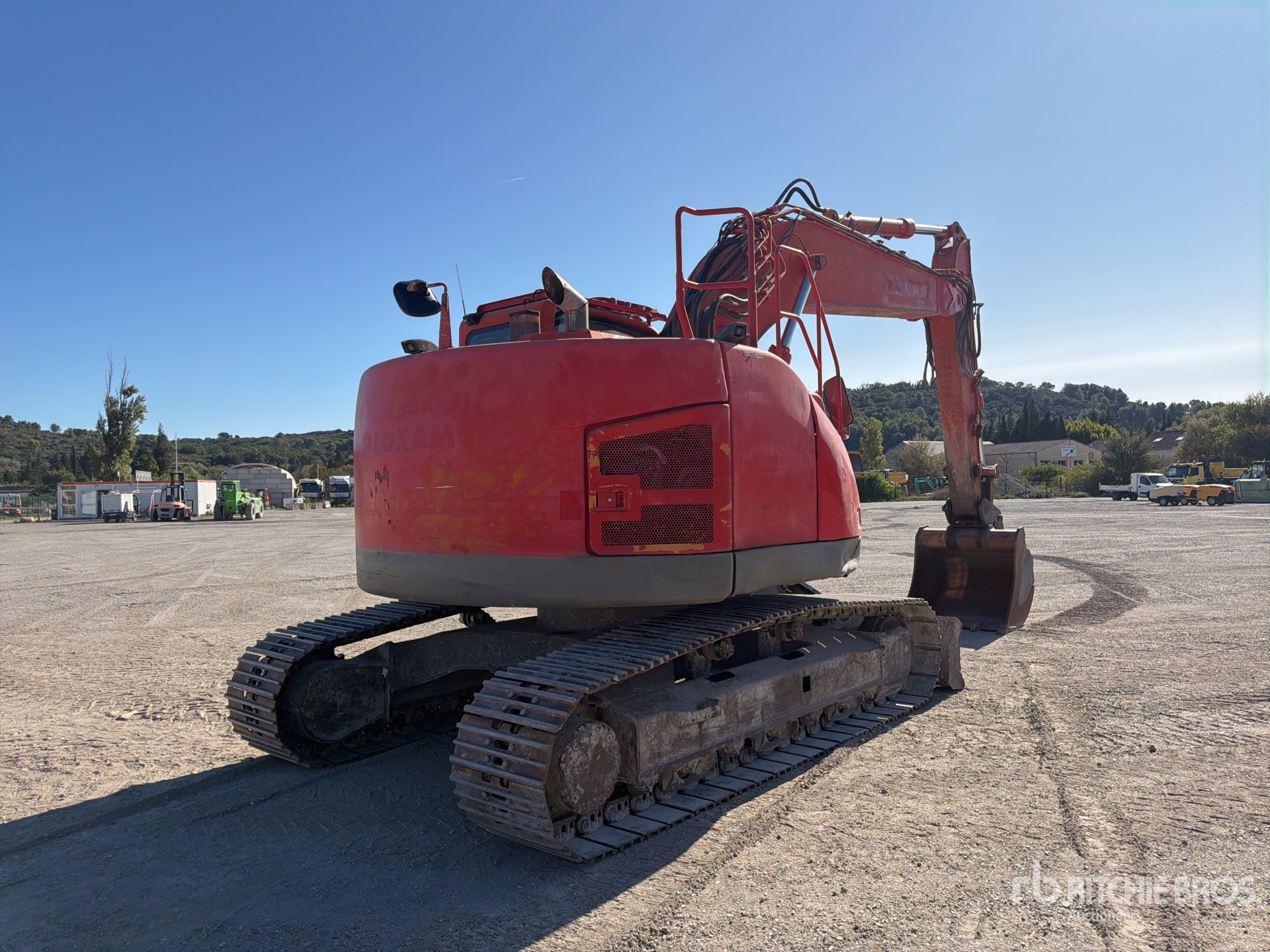

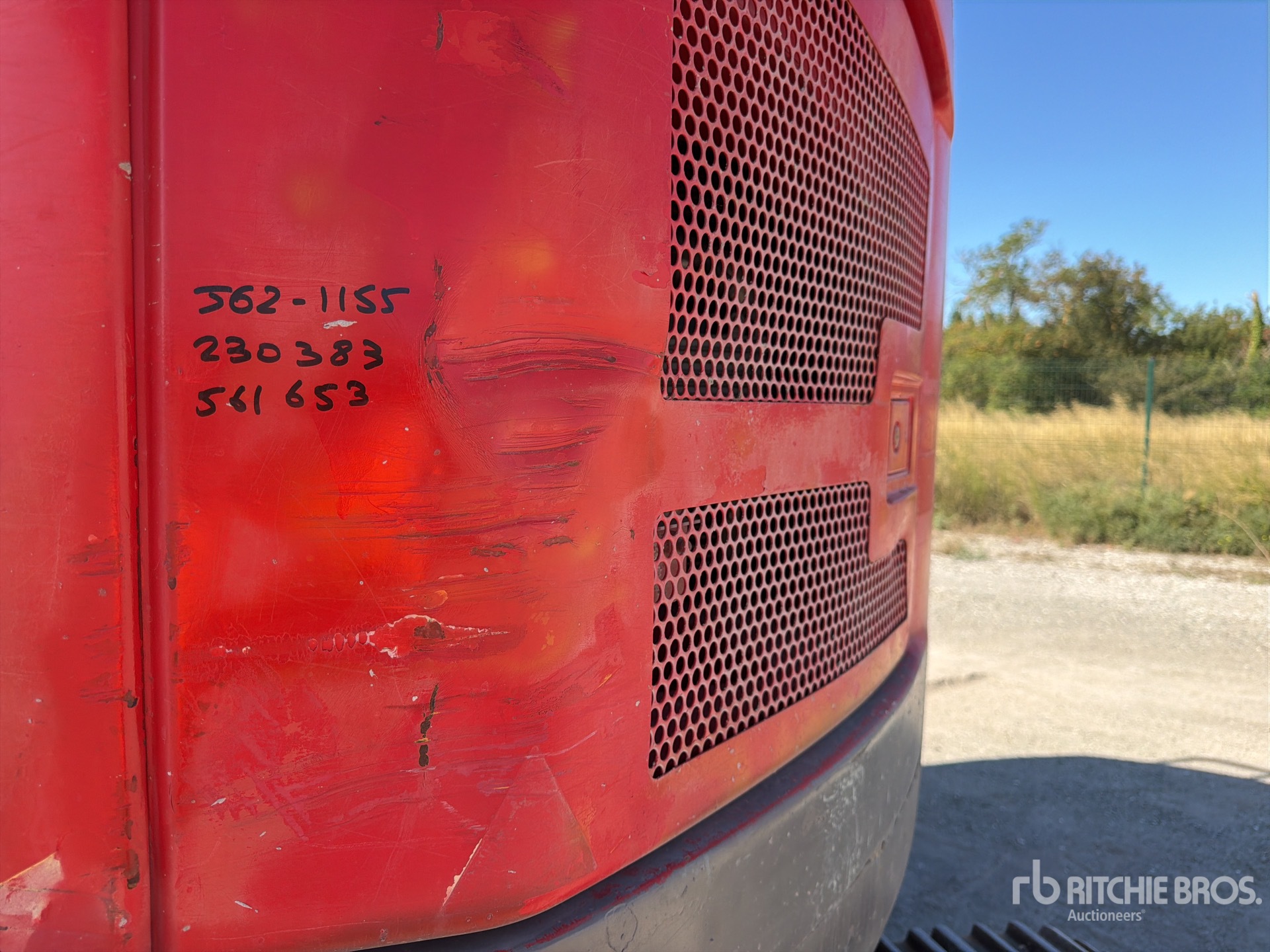

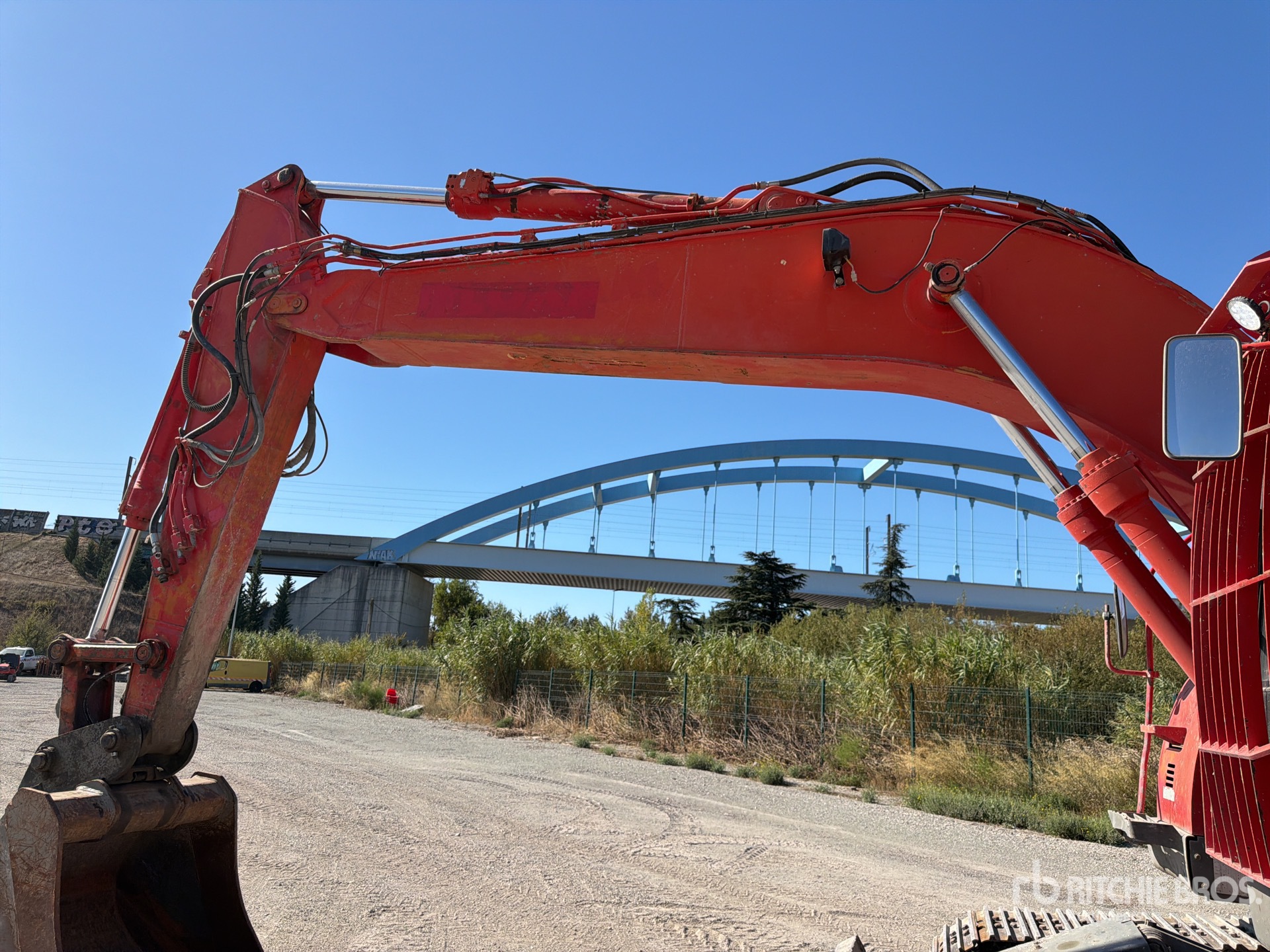

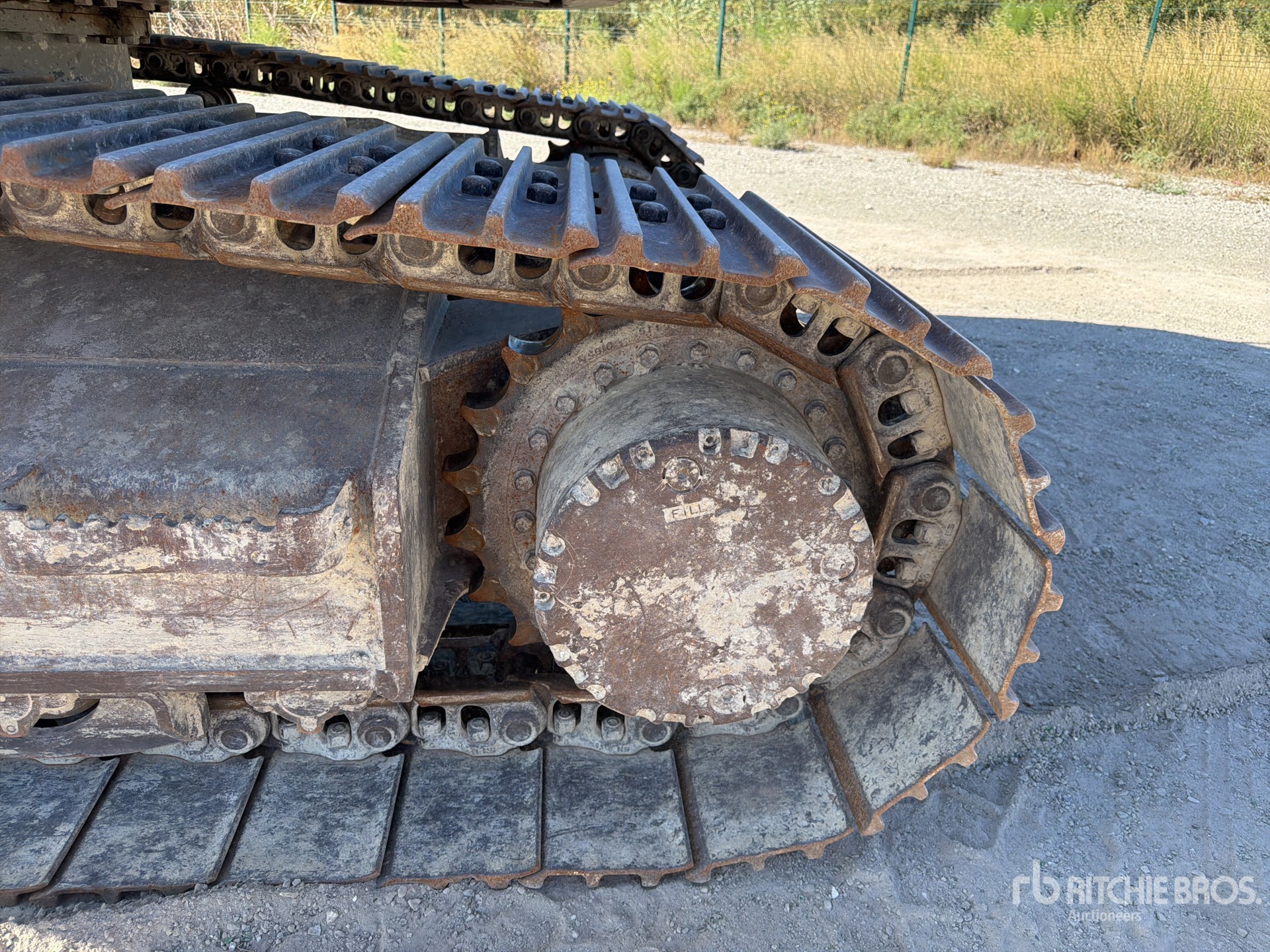

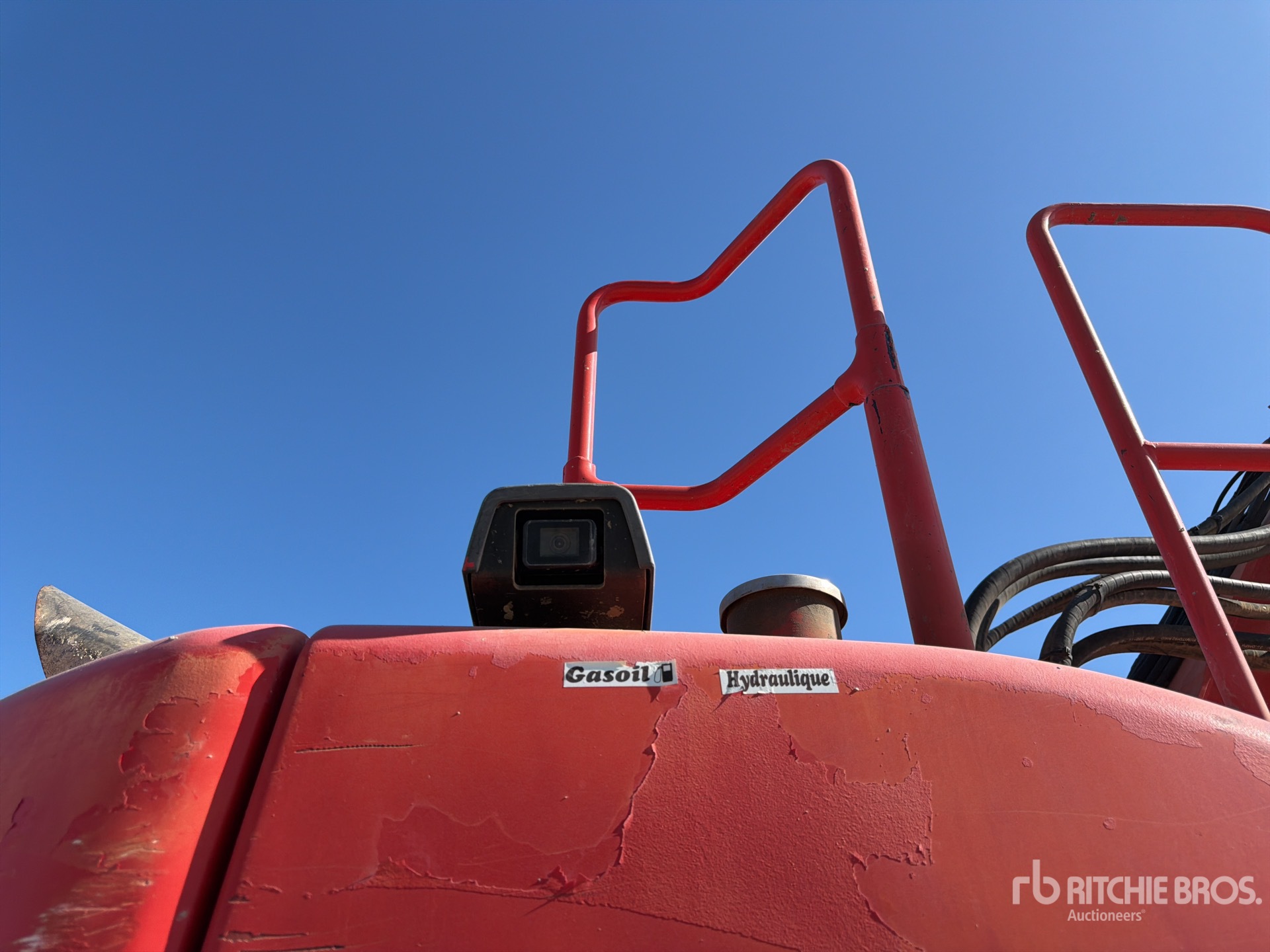

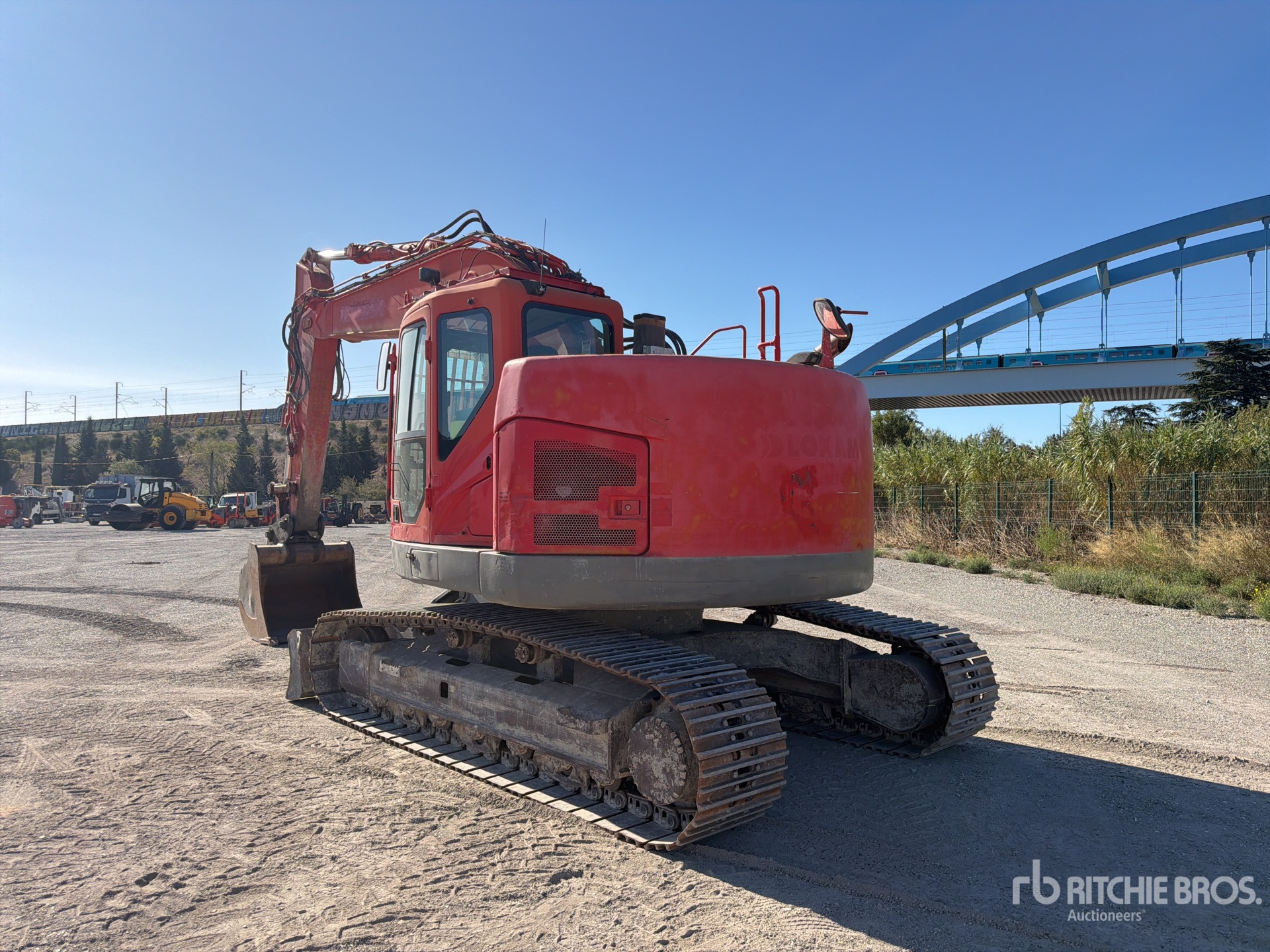

2016 Case CX235C SR For Sale in St Aubin Sur Gaillon, Fra

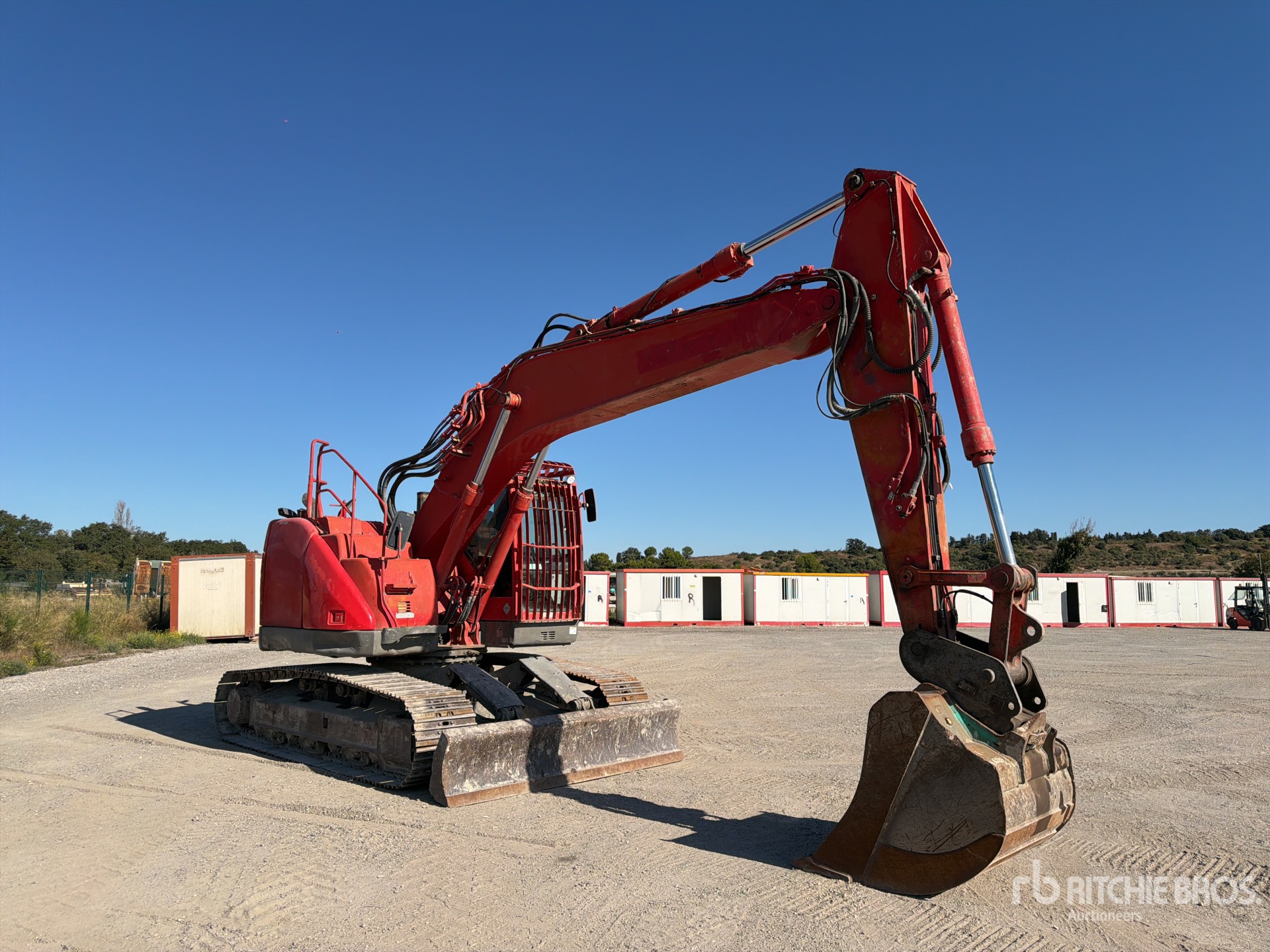

Name: 2016 Case CX235C SR
Brand: Case
SKU: 89237026
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-22 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

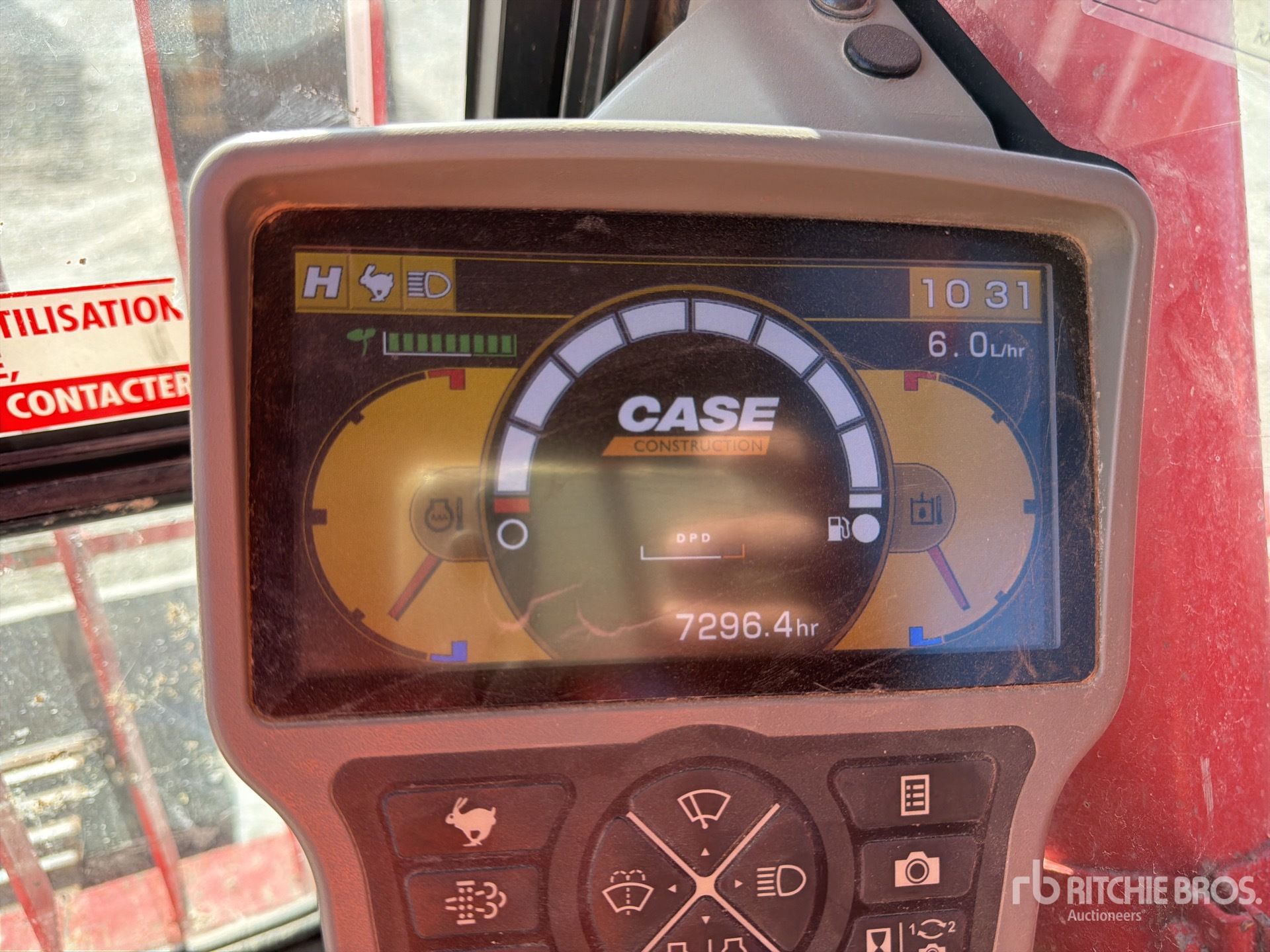

Hours:	7296

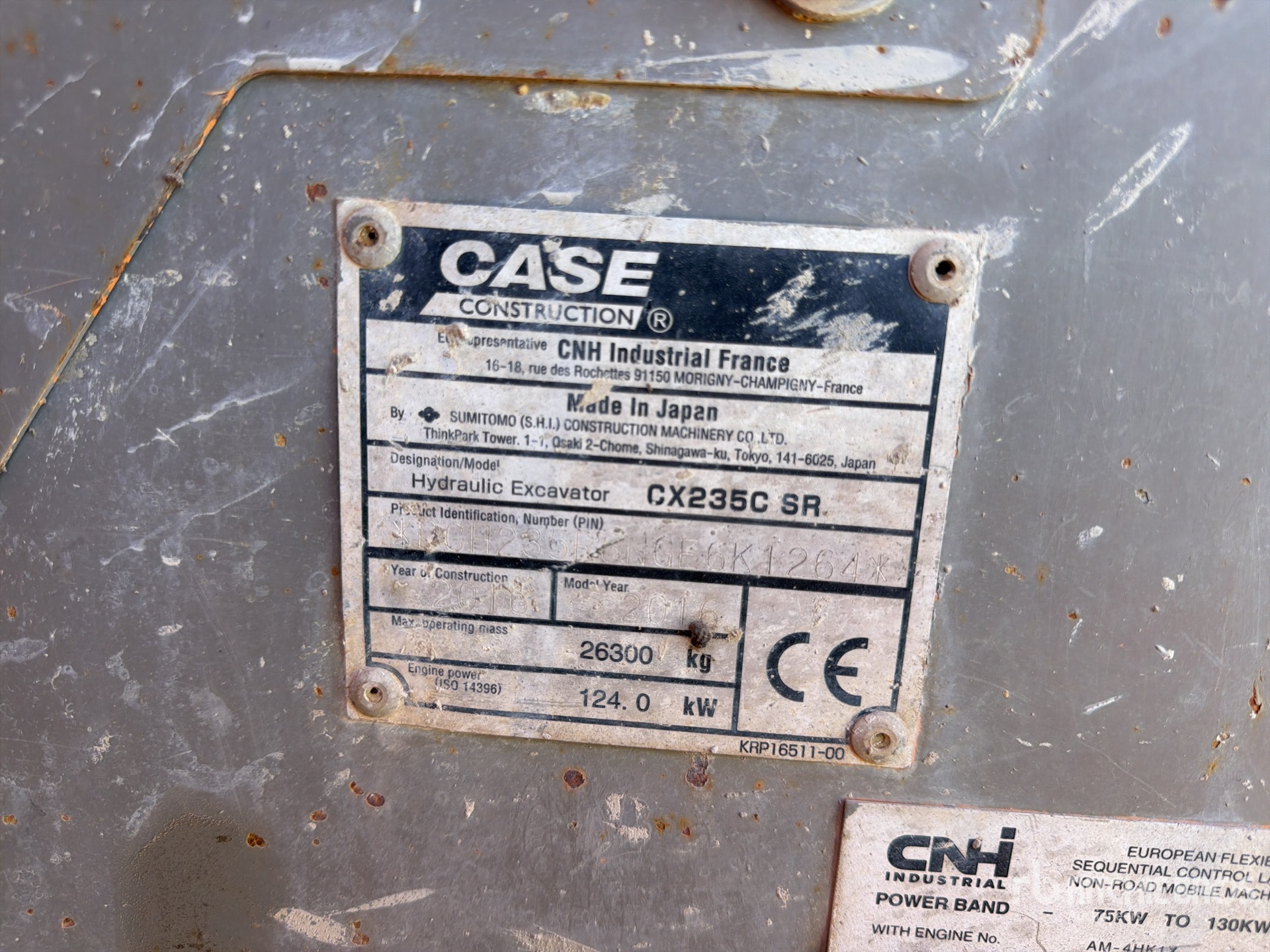

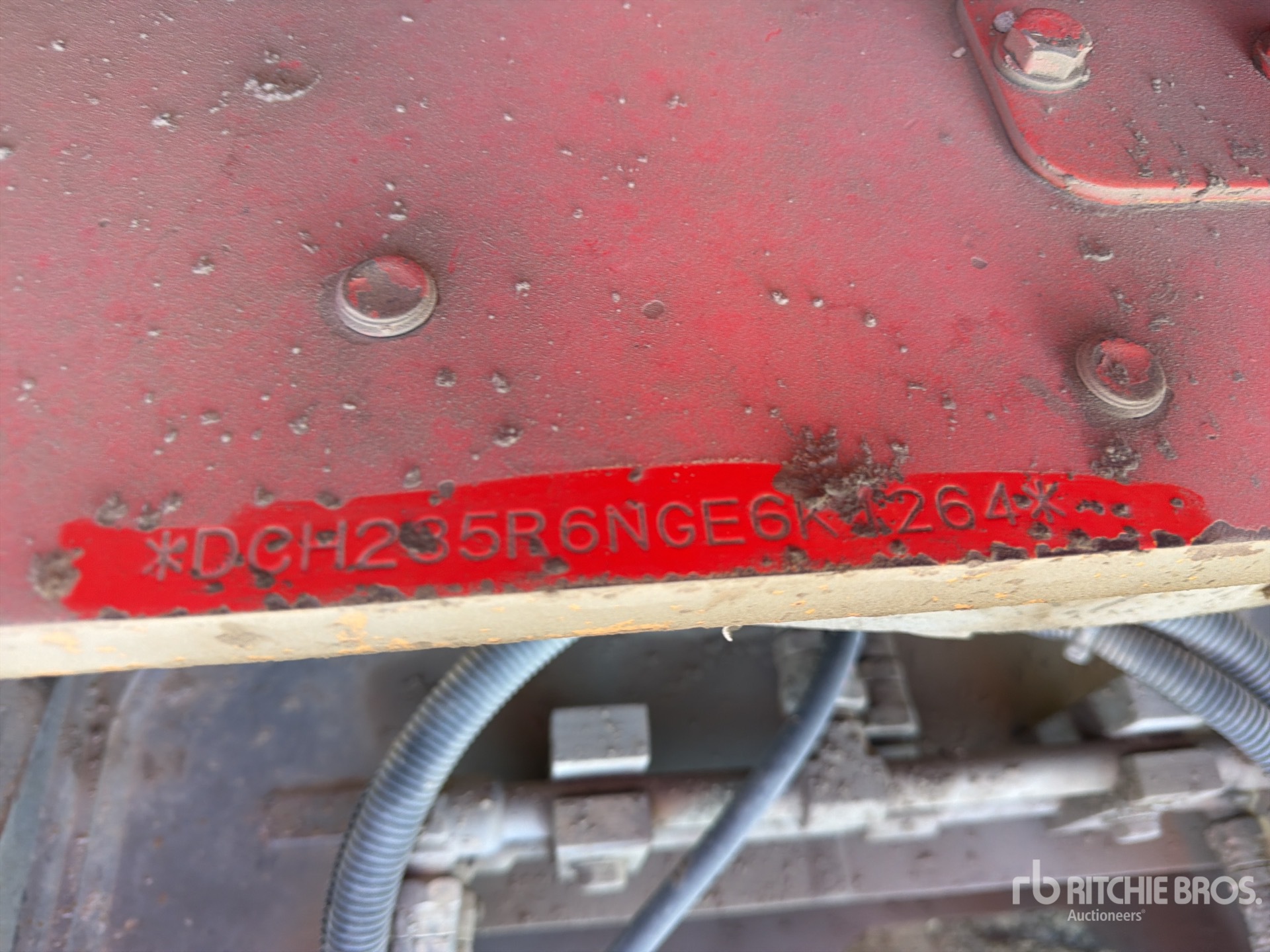

Serial Number:	BCH235R6NGE6K1264
Machine Location:	ST AUBIN SUR GAILLON, FRA

Description:

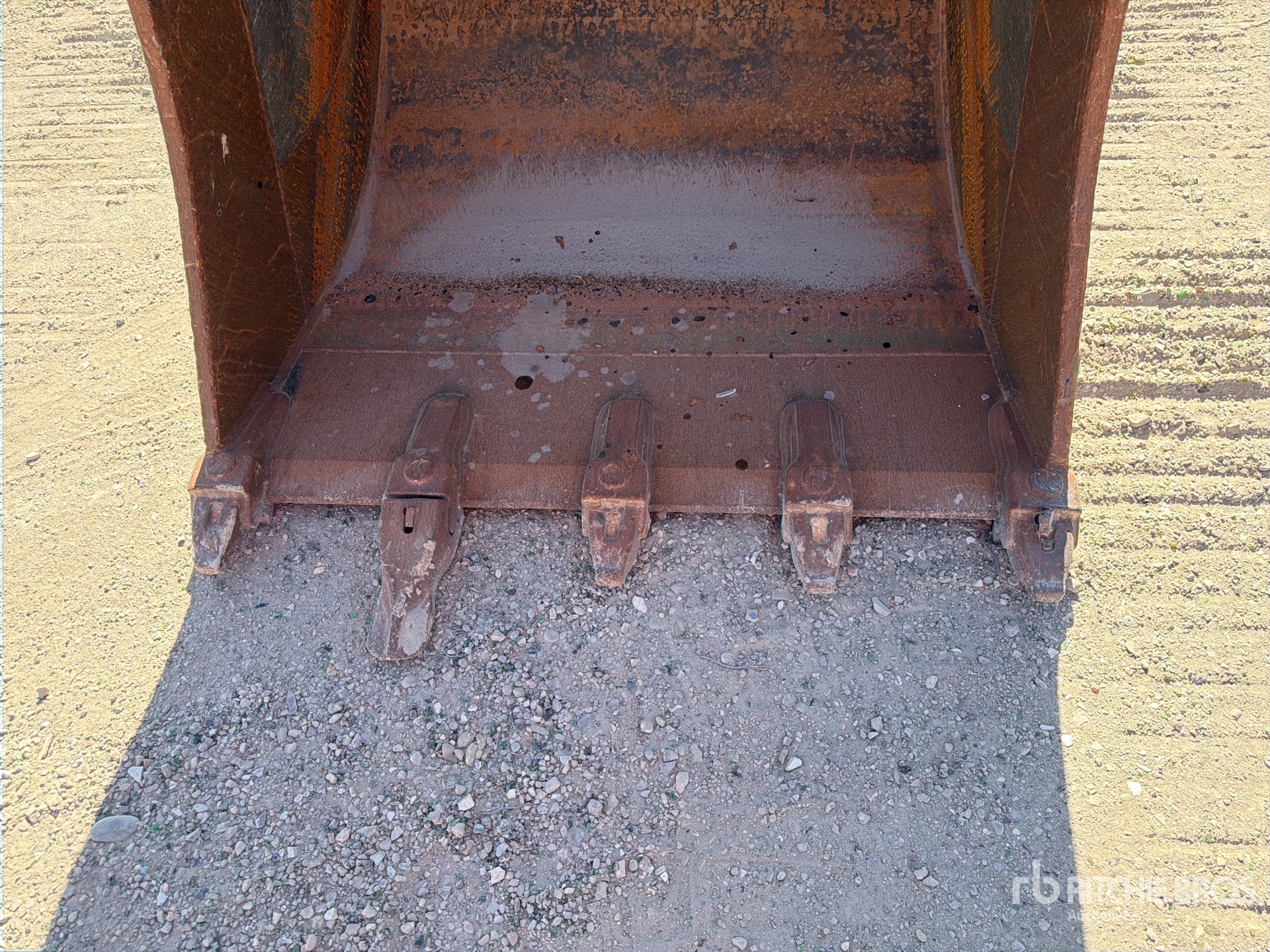

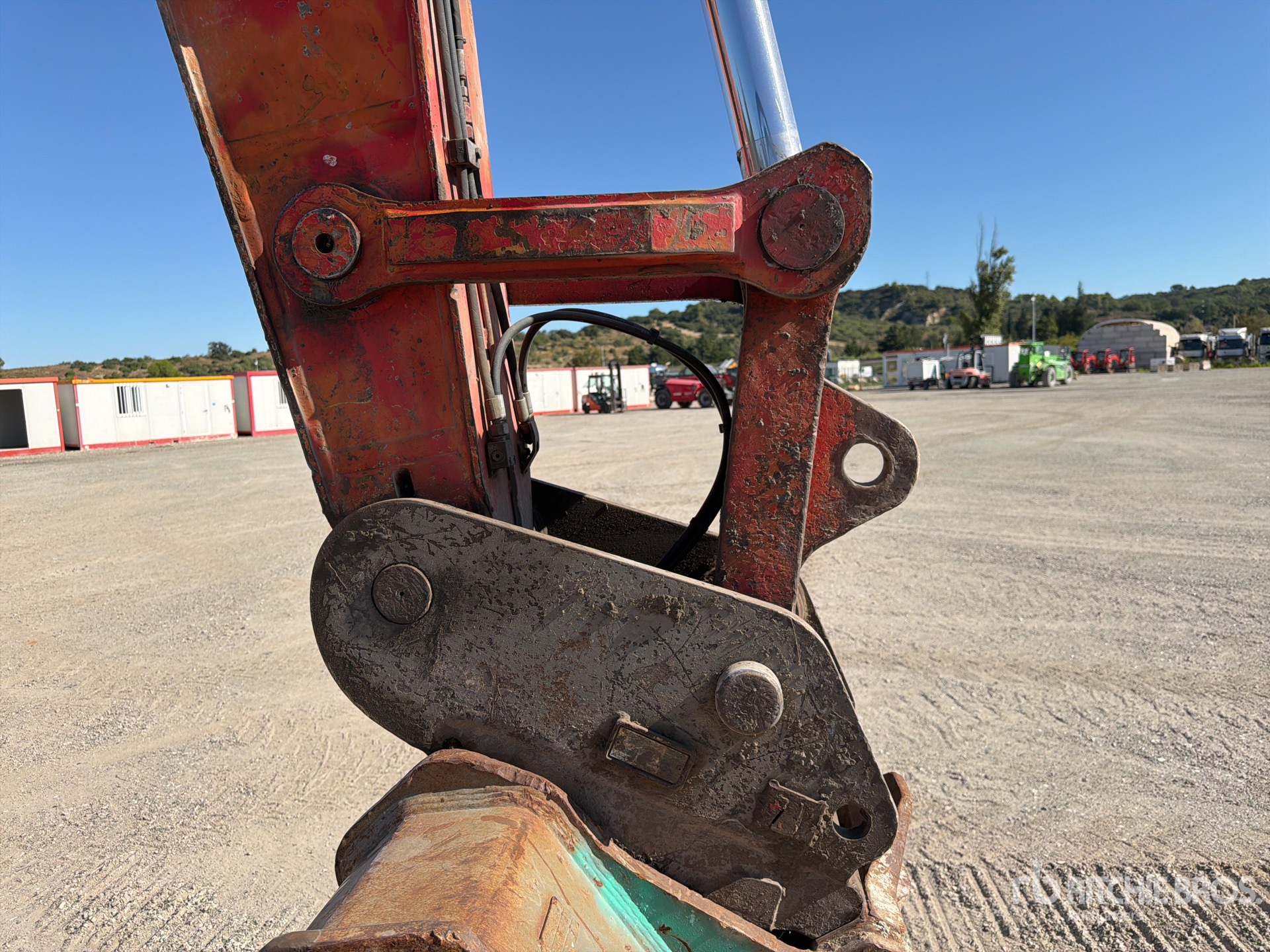

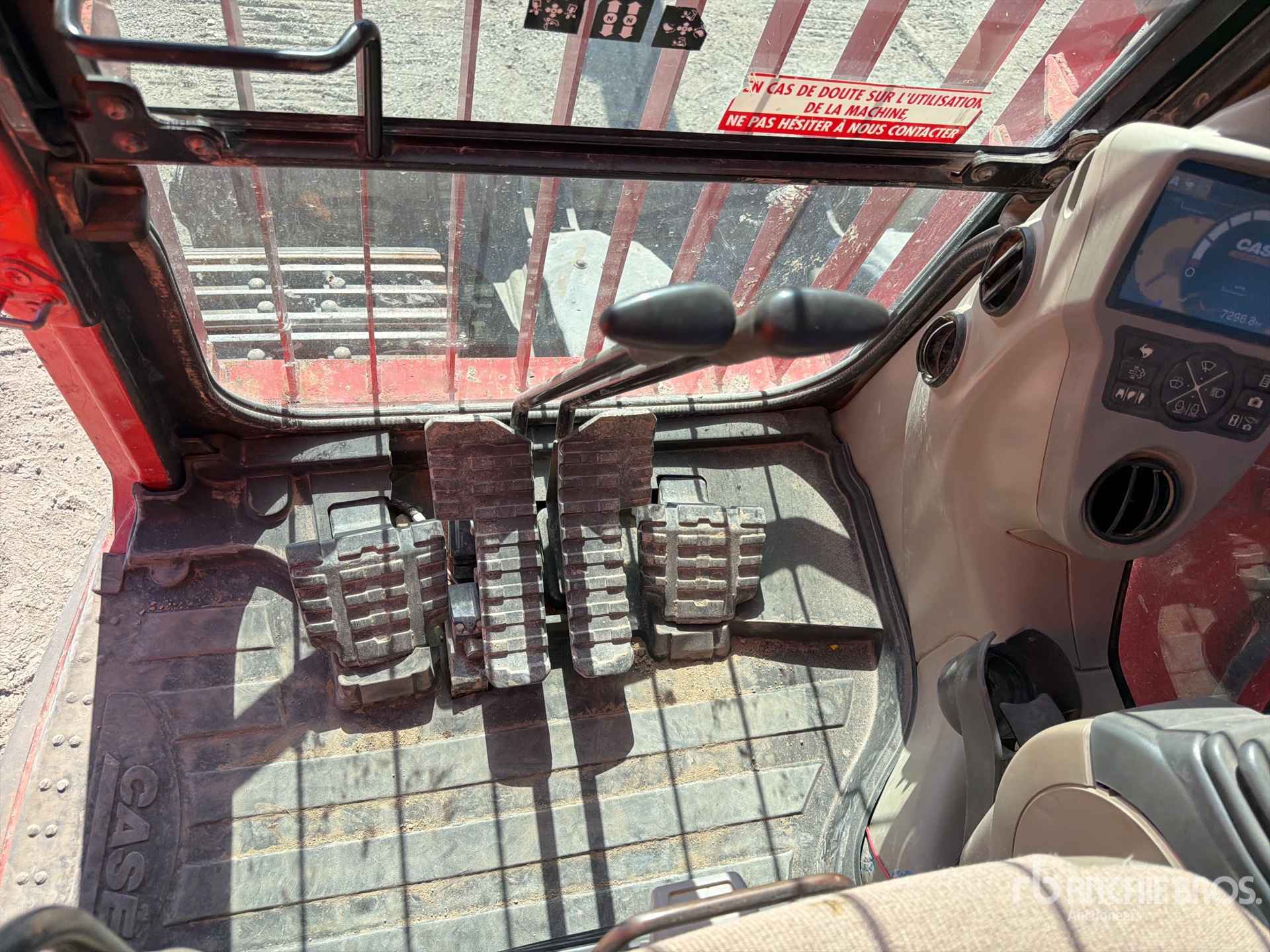

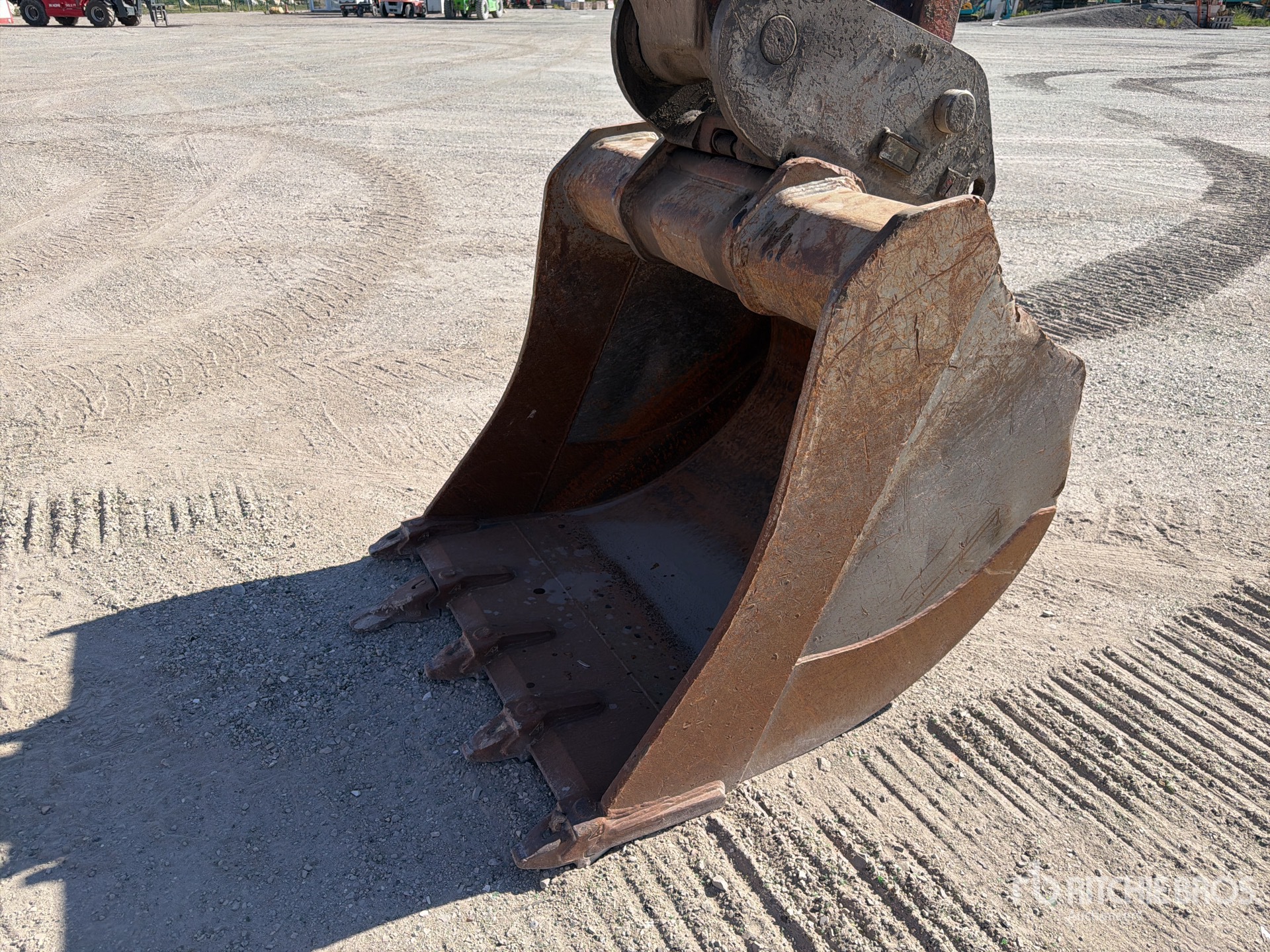

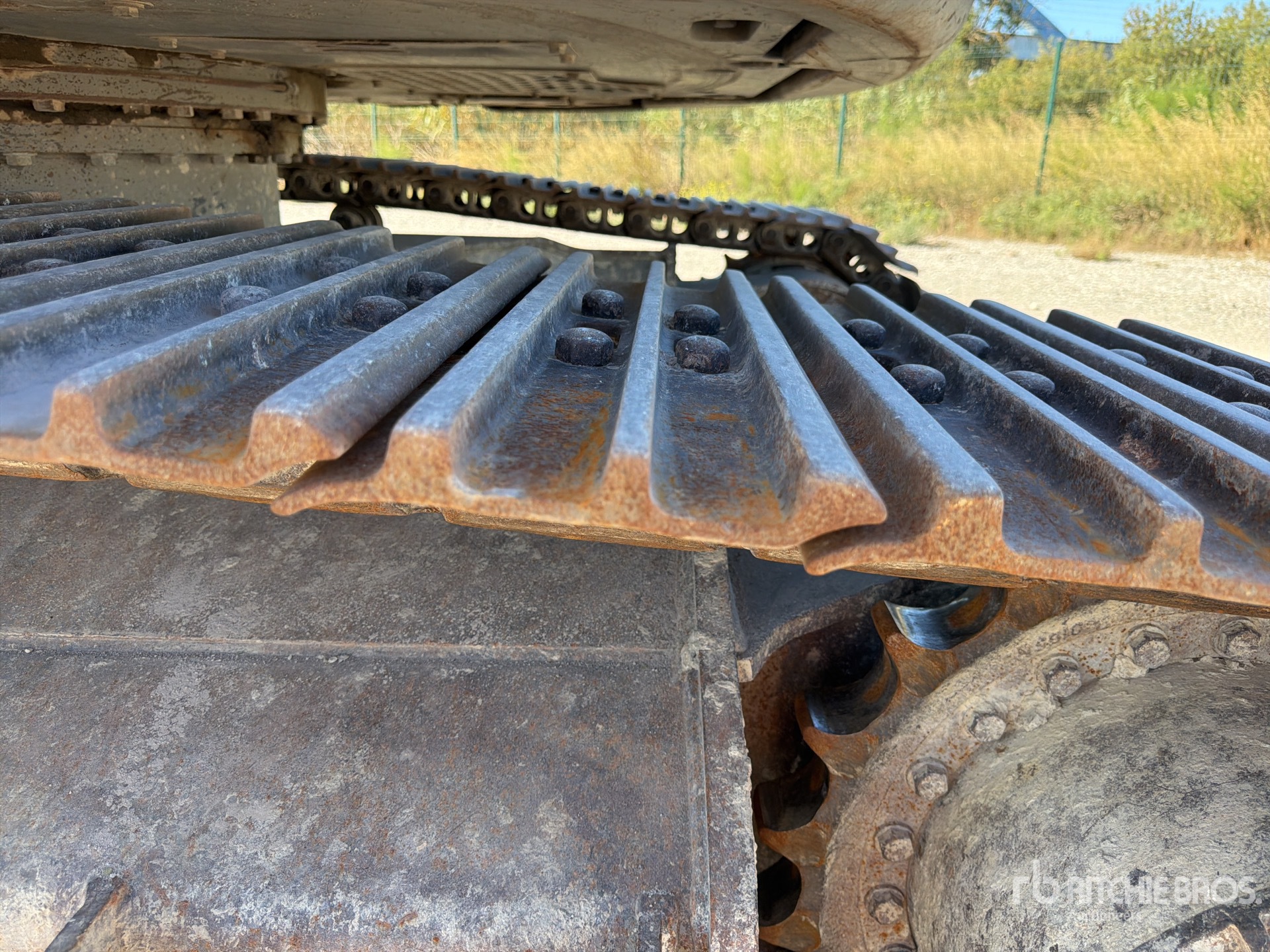

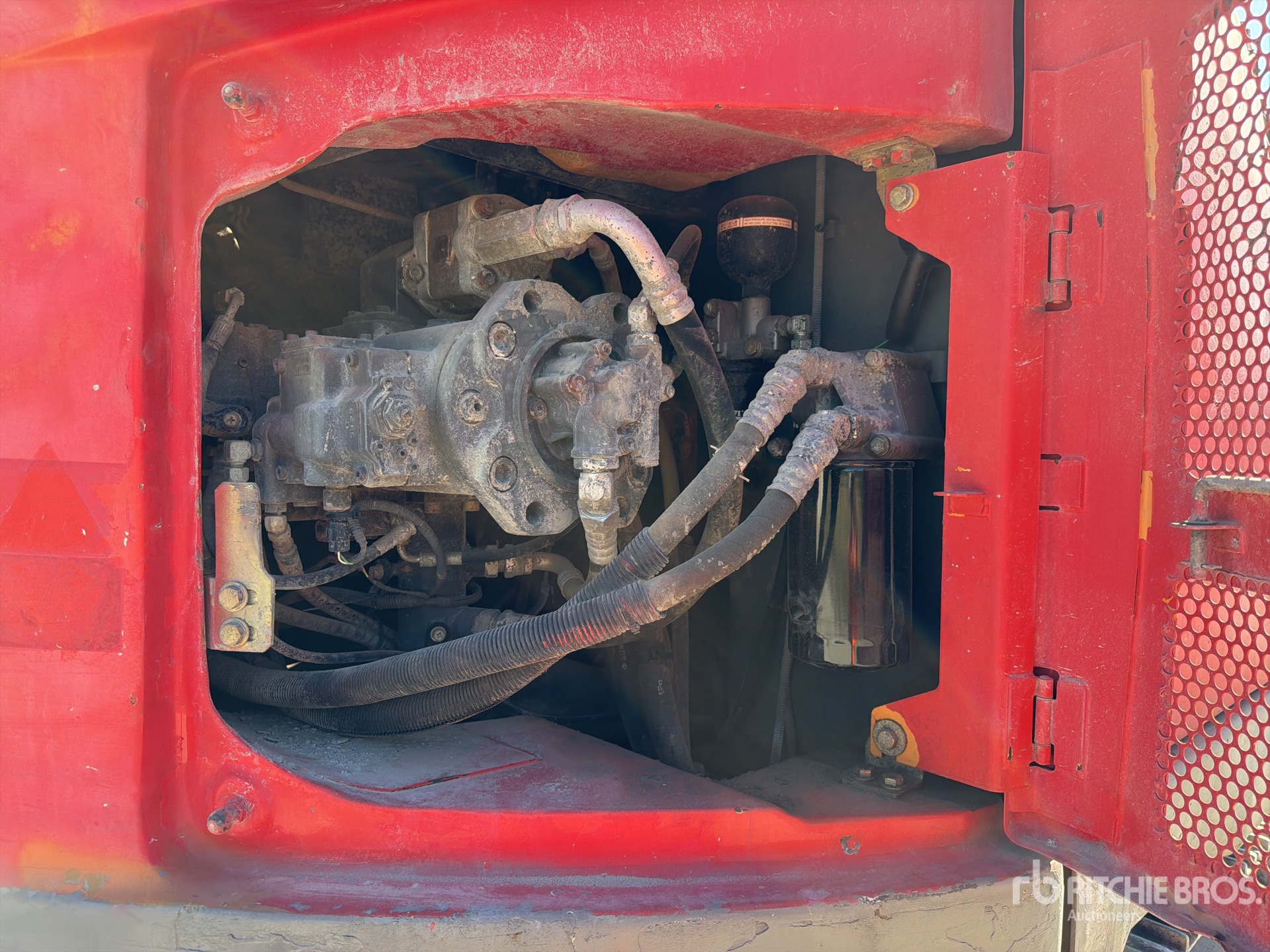

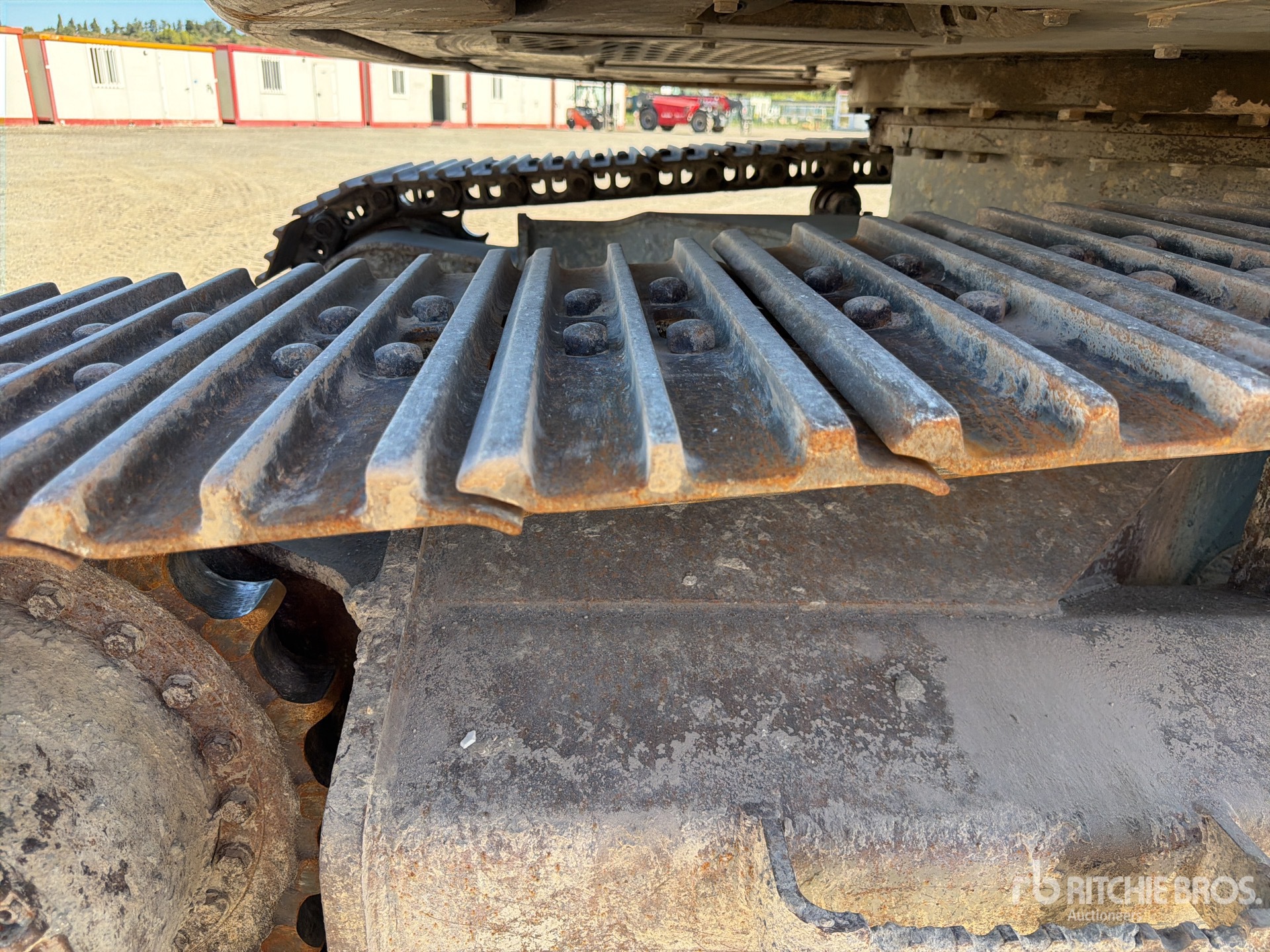

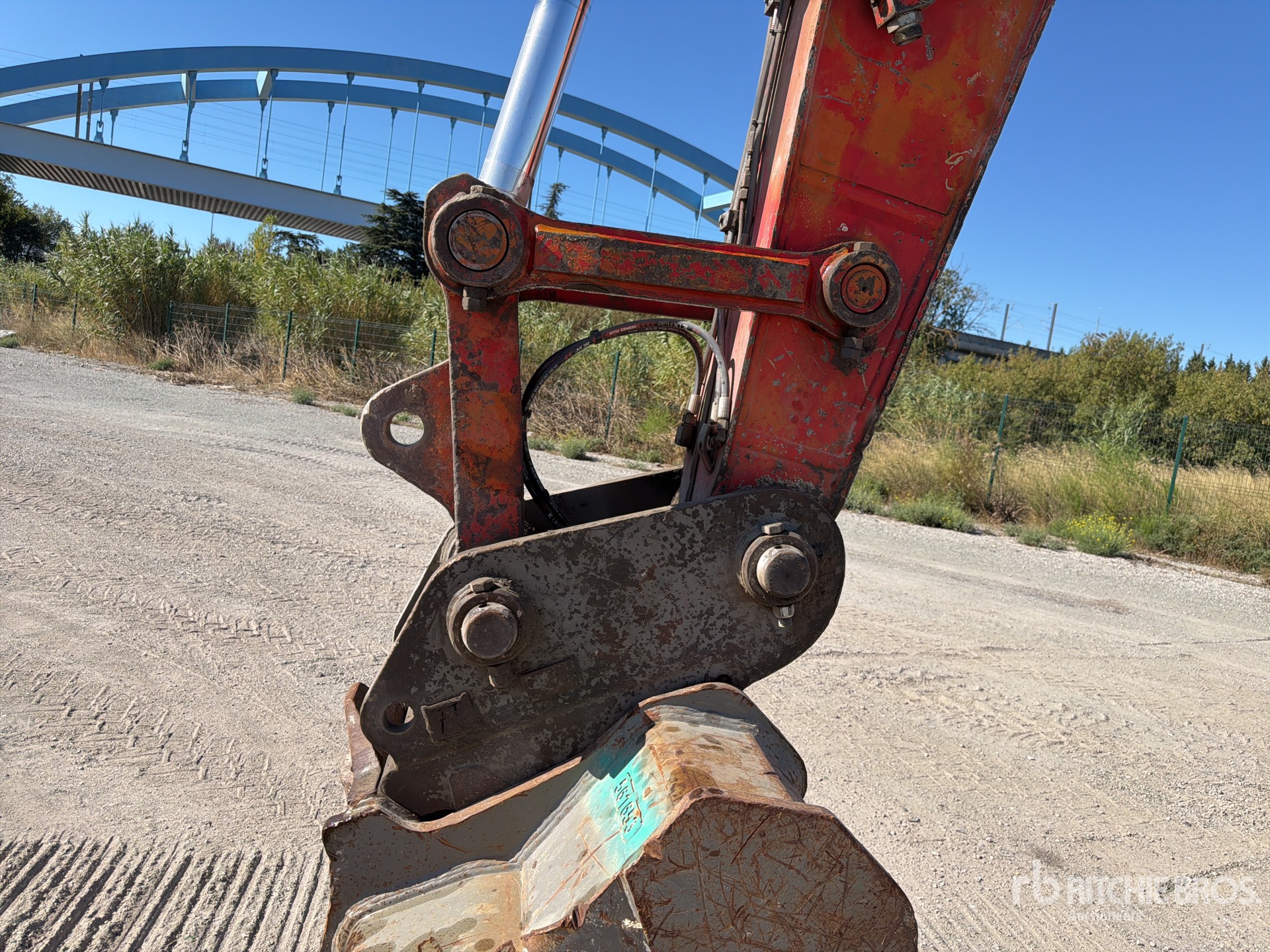

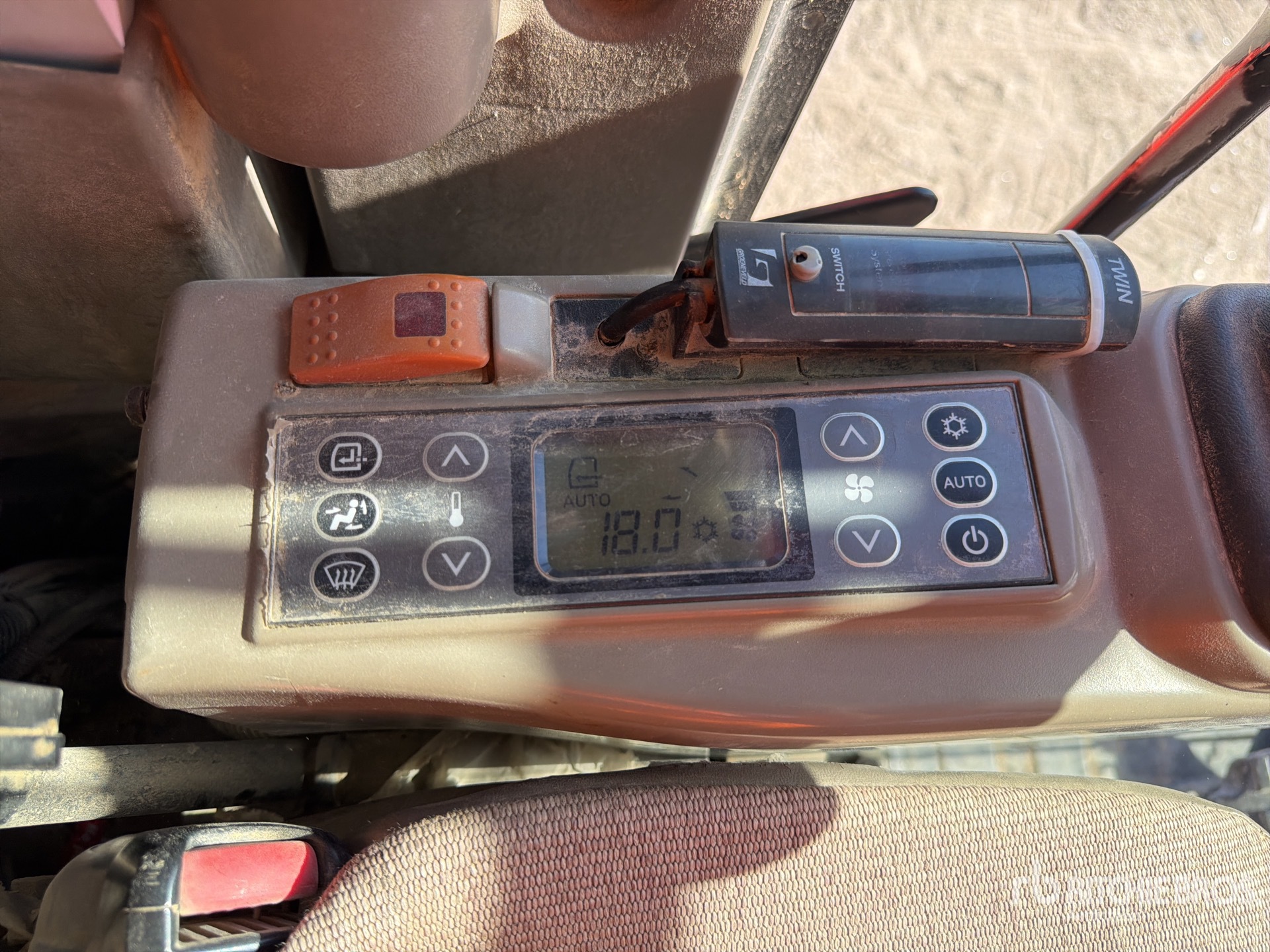

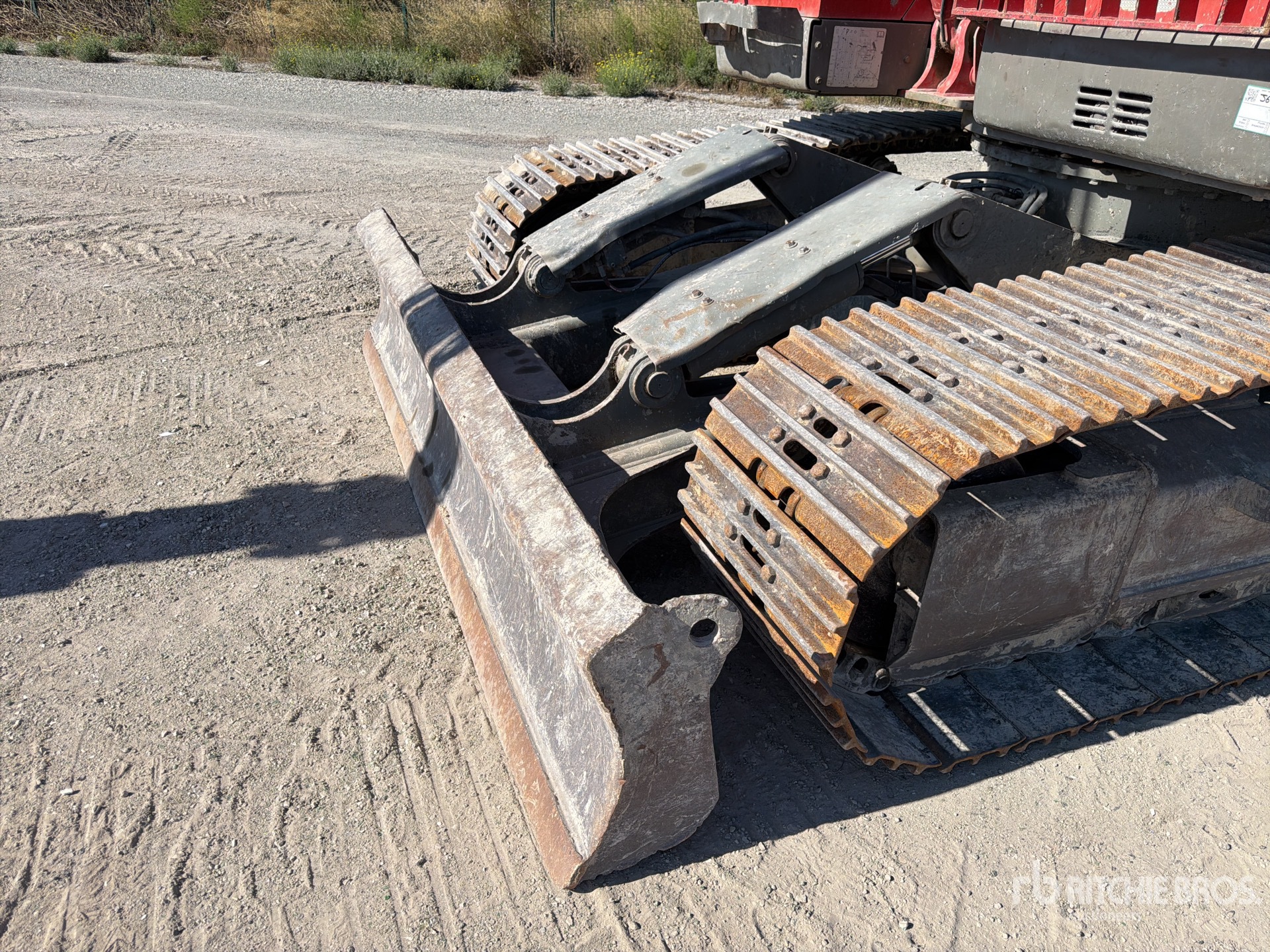

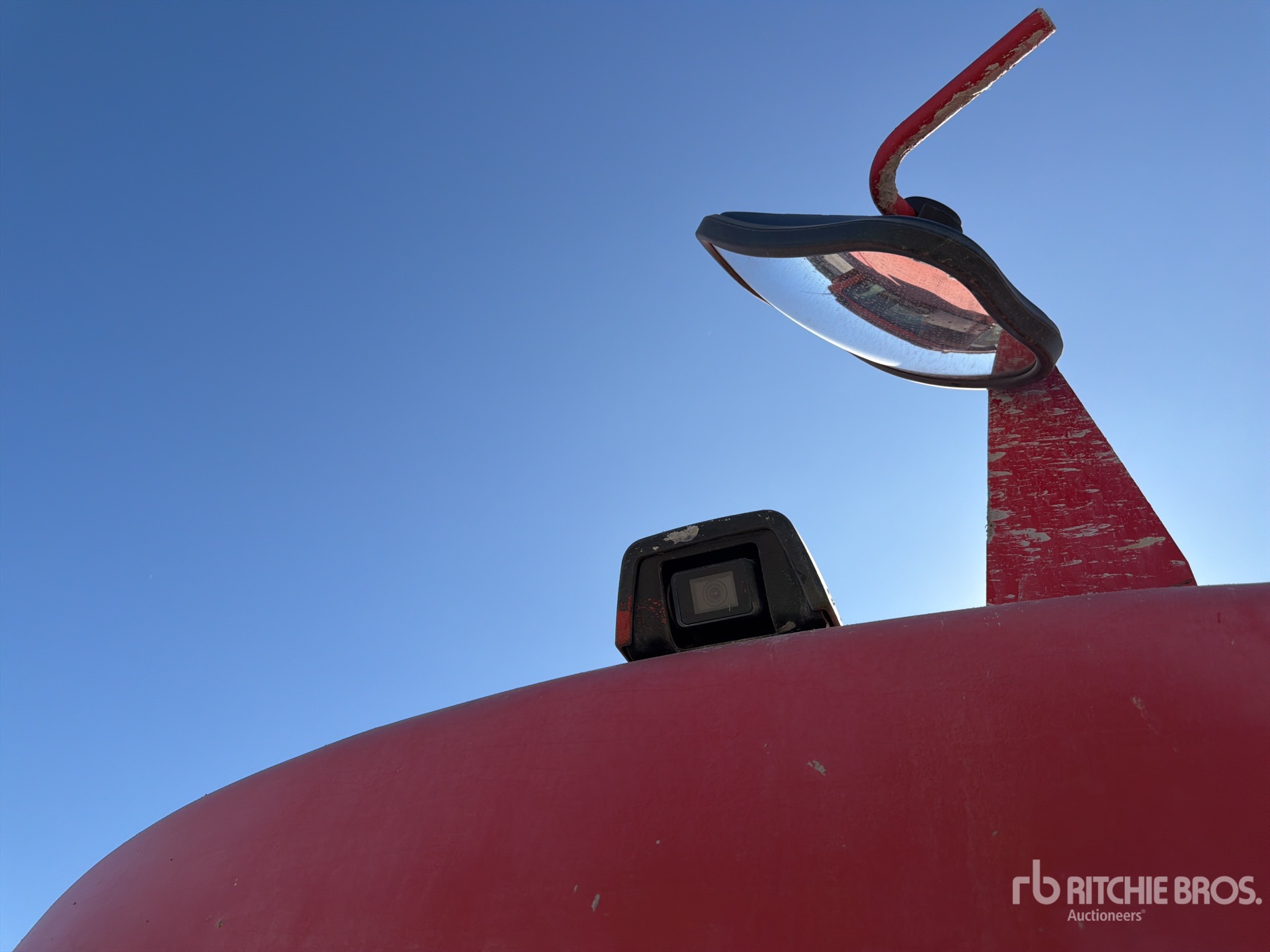

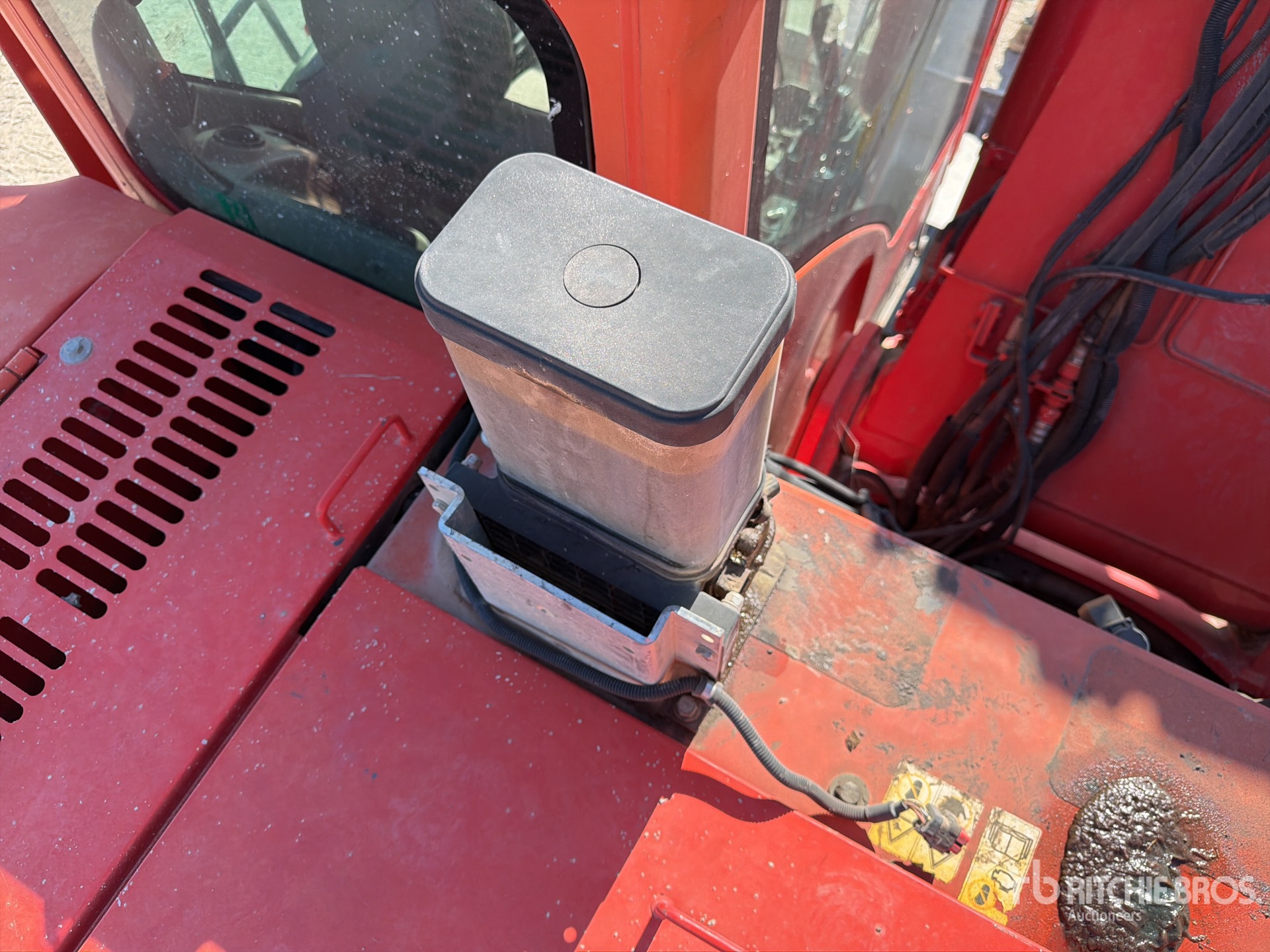

Air Conditioner, Straight Travel Pedal, Cab Screens, Rear & Side View Cameras, 2400 mm Stick, Auxiliary Hydraulic Plumbing, Stick Check Valve, Backfill Blade, 600 mm Triple Grouser Track Shoes, Hydraulic Quick Coupler, Digging Bucket, Auto Lube Closing Time: 2026-09-22 01:39:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick 1
Boom/Stick 1	7 ft 10 in (2.40 m) Arm
Bucket Rotation	177 degrees
Dig Radius At Ground Line	361 in (918 cm)
Dump Height	300 in (763 cm)
Max Digging Depth	20 ft (6 m)
Max Digging Reach On Ground	33 ft (10 m)
Max Vertical Wall Digging Depth	18 ft (5 m)
Max.Dumping Height	22 ft (7 m)
Minimum Swing Radius	100 in (255 cm)
Mximum Dig Radius	369 in (937 cm)
Boom/Stick 2
Boom/Stick 2	9 ft 8 in (2.94 m) Arm
Bucket Rotation	177 degrees
Dig Radius At Ground Line	381 in (967 cm)
Dump Height	314 in (797 cm)
Max Digging Reach	22 ft (7 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Maximum Dig Radius	388 in (985 cm)
Maximum Reach Height	427 in (1,085 cm)
Minimum Swing Radius	91 in (231 cm)
Brakes
Brakes Type	Mechanical disc
Service Brake	SAHR disc – each motor
Travel Control	Dual stage relief or counter balance design
Capacities
Cooling System	8 gal (31 l)
Engine Oil W/ Filter Change	6 gal (23 l)
Final Drive	1 gal (5 l)
Fuel Tank	85 gal (320 l)
Hydraulic System	67 gal (252 l)
Hydraulic Tank	30 gal (114 l)
Swing Drive	1 gal (5 l)
Dimensions
Boom Length	19 ft (6 m)
Cab Height	120 in (304 cm)
Center To Center – Idler To Sprocket	12 ft (4 m)
Ground Clearance	2 ft (0 m)
Ground Pressure	6 psi
Minimum Ground Clearance	17 in (44 cm)
Overall Height	11 ft (3 m)
Tail Swing Radius	10 ft (3 m)

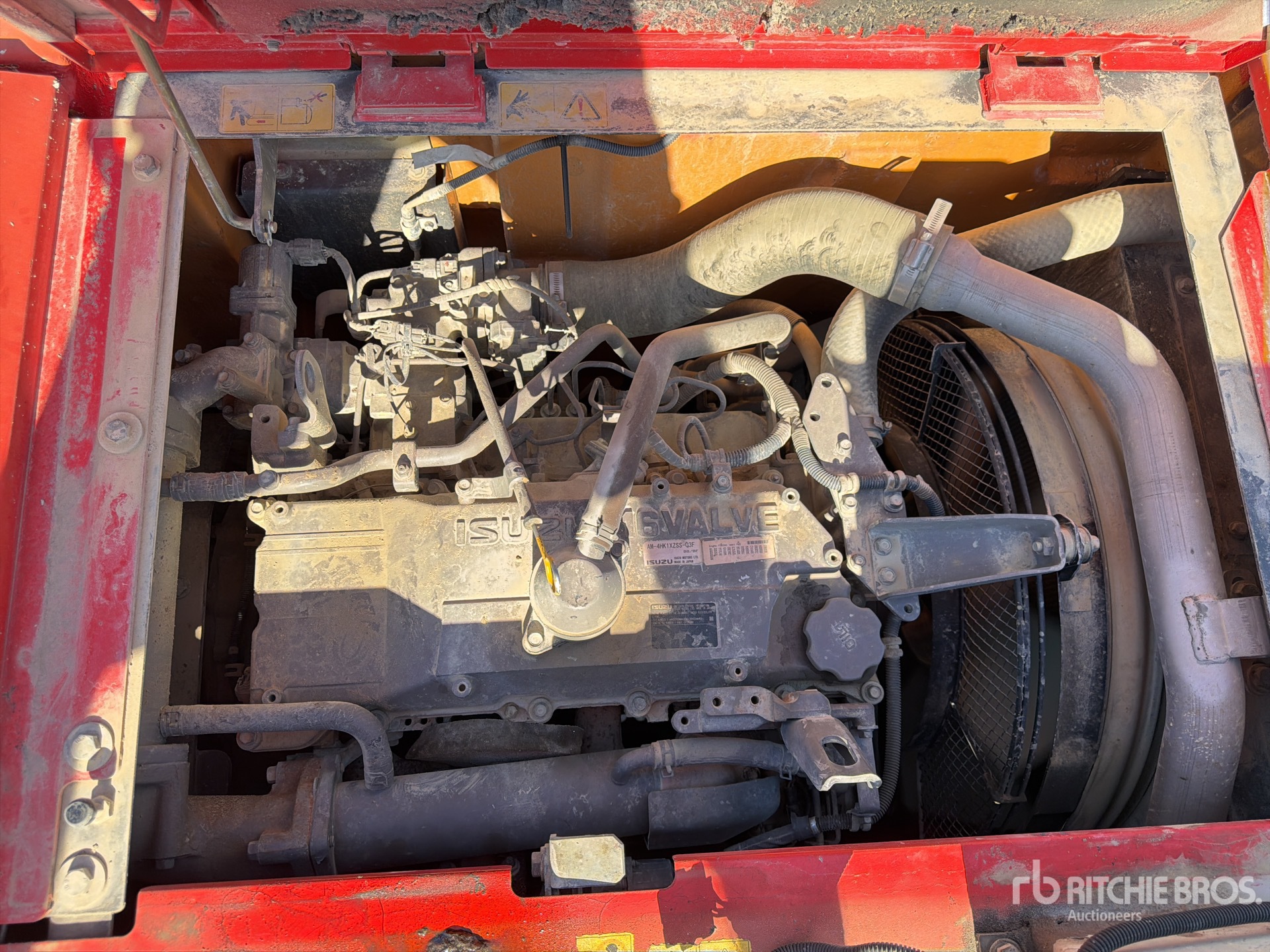

Engine

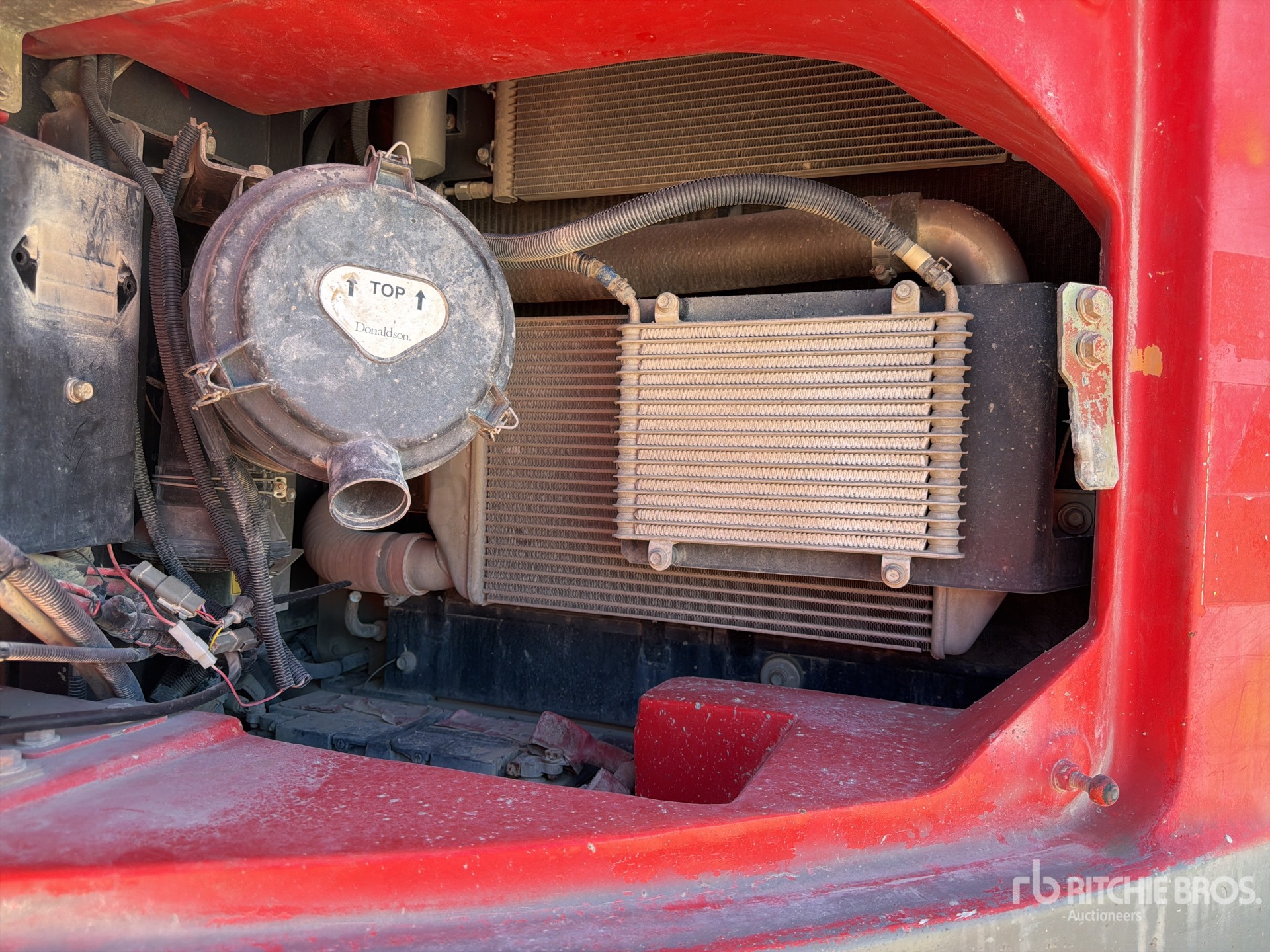

Air Filter Type	Dry type element with warning restriction indicator
Bore	5 in (12 cm)
Displacement	952 cu in (15,601 cu cm)
Emission Tier Level	Interim Tier 4
Engine Model	Isuzu 4 HKIX
Fuel Filter	Replaceable, full flow spin-on cartridge
Fuel Injection	Direct injection – electronic
Fuel Type	Requires ultra-low sulfur fuel B5 biodiesel tolerant
Max Torque	265 lbs ft (359 nm)
Net Power	177 hp (132 kw)
Number Of Cylinders	4
Oil Filter	Replaceable, full flow spin-on cartridge
Power Measured @	2,000 rpm
Stroke	5 in (13 cm)
Hydraulic System
Main Pump - Maximum Flow	124 gpm (468 lpm)
System Relief Pressure	4,970 psi
Operational
Arm Breakout Force	14,837 lbs (6,730 kg)
Arm Size	9,843 ft (3,000 m)
Operating Weight	55,336 lbs (25,100 kg)
Performance
Lift Over End 10\' Radius - Lbs (Kg)	20,172 lbs (9,150 kg)
Lift Over End Max. Reach	5,864 lbs (2,660 kg)
Lift Over Side 10\' Radius	20,172 lbs (9,150 kg)
Lift Over Side Max. Reach	5,864 lbs (2,660 kg)
Swing Mechanism
Swing Speed	11 rpm
Transmission
Max Speed	4 mph (6 kph)

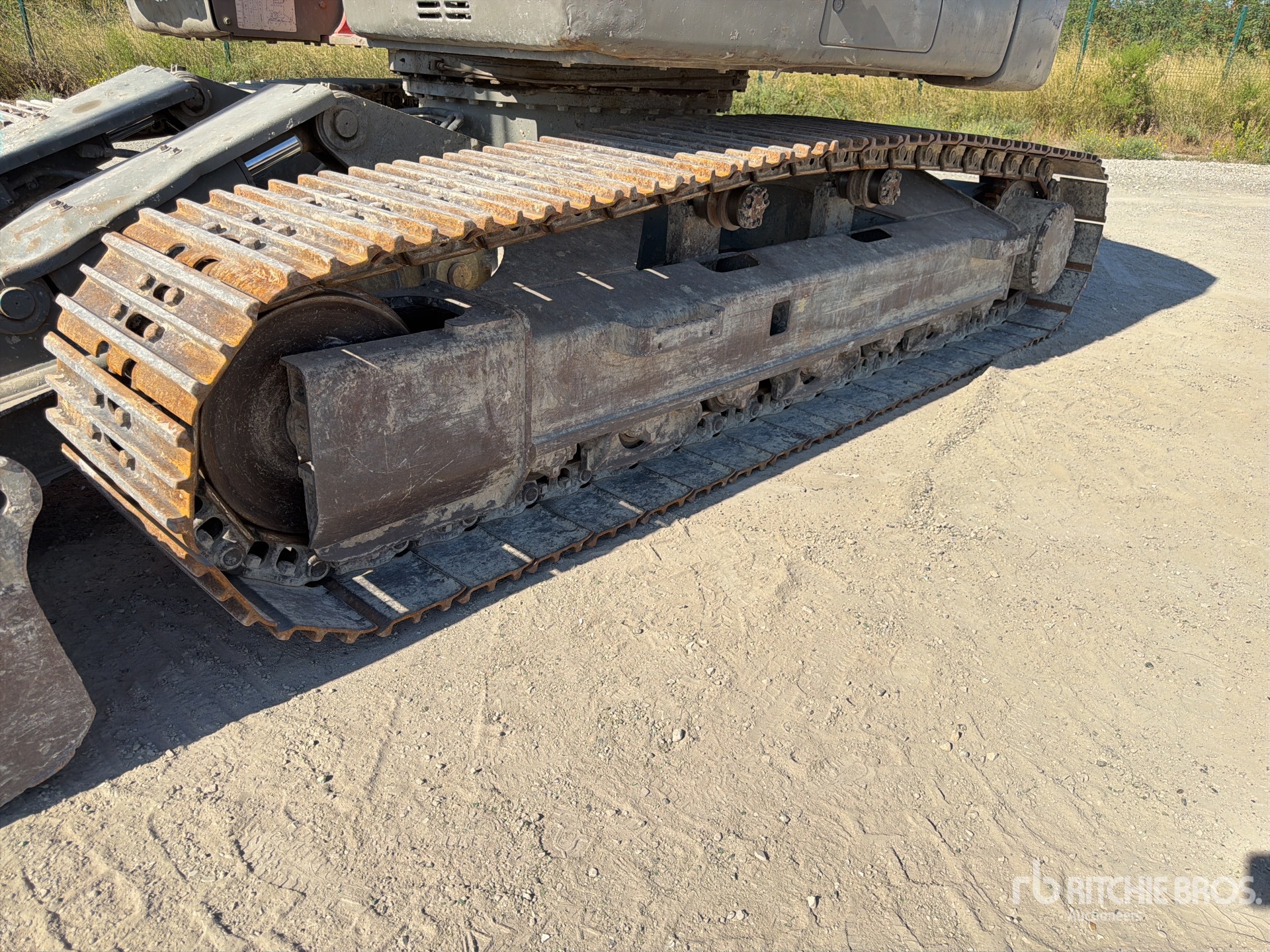

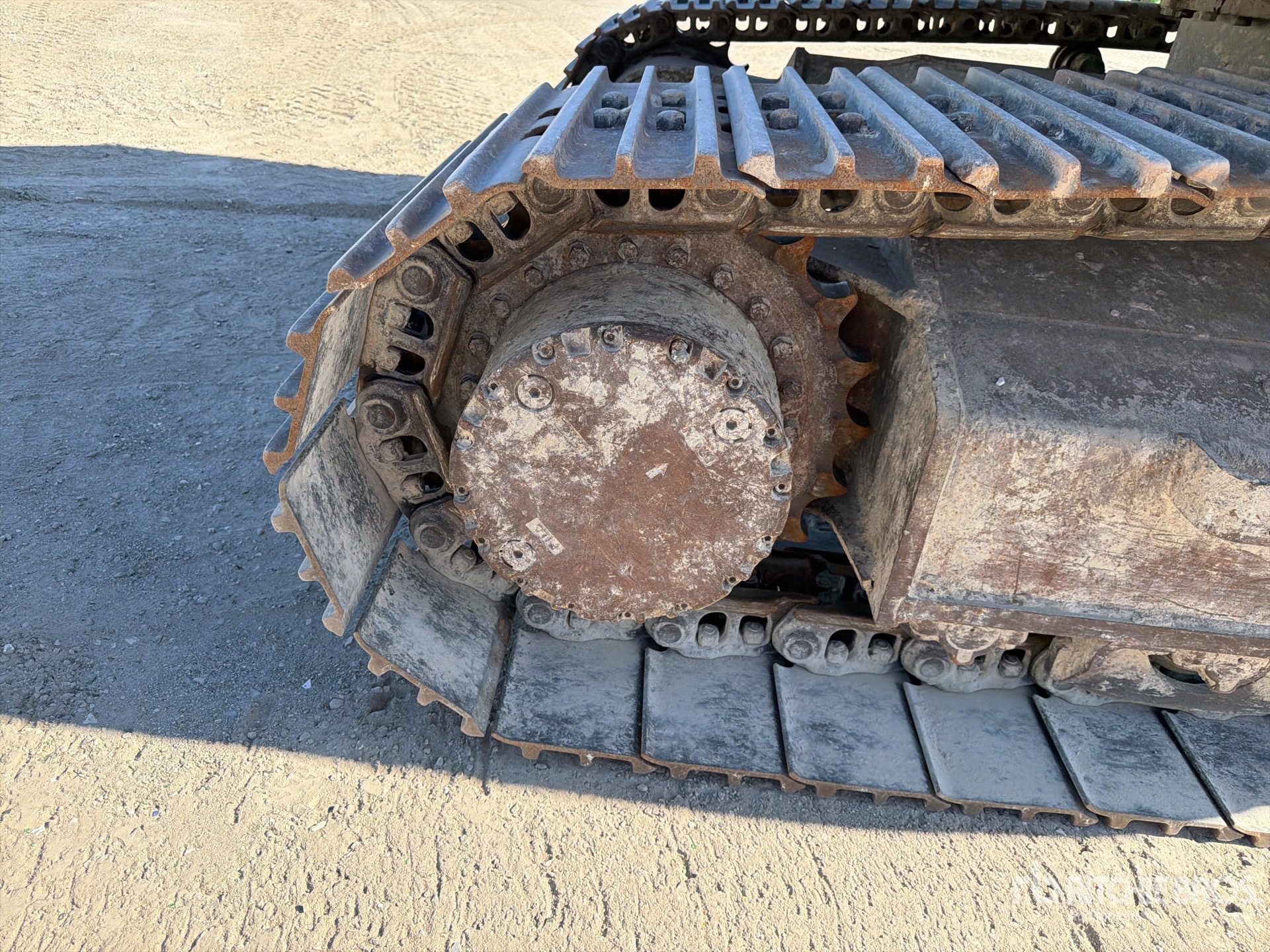

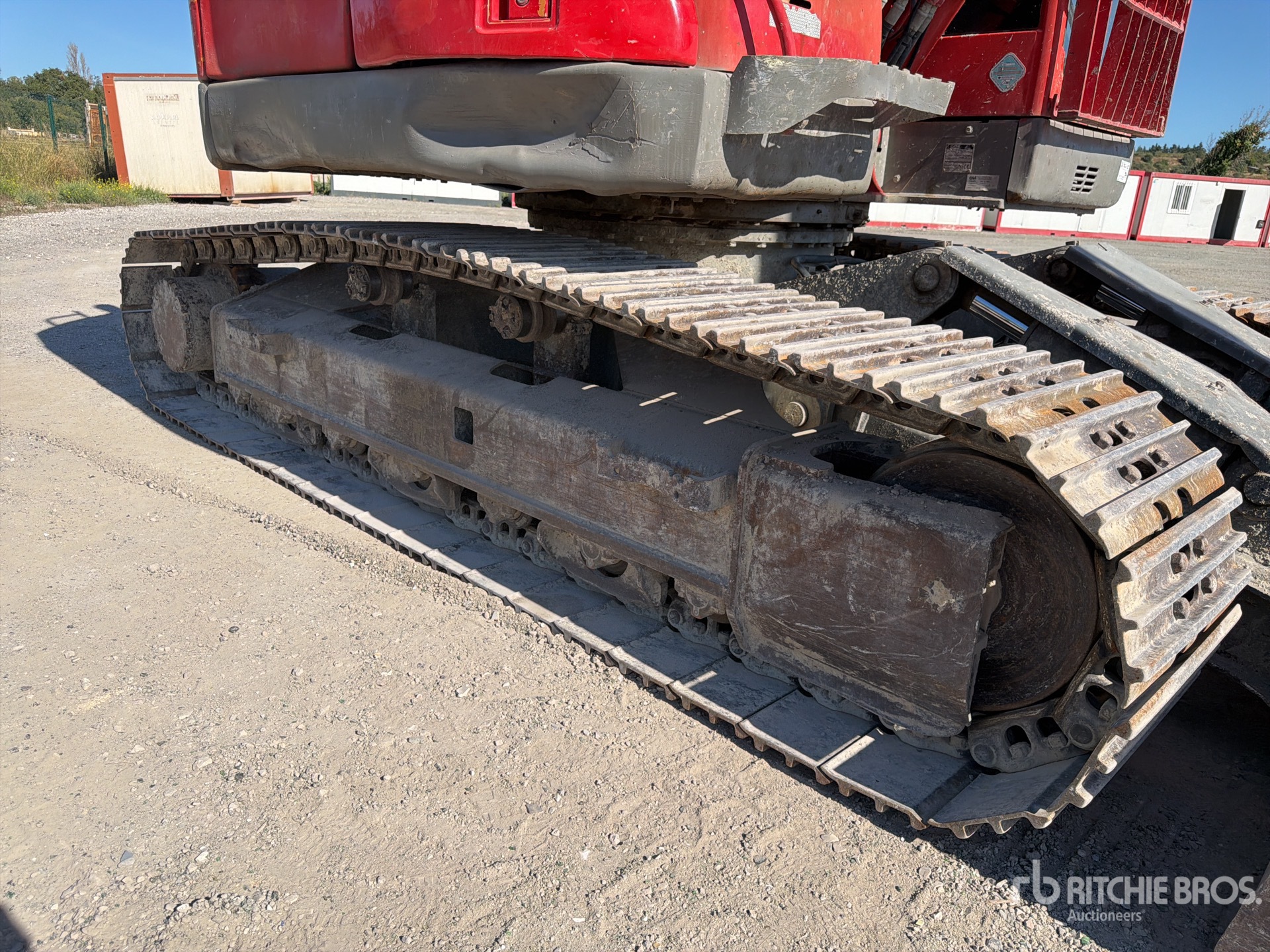

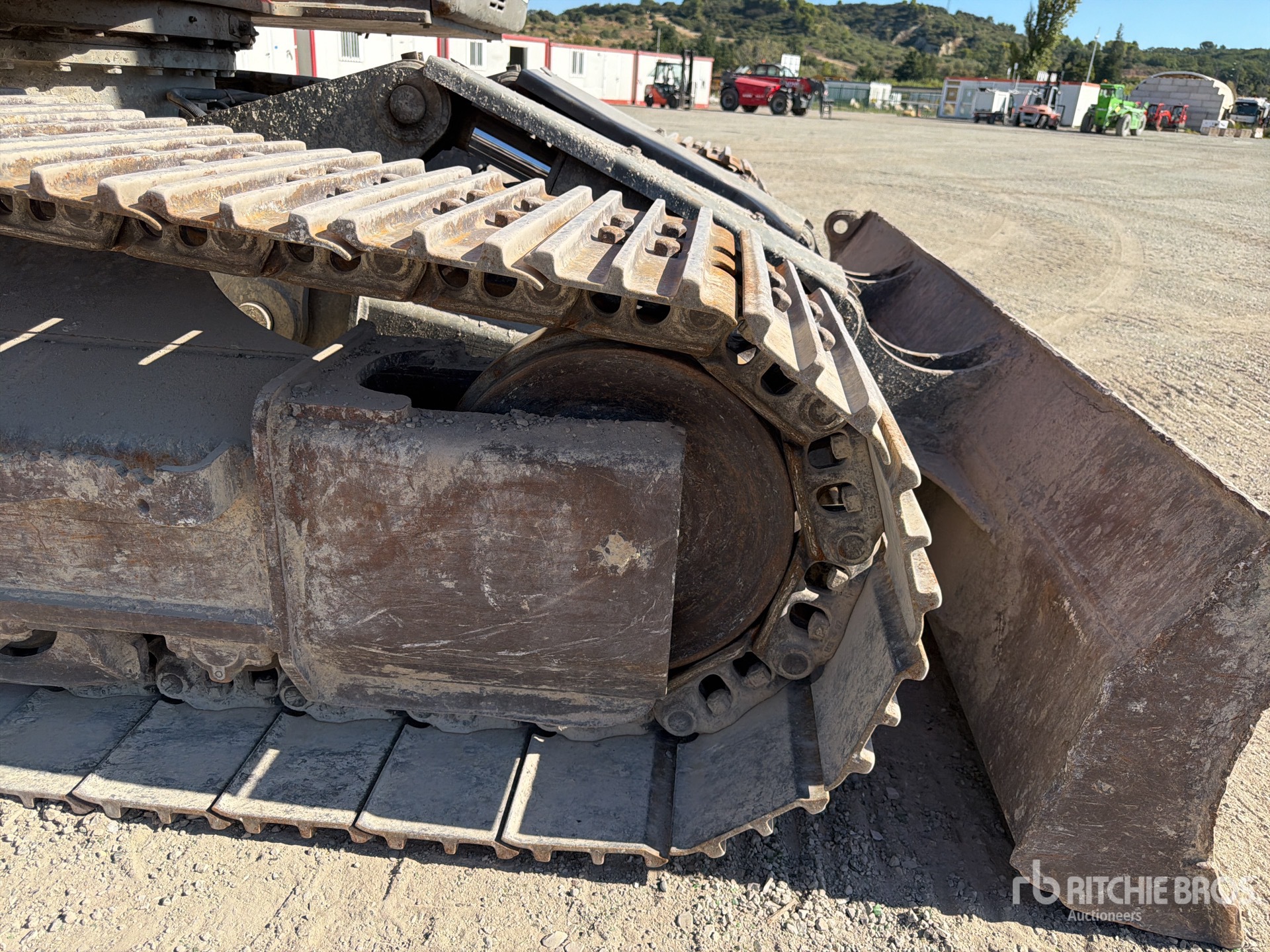

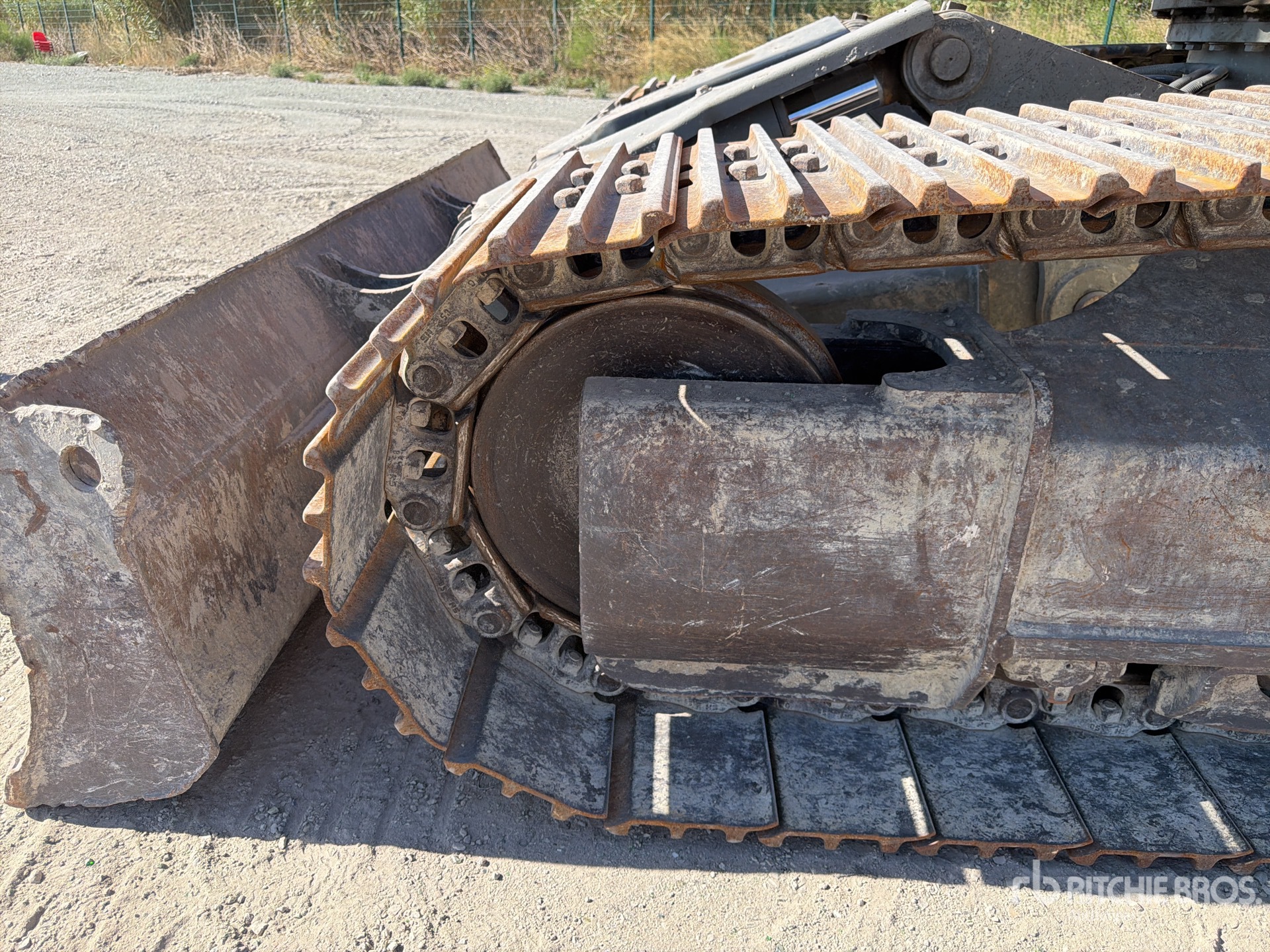

Undercarriage
Track Shoe Width	24 in (60 cm)
Weights
Counterweight	8,157 lbs (3,700 kg)
