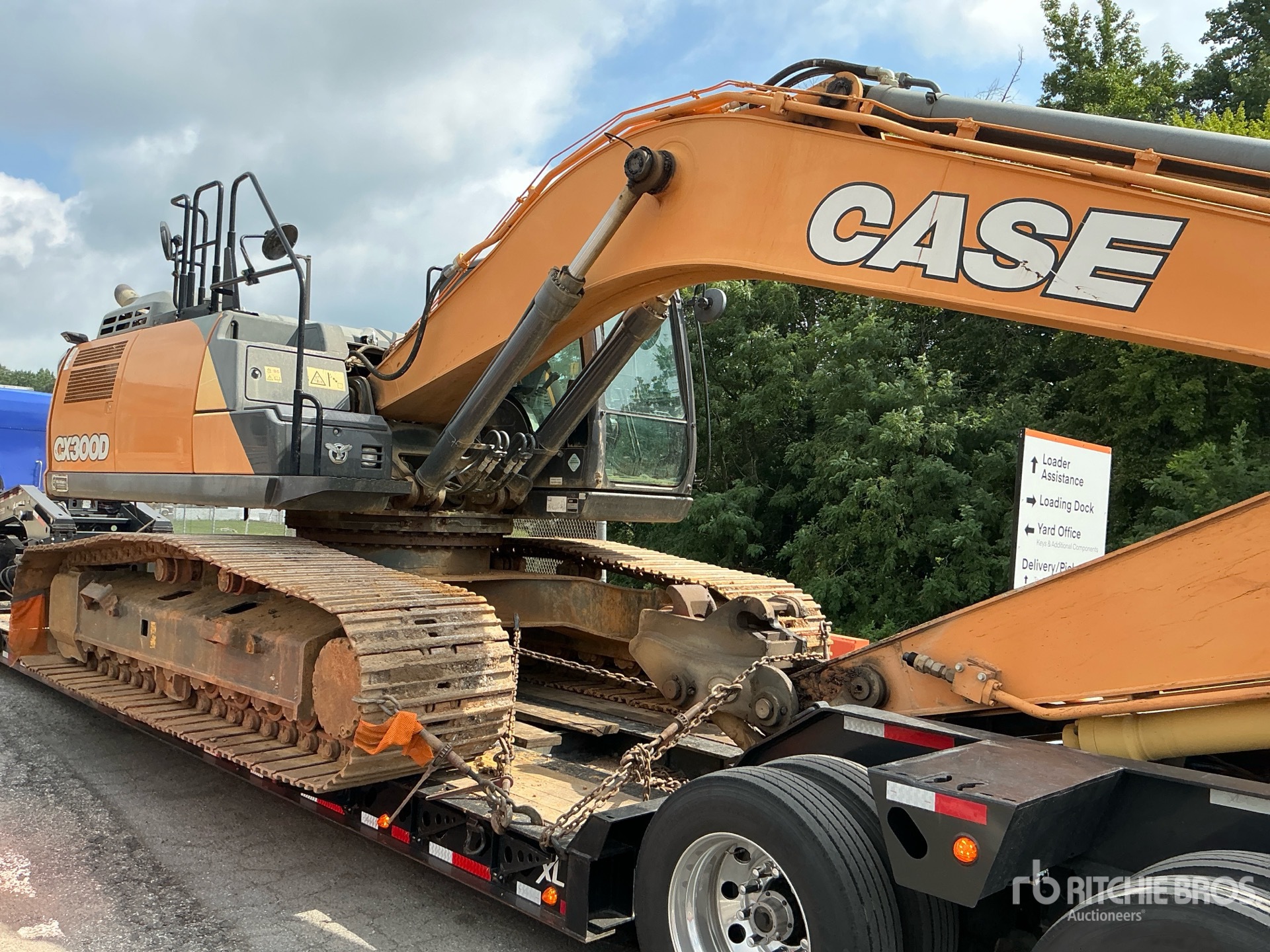

2019 Case CX300D For Sale in North East, Md

Name: 2019 Case CX300D
Brand: Case
SKU: 88941726
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-15 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	5859

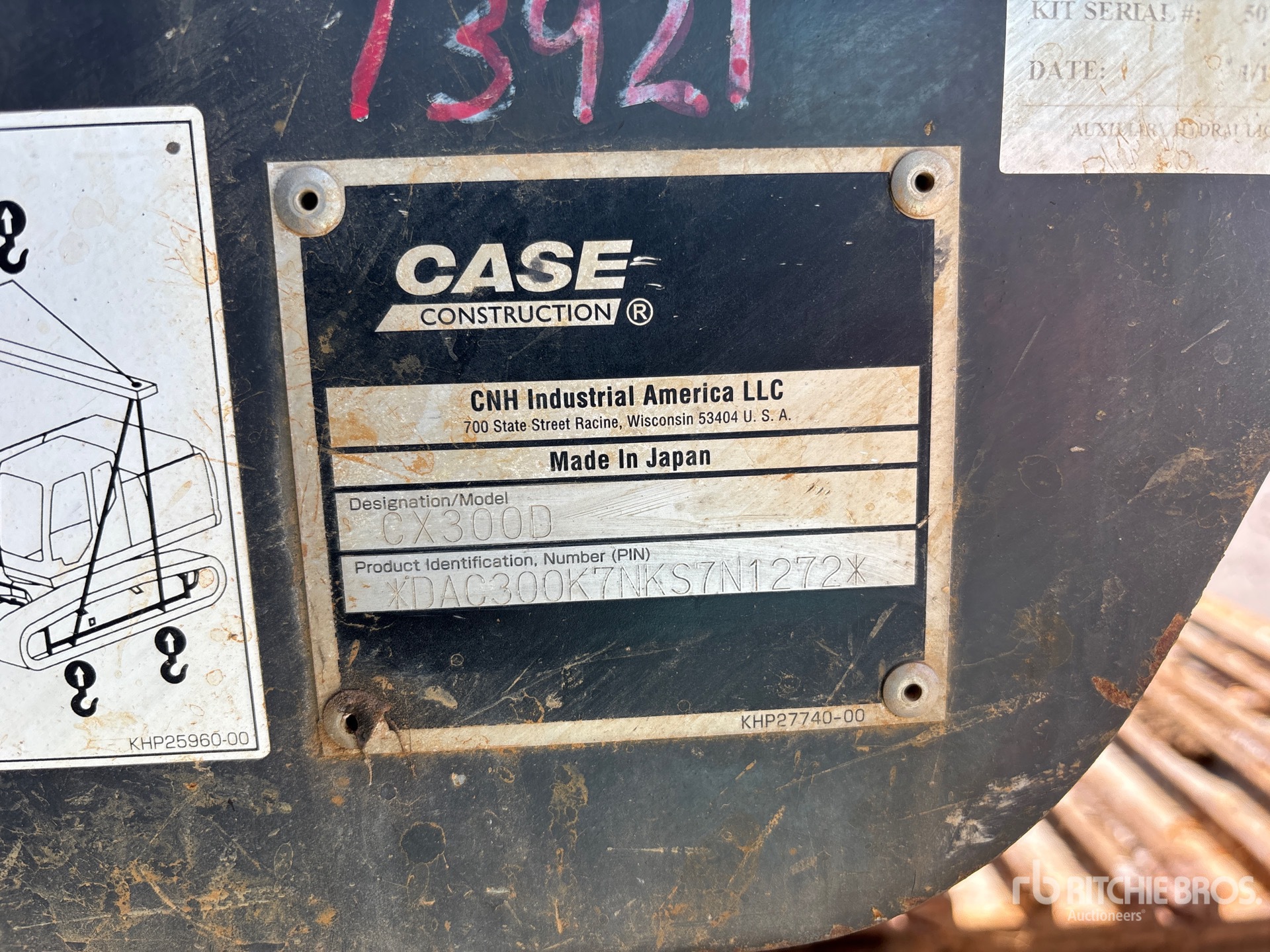

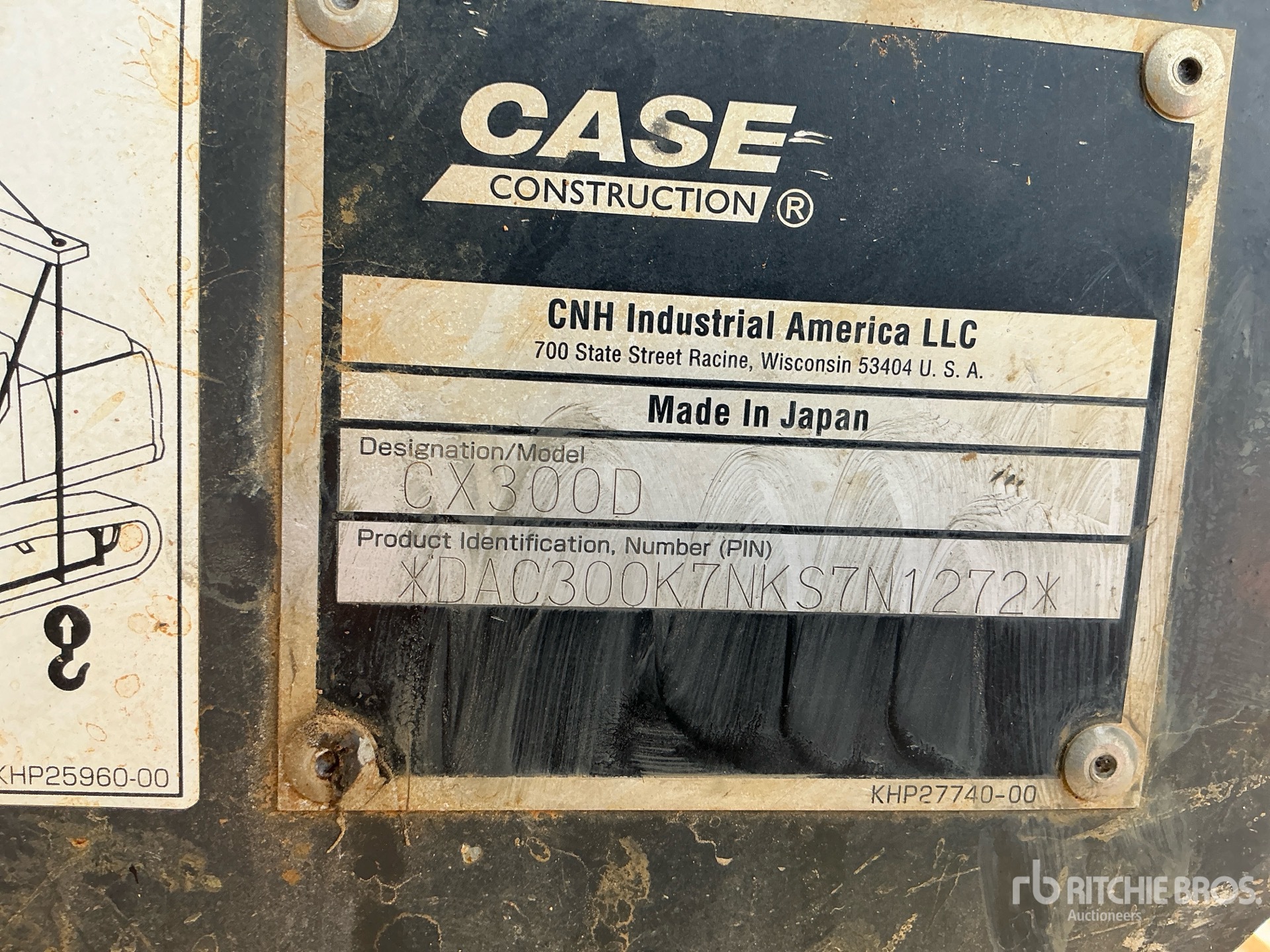

Serial Number:	DAC300K7NKS7N1272
Machine Location:	NORTH EAST, MD

Description:

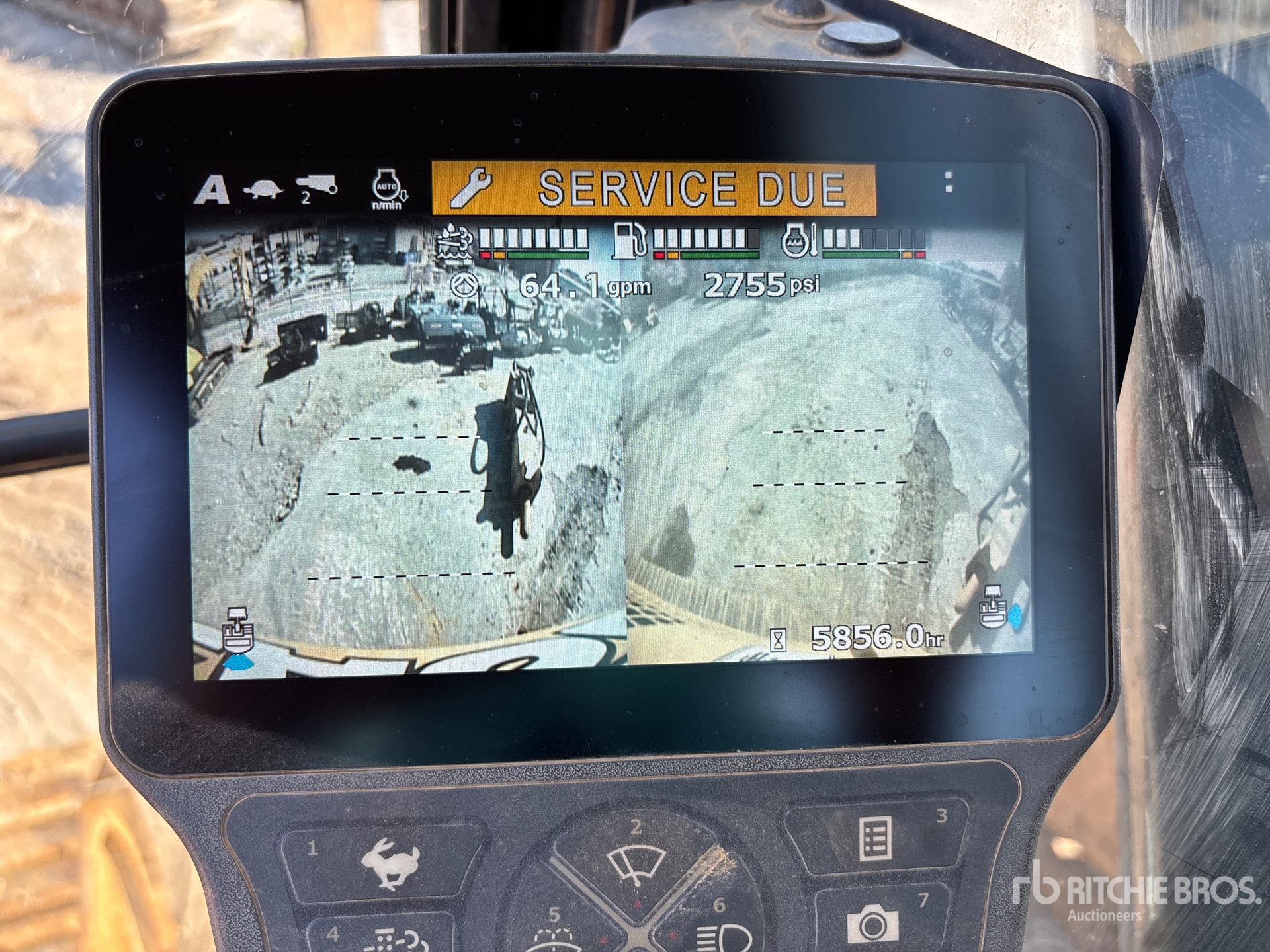

Air Conditioner, Straight Travel Pedal, Rear & Side View Cameras, 2019 US EPA Label, 128 in Stick, Auxiliary Hydraulic Plumbing, 32 in Triple Grouser Track Shoes, Hydraulic Quick Coupler, Equipment-from-Core-Equipment-Group Closing Time: 2026-09-15 07:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case CX300D is a hydraulic excavator in Case Construction Equipment's CX-D series. It is designed for general earthmoving, site preparation, utility work, trenching, and material handling. The CX300D is typically equipped with a diesel engine, hydraulic system, boom and arm configurations, and an operator cab with controls for digging and loading applications. As a mid-size excavator, it is used on construction, infrastructure, and excavation projects where reach, digging depth, and lifting capability are required. Specifications can vary by market, year, and attachment package, including bucket options, undercarriage type, and auxiliary hydraulic features.

Boom/Stick Excavator Option 1
Bucket rotation	176 degrees
Dig radius at ground line	413 in (1,049 cm)
Dump height	279 in (708 cm)
Max Digging Depth	23 ft (7 m)
Max Reach Along Ground	35 ft (11 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Max.Dumping Height	23 ft (7 m)
Minimum swing radius	159 in (403 cm)
Mximum dig radius	420 in (1,067 cm)
Boom/Stick Excavator Option 2
Bucket rotation	176 degrees
Dig radius at ground line	395 in (1,003 cm)
Dump height	273 in (693 cm)
Max Digging Depth	22 ft (7 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Maximum dig radius	402 in (1,022 cm)
Maximum reach height	391 in (993 cm)
Minimum swing radius	157 in (398 cm)
Boom/Stick Excavator Option 3
Bucket rotation	176 degrees
Dig radius at ground line	432 in (1,098 cm)
Dump height	291 in (739 cm)
Max Digging Depth	25 ft (8 m)
Maximum dig radius	439 in (1,116 cm)
Maximum reach height	409 in (1,039 cm)
Minimum swing radius	161 in (408 cm)
Brakes
Brakes Type	Dual stage relief or counter balance design
Service brake	Mechanical disc
Travel control	SAHR disc - each motor
Capacities
Cooling system	10 gal (36 l)
DEF Tank	32 gal (120 l)
Engine oil w/ filter change	11 gal (41 l)
Final Drive	3 gal (10 l)
Fuel Tank	121 gal (457 l)
Hydraulic system	79 gal (300 l)
Hydraulic Tank	39 gal (147 l)
Swing drive	0 gal (2 l)
Dimensions
Boom length	0 ft (0 m)
Ground Clearance	2 ft (0 m)
Ground pressure	6 psi
Tail Swing Radius	10 ft (3 m)
Engine
Air filter type	Dry type element w/ warning restriction indicator
Bore	5 in (12 cm)
Displacement	476 cu in (7,800 cu cm)
Emission Tier Level	Tier 4
Engine Make	Isuzu
Engine Model	Isuzu 6 HK1X
Fuel Filter	Replaceable full flow spin-on cartridge
Fuel injection	Direct injection - electronic
Fuel Type	Requires ultra low-sulfur fuel B5 biodiesel tolerant
Max Torque	626 lbs ft (849 nm)
Net Power	154 hp (115 kw)
Oil Filter	Replaceable full flow spin-on cartridge
Power Measured @	1,800 rpm
Stroke	5 in (13 cm)
Hydraulic System
Main pump - Maximum flow	128 gal (486 l)
System relief pressure	50 psi
Operating Specifications
Arm Breakout Force	31,473 lbs (14,276 kg)
Arm size	10,433 ft (3,180 m)
Operating Weight	66,478 lbs (30,154 kg)
Performance
Lift over end 10' radius	19,379 lbs (8,790 kg)
Lift over end Max. reach	9,348 lbs (4,240 kg)
Lift over side 10' radius	19,379 lbs (8,790 kg)
Lift over side Max. reach	7,033 lbs (3,190 kg)
Swing Mechanism
Swing Speed	10 rpm
Transmission
Max Speed	3 mph (5 kph)
Undercarriage
Track Shoe Width	32 in (80 cm)
