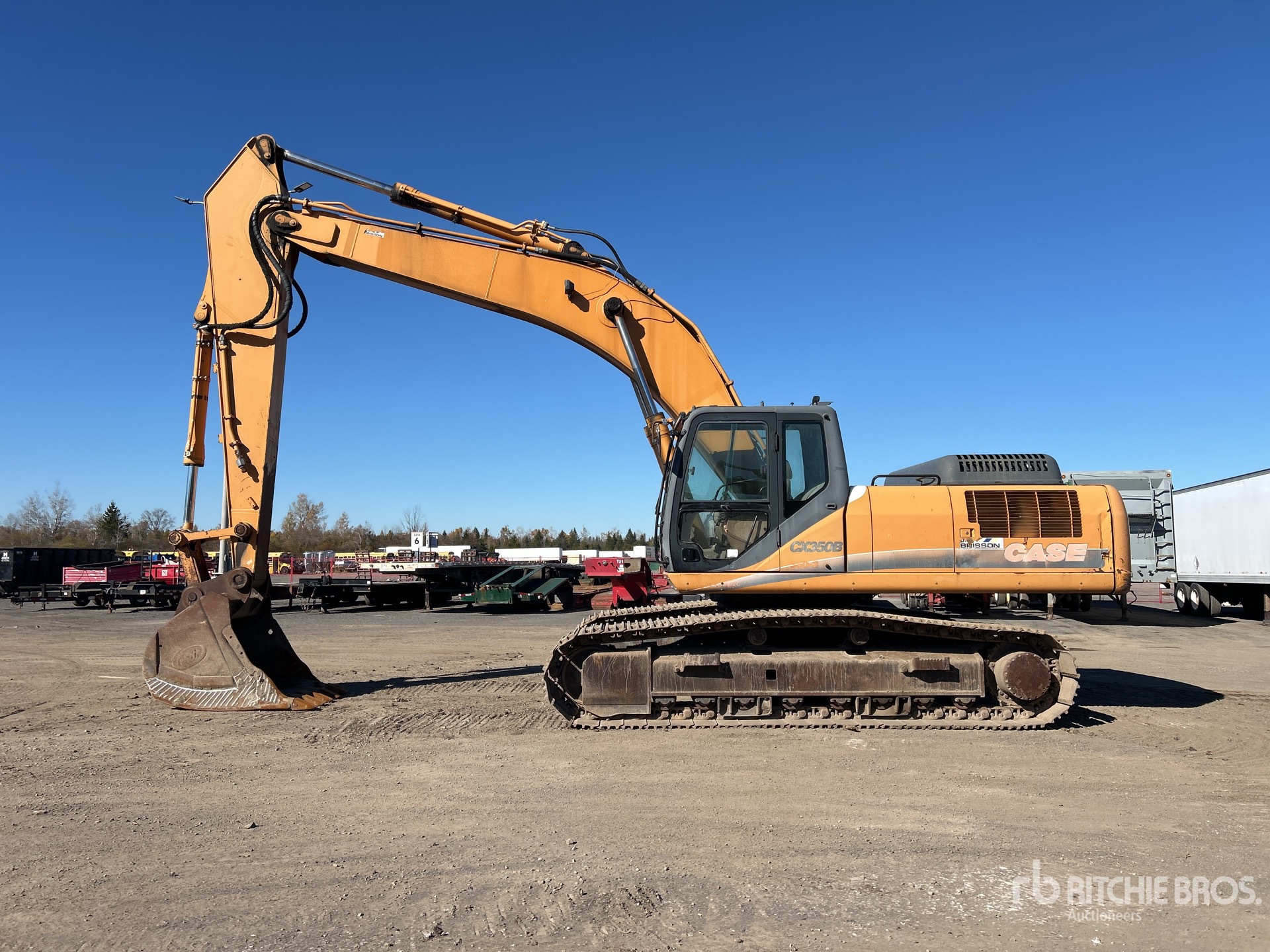

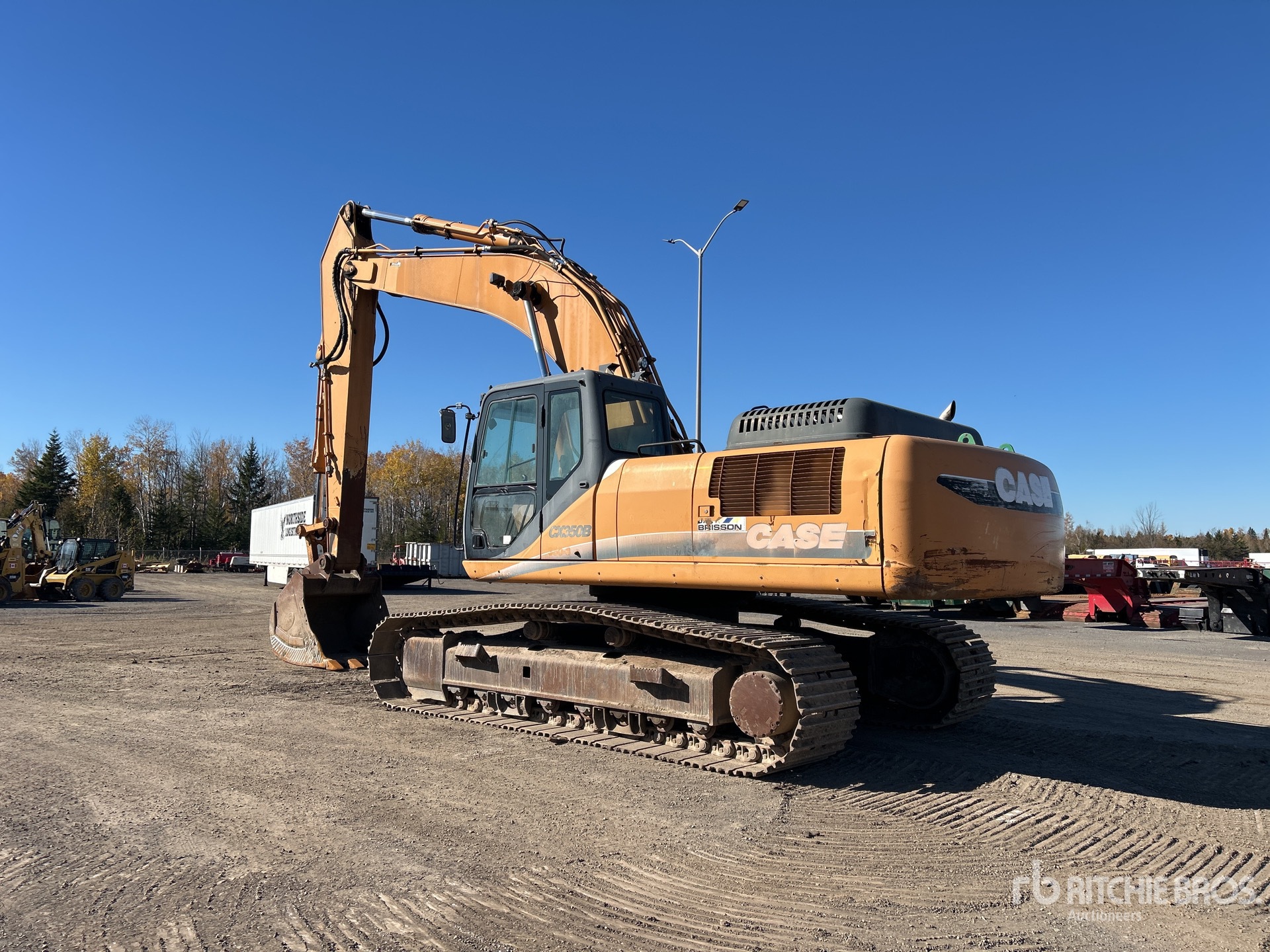

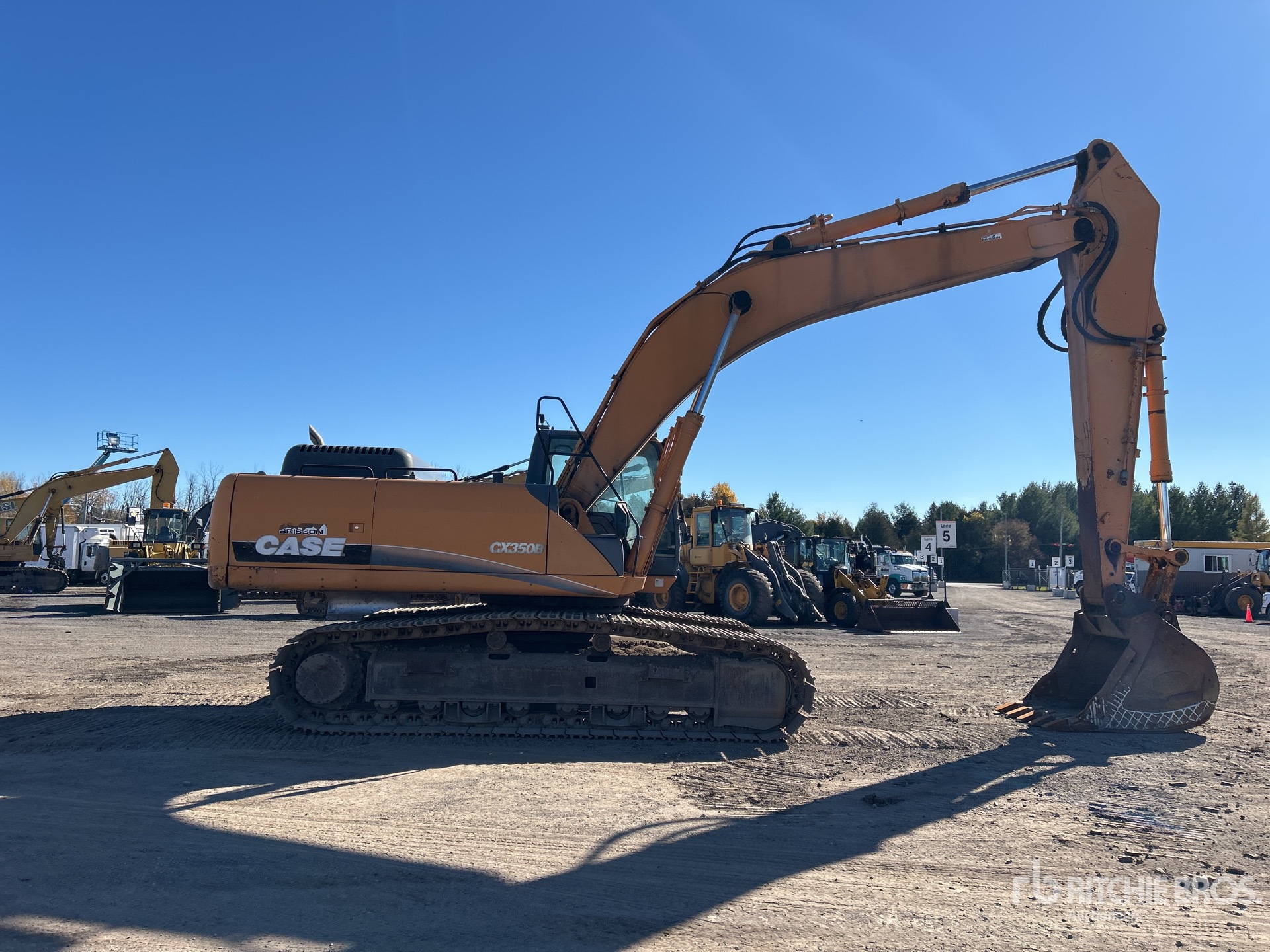

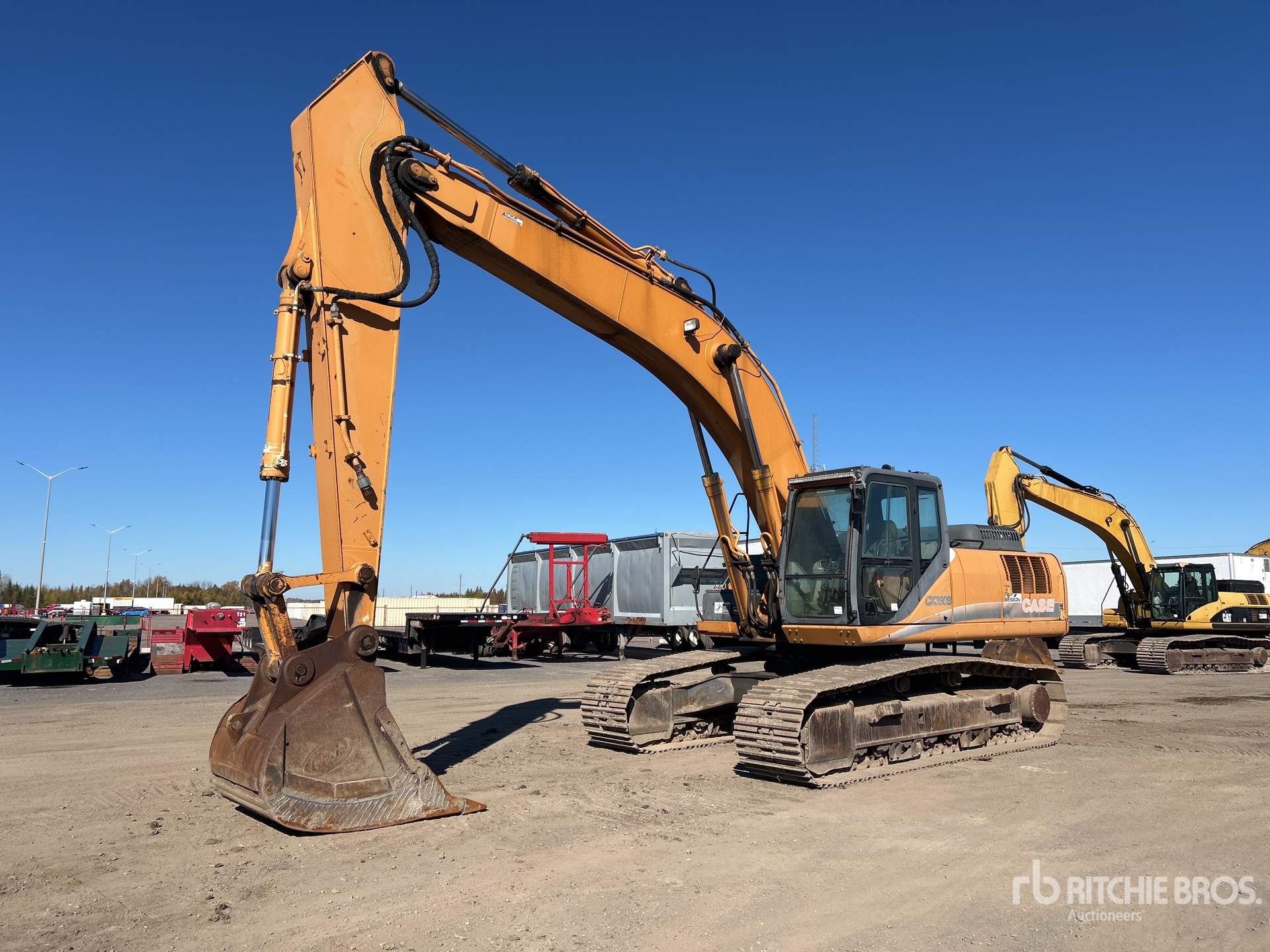

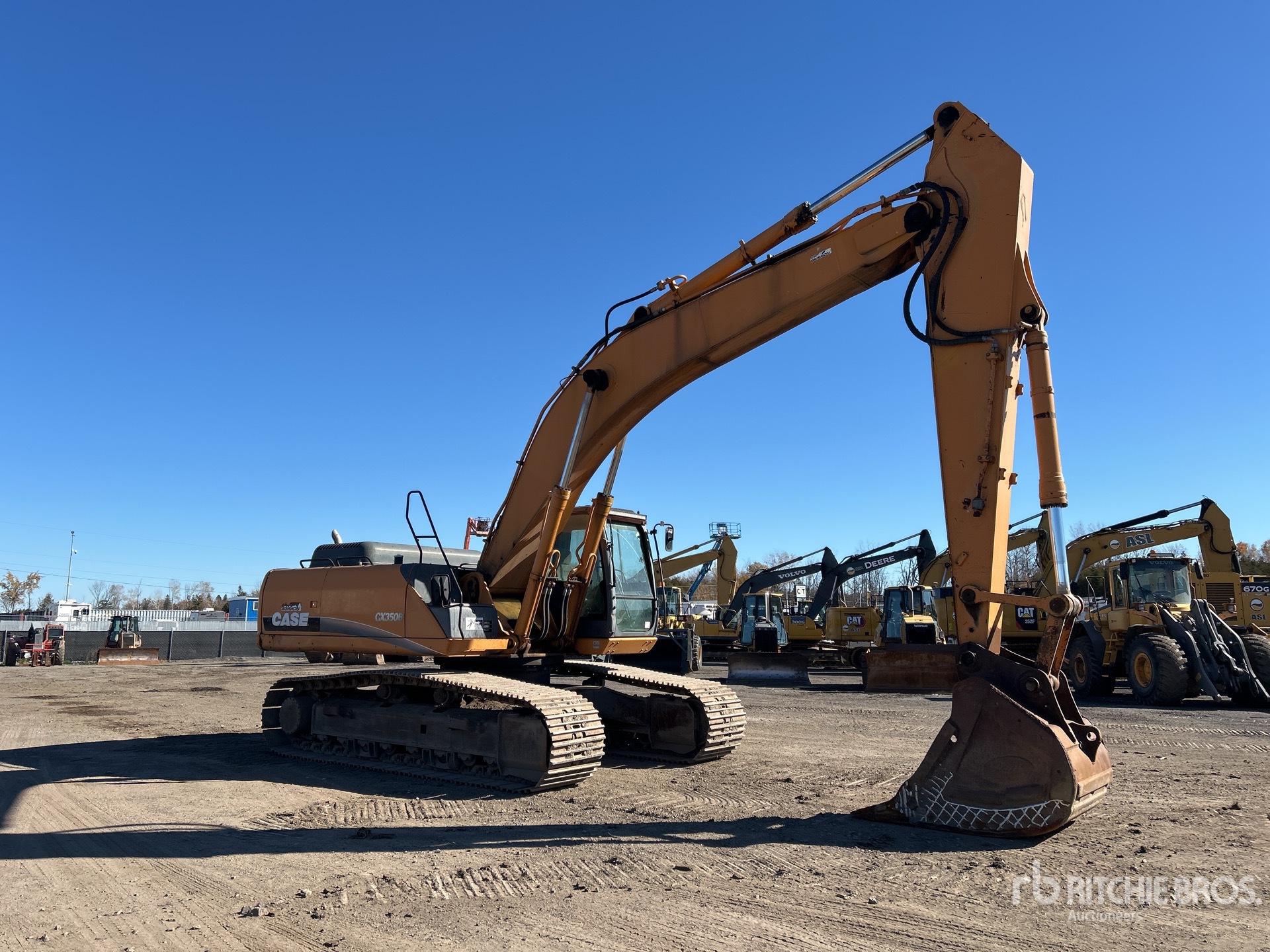

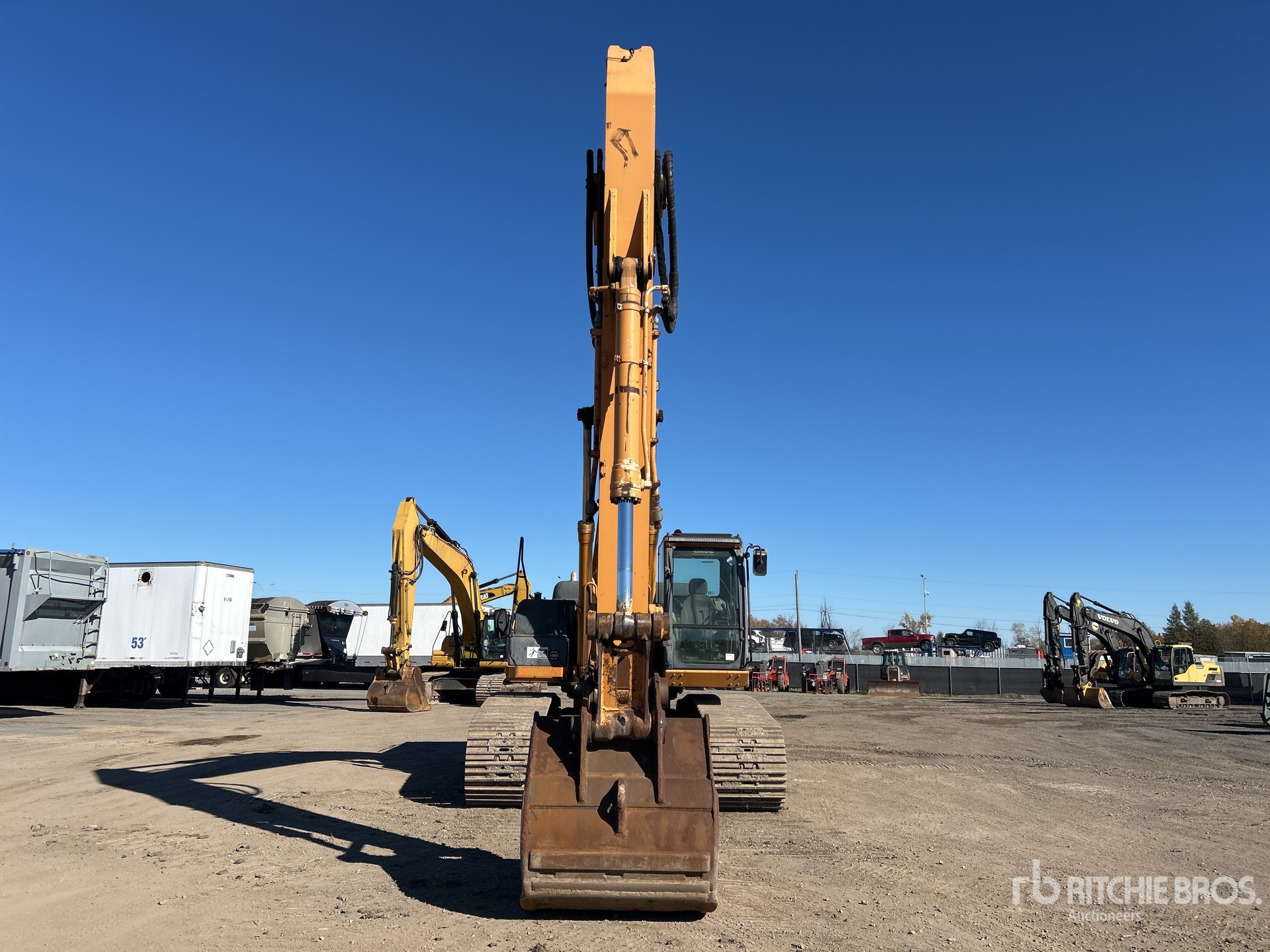

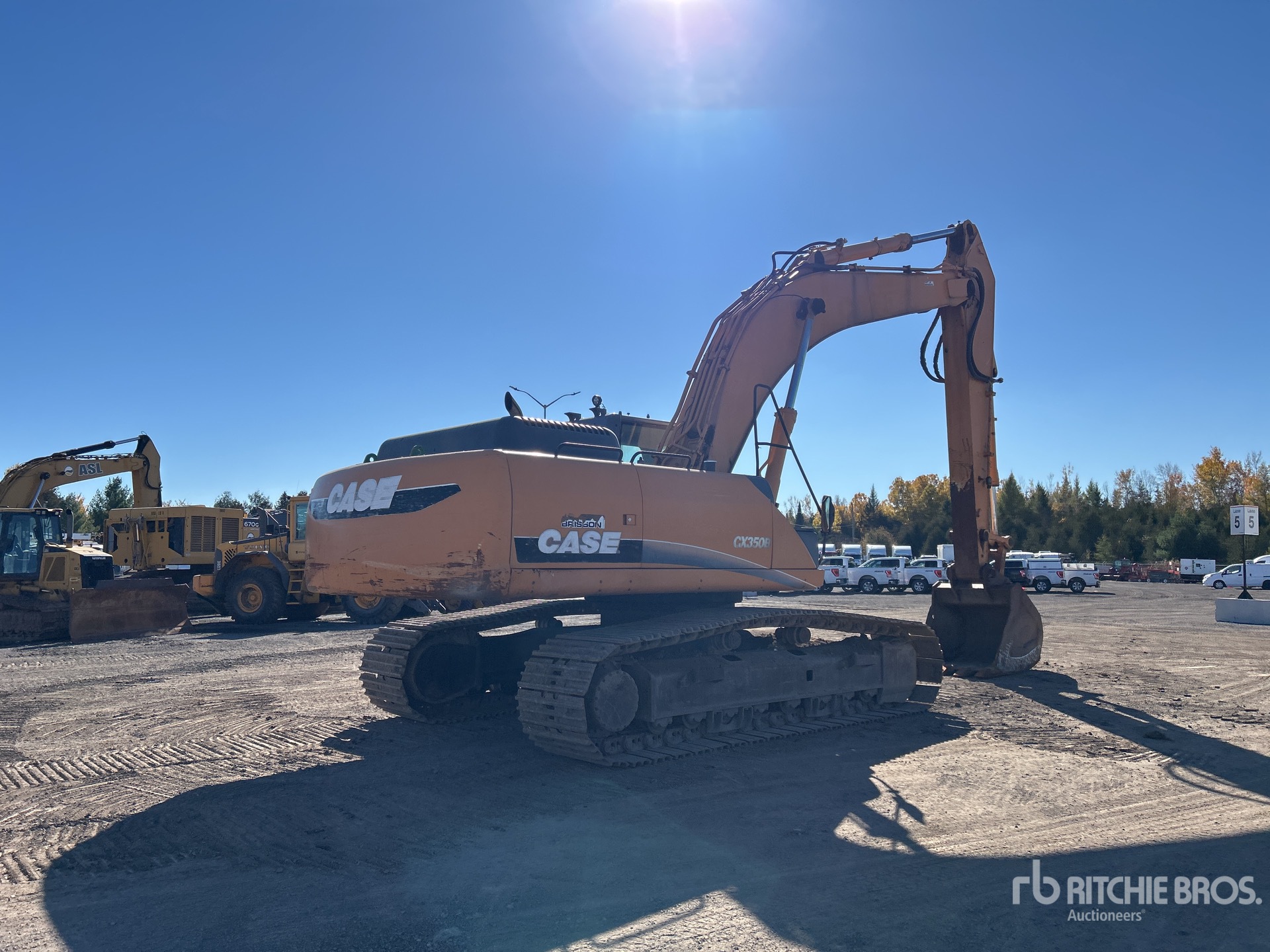

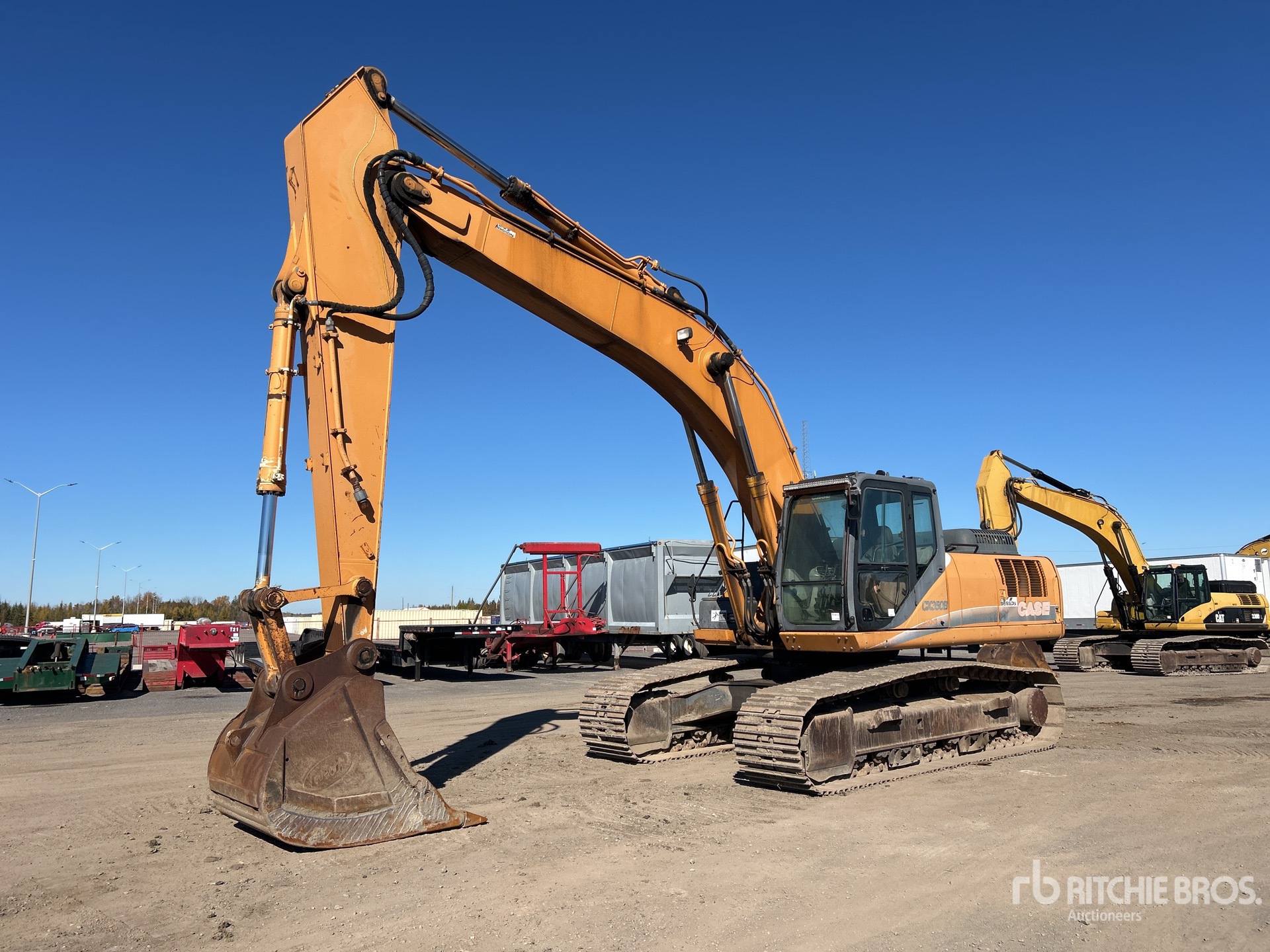

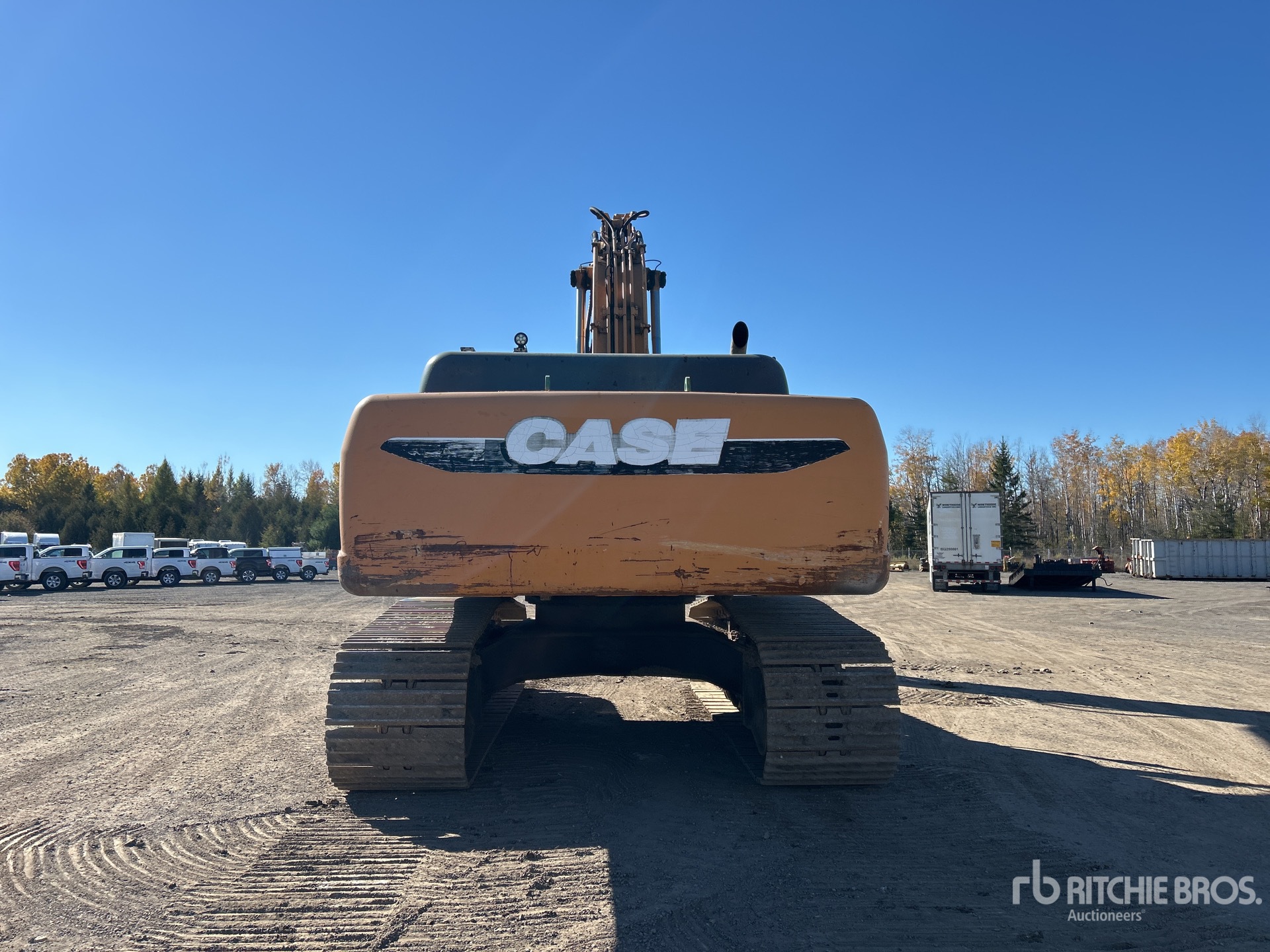

2009 Case CX350B

Name: 2009 Case CX350B
Brand: Case
SKU: 89515135
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-10-27 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

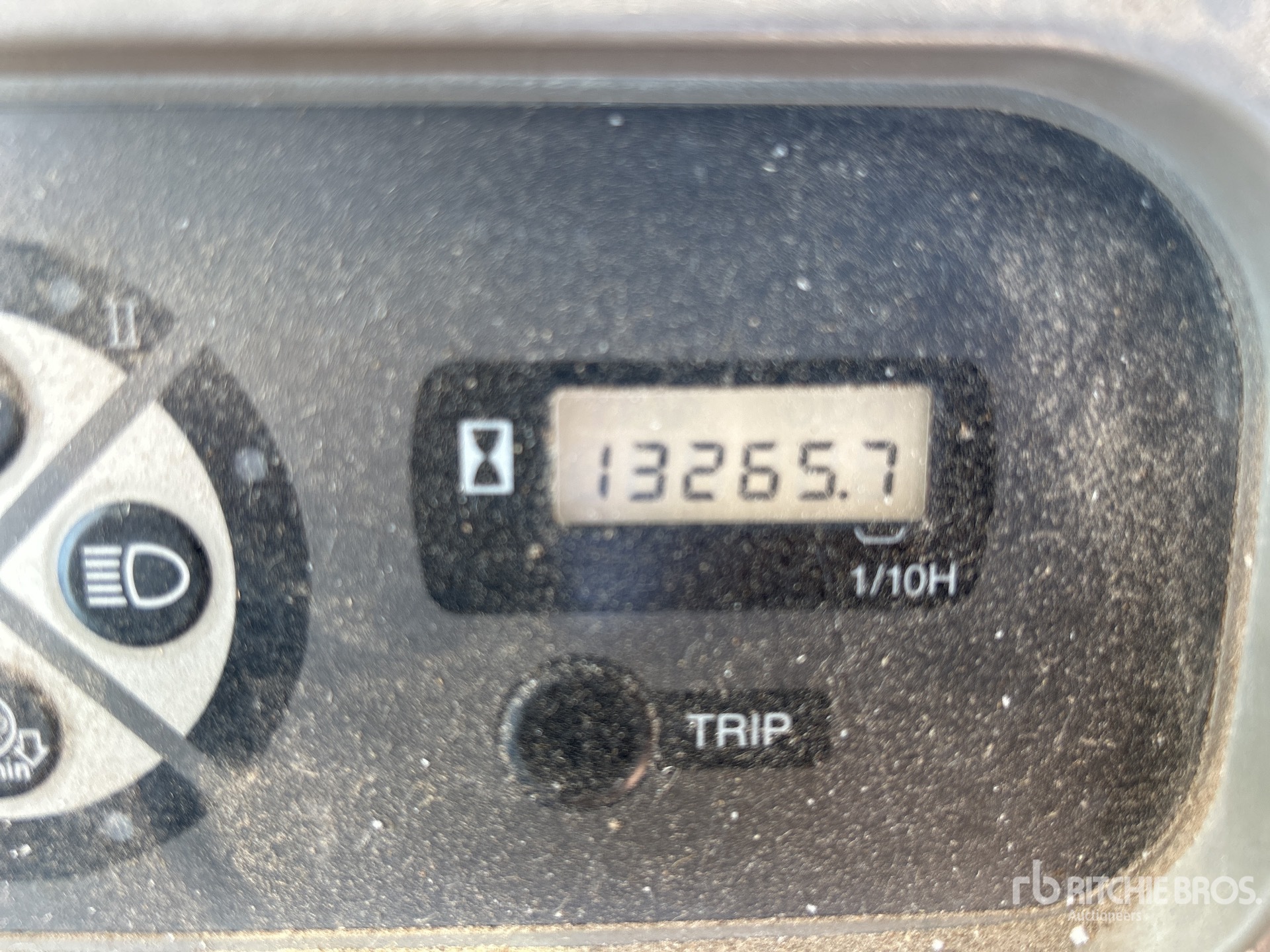

Hours:	13265

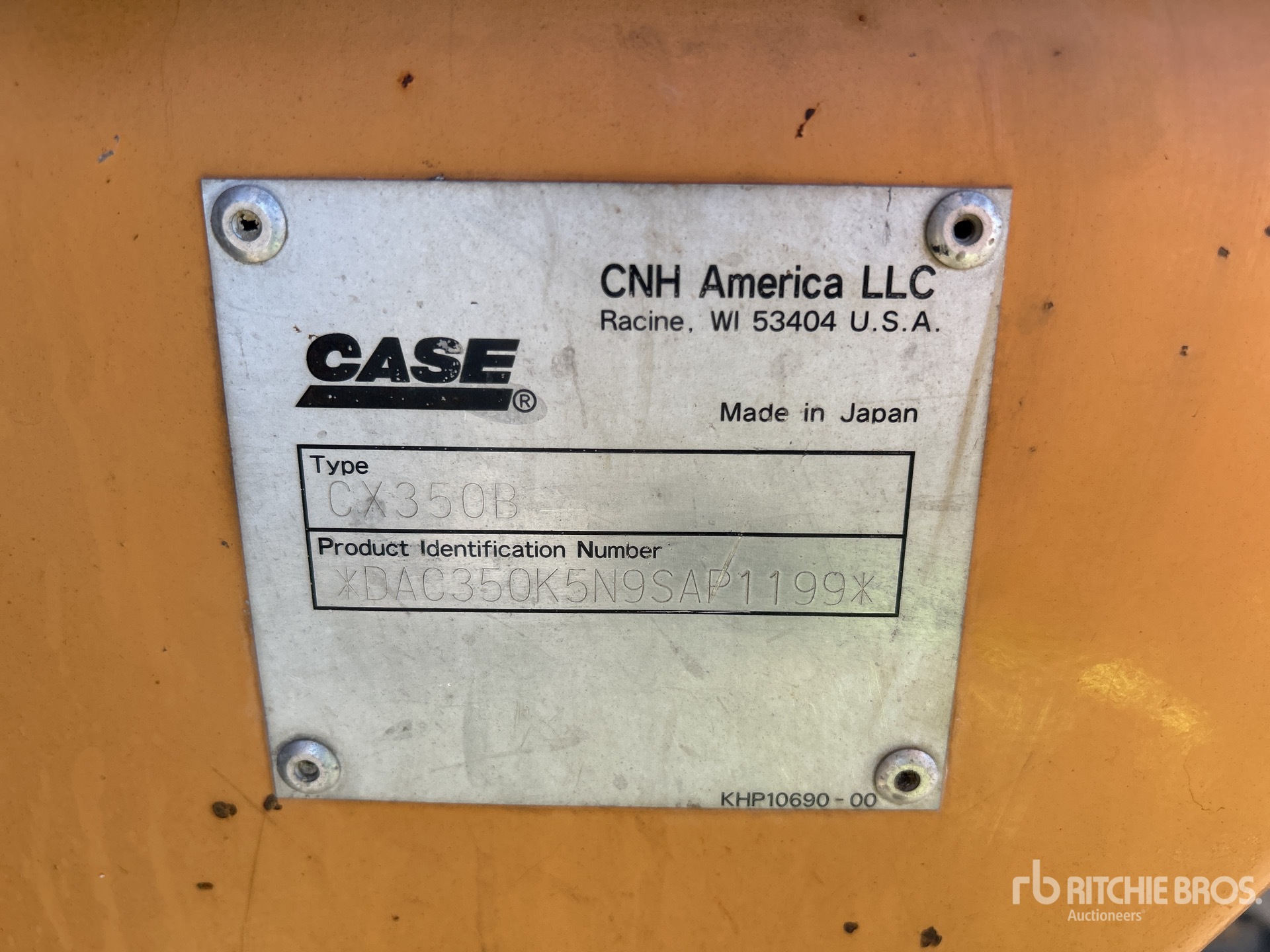

Serial Number:	DAC350K5N9SAP1199
Machine Location:	TORONTO, ON

Description:

Located in Lane 5 Spot 3, Air Conditioner, Straight Travel Pedal, 2008 US EPA Label, 13 ft 4 in Stick, Auxiliary Hydraulic Plumbing, 31.5 in Triple Grouser Track Shoes, 48 in Digging Bucket Closing Time: 2026-10-27 10:04:24 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick 1
Boom/Stick 1	Boom 6450mm / Stick 13\'3\" 4040mm
Max Cutting Height	35 ft (11 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	38 ft (12 m)
Max Vertical Wall Digging Depth	23 ft (7 m)
Shipping Height Of Unit	11 ft (3 m)
Shipping Length Of Unit	36 ft (11 m)
Boom/Stick 2
Boom/Stick 2	Boom 6450mm / Stick 10\'8\" 3250mm
Max Cutting Height	34 ft (10 m)
Max Digging Depth	24 ft (7 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Shipping Height Of Unit	11 ft (3 m)
Shipping Length Of Unit	36 ft (11 m)
Boom/Stick 3
Boom/Stick 3	Boom 6450mm / Stick 8\'8\" 2630mm
Max Cutting Height	34 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	34 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height Of Unit	11 ft (4 m)
Shipping Length Of Unit	37 ft (11 m)
Buckets
Maximum Bucket Capacity	3 cu yd
Minimum Bucket Capacity	1 cu yd
Reference Bucket Capacity	2 cu yd
Dimensions
Ground Clearance	2 ft (0 m)
Height To Top Of Cab	10 ft (3 m)
Length Of Track On Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	11 ft (3 m)
Width To Outside Of Tracks	11 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	475 cu in (7,784 cu cm)
Engine Make	2,353
Engine Model	AH-6HK1XYSS, Tier III certified
Max Torque	797 lbs ft (1,081 nm)
Net Power	271 hp (202 kw)
Number Of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,500 rpm
Operational
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	8 gal (30 l)
Engine Oil Capacity	10 gal (38 l)
Fuel Capacity	153 gal (580 l)
Hydraulic Pump Flow Capacity	153 gpm (580 lpm)
Hydraulic System Fluid Capacity	93 gal (350 l)
Hydraulic System Relief Valve Pressure	4,975 psi
Operating Voltage	24 V
Operating Weight	79,064 lbs (35,863 kg)
Swing Drive Fluid Capacity	2 gal (8 l)
Swing Mechanism
Swing Speed	10 rpm
Swing Torque	82,607 lbs ft (111,999 nm)
Undercarriage
Drawbar Pull	59,619 lbs (27,043 kg)
Ground Pressure	8 psi
Max Travel Speed	3 mph (6 kph)
Number Of Carrier Rollers Per Side	2
Number Of Shoes Per Side	48
Number Of Track Rollers Per Side	8
Shoe Size	32 in (80 cm)
Track Gauge	9 ft (3 m)
