This machine has been sold or is not currently for sale.

2019 Case 586H

2019 Case 586H
2019 Case 586H
2019 Case 586H
2019 Case 586H
2019 Case 586H
2019 Case 586H
2019 Case 586H 2019 Case 586H 2019 Case 586H 2019 Case 586H 2019 Case 586H 2019 Case 586H

/ Save to Watch List
Apply for Financing

MACHINE SOLD

   Auction Info: Starting on 2026-10-14   Click here to place a bid


Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info
Ritchie Bros. Auctioneers Website
Click here to email Ritchie Bros. Auctioneers.

Request an equipment inspection

Get shipping quotes
Click for Phone Number


Machine Info:

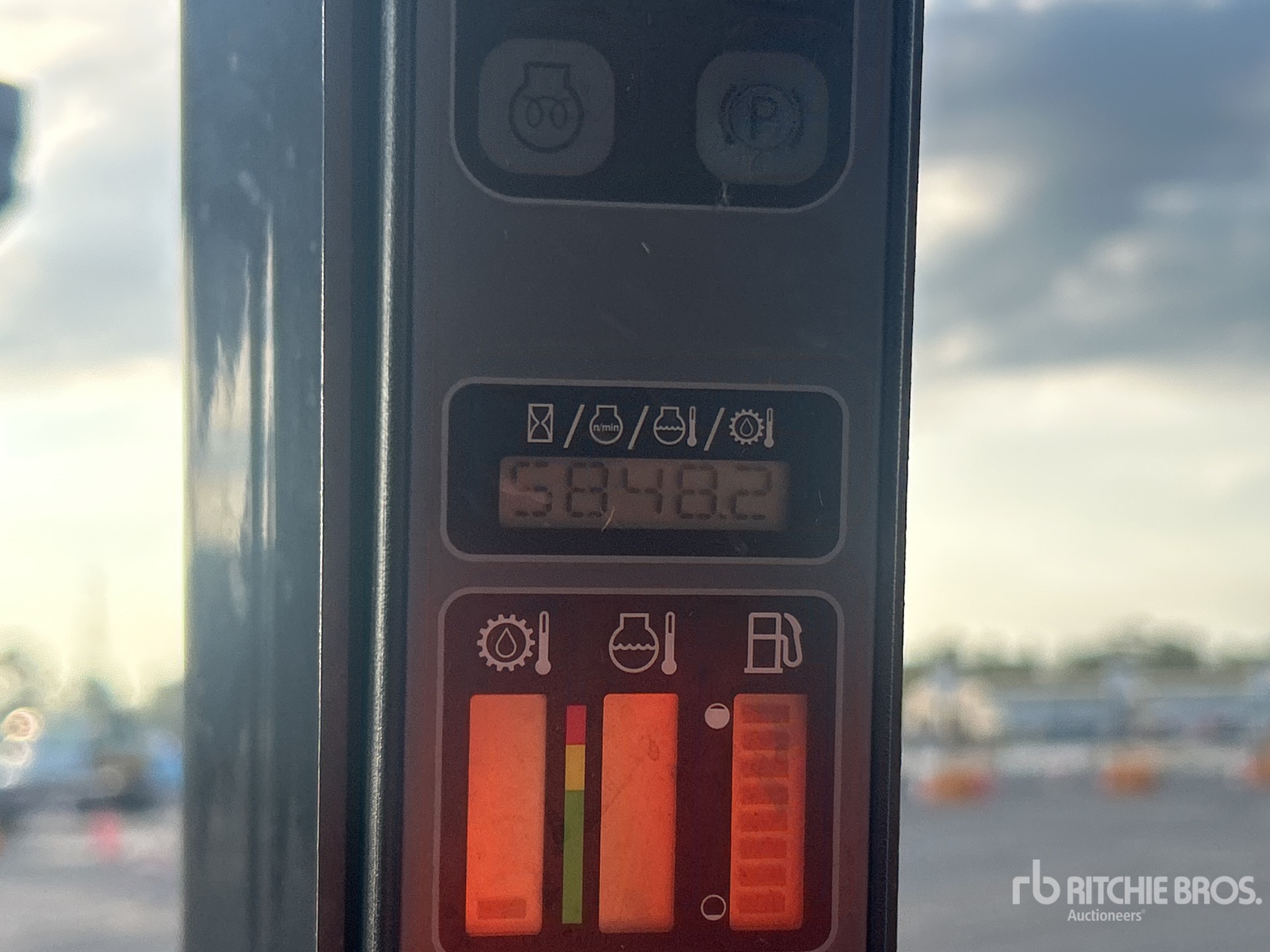

Hours:5848

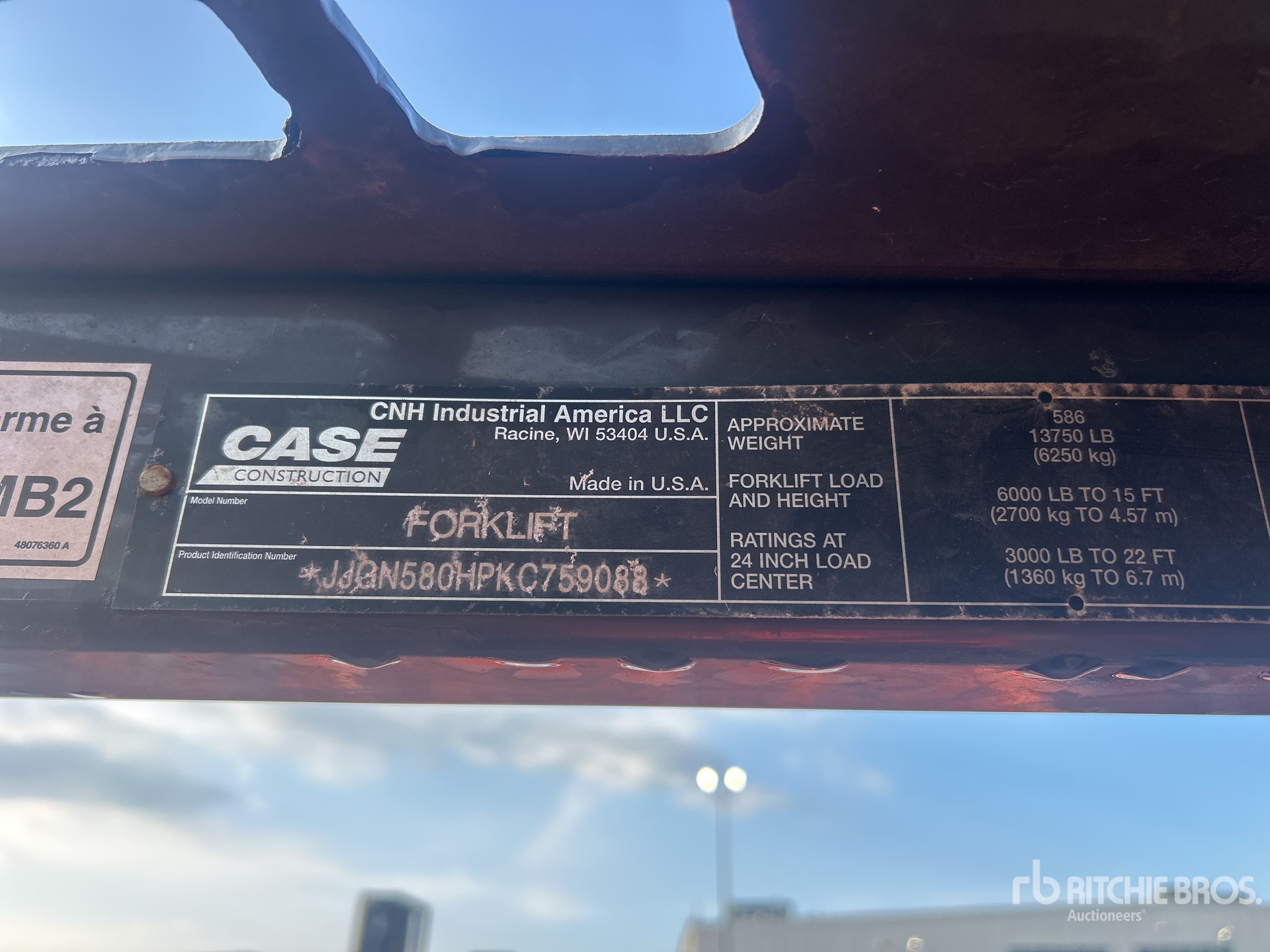

Serial Number:JJGN580HPKC759088
Machine Location:FORT WORTH, TX

Description:

3 Stage Mast, 264 in Max Lift Height, 127 in Lowered Mast Height, 48 in Forks, Side Shift, 4 Cylinder Diesel Engine Closing Time: 2026-10-14 07:00:00 PM


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Case 586H is a forklift model used for material handling in construction, agriculture, and industrial applications. It is designed to lift, transport, and place palletized or bulk loads in yards, warehouses, and job sites. The 586H is part of Case's equipment lineup and is typically associated with rough-terrain forklift use, where traction, stability, and load control are important. Common features may include a diesel engine, pneumatic tires, a mast assembly, and operator controls for lifting and tilting. Specifications can vary by configuration, year, and market. Always verify lift capacity, dimensions, and attachments with official Case documentation.
Capacities
Cooling System 5 gal (17 l)
Engine Oil W/ Filter Change 5 gal (17 l)
Front Axle 830 cu in (13,601 cu cm)
Fuel Tank - Diesel 31 gal (117 l)
Rear Axle 2 gal (6 l)
Dimensions
Ground Clearance 10 in (26 cm)
Height 11 ft (3 m)
Length 16 ft (5 m)
Max Fork Height 15 ft (5 m)
Overall Height - Mast Lowered 11 ft (3 m)
Overall Height, Rops Cab 104 in (265 cm)
Overall Length 16 ft (5 m)
Overall Width 7 ft (2 m)
Turning Radius 11 ft (3 m)
Weight 14,337 lbs (6,503 kg)
Wheelbase 7 ft (2 m)
Width 7 ft (2 m)
Drive Train
Transmission 4F-4R Power Shuttle Synchromesh Transmission manual gear shift fully synchronized
Transmission / Type Power Shuttle
Travel Speeds - 1st 15 mph (24 kph)
Electrical System
Voltage 12 Volts V
Engine
Alternator 120 amps
Battery 850 cold-cranking
Displacement 208 cu in (3,400 cu cm)
Emission Tier Level Tier 4
Engine Model FPT F5HFL463D
Engine Peak Torque 233 lbs ft (316 nm)
Engine Speed - Rated Speed, Full Load 2,200 rpm
Fuel Diesel
Fuel Injection Direct high pressure common rail
Horsepower - Gross 74 hp (55 kw)
Horsepower -Net 68 hp (51 kw)
Net Power 68 hp (51 kw)
Number Of Cylinders 4
Power 74 hp (55 kw)
Power Measured @ 2,200 rpm
Torque 233 lbs ft (316 nm)
Torque Measured @ 1,400 rpm
Hydraulic System
Pump Flow 18 gpm (68 lpm)
Pump Flow Capacity 18 gpm (68 lpm)
Pump Type Gear pump
Mast
Lift Height- Largest Mast 264 in (671 cm)
Lift Height-Smallest Mast 4,570 in (11,608 cm)
Load Capacity 6,001 lbs (2,722 kg)
Load Center 24 in (61 cm)
Mast Tip Forward 45 degrees
Mast Tip Rear 15 degrees
Operational
Front Tire Size 19.5 L x 24
Operating Weight 13,682 lbs (6,205 kg)
Rear Tire Size 11 L x 16
