2020 Case CX33C For Sale in Birmingham, AL

2020 Case CX33C
2020 Case CX33C
2020 Case CX33C
2020 Case CX33C
2020 Case CX33C
2020 Case CX33C
2020 Case CX33C
2020 Case CX33C
2020 Case CX33C 2020 Case CX33C 2020 Case CX33C 2020 Case CX33C 2020 Case CX33C 2020 Case CX33C 2020 Case CX33C 2020 Case CX33C

/ Save to Watch List

Email Dealer

Auction Pricing



   Auction Info: Starting on 2026-11-04


JJ Kane Auctions

JJ Kane Auctions Dealer Info
JJ Kane Auctions Website
Click here to email JJ Kane Auctions.

Request an equipment inspection

Get shipping quotes
Click for Phone Number

Machine Info:

Serial Number:NSUC33CRNZLN57200
Machine Location:BIRMINGHAM, AL

Description:

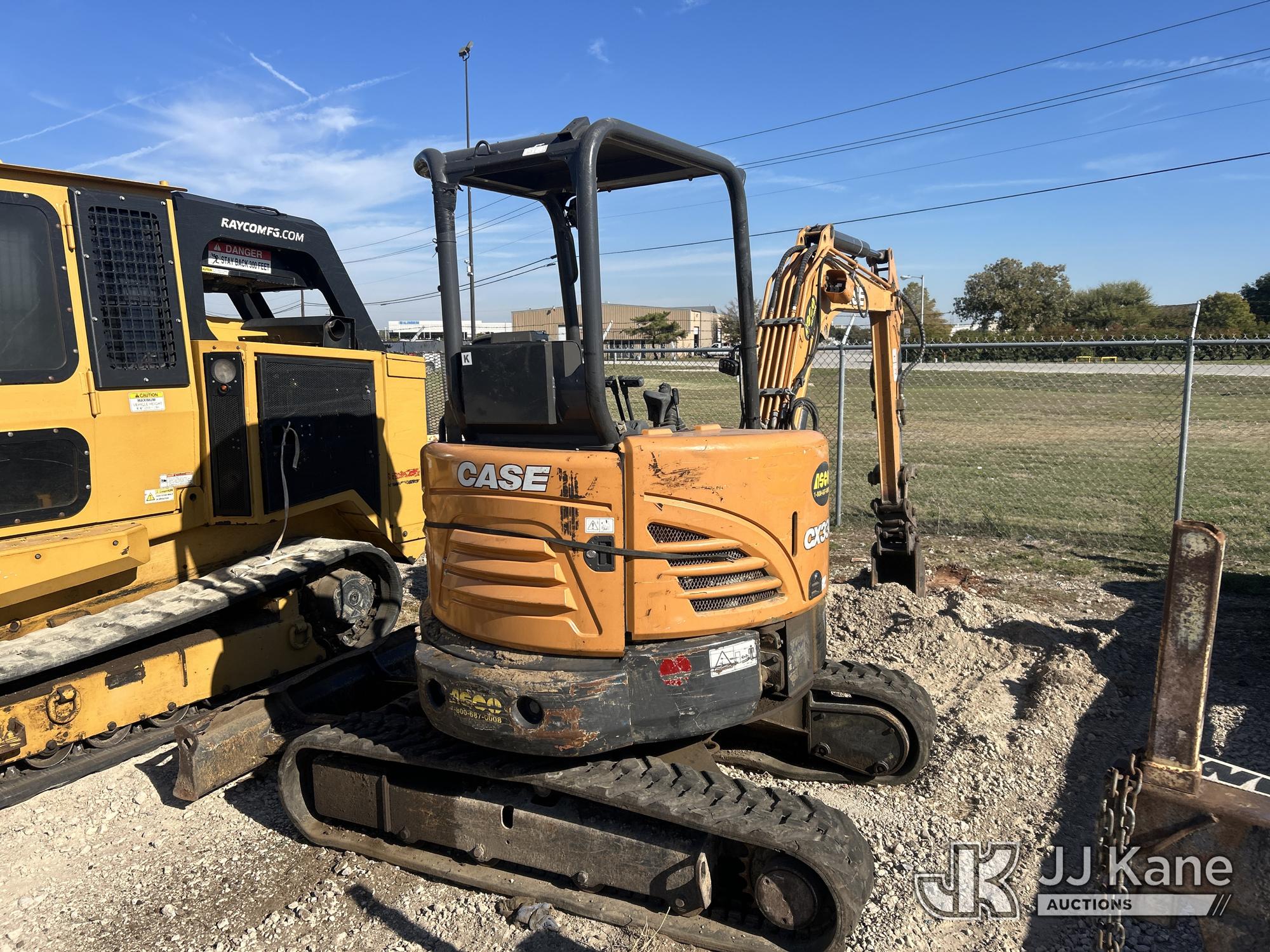

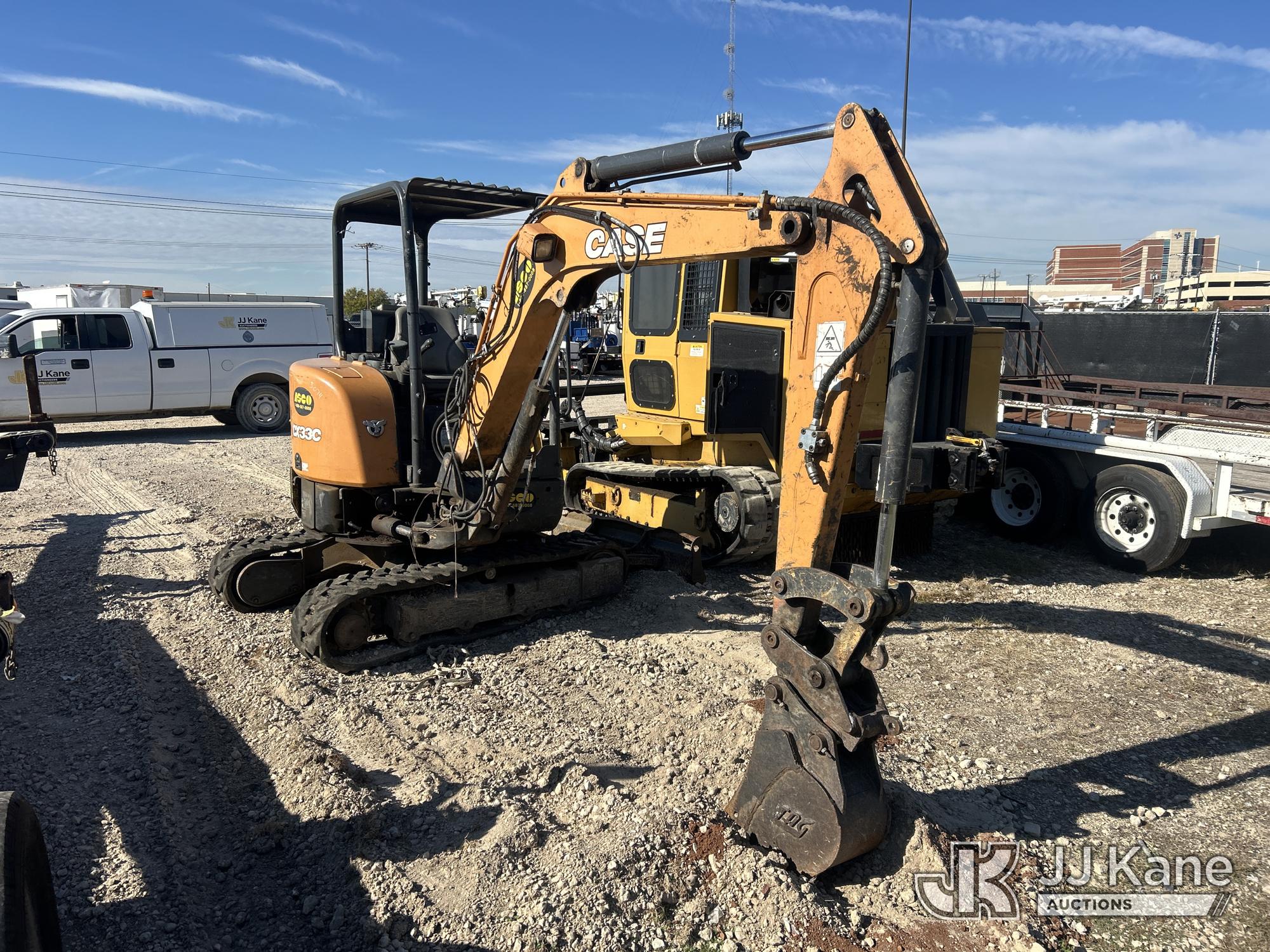

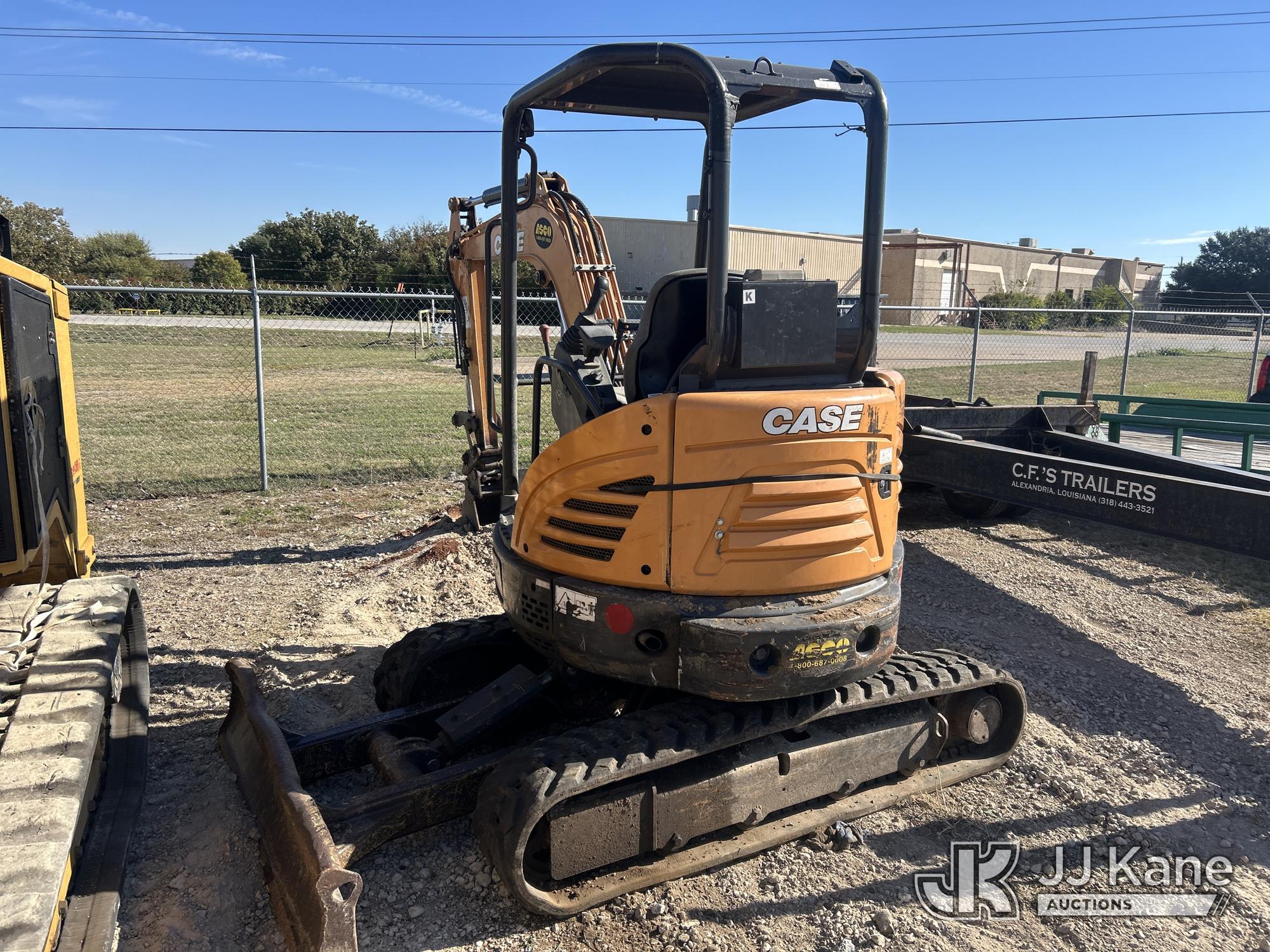

2020 Case CX33C Mini Hydraulic Excavator, s/n NSUC33CRNZLN57200, Diesel, Hydraulic Drive, with aux hydraulics, backfill blade, rubber tracks, ROPS, (Not Running, Condition Unknown) (Seller States: Broken in Half, Hydraulic Leak) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Waxahachie, TX. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 999 Solon Rd Waxahachie, TX 75165 and hours of operations are 8a-4p. For pre-sale questions, please contact Alex Bayless @ (469) 550-4938. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)


From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom
Arm Length 7 ft (2 m)
Boom Length 4 ft (1 m)
Boom/Stick 1
Boom/Stick 1 4 ft 3 in (1.3 m) Arm
Max Cutting Height 15 ft (5 m)
Max Digging Depth 10 ft (3 m)
Max Loading Height 11 ft (3 m)
Max Reach Along Ground 17 ft (5 m)
Max Vertical Wall Digging Depth 7 ft (2 m)
Max.Dumping Height 11 ft (3 m)
Shipping Height Of Unit 8 ft (3 m)
Shipping Length Of Unit 15 ft (5 m)
Capacities
Engine Oil W/ Filter Change 2 gal (7 l)
Fuel Tank 8 gal (30 l)
Hydraulic Tank 15 gal (55 l)
Radiator 2 gal (6 l)
Dimensions
Ground Clearance 1 ft (0 m)
Height To Top Of Cab 8 ft (3 m)
Length Of Track On Ground 6 ft (2 m)
Tail Swing Radius 3 ft (1 m)
Width To Outside Of Tracks 5 ft (2 m)
Drive Train
Gradeability 30 degrees
Ground Pressure 4 psi
Max Drawbar Pull 6,834 lbs (3,100 kg)
Maximum Traction Force 6,835 lbs (3,100 kg)
Electrical
Alternator 55 amp
Battery 1 x 12 V x 70 Ah
Voltage 12 V
Engine
Cooling System Water-cooled
Displacement 100 cu in (1,642 cu cm)
Emissions Level Tier 4 Final
Engine Model Yanmar 3TNV88F-ESHYB
Fuel Diesel
Fuel Injection Mechanical with electronic governor
Gross Power 24 hp (18 kw)
Max Speed 3 mph (4 kph)
Max Torque 70 lbs ft (94 nm)
Net Power 24 hp (18 kw)
Number Of Cylinders 3
Power Measured @ 2,200 rpm
Torque Measured @ 1,200 rpm
Hydraulic System
Main Pump - Maximum Flow 20 gpm (75 lpm)
Relief Pressure 3270 psi, 230 bar
Lift System
Bucket Breakout Force 6,902 lbs (3,131 kg)
Lift Over End Max. Reach - Lbs 1,676 lbs (760 kg)
Lift Over Side Max. Reach 485 lbs (220 kg)
Operational
Operating Weight 7,397 lbs (3,355 kg)
Swing Mechanism
Swing Speed 9 rpm
Undercarriage
Number Of Track Rollers Per Side 4
