1996 Case 40XT For Sale in Birmingham, AL

Name: 1996 Case 40XT
Brand: Case
SKU: 89124382
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-09-16

JJ Kane Auctions

JJ Kane Auctions Dealer Info

JJ Kane Auctions Website

Click here to email JJ Kane Auctions.

Click for Phone Number

Machine Info:

Serial Number:	JAP0378043
Machine Location:	BIRMINGHAM, AL

Description:

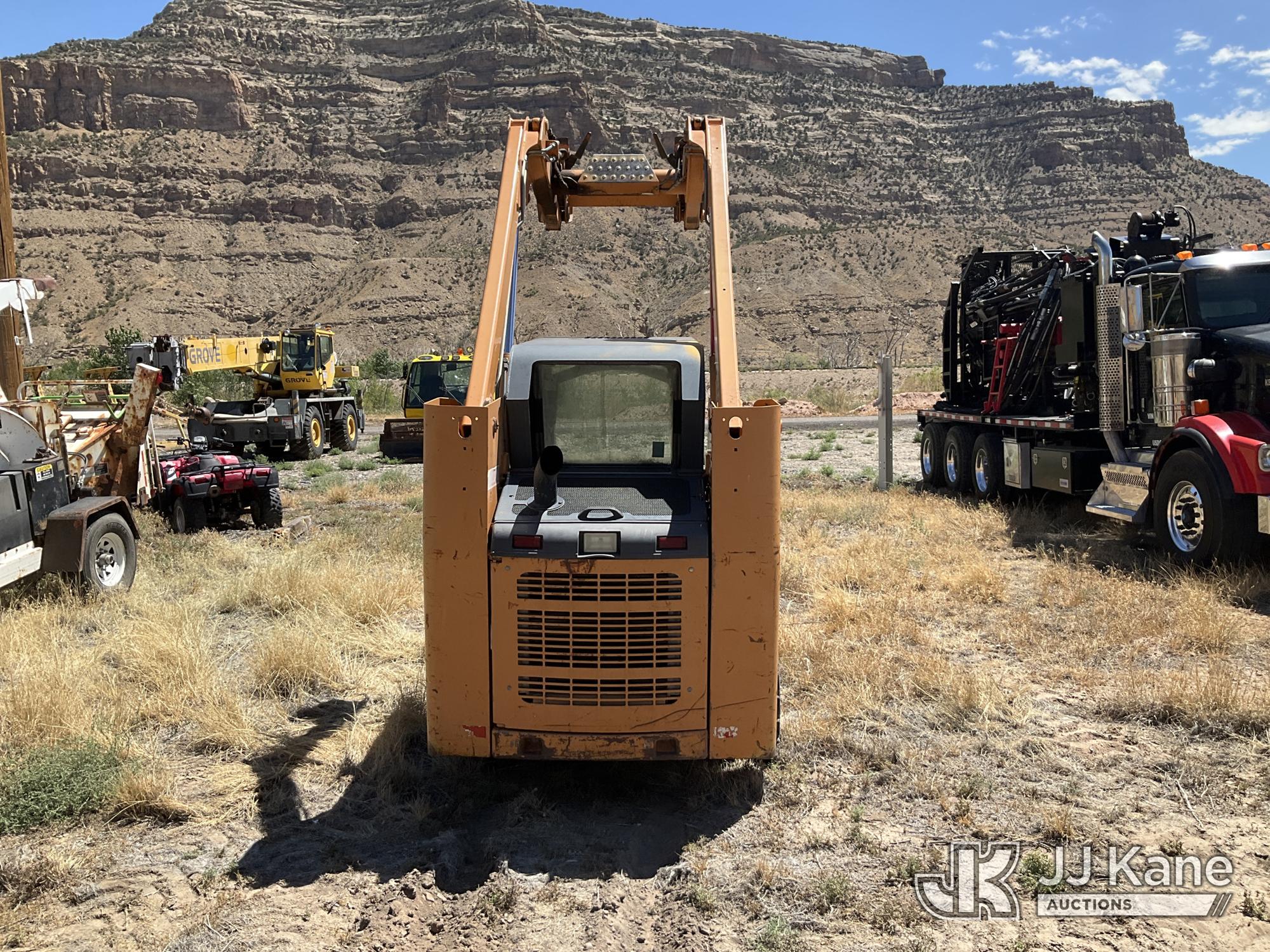

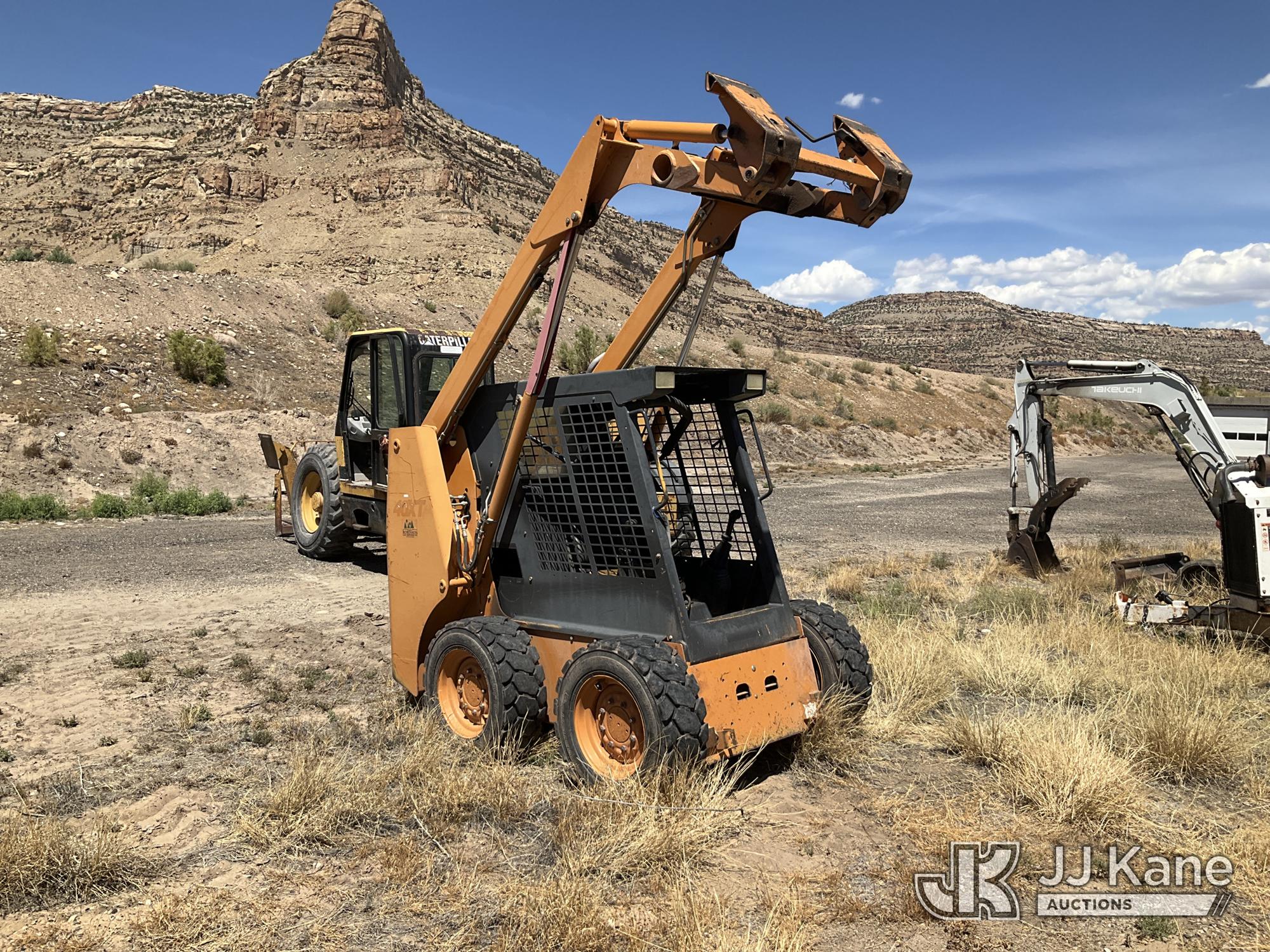

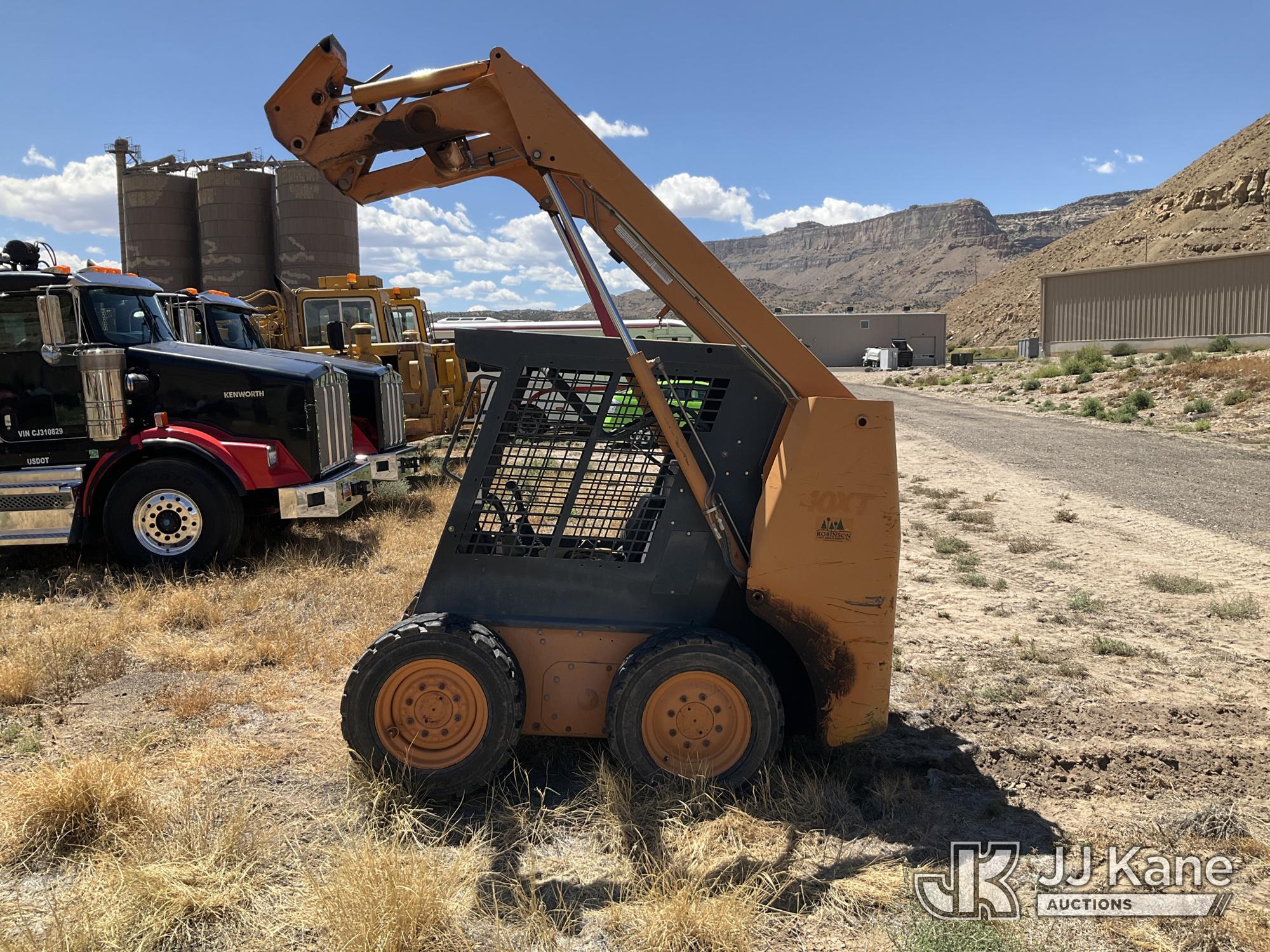

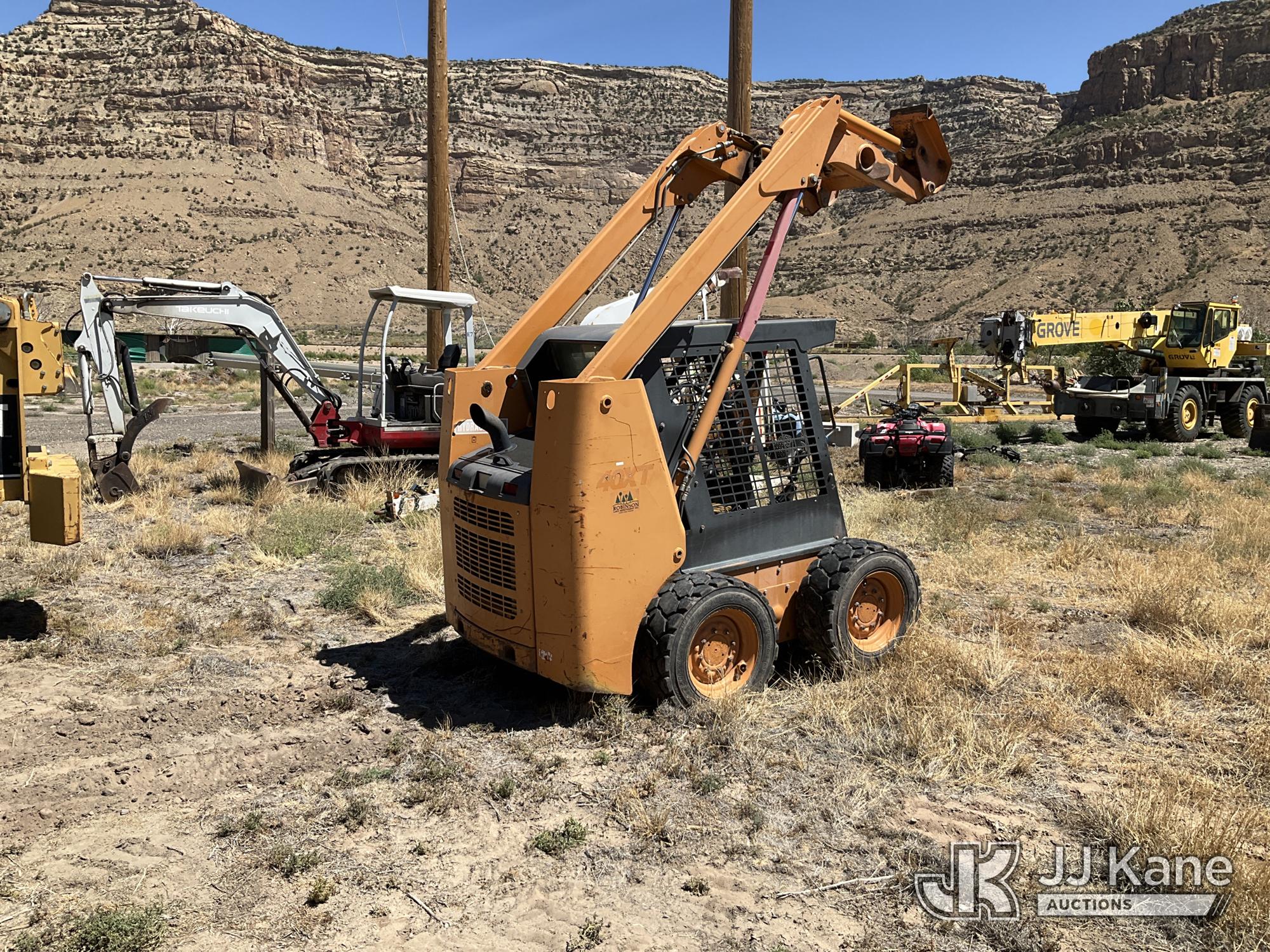

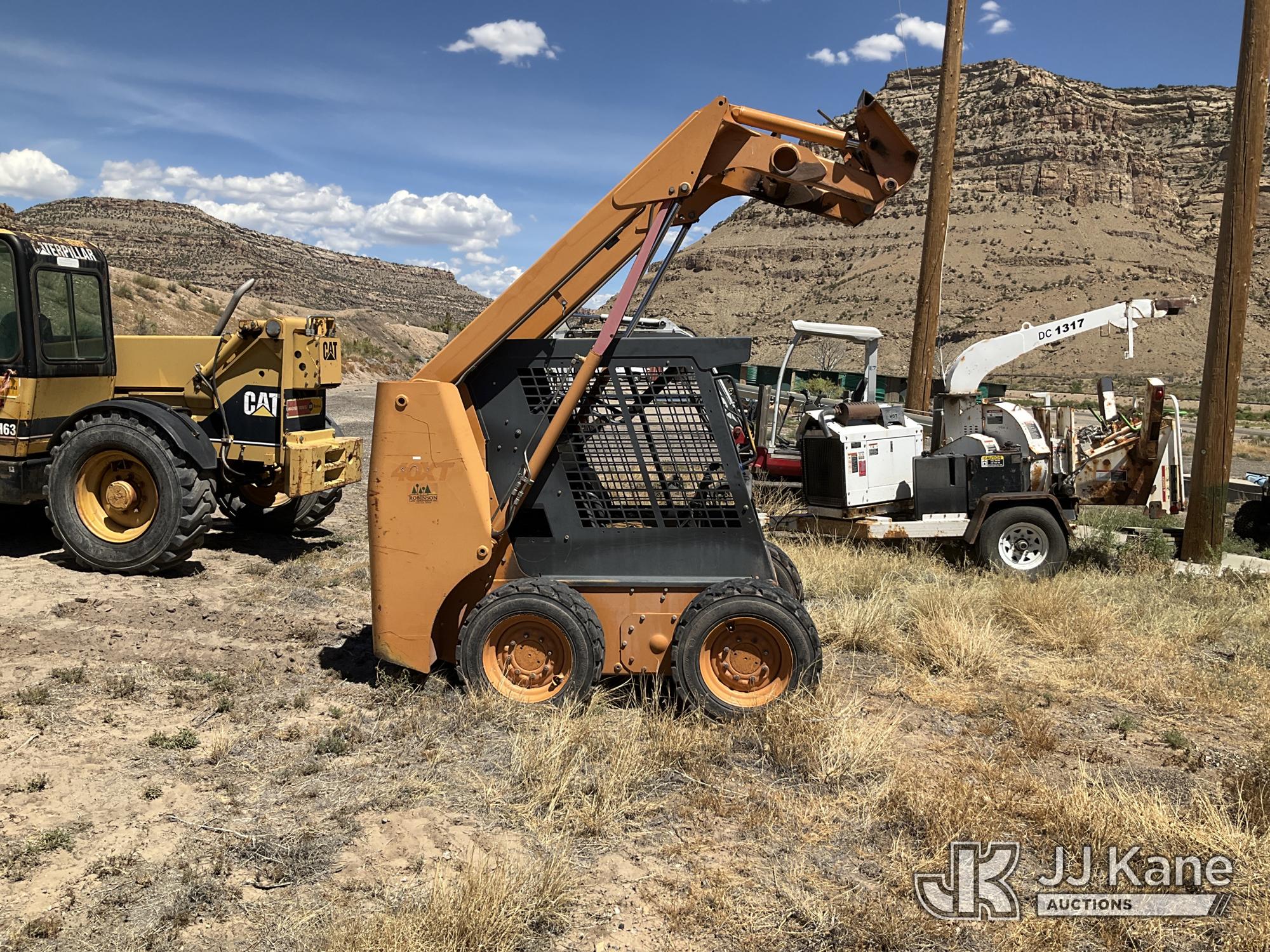

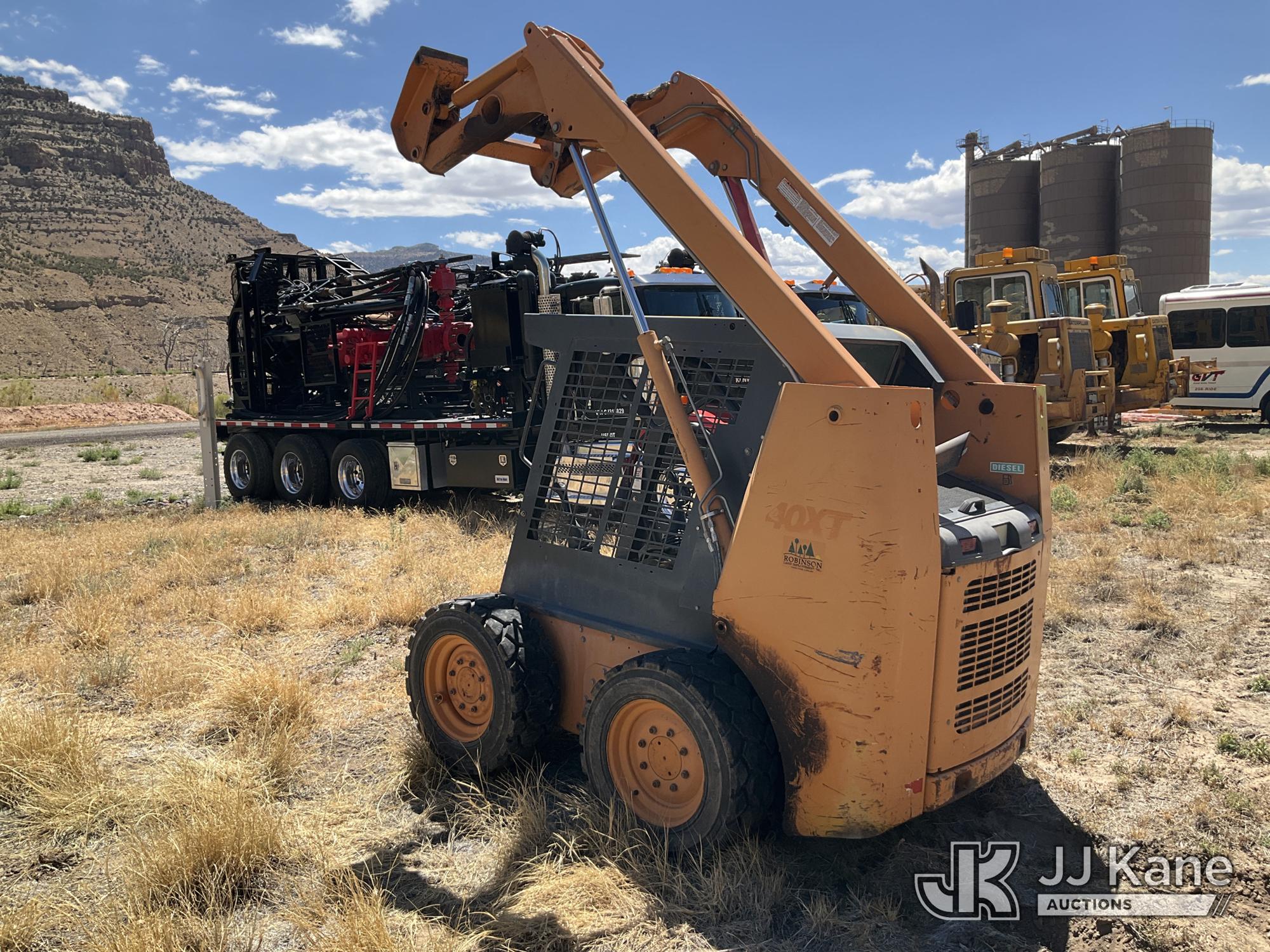

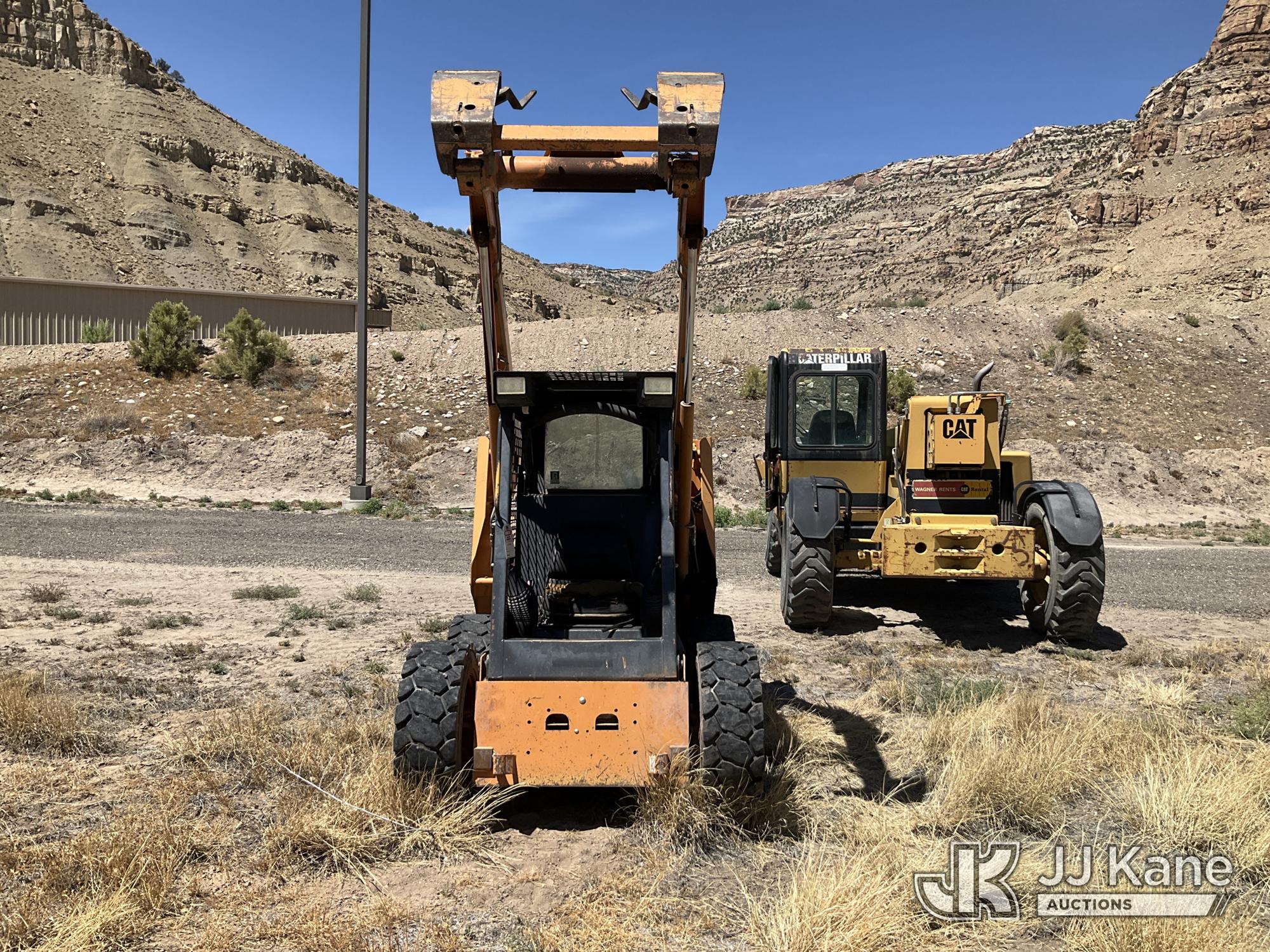

1996 Case 40XT Crawler Skid Steer Loader, s/n JAP0378043, Diesel, Hydrostatic, with ROPS, (Runs & Does Not Move, Operates)( Seller States: Requires service and pulled from service due to age.) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in De Beque, CO. Inspection & preview days for this unit are by appointment only; please contact us at [email protected] or 84-Go-JJKane for more details. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 40XT is a skid steer loader designed for material handling, grading, loading, and general construction work. It is part of Case's XT series and is commonly used in landscaping, agriculture, utility, and site preparation applications. The 40XT features a compact frame, articulated steering, and a front-mounted lift arm system for use with buckets and other attachments. Typical specifications include a diesel engine, hydraulic auxiliary flow for attachment operation, and a cab or open operator station depending on configuration. The Case 40XT is known for maneuverability, attachment versatility, and suitability for confined work areas.

Dimensions
Clearance At Max Lift And Dump	7 ft (2 m)
Ground Clearance	8 in (20 cm)
Height	6 ft (2 m)
Height To Top Of Cab	6 ft (2 m)
Length	11 ft (3 m)
Length W/O Bucket	8 ft (3 m)
Length With Bucket	10 ft (3 m)
Reach At Max Lift And Dump	24 in (60 cm)
Turning Radius From Center - Inc Bucket	73 in (186 cm)
Turning Radius From Center - Machine Rear	57 in (146 cm)
Weight	5,716 lbs (2,593 kg)
Wheelbase	3 ft (1 m)
Width	5 ft (2 m)
Width Over Tires	5 ft (2 m)
Engine
Aspiration	Natural
Displacement	239 cu in (3,917 cu cm)
Engine Make	2,239
Engine Model	4-390
Gross Power	60 hp (45 kw)
Net Power	56 hp (42 kw)
Number Of Cylinders	4
Power Measured @	2,000 rpm
Hydraulic
Pump Flow Capacity	19 gpm (72 lpm)
Pump Type	gear pump
Relief Valve Pressure	3,000 psi
Loader
Breakout Force	3,788 lbs (1,718 kg)
Bucket Capacity	1 cu yd
Operating Load Rating	1,500 lbs (680 kg)
Tipping Angle	3,000 degrees
Operational
Alternator Supplied Amperage	65 amps
Chain Box Fluid Capacity - Each Side	2 gal (6 l)
Cooling System Fluid Capacity	4 gal (17 l)
Engine Oil Fluid Capacity	3 gal (11 l)
Fuel Capacity	22 gal (83 l)
Hydraulic System Fluid Capacity	13 gal (50 l)
Max Speed	7 mph (11 kph)
Operating Voltage	12 V
Operational Weight	5,716 lbs (2,592 kg)
Tire Size	10.00x16.5
