Case SR220 For Sale in Phoenix, Az

Name: Case SR220
Brand: Case
SKU: 89191809
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-30 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	2974
Serial Number:	Not Available
Machine Location:	PHOENIX, AZ

Description:

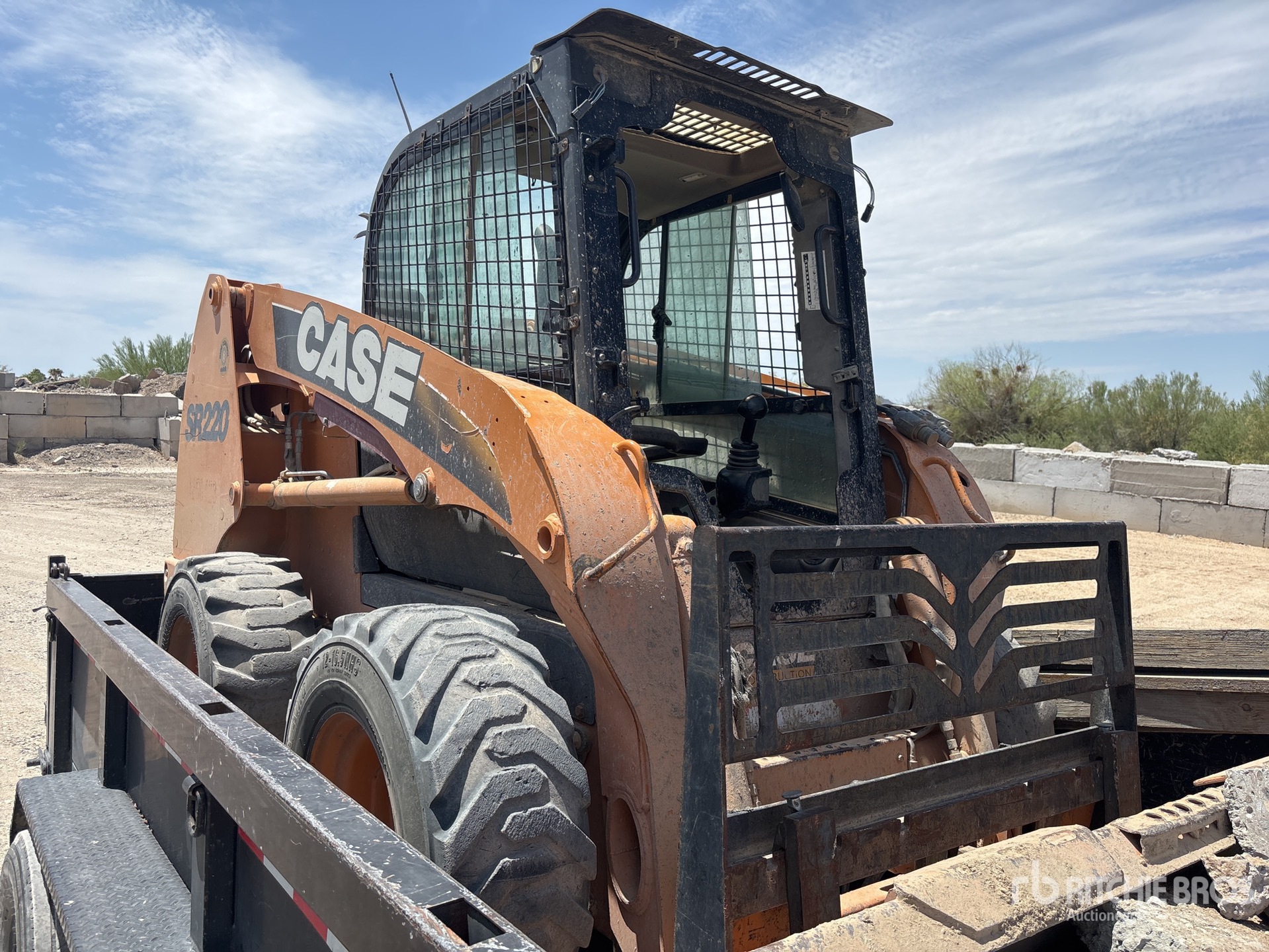

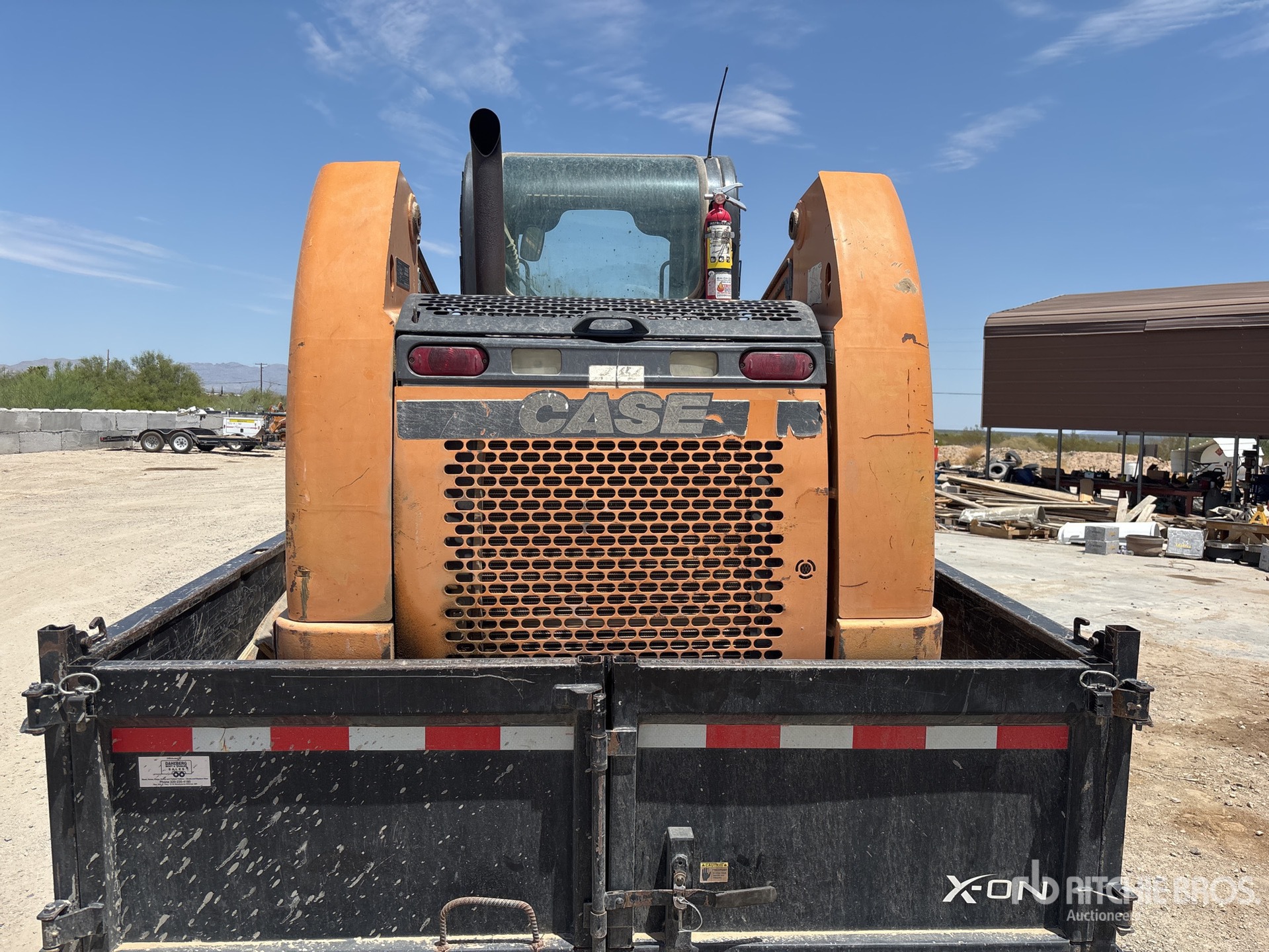

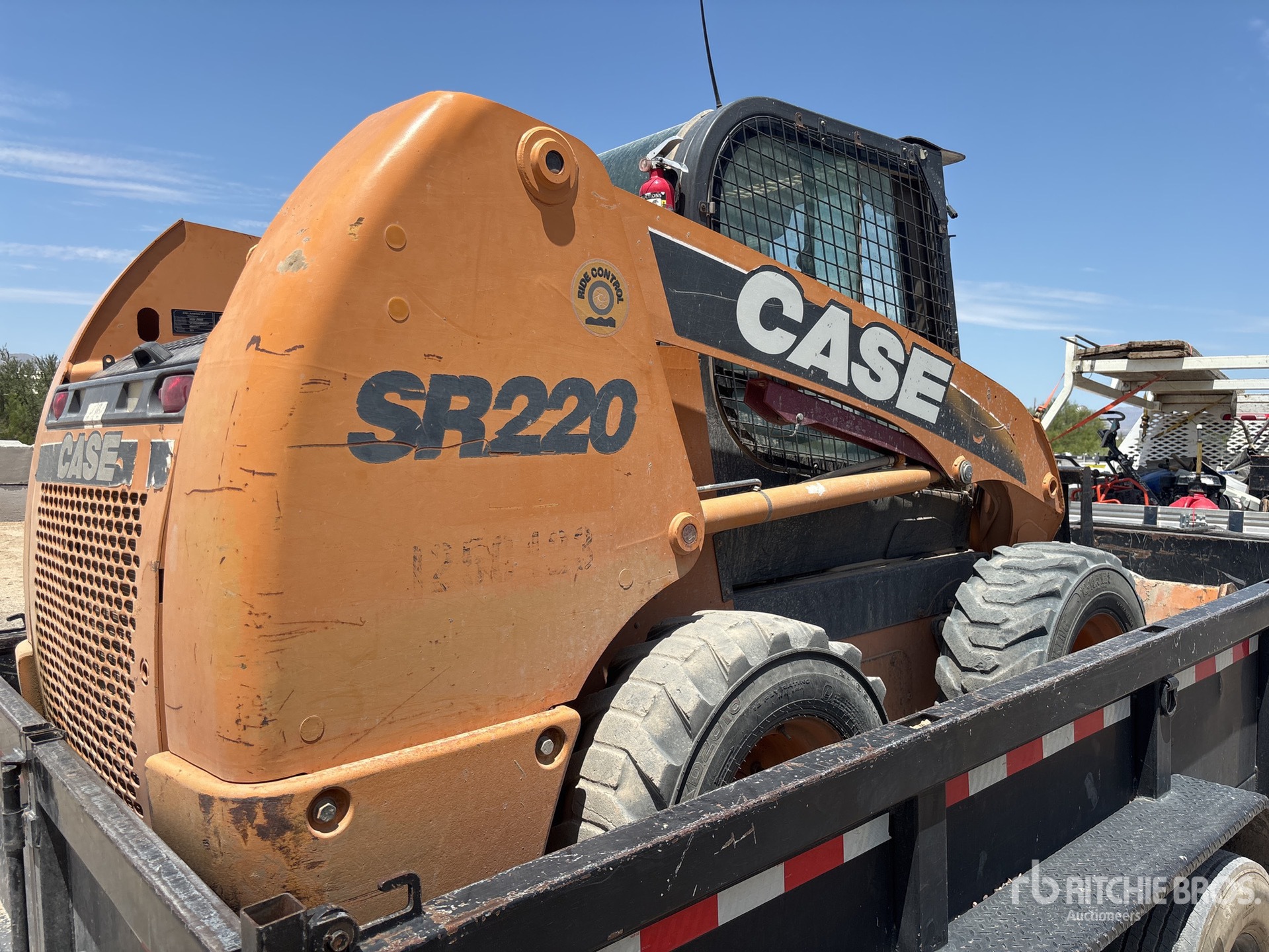

Enclosed Cab (Door missing), Air Conditioner, Ride Control, Joystick Steering, Tier 3, 72 in Bucket, Equipment-from-Salome-Concrete

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case SR220 is a skid steer loader designed for construction, landscaping, agriculture, and material handling applications. It is part of Case Construction Equipment's SR series and is known for its radial-lift design, which supports strong digging and grading performance at lower lift heights. The SR220 typically features a diesel engine, hydraulic auxiliary flow for attachments, and a compact frame for maneuverability in confined work areas. Common uses include loading, site cleanup, grading, trench backfill, and attachment-driven tasks. The SR220 is compatible with a wide range of skid steer attachments, making it a versatile machine for general-purpose jobsite work.

Dimensions
Clearance At Max Lift And Dump	9 ft (3 m)
Ground Clearance	8 in (20 cm)
Height	7 ft (2 m)
Height To Top Of Cab	7 ft (2 m)
Length	12 ft (4 m)
Length W/O Bucket	10 ft (3 m)
Length With Bucket	12 ft (4 m)
Reach At Max Lift And Dump	20 in (50 cm)
Turning Radius From Center - Inc Bucket	84 in (214 cm)
Turning Radius From Center - Machine Rear	70 in (179 cm)
Weight	7,400 lbs (3,357 kg)
Wheelbase	4 ft (1 m)
Width	6 ft (2 m)
Width Over Tires	6 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	195 cu in (3,195 cu cm)
Engine Make	2,239
Engine Model	432T/M3
Gross Power	82 hp (61 kw)
Max Torque	225 lbs ft (305 nm)
Net Power	76 hp (57 kw)
Number Of Cylinders	4
Power Measured @	2,500 rpm
Torque Measured @	1,400 rpm
Hydraulic
Pump Flow Capacity	12 gpm (46 lpm)
Pump Type	Gear
Relief Valve Pressure	3,000 psi
Loader
Bucket Capacity	1 cu yd
Bucket Width	72 in (183 cm)
Operating Load Rating	2,200 lbs (998 kg)
Tipping Angle	4,400 degrees
Operational
Alternator Supplied Amperage	95 amps
Chain Box Fluid Capacity - Each Side	2 gal (8 l)
Engine Oil Fluid Capacity	3 gal (10 l)
Fuel Capacity	26 gal (97 l)
Hydraulic System Fluid Capacity	6 gal (23 l)
Max Speed	12 mph (19 kph)
Operating Speed	7 mph (12 kph)
Operating Voltage	12 V
Operational Weight	7,400 lbs (3,356 kg)
Tire Size	12 x 16.5
