Case SV185 For Sale in Middlebury, VT

Name: Case SV185
Brand: Case
SKU: 89348108
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-10-15 Click here to place a bid Minimum Bid: $10

Alex Lyon & Son Sales Managers & Auctioneers, Inc.

Alex Lyon & Son Sales Managers & Auctioneers, Inc. Dealer Info

Alex Lyon & Son Sales Managers & Auctioneers, Inc. Website

Click here to email Alex Lyon & Son Sales Managers & Auctioneers, Inc..

Click for Phone Number

Machine Info:

Machine Location:	MIDDLEBURY, VT
More Information:	https://www.proxibid.com:443/heavy-construction-equipment/skid-steers/case-sv185-skid-steer-snnem467011-powered-by-shibaura-diesel-engine-equipped-with-erops-air/lotInformation/103142438?utm_source=ceg&utm_medium=referral&utm_campaign=atgxl_ceg&utm_content

Description:

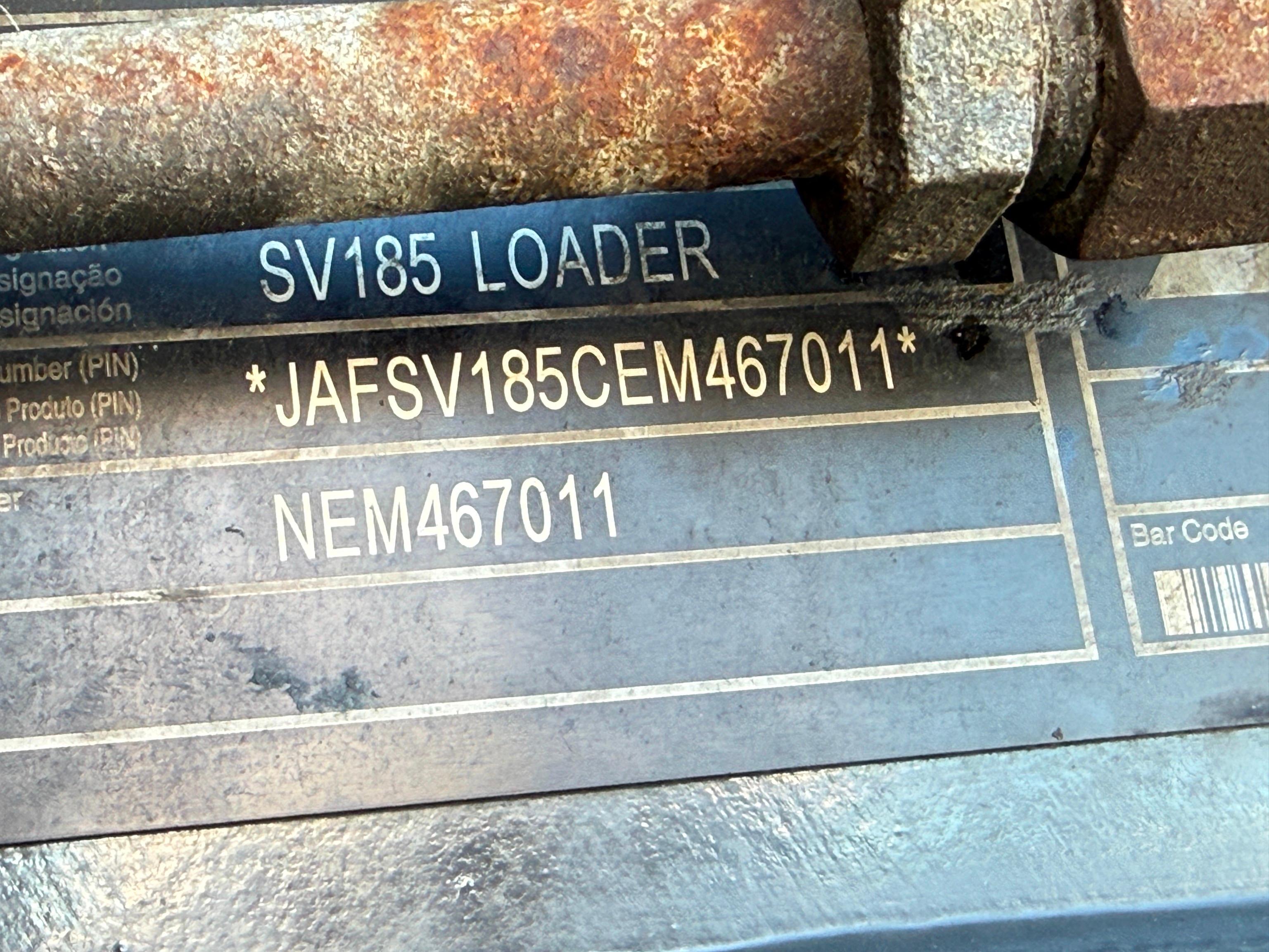

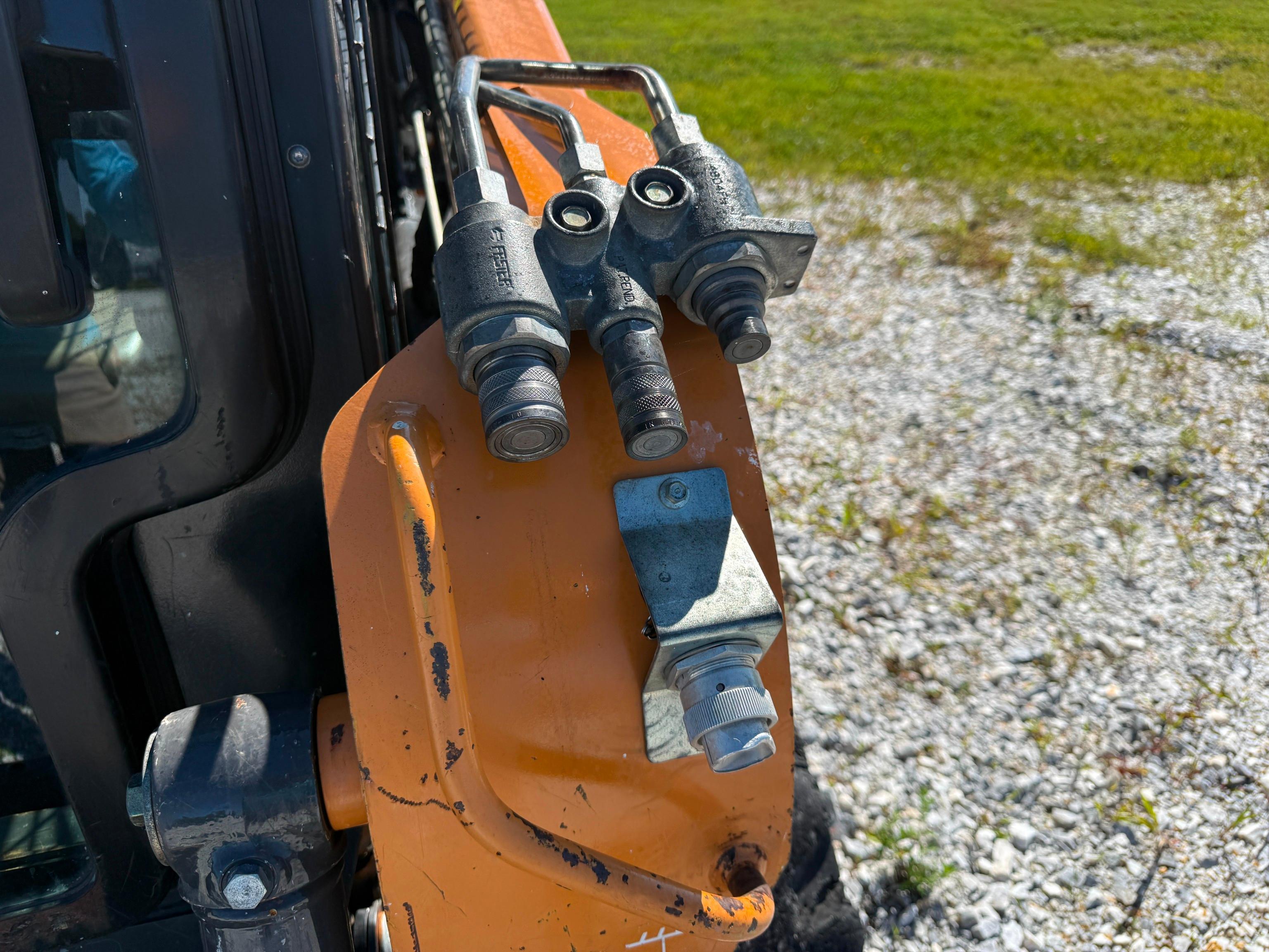

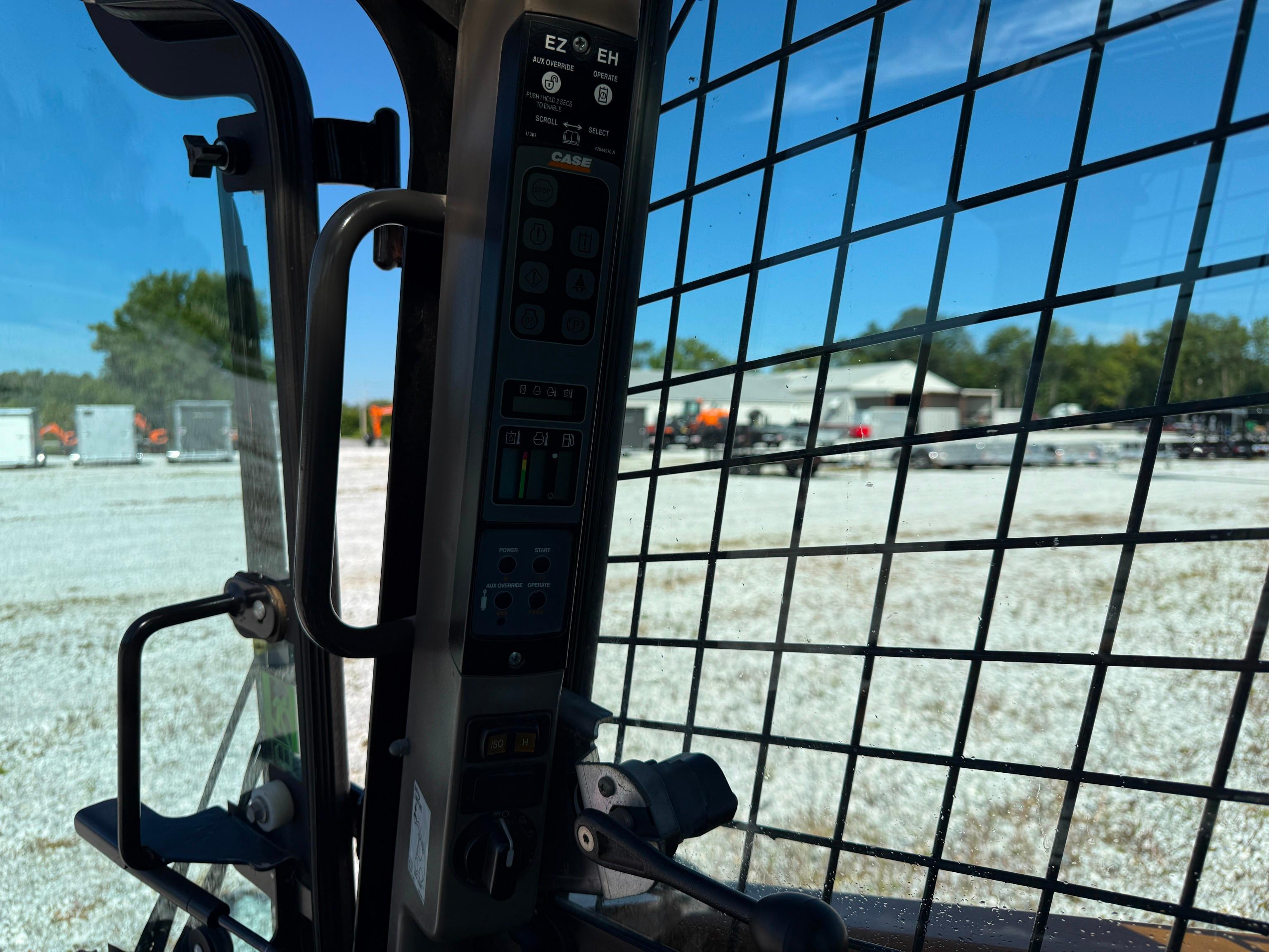

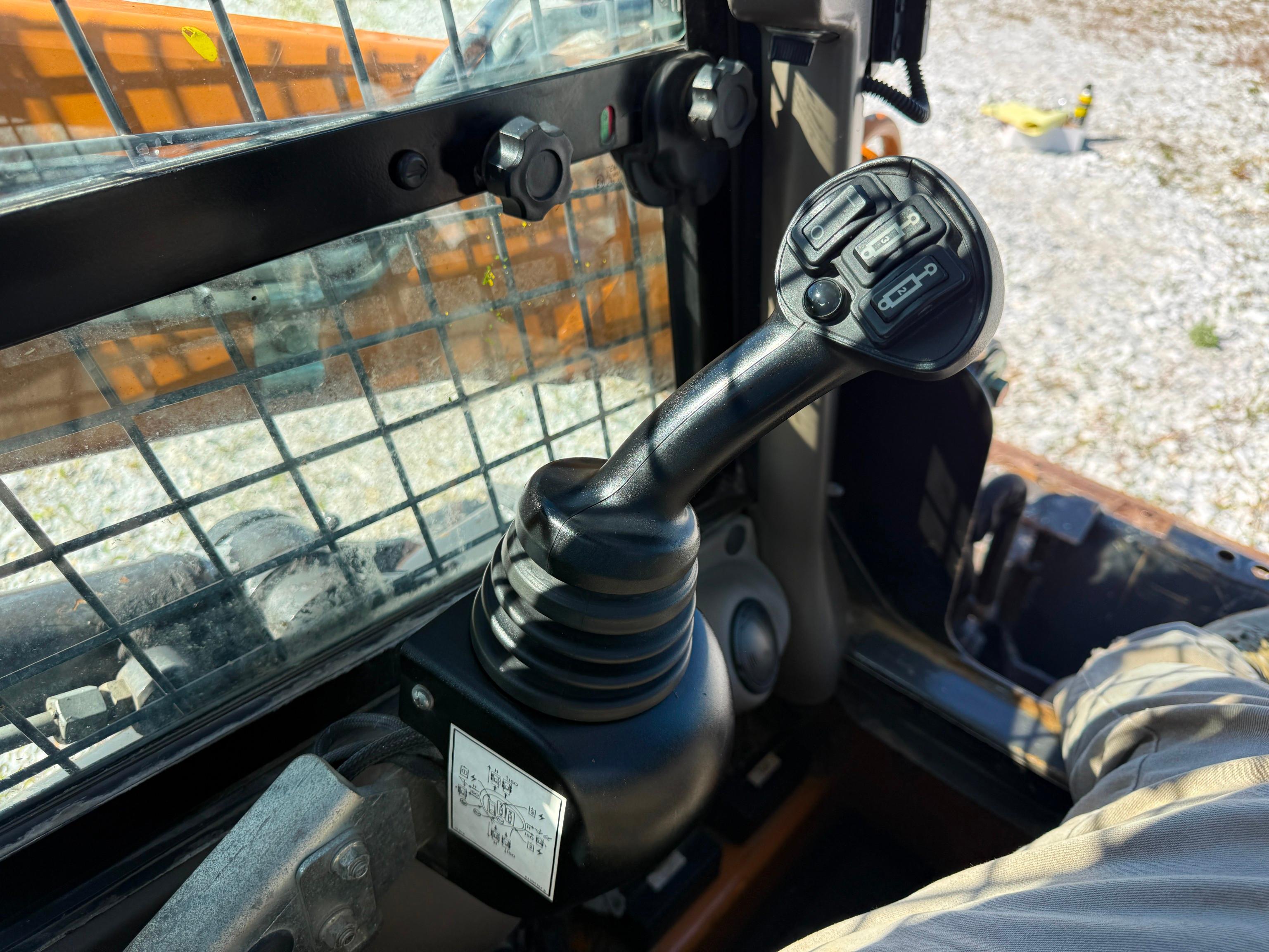

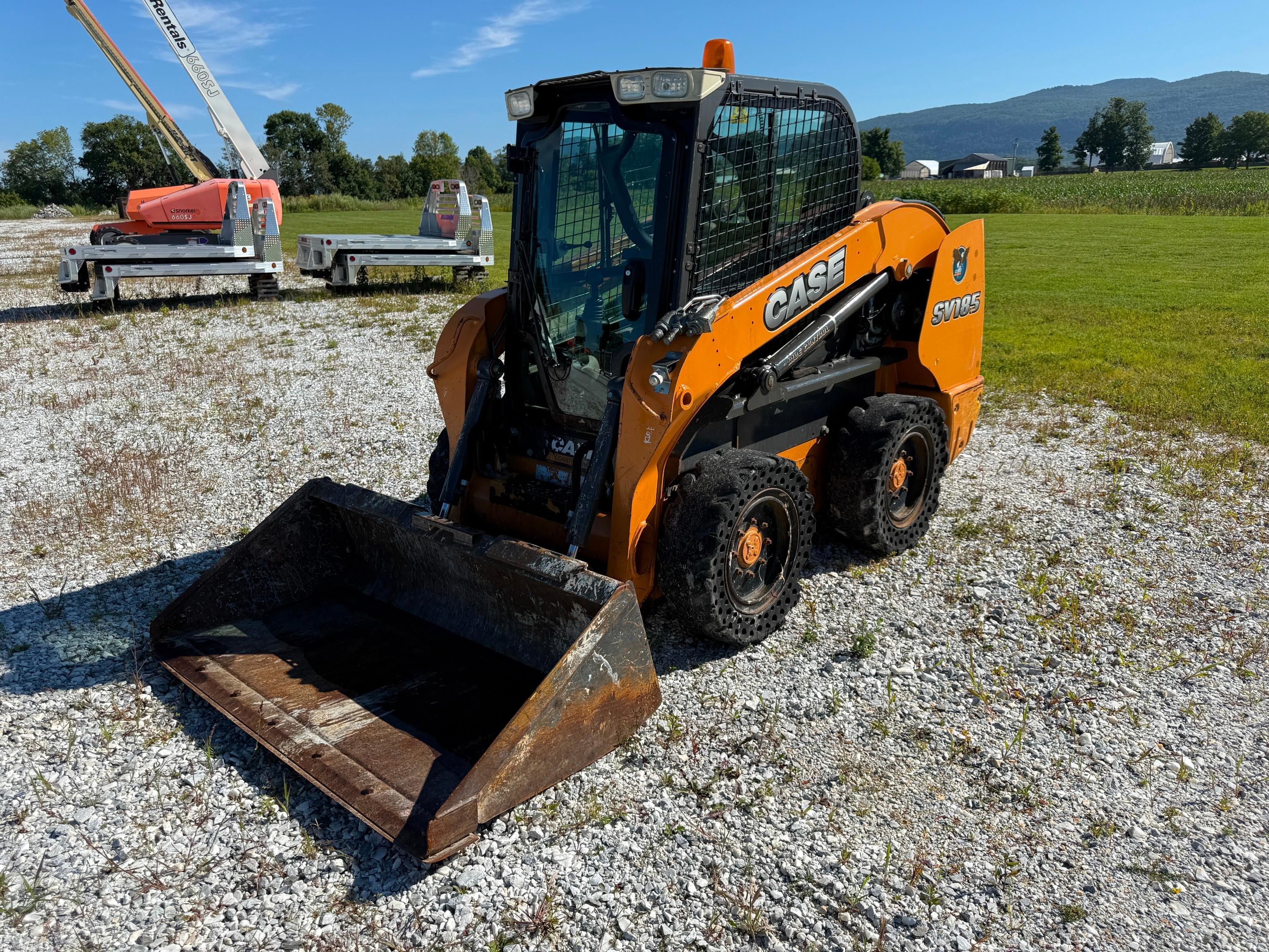

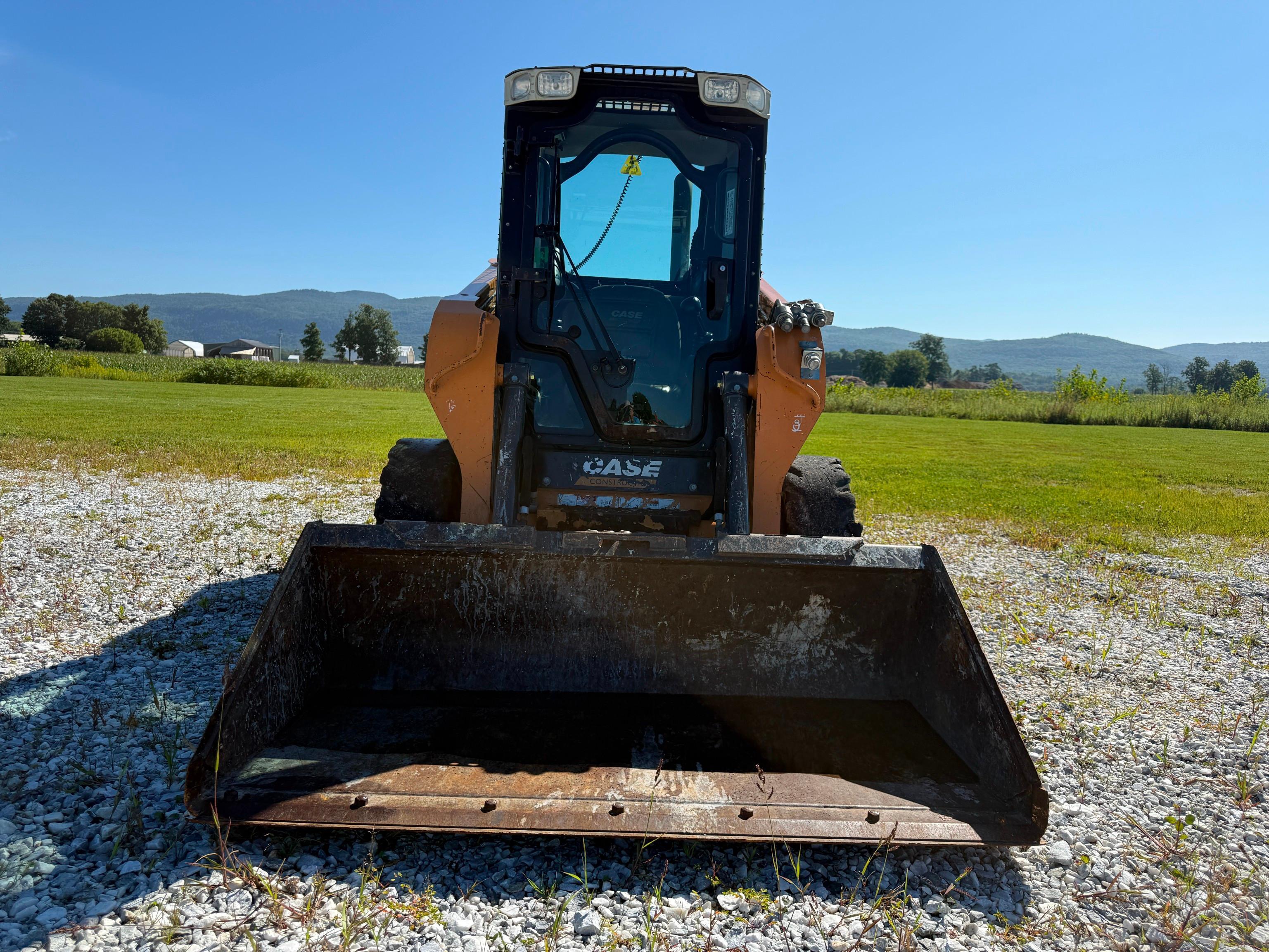

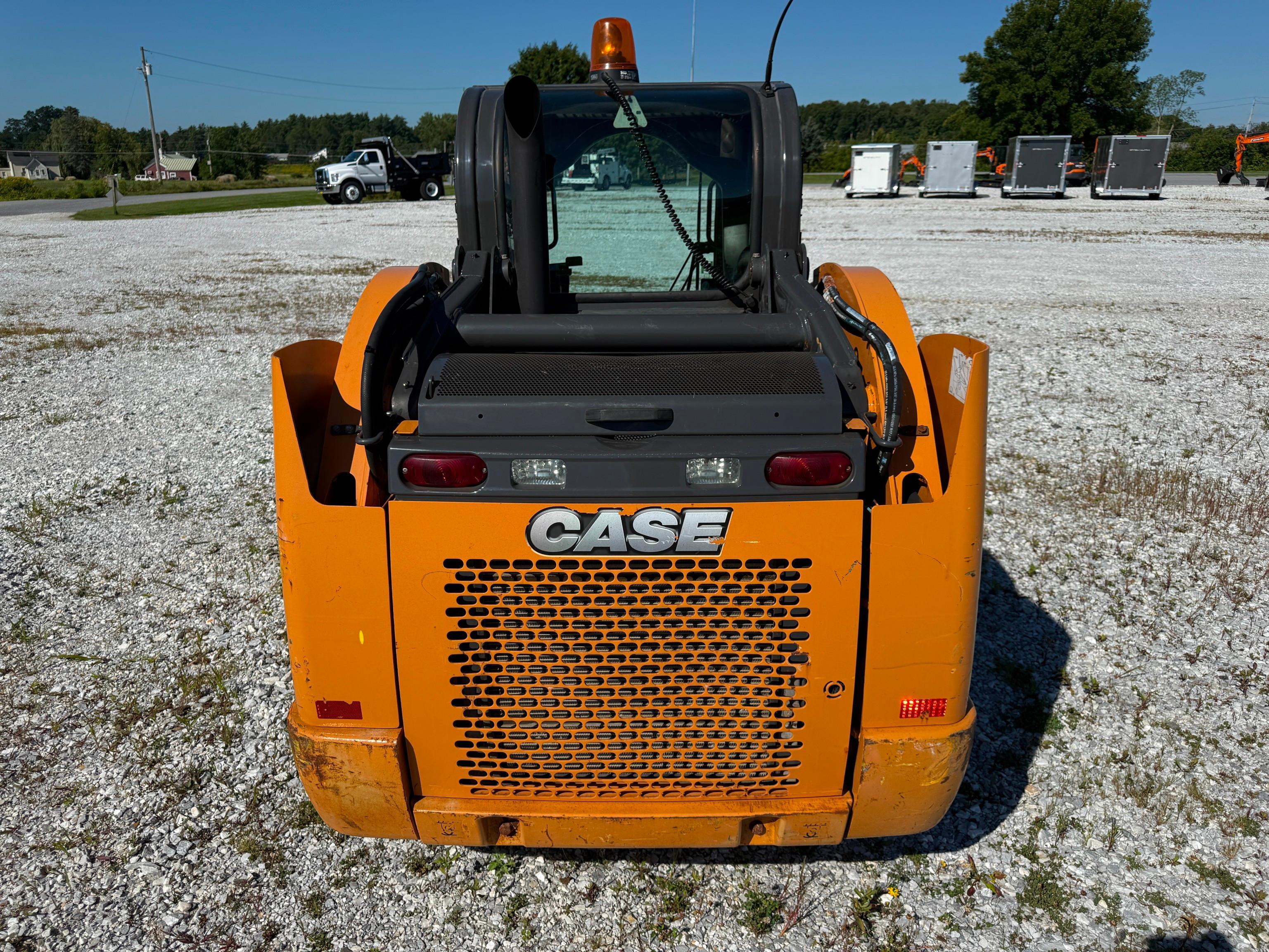

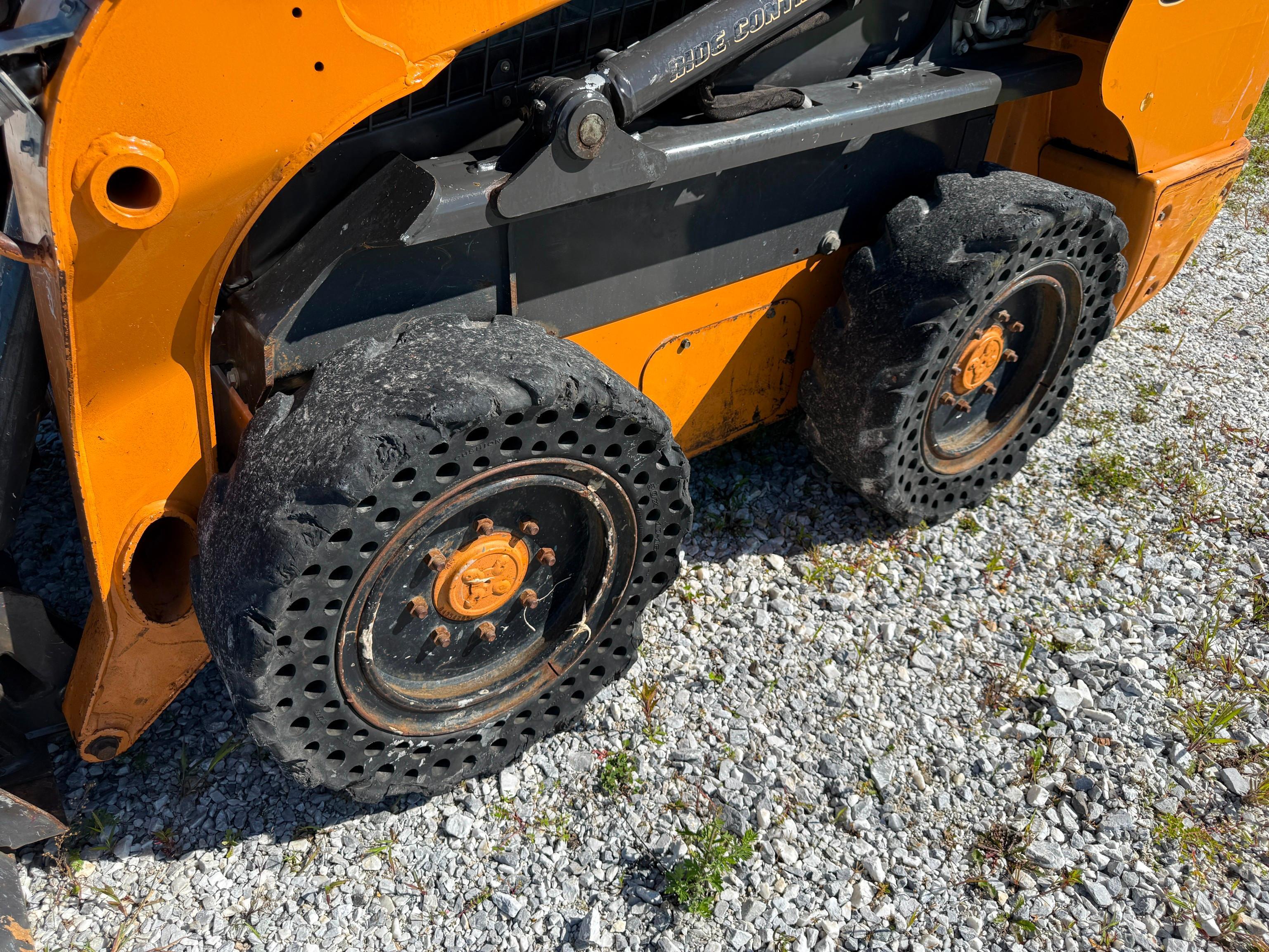

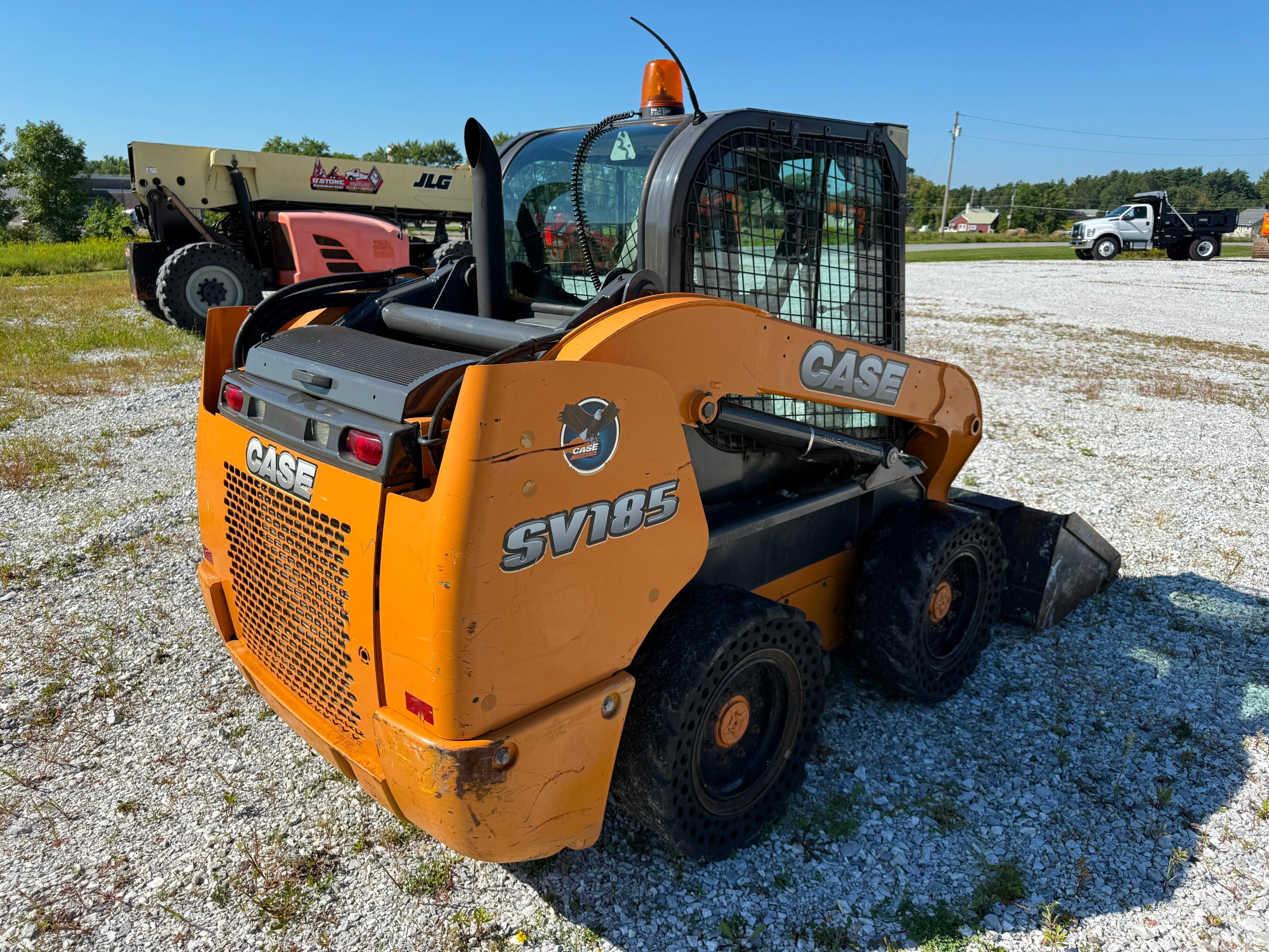

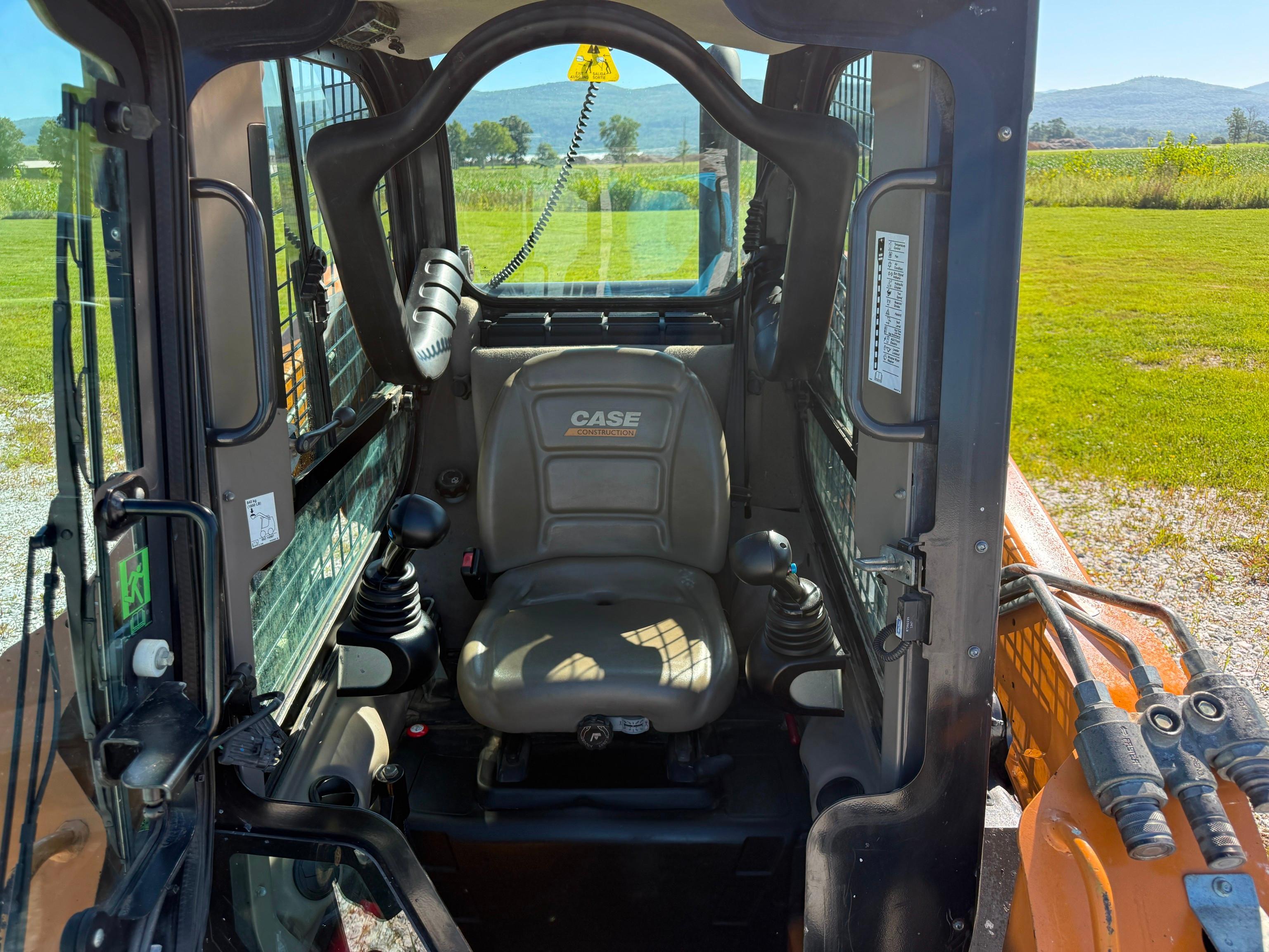

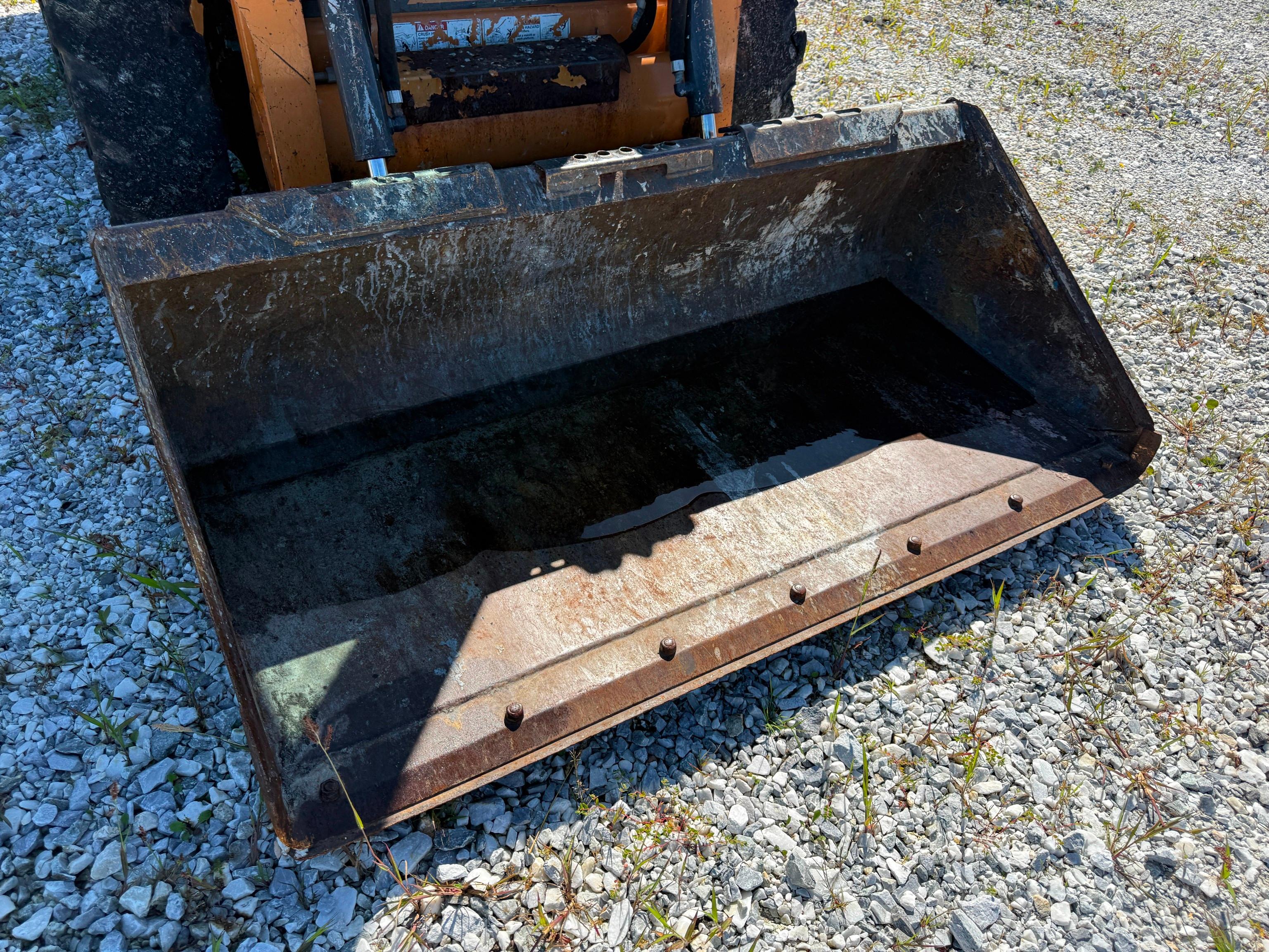

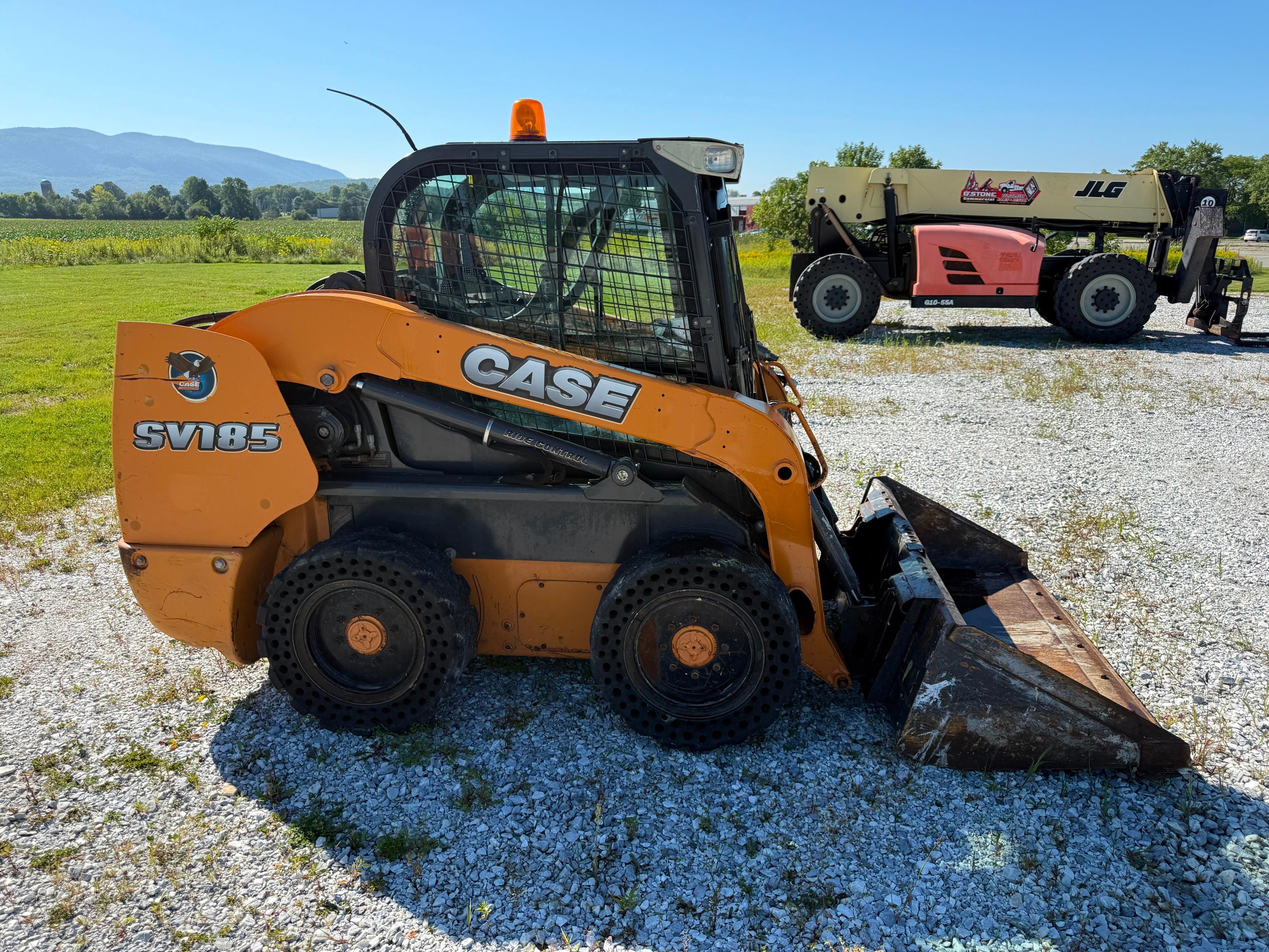

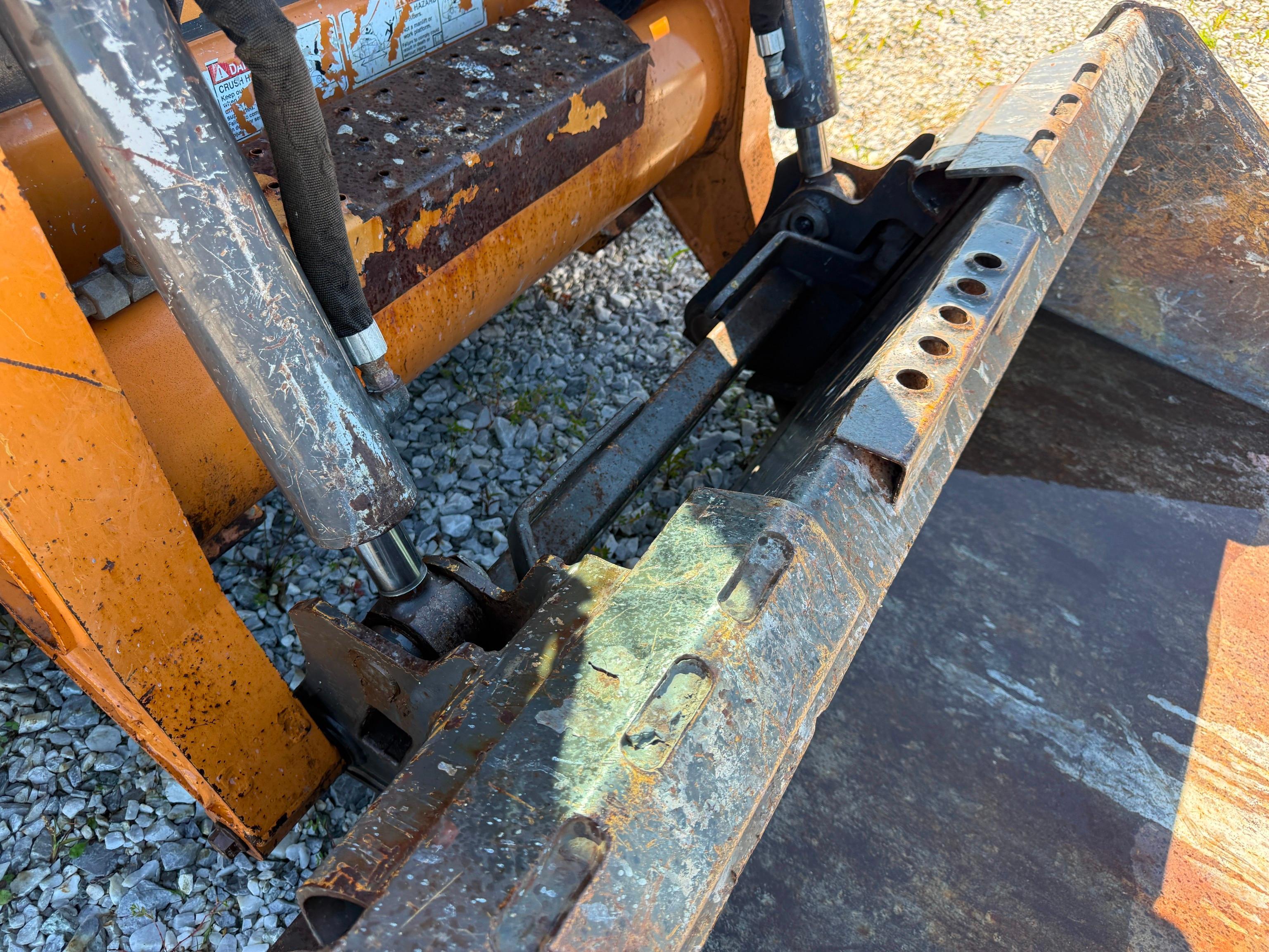

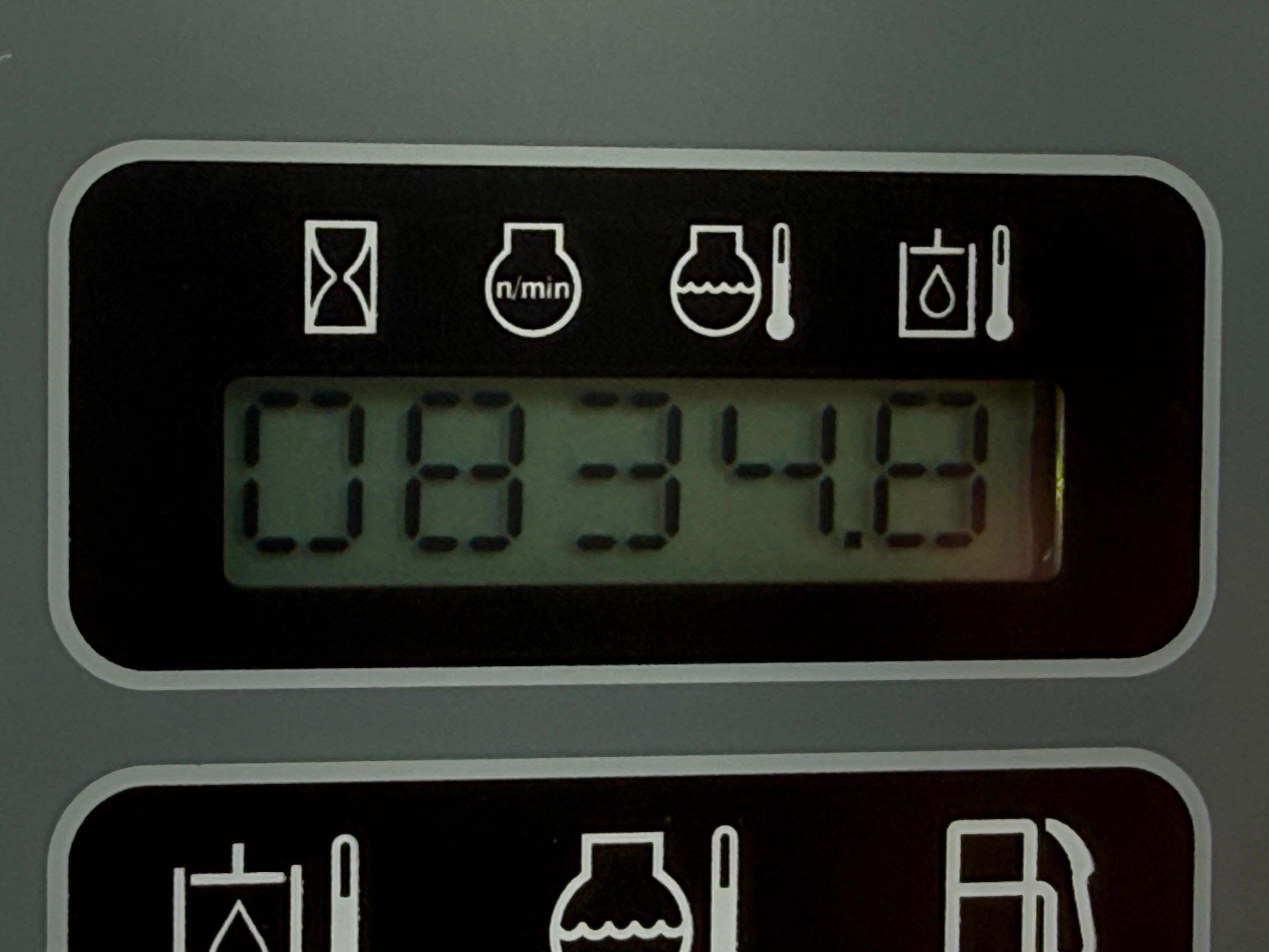

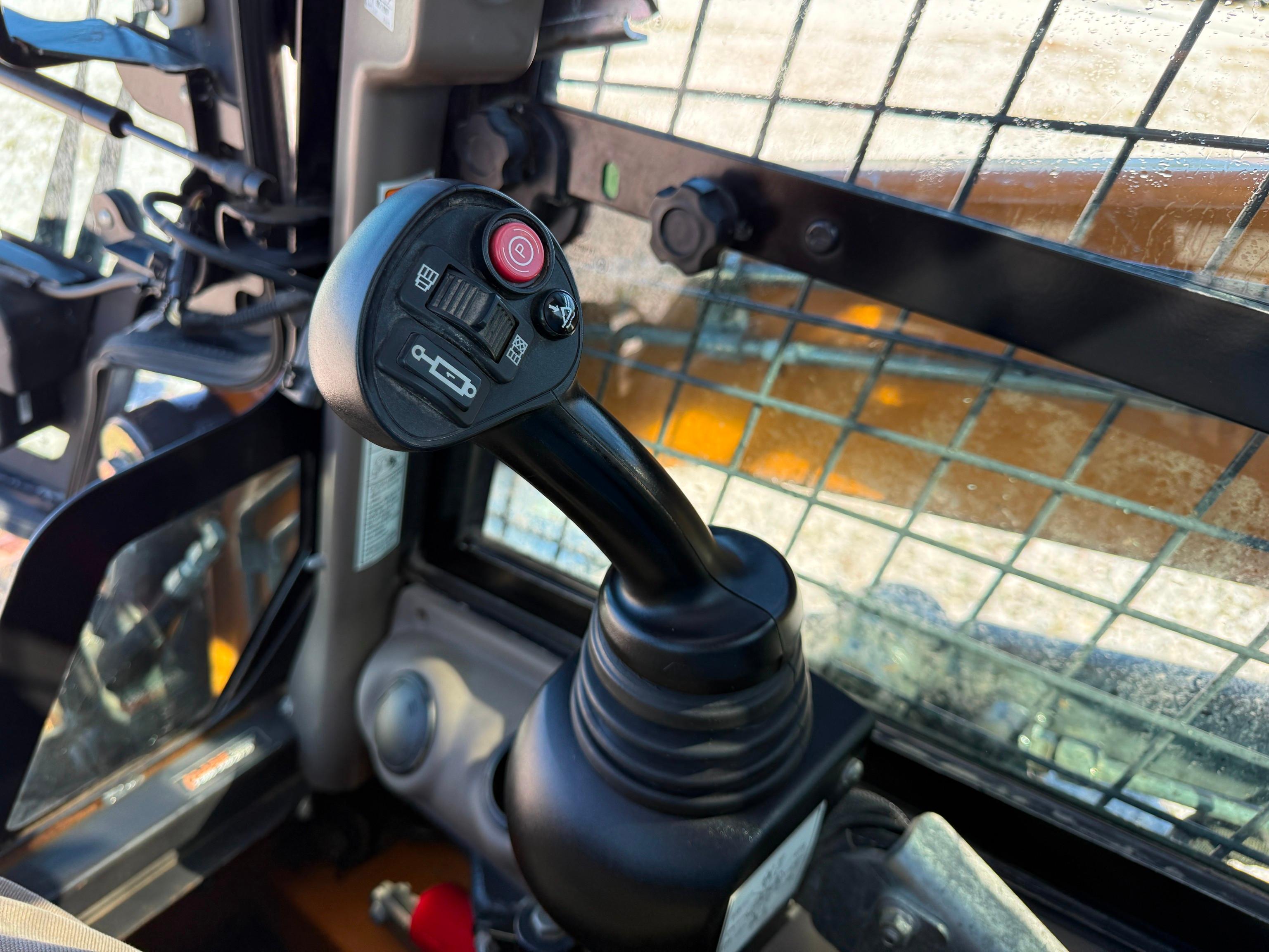

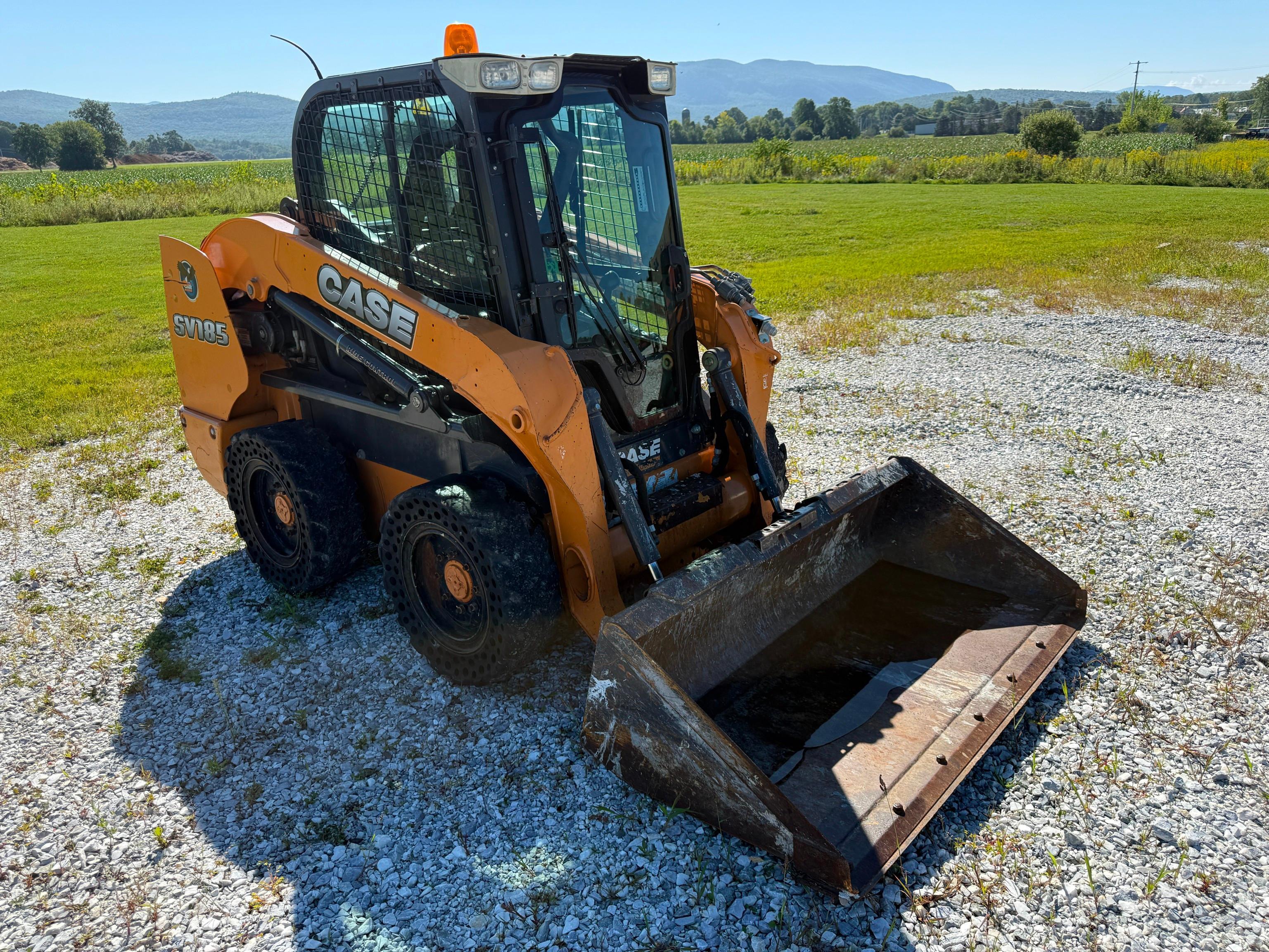

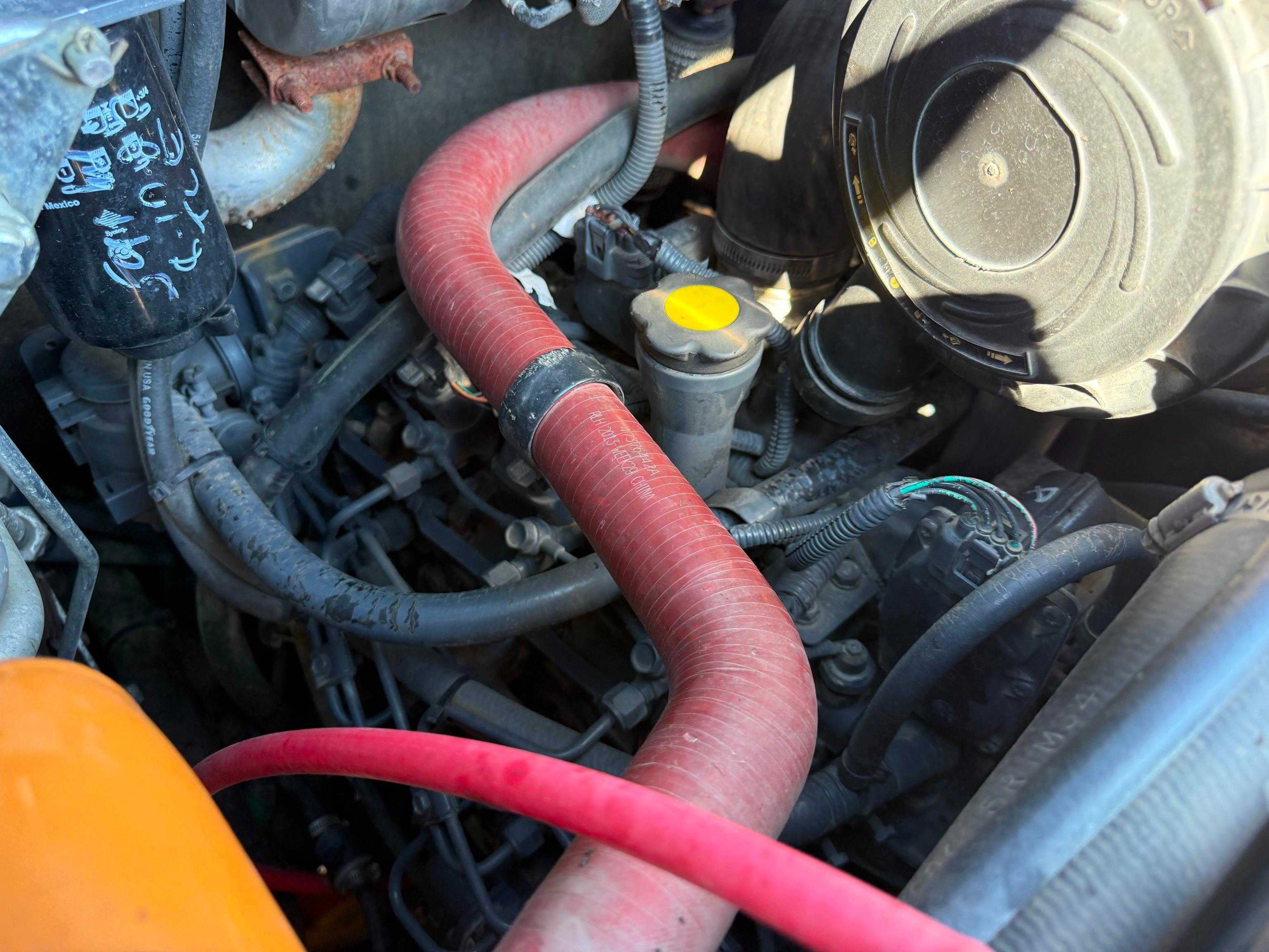

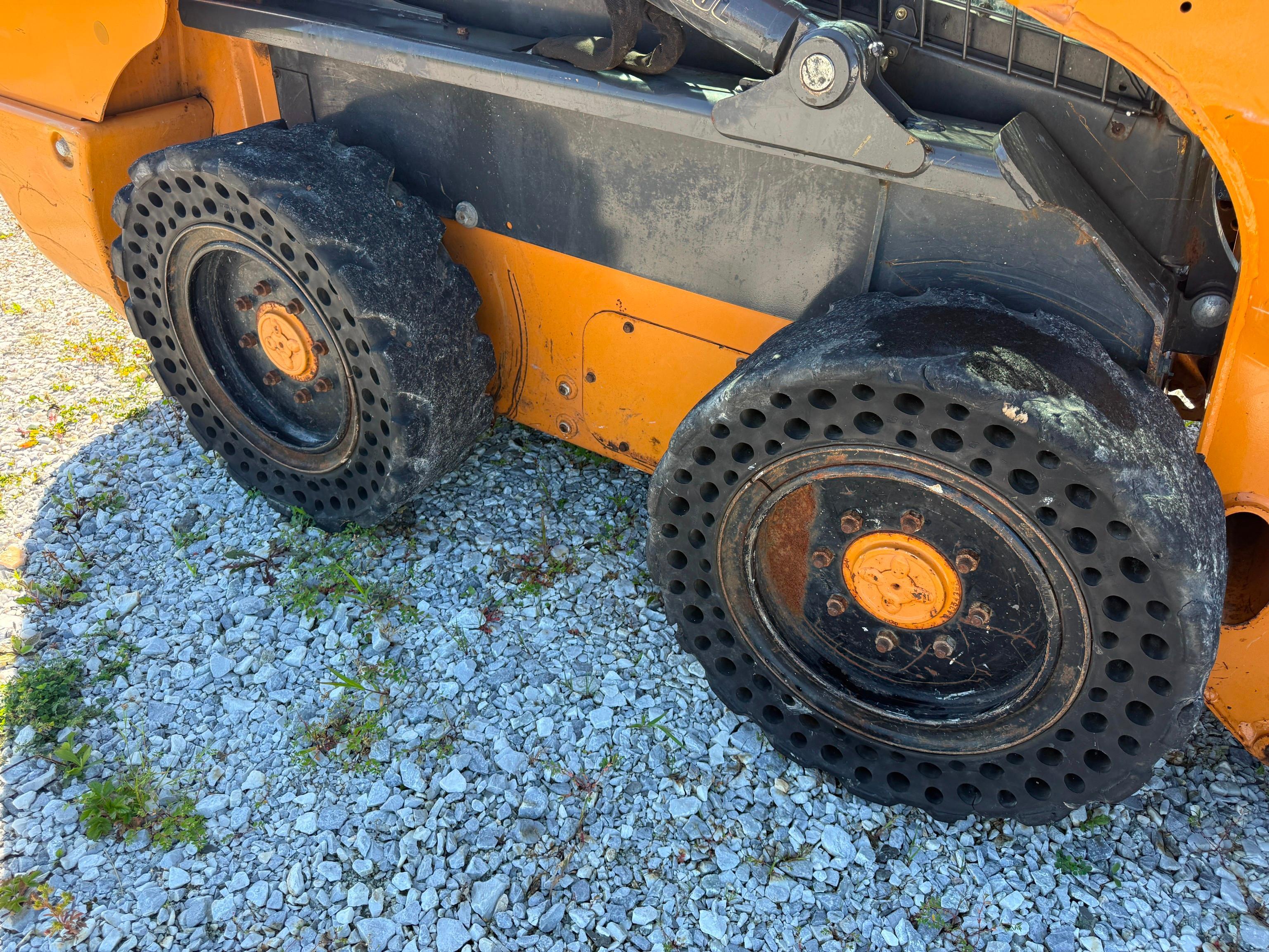

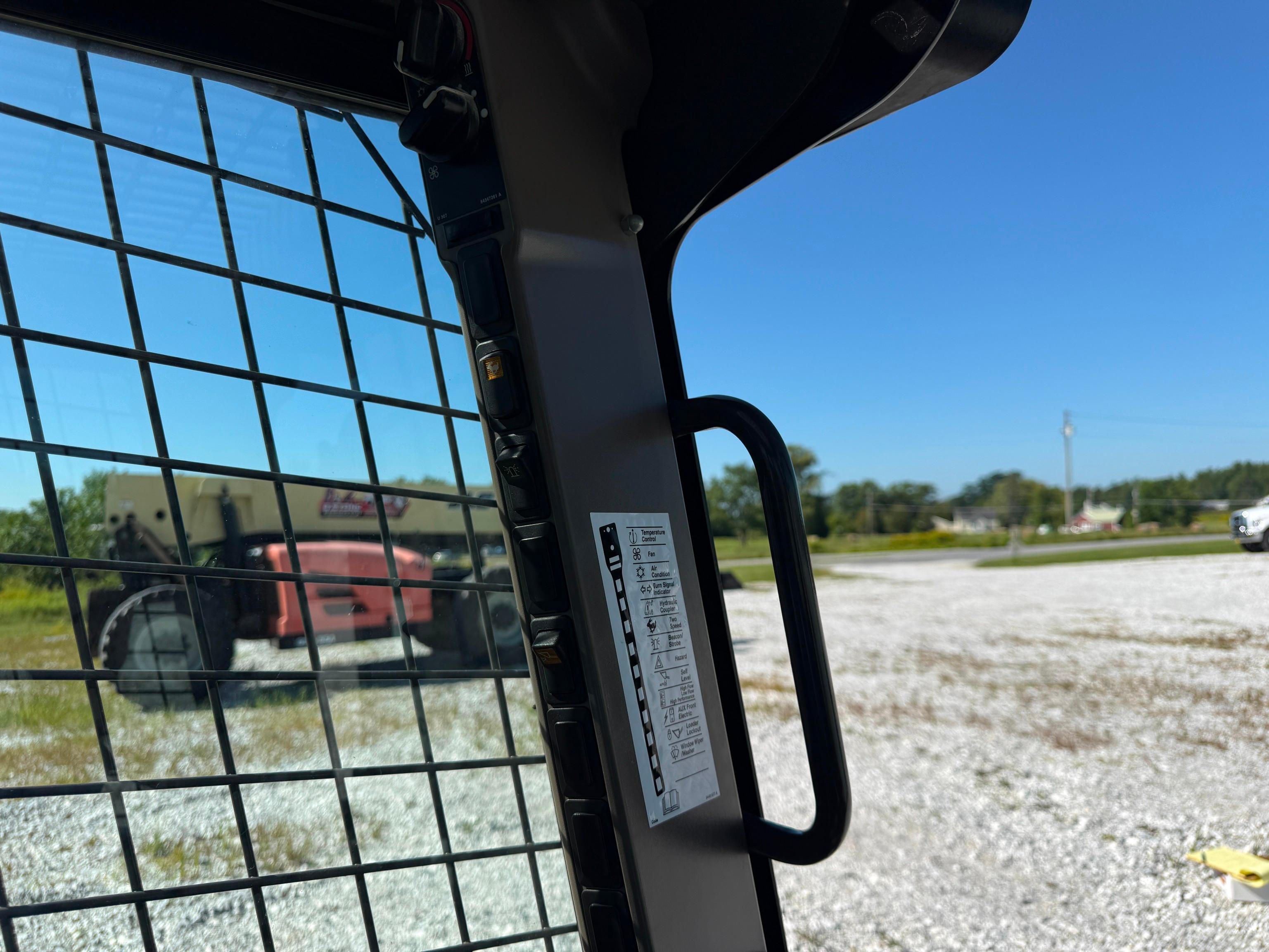

CASE SV185 SKID STEER SN:NEM467011 powered by Shibaura diesel engine, equipped with EROPS, air, heat, 2-speed, ride control, high flow auxiliary hydraulics, mechanical quick coupler, 66in. GP Bucket, 30 x 10-16 cushion tires, 834 hours.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case SV185 is a skid steer loader designed for general construction, material handling, landscaping, and site preparation tasks. It is part of Case's compact equipment lineup and is commonly used where maneuverability and lifting performance are required in confined work areas. The SV185 features a vertical-lift design, which supports load handling at higher reach points compared with radial-lift configurations. Typical applications include loading trucks, moving pallets, grading, and operating with a range of hydraulic attachments. As a skid steer loader, the Case SV185 is built for versatility, compact size, and compatibility with jobsite tools used across construction and maintenance operations.

Dimensions
Clearance At Max Lift And Dump	8 ft (2 m)
Ground Clearance	7 in (18 cm)
Height	7 ft (2 m)
Height To Top Of Cab	6 ft (2 m)
Length	11 ft (3 m)
Length W/O Bucket	9 ft (3 m)
Length With Bucket	11 ft (3 m)
Reach At Max Lift And Dump	31 in (78 cm)
Turning Radius From Center - Inc Bucket	80 in (202 cm)
Turning Radius From Center - Machine Rear	63 in (160 cm)
Weight	6,570 lbs (2,980 kg)
Wheelbase	4 ft (1 m)
Width	5 ft (2 m)
Width Over Tires	5 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	135 cu in (2,212 cu cm)
Engine Model	ISM N844T/M3
Gross Power	60 hp (45 kw)
Max Torque	126 lbs ft (171 nm)
Net Power	57 hp (43 kw)
Number Of Cylinders	4
Power Measured @	2,900 rpm
Torque Measured @	1,800 rpm
General Specifications
ENGINE POWER (Since 2016)	60 hp (45 kw)
ENGINE POWER (2017)	60 hp (45 kw)
ENGINE POWER (2019)	60 hp (45 kw)
ENGINE POWER (2020)	60 hp (45 kw)
MODEL (Since 2016)	SV185
MODEL (2017)	SV185
MODEL (2019)	SV185
MODEL (2020)	SV185
OPERATING LOAD (Since 2016)	1,850 lbs (839 kg)
OPERATING LOAD (2017)	1,850 lbs (839 kg)
OPERATING LOAD (2019)	1,850 lbs (839 kg)
OPERATING WIDTH (Since 2016)	66 in (168 cm)
OPERATING WIDTH (Since 2017)	65 in (164 cm)
OPERATING WIDTH (2019)	65 in (164 cm)
OPERATING WIDTH (2020)	65 in (164 cm)
RATED OPERATING CAPACITY (50%) (Since 2020)	1,850 lbs (839 kg)
Hydraulic
Pump Flow Capacity	10 gpm (36 lpm)
Pump Type	Gear
Relief Valve Pressure	3,000 psi
Loader
Bucket Capacity	1 cu yd
Bucket Width	66 in (168 cm)
Operating Load Rating	1,850 lbs (839 kg)
Tipping Angle	3,700 degrees
Operational
Alternator Supplied Amperage	95 amps
Chain Box Fluid Capacity - Each Side	2 gal (7 l)
Engine Oil Fluid Capacity	2 gal (9 l)
Fuel Capacity	20 gal (76 l)
Hydraulic System Fluid Capacity	4 gal (16 l)
Max Speed	12 mph (19 kph)
Operating Speed	7 mph (12 kph)
Operating Voltage	12 V
Operational Weight	6,500 lbs (2,948 kg)
Tire Size	10 x 16.5
