2011 Case SV250 For Sale in Fort Worth, Tx

Name: 2011 Case SV250
Brand: Case
SKU: 88978507
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-08-19 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

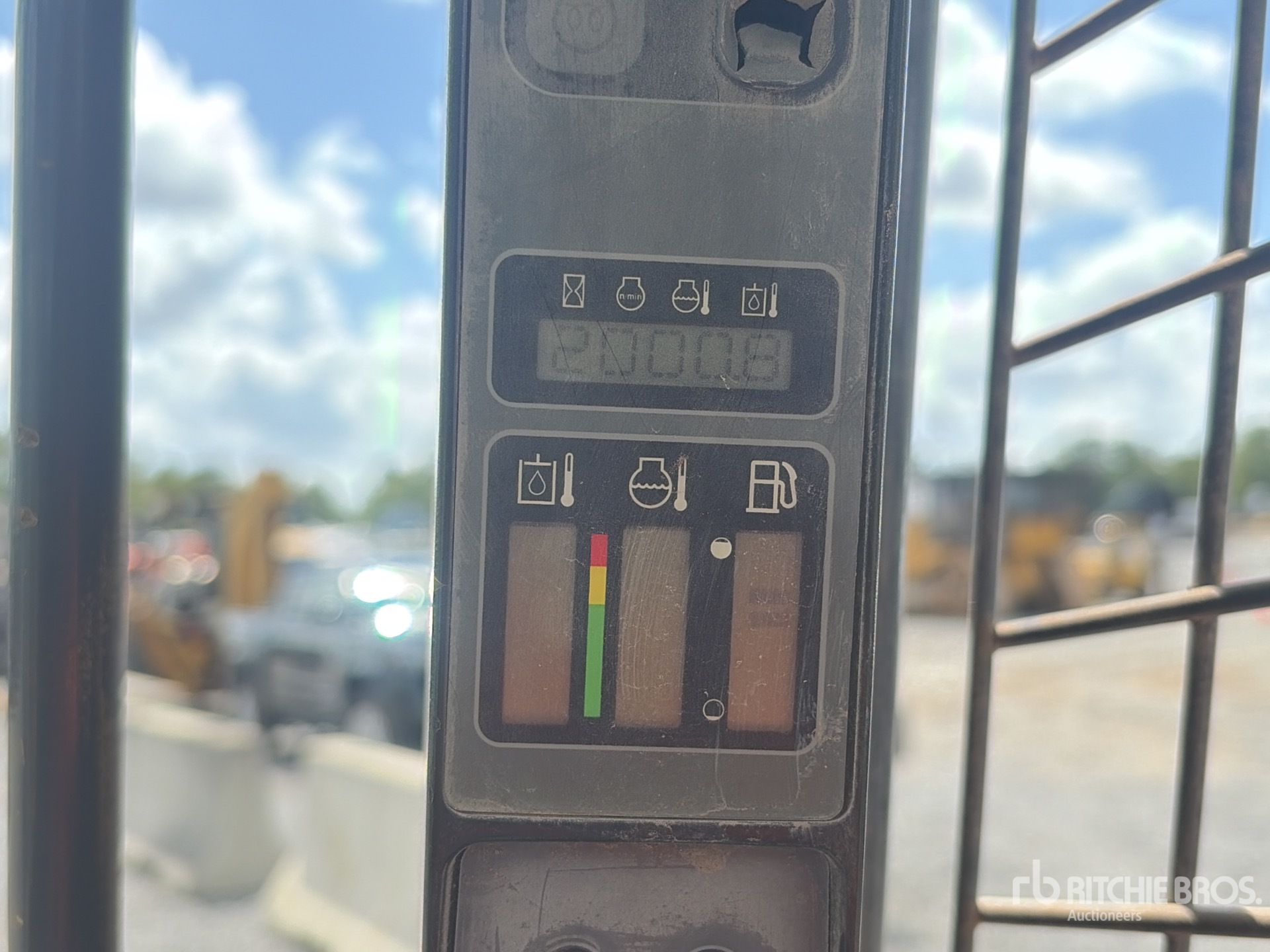

Hours:	2000

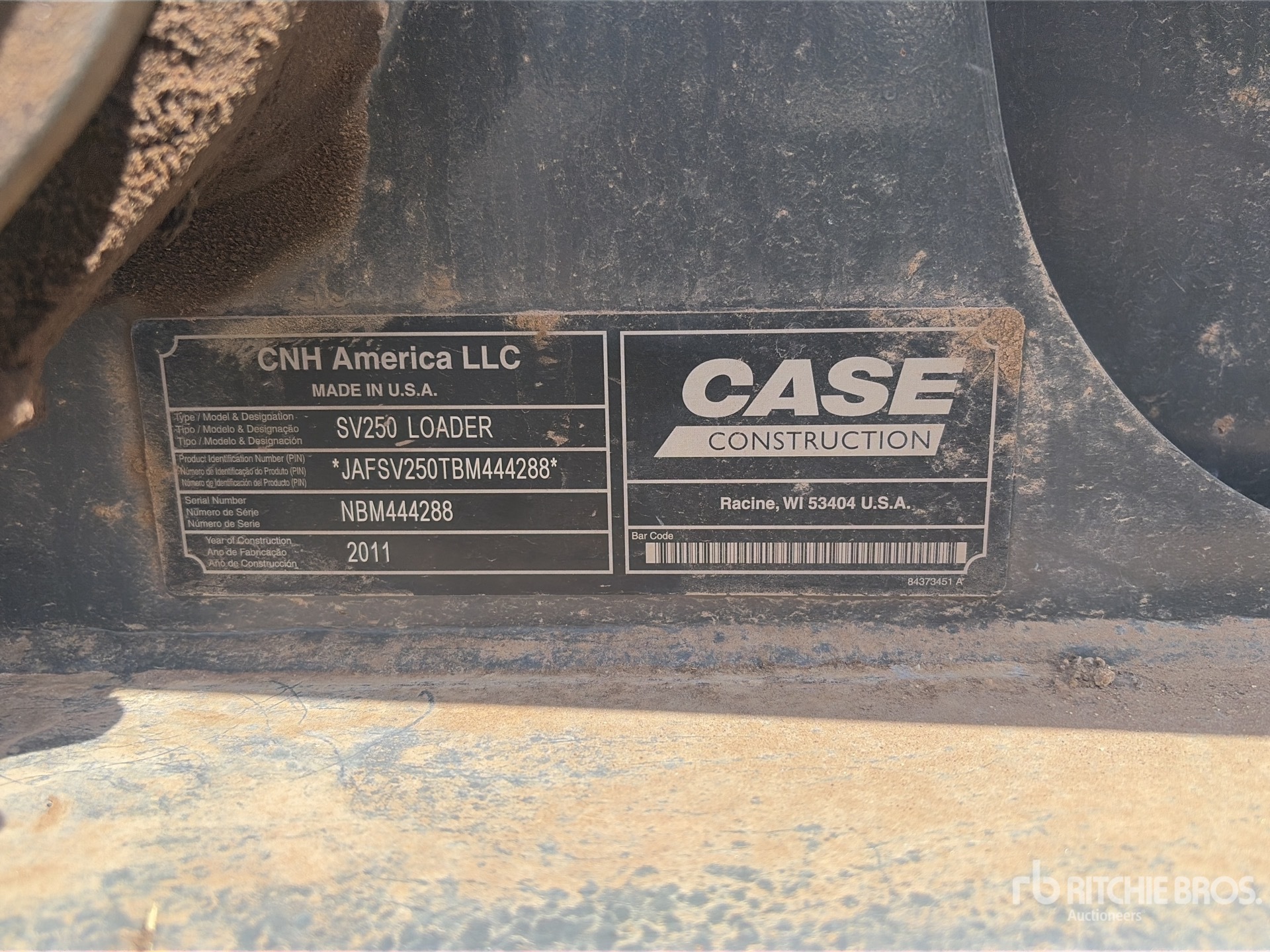

Serial Number:	JAFSV250TBM444288
Machine Location:	FORT WORTH, TX

Description:

Located in Lane 5 Spot 30, Open Operator Station, Joystick Steering, Manual Quick Coupler, 72 in Bucket Closing Time: 2026-08-19 10:01:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case SV250 is a skid steer loader designed for construction, landscaping, agriculture, and material handling applications. It is part of Case Construction Equipment's SV Series and is known for its vertical-lift design, which supports loading and lifting tasks that require extended reach and height. The SV250 is commonly used with buckets, forks, augers, grapples, and other skid steer attachments. Typical features include a compact frame, hydraulic attachment capability, and operator-focused controls. The model is suited for work in confined spaces where maneuverability and lifting performance are important. It is a widely recognized mid-size skid steer loader in the Case lineup.

Dimensions
Clearance at Max Lift and Dump	9 ft (3 m)
Ground Clearance	8 in (20 cm)
Height - Top of Cab	7 ft (2 m)
Length w/o Bucket	10 ft (3 m)
Length with Bucket	12 ft (4 m)
Reach at Max Lift and Dump	29 in (74 cm)
Turning Radius from Center - inc bucket	84 in (213 cm)
Turning Radius from Center - machine rear	70 in (179 cm)
Wheelbase	4 ft (1 m)
Width Over Tires	6 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	195 cu in (3,195 cu cm)
Engine Model	432T/M3
Gross Power	76 hp (57 kw)
Max Torque	225 lbs ft (305 nm)
Number of Cylinders	4
Power Measured @	2,500 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Pump Flow Capacity	12 gpm (46 lpm)
Pump Type	Gear
Relief Valve Pressure	3,000 psi
Loader
Bucket Capacity	1 cu yd (1 cu m)
Bucket Width	72 in (183 cm)
Operating Load Rating	2,500 lbs (1,134 kg)
Operating Width	70 in (177 cm)
Tipping Angle	5,000 degrees
Operating Specifications
Alternator Supplied Amperage	95 amps
Chain Box Fluid Capacity - each side	2 gal (8 l)
Engine Oil Fluid Capacity	3 gal (10 l)
Fuel Capacity	26 gal (97 l)
Hydraulic System Fluid Capacity	6 gal (23 l)
Max Speed	12 mph (19 kph)
Operating Speed	7 mph (12 kph)
Operating Voltage	12 volts
Operational Weight	8,000 lbs (3,629 kg)
Tire Size	12 x 16.5
