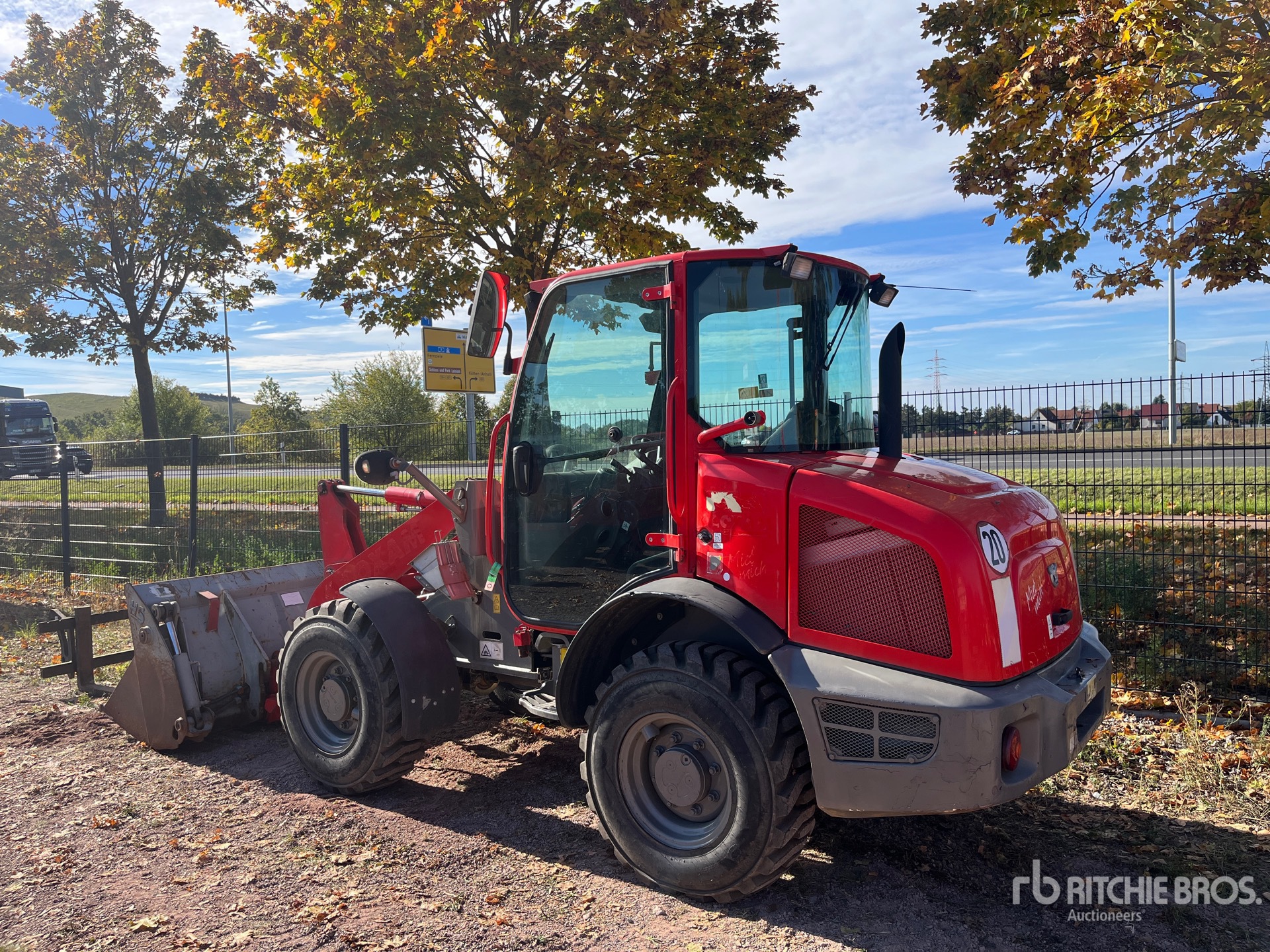

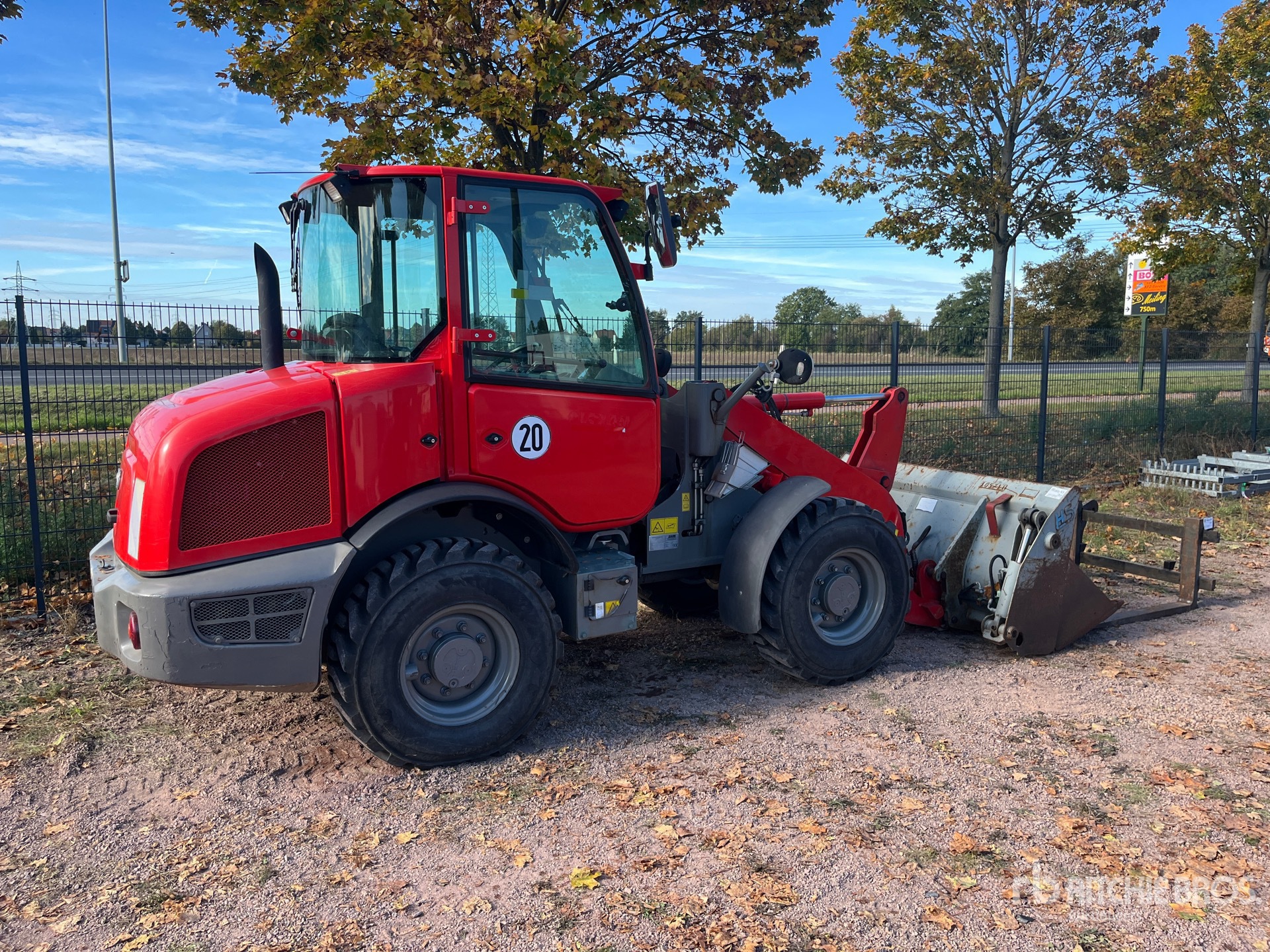

2017 Case 121F For Sale in Meppen, Deu

Name: 2017 Case 121F
Brand: Case
SKU: 89457696
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-20 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

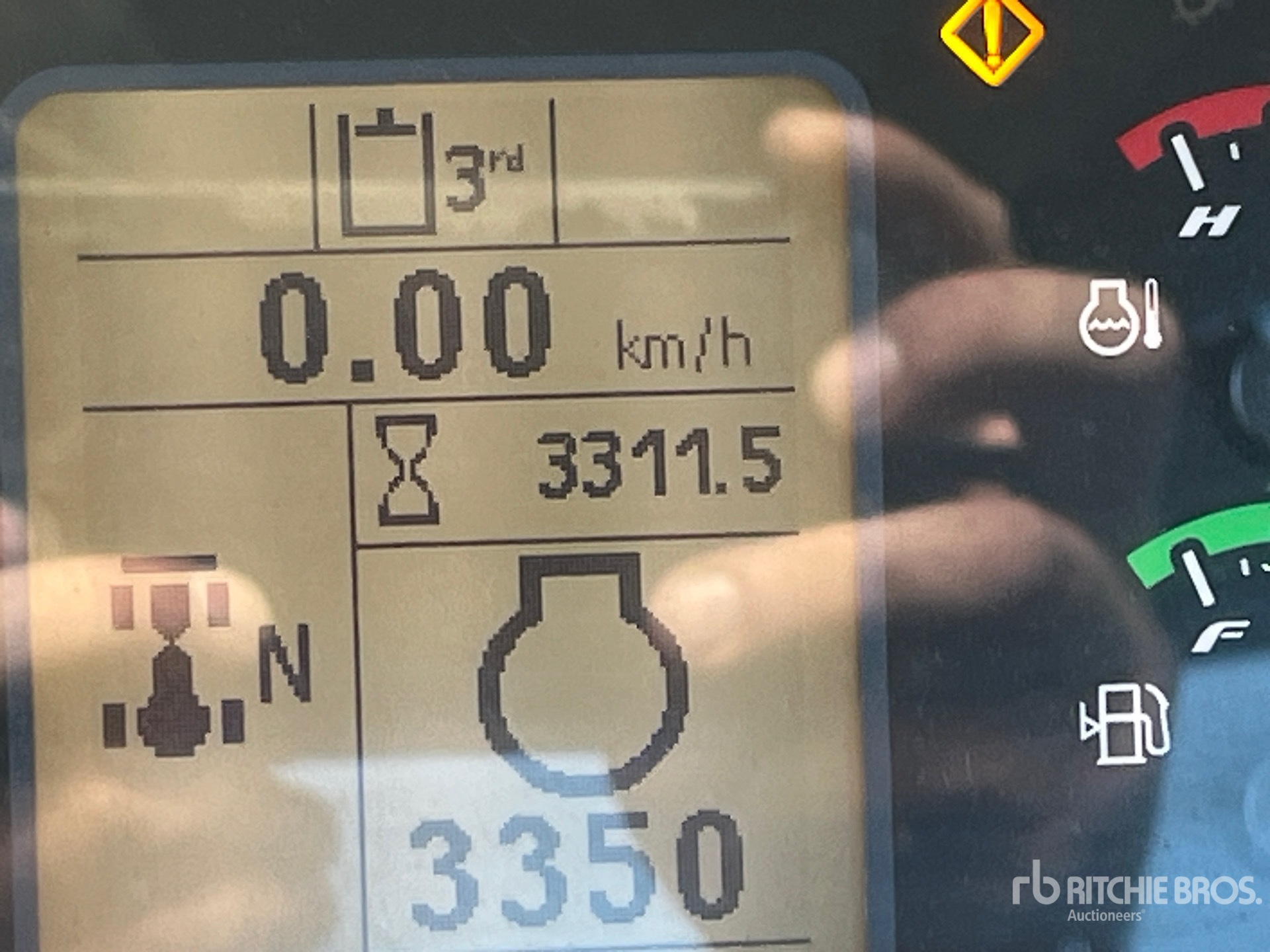

Hours:	3311

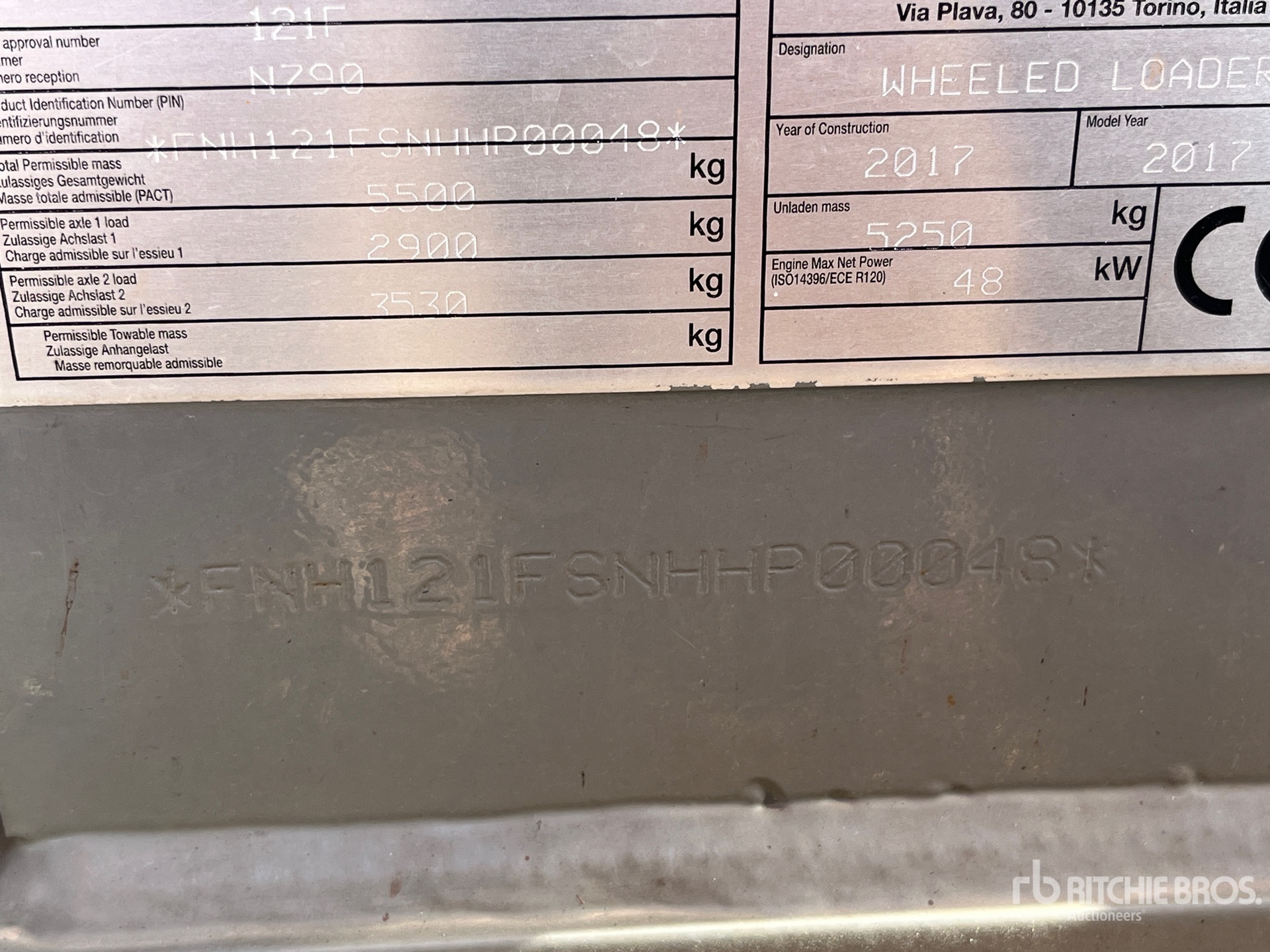

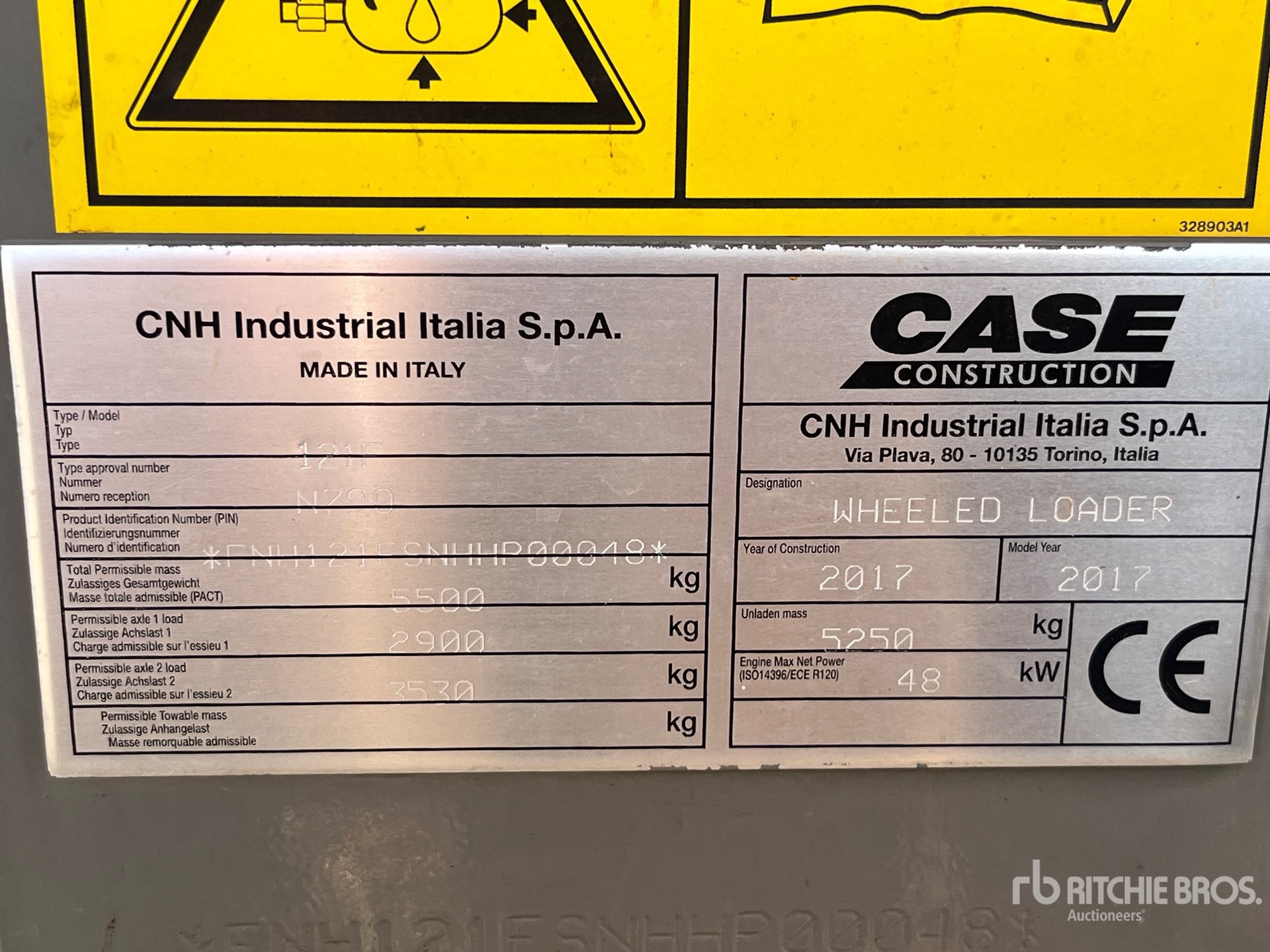

Serial Number:	FNH121FSNHHP00048
Machine Location:	MEPPEN, DEU

Description:

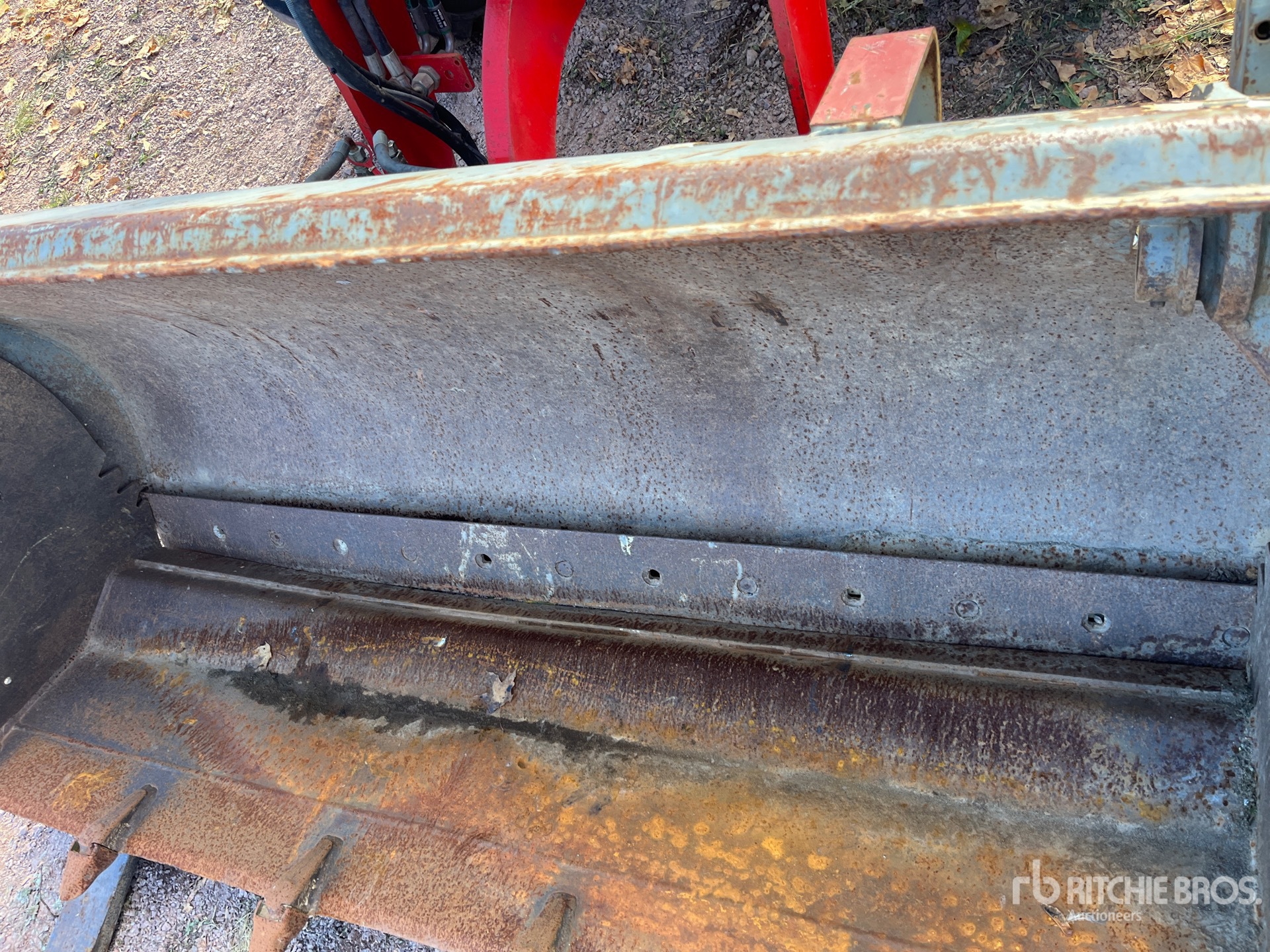

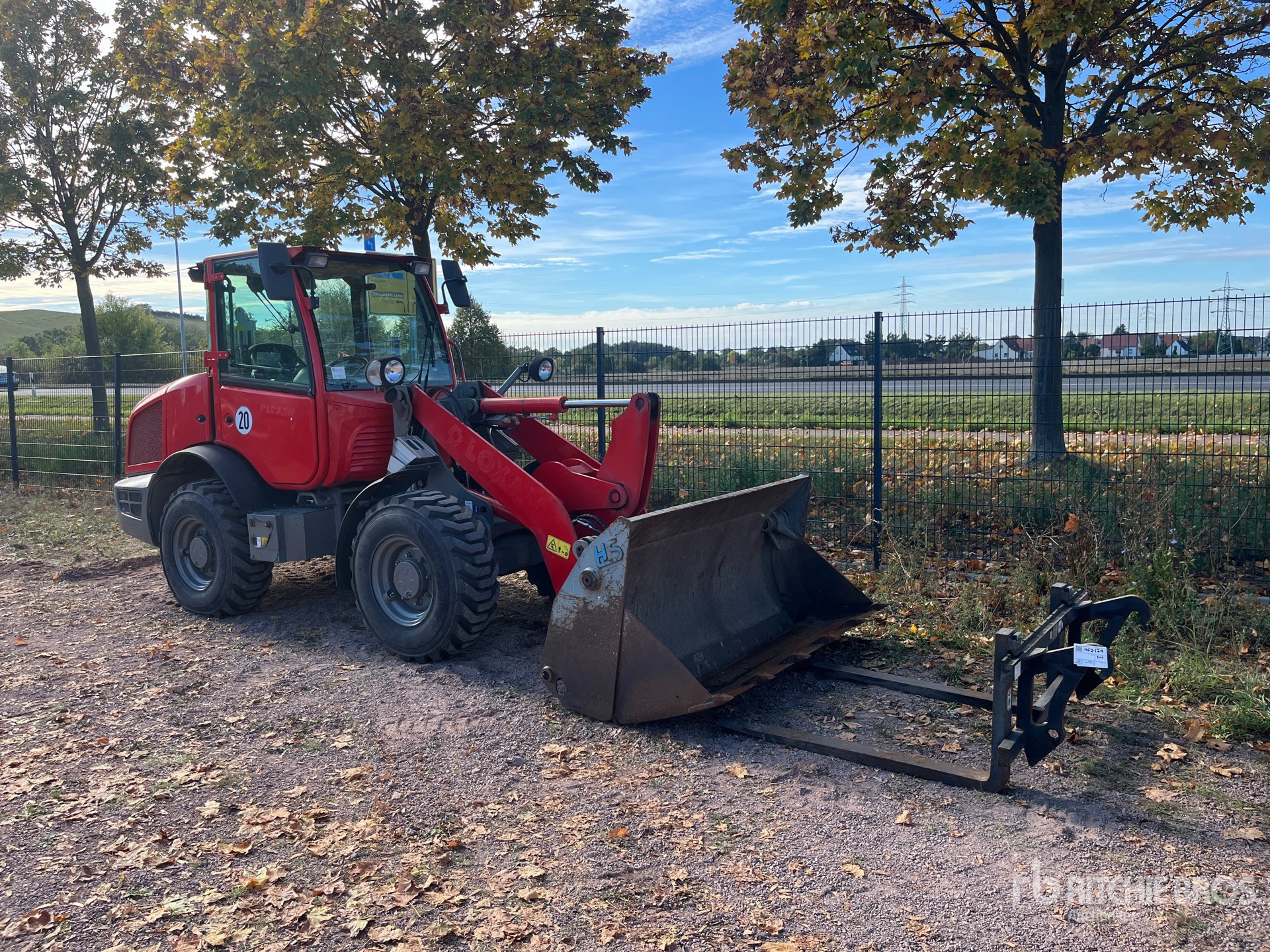

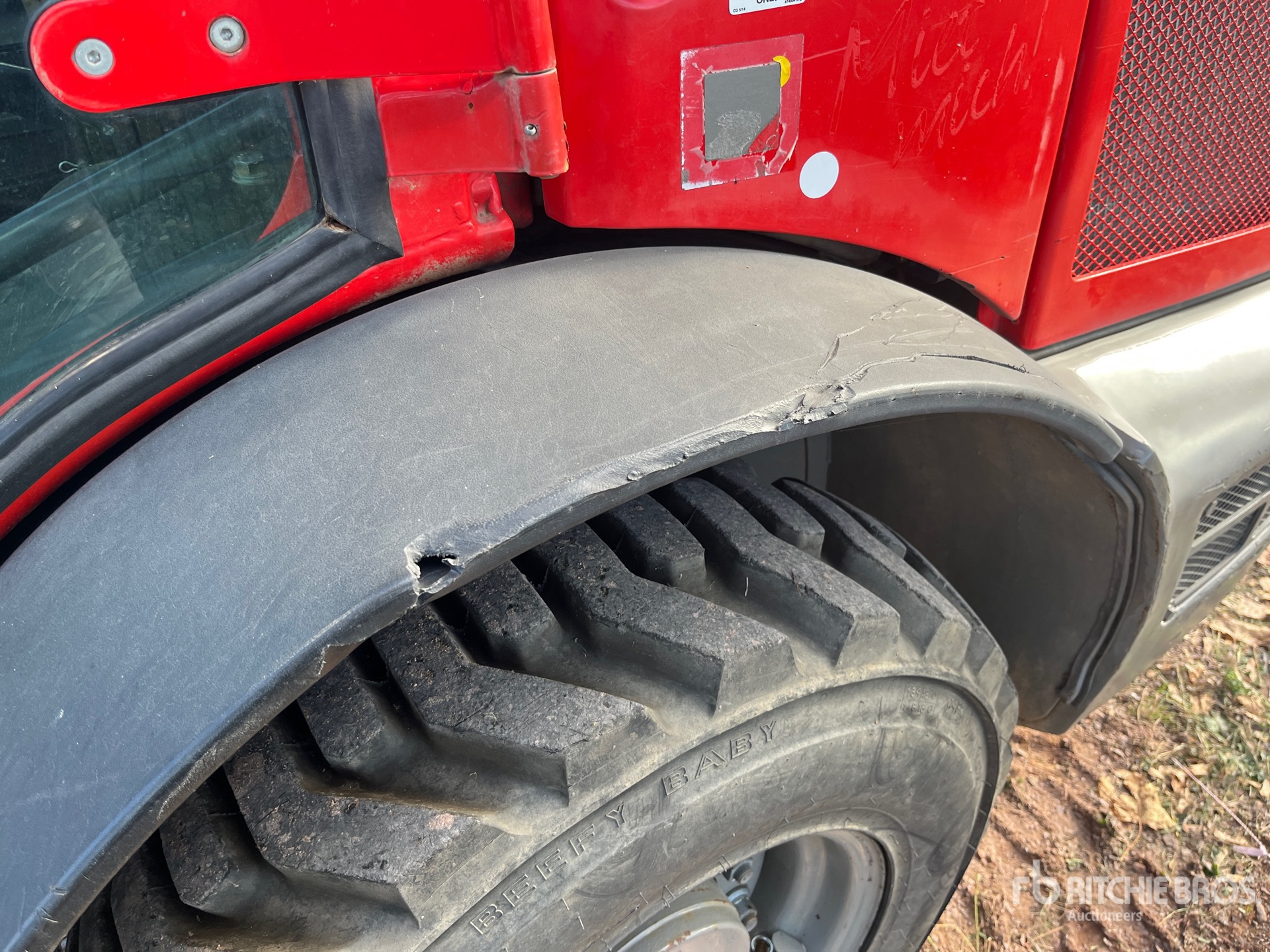

Enclosed Cab, Air Conditioner, 2017 US EPA Label, Hydraulic Coupler, 2910 mm Multi-Purpose Bucket, Forks, 12.5/80-18 Tires *THIS LOT SOLD WITH: 2017 - CASE 121F WHEEL LOADER FORKS s/n: GT1345-312-2500012-; Closing Time: 2026-10-20 10:40:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Breakout Force	8,970 lbs (4,069 kg)
Bucket Capacity - Heaped	1 cu yd
Dump Clearance At Max Raise	3 ft (1 m)
Capacities
Fuel Tank (Since 2026)	23 gal (86 l)
Heaped Capacity (Since 2026)	1 cu yd
Dimensions
Angle Of Departure	28 degrees
Bucket Width (Since 2026)	7 ft (2 m)
Full Lift Dump Height (Since 2026)	8 ft (2 m)
Full Lift Reach (Since 2026)	3 ft (1 m)
Ground Clearance	1 ft (0 m)
Ground Clearance (Since 2026)	18 in (44 cm)
Height - Over Cab (Since 2026)	8 ft (2 m)
Height - Pivot Pin (Since 2026)	10 ft (3 m)
Height To Top Of Cab	8 ft (2 m)
Hinge Pin - Max Height	10 ft (3 m)
Length With Bucket On Ground	19 ft (6 m)
Length With Bucket On Ground (Since 2026)	19 ft (6 m)
Loader - Geometry (Since 2026)	Z-Bar
Reach At Max Lift And Dump	3 ft (1 m)
Turn Radius Over Bucket - Std. (Since 2026)	15 ft (5 m)
Wheelbase	7 ft (2 m)
Width Over Tires	6 ft (2 m)
Driveline
Engine Output - Gross (Since 2026)	64 hp (48 kw)
Speed - Forward Maximum (Since 2026)	12 mph (20 kph)
Tire Size (Since 2026)	335 / 80 R18
Transmission Type (Since 2026)	Hydrostatic
Engine
Air Filter Type	Dry type element with warning restriction indicator
Emissions Certification	Final Tier 4
Engine Model	FPT F5H FL463 C F001
Engine Type	4-stroke
Fuel	Diesel
Fuel Injection	High pressure, common rail injection
Gross Power	64 hp (48 kw)
Max Torque	261 Nm, 193 lb ft
Net Power	60 hp (45 kw)
Number Of Cylinders	4
Power Measured @	2,500 rpm
Radiator Core Type	All aluminium
Torque Measured @	1,400 rpm
Hydraulic System
Pump Flow Capacity	18 gpm (67 lpm)
Pump Type	Gear
Standard Pressure	3,626 psi
Operational
Fuel Capacity	23 gal (86 l)
Operating Weight	11,618 lbs (5,270 kg)
Turning Radius	12 ft (4 m)
Performance
Bucket Breakout (Since 2026)	8,971 lbf
Full Turn Tipping Load (Since 2026)	5,080 lbs (2,304 kg)
Loader Control (Since 2026)	Joystick
Straight Tipping Load (Since 2026)	5,932 lbs (2,691 kg)
Transmission
Transmission Type	Hydrostatic transmission
Weights
Operating Weight (Since 2026)	11,826 lbs (5,364 kg)
