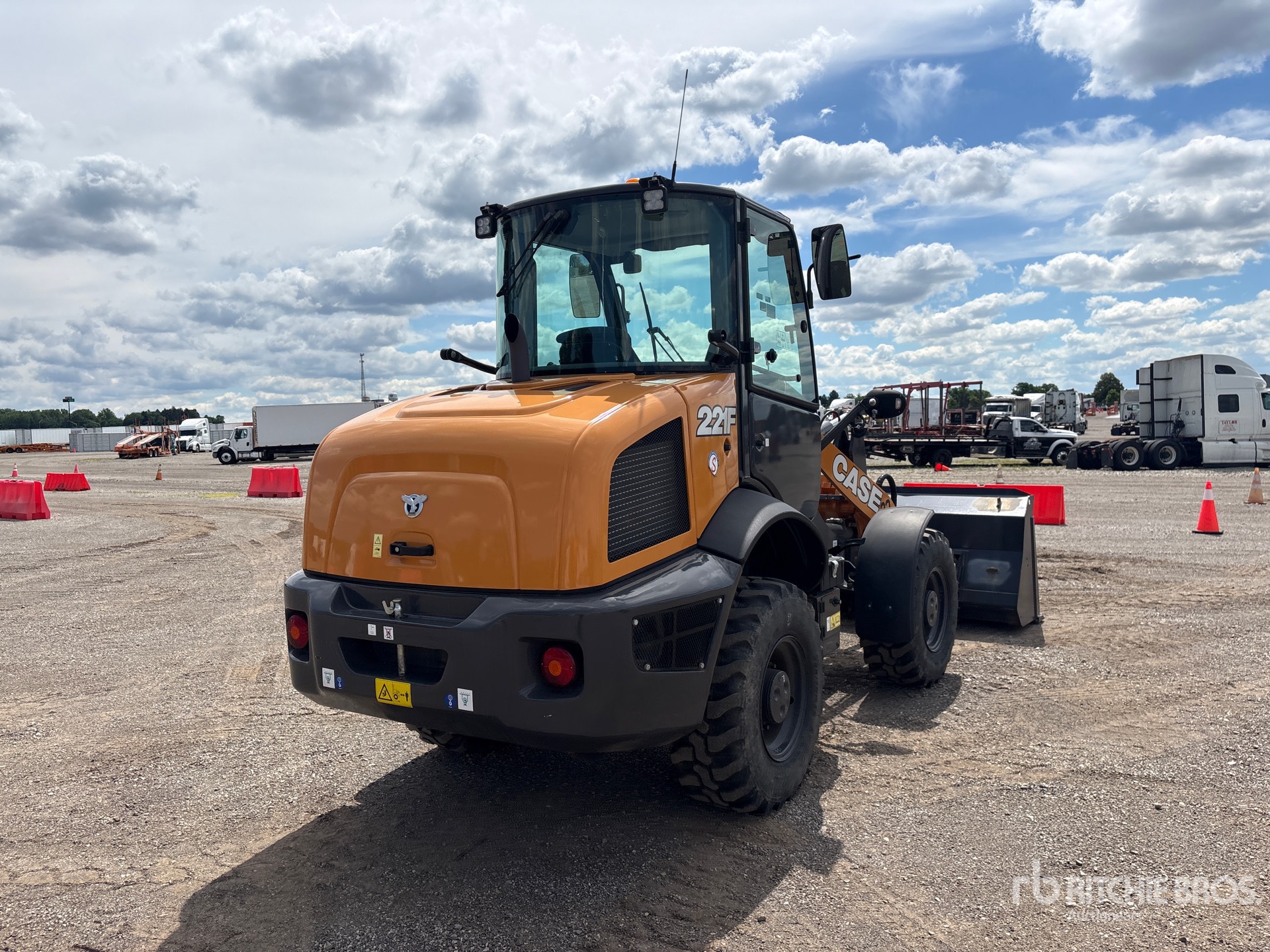

2023 Case 221F

Name: 2023 Case 221F
Brand: Case
SKU: 88636236
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-08-06 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

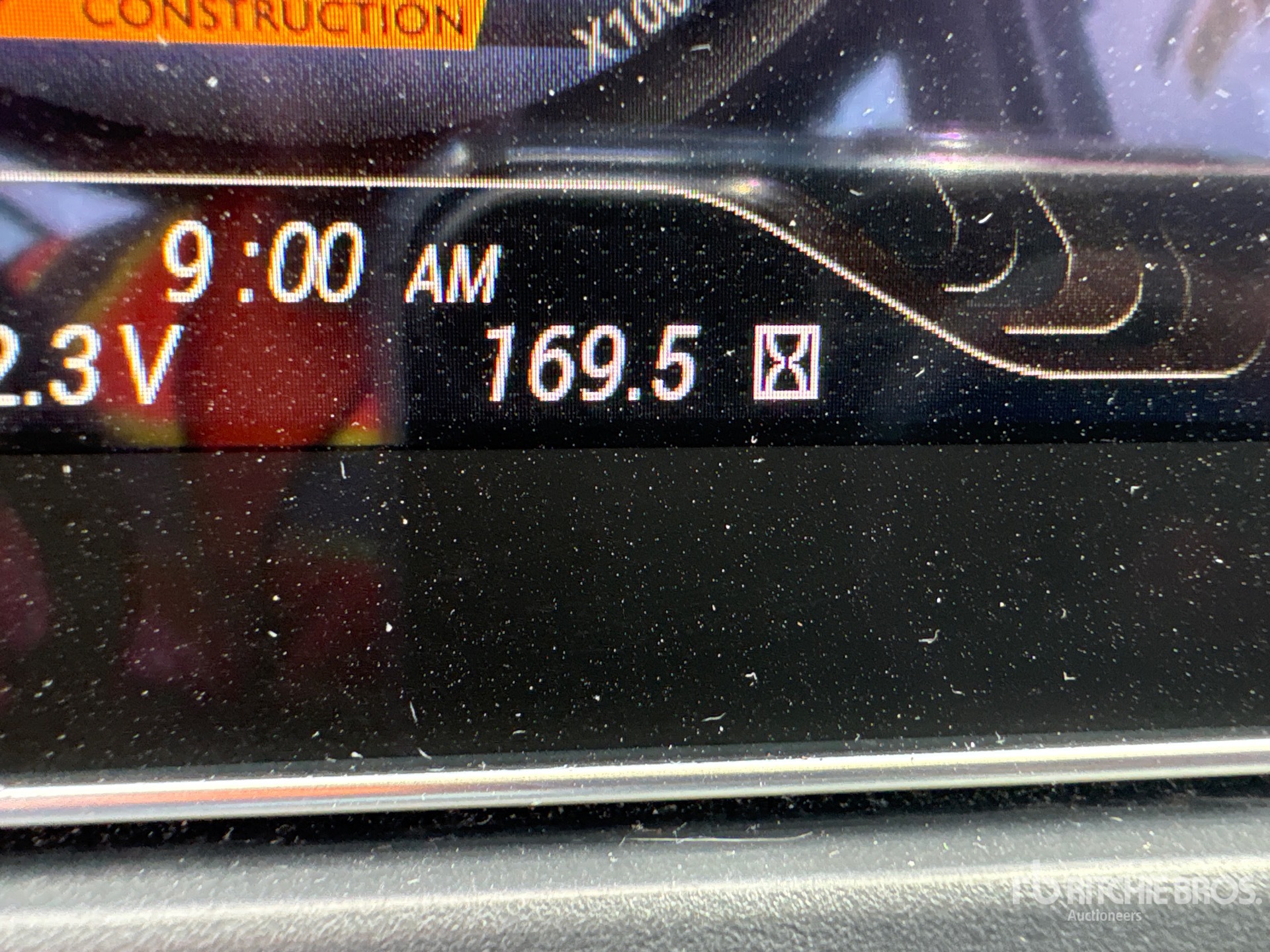

Hours:	169
Serial Number:	FNH221FHNPHP06258
Machine Location:	CHICAGO, IL

Description:

Located in Lane 25 Spot 19, Enclosed Cab, Air Conditioner, Air Ride Seat, Ride Control, Auxiliary Hydraulics, Hydraulic Coupler, 1 m3 80 in Bucket, 365/70R18 Tires, Equipment-from-Southeastern-Equipment-Company The closing time of lots 143 through 147 are tied together. If a bid is received, then a time extension will be applied to all lots. Once the time closes the high bidder on each lot will be the winner., Closing Time: 2026-08-06 08:35:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 221F is a compact wheel loader designed for material handling, site preparation, landscaping, agriculture, and municipal work. It is part of Case Construction Equipment's F Series and is built for maneuverability, visibility, and efficient operation in confined spaces. The 221F typically features a hydrostatic transmission, articulated steering, and compatibility with a range of buckets and attachments. Its size and configuration make it suitable for loading, stockpiling, snow removal, and general utility tasks. The model is commonly used where a smaller wheel loader is needed with reliable performance, operator comfort, and easy transport between job sites.

Bucket
Breakout Force	10,948 lbs (4,966 kg)
Bucket Capacity - heaped	1 cu yd (1 cu m)
Dimensions
Angle of departure	27 degrees
Ground Clearance	2 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Hinge Pin - Max Height	11 ft (3 m)
Length with Bucket on Ground	19 ft (6 m)
Reach at Max Lift and Dump	3 ft (1 m)
Wheelbase	7 ft (2 m)
Width Over Tires	6 ft (2 m)
Electrical System
Alternator	120
Batteries	95 AHR 900 CCA
Voltage	12 V
Engine
Air filter type	Dry type element with warning restriction indicator
Bore	4 in (10 cm)
Displacement	207 cu in (3,392 cu cm)
Emissions Certification	Final Tier 4
Engine Model	FPT F5H FL463 A F004
Engine Type	4-stroke
Fuel	Diesel
Fuel injection	High pressure common rail injection
Gross Power	74 hp (55 kw)
Make	Case
Max Torque	Gross - 316 Nm 233 Net - 308 Nm 227 lb ft
Net Power	70 hp (52 kw)
Number of Cylinders	4
Power Measured @	2,500 rpm
Radiator Core type	All aluminium
Stroke	4 in (11 cm)
Torque Measured @	1,400 rpm
Hydraulic System
Pump Flow Capacity	23 gpm (85 lpm)
Pump Type	Gear
Standard pressure	3,626 psi
Operating Specifications
Cooling System Fluid Capacity	4 gal (13 l)
Engine Oil Fluid Capacity	2 gal (7 l)
Front Axle/Diff Fluid Capacity	2 gal (9 l)
Fuel Capacity	23 gal (86 l)
Hydraulic System Fluid Capacity	14 gal (53 l)
Operating Weight	12,547 lbs (5,691 kg)
Rated Bucket Capacity	2 cu yd (1 cu m)
Rear Axle/Diff Fluid Capacity	3 gal (10 l)
Transmission
Max Speed - Forward	11 mph (18 kph)
Max Speed - Reverse	11 mph (18 kph)
Number of Forward Gears	2
Number of Reverse Gears	2
Transmission Type	Hydrostatic transmission
Weights
Operational Weight	12,500 lbs (5,670 kg)
