This machine has been sold or is not currently for sale.

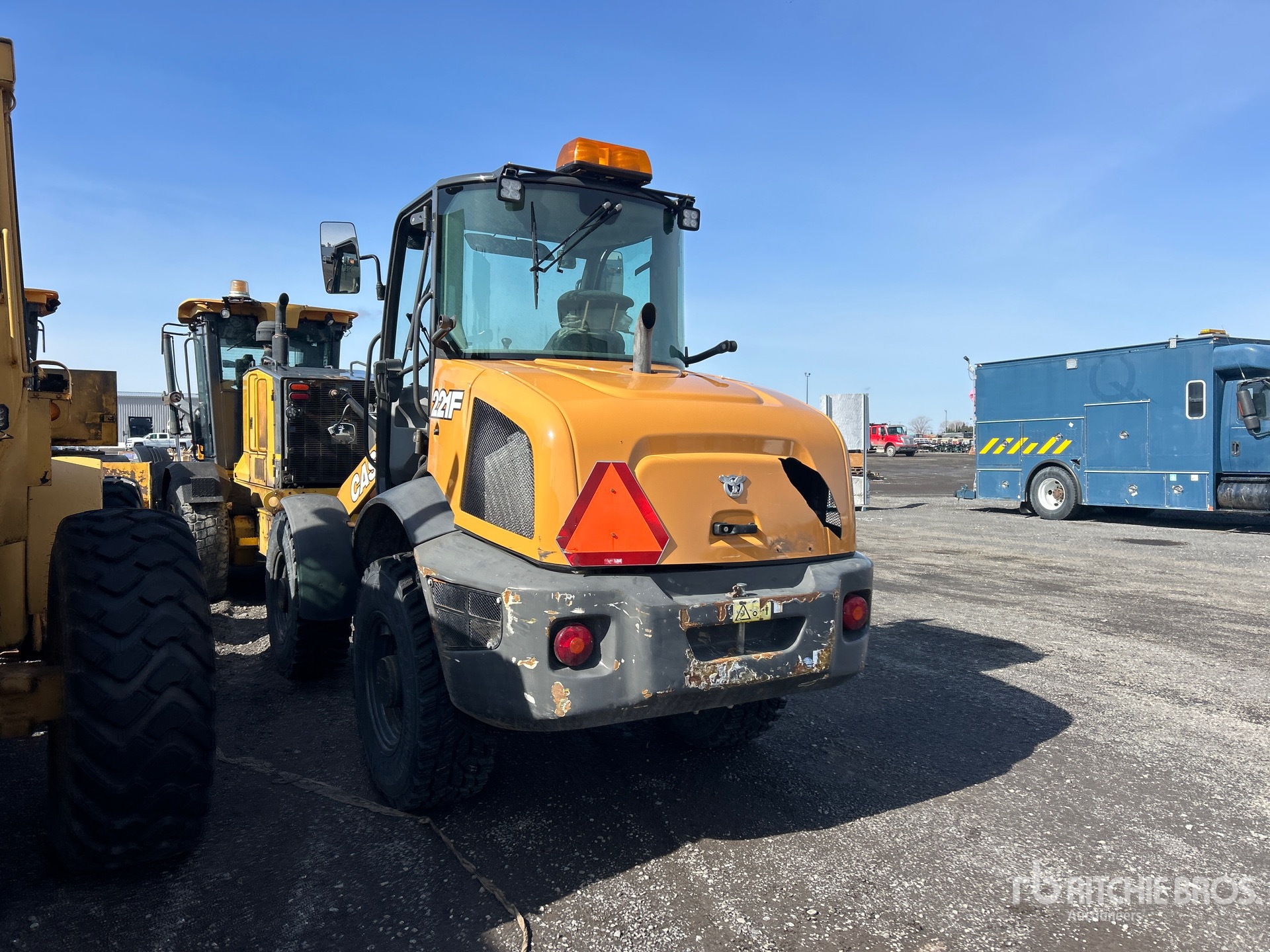

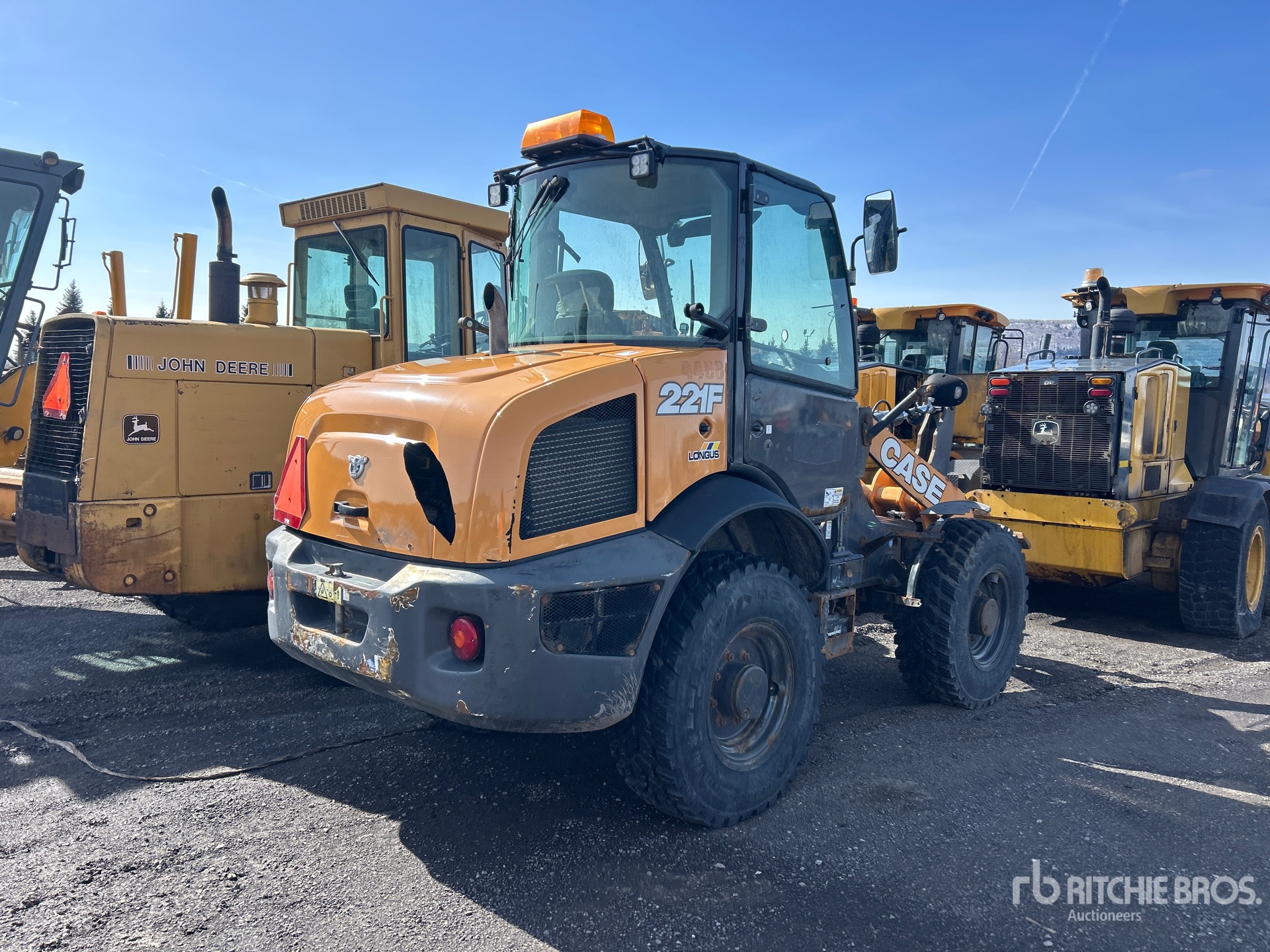

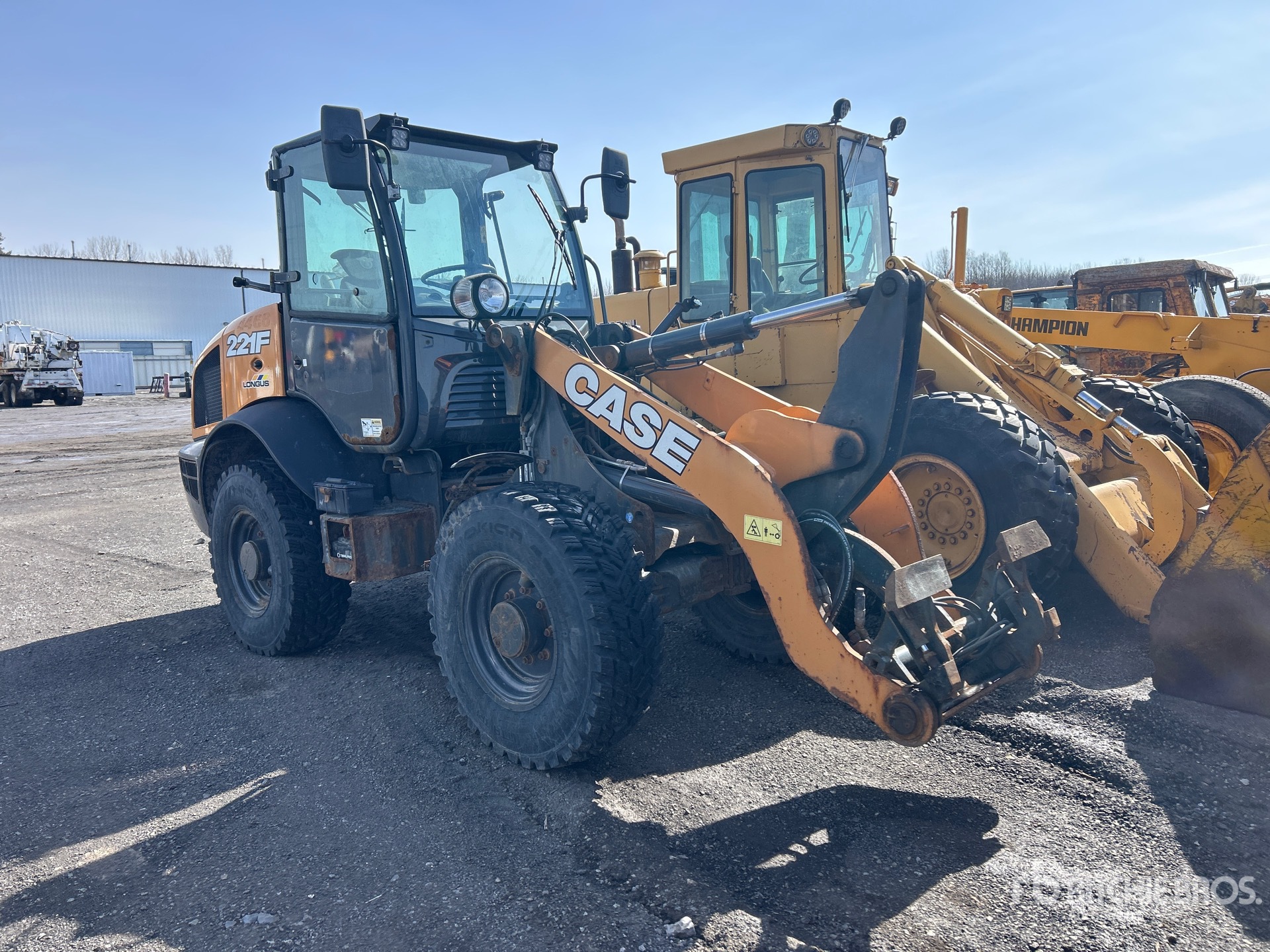

2019 Case 221F

2019 Case 221F
2019 Case 221F
2019 Case 221F
2019 Case 221F
2019 Case 221F
2019 Case 221F
2019 Case 221F
2019 Case 221F
2019 Case 221F
2019 Case 221F 2019 Case 221F 2019 Case 221F 2019 Case 221F 2019 Case 221F 2019 Case 221F 2019 Case 221F 2019 Case 221F 2019 Case 221F

/ Save to Watch List
Apply for Financing

MACHINE SOLD

   Auction Info: Starting on 2026-09-21   Click here to place a bid


Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info
Ritchie Bros. Auctioneers Website
Click here to email Ritchie Bros. Auctioneers.

Request an equipment inspection

Get shipping quotes
Click for Phone Number


Machine Info:

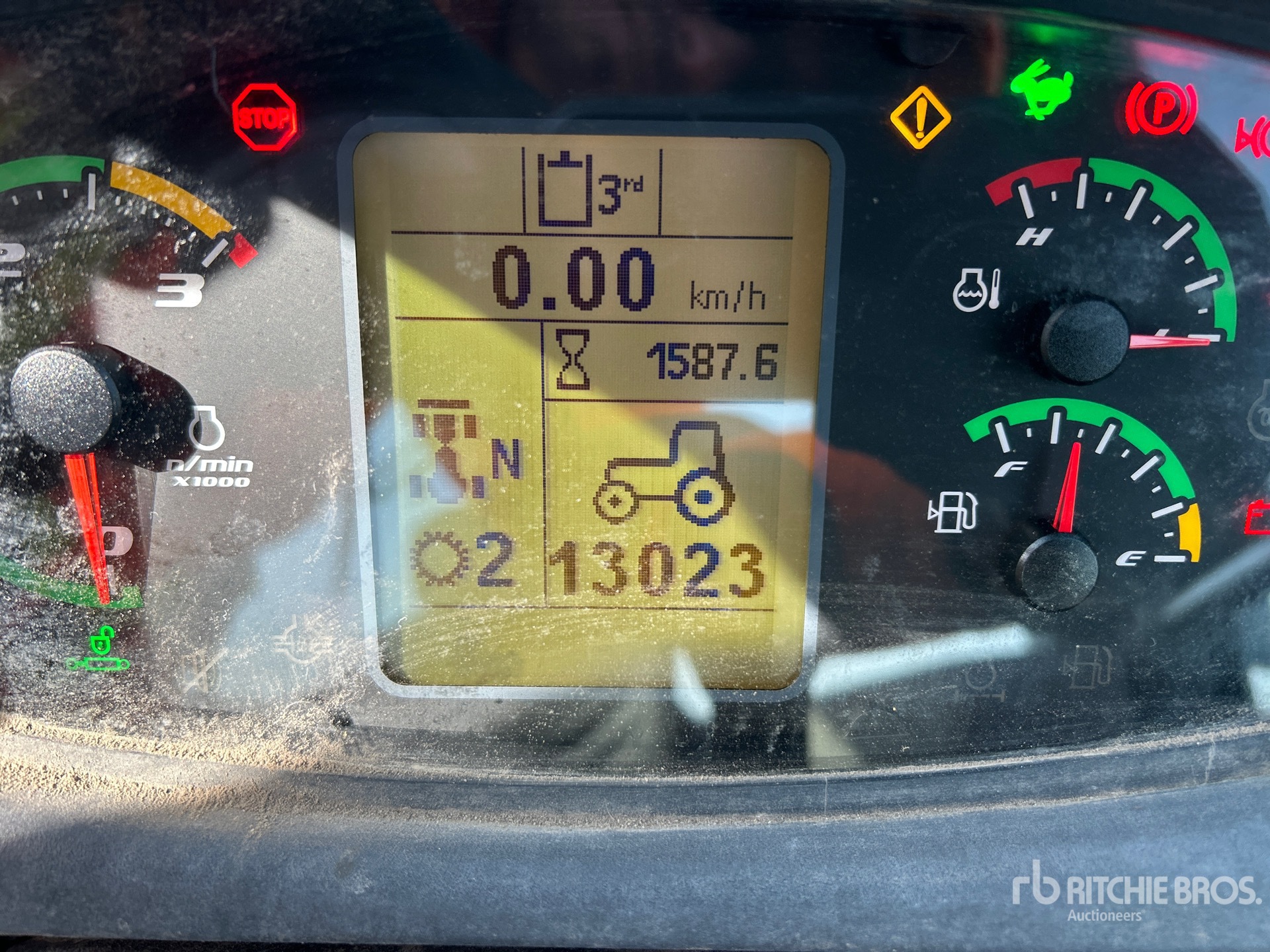

Hours:1587

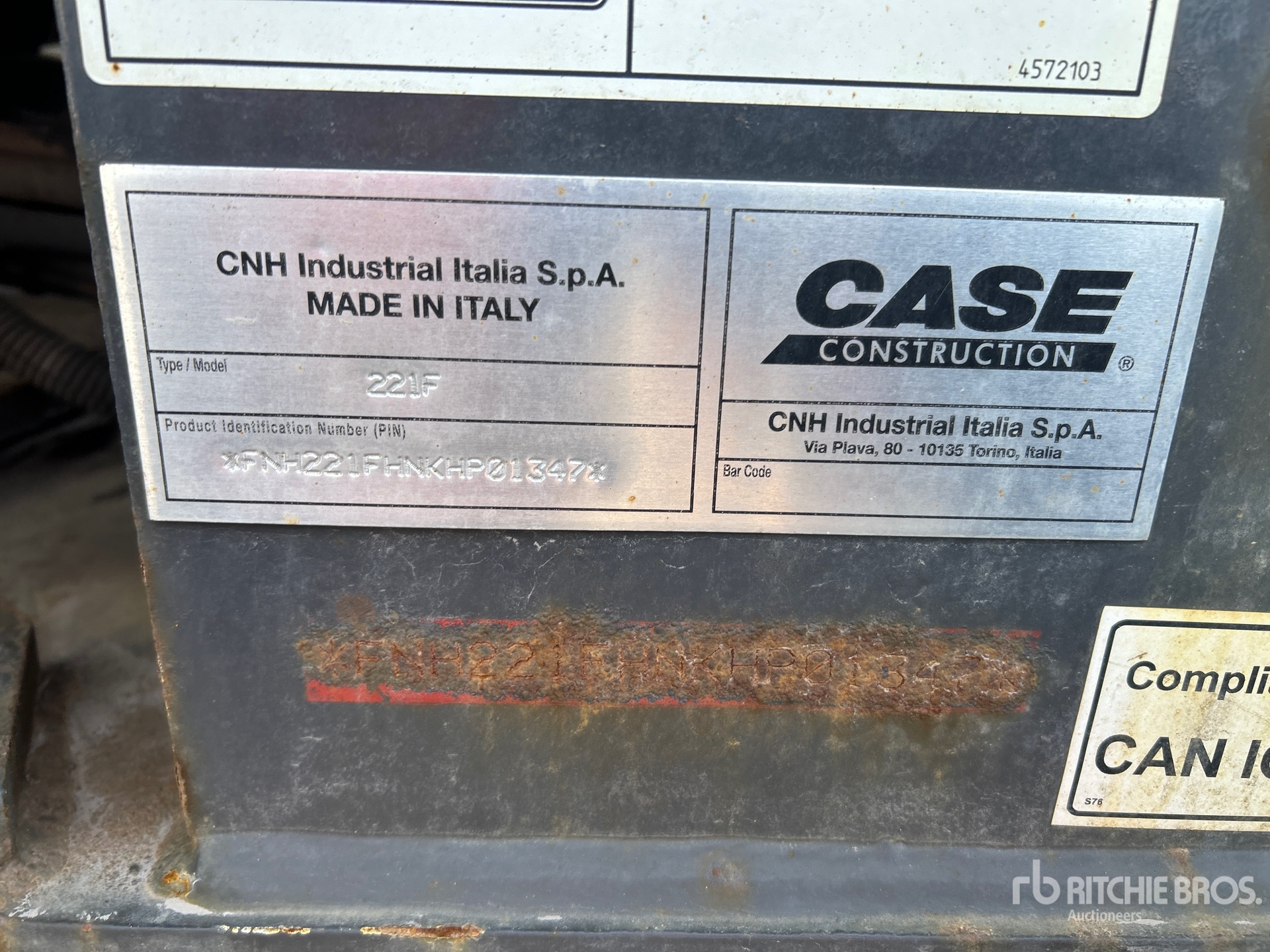

Serial Number:FNH221FHNKHP01347
Machine Location:MONTREAL, QC

Description:

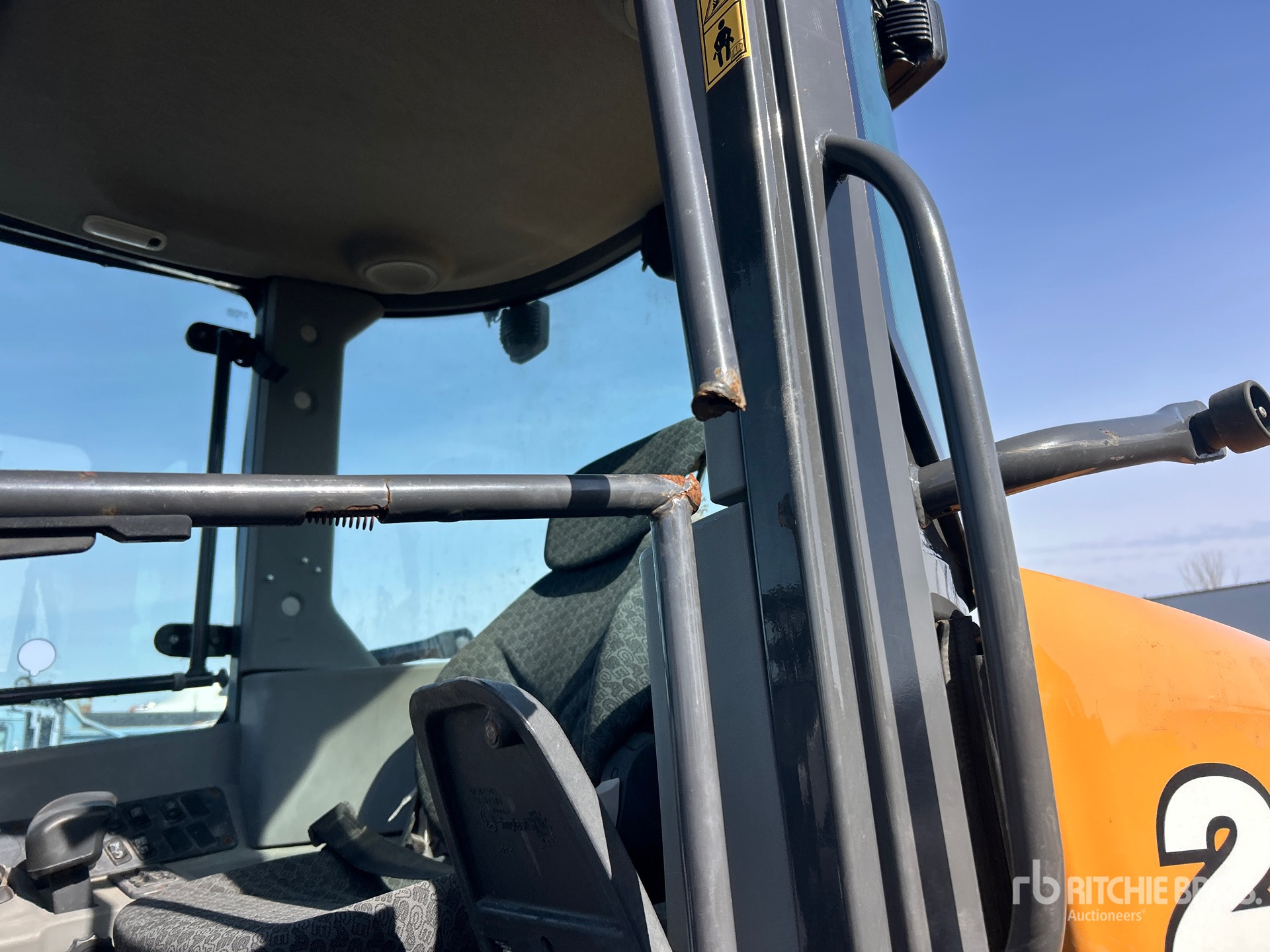

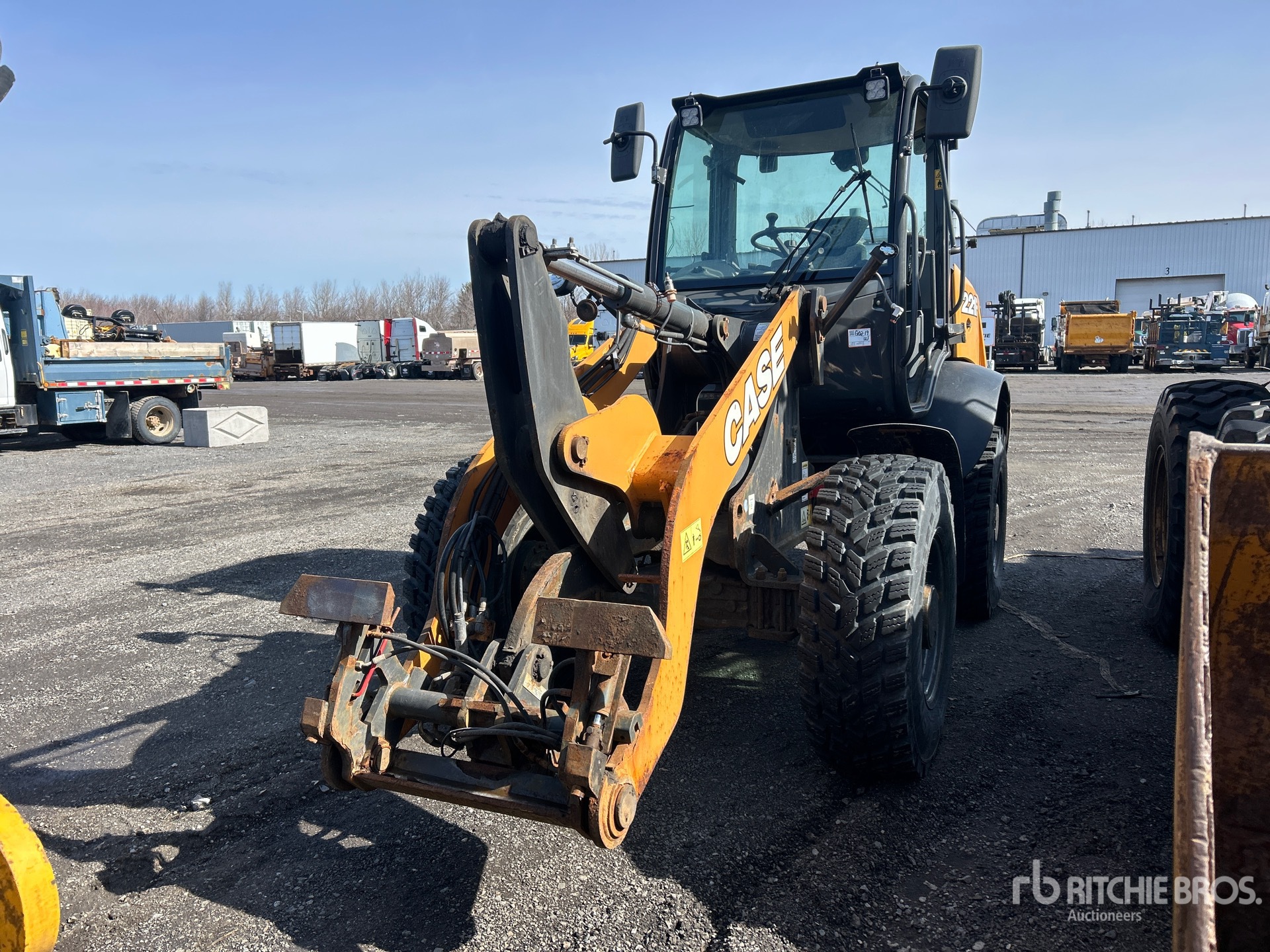

Enclosed Cab, Air Conditioner, Air Ride Seat, Autoshift, 2019 US EPA Label, CARB Compliant, Auxiliary Hydraulics, Hydraulic Coupler, 360/80R20 Tires Transfert de proprit en cours / transfer of ownership being processed - Aucun transit ne peut tre mis pour cette unit / no transit can be issued for this unit Closing Time: 2026-09-21 04:13:48 PM


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Case 221F is a compact wheel loader designed for material handling, site preparation, landscaping, agriculture, and municipal work. It is part of Case Construction Equipment's F Series and is known for its articulated steering, hydrostatic drive, and compatibility with a range of buckets and attachments. The 221F is typically used in confined job sites where maneuverability and visibility are important. Common applications include loading, stockpiling, grading, and snow removal. Key reference points for the Case 221F include operating weight, bucket capacity, engine output, lift height, and hydraulic performance, which vary by configuration and attachment package.
Bucket
Breakout Force 10,948 lbs (4,966 kg)
Bucket Capacity - Heaped 1 cu yd
Dump Clearance At Max Raise 3 ft (1 m)
Dimensions
Angle Of Departure 27 degrees
Ground Clearance 1 ft (0 m)
Height 9 ft (3 m)
Height To Top Of Cab 9 ft (3 m)
Hinge Pin - Max Height 11 ft (3 m)
Length 19 ft (6 m)
Length With Bucket On Ground 19 ft (6 m)
Reach At Max Lift And Dump 3 ft (1 m)
Weight 12,547 lbs (5,691 kg)
Wheelbase 7 ft (2 m)
Width 6 ft (2 m)
Width Over Tires 6 ft (2 m)
Electrical
Alternator 120 amps
Batteries 95 AHR, 900 CCA
Voltage 12 V
Engine
Air Filter Type Dry type element with warning restriction indicator
Bore 4 in (10 cm)
Displacement 207 cu in (3,392 cu cm)
Emissions Certification Final Tier 4
Engine Model FPT F5H FL463 A F004
Engine Type 4-stroke
Fuel Diesel
Fuel Injection High pressure, common rail injection
Gross Power 74 hp (55 kw)
Max Torque Gross - 316 Nm, 233 lb ft, Net - 308 Nm, 227 lb ft
Net Power 70 hp (52 kw)
Number Of Cylinders 4
Power Measured @ 2,500 rpm
Radiator Core Type All aluminium
Stroke 4 in (11 cm)
Torque Measured @ 1,400 rpm
Hydraulic System
Pump Flow Capacity 23 gpm (85 lpm)
Pump Type Gear
Standard Pressure 3,626 psi
Operational
Cooling System Fluid Capacity 4 gal (13 l)
Engine Oil Fluid Capacity 2 gal (7 l)
Front Axle/Diff Fluid Capacity 2 gal (9 l)
Fuel Capacity 23 gal (86 l)
Hydraulic System Fluid Capacity 14 gal (53 l)
Operating Weight 12,547 lbs (5,691 kg)
Rear Axle/Diff Fluid Capacity 3 gal (10 l)
Transmission
Max Speed - Forward 11 mph (18 kph)
Max Speed - Reverse 11 mph (18 kph)
Number Of Forward Gears 2
Number Of Reverse Gears 2
Transmission Type Hydrostatic transmission
