2017 Case 321F For Sale in Chicago, Il

Name: 2017 Case 321F
Brand: Case
SKU: 89159183
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-24 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

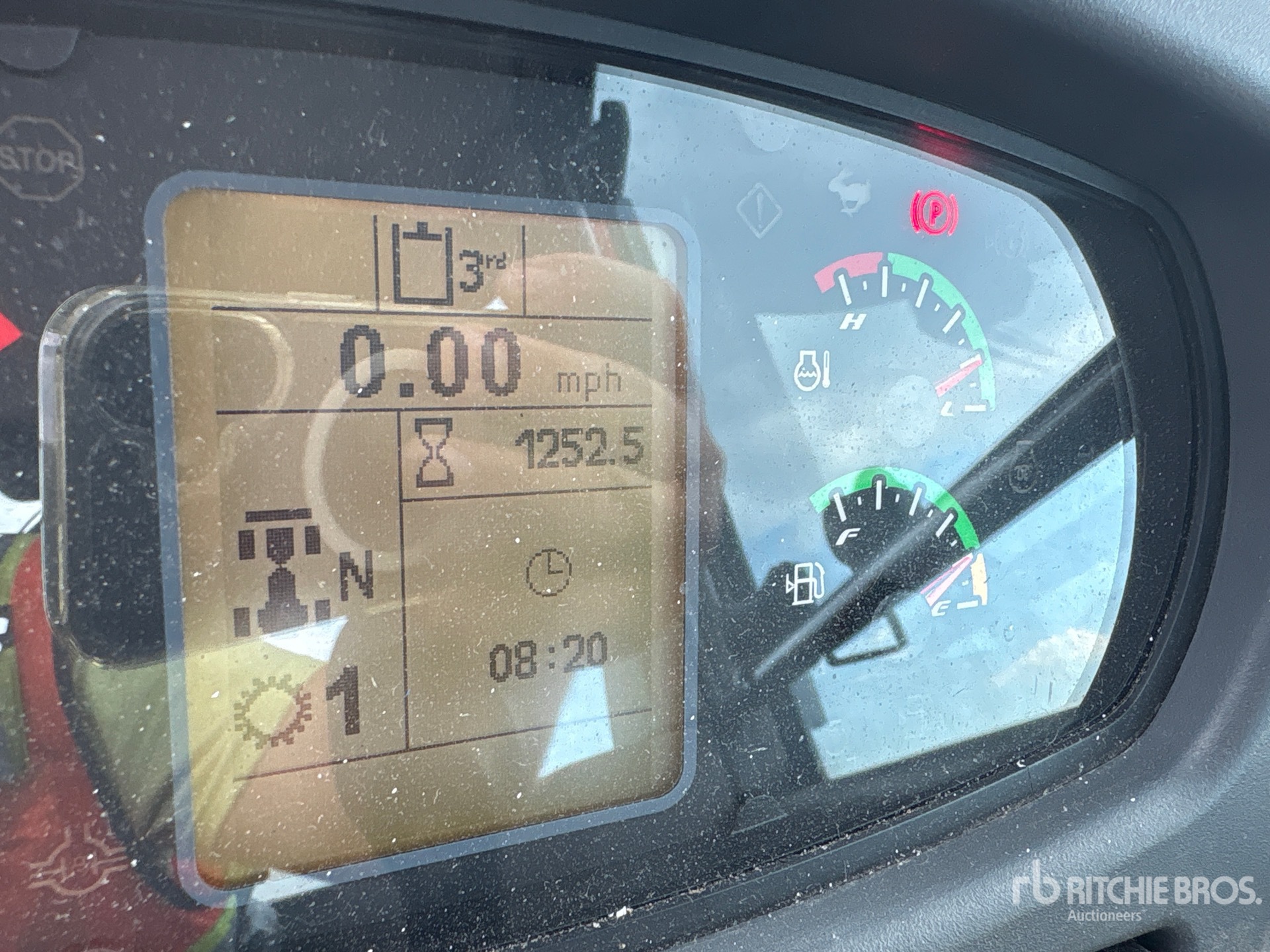

Hours:	1252

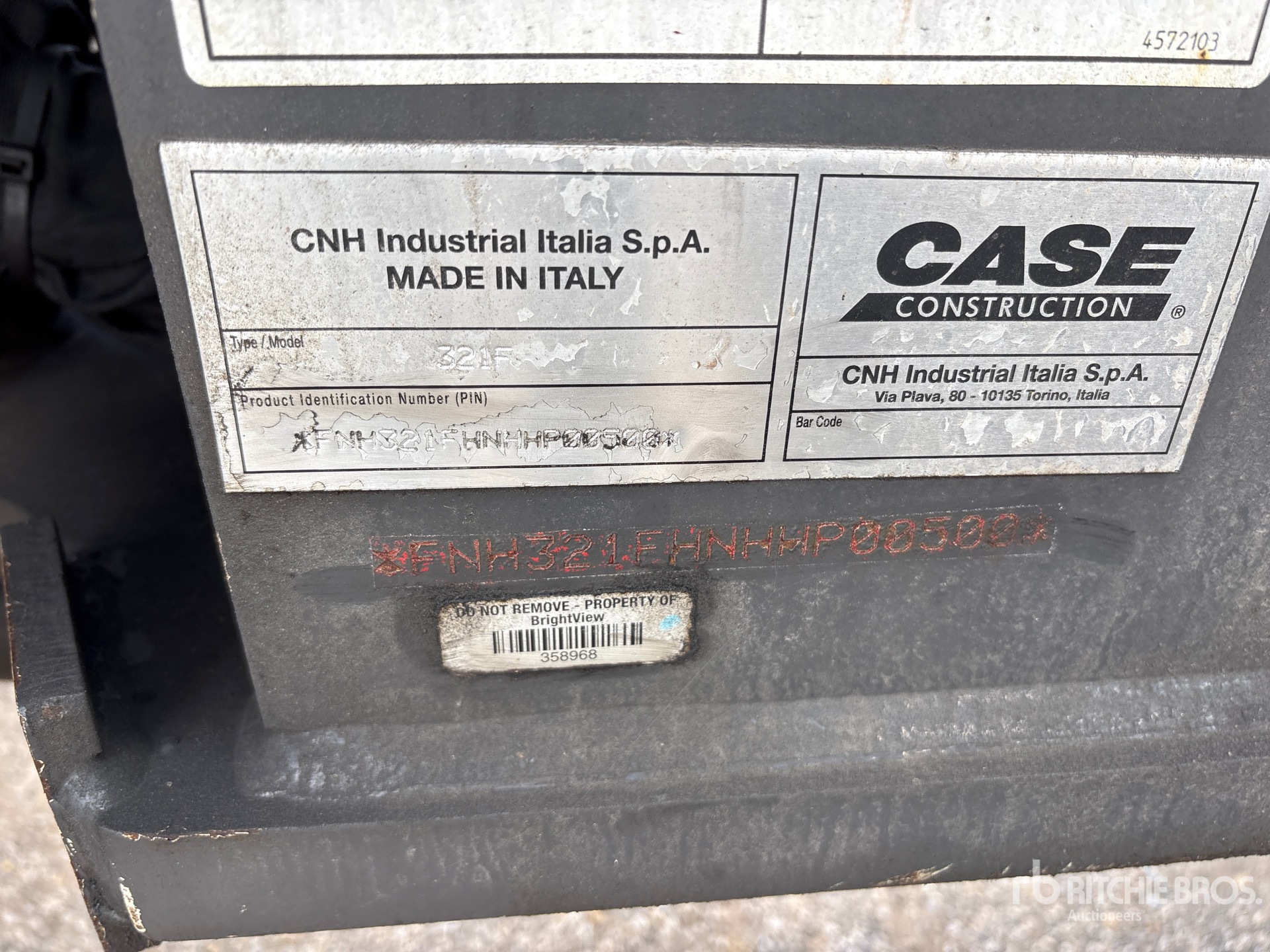

Serial Number:	FNH321FHNHHP00500
Machine Location:	CHICAGO, IL

Description:

Located in Lane 34 Spot 15, Enclosed Cab, Air Conditioner, Air Ride Seat, Hydraulic Coupler, 83 in Bucket, 405/70R20 Tires Closing Time: 2026-09-24 04:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

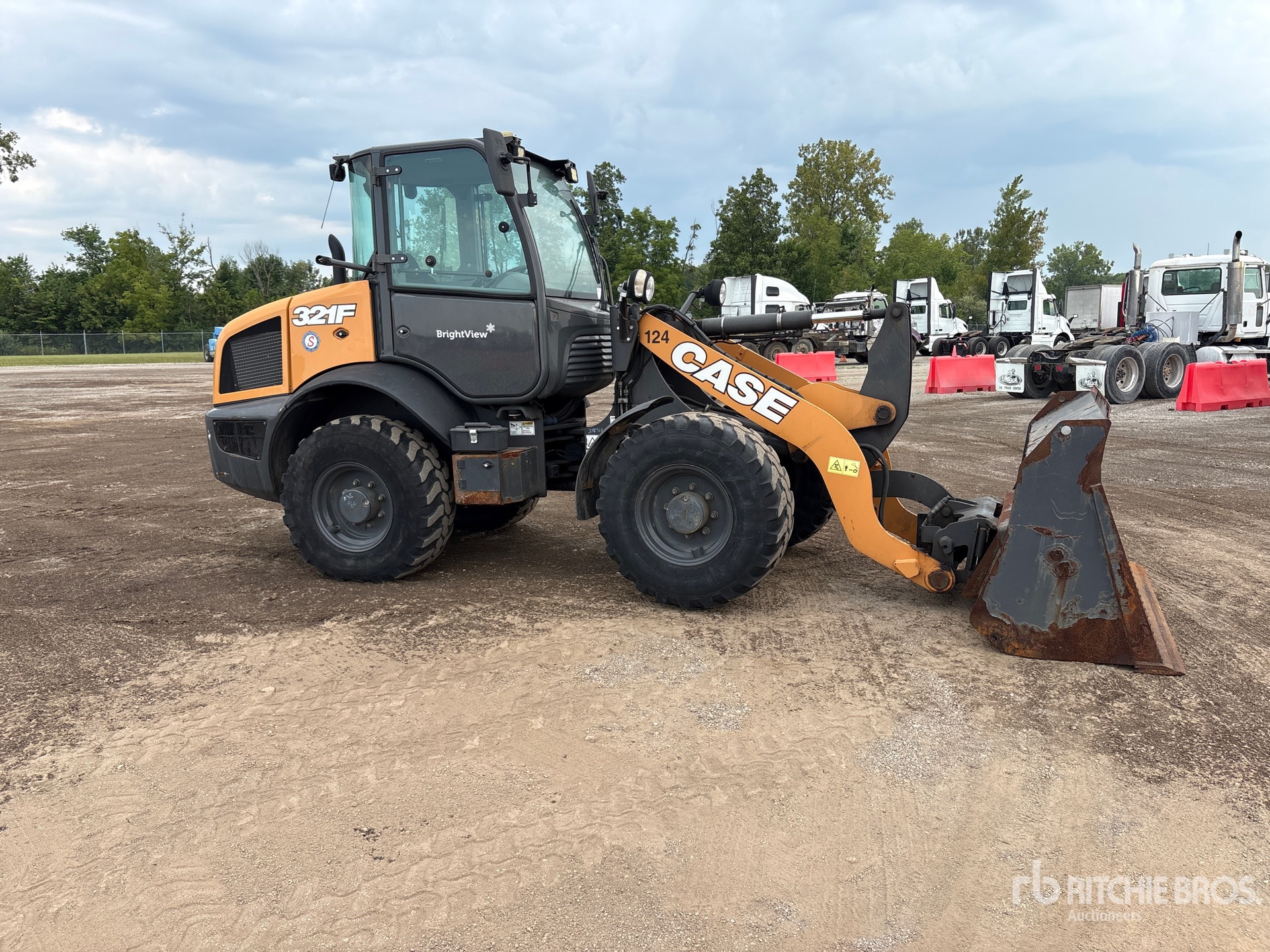

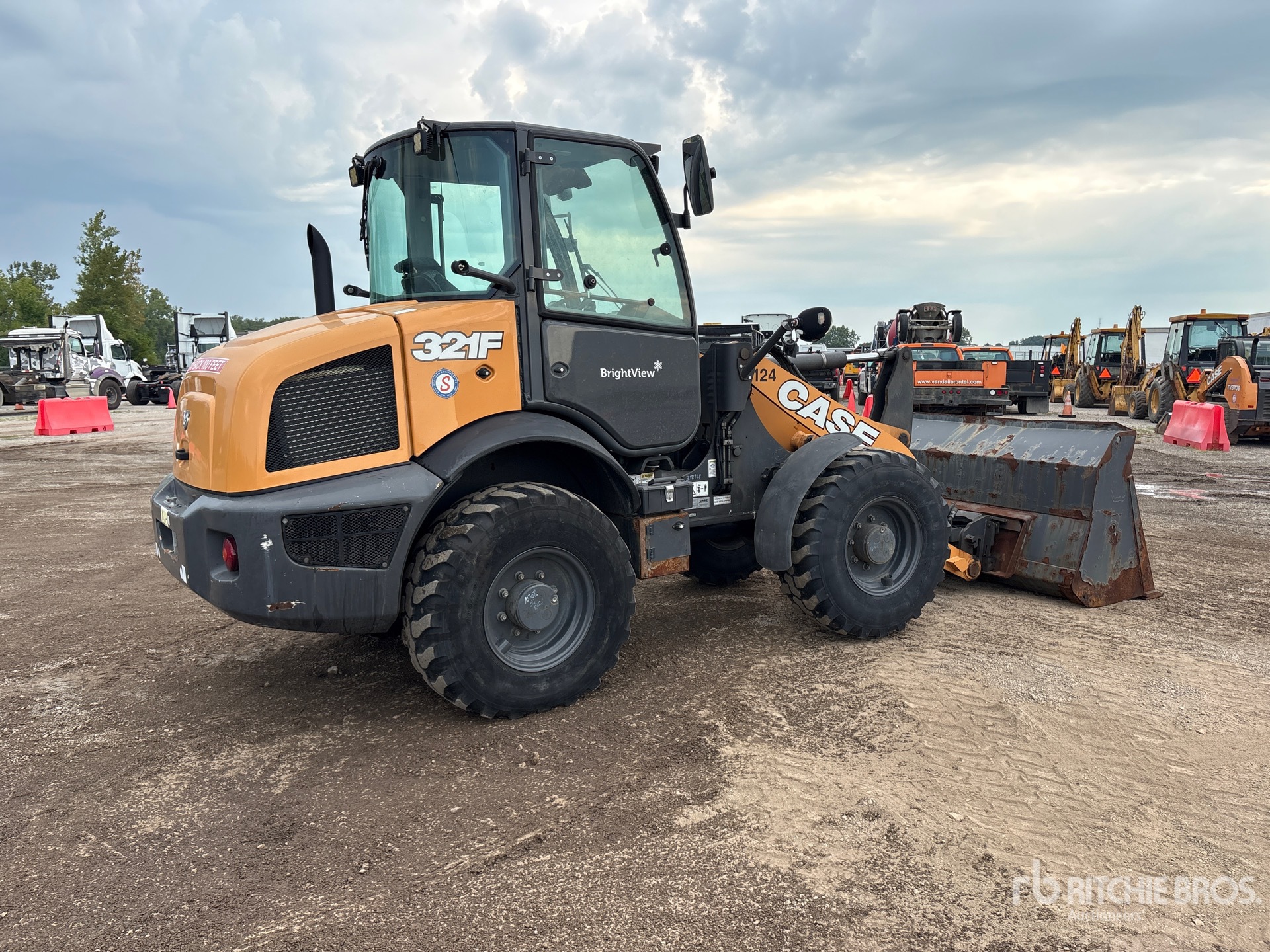

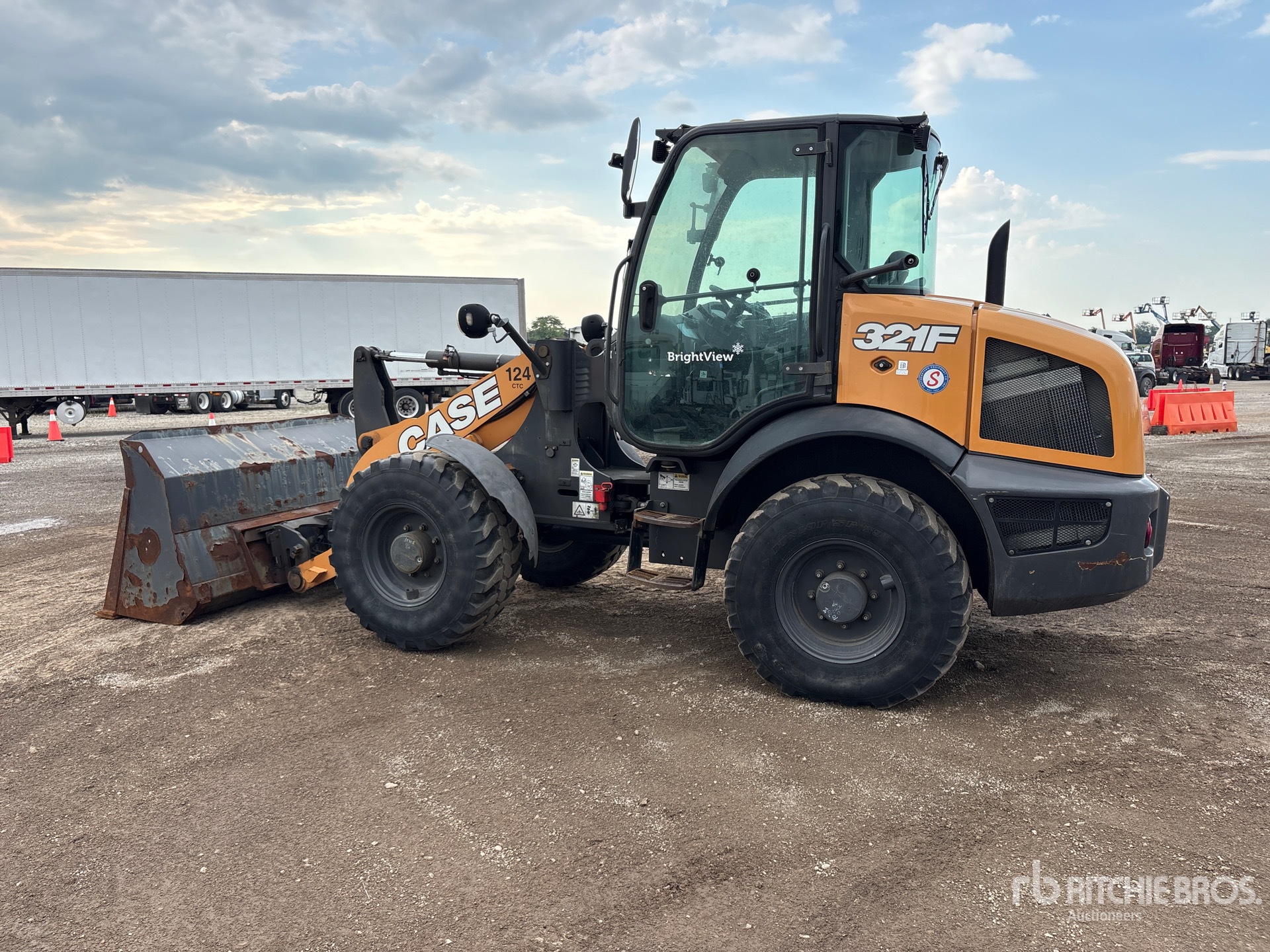

The Case 321F is a compact wheel loader designed for material handling, loading, and site support applications. It is part of Case Construction Equipment's F Series and is commonly used in construction, landscaping, agriculture, and municipal work. The 321F features articulated steering, a front-mounted loader arm, and a bucket for moving aggregate, soil, snow, and other bulk materials. It is typically valued for maneuverability, visibility, and compatibility with multiple attachments. The model is used in confined job sites where a full-size loader may be less practical. Specifications can vary by configuration, region, and production year.

Bucket
Breakout Force	10,071 lbs (4,568 kg)
Bucket Capacity - Heaped	1 cu yd
Dump Clearance At Max Raise	3 ft (1 m)
Dimensions
Angle Of Departure	32 degrees
Ground Clearance	2 ft (0 m)
Height	9 ft (3 m)
Height To Top Of Cab	9 ft (3 m)
Hinge Pin - Max Height	11 ft (3 m)
Length	20 ft (6 m)
Length With Bucket On Ground	20 ft (6 m)
Reach At Max Lift And Dump	3 ft (1 m)
Weight	13,600 lbs (6,169 kg)
Wheelbase	7 ft (2 m)
Width	6 ft (2 m)
Width Over Tires	6 ft (2 m)
Electrical
Alternator	120 amps
Batteries	95 AHR, 900 CCA
Voltage	12 V
Engine
Air Filter Type	Dry type element with warning restriction indicator
Bore	4 in (10 cm)
Displacement	207 cu in (3,392 cu cm)
Emissions Certification	Final Tier 4
Engine Model	FPT F5H FL463 A F001
Engine Type	4-stroke
Fuel	Diesel
Fuel Injection	High pressure, common rail injection
Gross Power	74 hp (55 kw)
Max Torque	Gross - 316 Nm, 233 lb ft, Net - 308 Nm, 227 lb ft
Net Power	70 hp (52 kw)
Number Of Cylinders	4
Power Measured @	2,500 rpm
Radiator Core Type	All aluminium
Stroke	4 in (11 cm)
Torque Measured @	1,400 rpm
Hydraulic System
Pump Flow Capacity	23 gpm (85 lpm)
Pump Type	Gear
Standard Pressure	3,626 psi
Operational
Cooling System Fluid Capacity	4 gal (13 l)
Engine Oil Fluid Capacity	2 gal (7 l)
Front Axle/Diff Fluid Capacity	2 gal (9 l)
Fuel Capacity	23 gal (86 l)
Hydraulic System Fluid Capacity	14 gal (53 l)
Operating Weight	13,303 lbs (6,033 kg)
Rear Axle/Diff Fluid Capacity	3 gal (10 l)
Transmission
Max Speed - Forward	13 mph (20 kph)
Max Speed - Reverse	13 mph (20 kph)
Number Of Forward Gears	2
Number Of Reverse Gears	2
Transmission Type	Hydrostatic transmission

Dealer Contact Info:

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Email Ritchie Bros. Auctioneers.

Contact:

Click for Phone Number
