1997 Case 621B For Sale in Birmingham, AL
Auction Pricing
Auction Info: Starting on 2026-10-21
Machine Info:
| Hours: | 3894 |

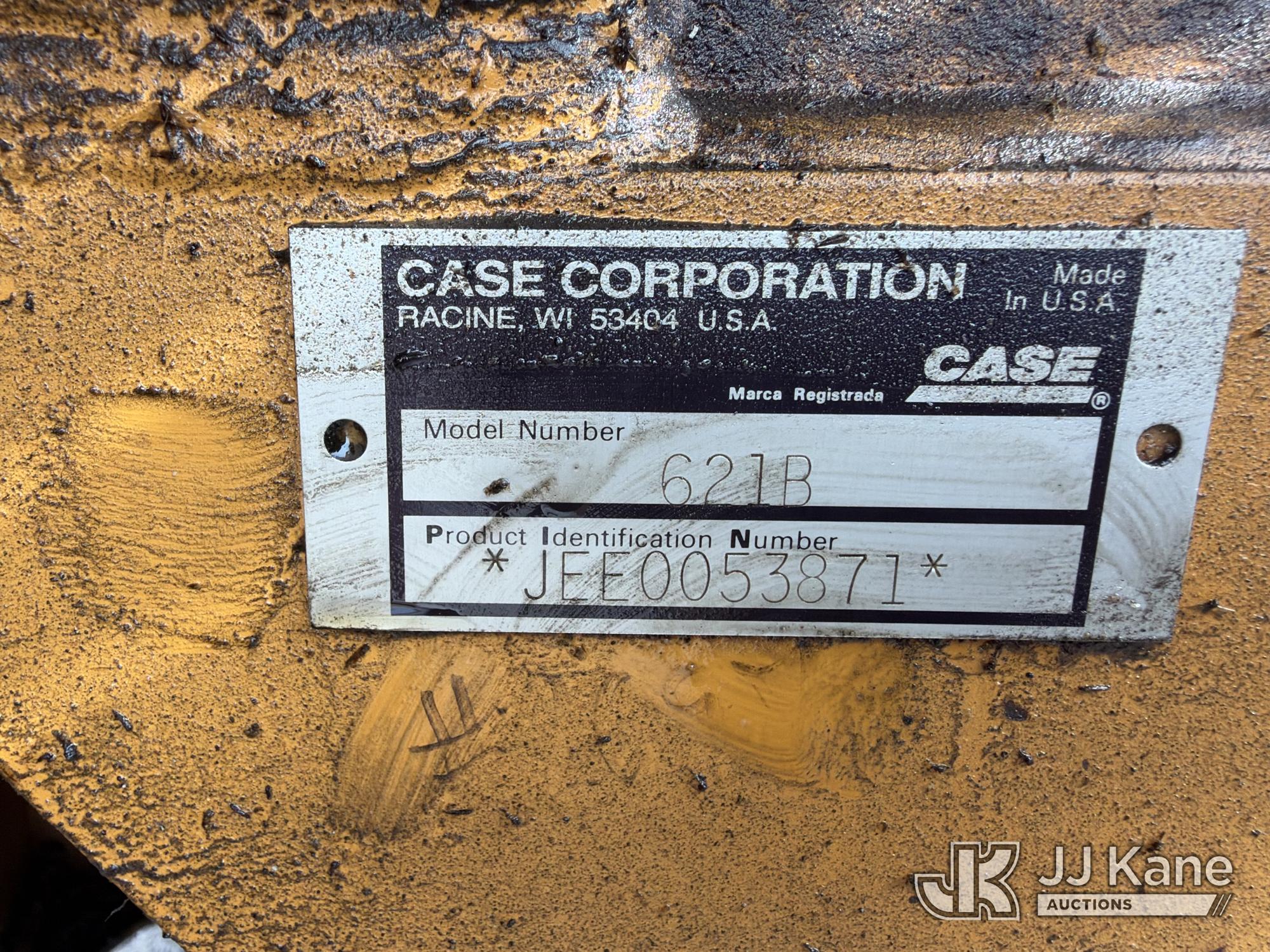

| Serial Number: | JEE0053871 |
| Machine Location: | BIRMINGHAM, AL |
Description:

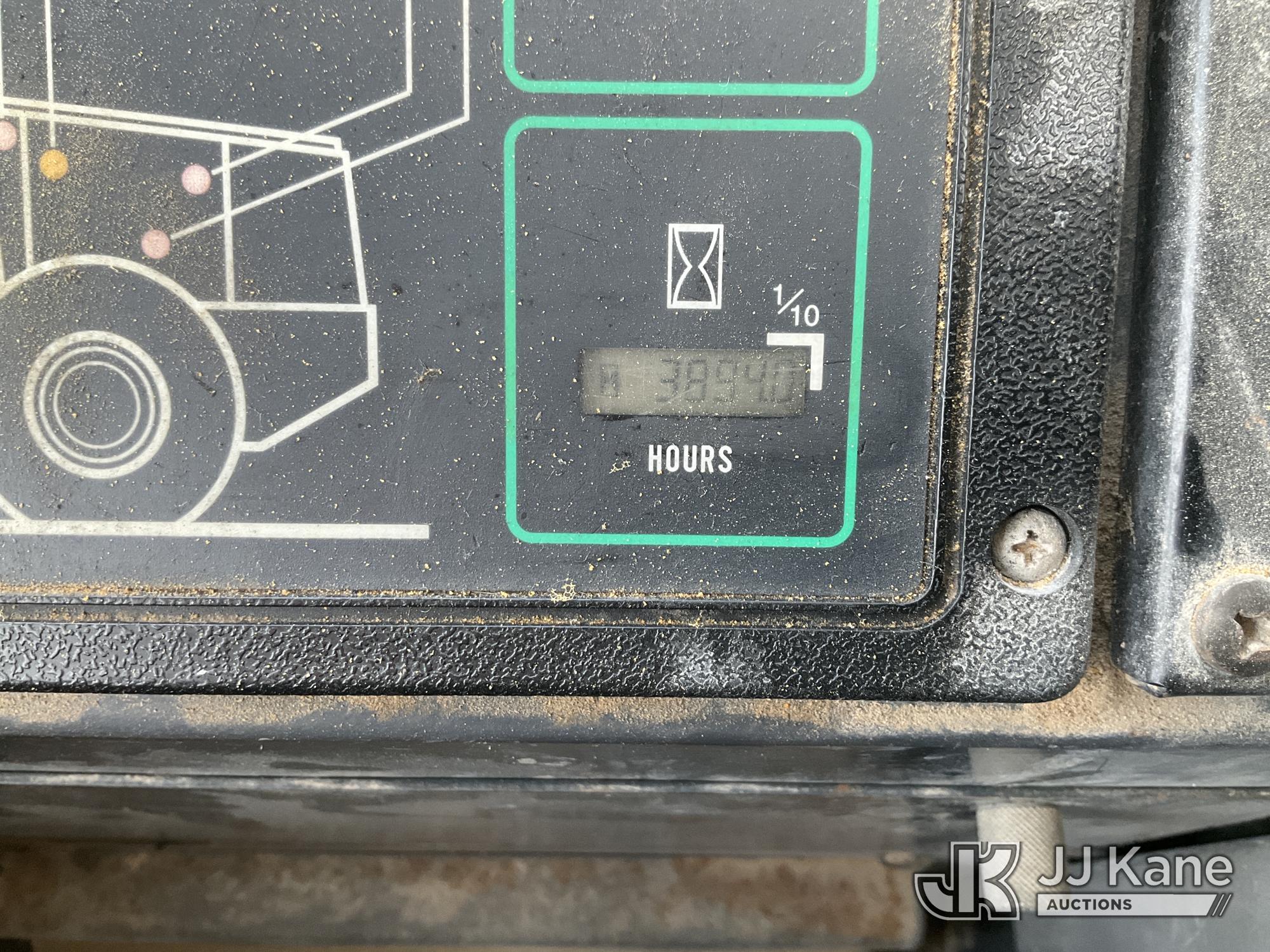

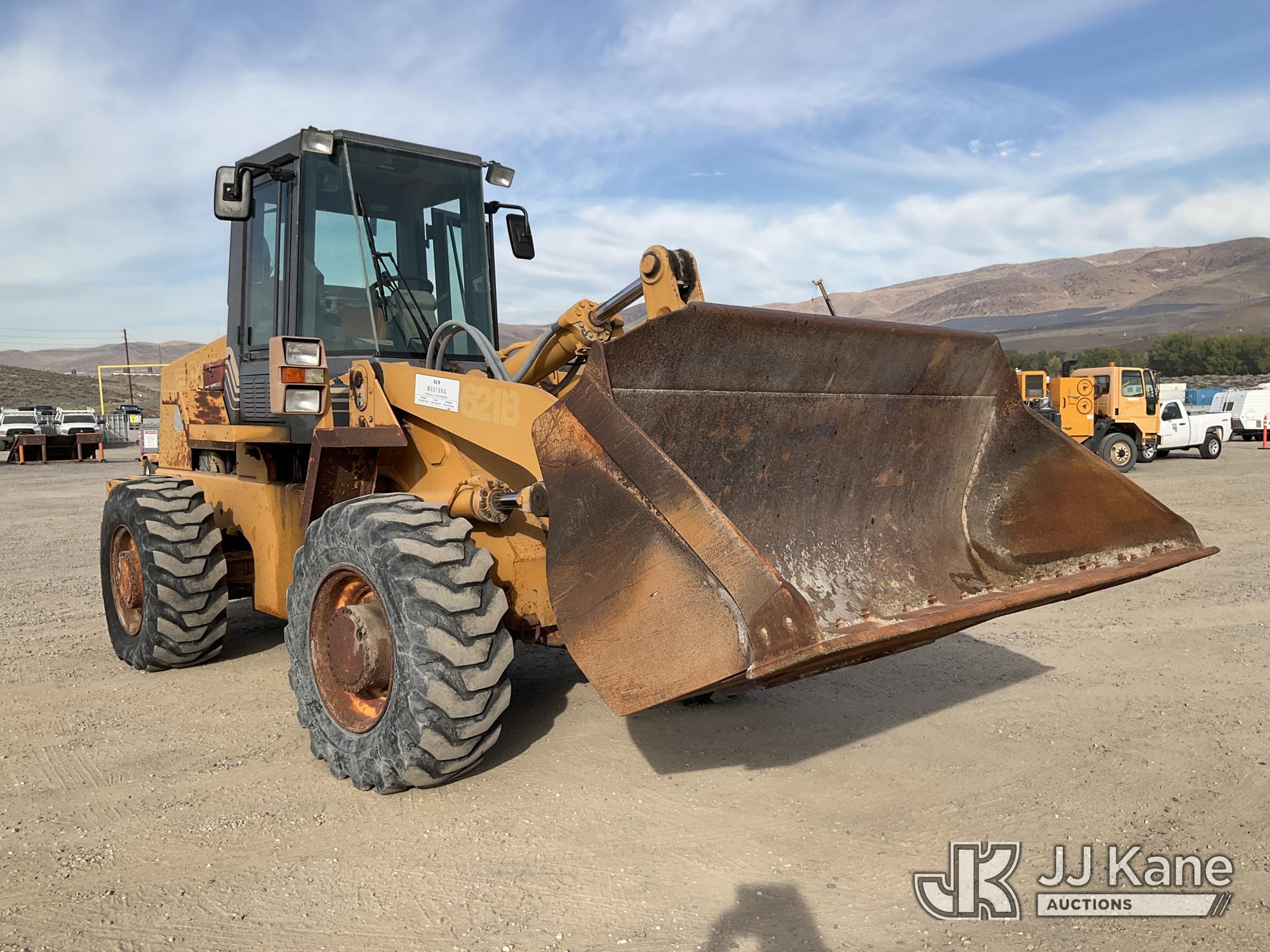

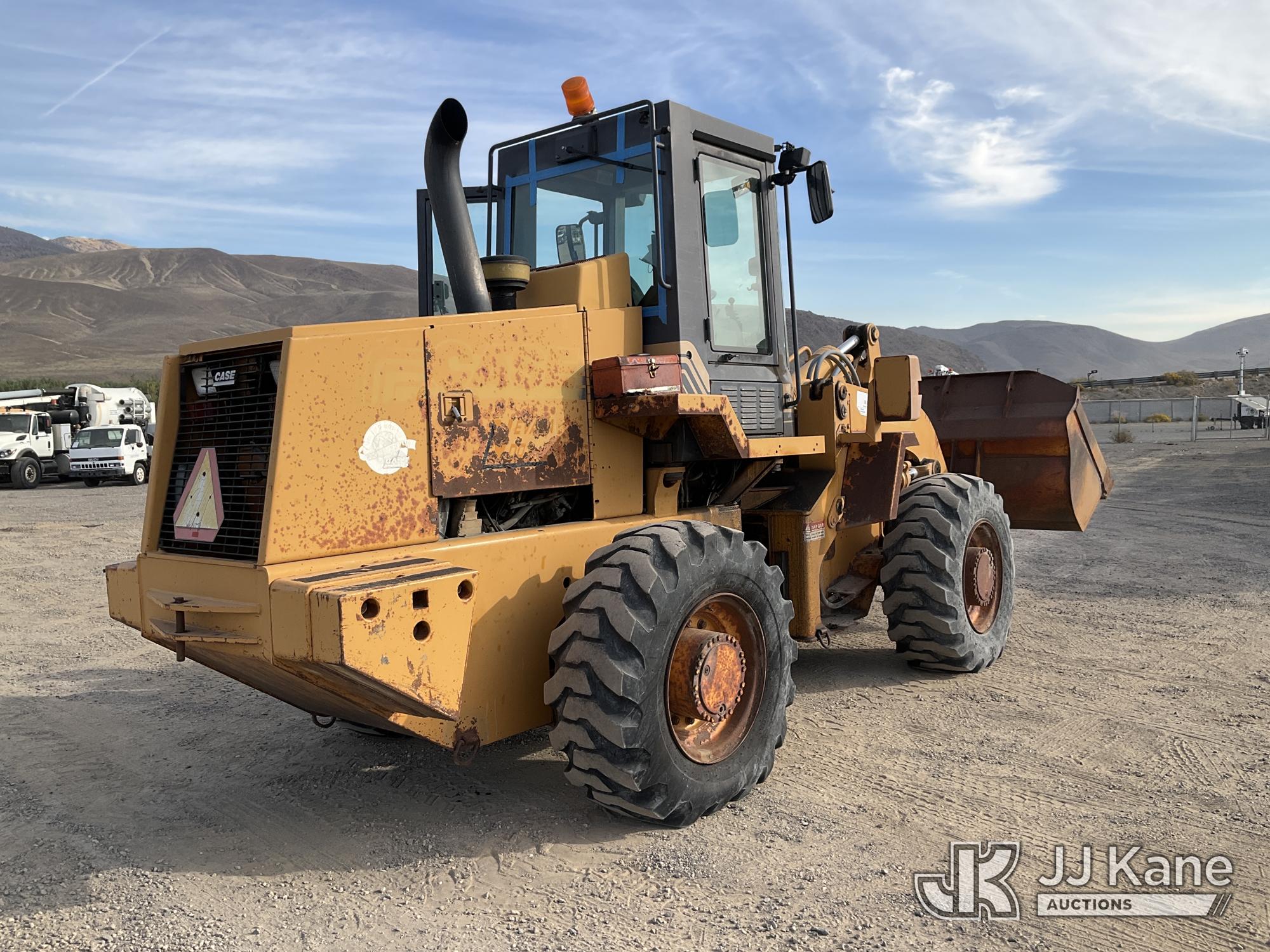

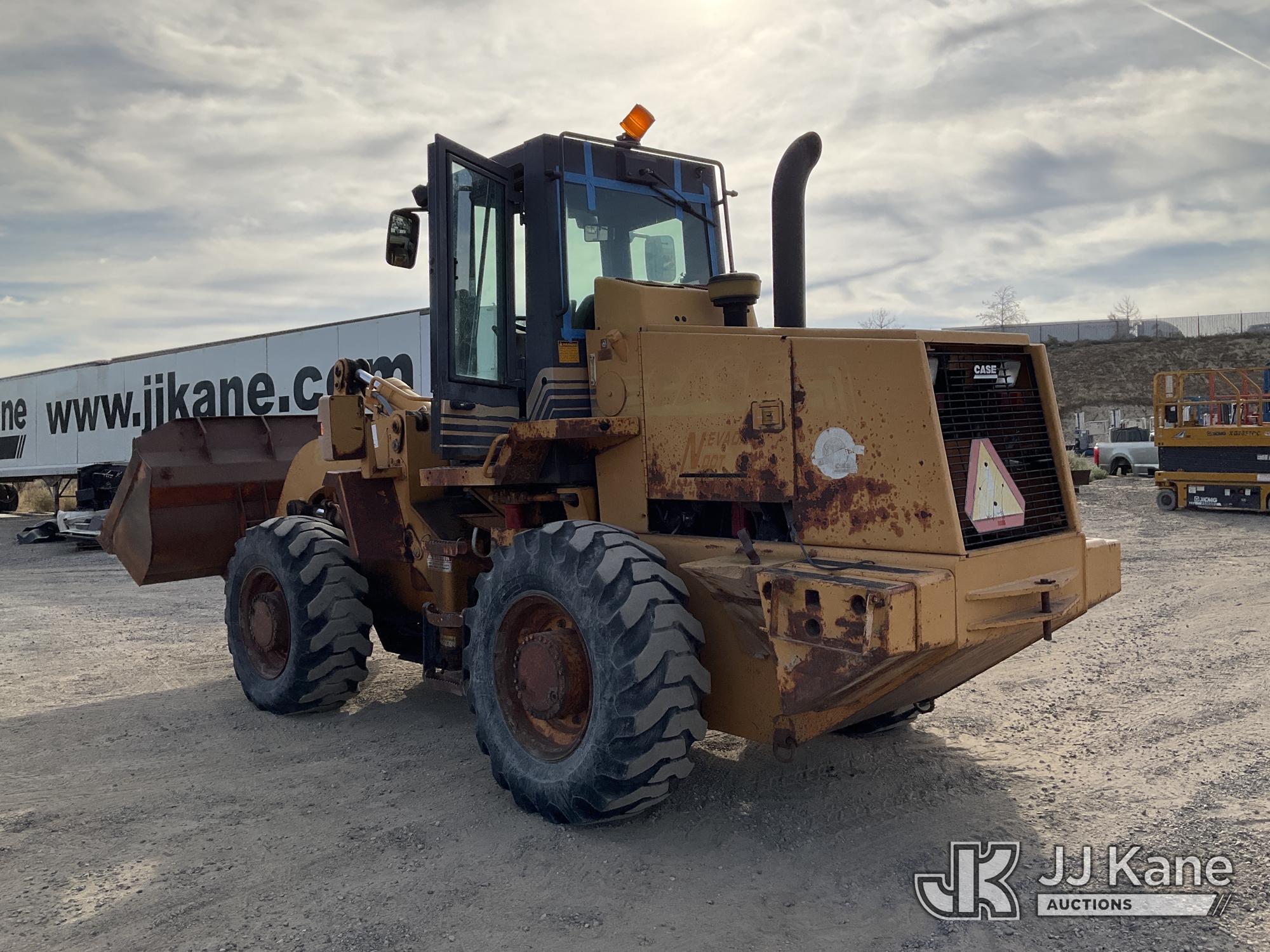

1997 Case 621B Articulating Wheel Loader, s/n JEE0053871, 4x4, Diesel, Shuttle, A/C, with GP Loader Bucket & EROPS, (Runs, Moves & Operates) (Seller States: "Cab Door Jamb And Floor Rotted Out, Engine Oil Leaks, Hydraulic Controls Under Cab Leaks, Left Lift Cylinder Leaking, Tires Weather Checked") (Reads 3,894 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Sparks, NV. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 601 Britain Dr Sparks, NV 89437 and hours of operations are 8a-4p. Titles executed exactly as bidder registered. Ensure your name and/or business name and address in JJ Kane and/or ProxiBid is correct before bidding. For pre-sale questions, please contact Office Staff @ (801) 519-0123 and provide sale date and lot number. Sparks Dealer License Number DLR000052908 / OHV000052909. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)
From the manufacturer:
Supplied by HeavyEquipmentData.com →
The Case 621B is a wheel loader designed for material handling, loading, and general earthmoving applications. It is part of Case's 621 series and is commonly used in construction, aggregate, agricultural, and industrial settings. The machine features a front-mounted loader bucket, articulated steering, and a diesel powertrain suited to repetitive loading cycles. Typical uses include stockpiling, truck loading, site cleanup, and material transport. The 621B is recognized for its balance of maneuverability, lift capacity, and operator visibility. As a wheel loader, it is built for efficient movement of loose materials over short distances on prepared surfaces and jobsite terrain.
| Bucket |
|
Breakout Force |
23,650 lbs (10,727 kg)
|
|
Bucket Capacity - Heaped |
2 cu yd |
|
Bucket Capacity - Struck |
2 cu yd |
|
Bucket Width |
8 ft (3 m)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Length |
24 ft (7 m)
|
|
Length |
24 ft (7 m)
|
|
Length With Bucket On Ground |
22 ft (7 m)
|
|
Weight |
27,779 lbs (12,600 kg)
|
|
Weight |
27,750 lbs (12,587 kg)
|
|
Wheelbase |
10 ft (3 m)
|
|
Width |
8 ft (2 m)
|
|
Width |
9 ft (3 m)
|
|
Width Over Tires |
8 ft (2 m)
|
| Engine |
|
Aspiration |
Turbocharged |
|
Bore |
4 in (10 cm)
|
|
Displacement |
359 cu in (5,883 cu cm)
|
|
Engine Model |
6T-590 |
|
Gross Power |
128 hp (95 kw)
|
|
Max Torque Iso Tr14396 |
404 lbs ft (548 nm)
|
|
Net Power |
116 hp (87 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
2,200 rpm |
|
Stroke |
5 in (12 cm)
|
|
Torque Measured @ |
1,400 rpm |
| Hydraulic System |
|
Dump Time |
2 sec |
|
Lower Time |
4 sec |
|
Raise Time |
6 sec |
| Operational |
|
Alternator Supplied Amperage |
65 amps |
|
Engine Oil Fluid Capacity |
4 gal (15 l)
|
|
Front Axle/Diff Fluid Capacity |
3 gal (10 l)
|
|
Fuel Capacity |
51 gal (193 l)
|
|
Hydraulic System Fluid Capacity |
41 gal (153 l)
|
|
Operating Voltage |
24 V |
|
Operating Weight |
27,249 lbs (12,360 kg)
|
|
Rear Axle/Diff Fluid Capacity |
3 gal (10 l)
|
|
Tire Size |
20.5 R25 |
|
Transmission Fluid Capacity |
5 gal (19 l)
|
| Transmission |
|
Max Speed - Forward |
19 mph (30 kph)
|
|
Max Speed - Reverse |
14 mph (22 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
3 |
|
Transmission Type |
Mechanical |
