2005 Case 621D For Sale in Edmonton, Ab

2005 Case 621D
2005 Case 621D
2005 Case 621D
2005 Case 621D
2005 Case 621D
2005 Case 621D
2005 Case 621D
2005 Case 621D 2005 Case 621D 2005 Case 621D 2005 Case 621D 2005 Case 621D 2005 Case 621D 2005 Case 621D

/ Save to Watch List
Apply for Financing

Auction Pricing



   Auction Info: Starting on 2026-09-22   Click here to place a bid


Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info
Ritchie Bros. Auctioneers Website
Click here to email Ritchie Bros. Auctioneers.

Request an equipment inspection

Get shipping quotes
Click for Phone Number


Machine Info:

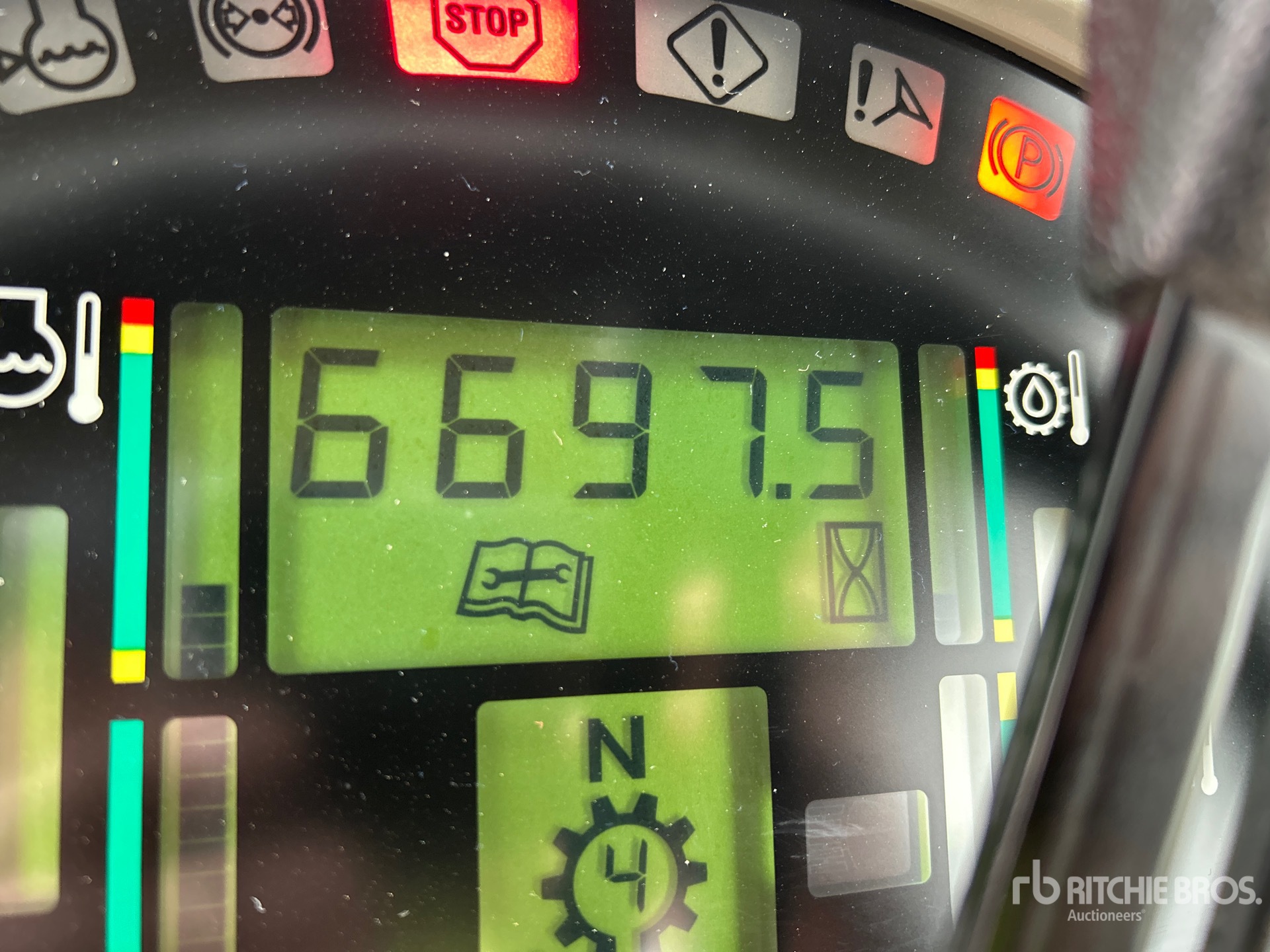

Hours:6697

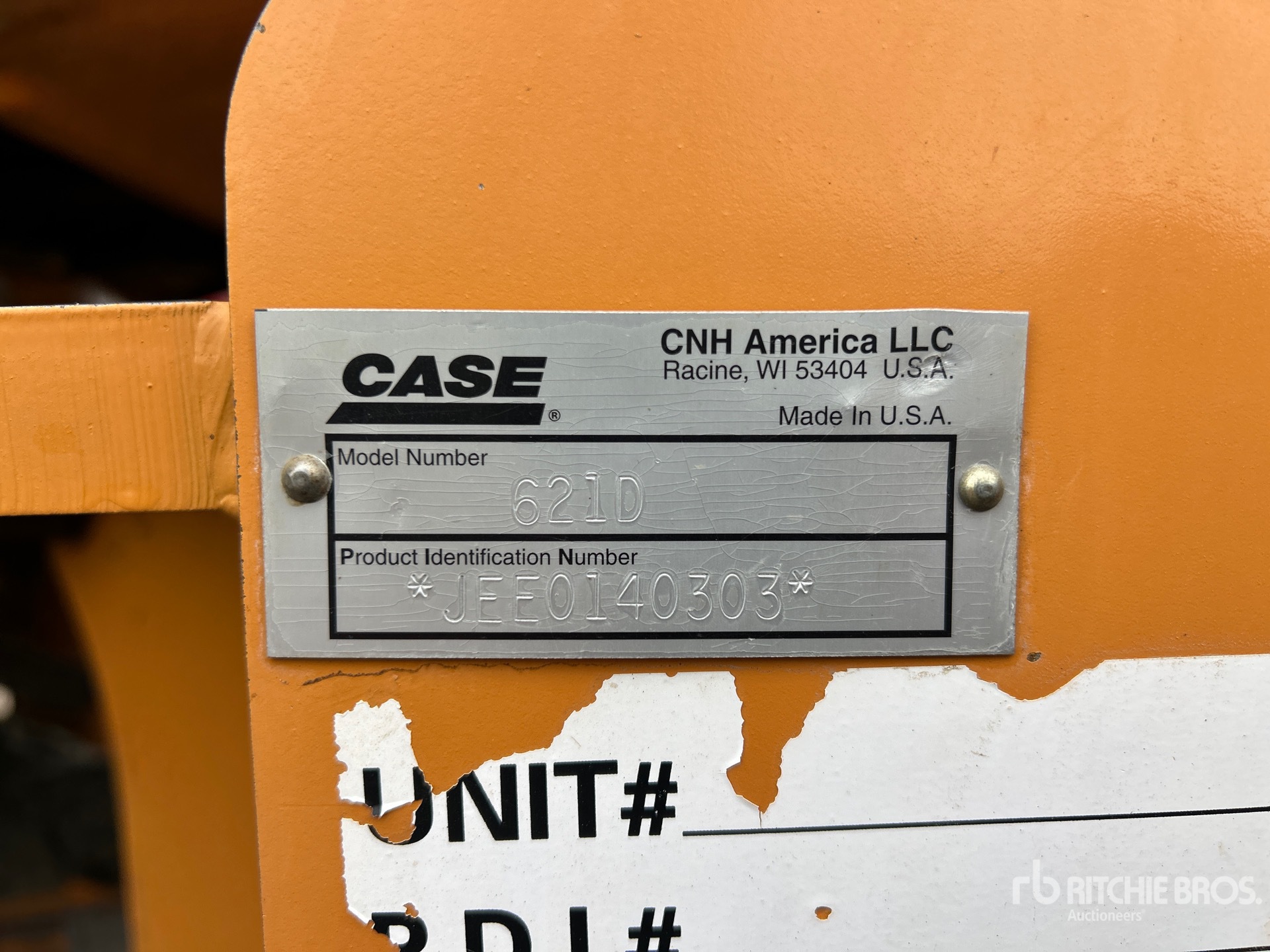

Serial Number:JEE0140303
Machine Location:EDMONTON, AB

Description:

Enclosed Cab, Air Conditioner, Air Ride Seat, Ride Control, Autoshift, Positive Air Shutoff, Auxiliary Hydraulics, Hydraulic Coupler, 102 in Bucket, 20.5R25 Tires, Complete-Dispersal-FBR-Inc Closing Time: 2026-09-22 10:11:00 AM


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Case 621D is a wheel loader designed for material handling, loading, stockpiling, and general construction site work. As part of Case's D-series lineup, it is commonly used in aggregate yards, roadbuilding, agriculture, and municipal applications. The 621D features a front-mounted loader arm and bucket configuration, articulated steering, and a diesel powertrain suited for repetitive loading cycles. Typical uses include moving soil, gravel, sand, and other bulk materials. The model is recognized for its balance of lifting capacity, maneuverability, and operator visibility in medium-duty wheel loader applications.
Bucket
Breakout Force 23,237 lbs (10,540 kg)
Bucket Capacity - Heaped 3 cu yd
Bucket Capacity - Struck 3 cu yd
Bucket Width 9 ft (3 m)
Dump Clearance At Max Raise 9 ft (3 m)
Dimensions
Ground Clearance 2 ft (0 m)
Height 11 ft (3 m)
Height To Top Of Cab 11 ft (3 m)
Hinge Pin - Max Height 13 ft (4 m)
Length 23 ft (7 m)
Length With Bucket On Ground 23 ft (7 m)
Reach At Max Lift And Dump 3 ft (1 m)
Weight 26,083 lbs (11,829 kg)
Wheelbase 10 ft (3 m)
Width 8 ft (2 m)
Width Over Tires 8 ft (2 m)
Engine
Aspiration turbocharged and air to air cooled
Displacement 409 cu in (6,702 cu cm)
Engine Make 2,239
Engine Model Family III 668TA/M2
Gross Power 148 hp (110 kw)
Max Torque 495 lbs ft (671 nm)
Net Power 136 hp (101 kw)
Number Of Cylinders 6
Power Measured @ 2,000 rpm
Torque Measured @ 1,200 rpm
Torque Rise 33 %
Hydraulic System
Dump Time 2 sec
Lower Time 5 sec
Pump Flow Capacity 45 gpm (171 lpm)
Pump Type closed centered pressure/flow compensated
Raise Time 5 sec
Relief Valve Setting 3,600 psi
Operational
Alternator Supplied Amperage 70 amps
Cooling System Fluid Capacity 6 gal (24 l)
Engine Oil Fluid Capacity 4 gal (16 l)
Front Axle/Diff Fluid Capacity 6 gal (22 l)
Fuel Capacity 50 gal (189 l)
Hydraulic System Fluid Capacity 30 gal (114 l)
Operating Voltage 24 V
Operating Weight 26,083 lbs (11,831 kg)
Rear Axle Oscillation 24 degrees
Rear Axle/Diff Fluid Capacity 6 gal (22 l)
Static Tipping Weight 22,434 lbs (10,176 kg)
Tire Size 20.5x25 L3
Transmission Fluid Capacity 5 gal (19 l)
Turning Radius 17 ft (5 m)
Transmission
Max Speed - Forward 24 mph (39 kph)
Max Speed - Reverse 16 mph (25 kph)
Number Of Forward Gears 4
Number Of Reverse Gears 3
Transmission Type 4F/3R proportional w/ electronic control module torque sensing autoshift/manual shift and modulation
