2004 Case 621D For Sale in Birmingham, AL
Auction Pricing
Auction Info: Starting on 2026-09-10
Machine Info:
| Hours: | 2537 |

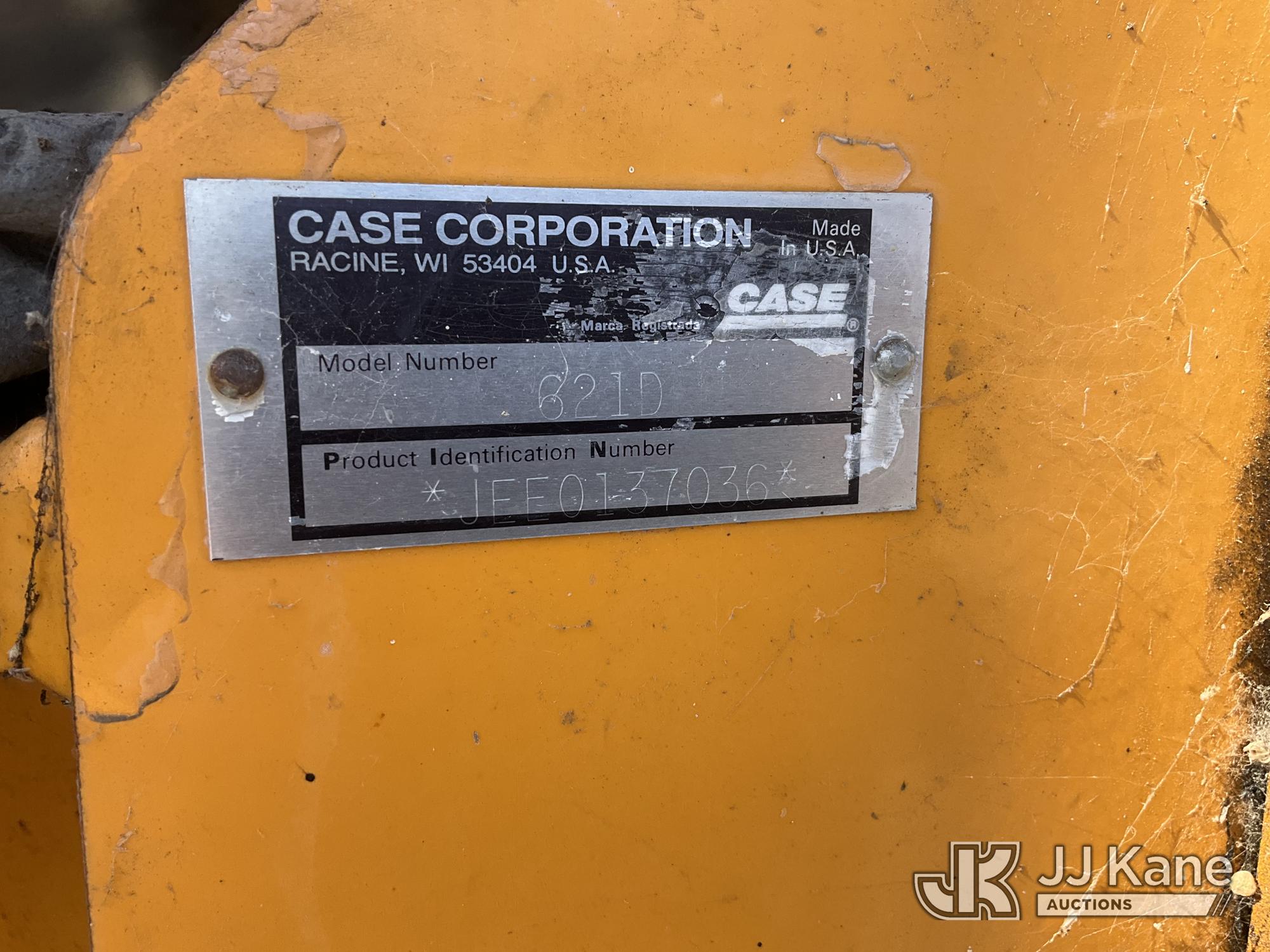

| Serial Number: | JEE0137036 |
| Machine Location: | BIRMINGHAM, AL |
Description:

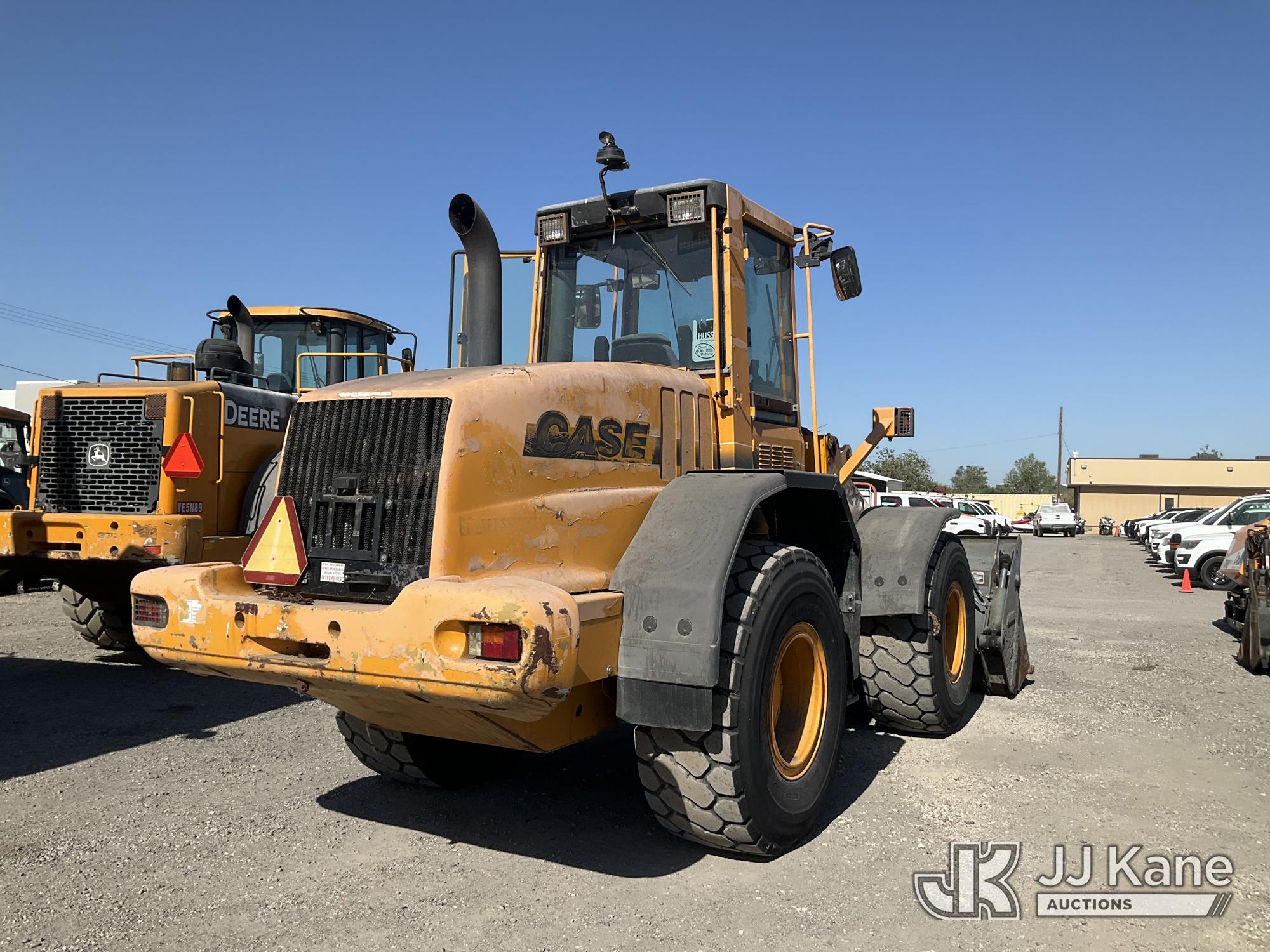

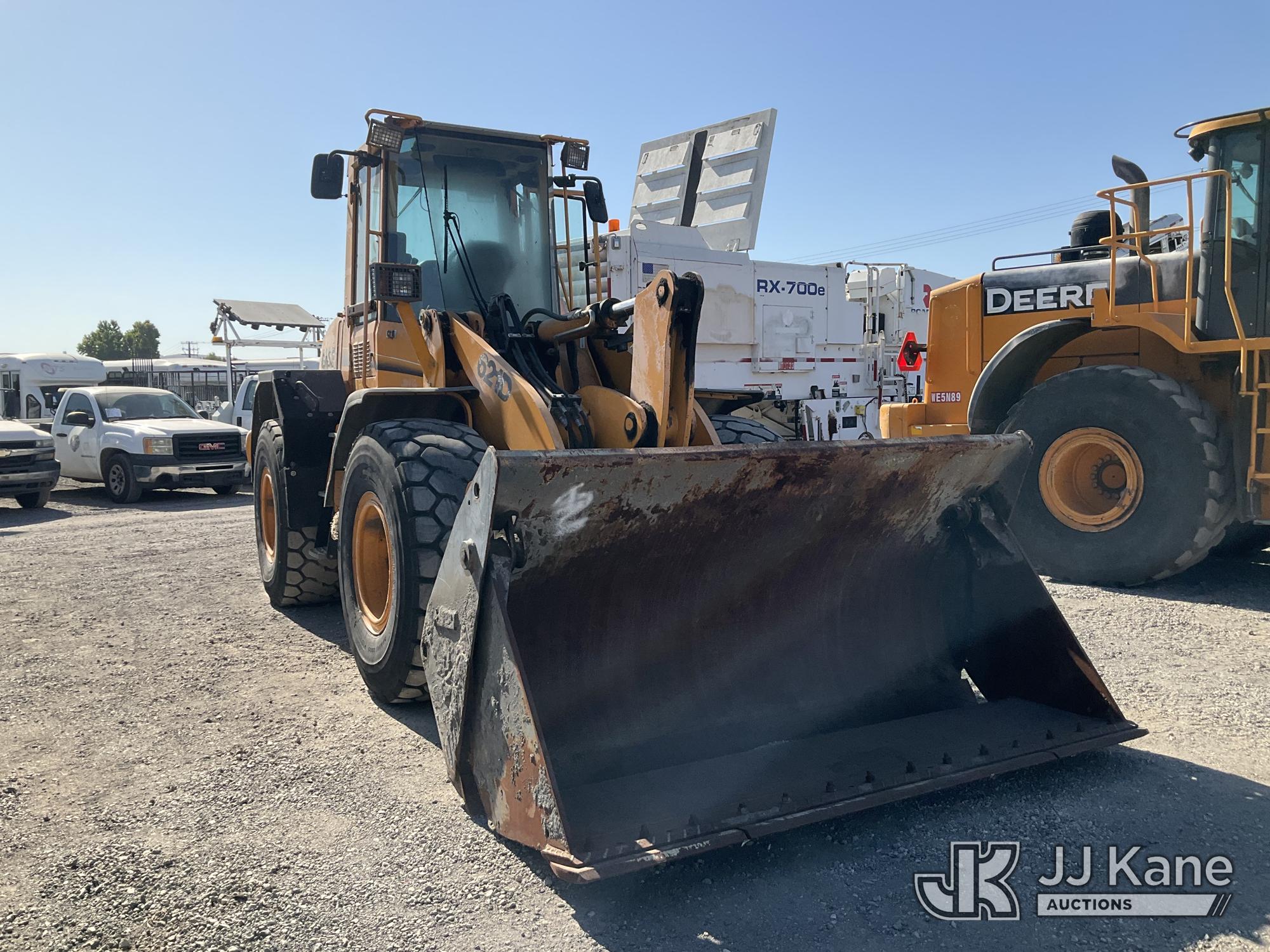

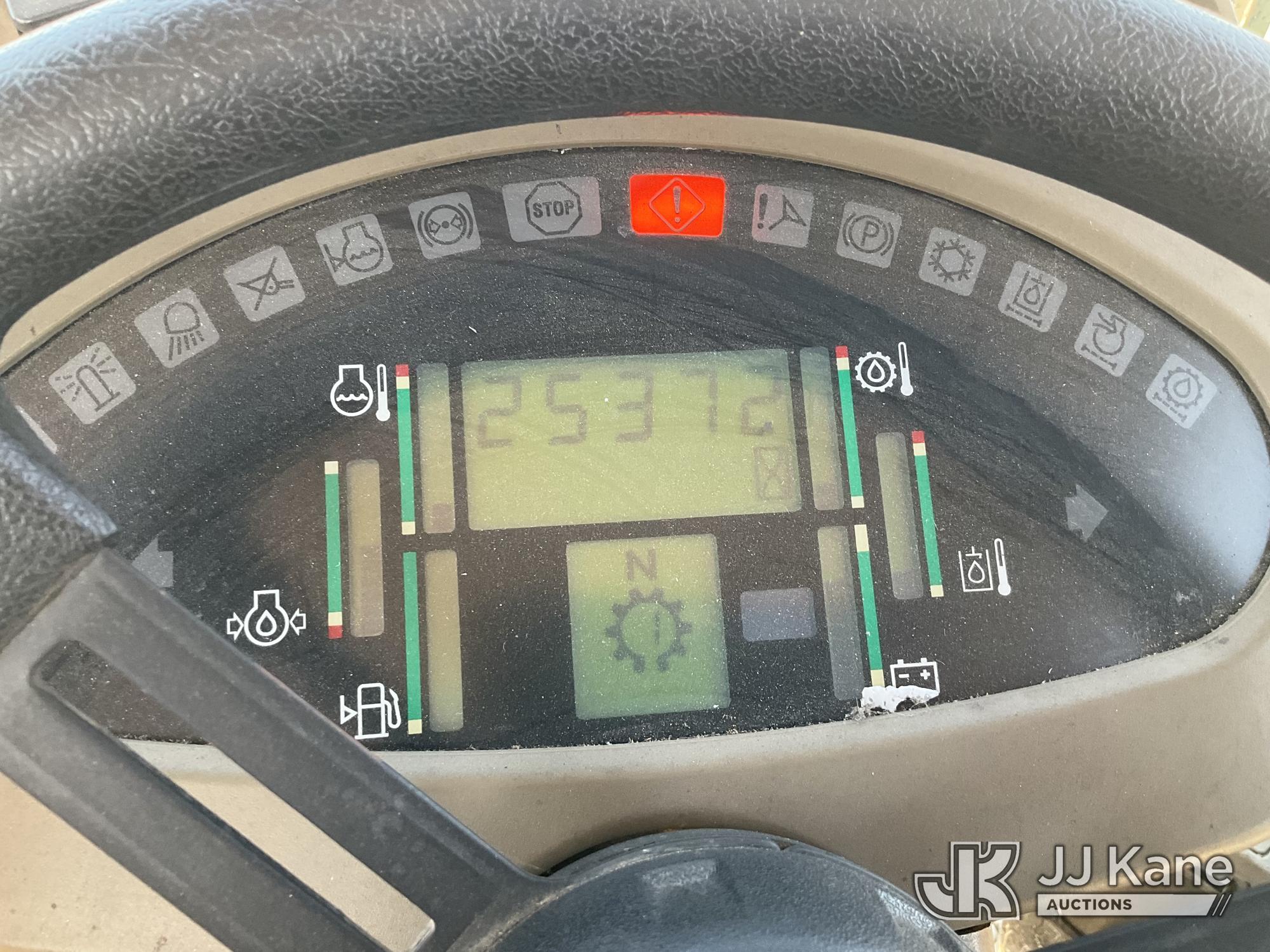

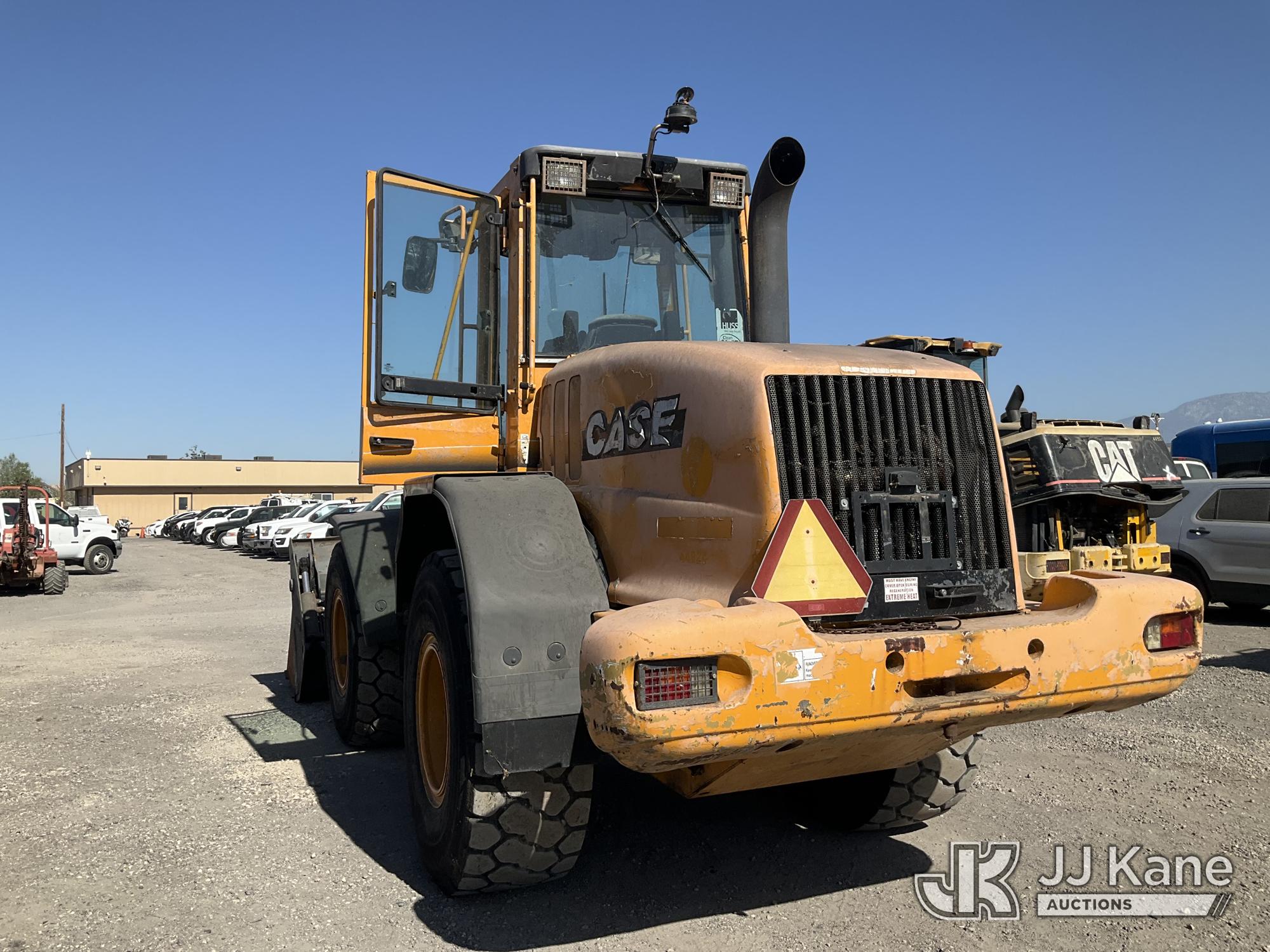

2004 Case Construction 621D Articulating Wheel Loader, s/n JEE0137036, Case DIESEL, Shuttle, with 4-in-1 Loader Bucket, ROPS, (Runs, Moves, & Operates) (Has Hydro Leak)(Title Only) (Reads 2,537 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Jurupa Valley, CA. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 4510 Muth Way Jurupa Valley, CA 92509 and hours of operations are 8a-4p. For pre-sale questions, please contact please contact Office Staff @ (310) 353-7140. Dealer License Number 45696. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)
From the manufacturer:
Supplied by HeavyEquipmentData.com →
The Case 621D is a wheel loader designed for material handling, loading, stockpiling, and general construction site work. As part of Case's D-series lineup, it is commonly used in aggregate yards, roadbuilding, agriculture, and municipal applications. The 621D features a front-mounted loader arm and bucket configuration, articulated steering, and a diesel powertrain suited for repetitive loading cycles. Typical uses include moving soil, gravel, sand, and other bulk materials. The model is recognized for its balance of lifting capacity, maneuverability, and operator visibility in medium-duty wheel loader applications.
| Bucket |
|
Breakout Force |
23,237 lbs (10,540 kg)
|
|
Bucket Capacity - Heaped |
3 cu yd |
|
Bucket Capacity - Struck |
3 cu yd |
|
Bucket Width |
9 ft (3 m)
|
|
Dump Clearance At Max Raise |
9 ft (3 m)
|
| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Hinge Pin - Max Height |
13 ft (4 m)
|
|
Length |
23 ft (7 m)
|
|
Length With Bucket On Ground |
23 ft (7 m)
|
|
Reach At Max Lift And Dump |
3 ft (1 m)
|
|
Weight |
26,083 lbs (11,829 kg)
|
|
Wheelbase |
10 ft (3 m)
|
|
Width |
8 ft (2 m)
|
|
Width Over Tires |
8 ft (2 m)
|
| Engine |
|
Aspiration |
turbocharged and air to air cooled |
|
Displacement |
409 cu in (6,702 cu cm)
|
|
Engine Make |
2,239 |
|
Engine Model |
Family III 668TA/M2 |
|
Gross Power |
148 hp (110 kw)
|
|
Max Torque |
495 lbs ft (671 nm)
|
|
Net Power |
136 hp (101 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
2,000 rpm |
|
Torque Measured @ |
1,200 rpm |
|
Torque Rise |
33 % |
| Hydraulic System |
|
Dump Time |
2 sec |
|
Lower Time |
5 sec |
|
Pump Flow Capacity |
45 gpm (171 lpm)
|
|
Pump Type |
closed centered pressure/flow compensated |
|
Raise Time |
5 sec |
|
Relief Valve Setting |
3,600 psi |
| Operational |
|
Alternator Supplied Amperage |
70 amps |
|
Cooling System Fluid Capacity |
6 gal (24 l)
|
|
Engine Oil Fluid Capacity |
4 gal (16 l)
|
|
Front Axle/Diff Fluid Capacity |
6 gal (22 l)
|
|
Fuel Capacity |
50 gal (189 l)
|
|
Hydraulic System Fluid Capacity |
30 gal (114 l)
|
|
Operating Voltage |
24 V |
|
Operating Weight |
26,083 lbs (11,831 kg)
|
|
Rear Axle Oscillation |
24 degrees |
|
Rear Axle/Diff Fluid Capacity |
6 gal (22 l)
|
|
Static Tipping Weight |
22,434 lbs (10,176 kg)
|
|
Tire Size |
20.5x25 L3 |
|
Transmission Fluid Capacity |
5 gal (19 l)
|
|
Turning Radius |
17 ft (5 m)
|
| Transmission |
|
Max Speed - Forward |
24 mph (39 kph)
|
|
Max Speed - Reverse |
16 mph (25 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
3 |
|
Transmission Type |
4F/3R proportional w/ electronic control module torque sensing autoshift/manual shift and modulation |
