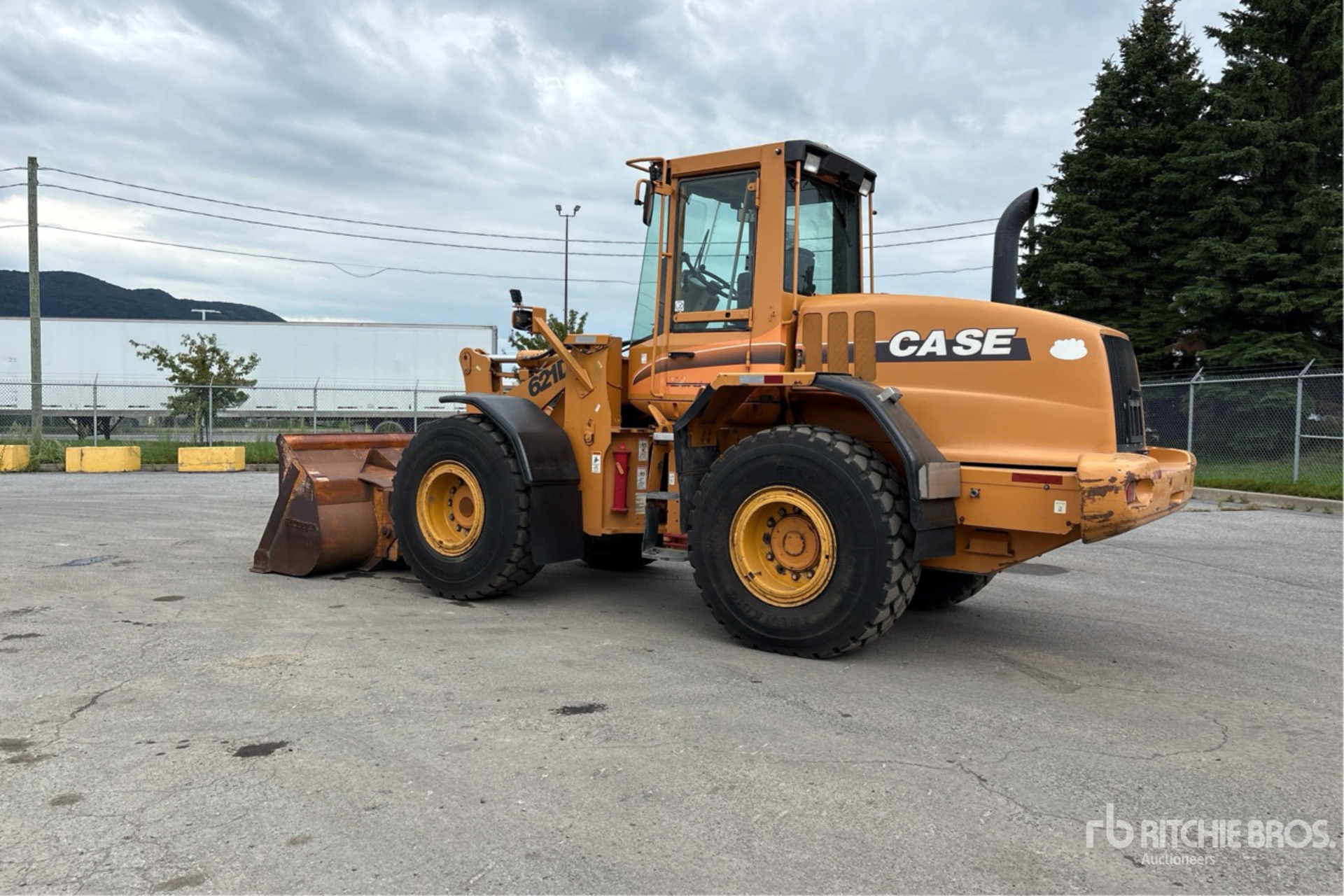

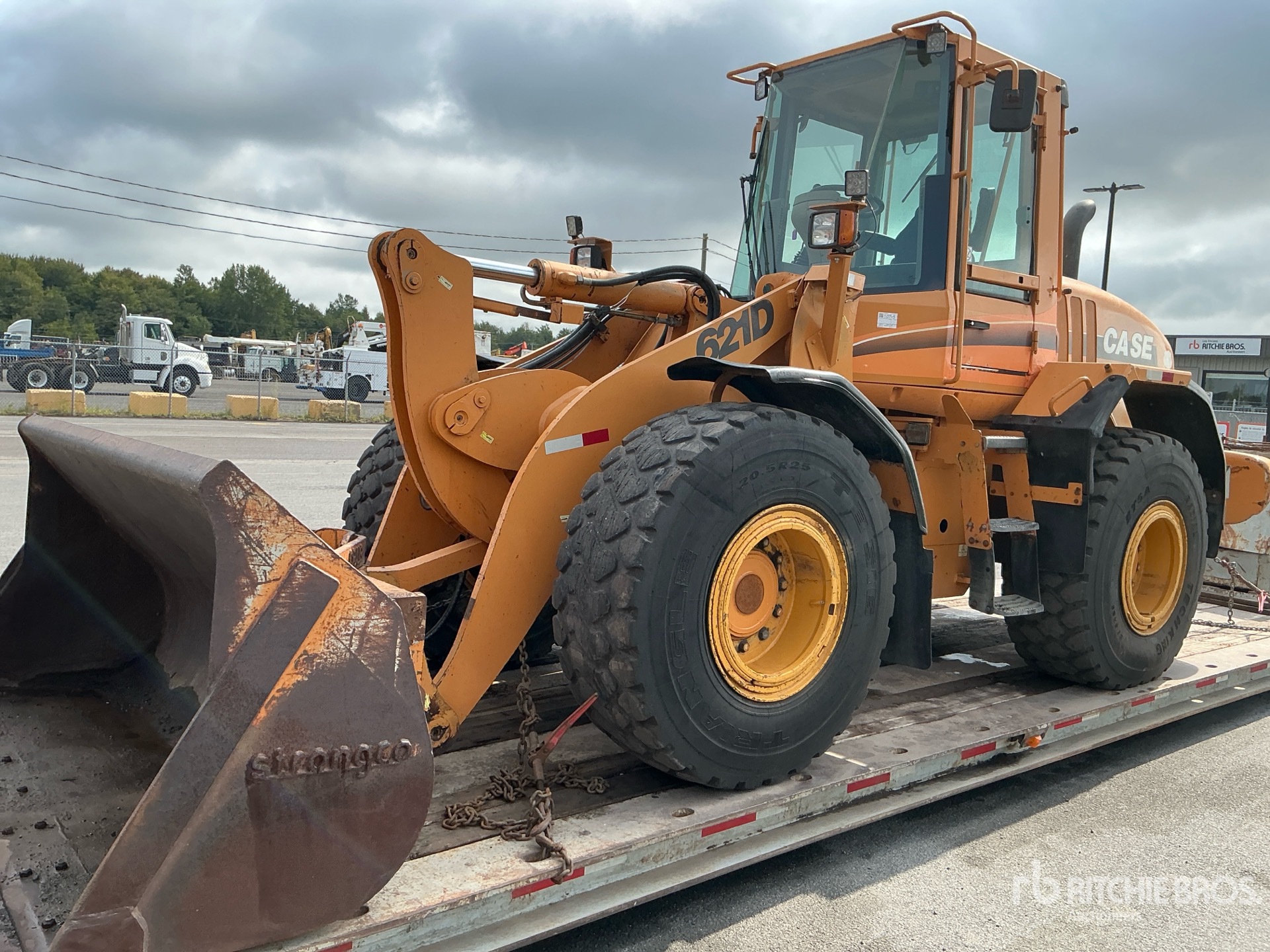

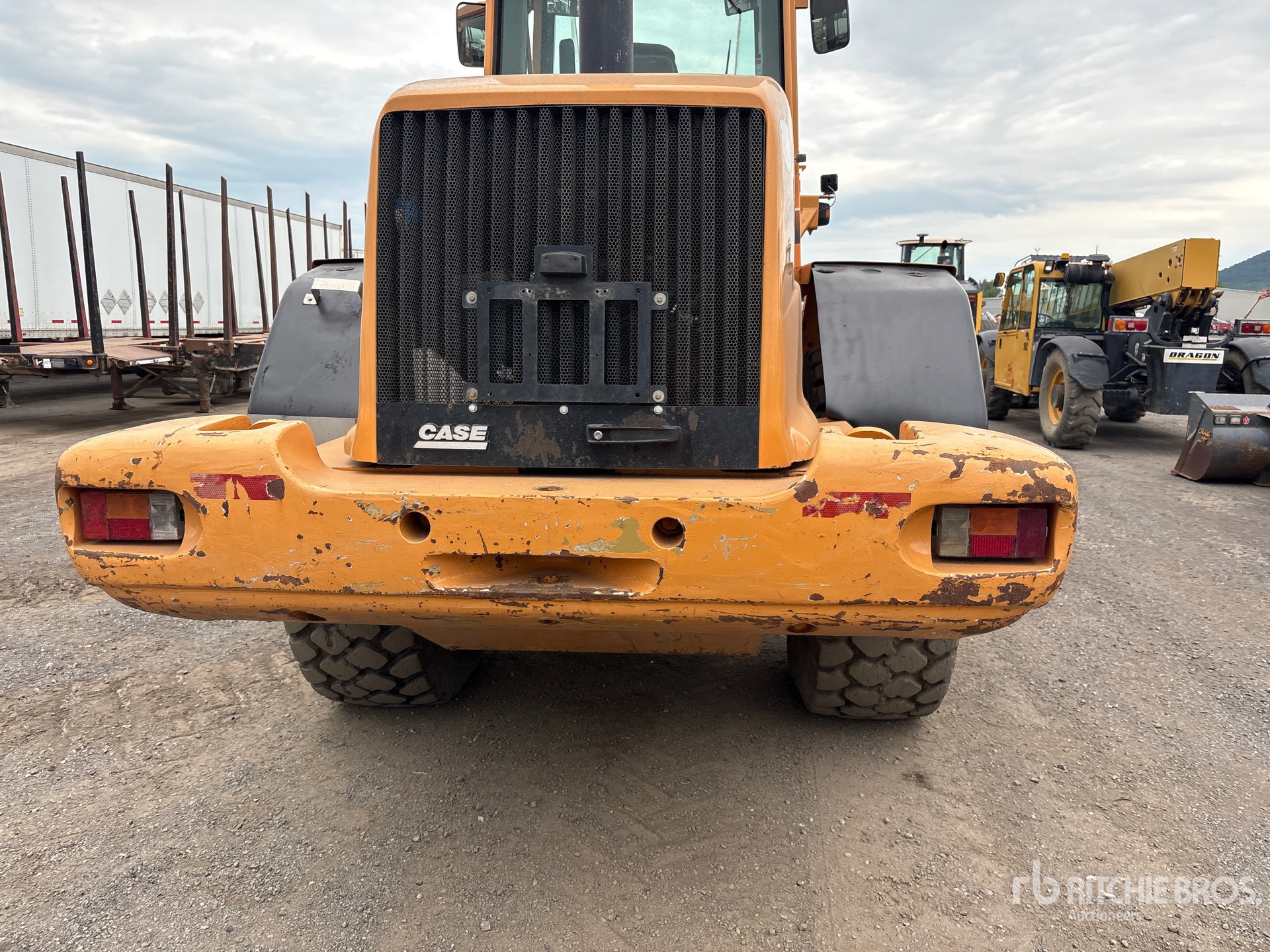

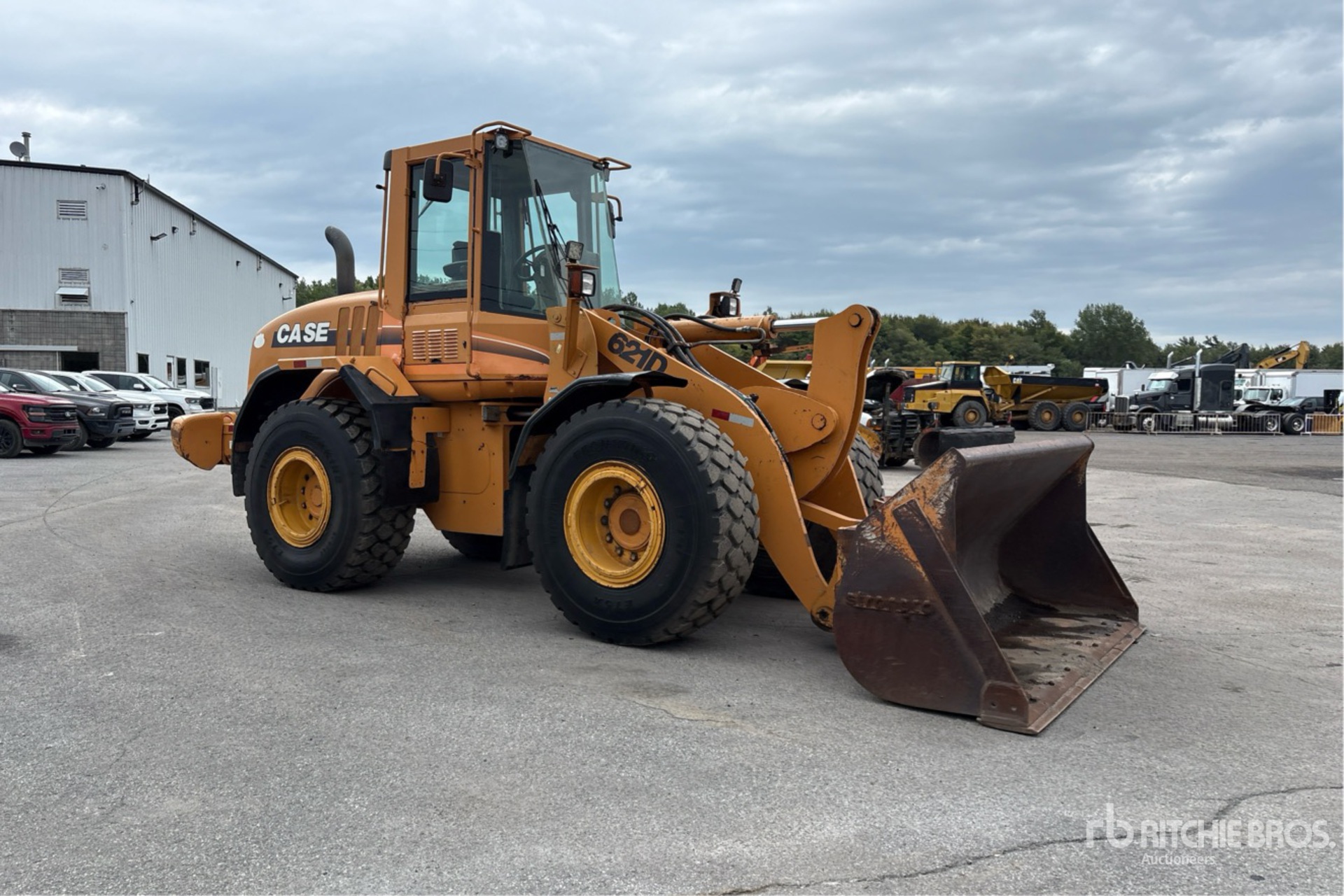

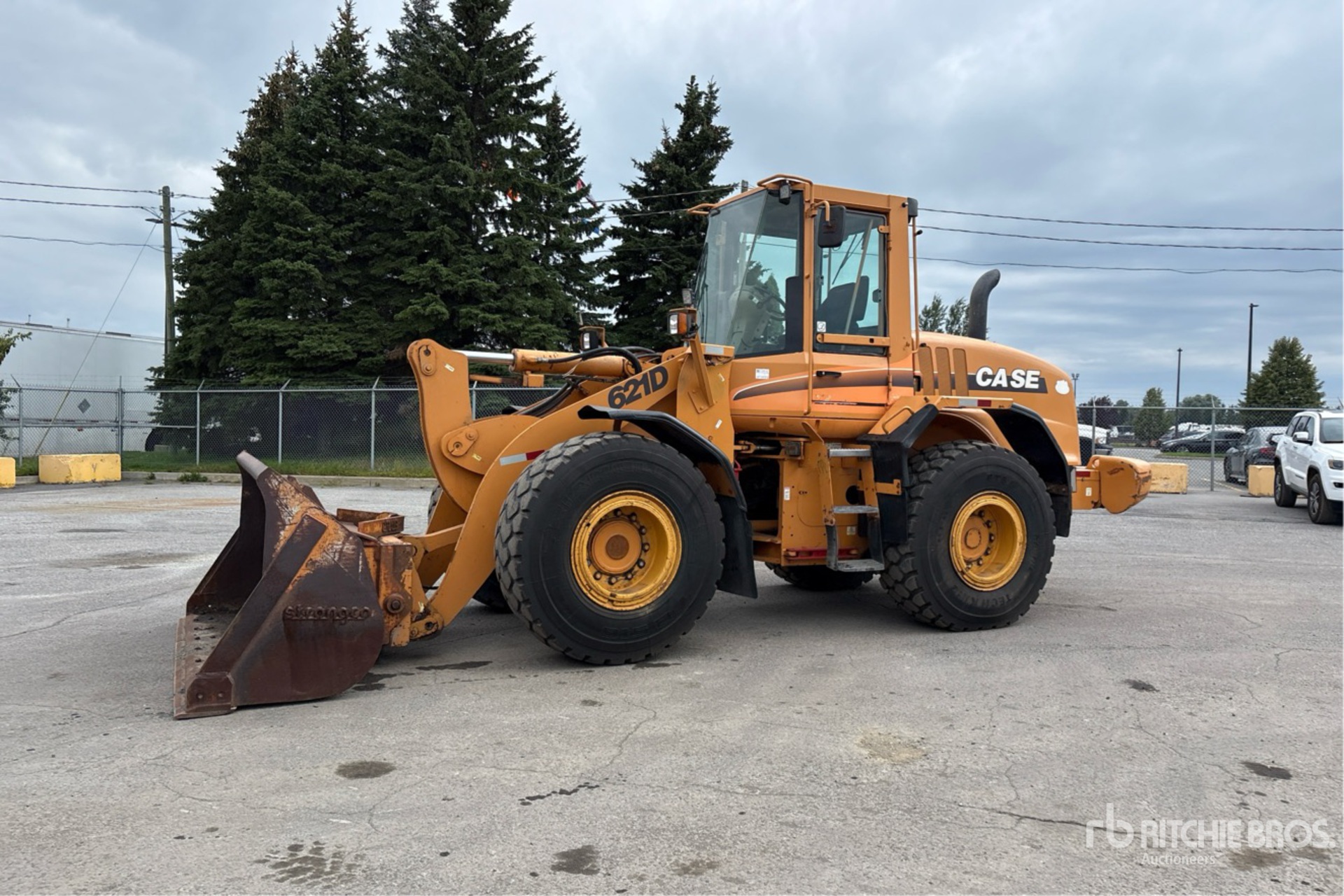

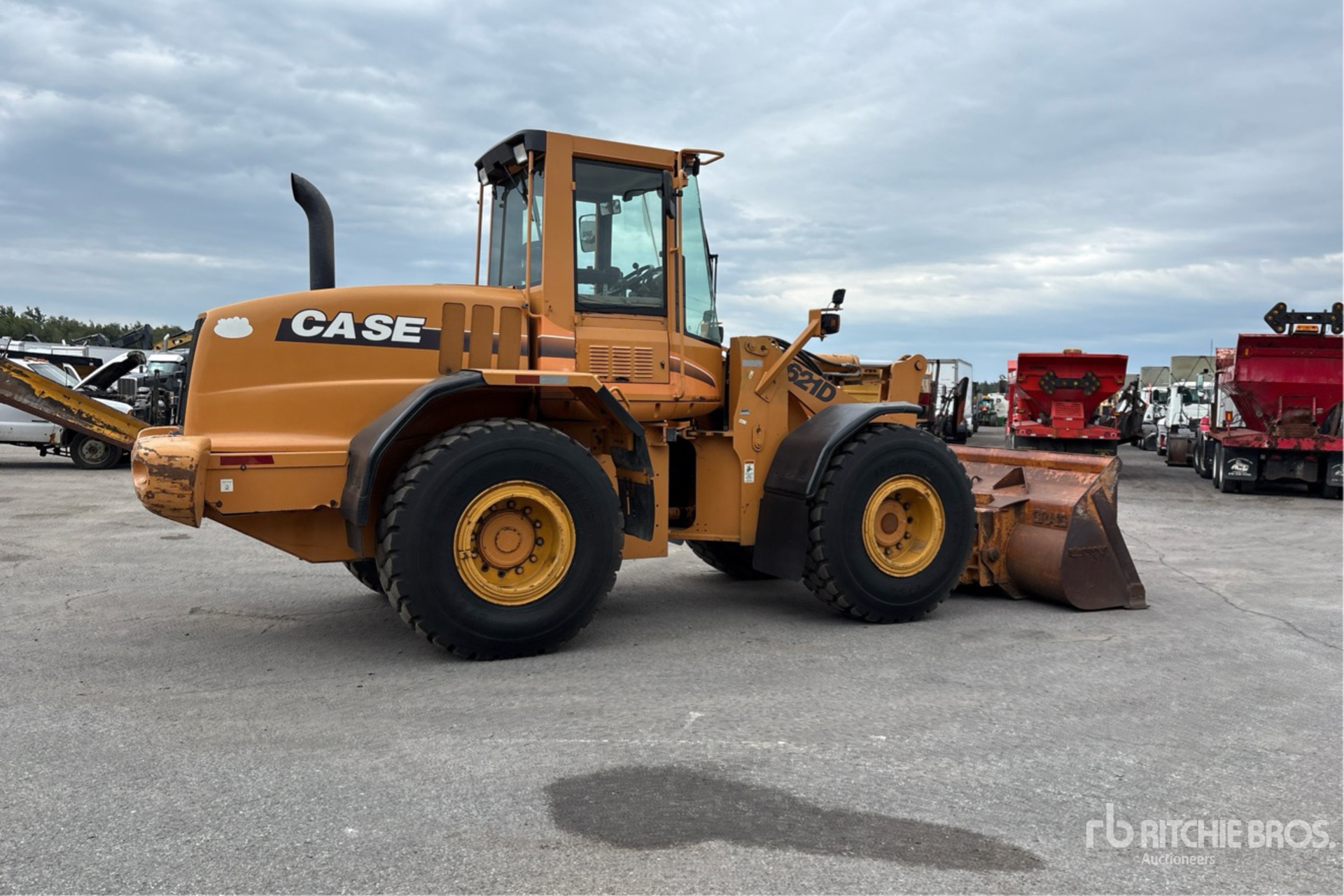

2003 Case 621D For Sale in Montreal, Qc
Auction Pricing
Auction Info: Starting on 2026-10-29 Click here to place a bid
Machine Info:
| Serial Number: | JEE0135160 |
| Machine Location: | MONTREAL, QC |
Description:
Located in Lane 6 Spot 14, Enclosed Cab, Air Conditioner, Air Ride Seat, Manual Quick Coupler, 101 in Bucket, 20.5R25 Tires Problmes mcaniques, voir section des dfaillances / Mechanical issues, please see deficiencies section, Aucun transit ne peut tre mis pour cette unit / no transit can be issued for this unit,, Closing Time: 2026-10-29 08:28:00 AM
From the manufacturer:
Supplied by HeavyEquipmentData.com →
The Case 621D is a wheel loader designed for material handling, loading, stockpiling, and general construction site work. As part of Case's 621 series, the 621D is typically associated with a mid-size loader configuration used in aggregate, municipal, agricultural, and industrial applications. It features a front-mounted loader arm and bucket arrangement, articulated steering, and a diesel powertrain suited to repetitive loading cycles. The model is commonly referenced for its balance of maneuverability, lift capacity, and operator visibility. Exact specifications, including engine output, operating weight, and bucket capacity, vary by configuration and production year.
| Bucket |
|
Breakout Force |
23,237 lbs (10,540 kg)
|
|
Bucket Capacity - Heaped |
3 cu yd |
|
Bucket Capacity - Struck |
3 cu yd |
|
Bucket Width |
9 ft (3 m)
|
|
Dump Clearance At Max Raise |
9 ft (3 m)
|
| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Hinge Pin - Max Height |
13 ft (4 m)
|
|
Length |
23 ft (7 m)
|
|
Length With Bucket On Ground |
23 ft (7 m)
|
|
Reach At Max Lift And Dump |
3 ft (1 m)
|
|
Weight |
26,083 lbs (11,831 kg)
|
|
Wheelbase |
10 ft (3 m)
|
|
Width |
8 ft (2 m)
|
|
Width Over Tires |
8 ft (2 m)
|
| Engine |
|
Aspiration |
turbocharged and air to air cooled |
|
Displacement |
409 cu in (6,702 cu cm)
|
|
Engine Make |
2,239 |
|
Engine Model |
Family III 668TA/M2 |
|
Gross Power |
148 hp (110 kw)
|
|
Max Torque |
495 lbs ft (671 nm)
|
|
Net Power |
136 hp (101 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
2,000 rpm |
|
Torque Measured @ |
1,200 rpm |
|
Torque Rise |
33 % |
| Hydraulic System |
|
Dump Time |
2 sec |
|
Lower Time |
5 sec |
|
Pump Flow Capacity |
45 gpm (171 lpm)
|
|
Pump Type |
closed centered pressure/flow compensated |
|
Raise Time |
5 sec |
|
Relief Valve Setting |
3,600 psi |
| Operational |
|
Alternator Supplied Amperage |
70 amps |
|
Cooling System Fluid Capacity |
6 gal (24 l)
|
|
Engine Oil Fluid Capacity |
4 gal (16 l)
|
|
Front Axle/Diff Fluid Capacity |
6 gal (22 l)
|
|
Fuel Capacity |
50 gal (189 l)
|
|
Hydraulic System Fluid Capacity |
30 gal (114 l)
|
|
Operating Voltage |
24 V |
|
Operating Weight |
26,083 lbs (11,831 kg)
|
|
Rear Axle Oscillation |
24 degrees |
|
Rear Axle/Diff Fluid Capacity |
6 gal (22 l)
|
|
Static Tipping Weight |
22,434 lbs (10,176 kg)
|
|
Tire Size |
20.5x25 L3 |
|
Transmission Fluid Capacity |
5 gal (19 l)
|
|
Turning Radius |
17 ft (5 m)
|
| Transmission |
|
Max Speed - Forward |
24 mph (39 kph)
|
|
Max Speed - Reverse |
16 mph (25 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
3 |
|
Transmission Type |
4F/3R proportional w/ electronic control module torque sensing autoshift/manual shift and modulation |
