2011 Case 621E

Name: 2011 Case 621E
Brand: Case
SKU: 89424115
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-10-14 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

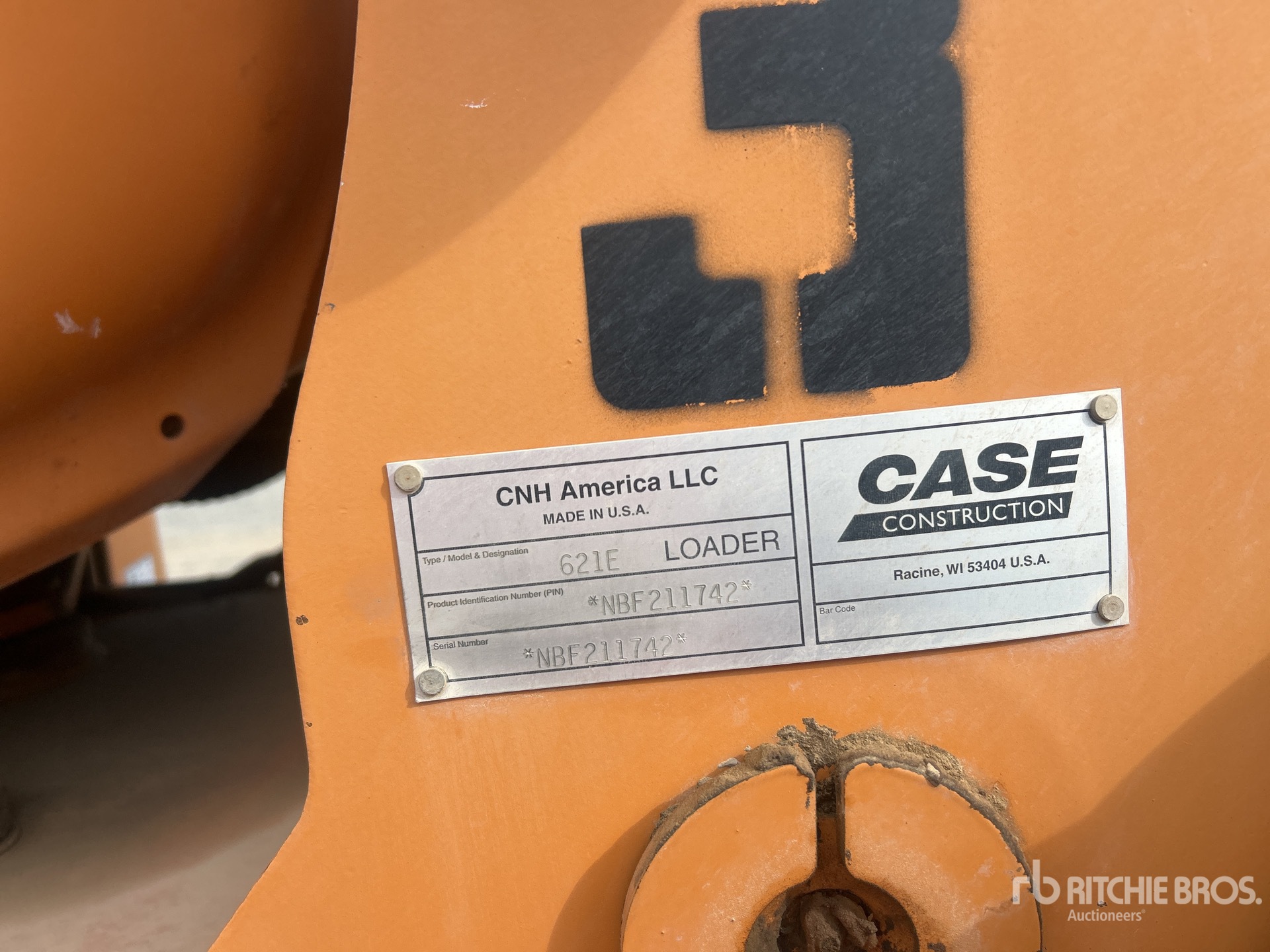

Serial Number:	NBF211742
Machine Location:	FORT WORTH, TX

Description:

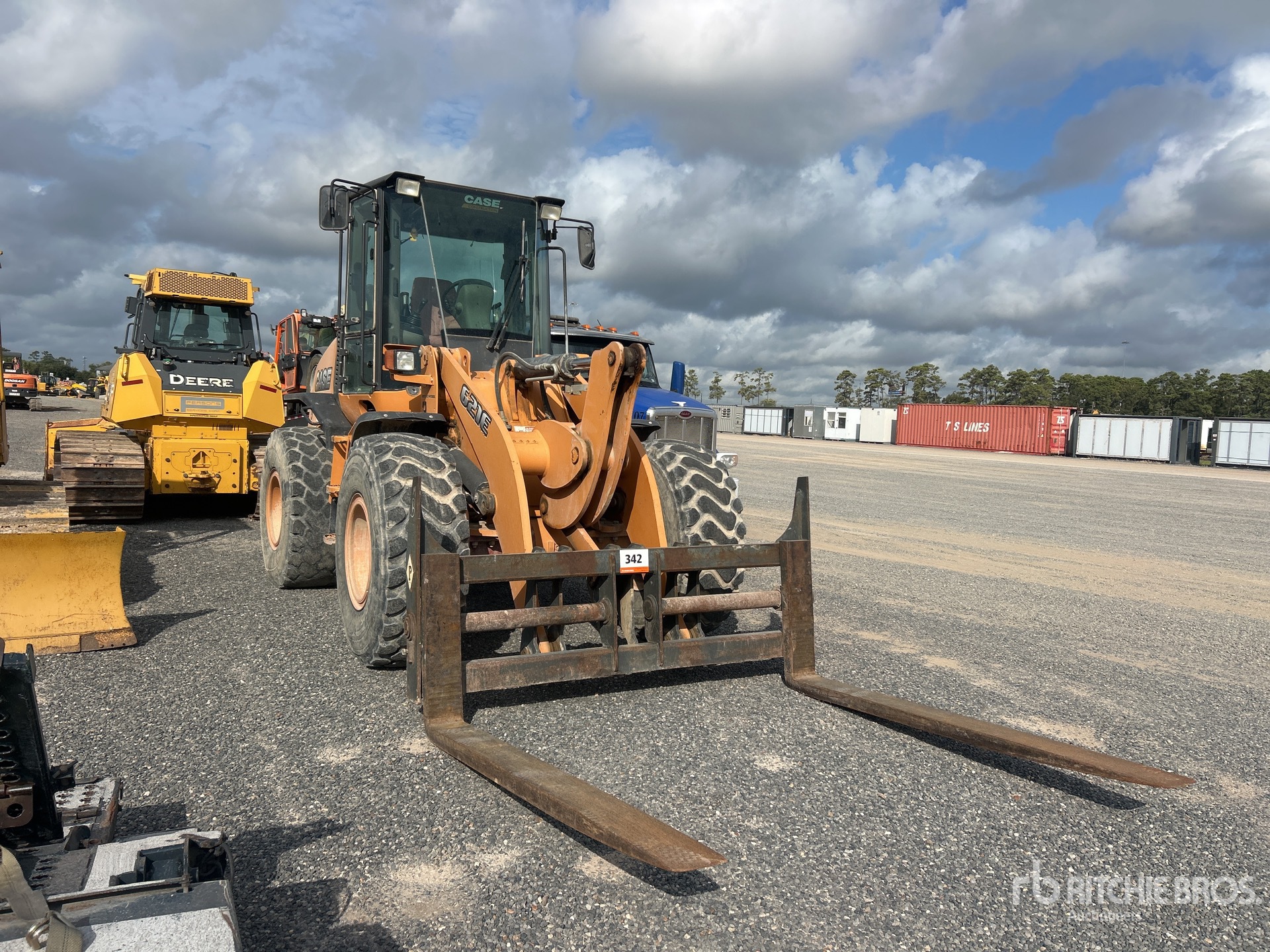

Located in Lane 0 Spot 0, Enclosed Cab, Air Conditioner, Forks, 20.5R25 Tires Inoperable items must be removed from yard by October 30th and cannot be relisted; Buyer's responsibility for removal. RBA will not be able to assist with loading., Closing Time: 2026-10-14 04:31:06 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Breakout Force	23,249 lbs (10,546 kg)
Bucket Capacity - Heaped	3 cu yd
Bucket Capacity - Struck	3 cu yd
Bucket Width	9 ft (3 m)
Dump Clearance At Max Raise	9 ft (3 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height	11 ft (3 m)
Height To Top Of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length	24 ft (7 m)
Length With Bucket On Ground	24 ft (7 m)
Reach At Max Lift And Dump	3 ft (1 m)
Weight	26,334 lbs (11,945 kg)
Wheelbase	10 ft (3 m)
Width	8 ft (2 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	Turbocharged and Aftercooled
Displacement	409 cu in (6,702 cu cm)
Engine Make	2,239
Engine Model	Family IV, 667TA/EDB, Tier III certified
Gross Power	156 hp (116 kw)
Max Torque	508 lbs ft (689 nm)
Net Power	146 hp (109 kw)
Number Of Cylinders	6
Power Measured @	1,800 rpm
Torque Measured @	1,300 rpm
Torque Rise	33 %
Hydraulic System
Dump Time	1 sec
Lower Time	5 sec
Pump Flow Capacity	45 gpm (171 lpm)
Pump Type	closed centered pressure/flow compensated
Raise Time	6 sec
Relief Valve Setting	3,600 psi
Operational
Alternator Supplied Amperage	65 amps
Cooling System Fluid Capacity	10 gal (36 l)
Engine Oil Fluid Capacity	4 gal (13 l)
Front Axle/Diff Fluid Capacity	6 gal (22 l)
Fuel Capacity	65 gal (246 l)
Hydraulic System Fluid Capacity	39 gal (148 l)
Operating Voltage	24 V
Operating Weight	27,406 lbs (12,431 kg)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	6 gal (22 l)
Static Tipping Weight	23,376 lbs (10,603 kg)
Tire Size	20.5 R25
Transmission Fluid Capacity	5 gal (19 l)
Turning Radius	17 ft (5 m)
Transmission
Max Speed - Forward	24 mph (39 kph)
Max Speed - Reverse	16 mph (25 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	3
Transmission Type	4F/3R Proportional w/ Electronic Control Module torque sensing autoshift/manual shift and modulation
