2013 Case 621F For Sale in Maltby, Gbr

Name: 2013 Case 621F
Brand: Case
SKU: 89065160
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-23 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

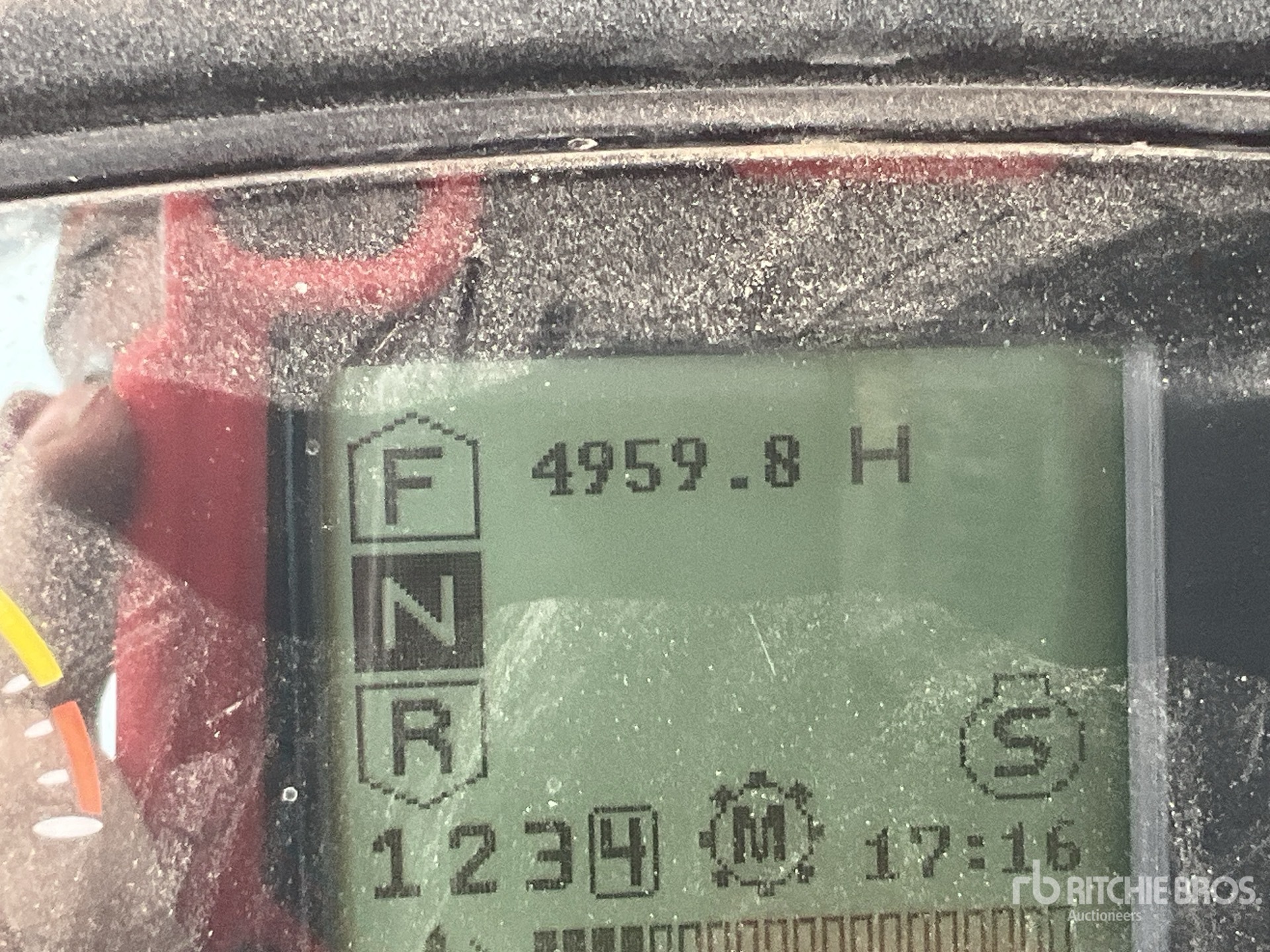

Hours:	4959

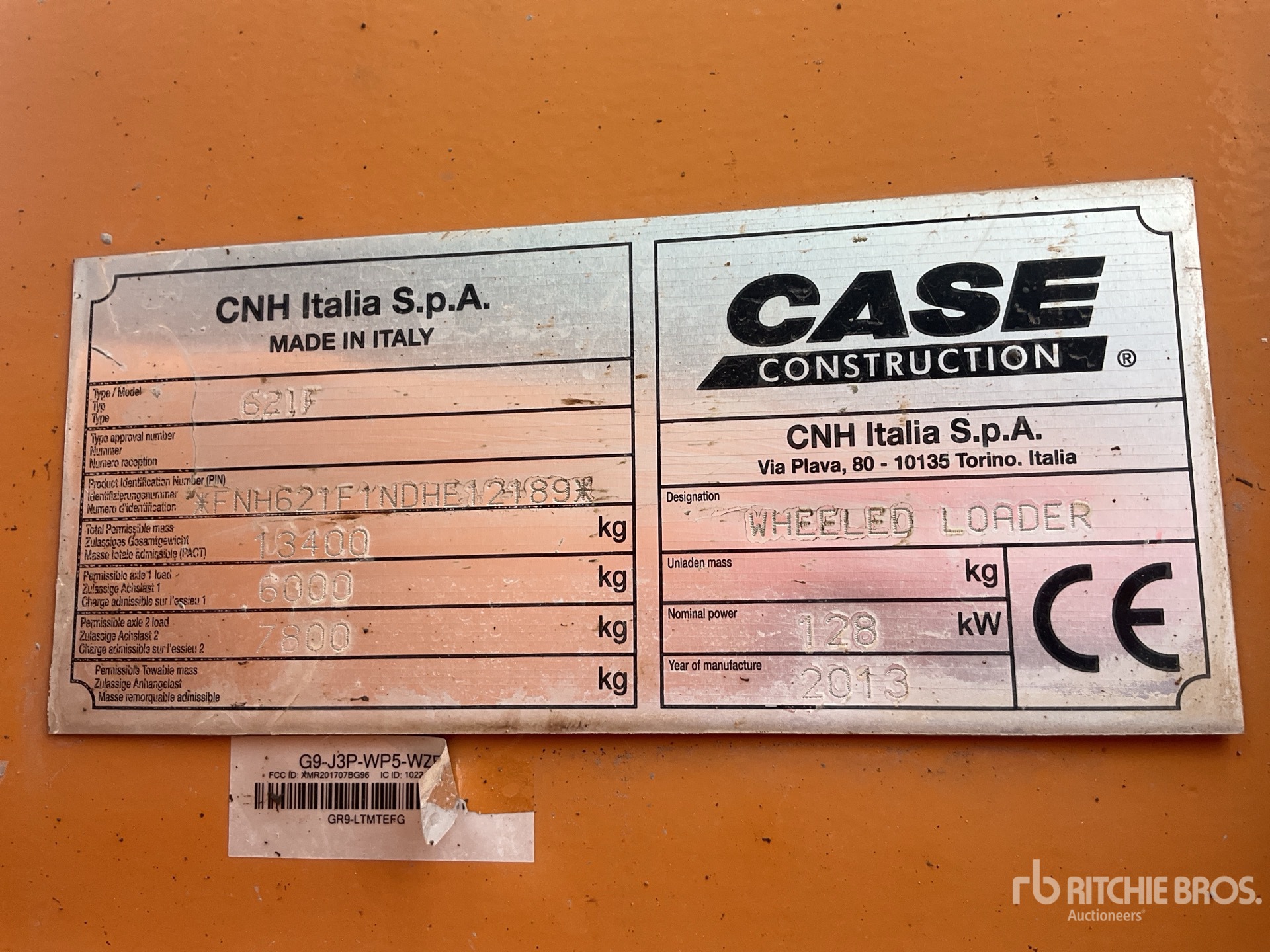

Serial Number:	FNH621F1NDHE12189
Machine Location:	MALTBY, GBR

Description:

Enclosed Cab, 2500 mm Roll-Out Bucket, Auto Lube, 20.5R25 Tires Closing Time: 2026-09-23 07:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

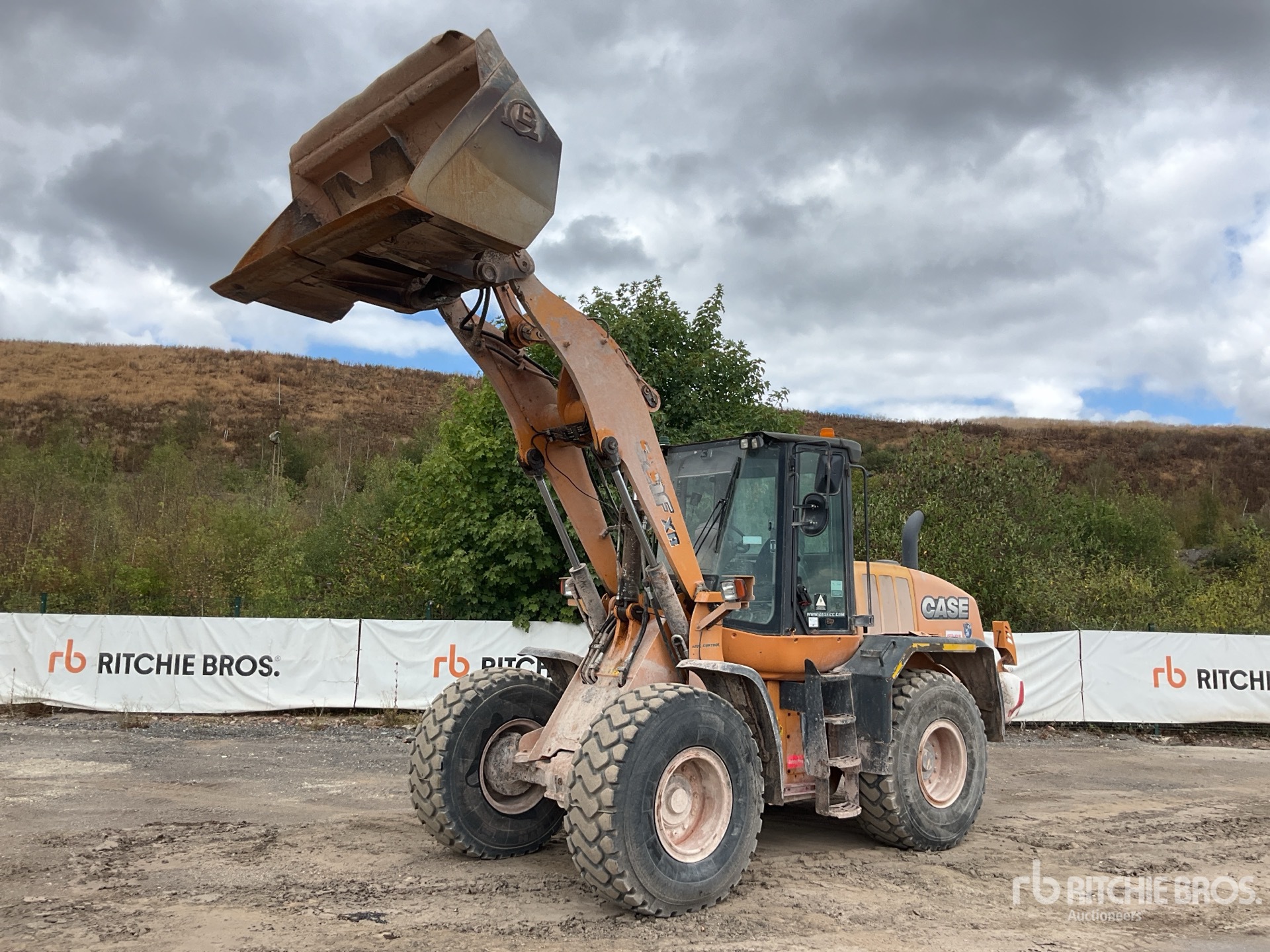

The Case 621F is a wheel loader designed for material handling, loading, stockpiling, and general construction applications. It is part of Case Construction Equipment's F Series and is commonly used in aggregate yards, roadwork, site preparation, and municipal operations. The 621F features a diesel engine, hydrostatic or power shift drivetrain depending on configuration, articulated steering, and a front-mounted loader bucket for efficient cycle times. Typical uses include moving soil, gravel, sand, and other bulk materials. The model is known for operator visibility, service access, and compatibility with a range of attachments for versatile jobsite performance.

Brakes
Service Brake	Wet Multi Disc
Bucket
Breakout Force	25,426 lbs (11,533 kg)
Bucket Capacity - Heaped	3 cu yd
Dimensions
Dump Reach @ Full Height, 45° Dump: Bucket	3 ft (1 m)
Ground Clearance	1 ft (0 m)
Height	11 ft (3 m)
Height To Top Of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length	24 ft (7 m)
Length With Bucket On Ground	24 ft (7 m)
Reach At Max Lift And Dump	5 ft (1 m)
Turning Radius - Outside	17 ft (5 m)
Weight	27,695 lbs (12,560 kg)
Wheelbase	10 ft (3 m)
Width	8 ft (3 m)
Width Over Tires	8 ft (3 m)
Engine
Alternator	120 amps
Displacement	409 cu in (6,701 cu cm)
Emissions	Tier 4
Engine Model	FPT F4HFE613W
Engine Speed - Rated Speed, Full Load	2,000 rpm
Gross Power	172 hp (128 kw)
Max Torque	539 lbs ft (730 nm)
Net Power	152 hp (113 kw)
Number Of Cylinders	6
Hydraulic Cycle Times (Unloaded)
Total Cycle Time	12 sec
Hydraulic System
Maximum System Pressure	3,625 psi
Pump Flow Capacity	45 gpm (171 lpm)
Pump Type	Axial Piston Pump
Steering Pump Type	Articulation
Operational
Alternator Supplied Amperage	120 amps
Cooling System Fluid Capacity	7 gal (27 l)
Def Tank Capacity	16 gal (59 l)
Front Axle/Diff Fluid Capacity	6 gal (22 l)
Fuel Capacity	65 gal (246 l)
Operating Voltage	24 V
Operating Weight	26,711 lbs (12,116 kg)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	6 gal (22 l)
Static Tipping Weight	19,560 lbs (8,872 kg)
Transmission Fluid Capacity	7 gal (27 l)
Transmission
Differential Lock	F: LSD / R: LSD
Max Speed - Forward	24 mph (39 kph)
Max Speed - Reverse	16 mph (25 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	3
Transmission Type	Powershift
