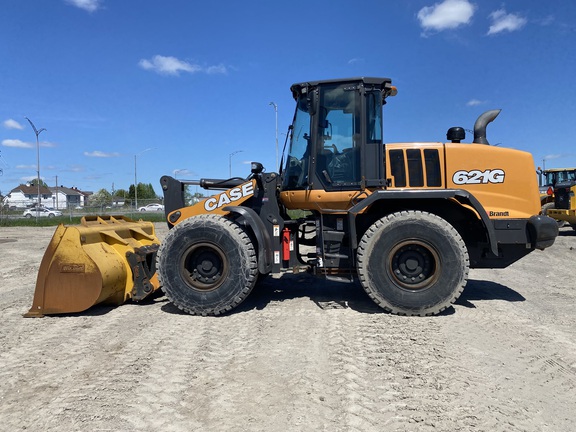

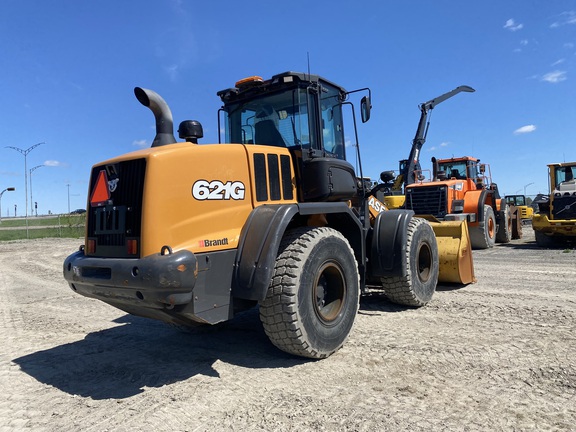

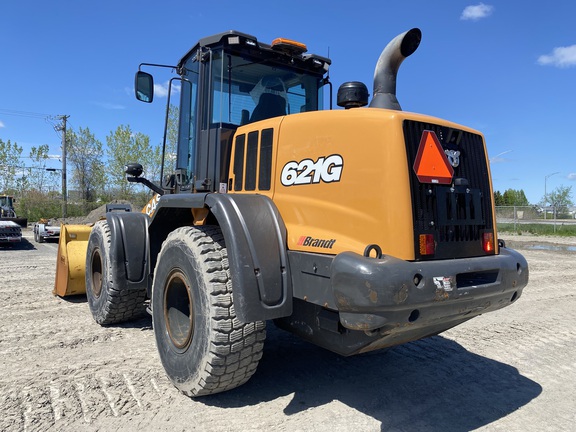

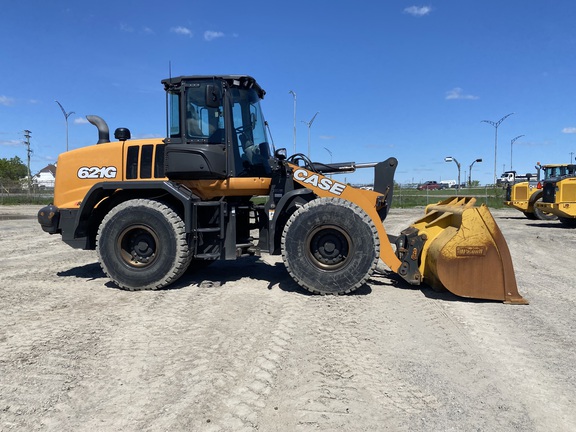

2022 Case 621G For Sale in Laval, QC

Name: 2022 Case 621G
Brand: Case
SKU: 88359798
Price: 195000 CAD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $140,078.00 USD
Converted From: 195,000.00 CAD

Apply for Financing

Brandt Tractor LTD

Brandt Tractor LTD Dealer Info

Brandt Tractor LTD Website

Click here to email Brandt Tractor LTD.

Contact: Equipment Sales

Click for Phone Number

Machine Info:

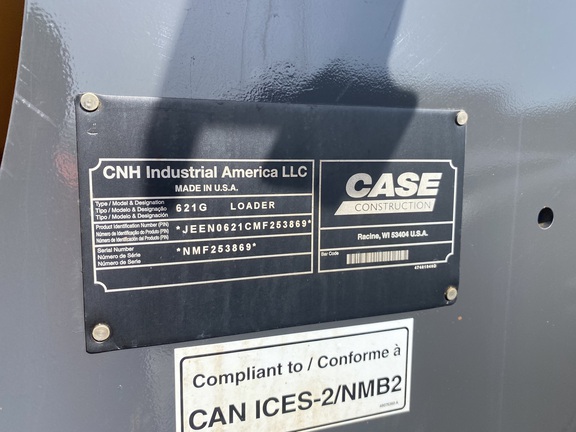

Serial Number:	JEEN0621CMF253869
Stock Number:	RQ253869
Machine Location:	LAVAL, QC

Description:

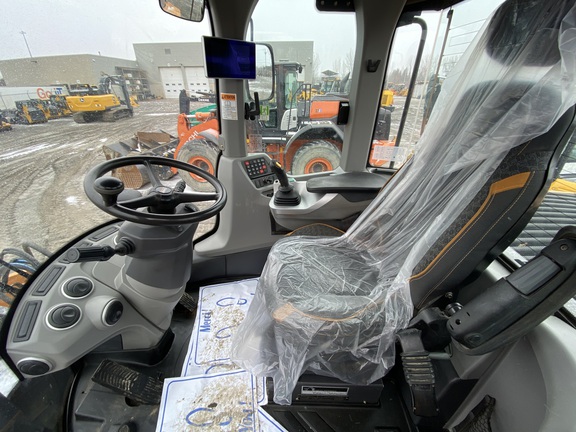

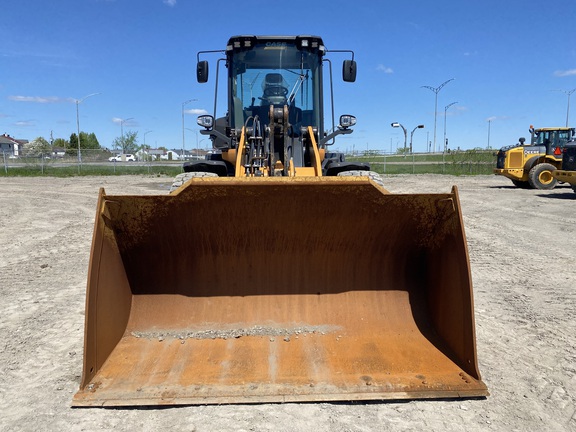

Cab w/ AC, EH Joystick Controls; Quick Coupler; Dual Diff Locks; 20.5 Tires; Tool Carrier; General Purpose Bkt; Options: Heated Seat, Rear Camera, Ride Control

Machine Details:

General Specifications
Operators Station	EH Joystick Controls
Options	Rear Camera
Attachments	Quick Coupler
Powertrain	Dual Diff Locks

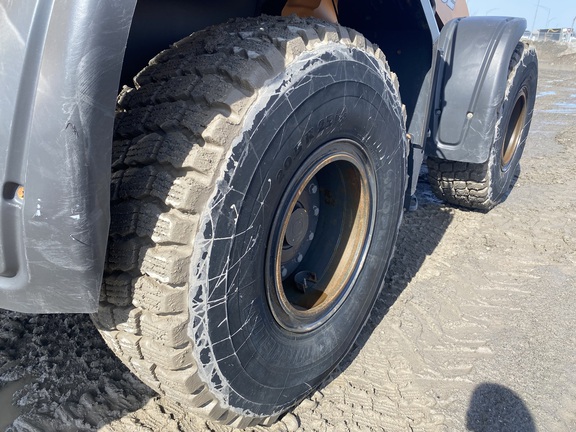

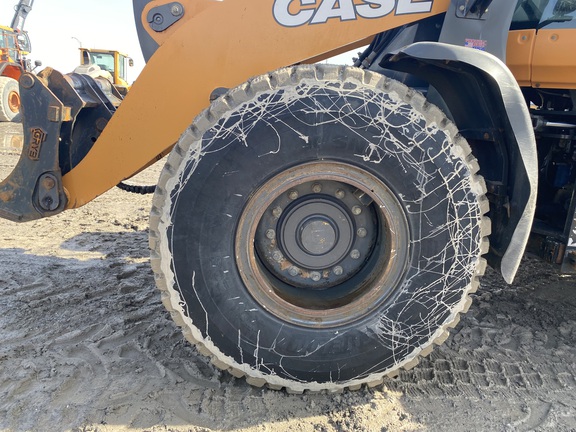

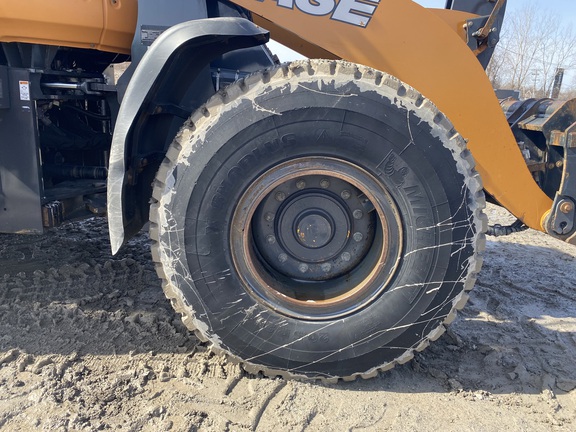

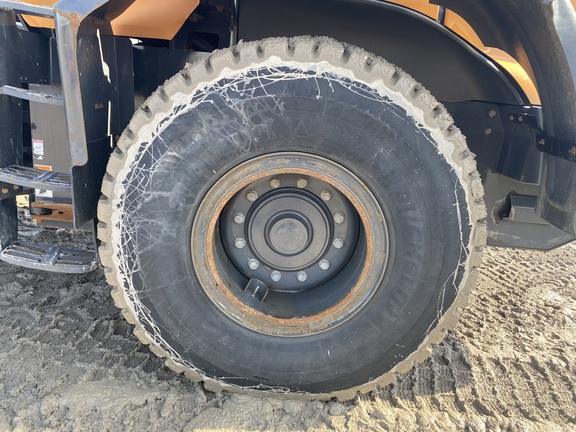

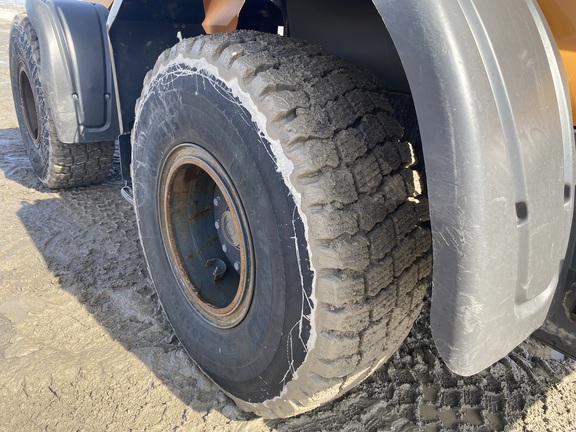

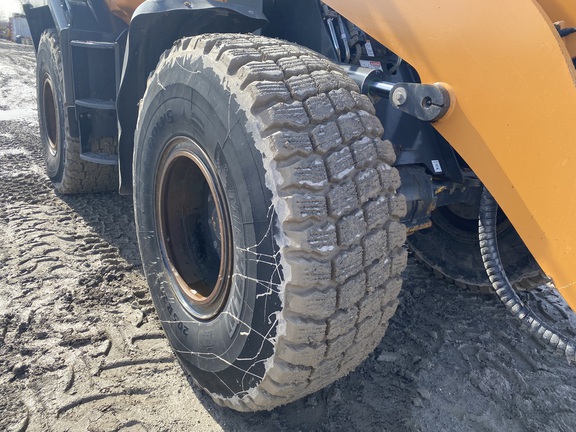

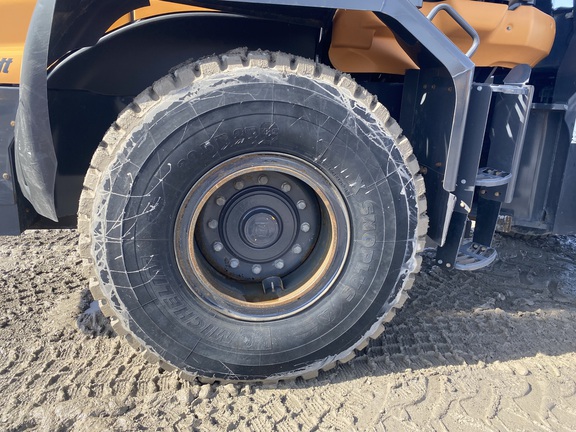

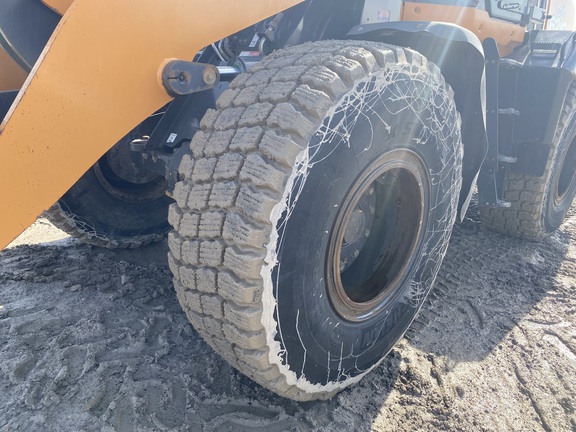

Tires	20.5 Tires
Booms	Tool Carrier

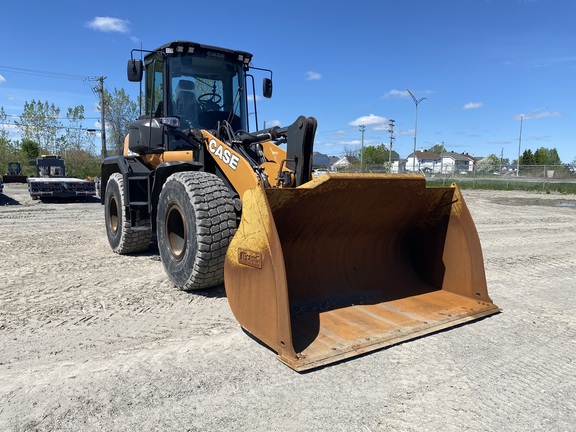

Buckets	General Purpose Bkt

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Case 621G is a wheel loader in Case Construction Equipment's G Series, designed for material handling, loading, stockpiling, and general earthmoving applications. It is commonly used in construction, aggregate, agriculture, and industrial sites. The 621G features a diesel engine, hydrostatic or powershift drivetrain depending on configuration, articulated steering, and a front-mounted loader arm with a standard bucket or other attachments. Operator controls, visibility, and service access are designed for productivity and maintenance efficiency. The model is part of Case's mid-size wheel loader range and is used for loading trucks, moving bulk material, and site support tasks.

Brakes
Service brake	Wet Multi Disc
Bucket
Breakout Force	25,471 lbs (11,553 kg)
Bucket Capacity - heaped	3 cu yd (2 cu m)
Dump Clearance at Max Raise	9 ft (3 m)
Dimensions
Dump reach @ full height, 45 degrees dump	3 ft (1 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length with Bucket on Ground	24 ft (7 m)
Reach at Max Lift and Dump	5 ft (1 m)
Turning Radius Outside Tires	17 ft (5 m)
Wheelbase	10 ft (3 m)
Width Over Tires	8 ft (3 m)

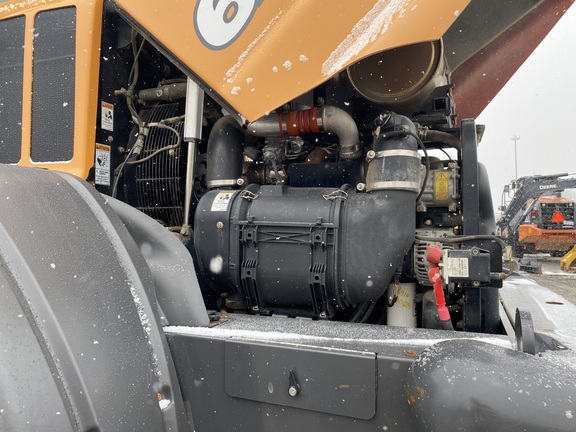

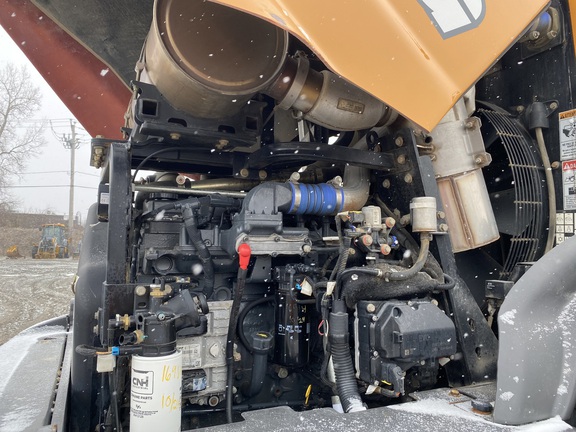

Engine
Alternator	120 amps
Displacement	411 cu in (6,735 cu cm)
Emissions	Tier 4
Engine Model	FPT F4HFE613W
Gross Power	172 hp (128 kw)
Make	Case
Max Torque	539 lbs ft (730 nm)
Net Power	151 hp (113 kw)
Number of Cylinders	6
Rated engine speed	2,000 rpm
Torque Rise	33%
General Specifications
Bucket Capacity (Since 2017)	2.5 (1.91)
Bucket Capacity (2019)	2.5 (1.91)
Bucket Capacity (2020)	2.5 (1.91)
Bucket Capacity (2021)	2.5 (1.91)
Bucket Capacity (2022)	2.5 (1.91)
Bucket Capacity (2023)	2.5 (1.91)
Bucket Capacity (Since 2024)	2.75 (2.1)
Engine Power (Since 2017)	162 (121)
Engine Power (2019)	162 (121)
Engine Power (2020)	162 (121)
Engine Power (2021)	162 (121)
Engine Power (2022)	162 (121)
Engine Power (2023)	162 (121)
Engine Power (2024)	162 (121)
Engine type (Since 2017)	Case/FPT
Engine type (2019)	Case/FPT
Engine type (2020)	Case/FPT
Engine type (2021)	Case/FPT
Engine type (2022)	Case/FPT
Engine type (2023)	Case/FPT
Engine type (2024)	Case/FPT
Max Dump Height (Since 2017)	9.2 (2.8)
Max Dump Height (2019)	9.2 (2.8)
Max Dump Height (2020)	9.2 (2.8)
Max Dump Height (2021)	9.2 (2.8)
Max Dump Height (2022)	9.2 (2.8)
Max Dump Height (2023)	9.2 (2.8)
Max Dump Height (2024)	9.2 (2.8)
Operating Weight (Since 2017)	28,159 (12,772)
Operating Weight (2019)	28,159 (12,772)
Operating Weight (2020)	28,159 (12,772)
Operating Weight (2021)	28,159 (12,772)
Operating Weight (2022)	28,159 (12,772)
Operating Weight (2023)	28,159 (12,772)
Operating Weight (Since 2024)	28159 (12773)
Hydraulic cycle times (unloaded)
Total cycle time	12 seconds
Hydraulic System
Maximum system pressure	3,625 psi
Pump Flow Capacity	45 gpm (171 lpm)
Pump Type	not published
Steering pump type	Articulation
Operating Specifications
Cooling System Fluid Capacity	7 gal (27 l)
DEF tank capacity	16 gal (59 l)
Front Axle/Diff Fluid Capacity	6 gal (22 l)
Fuel Capacity	65 gal (246 l)
Operating Voltage	24 volts
Operating Weight	28,160 lbs (12,773 kg)
Rated Bucket Capacity	3 cu yd (2 cu m)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	6 gal (22 l)
Transmission Fluid Capacity	7 gal (27 l)
Performance
Tipping Load	21,189 lbs (9,611 kg)
Transmission
Differential lock	F: LSD / R: LSD
Max Speed - Forward	24 mph (39 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Powershift
Weights
Operational Weight	28,159 lbs (12,773 kg)
