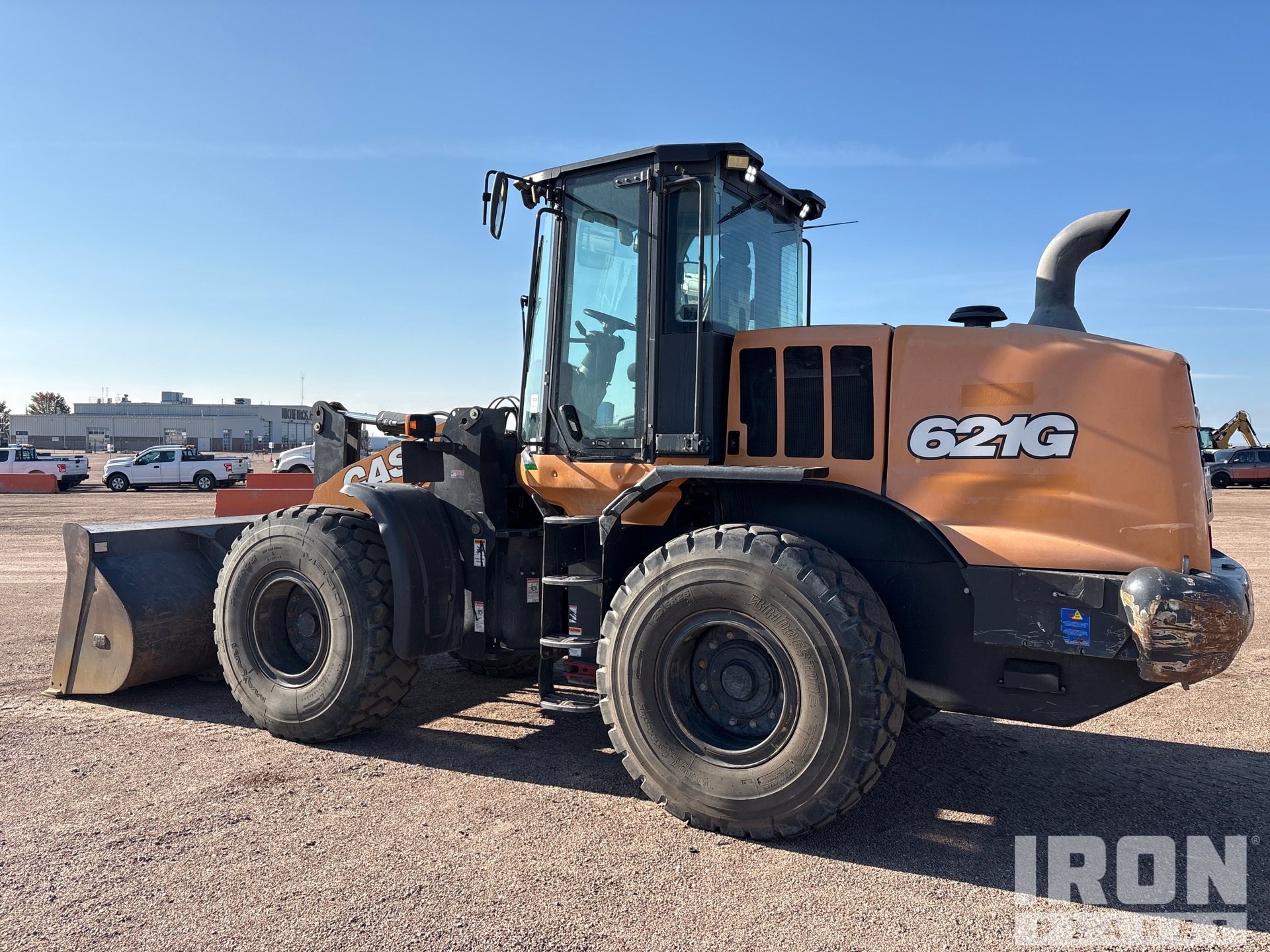

2021 Case 621G For Sale in Denver, Co

Name: 2021 Case 621G
Brand: Case
SKU: 89400995
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-21 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

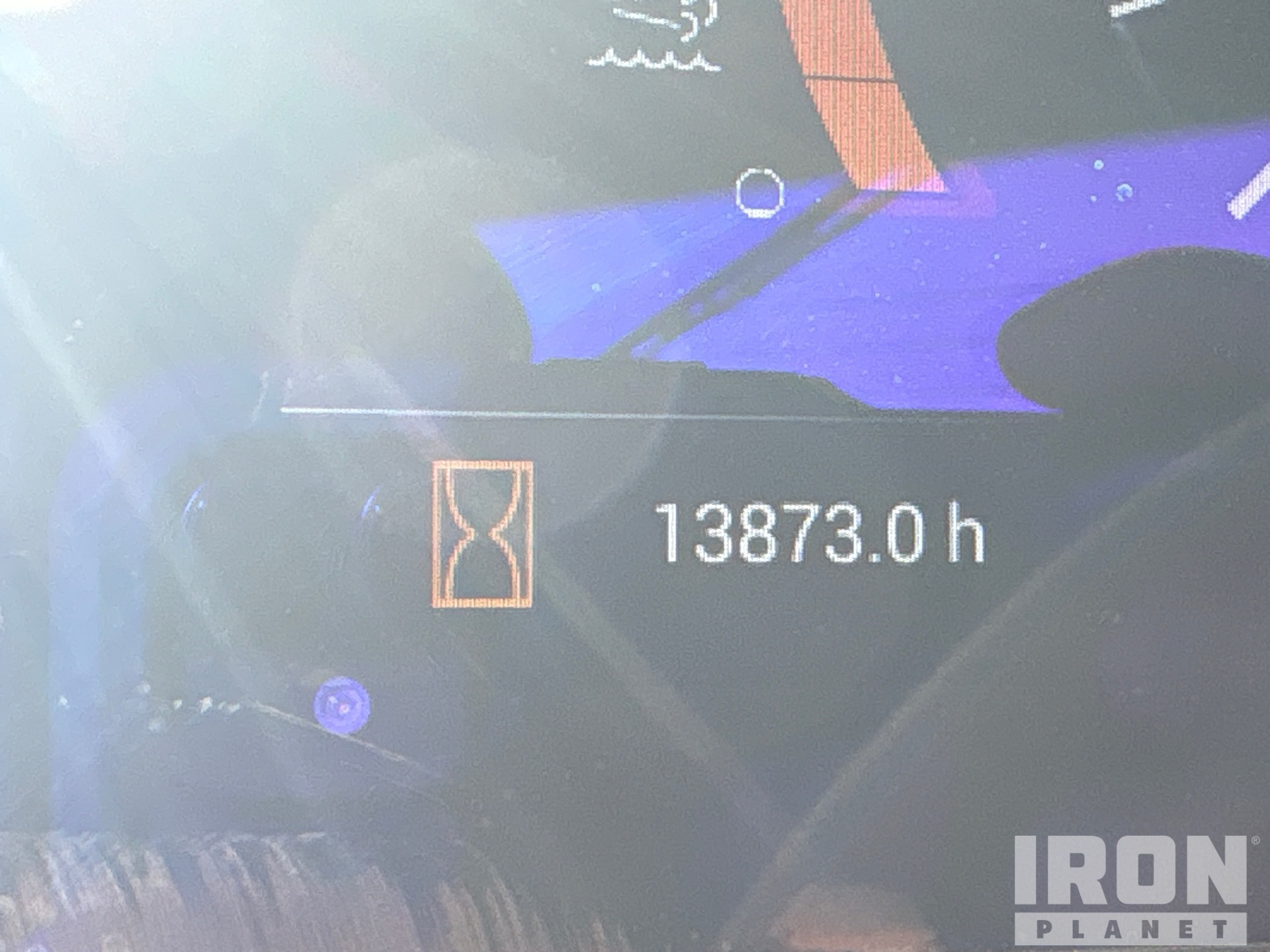

Hours:	13871

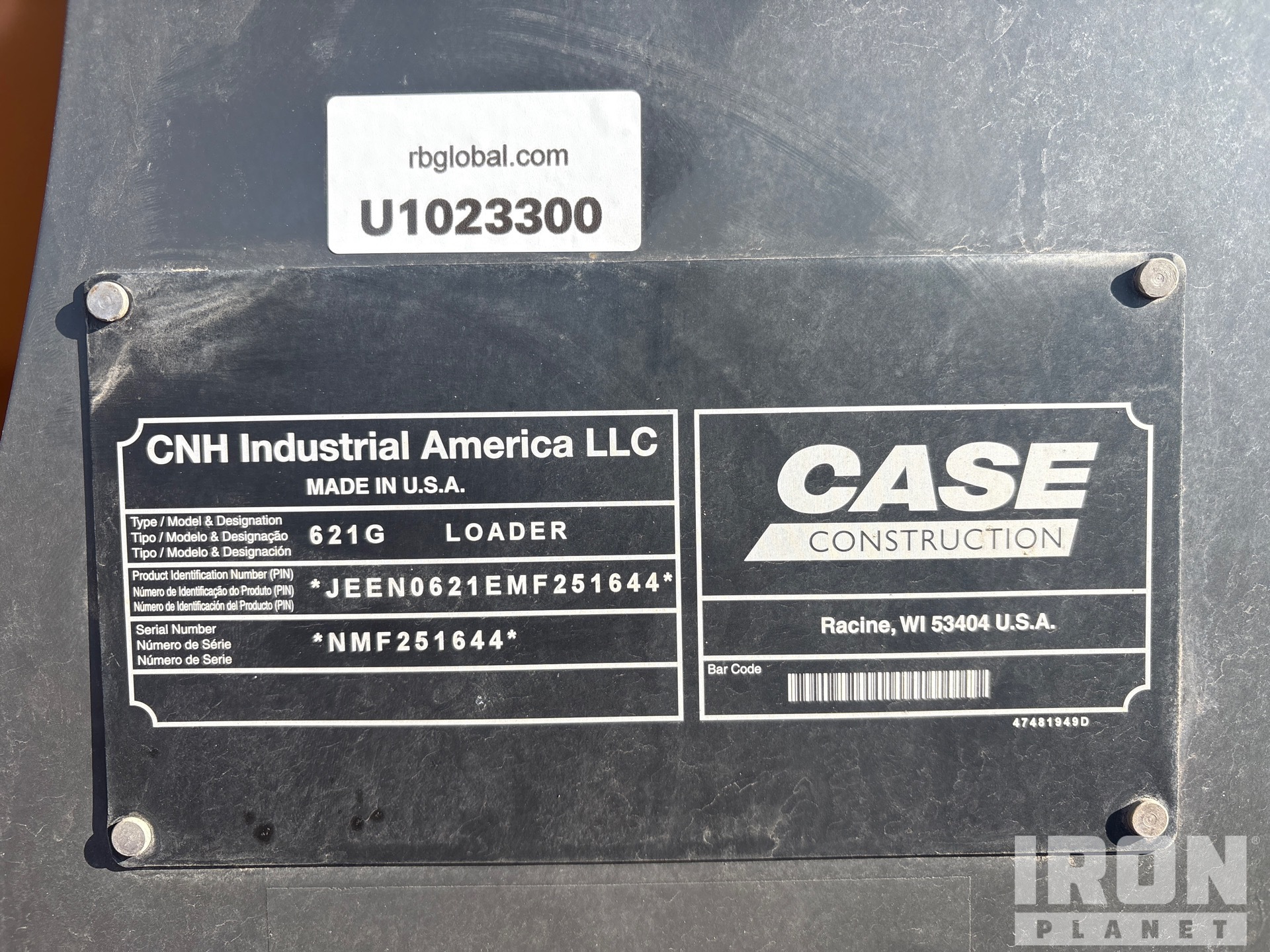

Serial Number:	JEEN0621EMF251644
Machine Location:	DENVER, CO

Description:

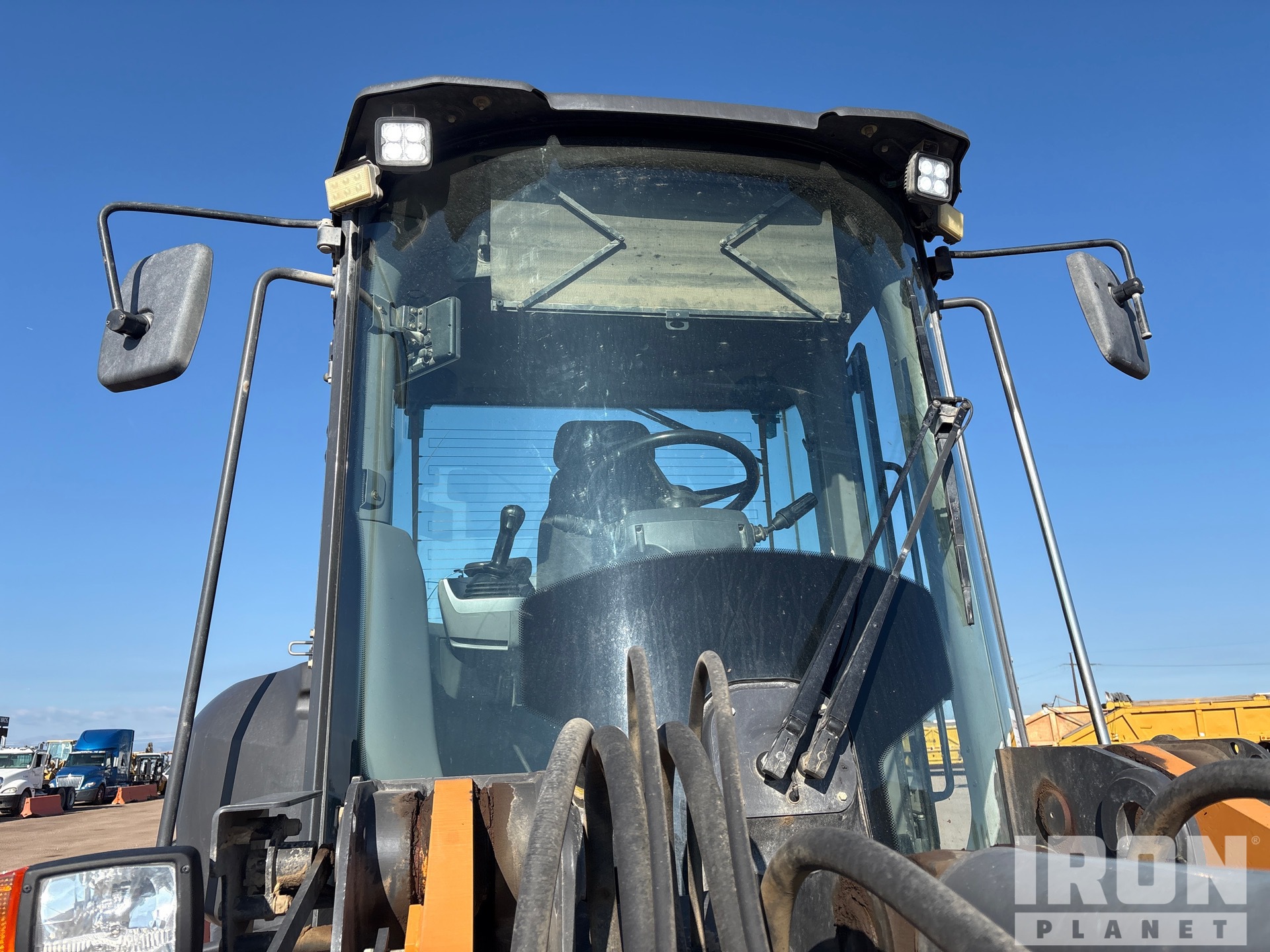

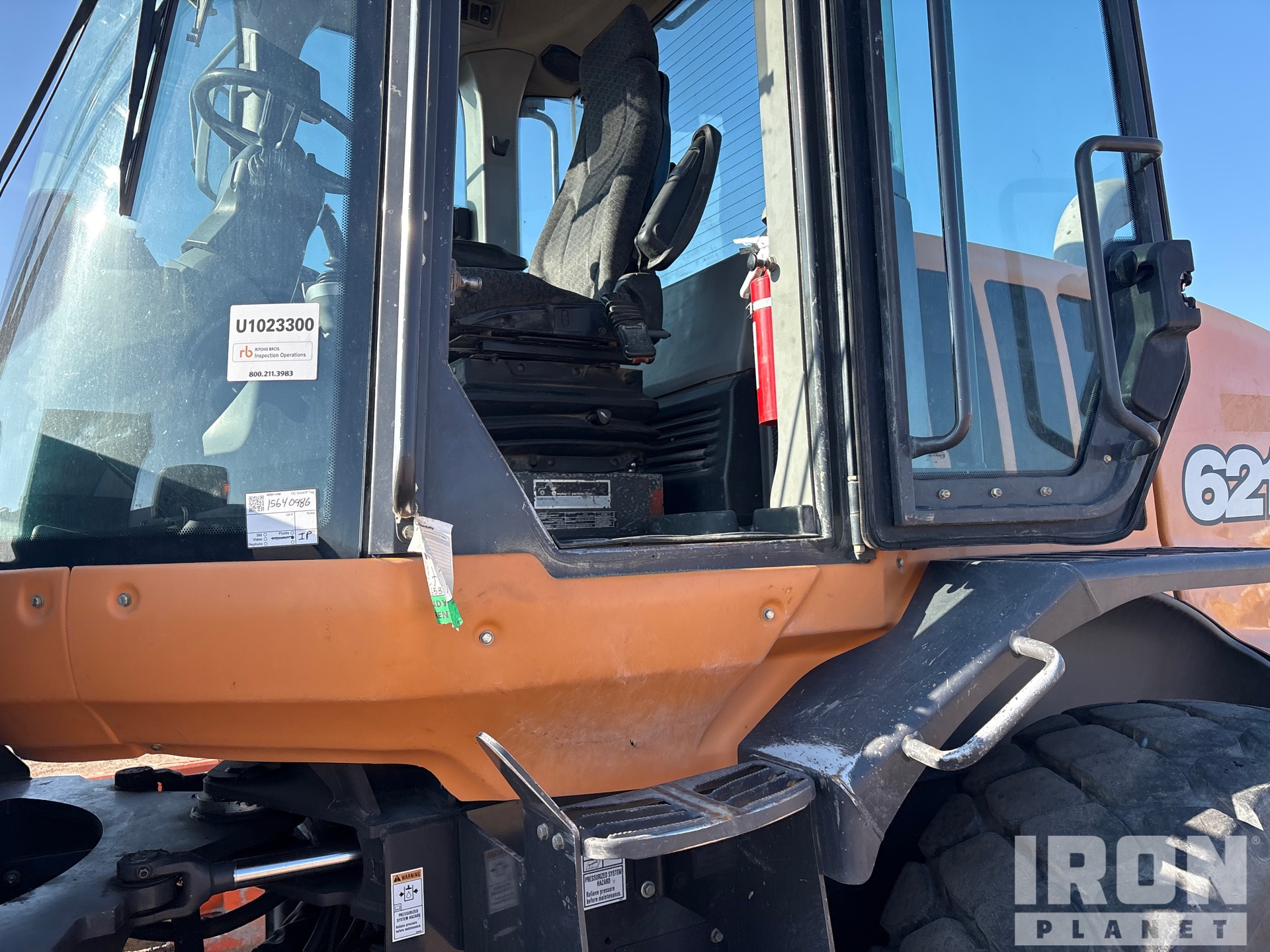

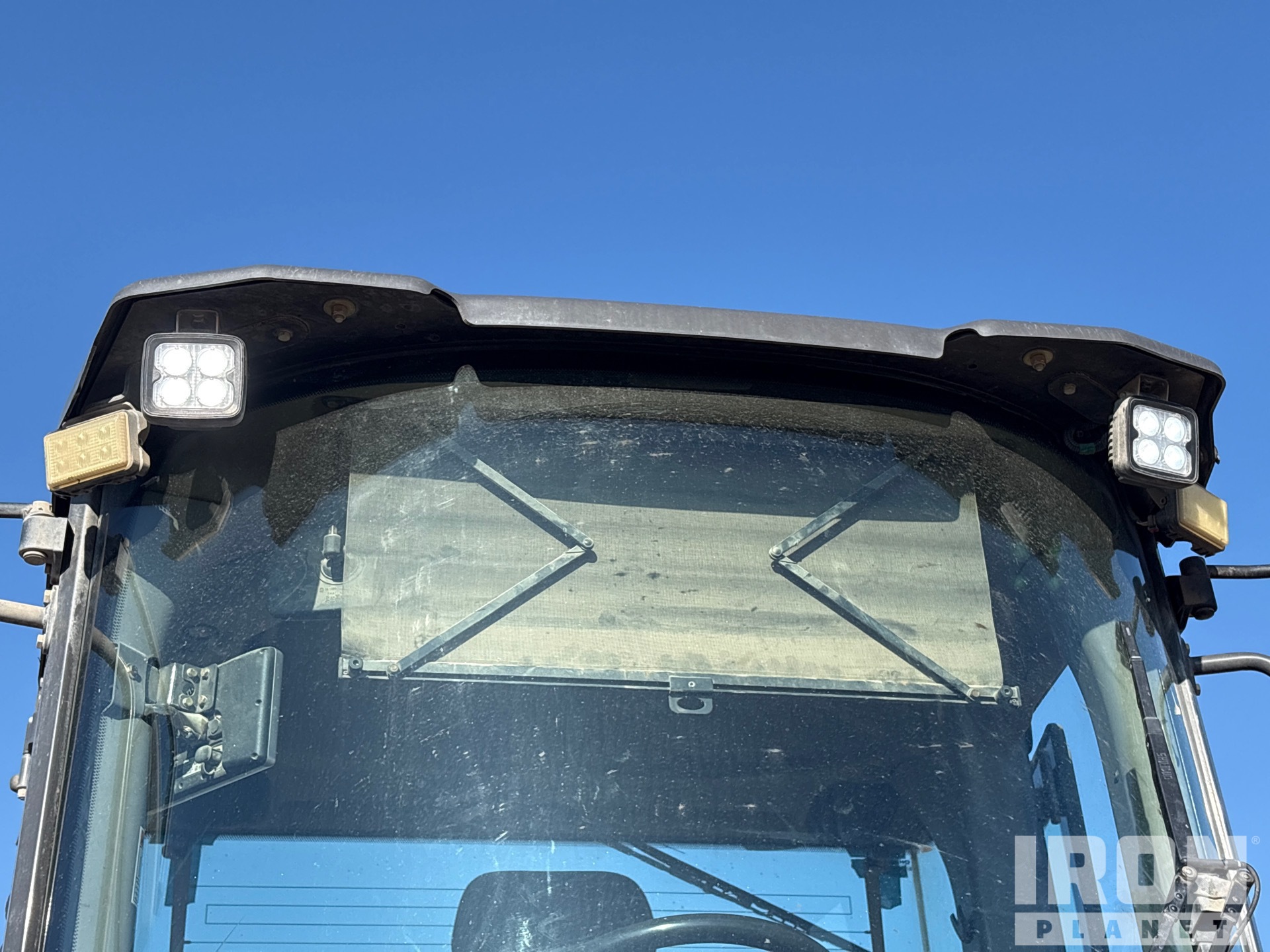

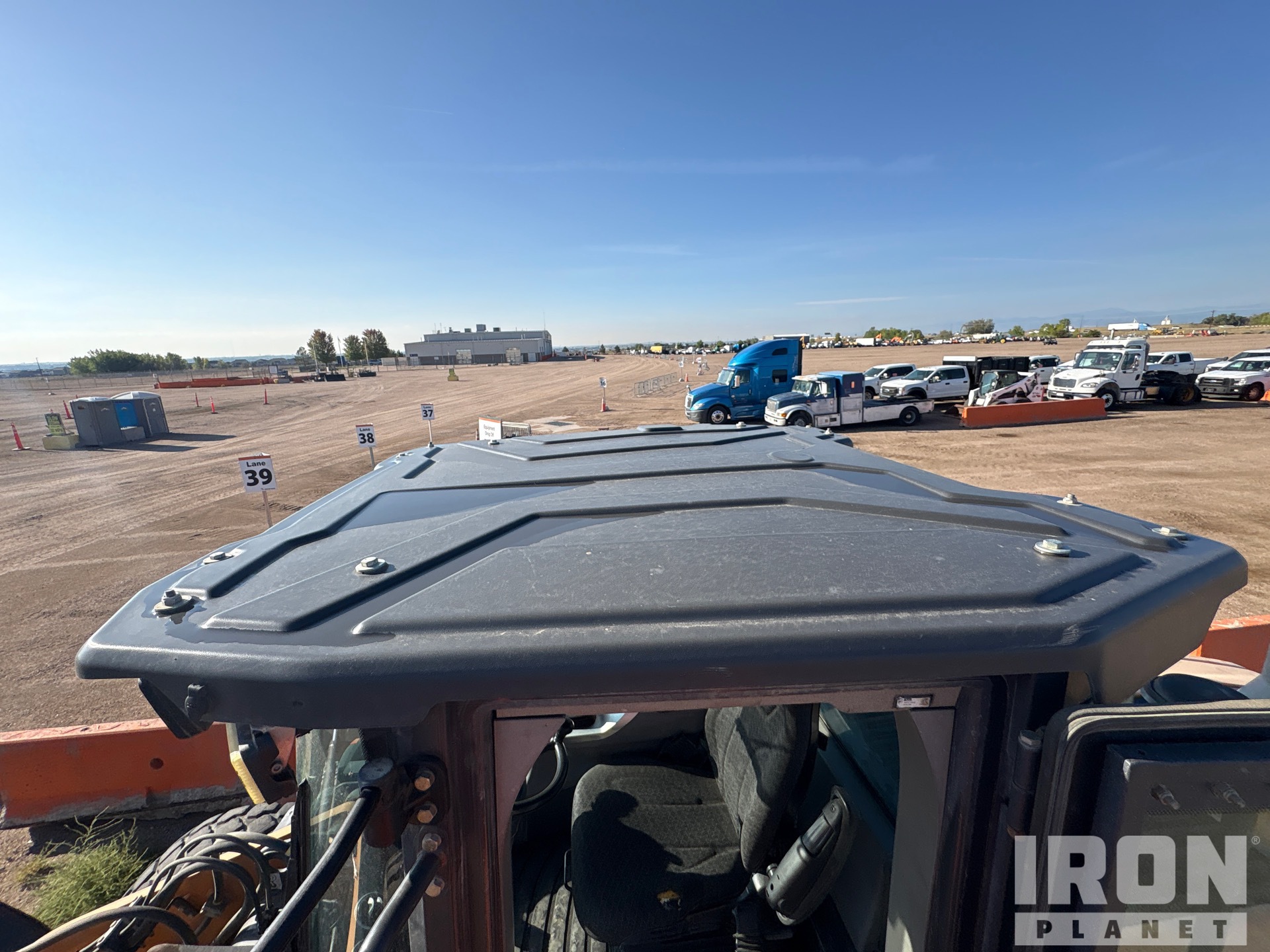

Enclosed Cab, Air Conditioner, Air Ride Seat, Ride Control, Traction Control, Requires Diesel Exhaust Fluid, Auxiliary Hydraulics, Hydraulic Coupler, 3 cyd 100 in Bucket, 20.5R25 Tires Closing Time: 2026-10-21 09:08:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

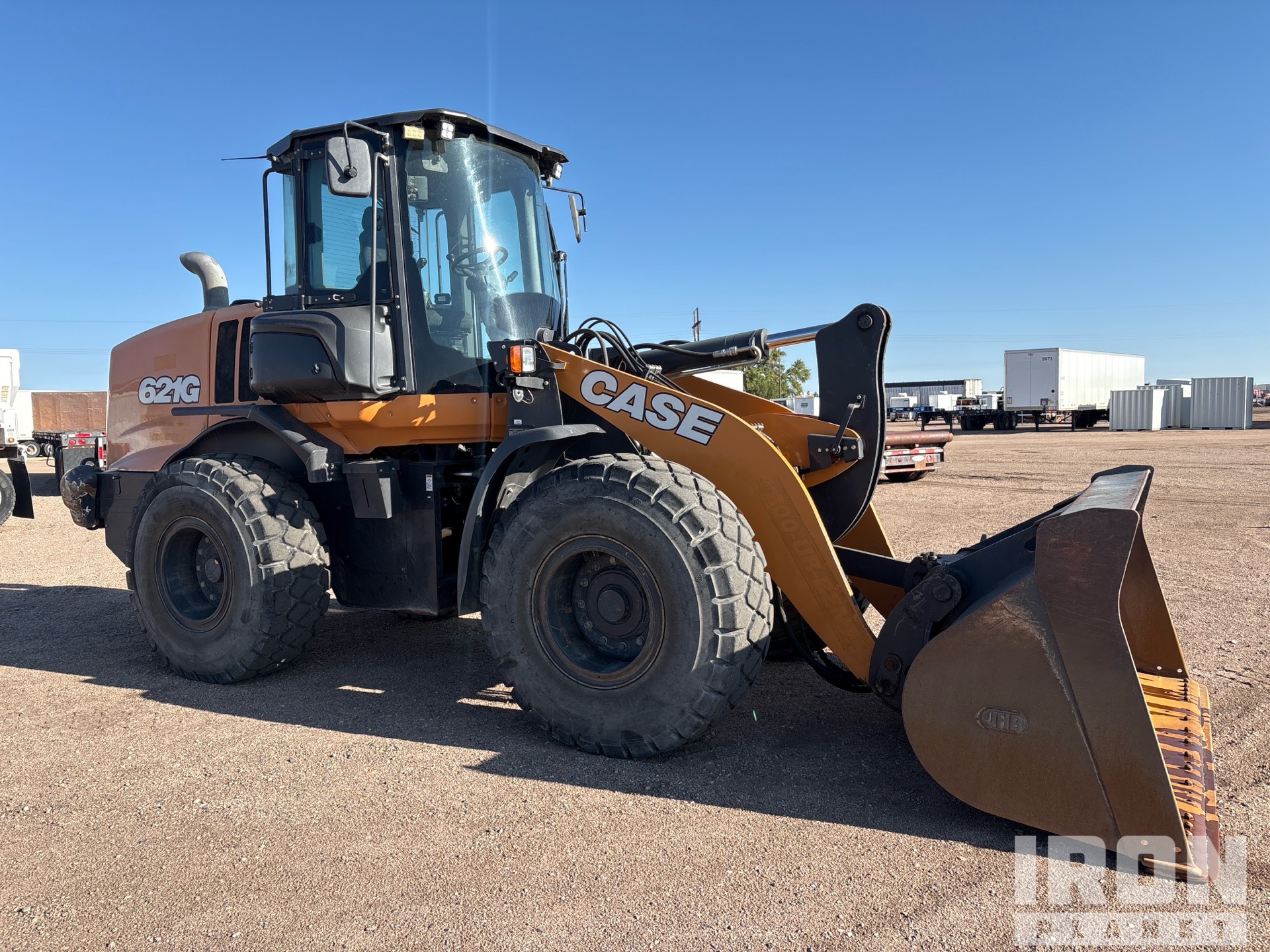

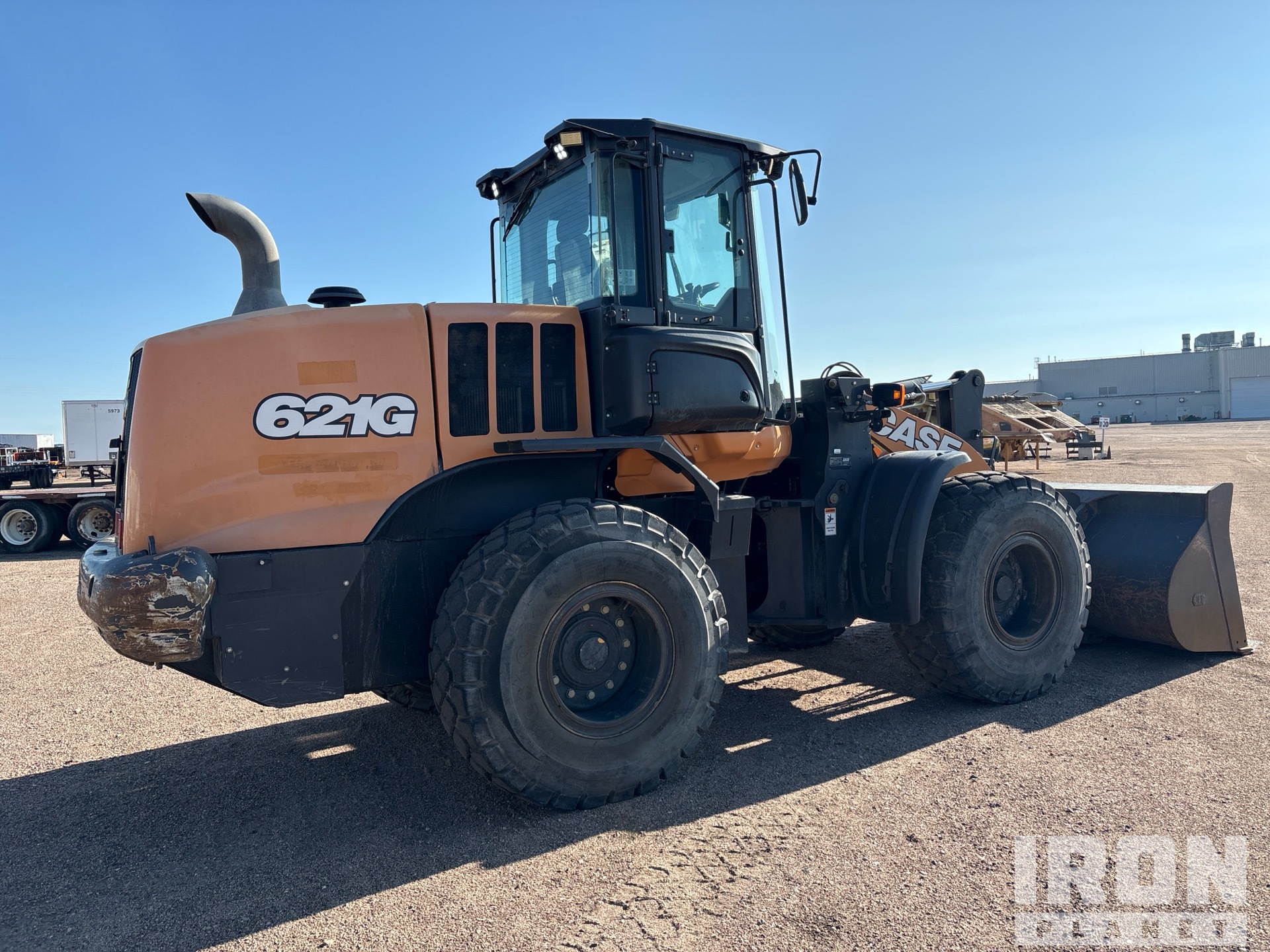

The Case 621G is a wheel loader designed for material handling, loading, stockpiling, and general construction applications. Part of Case Construction Equipment's G Series, it is commonly used in aggregate yards, roadwork, site development, and utility projects. The 621G is known for its articulated frame, hydraulic lift and tilt system, and compatibility with a range of buckets and attachments. Typical features include a diesel engine, operator cab, and four-wheel drive configuration. The model is positioned in the mid-size wheel loader class, offering a balance of maneuverability, lift capacity, and productivity for demanding jobsite operations.

Brakes
Service Brake	Wet Multi Disc
Bucket
Breakout Force	25,471 lbs (11,553 kg)
Bucket Capacity - Heaped	3 cu yd
Dimensions
Dump Reach @ Full Height, 45° Dump: Bucket	3 ft (1 m)
Ground Clearance	1 ft (0 m)
Height	12 ft (4 m)
Height To Top Of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length	24 ft (7 m)
Length With Bucket On Ground	24 ft (7 m)
Reach At Max Lift And Dump	5 ft (1 m)
Turning Radius Outside Tires	17 ft (5 m)
Weight	28,159 lbs (12,773 kg)
Wheelbase	10 ft (3 m)
Width	8 ft (2 m)
Width Over Tires	8 ft (2 m)
Engine
Alternator	120 amps
Displacement	411 cu in (6,735 cu cm)
Emissions	Tier 4
Engine Model	FPT F4HFE613W
Gross Power	172 hp (128 kw)
Max Torque	539 lbs ft (730 nm)
Net Power	151 hp (113 kw)
Number Of Cylinders	6
Rated Engine Speed	2,000 rpm
Torque Rise	33 %
General Specifications
Bucket Capacity (Since 2017)	3 cu yd
Bucket Capacity (2019)	3 cu yd
Bucket Capacity (2020)	3 cu yd
Bucket Capacity (2021)	3 cu yd
Bucket Capacity (2022)	3 cu yd
Bucket Capacity (2023)	3 cu yd
Bucket Capacity (Since 2024)	3 cu yd
Engine Power (Since 2017)	162 hp (121 kw)
Engine Power (2019)	162 hp (121 kw)
Engine Power (2020)	162 hp (121 kw)
Engine Power (2021)	162 hp (121 kw)
Engine Power (2022)	162 hp (121 kw)
Engine Power (2023)	162 hp (121 kw)
Engine Power (2024)	162 hp (121 kw)
Engine type (Since 2017)	Case/FPT
Engine type (2019)	Case/FPT
Engine type (2020)	Case/FPT
Engine type (2021)	Case/FPT
Engine type (2022)	Case/FPT
Engine type (2023)	Case/FPT
Engine type (2024)	Case/FPT
Max Dump Height (Since 2017)	9 ft (3 m)
Max Dump Height (2019)	9 ft (3 m)
Max Dump Height (2020)	9 ft (3 m)
Max Dump Height (2021)	9 ft (3 m)
Max Dump Height (2022)	9 ft (3 m)
Max Dump Height (2023)	9 ft (3 m)
Max Dump Height (2024)	9 ft (3 m)
Operating Weight (Since 2017)	28,159 lbs (12,773 kg)
Operating Weight (2019)	28,159 lbs (12,773 kg)
Operating Weight (2020)	28,159 lbs (12,773 kg)
Operating Weight (2021)	28,159 lbs (12,773 kg)
Operating Weight (2022)	28,159 lbs (12,773 kg)
Operating Weight (2023)	28,159 lbs (12,773 kg)
Operating Weight (Since 2024)	28,159 lbs (12,773 kg)
Hydraulic Cycle Times (Unloaded)
Total Cycle Time	12 sec
Hydraulic System
Maximum System Pressure	3,625 psi
Pump Flow Capacity	45 gpm (171 lpm)
Pump Type	not published
Steering Pump Type	Articulation
Operational
Cooling System Fluid Capacity	7 gal (27 l)
Def Tank Capacity	16 gal (59 l)
Front Axle/Diff Fluid Capacity	6 gal (22 l)
Fuel Capacity	65 gal (246 l)
Operating Voltage	24 V
Operating Weight	28,160 lbs (12,773 kg)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	6 gal (22 l)
Transmission Fluid Capacity	7 gal (27 l)
Performance
Tipping Load	21,189 lbs (9,611 kg)
Transmission
Differential Lock	F: LSD / R: LSD
Max Speed - Forward	24 mph (39 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	3
Transmission Type	Powershift
