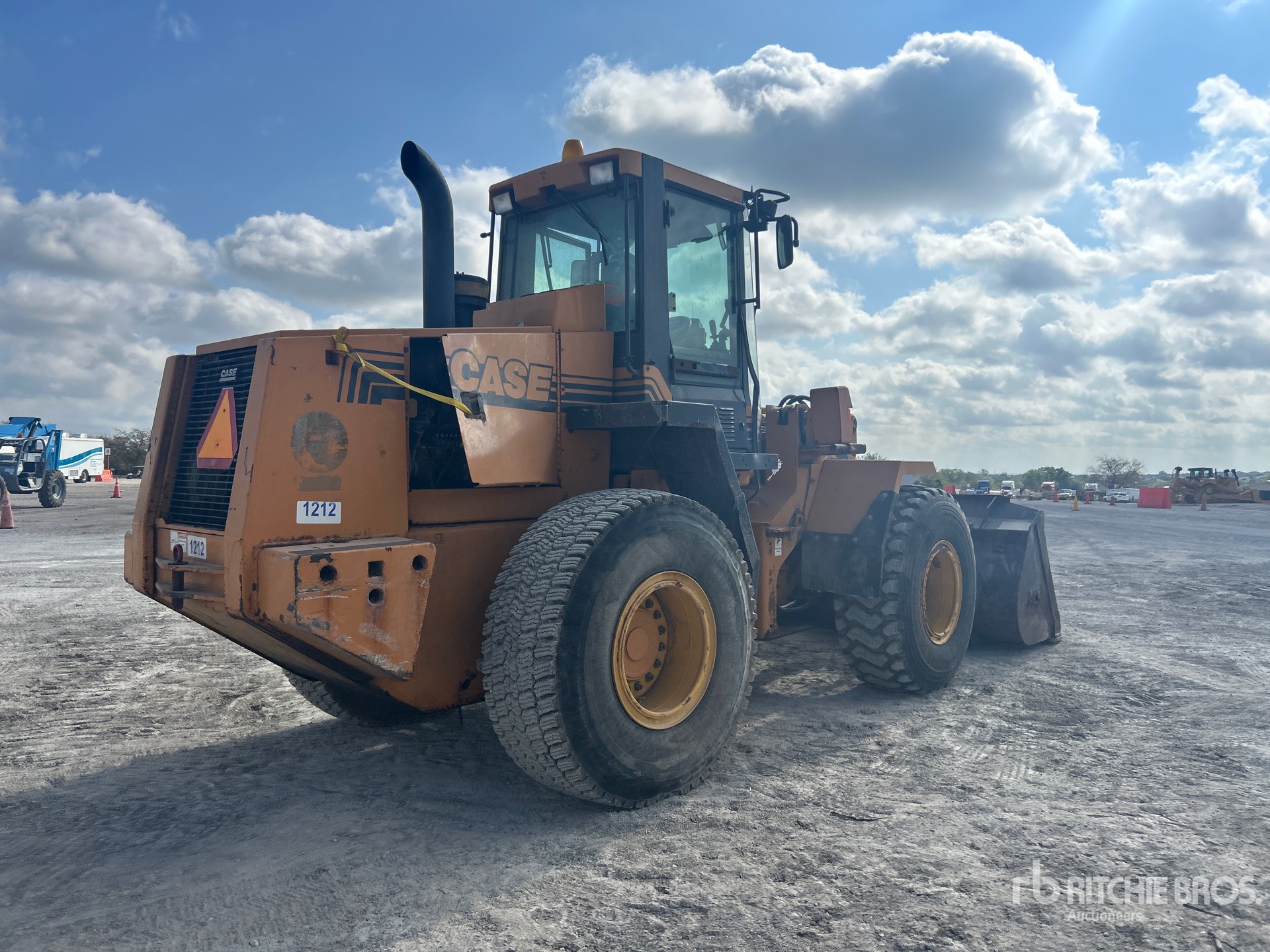

2002 Case 721C

Name: 2002 Case 721C
Brand: Case
SKU: 89446606
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-10-14 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

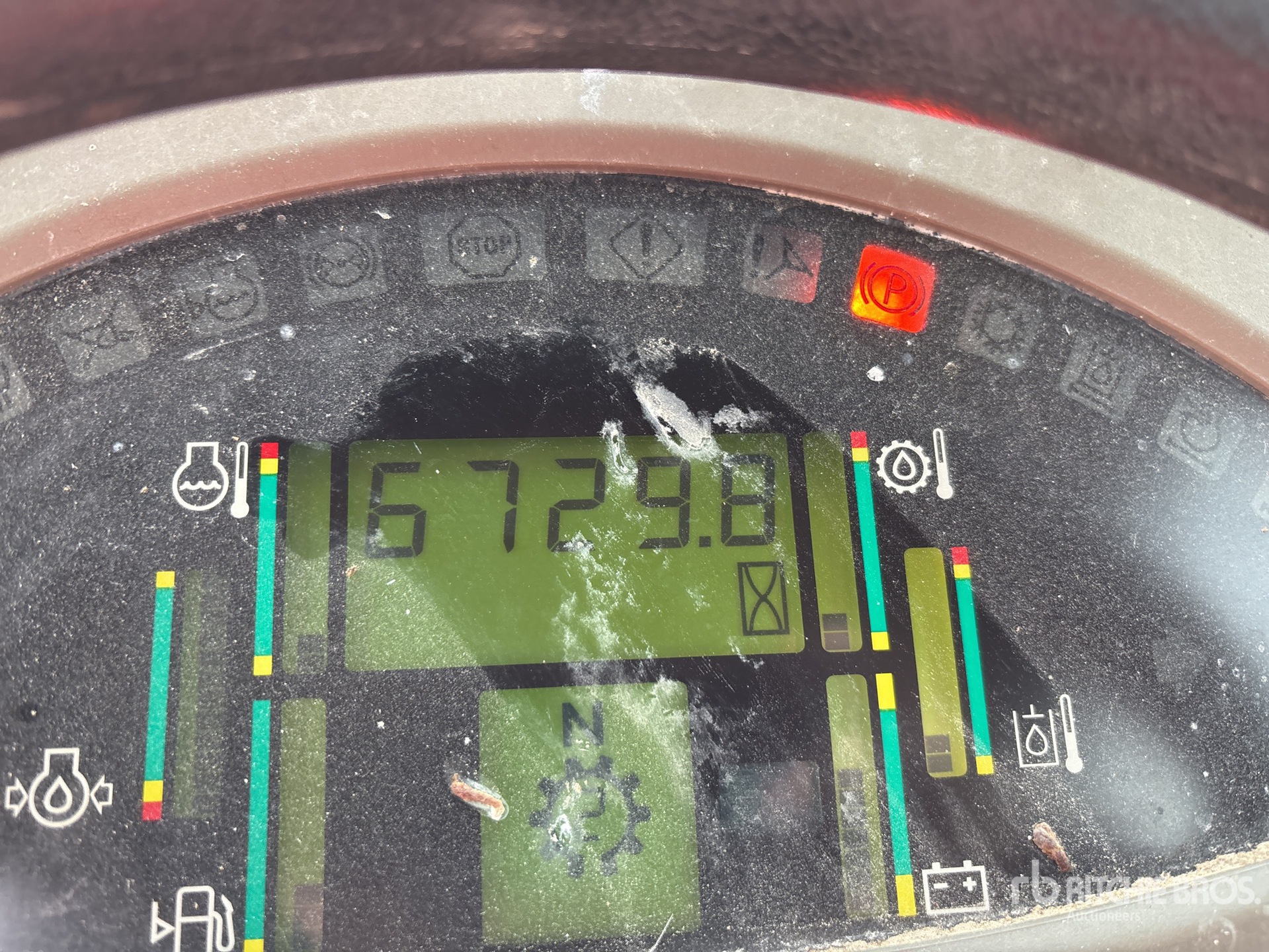

Hours:	6729

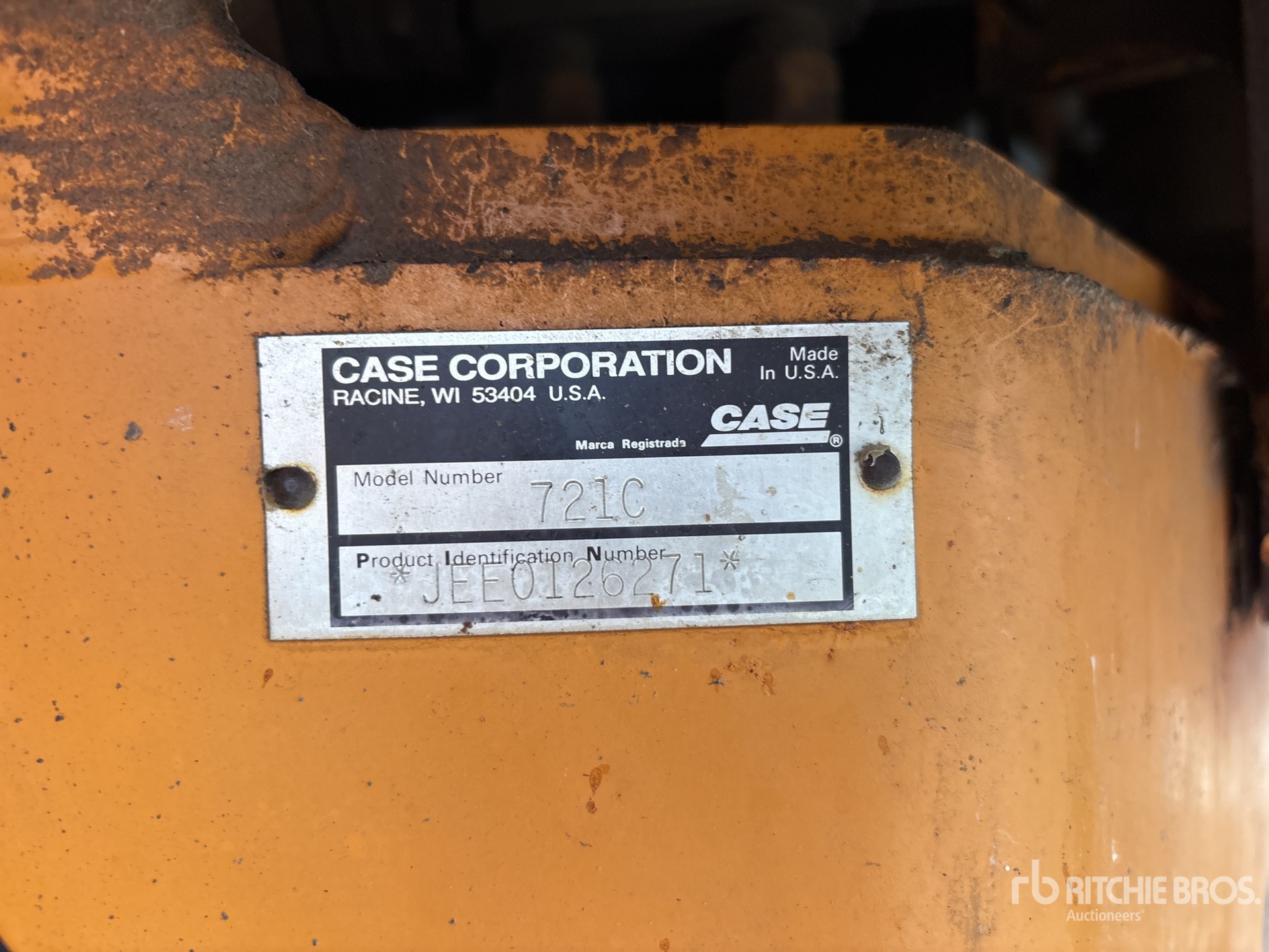

Serial Number:	JEE0126271
Machine Location:	FORT WORTH, TX

Description:

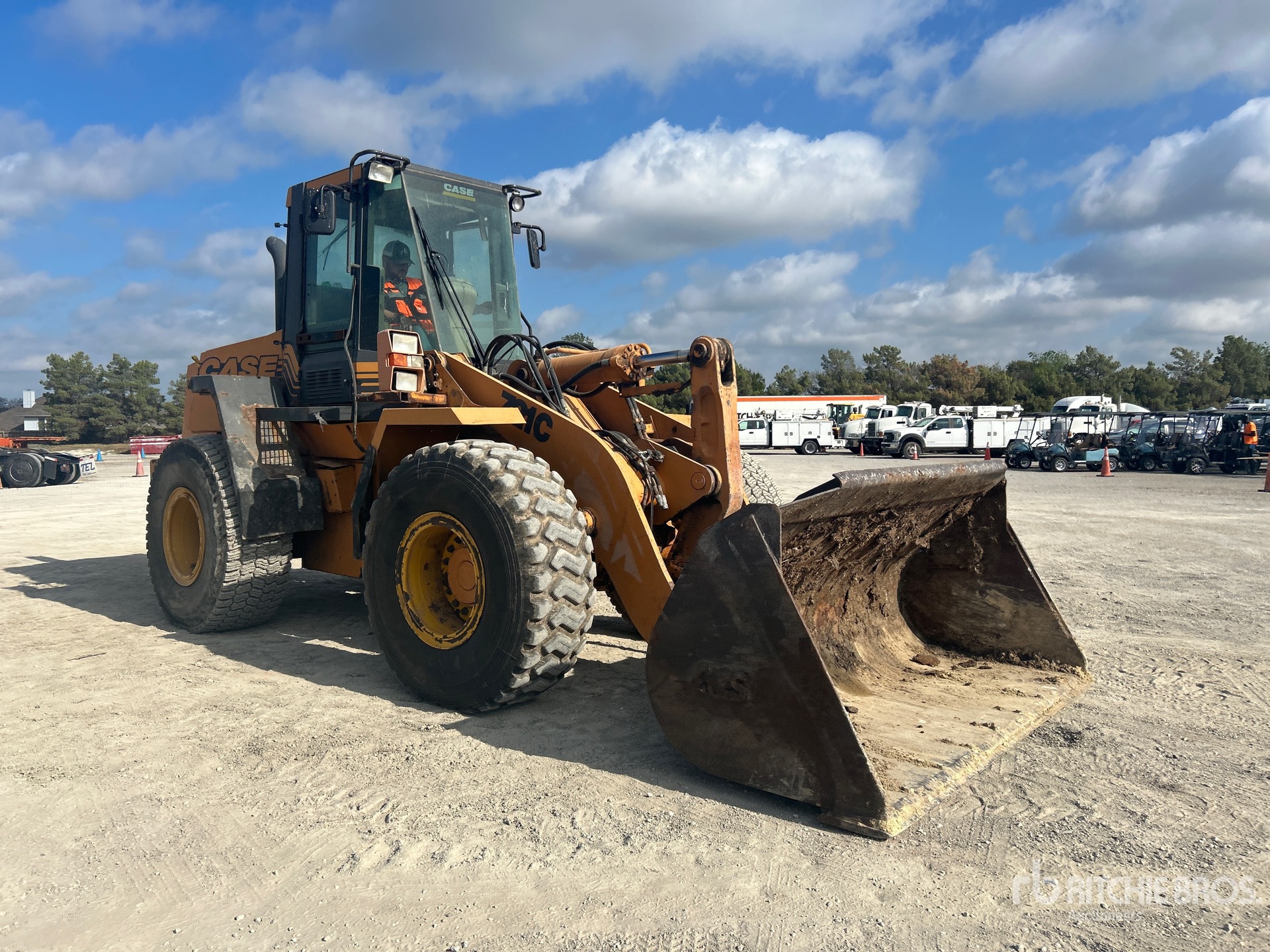

Located in Lane 2 Spot 27, Enclosed Cab, Air Conditioner, Ride Control, Auxiliary Hydraulics, Hydraulic Coupler, 100 in Bucket, 20.5R25 Tires Closing Time: 2026-10-14 10:49:47 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Breakout Force	35,005 lbs (15,878 kg)
Bucket Capacity - Heaped	3 cu yd
Bucket Capacity - Struck	2 cu yd
Bucket Width	9 ft (3 m)
Dump Clearance At Max Raise	10 ft (3 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height	11 ft (3 m)
Height To Top Of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length	23 ft (7 m)
Length With Bucket On Ground	23 ft (7 m)
Reach At Max Lift And Dump	3 ft (1 m)
Weight	29,630 lbs (13,440 kg)
Wheelbase	10 ft (3 m)
Width	8 ft (3 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	turbocharged
Displacement	504 cu in (8,259 cu cm)
Engine Make	2,239
Engine Model	6T-830
Gross Power	165 hp (123 kw)
Max Torque	545 lbs ft (739 nm)
Net Power	152 hp (113 kw)
Number Of Cylinders	6
Power Measured @	2,200 rpm
Torque Measured @	1,300 rpm
Torque Rise	41 %
Hydraulic System
Dump Time	2 sec
Lower Time	5 sec
Pump Flow Capacity	19 gpm (70 lpm)
Pump Type	dual, vane-type tandem
Raise Time	5 sec
Relief Valve Setting	2,775 psi
Operational
Alternator Supplied Amperage	65 amps
Cooling System Fluid Capacity	9 gal (33 l)
Engine Oil Fluid Capacity	6 gal (21 l)
Front Axle/Diff Fluid Capacity	7 gal (28 l)
Fuel Capacity	54 gal (204 l)
Hydraulic System Fluid Capacity	41 gal (153 l)
Operating Voltage	24 V
Operating Weight	29,630 lbs (13,440 kg)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	6 gal (22 l)
Static Tipping Weight	23,221 lbs (10,533 kg)
Tire Size	20.5-25 L3
Transmission Fluid Capacity	3 gal (12 l)
Turning Radius	17 ft (5 m)
Transmission
Max Speed - Forward	24 mph (39 kph)
Max Speed - Reverse	17 mph (28 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	3
Transmission Type	4F/3R proportional w/ electronic control module torque sensing autoshift/manual shift and modulation
