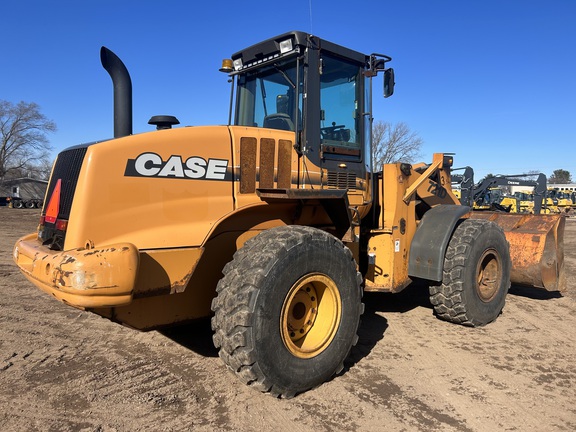

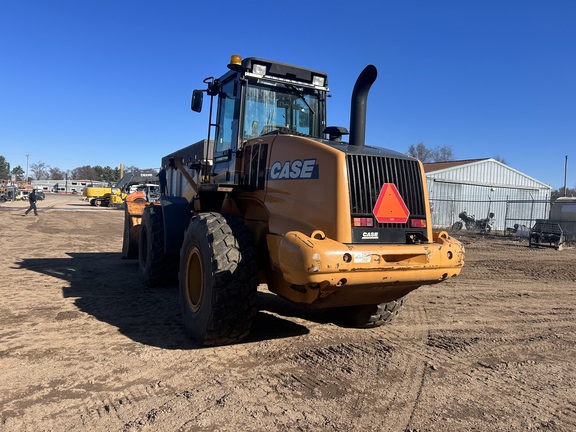

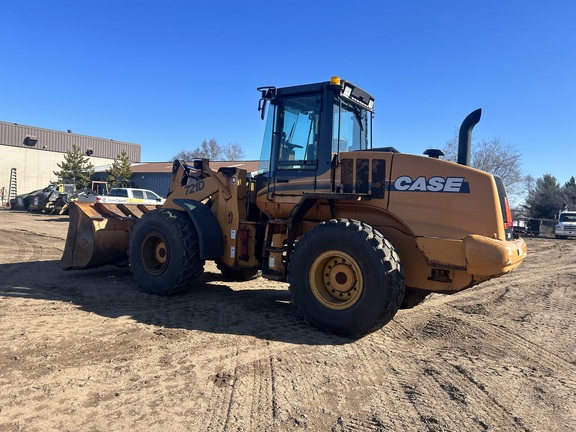

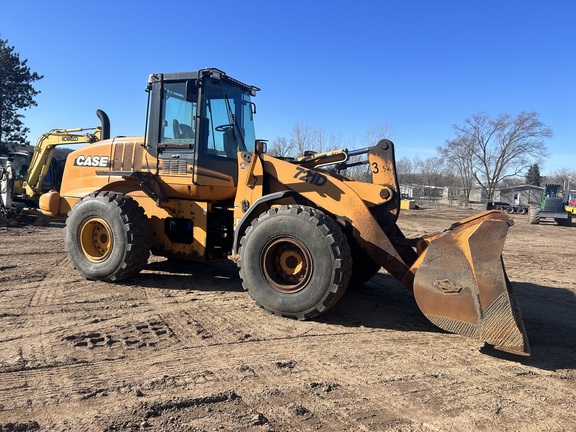

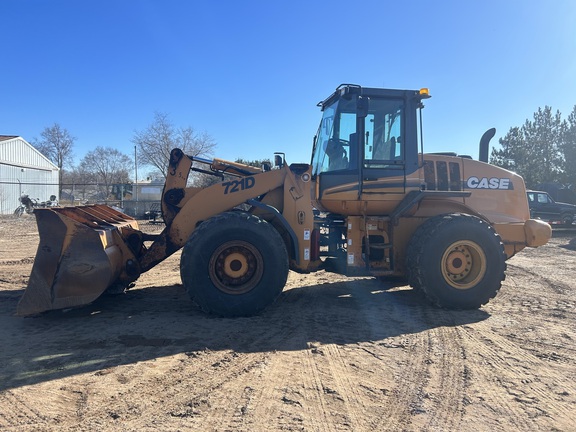

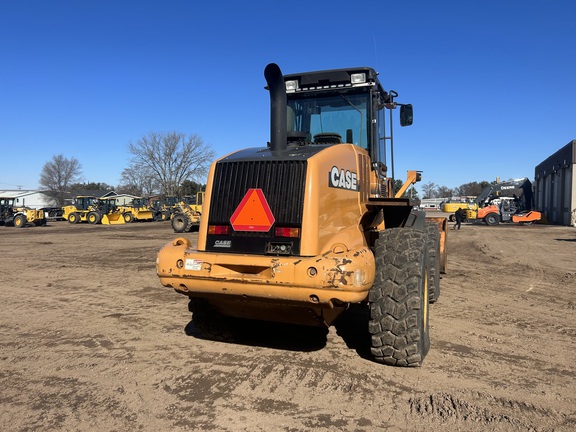

2004 Case 721D For Sale in Chippewa Falls, WI

Name: 2004 Case 721D
Brand: Case
SKU: 88563003
Price: 48000 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $48,000.00 USD

Apply for Financing

McCoy Construction & Forestry

McCoy Construction & Forestry Dealer Info

McCoy Construction & Forestry Website

Click here to email McCoy Construction & Forestry.

Contact: Chad Benz Cell 715-218-0030

Click for Phone Number

Machine Info:

Serial Number:	JEE137918
Stock Number:	307883
Machine Location:	CHIPPEWA FALLS, WI

Description:

Cab w/o AC; 20.5 Tires; General Purpose Bkt

Machine Details:

General Specifications

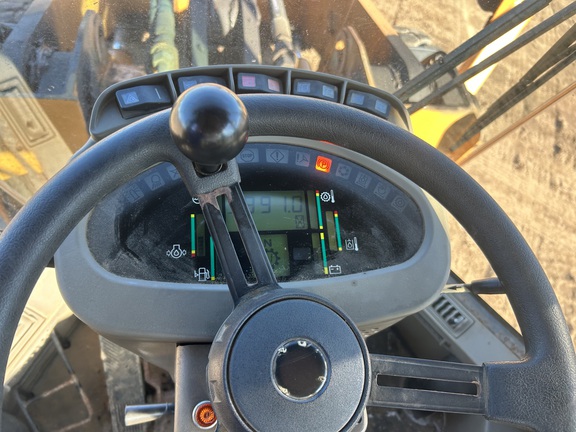

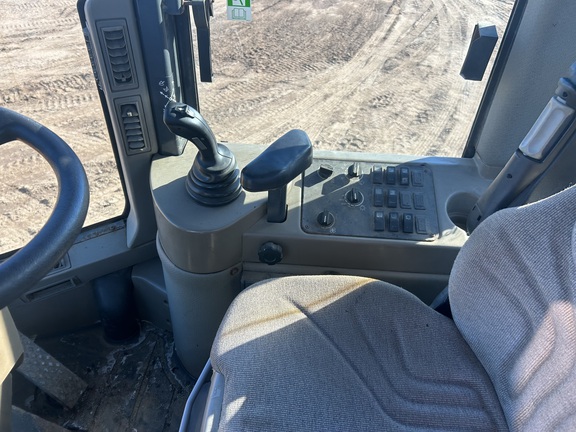

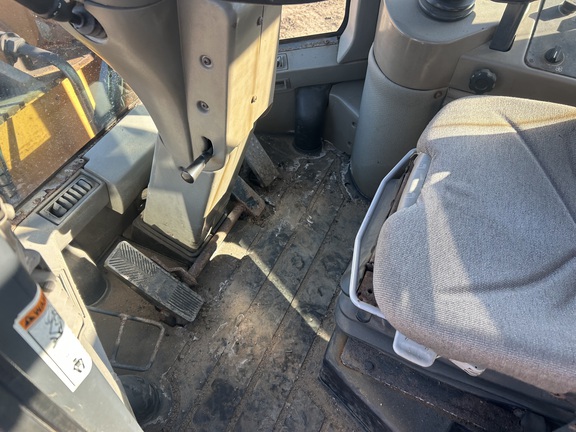

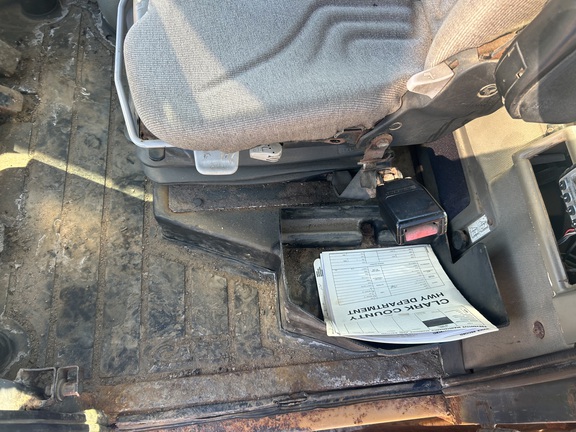

Operators Station	Cab w/o AC

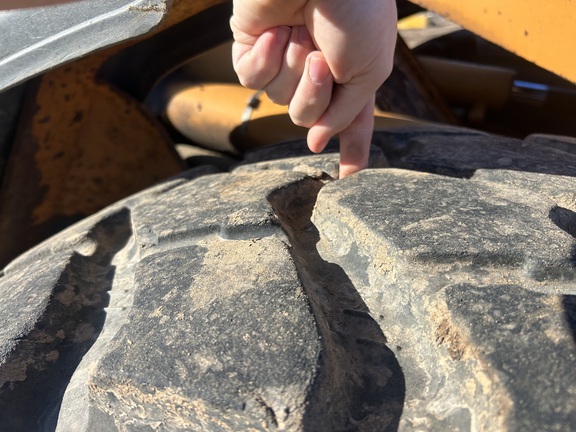

Tires	20.5 Tires

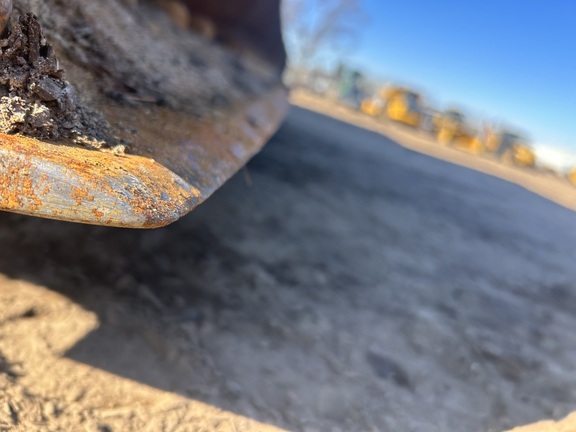

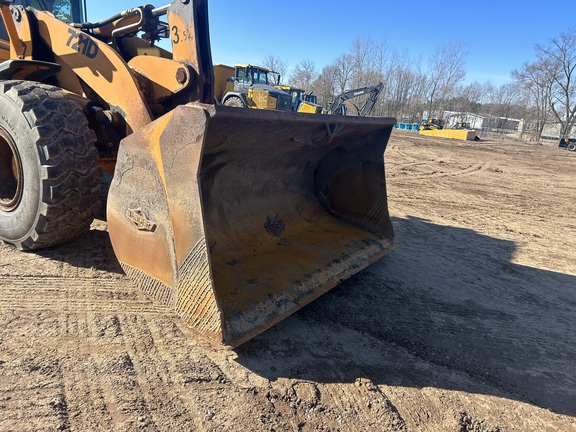

Buckets	General Purpose Bkt

From the manufacturer:

Supplied by HeavyEquipmentData.com →

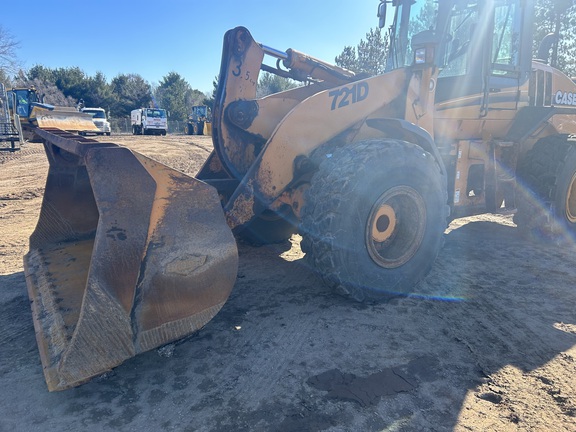

Bucket
Breakout Force	29,806 lbs (13,520 kg)
Bucket Capacity - heaped	4 cu yd (3 cu m)
Bucket Capacity - struck	3 cu yd (2 cu m)
Bucket Width	9 ft (3 m)
Dump Clearance at Max Raise	10 ft (3 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length with Bucket on Ground	25 ft (8 m)
Reach at Max Lift and Dump	4 ft (1 m)
Wheelbase	11 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Aspiration	turbocharged and air to air cooled
Displacement	411 cu in (6,735 cu cm)
Engine Model	Family III 668TA/E2
Gross Power	181 hp (135 kw)
Net Power	170 hp (127 kw)
Number of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,300 rpm
Torque Rise	24.8%
Hydraulic System
Dump Time	2 seconds
Lower Time	3 seconds
Pump Flow Capacity	55 gpm (206 lpm)
Pump Type	closed centered pressure/flow compensated
Raise Time	6 seconds
Relief Valve Setting	3,626 psi
Operating Specifications
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	10 gal (37 l)
Engine Oil Fluid Capacity	4 gal (14 l)
Front Axle/Diff Fluid Capacity	8 gal (31 l)
Fuel Capacity	65 gal (246 l)
Hydraulic System Fluid Capacity	51 gal (193 l)
Operating Voltage	24 volts
Operating Weight	30,644 lbs (13,900 kg)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	7 gal (28 l)
Static Tipping Weight	27,615 lbs (12,526 kg)
Tire Size	20.5x25 L3
Transmission Fluid Capacity	7 gal (26 l)
Turning Radius	19 ft (6 m)
Transmission
Max Speed - Forward	24 mph (38 kph)
Max Speed - Reverse	16 mph (26 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	4F/3R proportional w/ electronic control module torque sensing autoshift/manual shift and modulation
