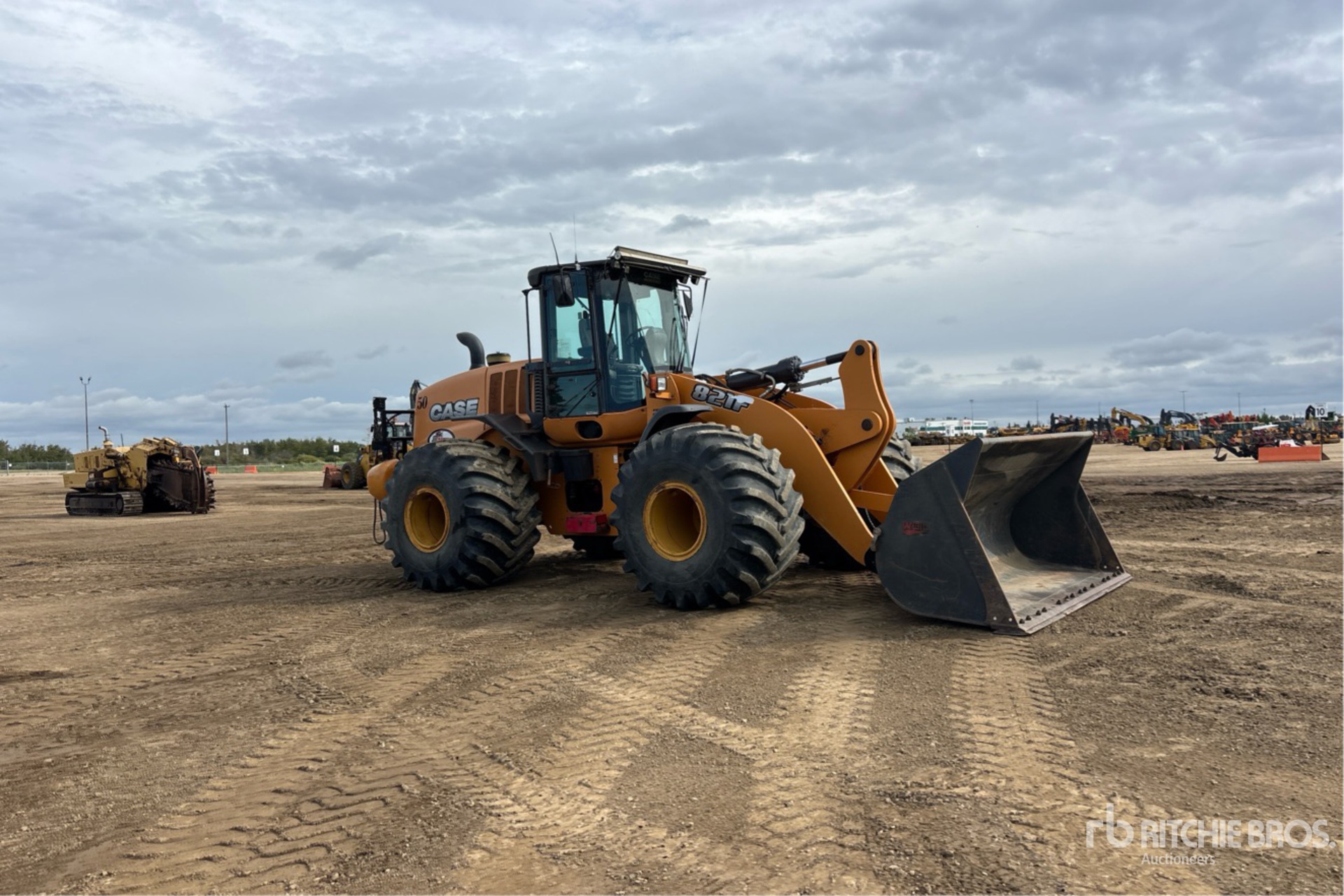

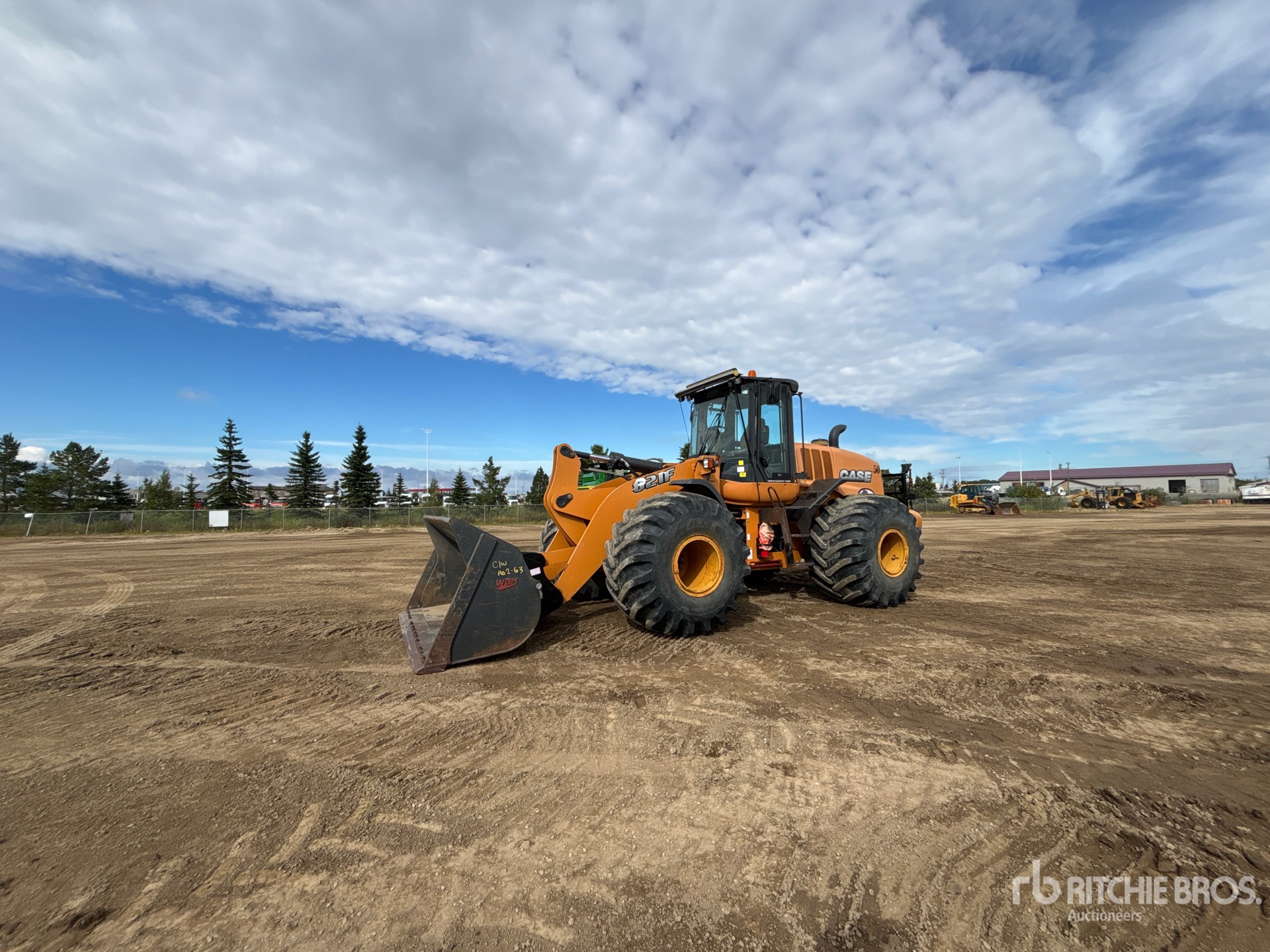

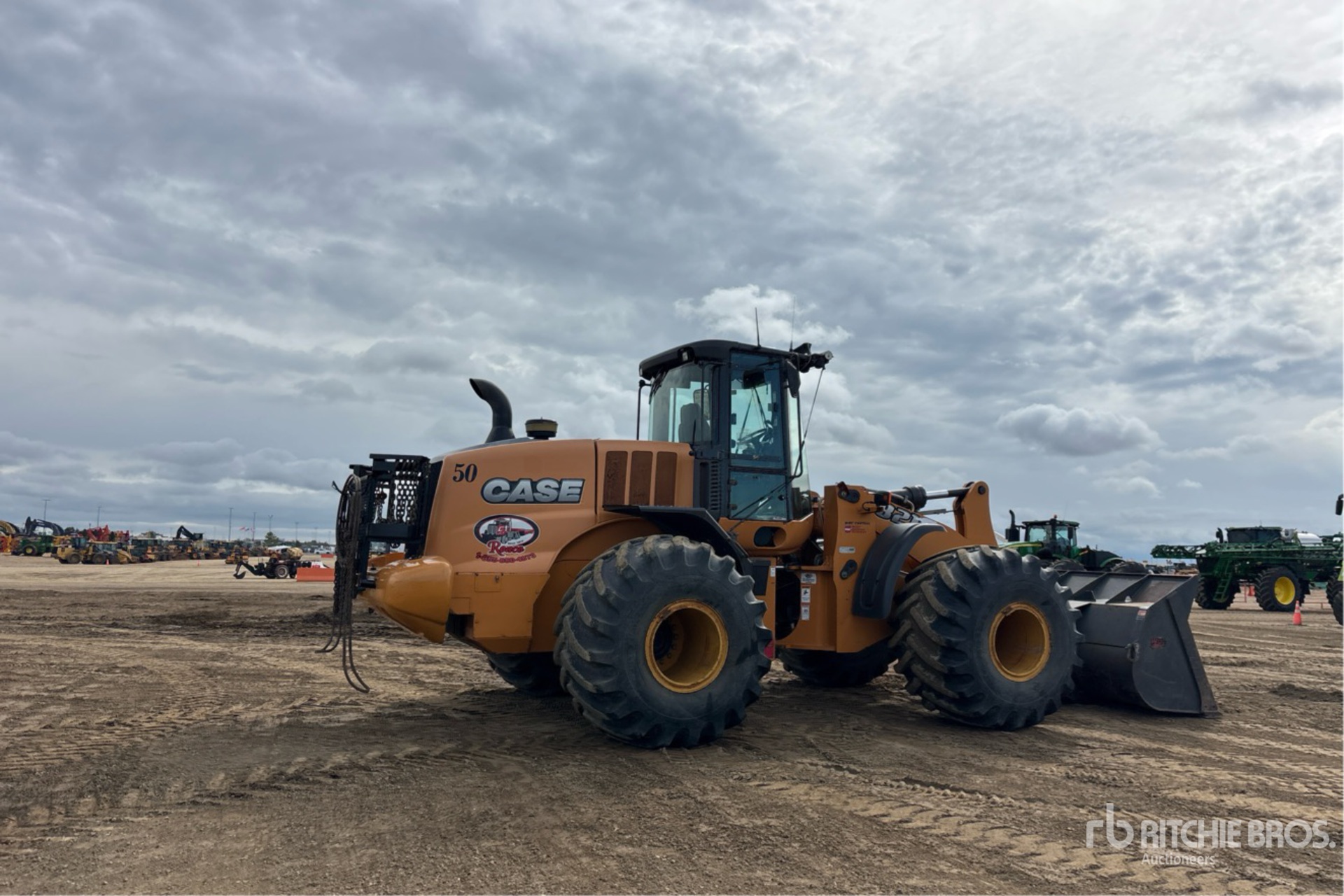

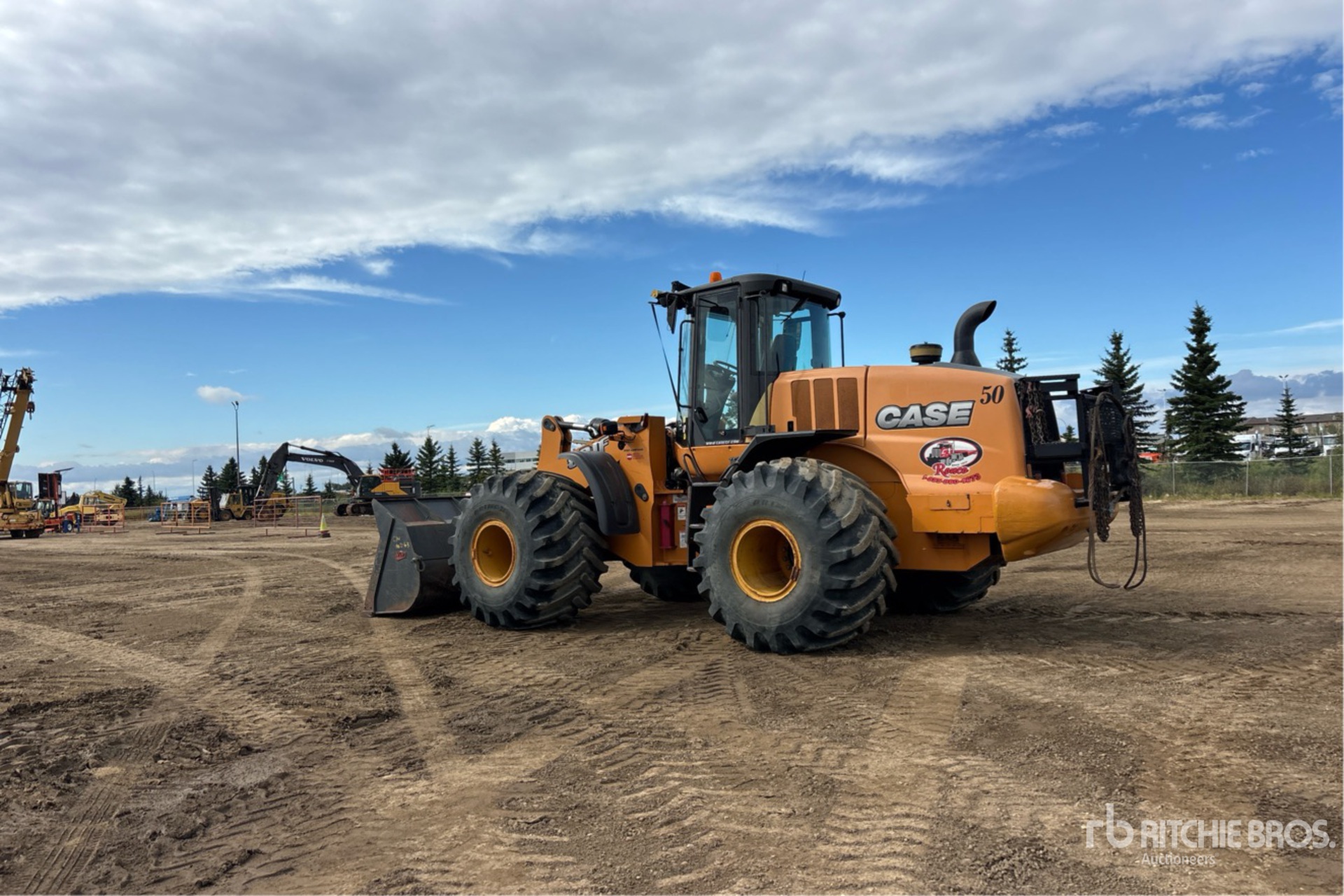

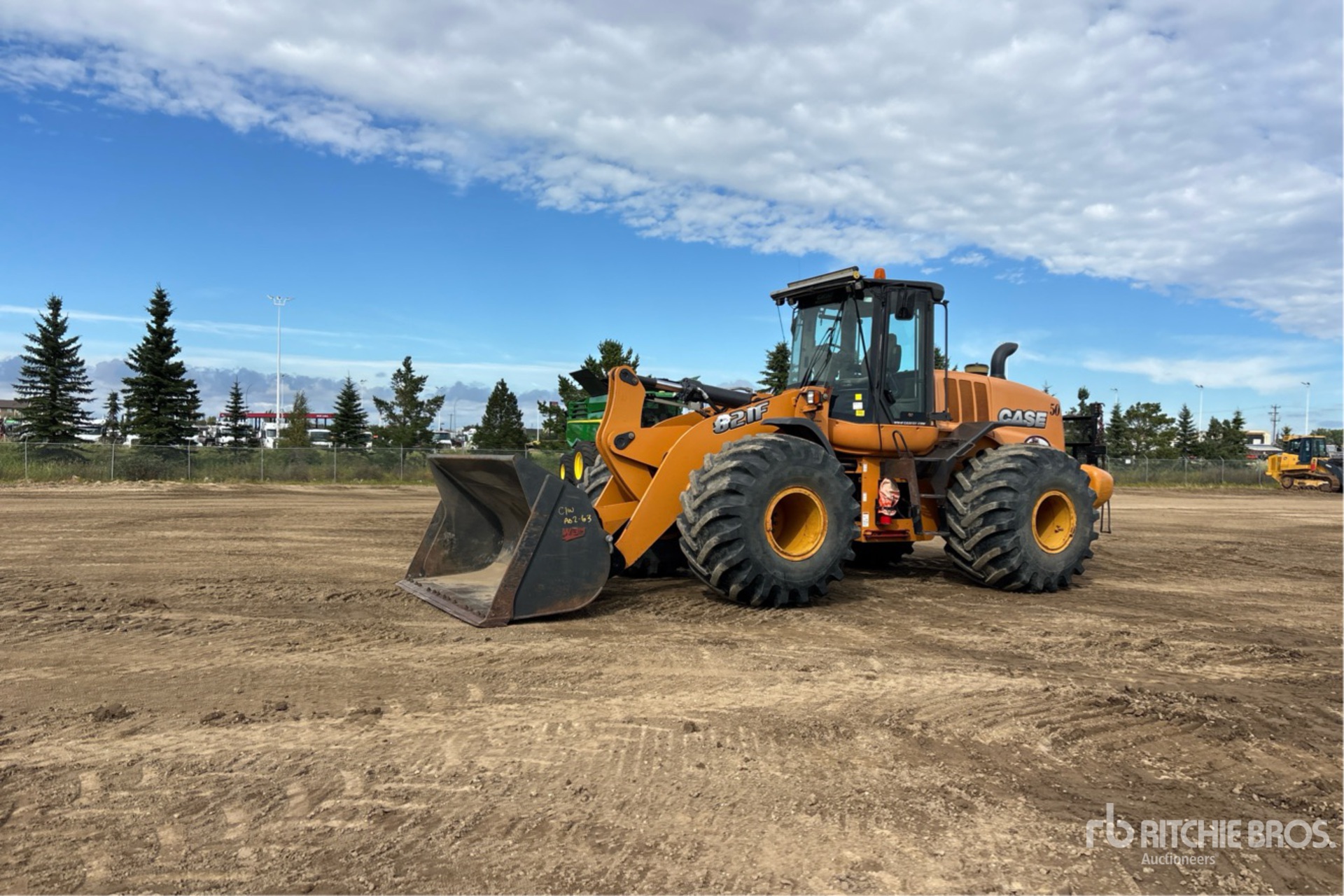

2015 Case 821F For Sale in Edmonton, Ab
Auction Pricing
Auction Info: Starting on 2026-09-22 Click here to place a bid
Machine Info:

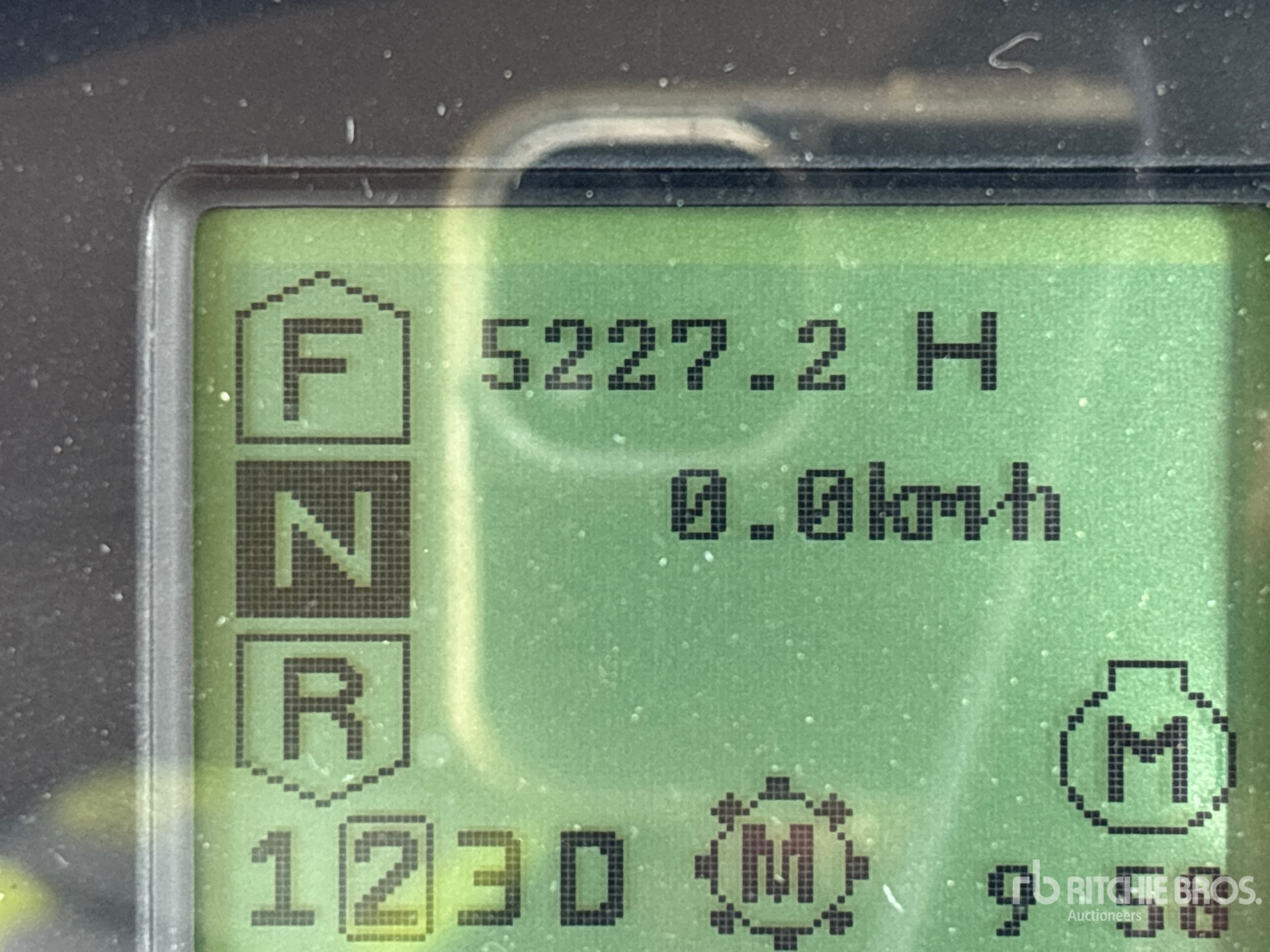

| Hours: | 5227 |

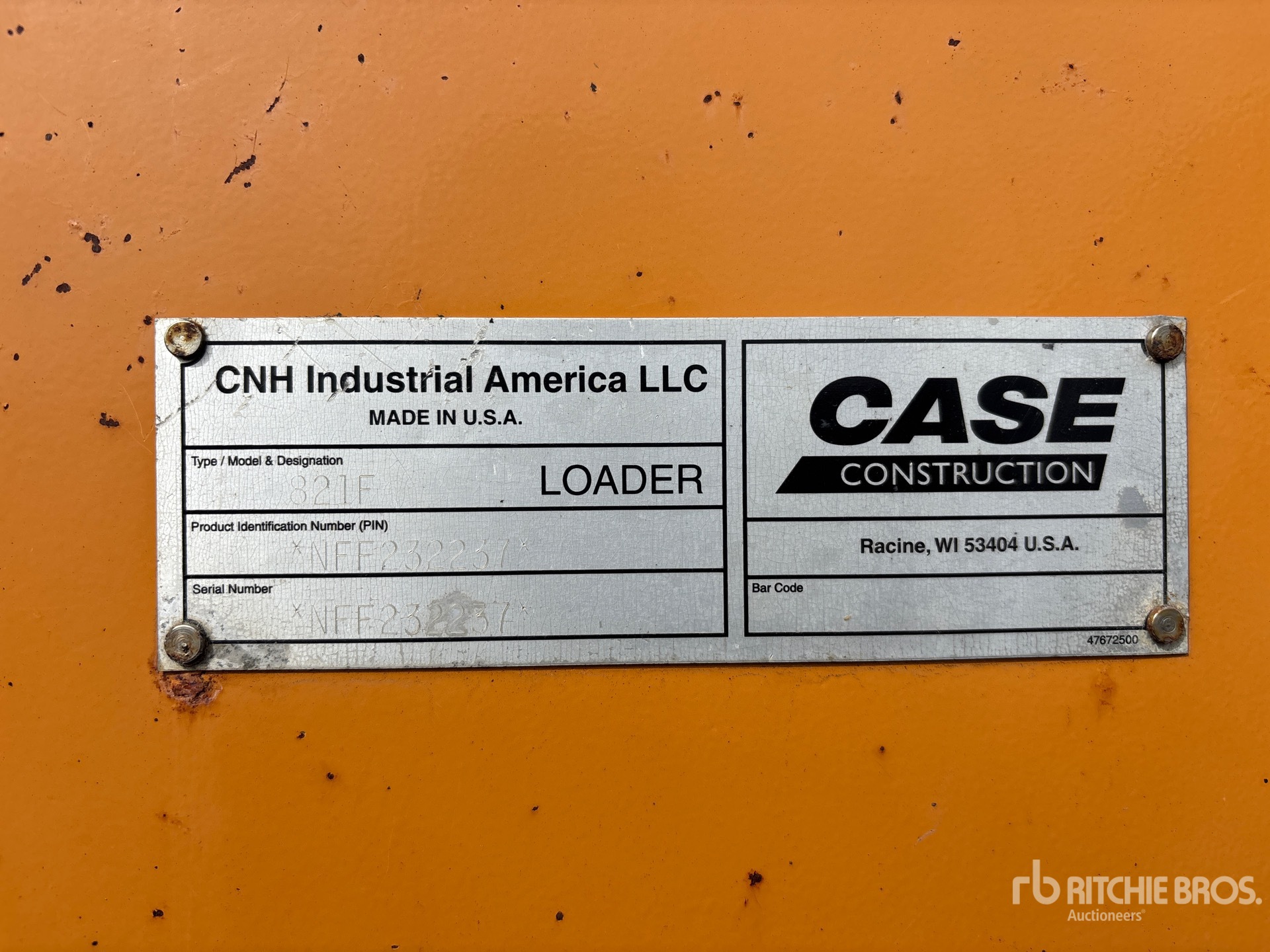

| Serial Number: | NFF232237 |
| Machine Location: | EDMONTON, AB |
Description:
Located in Lane 8 Spot 31, Enclosed Cab, Air Conditioner, Air Ride Seat, Autoshift, Requires Diesel Exhaust Fluid, Engine Coolant Heater, Positive Air Shutoff, Auxiliary Hydraulics, Hydraulic Coupler, 118 in Bucket, Forks, Pipe Grapple, 66x43.00-25 Tires, Complete-Dispersal-Ronco-Oilfield-Hauling-2003-Ltd Closing Time: 2026-09-22 10:02:30 AM
From the manufacturer:
Supplied by HeavyEquipmentData.com →
The Case 821F is a wheel loader designed for material handling, stockpiling, loading, and general construction site work. It is part of Case's F Series and is commonly used in aggregate, roadbuilding, agriculture, and industrial applications. The 821F features a diesel engine, hydrostatic or power shift drivetrain depending on configuration, articulated steering, and a front-mounted loader arm with a standard bucket or optional attachments. Operator controls, visibility, and service access are designed for daily jobsite use. The model is recognized for balanced lifting performance, cycle efficiency, and versatility across loading and transport tasks.
| Brakes |
|
Service Brake |
Wet Multi Disc |
| Bucket |
|
Breakout Force |
35,317 lbs (16,017 kg)
|
|
Bucket Capacity - Heaped |
4 cu yd |
|
Bucket Capacity - Struck |
4 cu yd |
|
Bucket Width |
10 ft (3 m)
|
|
Dump Clearance At Max Raise |
10 ft (3 m)
|
| Dimensions |
|
Dump Reach @ Full Height, 45° Dump: Bucket |
4 ft (1 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Hinge Pin - Max Height |
14 ft (4 m)
|
|
Length |
26 ft (8 m)
|
|
Length With Bucket On Ground |
26 ft (8 m)
|
|
Reach At Max Lift And Dump |
4 ft (1 m)
|
|
Weight |
38,875 lbs (17,633 kg)
|
|
Wheelbase |
11 ft (3 m)
|
|
Width |
10 ft (3 m)
|
|
Width Over Tires |
9 ft (3 m)
|
| Engine |
|
Alternator |
120 amps |
|
Aspiration |
Turbocharged |
|
Displacement |
411 cu in (6,735 cu cm)
|
|
Emissions Level |
Tier 4 |
|
Engine Model |
FPT F4HFE613 |
|
Engine Speed - Rated Speed, Full Load |
2,000 rpm |
|
Gross Power |
231 hp (172 kw)
|
|
Max Torque |
845 lbs ft (1,146 nm)
|
|
Max. Torque Iso14396 |
873 lbs ft (1,184 nm)
|
|
Net Power |
205 hp (153 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,800 rpm |
|
Torque Measured @ |
1,300 rpm |
|
Torque Rise |
47 % |
| General Specifications |
|
Bucket Capacity (Since 2016)
|
4.5 (3.44) |
|
Engine Power (Since 2016)
|
212 (158) |
|
Engine type (Since 2016)
|
Case/FPT |
|
Max Dump Height (Since 2016)
|
9.8 (3) |
|
Operating Weight (Since 2016)
|
38,874 (17,633) |
| Hydraulic Cycle Times (Unloaded) |
|
Total Cycle Time |
10 sec |
| Hydraulic System |
|
Dump Time |
1 sec |
|
Lower Time |
3 sec |
|
Maximum System Pressure |
3,625 psi |
|
Pump Flow Capacity |
32 gpm (120 lpm)
|
|
Pump Type |
Axial Piston Pump |
|
Raise Time |
6 sec |
|
Relief Valve Setting |
3,625 psi |
|
Steering Pump Type |
Articulation |
| Operational |
|
Alternator Supplied Amperage |
65 amps |
|
Cooling System Fluid Capacity |
8 gal (30 l)
|
|
Engine Oil Fluid Capacity |
4 gal (15 l)
|
|
Front Axle/Diff Fluid Capacity |
11 gal (40 l)
|
|
Fuel Capacity |
76 gal (288 l)
|
|
Hydraulic System Fluid Capacity |
47 gal (178 l)
|
|
Operating Voltage |
24 V |
|
Operating Weight |
38,874 lbs (17,630 kg)
|
|
Rear Axle Oscillation |
24 degrees |
|
Rear Axle/Diff Fluid Capacity |
11 gal (40 l)
|
|
Static Tipping Weight |
27,225 lbs (12,347 kg)
|
|
Tire Size |
23.5 x 25 L3 |
|
Transmission Fluid Capacity |
9 gal (34 l)
|
|
Turning Radius |
20 ft (6 m)
|
| Transmission |
|
Max Speed - Forward |
23 mph (37 kph)
|
|
Max Speed - Reverse |
15 mph (24 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
3 |
|
Transmission Type |
Powershift |
