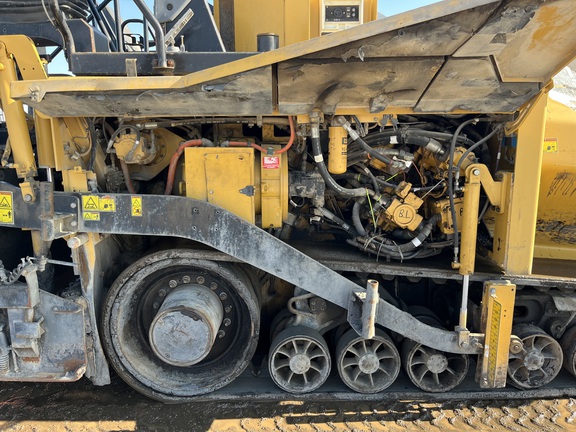

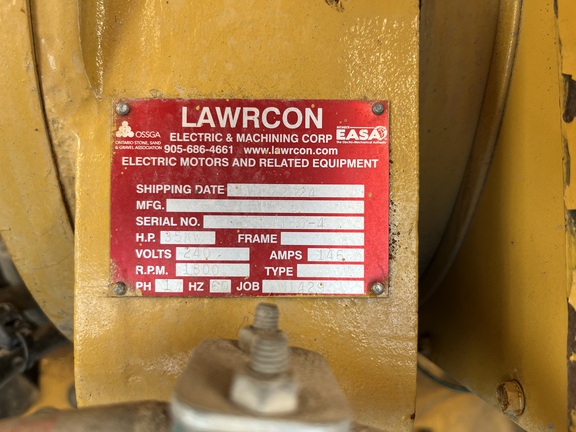

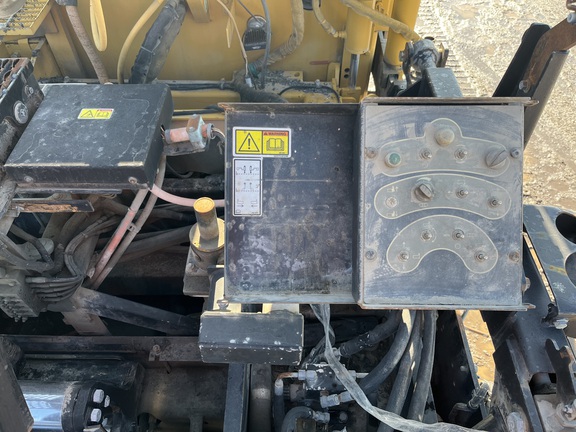

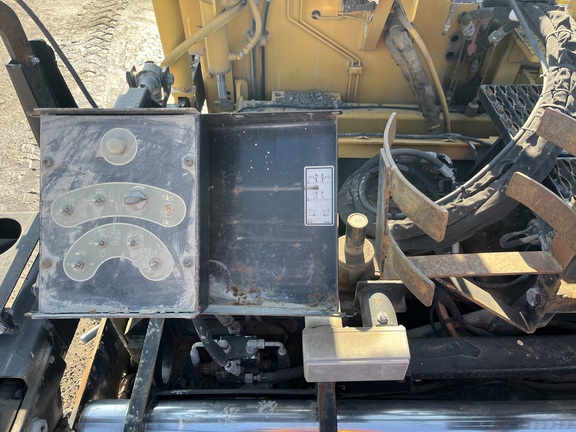

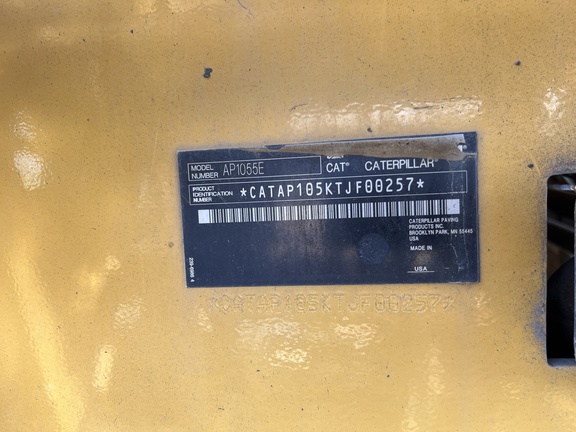

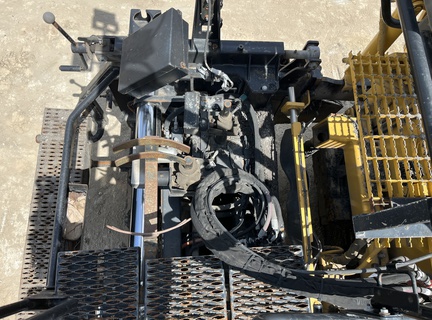

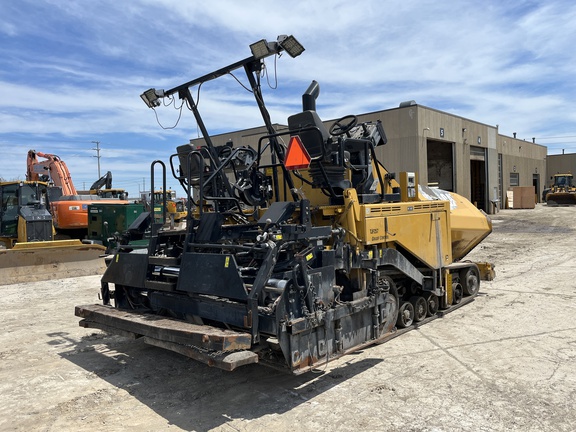

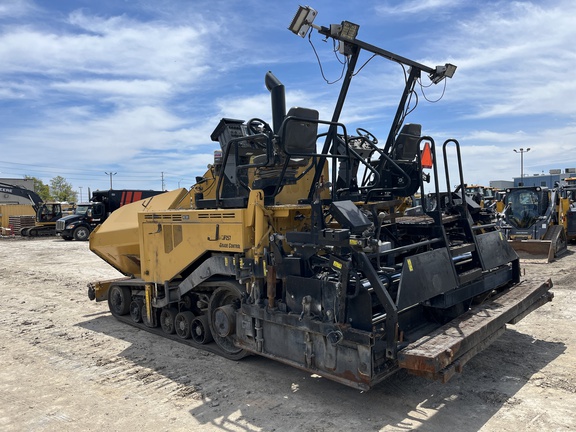

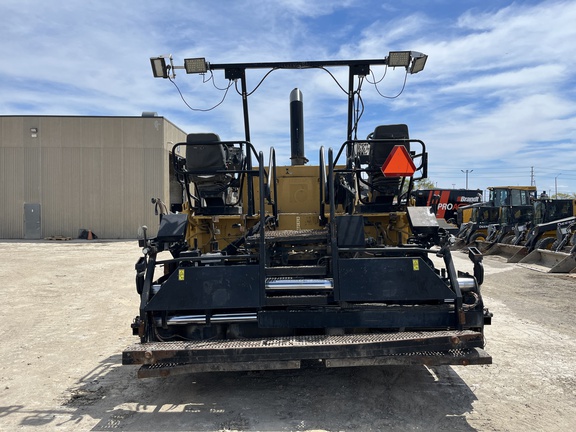

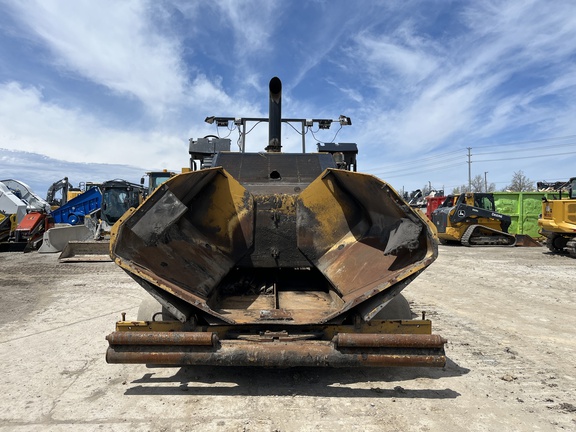

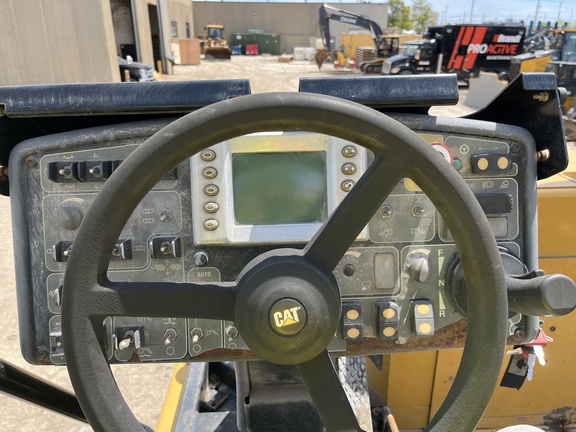

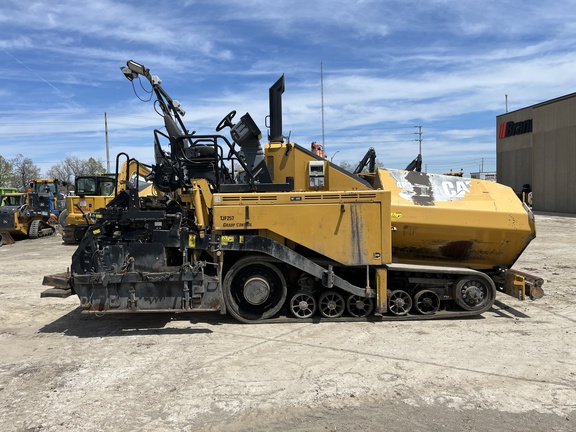

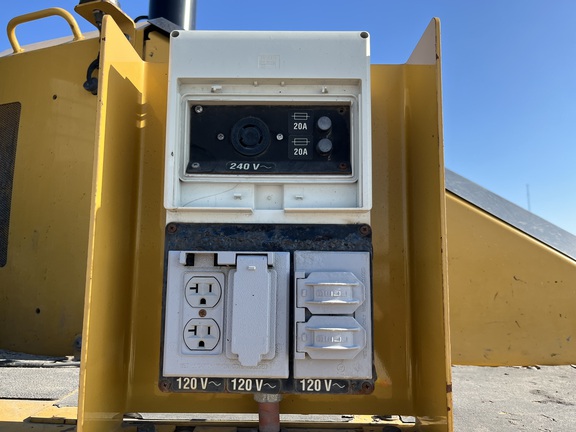

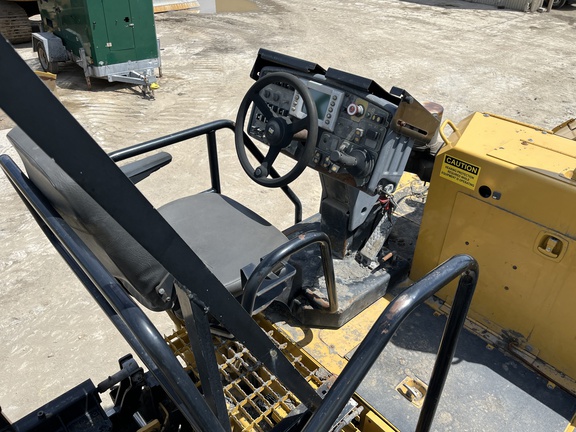

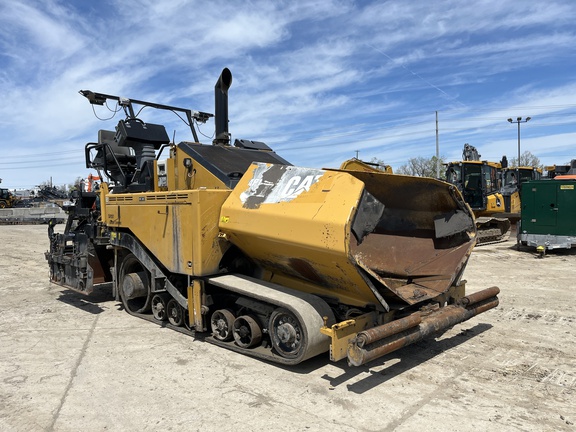

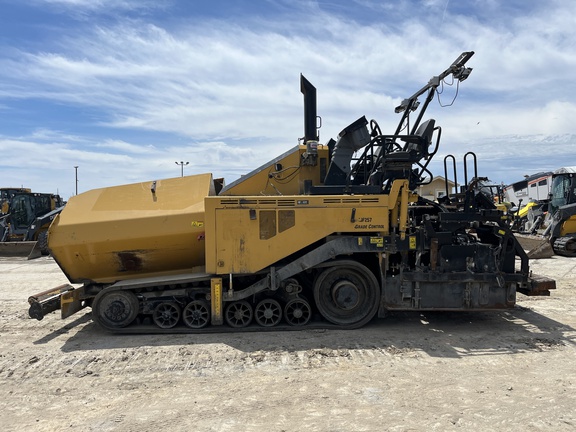

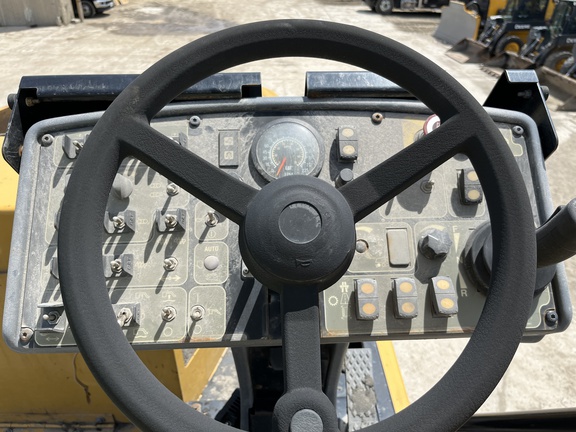

| Dimensions |
|
Height |
9 ft (3 m)
|
|
Length |
22 ft (7 m)
|
|
Length - With Push Roller And Largest Screed |
22 ft (7 m)
|
|
Maximum Height |
147 in (373 cm)
|
|
Tractor Operating Width |
12 ft (4 m)
|
|
Transport Height |
9 ft (3 m)
|
|
Transport Width - Hoppers Raised - Screed End Gates Attached |
11 ft (3 m)
|
|
Transport Width - Hoppers Raised - Screed End Gates Removed |
10 ft (3 m)
|
|
Weight |
45,074 lbs (20,445 kg)
|
|
Width |
11 ft (3 m)
|

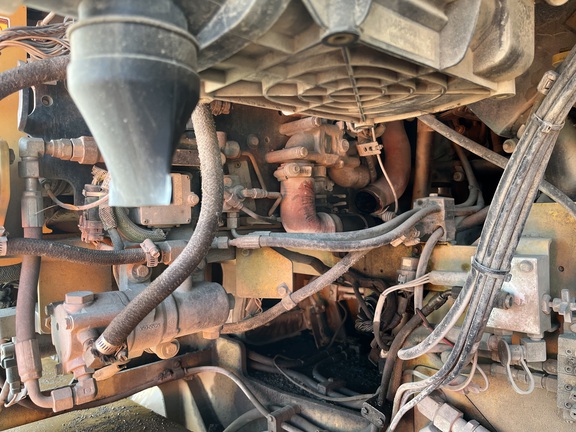

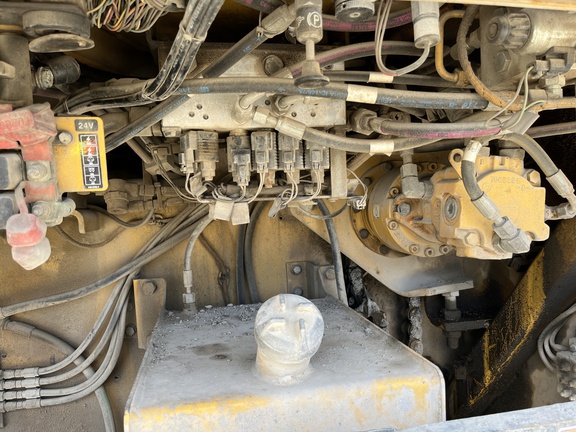

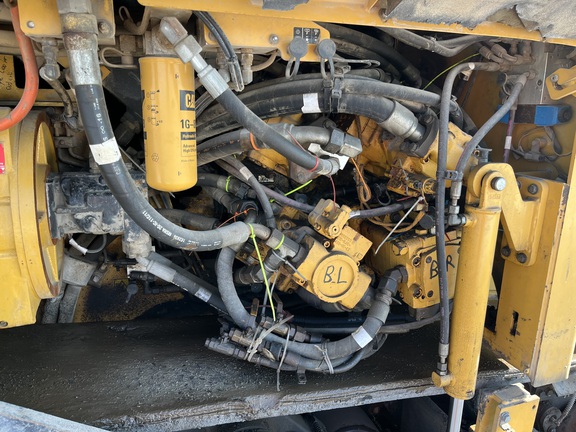

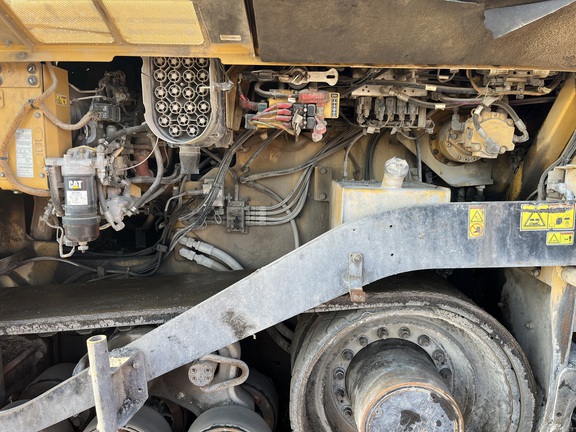

| Engine |
|

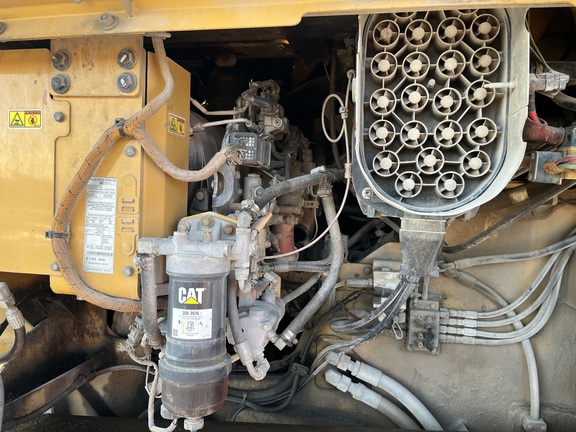

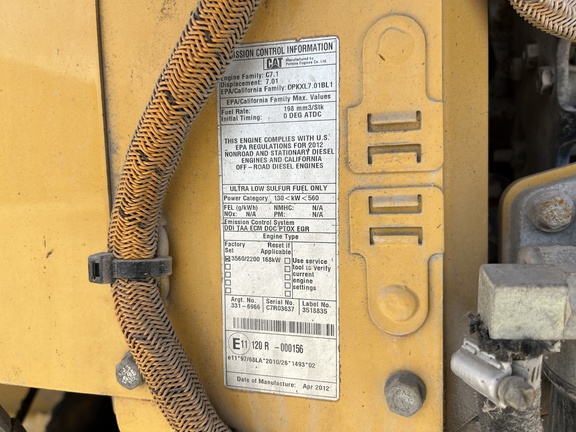

Engine Model |
Cat C7.1 with ACERT |
|
Gross Power |
225 hp (168 kw)
|
| General Specifications |
|
& Windrow Flywheel (Since 2011)
|
225 hp (168 kW)
|
|
& Windrow Flywheel (2012)
|
225 hp (168 kW)
|
|
& Windrow Flywheel (2013)
|
225 hp (168 kW)
|
|
& Windrow Flywheel (2014)
|
225 hp (168 kW)
|
|
Auger Diameter (Since 2012)
|
16 in (406 mm)
|
|
Auger Diameter (2013)
|
16 in (406 mm)
|
|
Available Screeds - AS2302C (Since 2012)
|
X |
|
Available Screeds - AS2302C (2013)
|
X |
|
Available Screeds - AS3301C (Since 2012)
|
X |
|
Available Screeds - AS3301C (2013)
|
X |
|
Available Screeds - AS4251C (Since 2012)
|
X |
|
Available Screeds - AS4251C (2013)
|
X |
|
Available Screeds - AS4252C (Since 2012)
|
X |
|
Available Screeds - AS4252C (2013)
|
X |
|
Dimensions - Height (less exhaust) (Since 2012)
|
112 in (2,850 mm)
|
|
Dimensions - Height (less exhaust) (2013)
|
112 in (2,850 mm)
|
|
Dimensions - Length w/screed, push roller (max.) (Since 2012)
|
260 in (6,630 mm)
|
|
Dimensions - Length w/screed, push roller (max.) (2013)
|
260 in (6,630 mm)
|
|
Dimensions - Shipping Width (maximum) (Since 2012)
|
128 in (3,240 mm)
|
|
Dimensions - Shipping Width (maximum) (2013)
|
128 in (3,240 mm)
|
|
Dimensions - Standard Paving Width (Since 2012)
|
120 in (3,000 mm)
|
|
Dimensions - Standard Paving Width (2013)
|
120 in (3,000 mm)
|
|
Displacement (Since 2012)
|
428 cu in (7 L)
|
|
Displacement (2013)
|
428 cu in (7 L)
|
|
Drive (Since 2011)
|
Track |
|
Drive (2012)
|
Track |
|
Drive (2013)
|
Track |
|
Drive (2014)
|
Track |
|
Elevators Approx. Op. Weight (Since 2011)
|
44,167 lbs (20,076 kg)
|
|
Elevators Approx. Op. Weight (2012)
|
44,167 lbs (20,076 kg)
|
|
Elevators Approx. Op. Weight (2013)
|
44,167 lbs (20,076 kg)
|
|
Elevators Approx. Op. Weight (2014)
|
44,167 lbs (20,076 kg)
|
|
Engine Model (Since 2012)
|
C7.1 with ACERT Technology*** |
|
Engine Model (Since 2013)
|
C7.1 with ACERT Technology |
|
Gross Power (Since 2012)
|
225 hp (168 kW)
|
|
Gross Power (2013)
|
225 hp (168 kW)
|
|
Hopper Capacity (Since 2011)
|
251 cu ft (7 cu m)
|
|
Hopper Capacity (2012)
|
251 cu ft (7 cu m)
|
|
Hopper Capacity (2013)
|
251 cu ft (7 cu m)
|
|
Hopper Capacity (2014)
|
251 cu ft (7 cu m)
|
|
Maximum Op. Speed m/min (ft/min (Since 2011)
|
200 ft/min (61 m/min)
|
|
Maximum Op. Speed m/min (ft/min (2012)
|
200 ft/min (61 m/min)
|
|
Maximum Op. Speed m/min (ft/min (2013)
|
200 ft/min (61 m/min)
|
|
Maximum Op. Speed m/min (ft/min (2014)
|
200 ft/min (61 m/min)
|
|
No. Cylinders (Since 2012)
|
6 |
|
No. Cylinders (2013)
|
6 |
|
Operating Weight - Tractor - with Mobil-Trac (Since 2013)
|
36,982 lbs (16,810 kg)
|
|
Operating Weight - with Mobil-Trac (Since 2012)
|
36,982 lbs (16,810 kg)
|
|
Rated Engine RPM (Since 2012)
|
2,200 rpm |
|
Rated Engine RPM (2013)
|
2,200 rpm |
|
Screed Width (Since 2011)
|
120 in (3,048 mm)
|
|
Screed Width (2012)
|
120 in (3,048 mm)
|
|
Screed Width (2013)
|
120 in (3,048 mm)
|
|
Screed Width (2014)
|
120 in (3,048 mm)
|
|
Service Refill Capacities - Cooling System (Since 2012)
|
11 US gal (40 L)
|
|
Service Refill Capacities - Cooling System (2013)
|
11 US gal (40 L)
|
|
Service Refill Capacities - Fuel Tank (Since 2012)
|
92 US gal (348 L)
|
|
Service Refill Capacities - Fuel Tank (2013)
|
92 US gal (348 L)
|
|
Speeds - Paving (Mobil-Trac) (Since 2012)
|
200 ft/min (61 m/min)
|
|
Speeds - Paving (Mobil-Trac) (2013)
|
200 ft/min (61 m/min)
|
|
Speeds - Travel (Mobil-Trac) (Since 2012)
|
0 - 9 mph |
|
Speeds - Travel (Mobil-Trac) (2013)
|
0 - 9 mph |
|

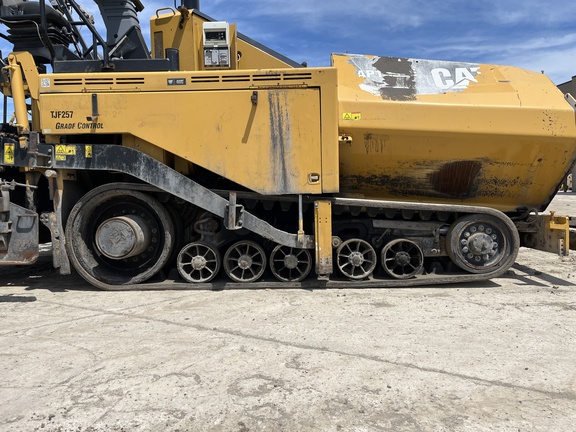

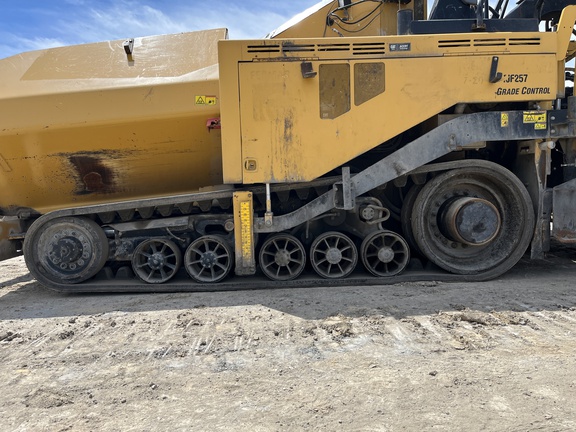

Tracks Assemblies - Length on Ground (Mobil-Trac) (Since 2012)
|
119 in (3,023 mm)
|
|
Tracks Assemblies - Length on Ground (Mobil-Trac) (2013)
|
119 in (3,023 mm)
|
|
Tracks Assemblies - Width (Mobil-Trac) (Since 2012)
|
18 in (457 mm)
|
|
Tracks Assemblies - Width (Mobil-Trac) (2013)
|
18 in (457 mm)
|
|
Turning Radius (Since 2012)
|
0 in |
|
Turning Radius (2013)
|
0 in |
|
Years Built (Since 2011)
|
2,011 - 2,014 |
|
Years Built (2012)
|
2,011 - 2,014 |
|
Years Built (2013)
|
2,011 - 2,014 |
|
Years Built (2014)
|
2,011 - 2,014 |

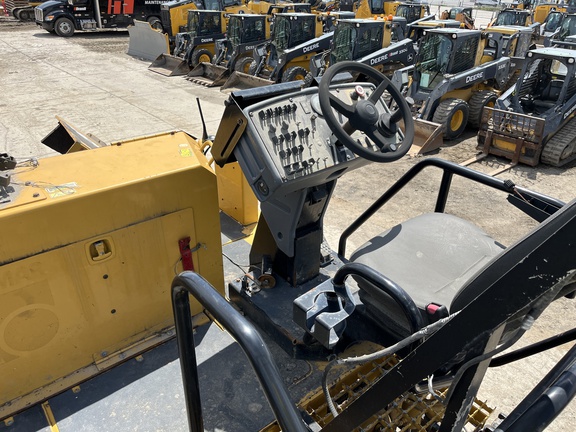

| Operating Specifications |
|
Hopper Capacity |
251 ft |
|
Maximum Travel Speed |
9 mph (14 kph)
|
|
Paving Width Maximum |
26 ft (8 m)
|
|
Paving Width Minimum |
8 ft (2 m)
|
|
Standard Paving Width |
3.05-5.94 m (10-19.5 ft) |
|
Truck Dump Height |
23 in (58 cm)
|
|
Truck Entry Width |
12 ft (4 m)
|
| Service Refill Capacities |
|
Fuel Tank Capacity |
92 gal (348 l)
|
| Weights |
|
Maximum Operating Weight |
44,558 lbs (20,211 kg)
|
