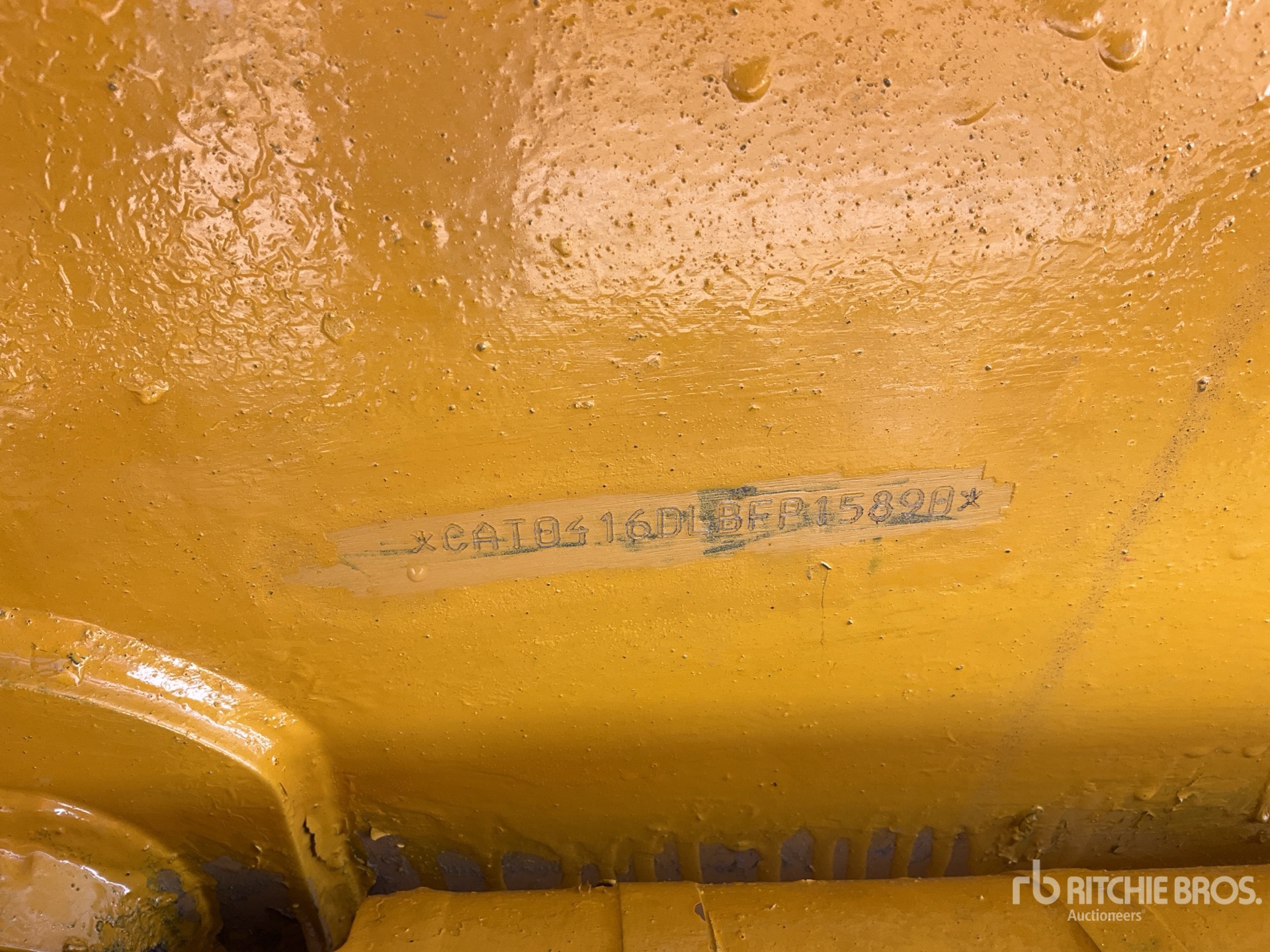

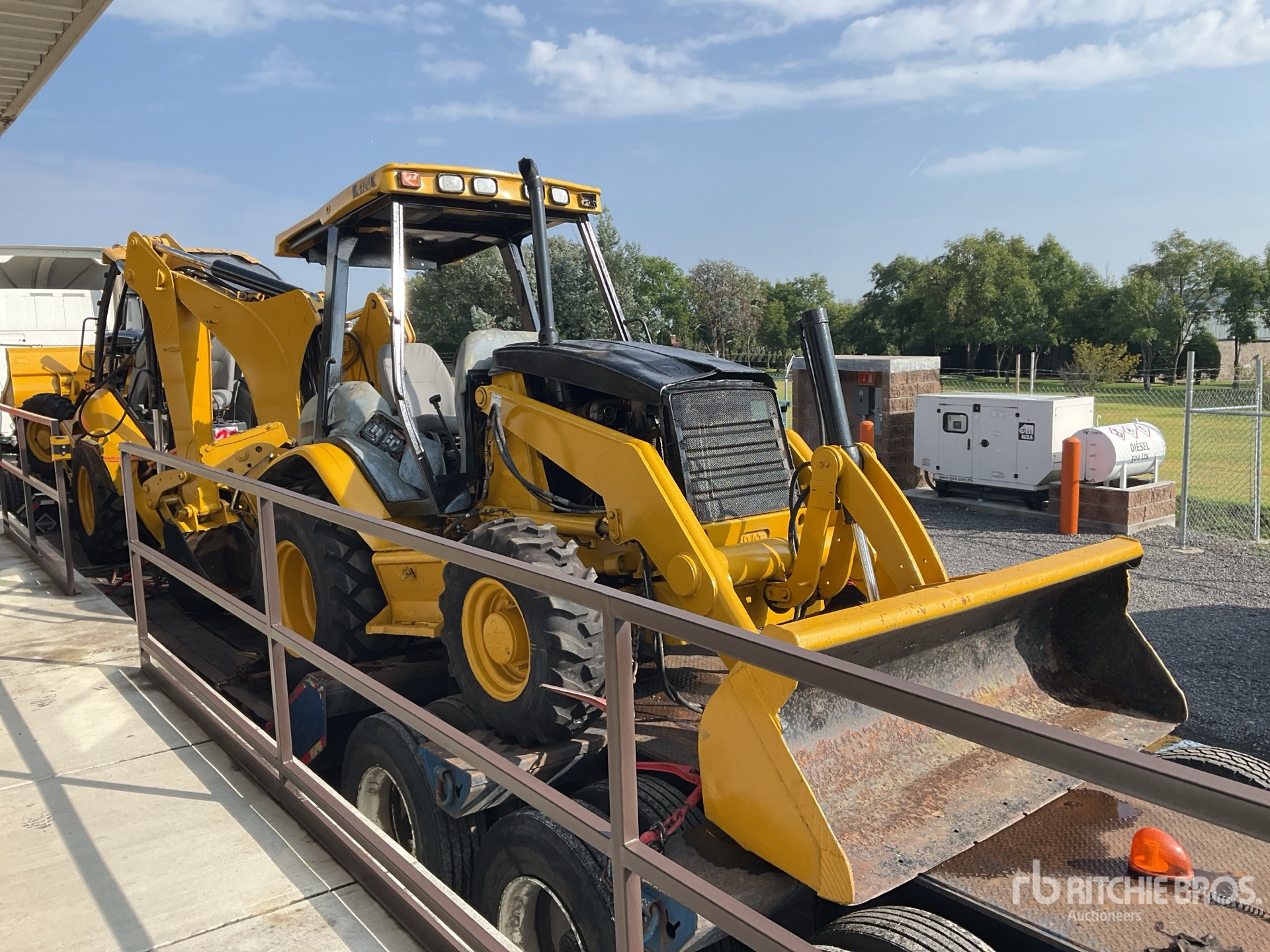

| Axle Ratings |
|
Dynamic (1) |
6,983 lbs (3,167 kg)
|
|
Dynamic (2) |
20,418 lbs (9,260 kg)
|
|
Front Axle (2wd) - Static |
30,319 lbs (13,750 kg)
|
|
Front Axle (4wd) - Static |
27,029 lbs (12,258 kg)
|
|
Rear Axle - Static |
61,233 lbs (27,770 kg)
|
| Backhoe |
|
Bucket Dig Force - Standard |
11,702 lbs (5,307 kg)
|
|
Bucket Dig Force - Std |
11,702 lbs (5,307 kg)
|
|
Bucket Rotation |
205 degrees |
|
Dig Depth - Standard |
15 ft (4 m)
|
|
Dig Depth - Std |
14 ft (4 m)
|
|
E-Stick Extended (1) |
18 ft (6 m)
|
|
E-Stick Extended (2) |
21 ft (6 m)
|
|
E-Stick Extended (3) |
11,599 lbs (5,260 kg)
|
|
E-Stick Extended (4) |
5,661 lbs (2,567 kg)
|
|
E-Stick Extended (5) |
2,912 lbs (1,321 kg)
|
|
E-Stick Retracted (1) |
15 ft (5 m)
|
|
E-Stick Retracted (2) |
19 ft (6 m)
|
|
E-Stick Retracted (3) |
11,599 lbs (5,260 kg)
|
|
E-Stick Retracted (4) |
7,693 lbs (3,489 kg)
|
|
E-Stick Retracted (5) |
4,279 lbs (1,941 kg)
|
|
Load Height - Std |
12 ft (4 m)
|
|
Loading Height - Standard |
11 ft (3 m)
|
|
Loading Reach - Standard |
6 ft (2 m)
|
|
Reach At Load Height - Std |
6 ft (2 m)
|
|
Reach From Swing Pivot - Standard |
19 ft (6 m)
|
|
Reach From Swivel - Std |
19 ft (6 m)
|
|
Stick Dig Force - Standard |
7,841 lbs (3,556 kg)
|
|
Stick Lift At 2440 Mm (8 Ft) - Standard |
4,638 lbs (2,103 kg)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height To Top Of Suspended Cab |
9 ft (3 m)
|
|
Transport Height |
12 ft (4 m)
|
|
Transport Length |
23 ft (7 m)
|
|
Transport Width |
8 ft (2 m)
|
|
Wheelbase |
7 ft (2 m)
|
| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
268 cu in (4,392 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3054B DI |
|
Engine Model - Optional |
Cat 3054C DIT |
|
Engine Model - Standard |
Cat 3054C DINA |
|
Gross Power |
77 hp (57 kw)
|
|
Gross Power - Optional - Sae J1995 |
85 hp (63 kw)
|
|
Gross Power - Sae J1995 |
78 hp (58 kw)
|
|
Net Peak Torque - 1400 Rpm - Optional - Sae J1349 |
256 lbs ft (347 nm)
|
|
Net Peak Torque - 1400 Rpm - Standard - Sae J1349 |
219 lbs ft (297 nm)
|
|
Net Power |
74 hp (55 kw)
|
|
Net Power (Optional) - Din 70020 |
78 PS |
|
Net Power (Optional) - Eec 80/1269 |
81 hp (60 kw)
|
|
Net Power (Optional) - Iso 9249 |
81 hp (60 kw)
|
|
Net Power - Eec 80/1269 |
75 hp (56 kw)
|
|
Net Power - Iso 9249 |
75 hp (56 kw)
|
|
Net Power - Sae J1349 |
74 hp (55 kw)
|
|
Net Torque Rise - 1,400 Rpm - Optional |
34 % |
|
Net Torque Rise - 1,400 Rpm - Standard |
27 % |
|
Number Of Cylinders |
4 |
|
Power Measured @ |
2,200 rpm |
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
4th Gear Fwd (Since 2004)
|
20 mph (33 kph)
|
|
4th Gear Fwd (2006)
|
20 mph (33 kph)
|
|
Breakout Force (Since 2004)
|
8,980 lbs (4,073 kg)
|
|
Breakout Force (2006)
|
8,980 lbs (4,073 kg)
|
|
Digging Depth (Since 2004)
|
18 ft (6 m)
|
|
Digging Depth (Since 2006)
|
5 ft (2 m)
|
|
Lift Capacity (Since 2004)
|
5,453 lbs (2,473 kg)
|
|
Lift Capacity (Since 2006)
|
5,292 lbs (2,400 kg)
|
|
Loading Height (Since 2004)
|
14 ft (4 m)
|
|
Loading Height (2006)
|
14 ft (4 m)
|
|
Operating Weight (Since 2004)
|
15,257 lbs (6,919 kg)
|
|
Operating Weight (Since 2006)
|
11,376 lbs (5,159 kg)
|
|
SAE Net (Since 2004)
|
74 hp (55 kw)
|
|
SAE Net (2006)
|
74 hp (55 kw)
|
| Hydraulic |
|
Pump Flow Capacity |
37 gpm (139 lpm)
|
|
Pump Type |
LSPC, closed center |
|
Relief Valve Pressure |
3,002 psi |
| Hydraulic System |
|
2wd Cylinder - Bore |
3 in (7 cm)
|
|
4wd Cylinder - Bore |
3 in (7 cm)
|
|
Brake System |
Inboard/ oil-immersed |
|
Circuit Type |
Load-sensing, closed-center |
|
Power Steering |
Hydrostatic |
|
Pump Capacity At 2,200 Rpm |
37 gpm (140 lpm)
|
|
Pump Type |
Variable flow, axial piston |
|
Rod Diameter (1) |
2 in (5 cm)
|
|
Rod Diameter (2) |
2 in (4 cm)
|
|
Steering Type |
Front wheel |
|
Stroke (1) |
9 in (22 cm)
|
|
Stroke (2) |
8 in (21 cm)
|
|
System Pressure |
3,000 psi |
| Loader |
|
Bucket Breakout Force |
8,980 lbs (4,073 kg)
|
|
Bucket Breakout Force - Single Tilt |
8,524 lbs (3,866 kg)
|
|
Bucket Capacity |
1 cu yd |
|
Bucket Capacity - General Purpose |
1 cu yd |
|
Bucket Width |
89 in (226 cm)
|
|
Bucket Width - General Purpose |
89 ft |
|
Clearance At Max Dump Height |
9 ft (3 m)
|
|
Dig Depth |
5 in (14 cm)
|
|
Dig Depth - Single Tilt |
5 in (13 cm)
|
|
Dump Height At Maximum Angle - Single Tilt |
8 ft (3 m)
|
|
Dump Reach At Maximum Angle - Single Tilt |
3 ft (1 m)
|
|
Lift Capacity At Full Height |
5,452 lbs (2,473 kg)
|
|
Lift Capacity At Full Height - Single Tilt |
5,292 lbs (2,400 kg)
|
|
Reach At Max Dump Height |
2 ft (1 m)
|
| Operating Specifications - Backhoe |
|
Turning Circle - Outside - Front Wheels |
26 ft (8 m)
|
|
Turning Circle - Outside, Widest Loading Bucket |
34 ft (10 m)
|
| Operational |
|
Fuel Capacity |
34 gal (128 l)
|
|
Operating Weight 4wd |
15,212 lbs (6,899 kg)
|
|
Rear Tires Size 2wd/4wd |
19.5x24,10PR / 19.5L24,10PR |
|
Tire Size Front - 2wd / 4wd |
11Lx16,12PR/12.5 / 80x18,10PR |
|
Turning Radius |
18 ft (5 m)
|
| Power Train |
|
Forward - 2nd |
6 mph (9 kph)
|
|
Forward - 3rd |
12 mph (19 kph)
|
|
Forward - 4th |
20 mph (33 kph)
|
|
Power Shuttle Transmission - Forward 1st |
4 mph (6 kph)
|
|
Power Shuttle Transmission - Reverse 1st |
4 mph (6 kph)
|
|
Reverse - 2nd |
6 mph (9 kph)
|
|
Reverse - 3rd |
12 mph (19 kph)
|
|
Reverse - 4th |
20 mph (33 kph)
|
| Service Refill |
|
Cooling System - A/C |
4 gal (16 l)
|
|
Cooling System - High-Ambient |
4 gal (17 l)
|
|
Engine Oil - With Filter |
2 gal (8 l)
|
|
Front Axle (4wd) |
2 gal (8 l)
|
|
Front Axle - Planetaries |
0 gal (1 l)
|
|
Fuel Tank |
34 gal (129 l)
|
|
Hydraulic System |
21 gal (79 l)
|
|
Hydraulic Tank |
10 gal (38 l)
|
|
Rear Axle |
6 gal (24 l)
|
|
Transmission - Torque Converter - Power Shuttle - 2wd |
4 gal (15 l)
|
|
Transmission - Torque Converter - Power Shuttle - 4wd |
5 gal (18 l)
|
| Standards |
|
Brakes |
SAE J1473 October 1990 ISO 3450 1996 |
|
Cab - Rops |
SAE J397 SAE J1040 May 1994 ISO 3741 1994 |
|
Cab - Sound |
ANSI/SAE J1166 Oct 98 is 78.5 dB(A) |
|
Exterior Sound |
SAE J88 April 95 is 73.0 dB(A) |
| Tires |
|
Front 2wd Standard Size |
11L X 16 |
|
Front 4wd Standard Size |
12.5/80 X 18 |
|
Rear - 4wd Standard Size |
340/80 X R18 |
|
Standard Ply (1) |
12 |
|
Standard Ply (2) |
10 |
| Transmission |
|
Max Speed - Forward |
20 mph (33 kph)
|
|
Max Speed Reverse |
20 mph (33 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
4 |
|
Transmission Type |
power shuttle |
| Weights |
|
Counterweights - Option 1 |
320 lbs (145 kg)
|
|
Operating Weight - Maximum |
21,605 lbs (9,798 kg)
|
|
Operating Weight - Nominal |
15,257 lbs (6,919 kg)
|
